V0 Neopixel Front Bed Mount v. 1.0.0

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!
 Share

4 Screenshots

  • Like 6

About This File

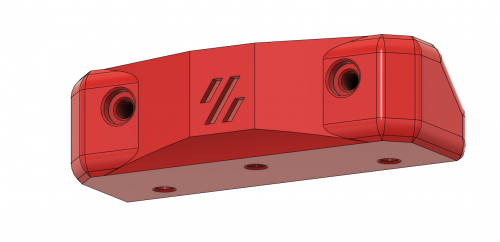

This replaces the stock V0.1 Front Bed Mount, adding a slot for a single Neopixel or Dotstar LED from a standard 10mm strip. There are channels to run the wires stealthily to inside of the bed frame extrusions on either side.

Instructions

  • Print Diffuser_x1 with 100% infill using a transparent or white ABS, textured build surface is a bonus.

  • Print Front_Bed_Mount_x1 using standard Voron print settings

  • cut a single Neopixel or Dotstar LED from a 10mm strip, and 3 (or 4 for Dotstar) equal lengths of wire, long enough to reach from the front bed mount, under the bed, through the cable chain and all the way to your mainboard.

  • insert the LED into the slot on the front of the bed mount, and route the wires through one or both of the channels

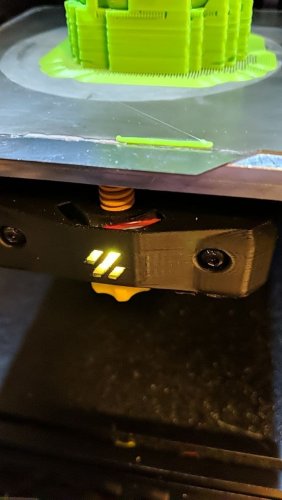

  • insert the diffuser in the slot in front of the LED, ensure a good friction fit. if necessary, print the diffuser slightly thicker or thinner by scaling it in your slicer.

  • Install the new Bed mount, making sure the wires are not pinched by the extrusions, they should run directly into the slot, you can use zip ties to secure it.

  • route the wires through the cable chain, and around to wherever your mainboard is mounted.

  • mainboard connections and klipper configuration are left as an exercise to the reader.
