LGX Lite Toolhead PCB Mount v. 2022.01.17

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!
 Share

5 Screenshots

  • Like 6

About This File

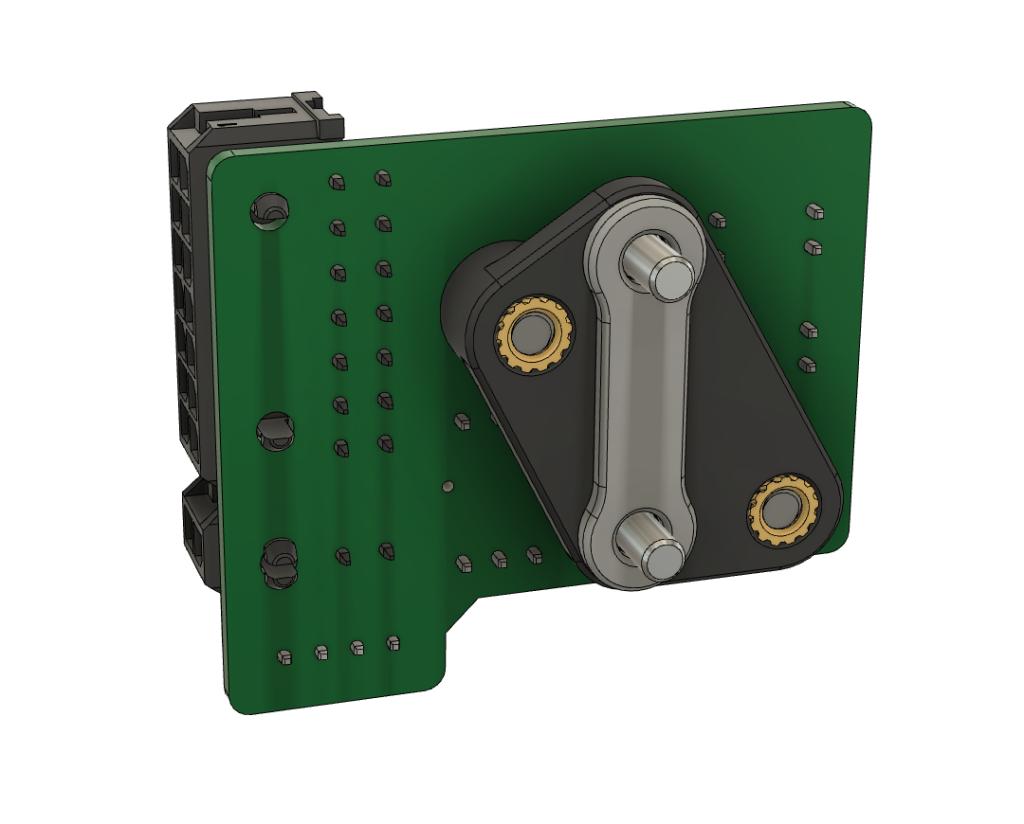

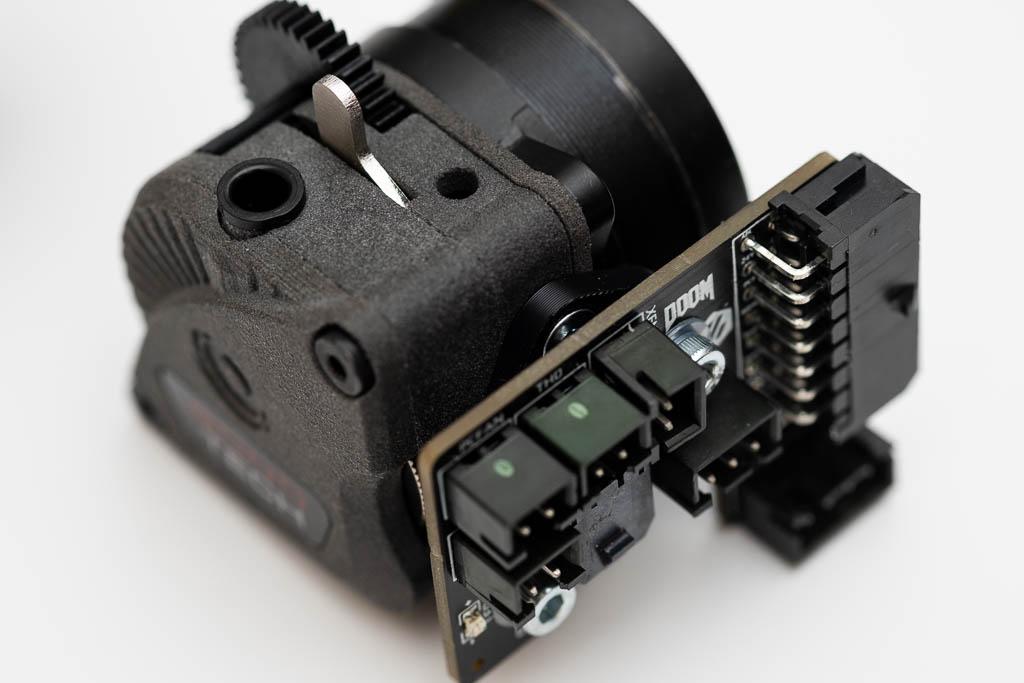

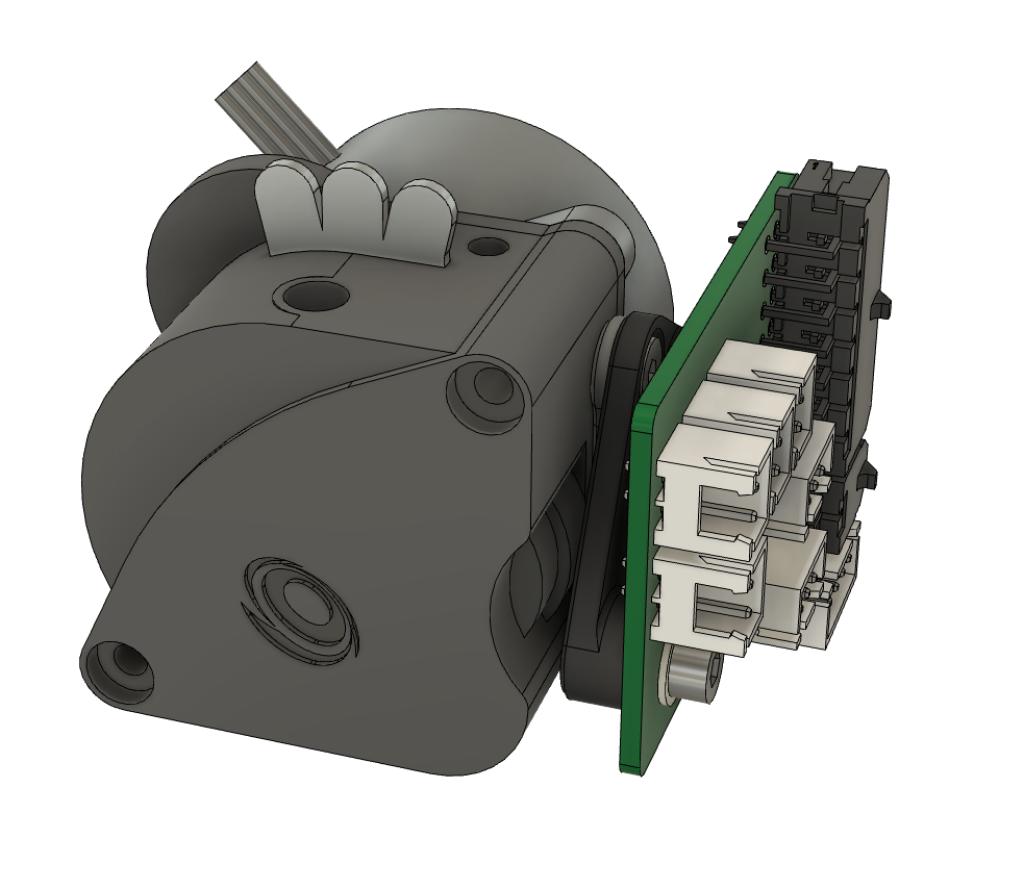

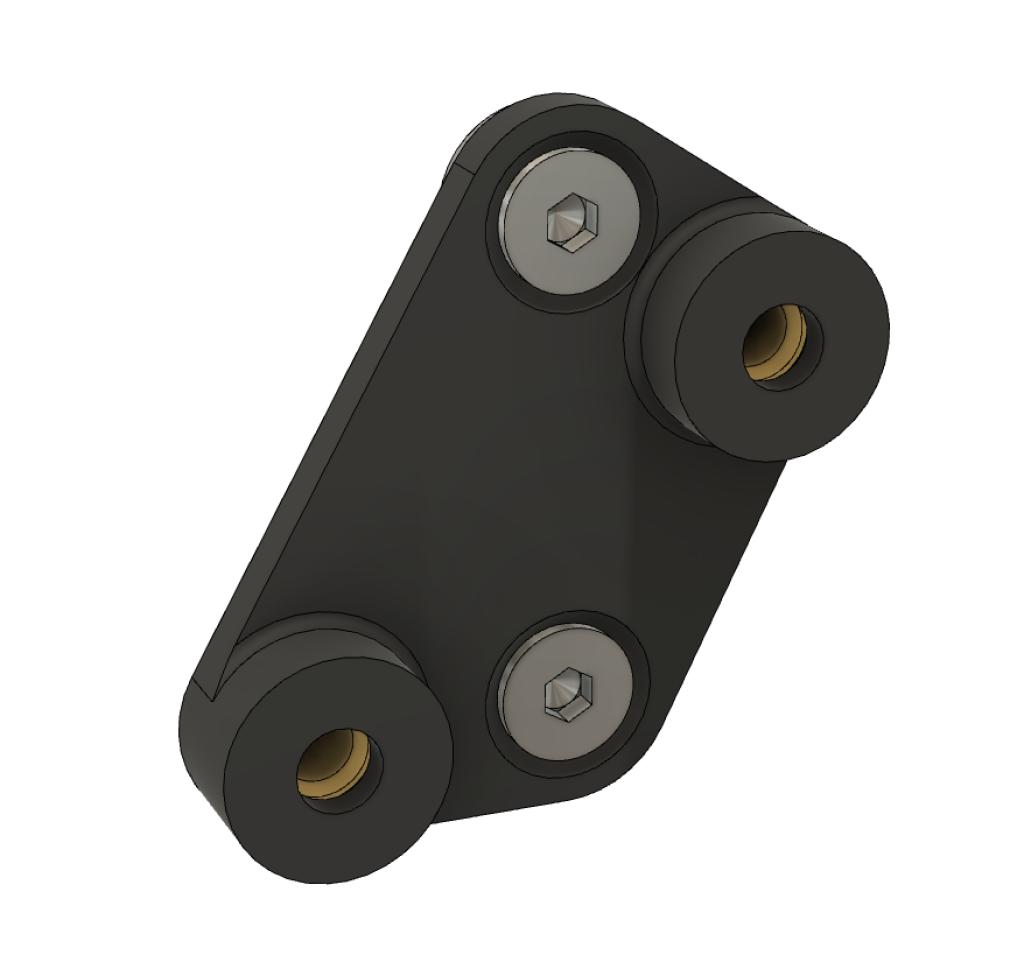

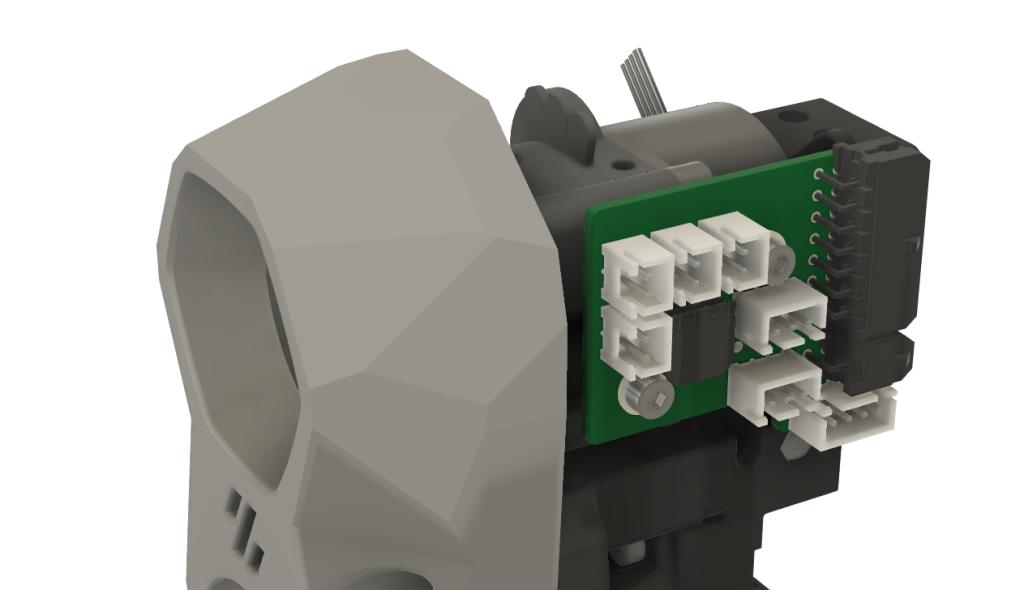

LGX Lite toolhead PCB mount

Use with Mrgl-Mrgl's LGX Lite and cable chain mounts https://github.com/Mrgl-Mrgl/VoronUsers/tree/master/printer_mods/Mrgl-Mrgl/LGX_Lite_Mount

Tested with version 3.2 of the toolhead PCB https://github.com/VoronDesign/Voron-Hardware/tree/master/Afterburner_Toolhead_PCB

Fasteners

  • 2 x M3x5x4 threaded inserts (the standard Voron M3 threaded inserts)
  • 2 x M3x8 countersunk socket head screws to attach the toolhead PCB mount to the LGX Lite body side (with square nuts installed)
  • 2 x M3x8 socket head cap screws to attach the toolhead PCB to the mount (use plastic washers)
  • 2 x M3 plastic washers

Notes

  • install the threaded inserts from the flat side of the mount. This will leave some plastic between the threaded insert and the PCB to prevent damage to traces etc
  • use the spacer or washers between the mount and the LGX Lite body to avoid interference with the gears

Images

Fiction#5826 on Discord
