Voron2.4 Y Endstop Relocation v. 2021.04.26

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!
 Share

4 Screenshots

  • Like 1

About This File

This mod moves the Y endstop to the A drive, to go along with Arkeet's MGN12 mod that has the X endstop on the toolhead. This mod requires a 2 pin JST-XH to be soldered to the switch. The best way I have done it is to solder the wires to the JST-XH first, install it with a dab of super glue, then solder the wires to the Omron switch.

There are 2 different files

non pinned version

  • a_drive_frame_upper_with_jst_y_endstop.stl

pinned version (since this mod also works with the Voron2.4_Pins_Mod):

  • a_drive_frame_upper_with_jst_y_endstop_pinned.stl

here are a few pics for reference

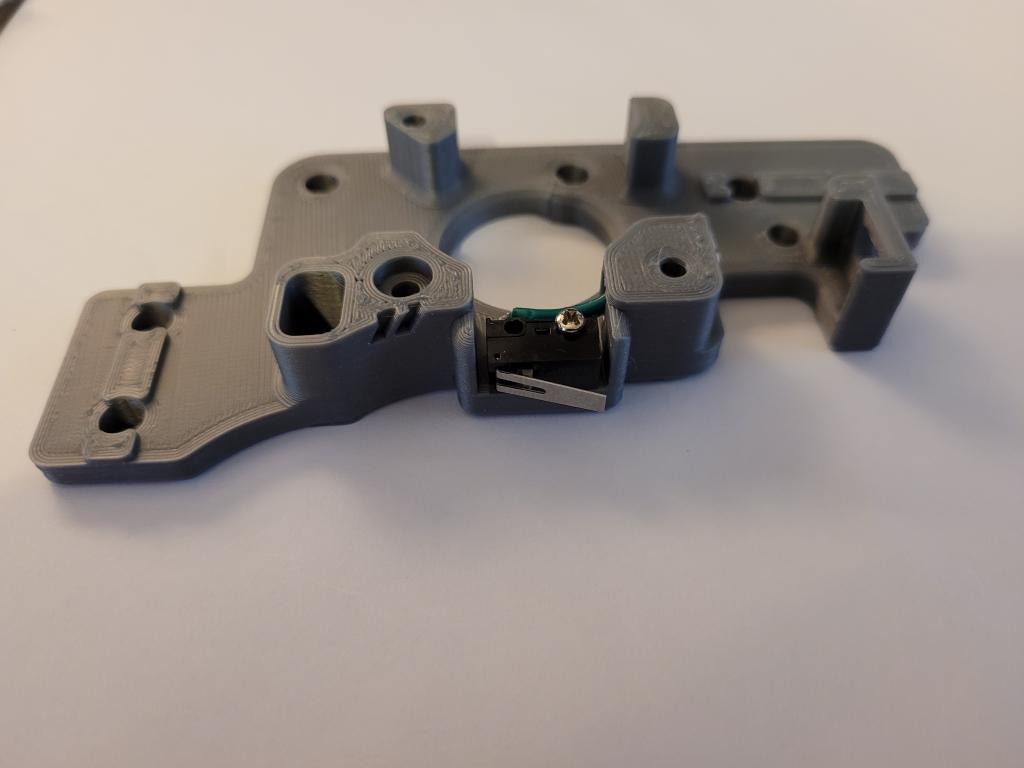

A Drive

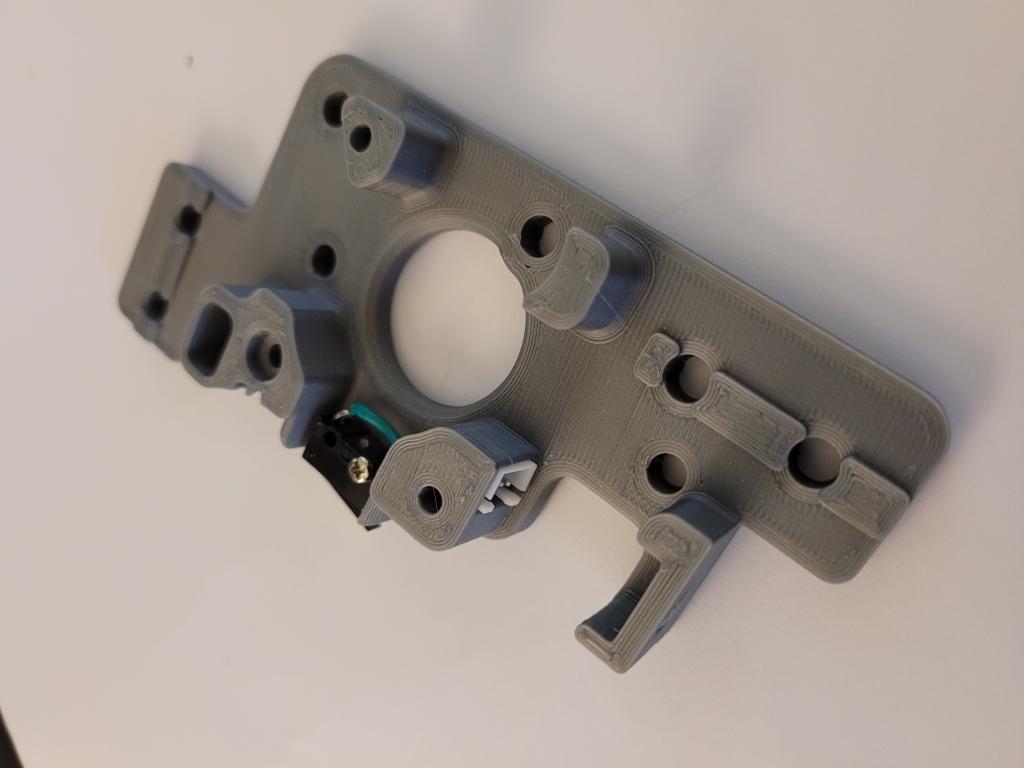

A Drive With JST

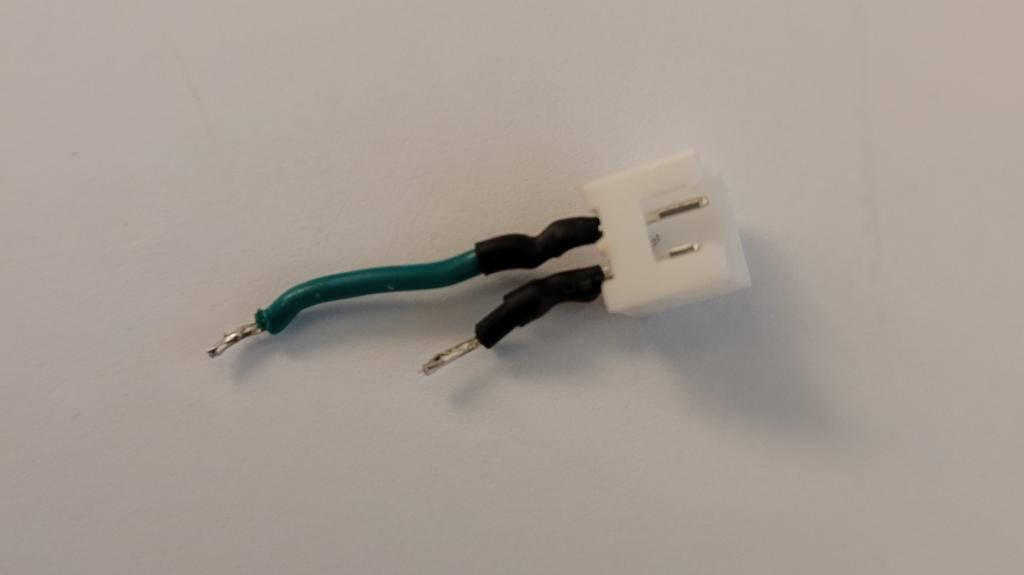

Jst with Wires

you might need to bend the pins a little bit to get them to fit around the curve

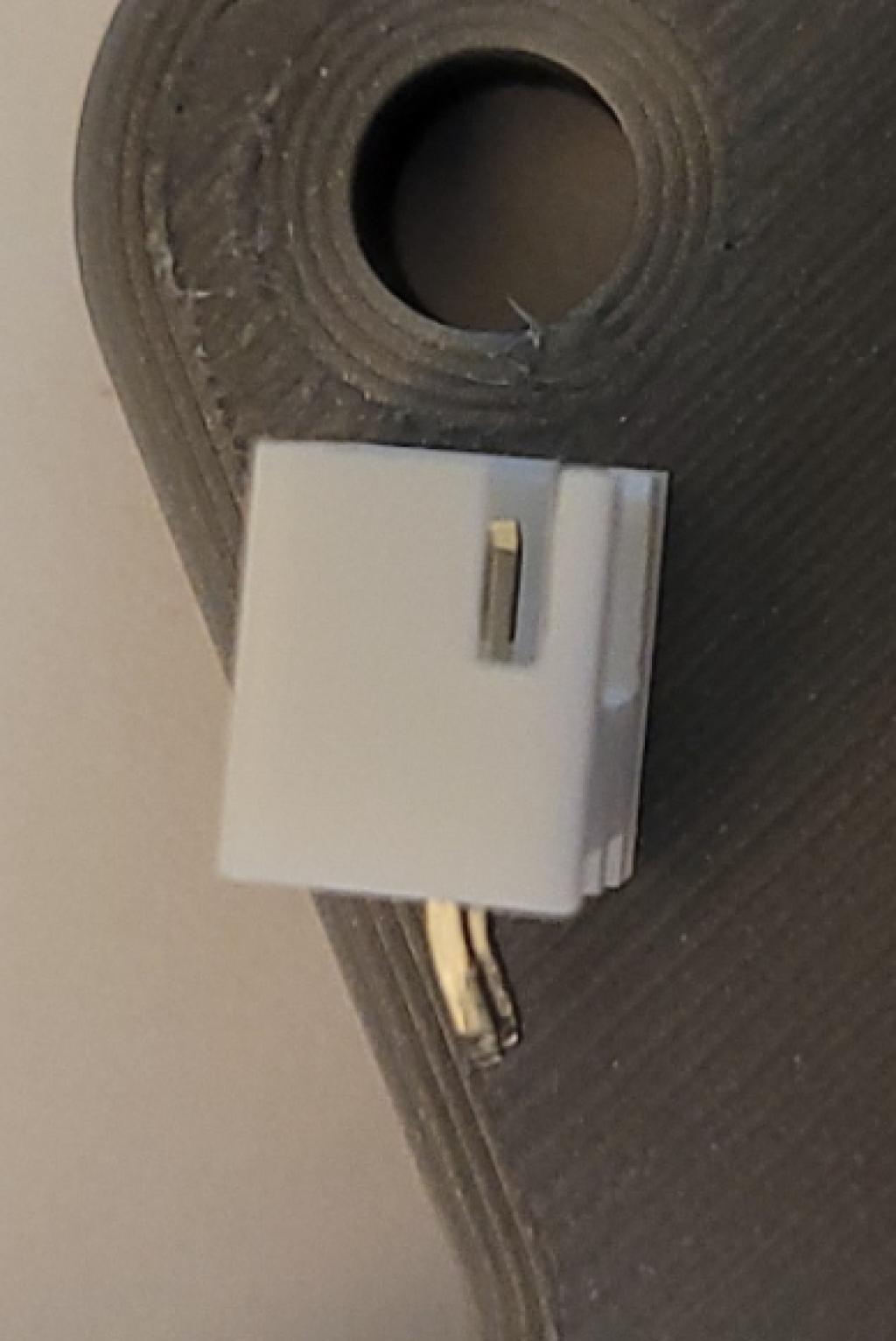

JST with bent pins
