V2.4 Handle

Carrying handle for Voron 2.4 with 6mm clearance for panel clamping. The design was heavily inspired by https://github.com/yanyixiang/Voron/tree/main/舒服坚固的手把BY_路易斯亚细亚.

The handle is mounted on 2020 aluminium extrusions with 5 T-nuts. It should also fit on Trident and Voron 1.8.

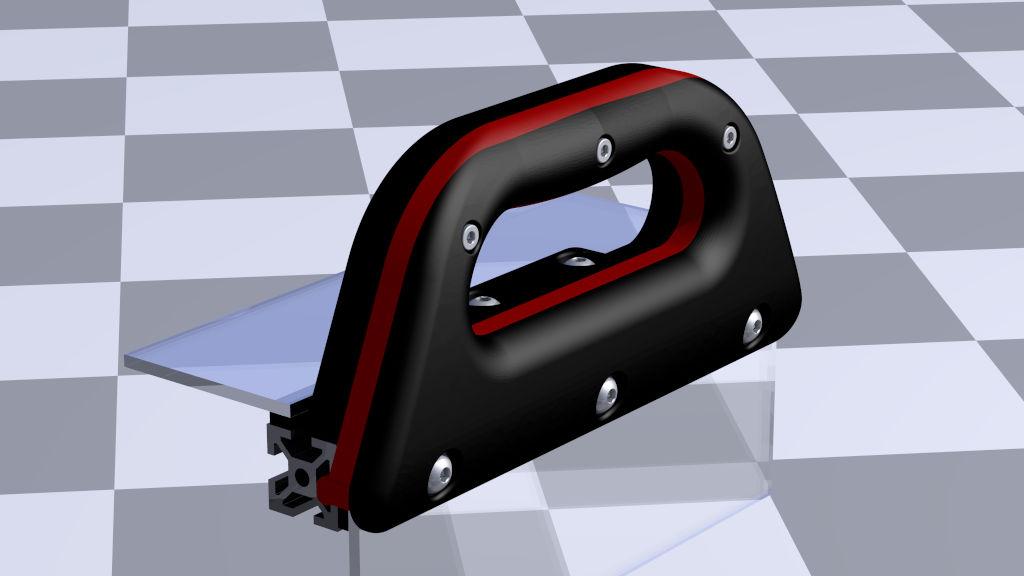

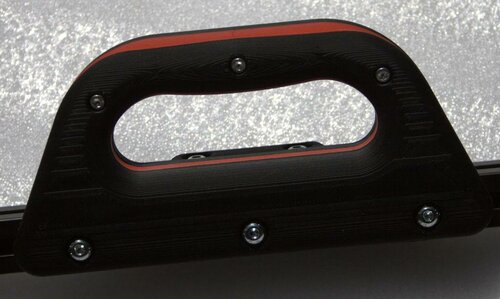

Voron 2.4 handle rendering Voron 2.4 handle

Printing

  • default Voron print settings
  • no supports needed
  • use accent color for middle part

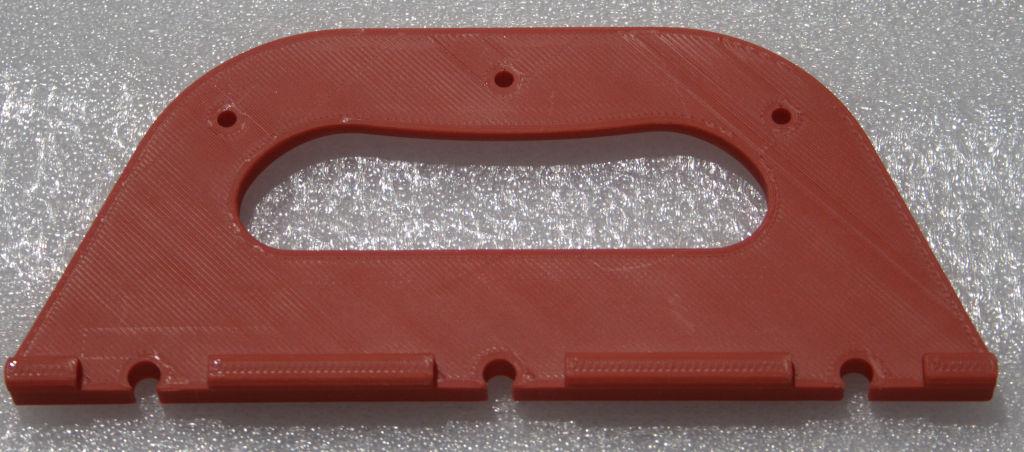

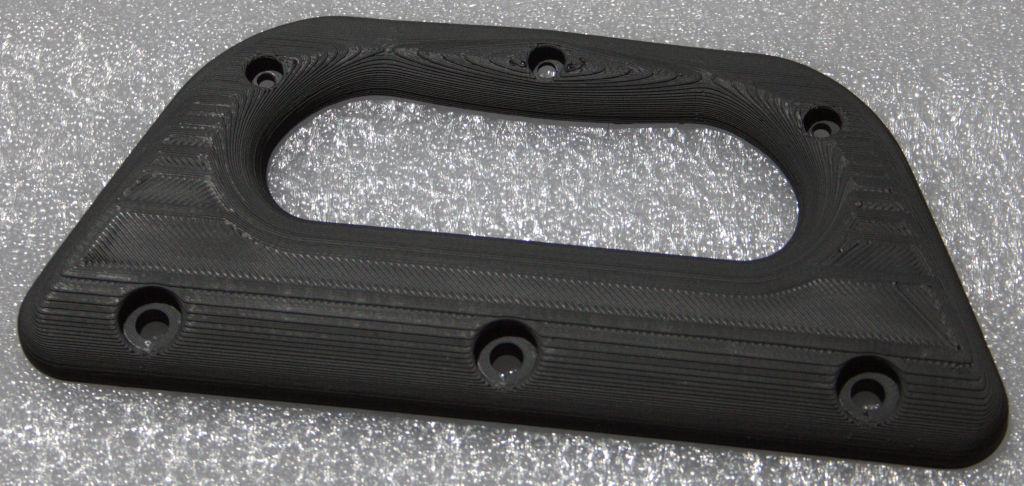

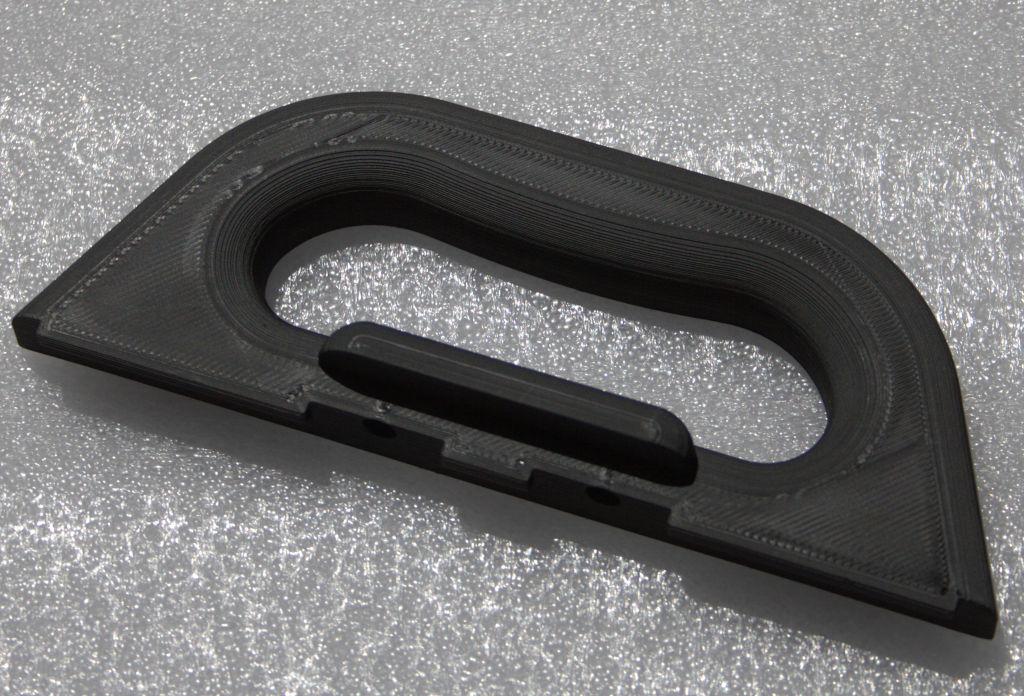

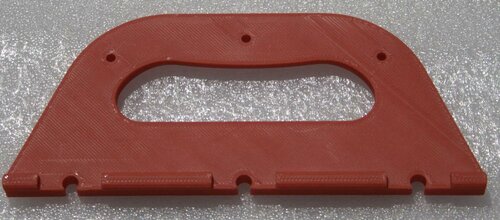

handle inner part handle middle part handle outer part

BOM

Size Qty
M3x12 SHCS 3
M5x16 BHCS 5
M5 T-Nut 5
M3 heat set inserts 3

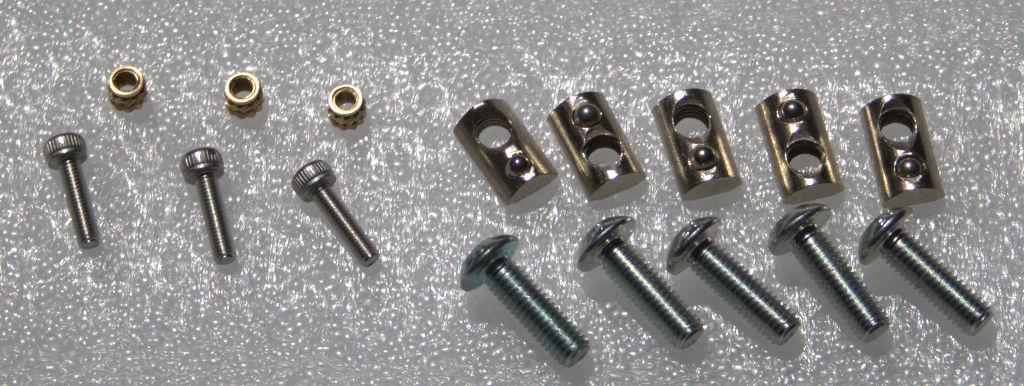

nuts and bolts

Assembly instructions

  1. put heat set inserts in inner handle part

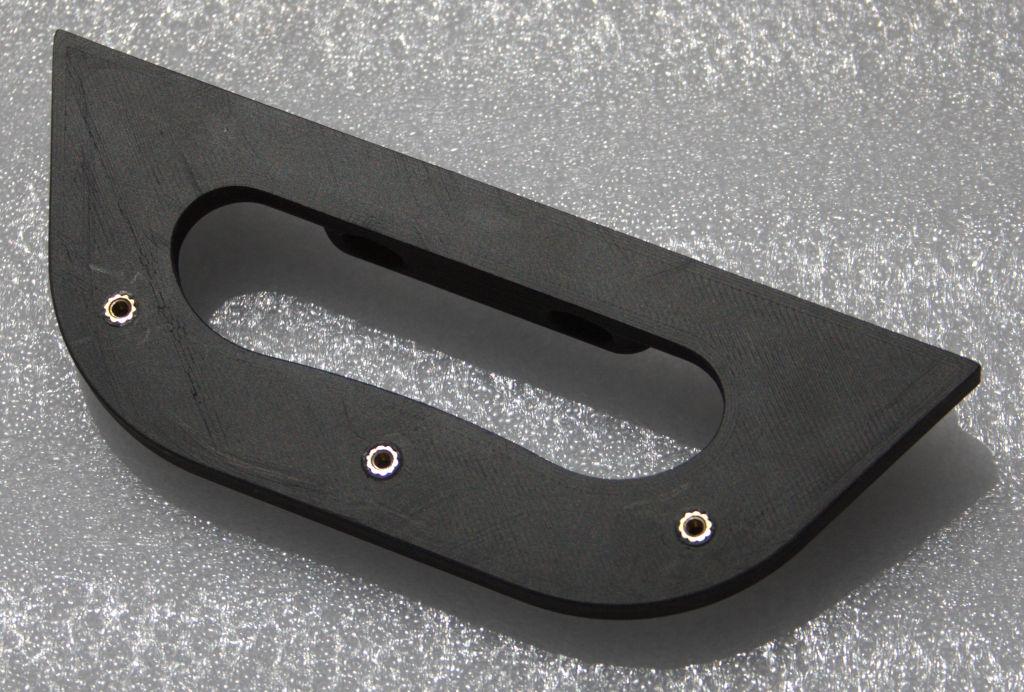

insert heat set inserts

  1. put T-nuts in aluminium extrusion (2 T-nuts in top slot, 3 T-nuts in side slot, coarsely adjust hole distances)

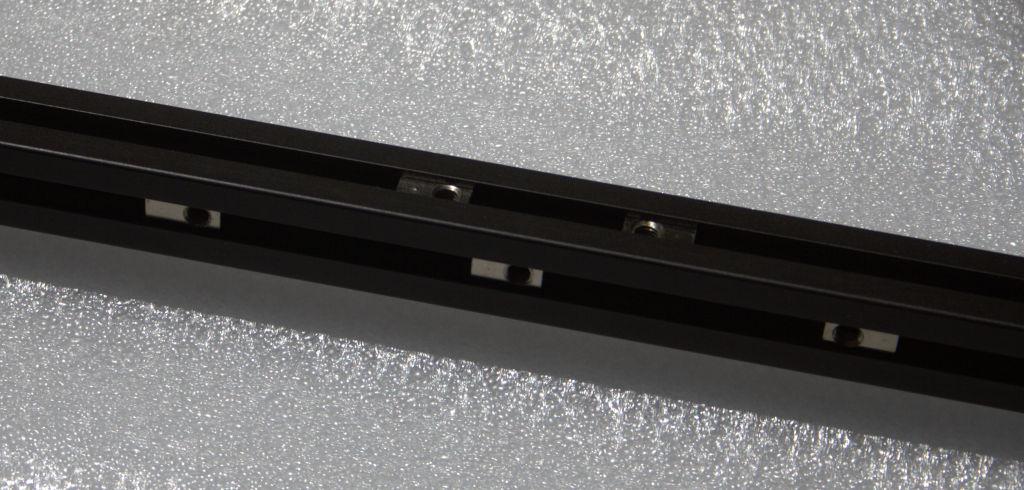

T-nuts in extrusion

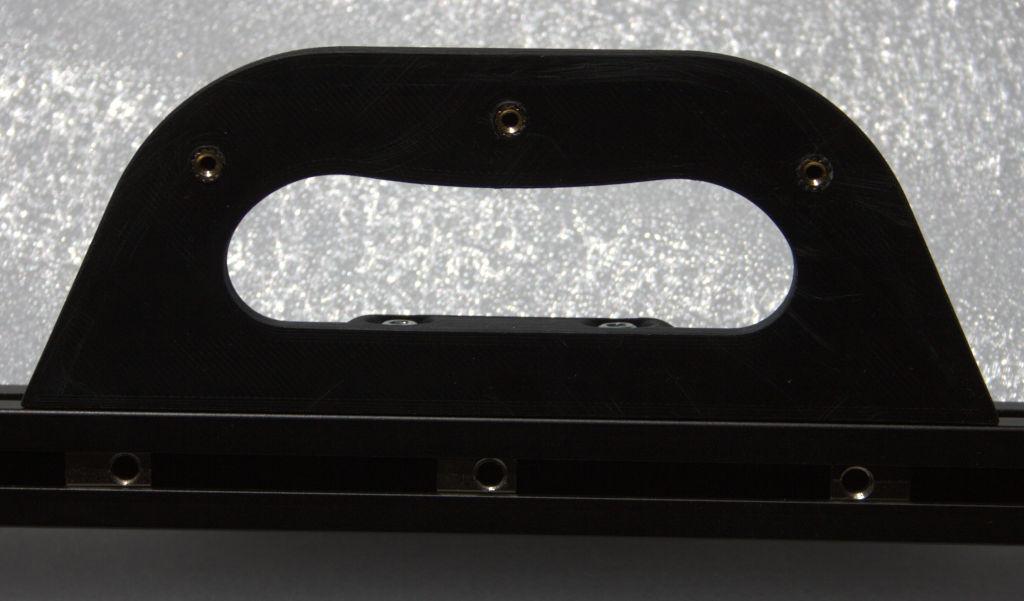

  1. attach inner handle part to top side of the extrusion attach inner handle

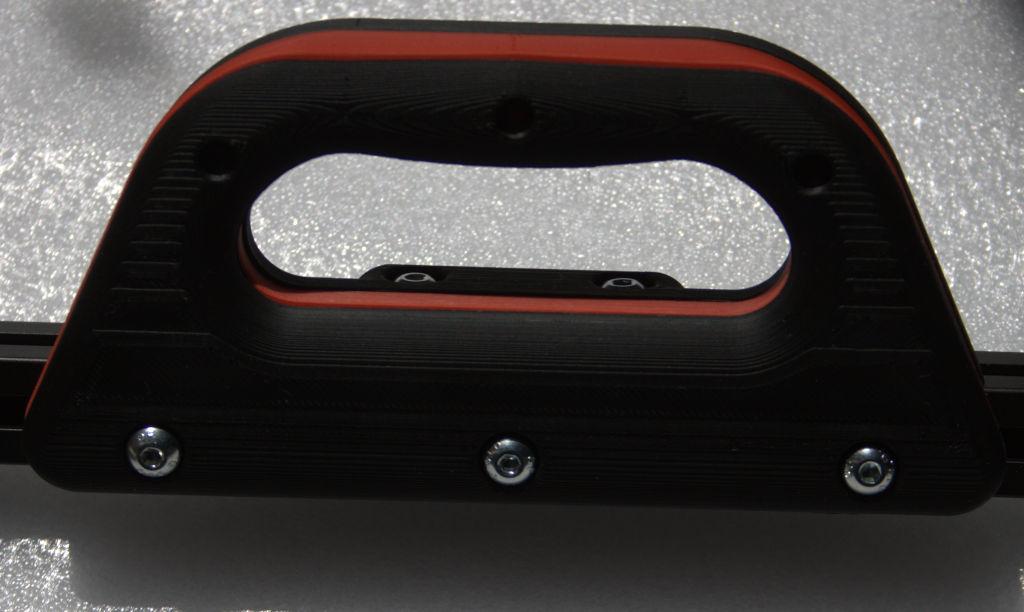

  2. attach middle and outer handle part to the side of the extrusion; do not tighten M5 screws yet attach middle and outer handle

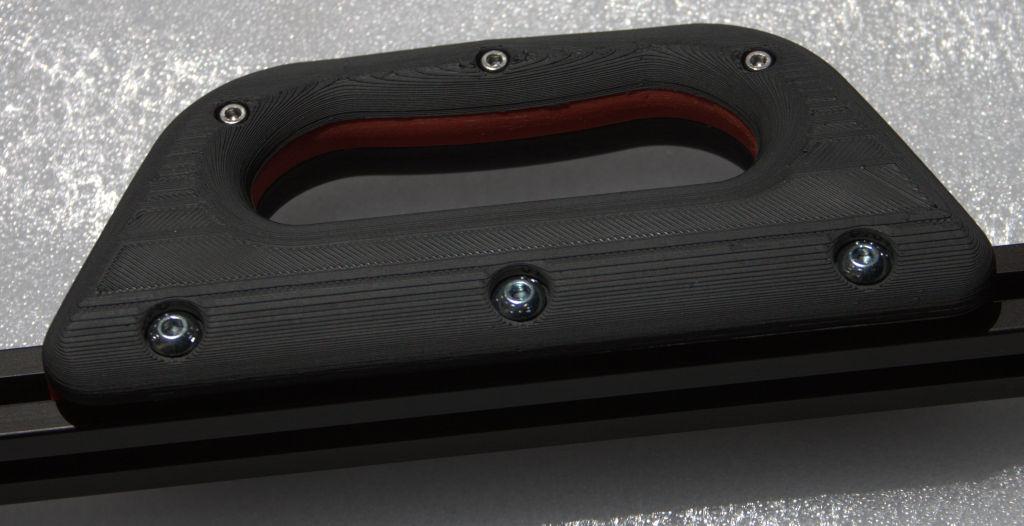

  3. align parts and put in M3 screws; tighten all screws combine parts
