PITFT50 45 Degree Mount v. 2022.04.07

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!

1 Screenshot

  • Like 14

About This File

BTT PITFT50 45-degree Mount

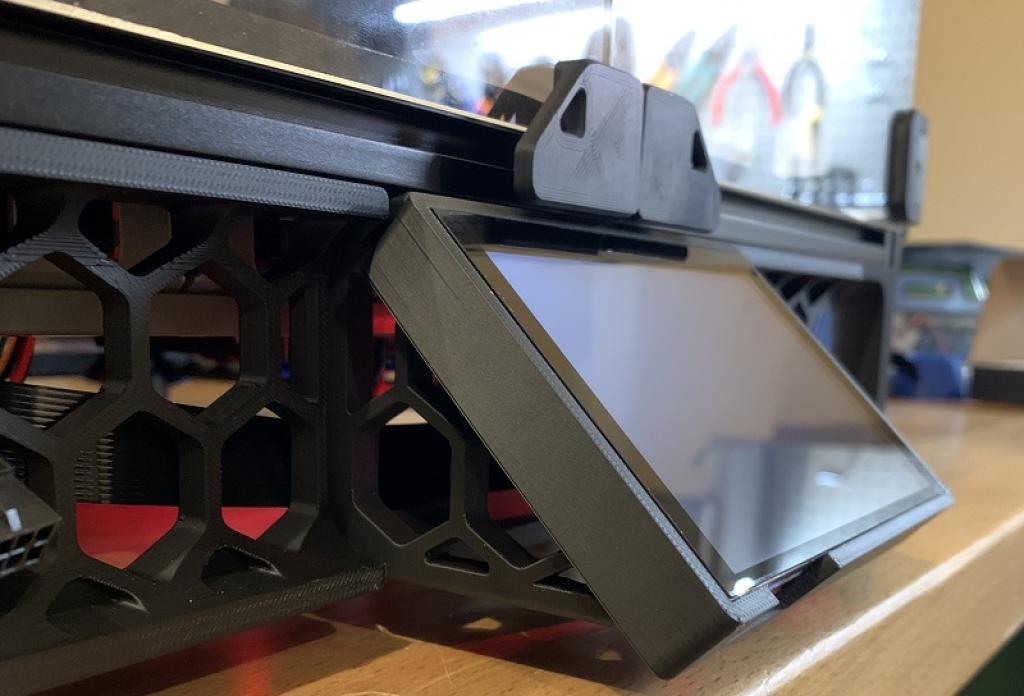

This mod is an alternative frame mount for alanho's PITFT50 screen mount. They suggest using the frame mount from sttts, which puts the screen at a 30-degree angle. I found that with the shorter guitar amplifier feet on the Trident and 2.4r2, the 30-degree mount makes the screen assembly too tall to fit under the frame. This mod replaces the 30-degree frame mount with a 45-degree mount, which provides plenty of clearance.

This design was created from scratch, but was heavily inspired by other mods:

This was tested with a BTT PITFT50 v2, but will likely also work with sttts's 5.5-inch Waveshare mount, since the hole pattern is the same.

Bill of Materials

Assembly Instructions

  • Assemble the screen mount
  • Use 4x M3x8 SHCS to attach the frame mount to the screen mount
  • Insert 2x M3 T-nuts into the bottom of the frame
  • Thread 2x M3x8 SHCS into the T-nuts to attach the mount to the frame


I printed with standard Voron settings, but this would probably be fine with fewer walls and less infill. I found this part very prone to warping, so you may want to use a brim or ears.
