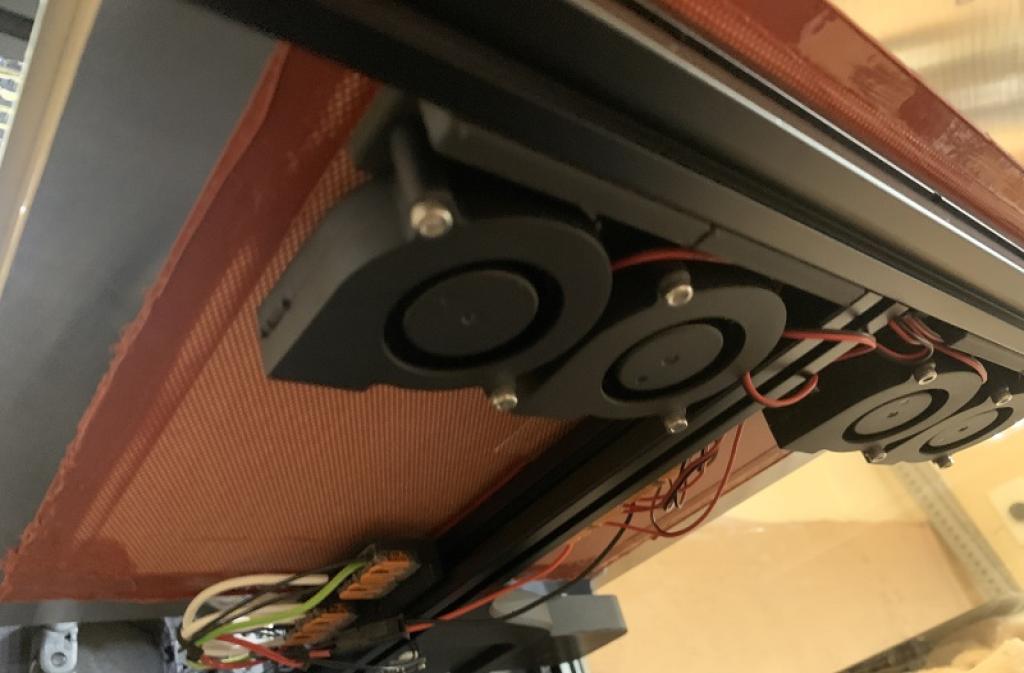

Trident Bed Fans

Andrew Ellis's Bed Fans, adapted to mount on a Trident. See his mod for some useful macros and more information.

Bill of Materials (per fan):

  • 1x 5015 Blower Fan
  • 2x M3x20 SHCS
  • 1x M3x8 SHCS
  • 2x M3 Threaded Insert

Install Instructions (per fan)

Note: Install the printed mount onto the extrusion before attaching the fan. The mounting screw will be inaccessible once the fan is attached.

  • Heat-set the threaded inserts into the holes in the L-shaped section
  • Add one M3 T-nut to the rear-facing slot of the bed extrusion
  • Use 1 M3x8 SHCS to attach the printed mount to T-nut, aligning the bump in the printed part with the slot on the extrusion.
  • Pass 2 M3x20 SHCS through the fan mounting holes and screw into the threaded inserts to attach the fan to the printed mount
