Buurman

   2 of 2 members found this review helpful 2 / 2 members

What have I been doing before this??? and WHY??

This mod really made me go halleluja, I have been trying out so many door hinges, but this is the one.. why didnt I start here...

The drill guides are .. godlike, so easy and I just took the chance on them, didnt verify (who has the time) just went with it..

My panels are a little thicker too, 3.2mm just about.. and worked perfectly with this, but I am guessing thinner panels too, I will try in a few weeks again with a stock Formbot kit.

THESE ARE THE HINGES!! no doubt.. if you dont need 270 degrees, but can do with about 200, GO! They dont stick out like other hinges AND they still leave space from my front idlers, since they are snug to the doors.. no problem with these!

For me the middle gap is not even 1mm, super straight and everything feels very solid.


  • Like 1
  • Thanks 1
Link to review
mwalter665

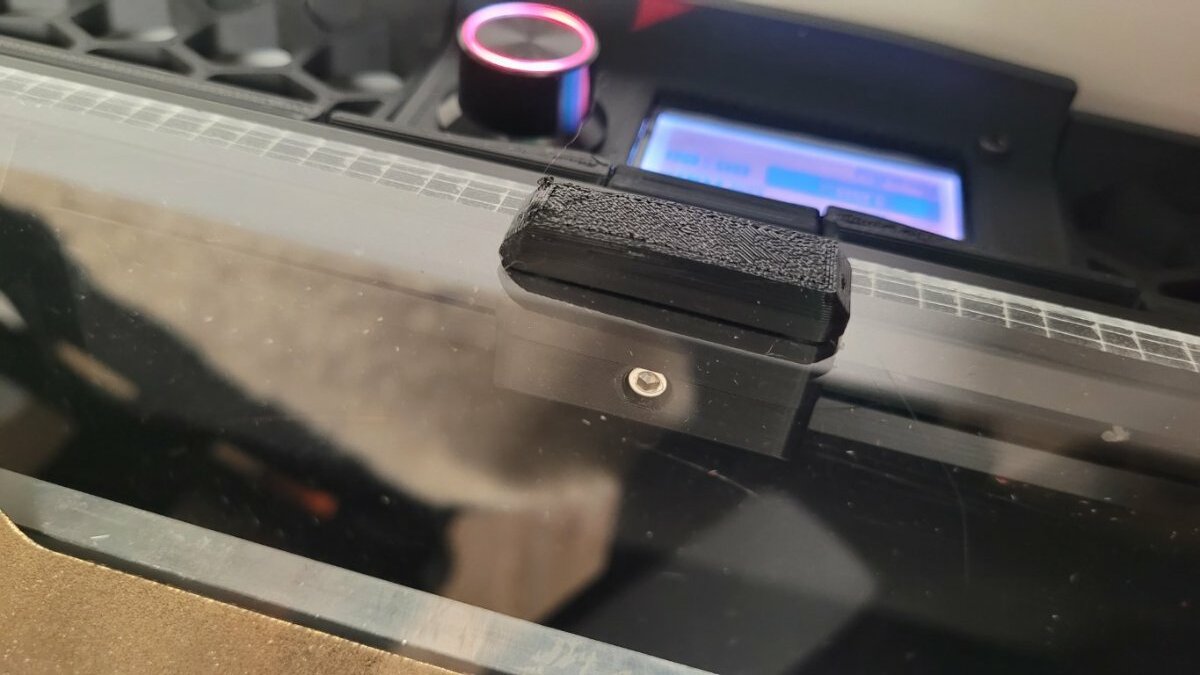

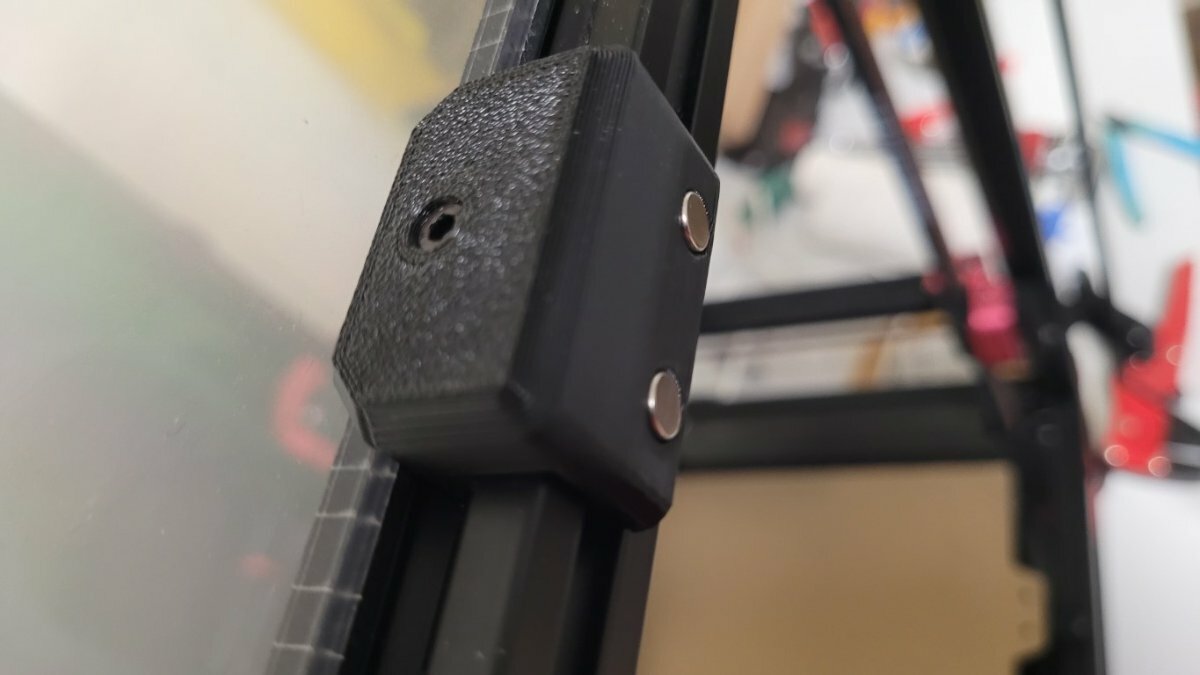

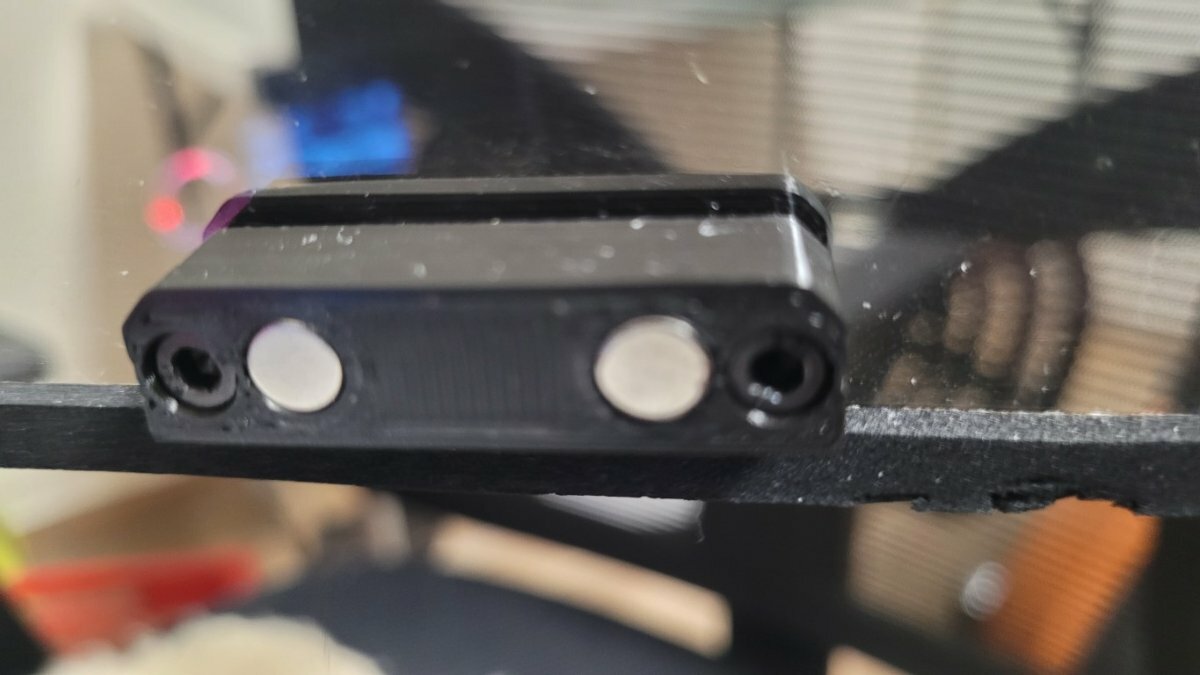

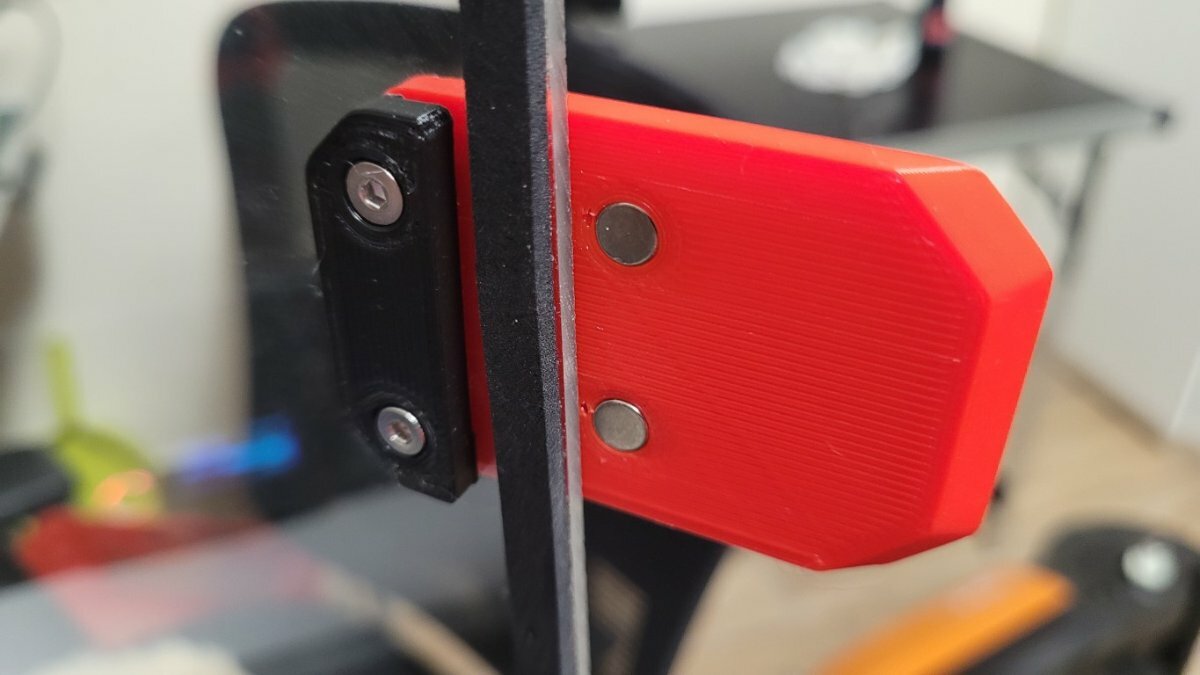

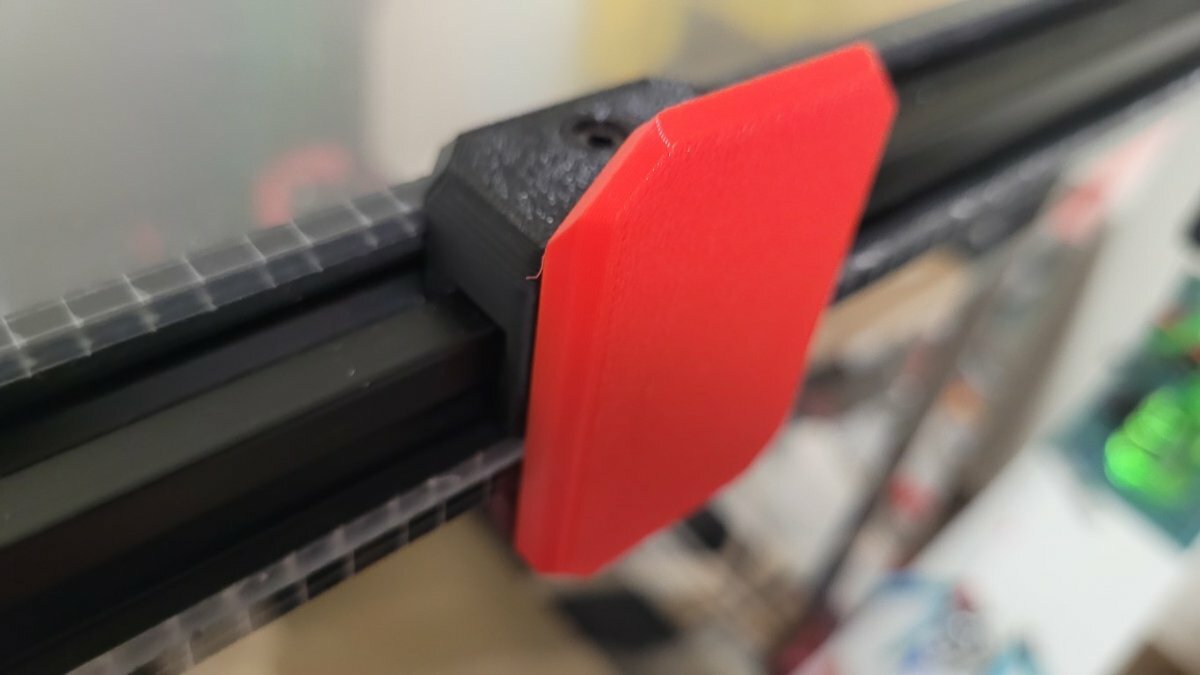

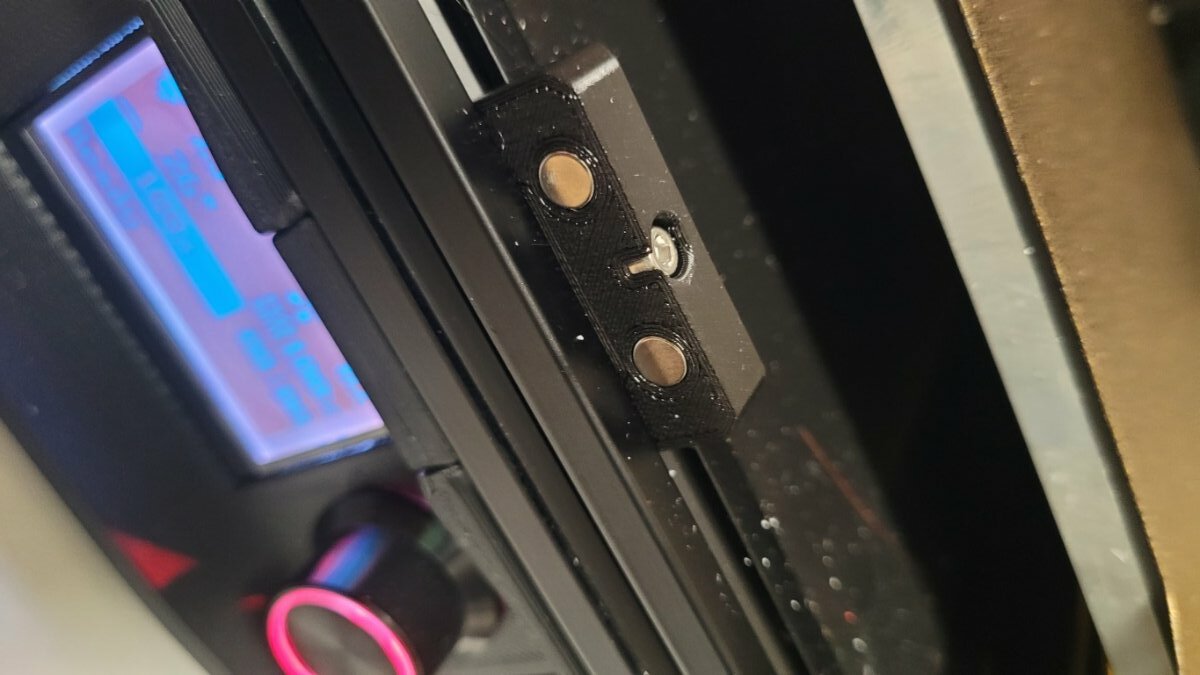

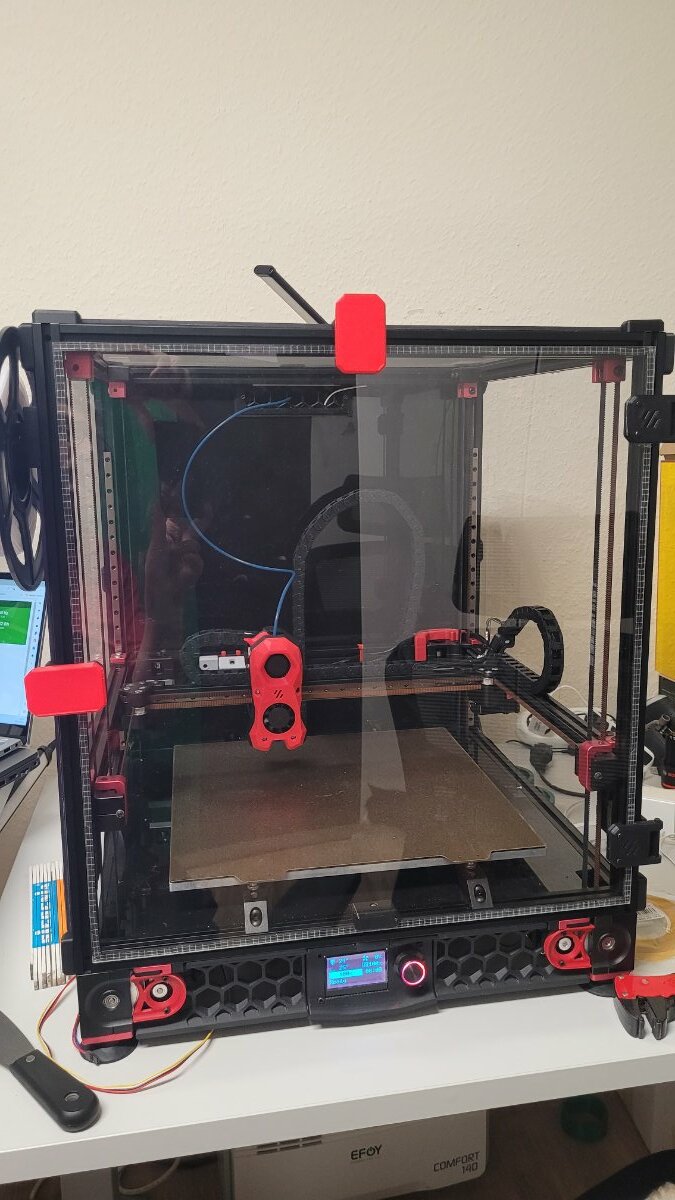

I is really great, but i used it for having only 1 great door with two hinges - so the matching problem in the middle is solved. Then i took your hinge_backplate and designed new shutter with magnet on the top and the side including fixing the top und side panel in one piece. At the bottom is another construction for the closing by magnet. Because of one piece for my design is from here i put my complete design also in here. Maybe some will find it helpfull for using only one door.





20230130_195248 (Mittel).jpg

20230130_195258 (Mittel).jpg


20230130_195313 (Mittel).jpg

20230130_195658 (Mittel).jpg

20230130_195612 (Mittel).jpg

20230130_195645 (Mittel).jpg

Tuergriff.stl Schiene-Tuermagnet.stl Tuer-innen.stl Rahmenhalter.stl Tuer-außen.stl

  • Like 1
Link to review
mvdveer



Great Design:

Printed these for the new build - a Trident 250mm, as the VB tape doors on the Voron 2.4, drives me up the wall - they keep separating.

Design: Functional and robust

Printing: Normal Voron Settings - tolerances perfect.

Assembly: Using the supplied drilling guides made this a breeze. Took the advice of the author and drilled 4mm holes. Gave some play to get everything 100% square. Assembled everything "off frame" before aligning and fitting these to the frame.

Opens and close very well, giving adequate room to access the printer in the chamber.

Looks: Aesthetically pleasing

Recommendation: Don't even think about it - do it, you won't regret it.

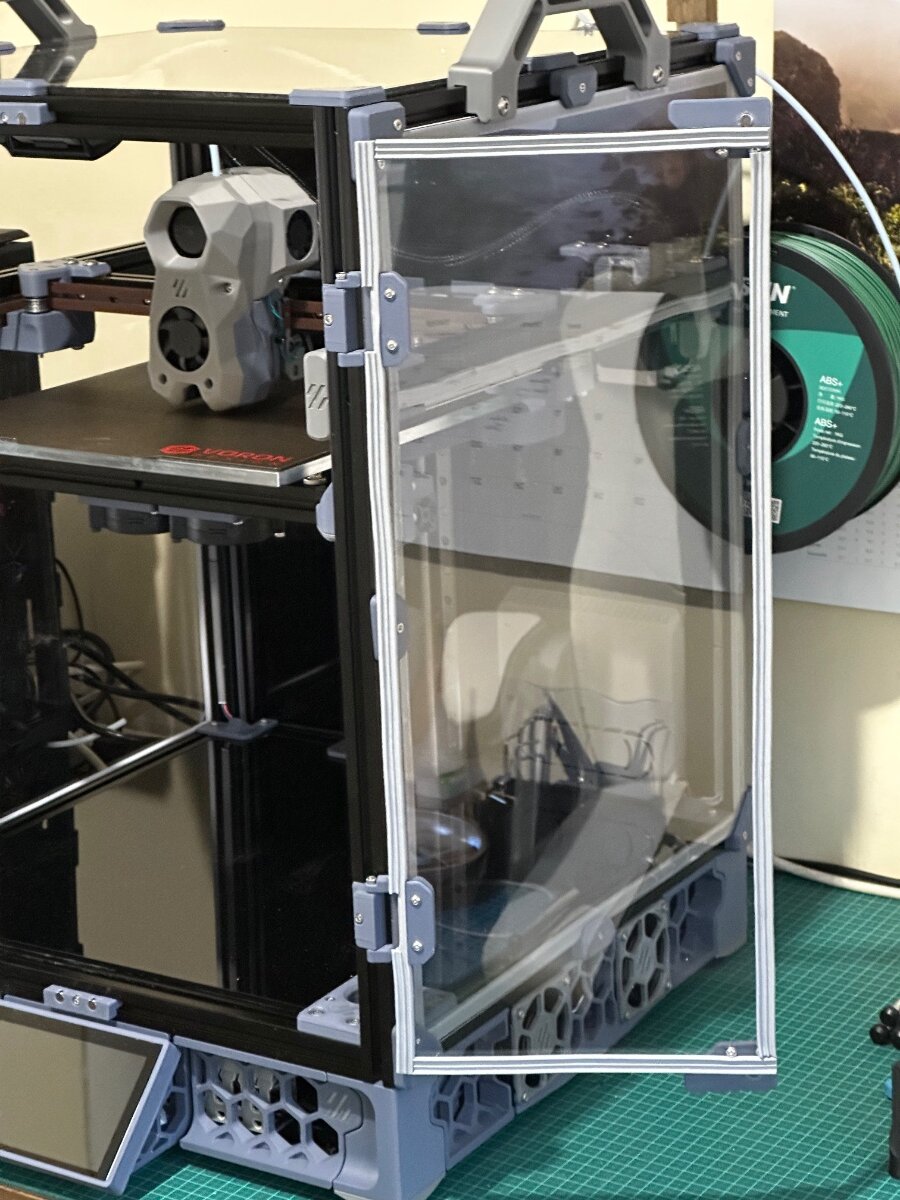

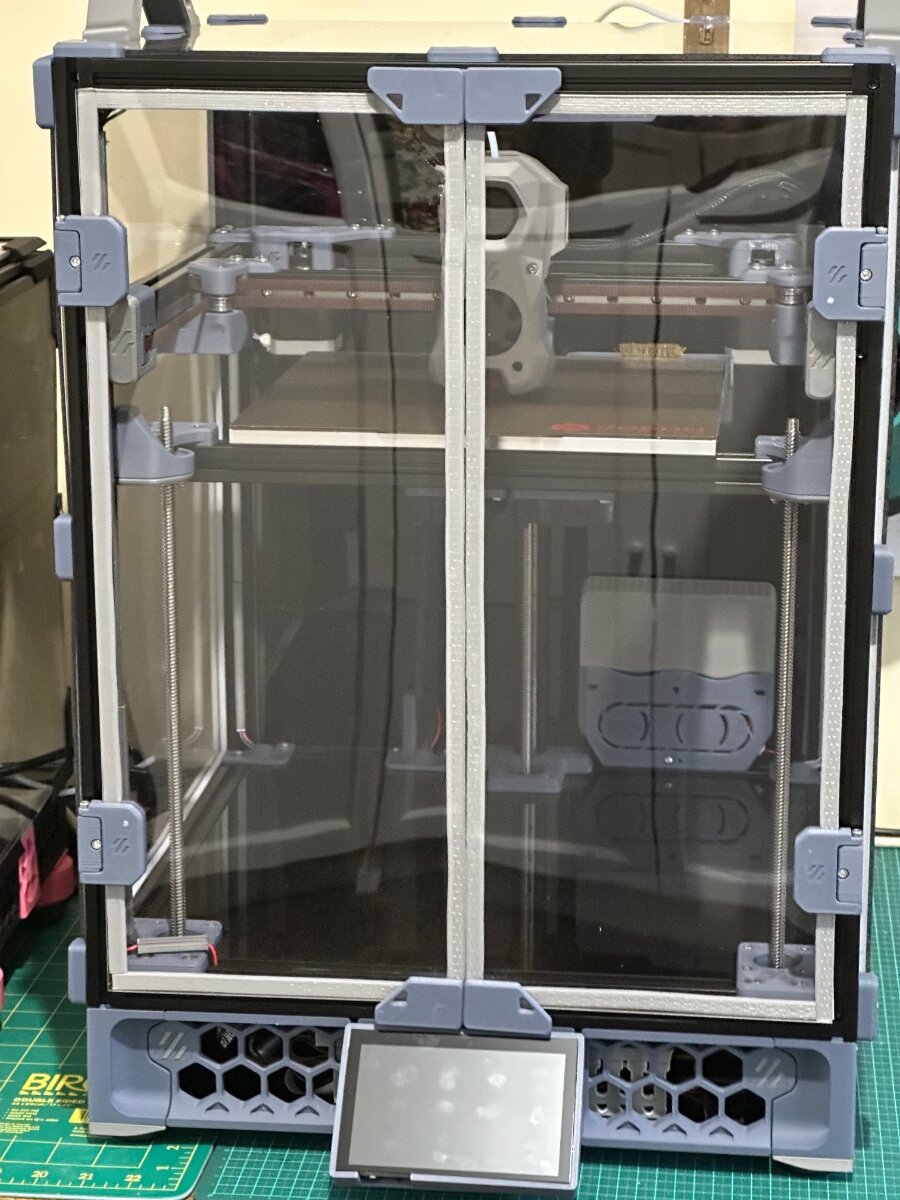

image.thumb.jpeg.50001f4d0aa174dac9f4087402d01b82.jpeg                      IMG_3692.thumb.jpeg.7e5ee9722b78e66ea88fdfafca7c3e5a.jpeg
