V0 Belt Tension Helper v. 2022.04.08

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!
 Share

14 Screenshots

  • Like 2

About This File

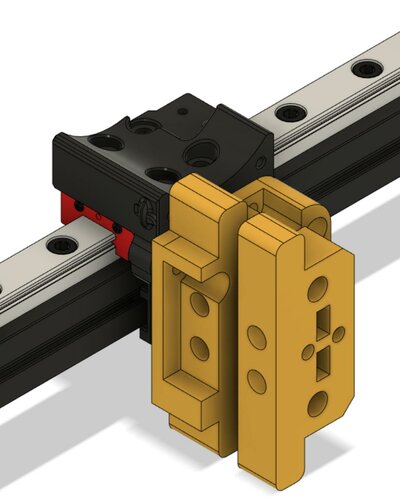

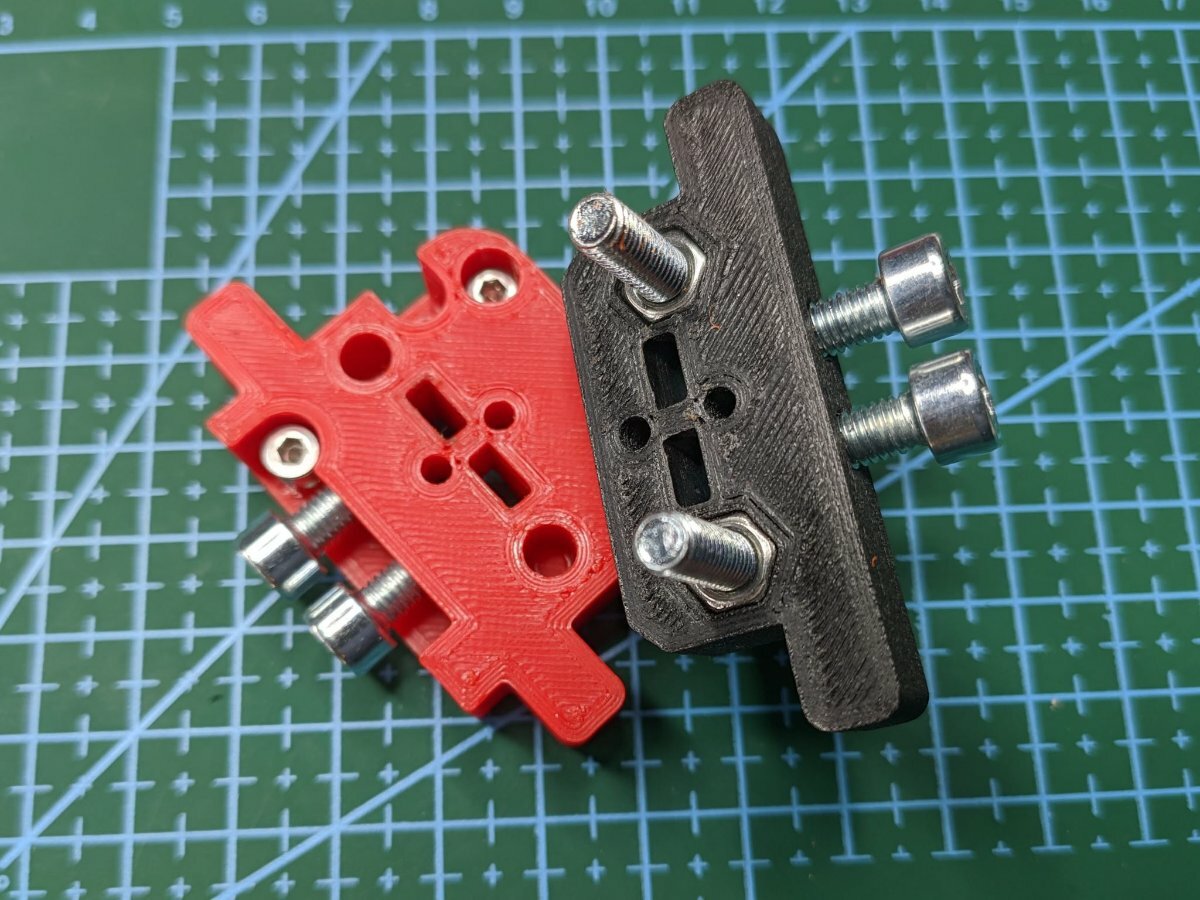

A belt tension helper - is a tool to do pre-tension of belts


A tool act as a helper to do initial belt tension. It is able to do individual belt tension or synced tension of belts


BOM

  • 2 or 3 M3 8mm bolts to mount helper to X-carriage

  • 2x15mm M5 bolts to fix belts when needed

  • 2x40mm M5 bolts and M5 nuts to perform tension

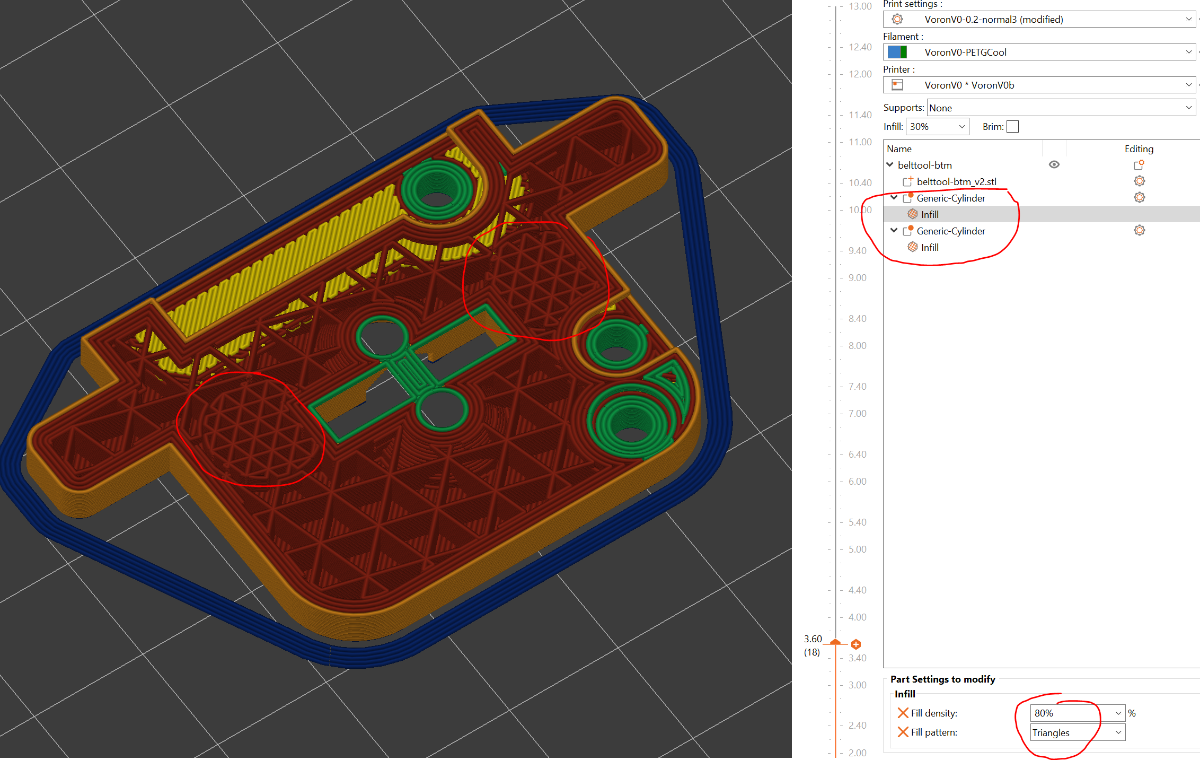

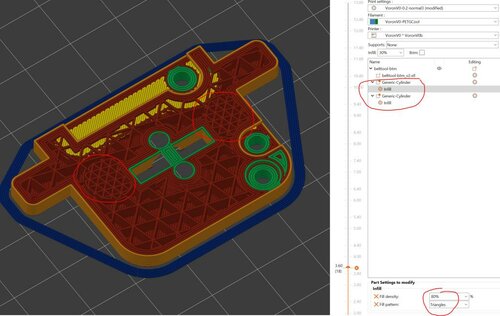

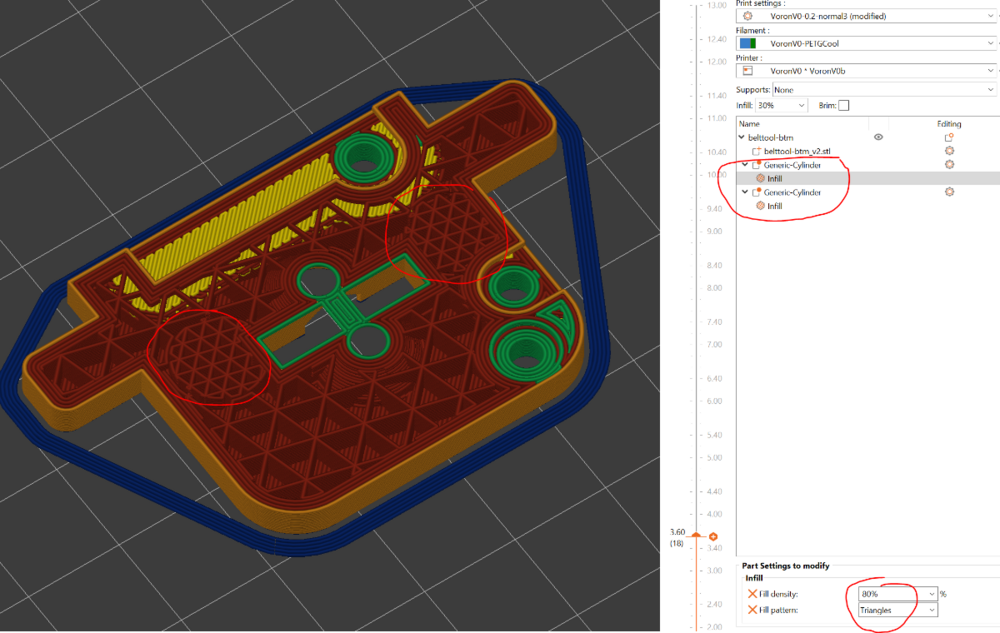

While printing use higher infill for bottom or use cylidric modifies to add strength for pads where M5 bolts will do pressure See example here:


Steps to perform:

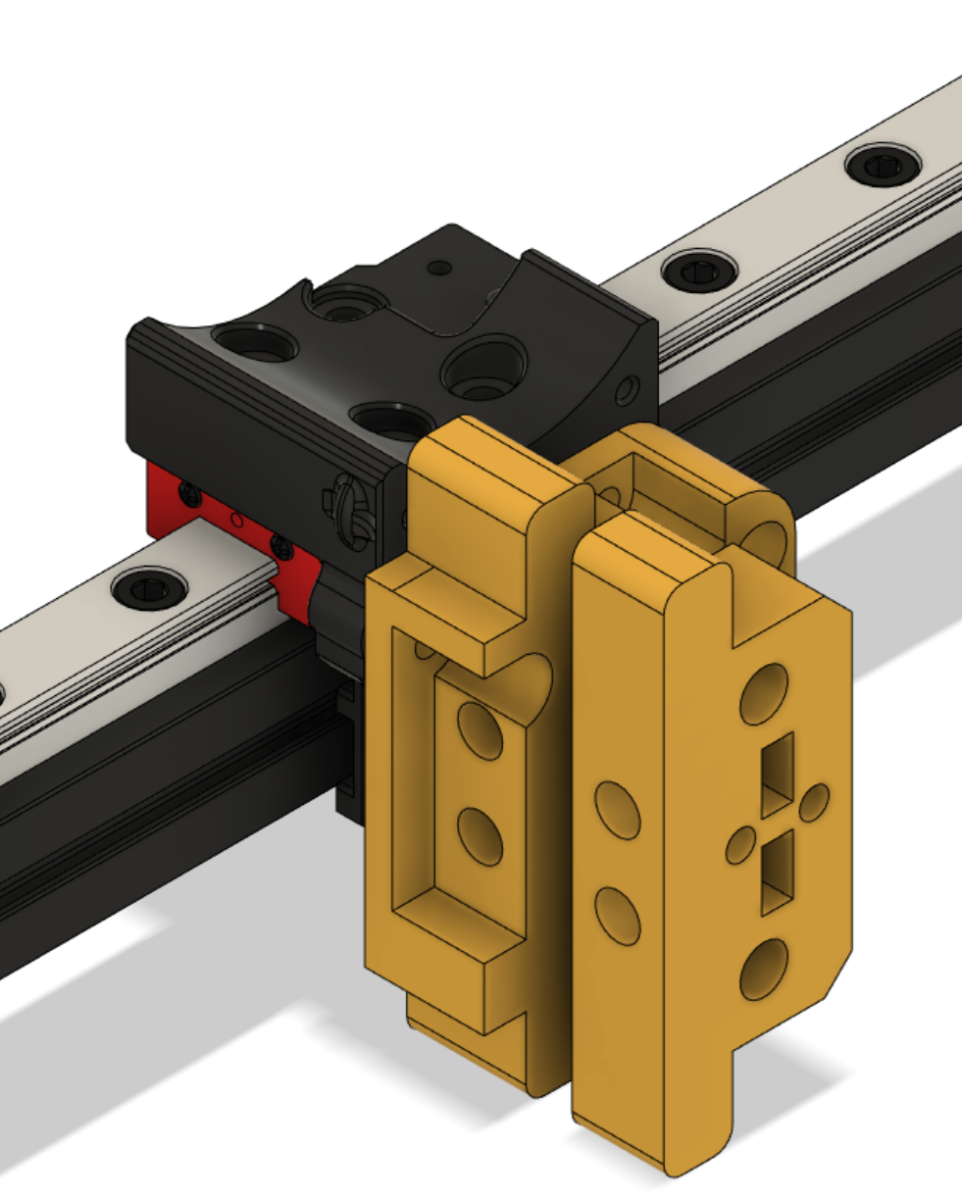

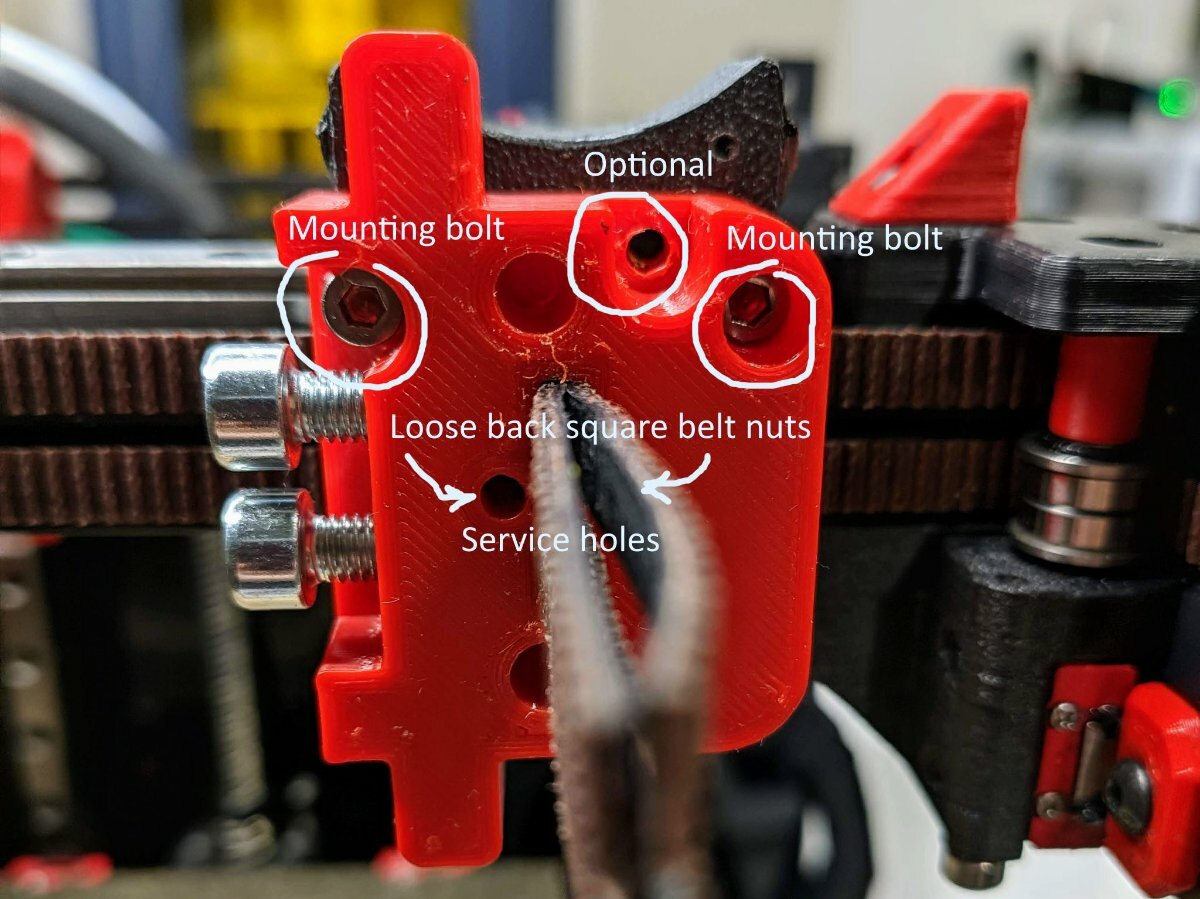

Step 1. Mount bottom part on X carriage and push thought belts. Keep in mind that loose belt backs square nut (use holes for regulate them)

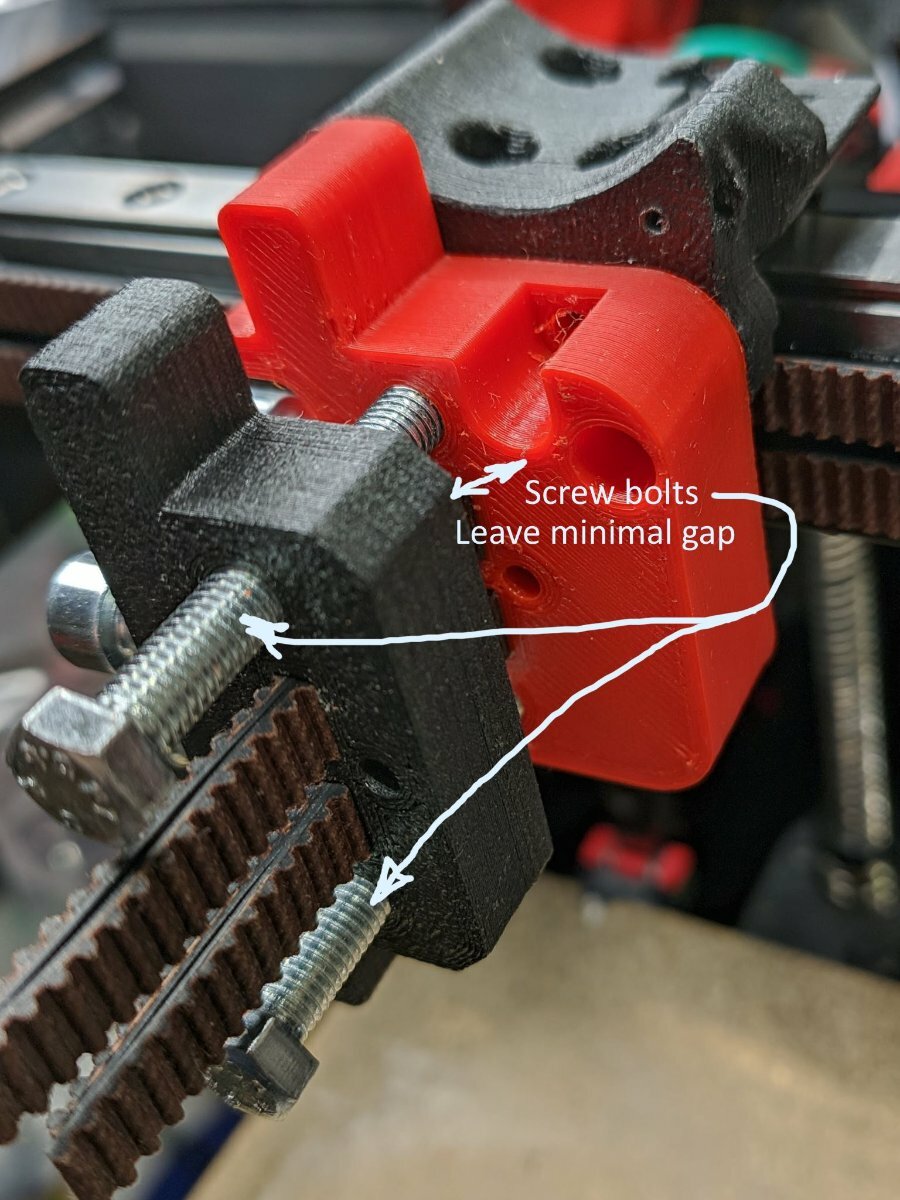

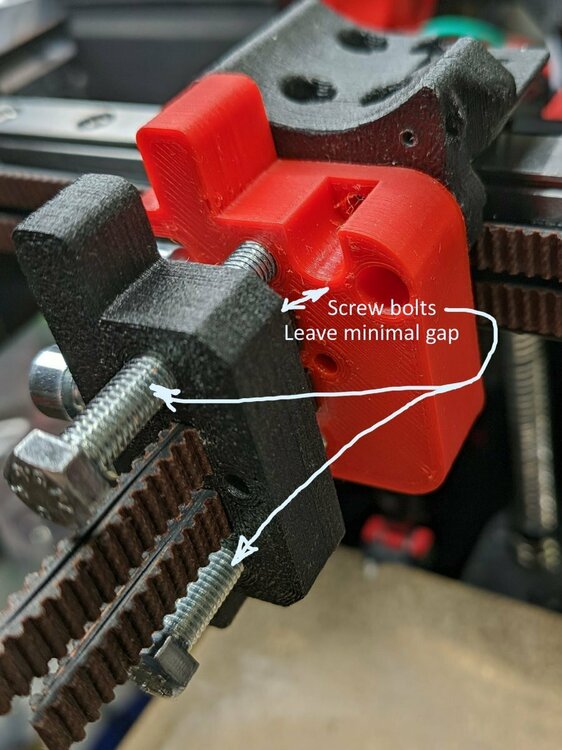

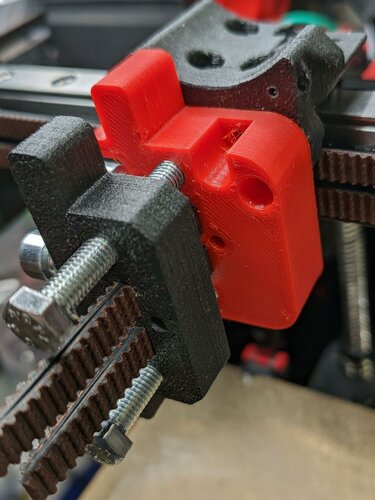

Step 2. Put top part and pass thought belts. Screw tension bolts to have zero minimal gap between bottom and top plate

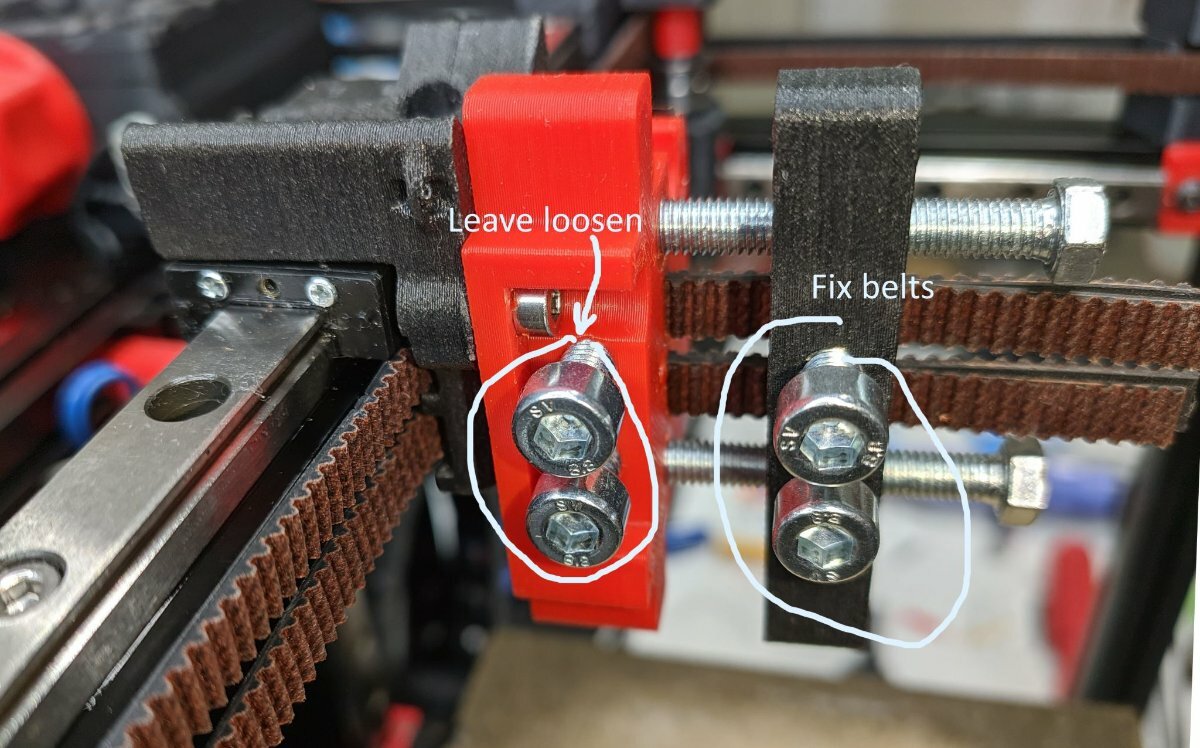

Step 3. Fix belts on top part but leave loosen on bottom

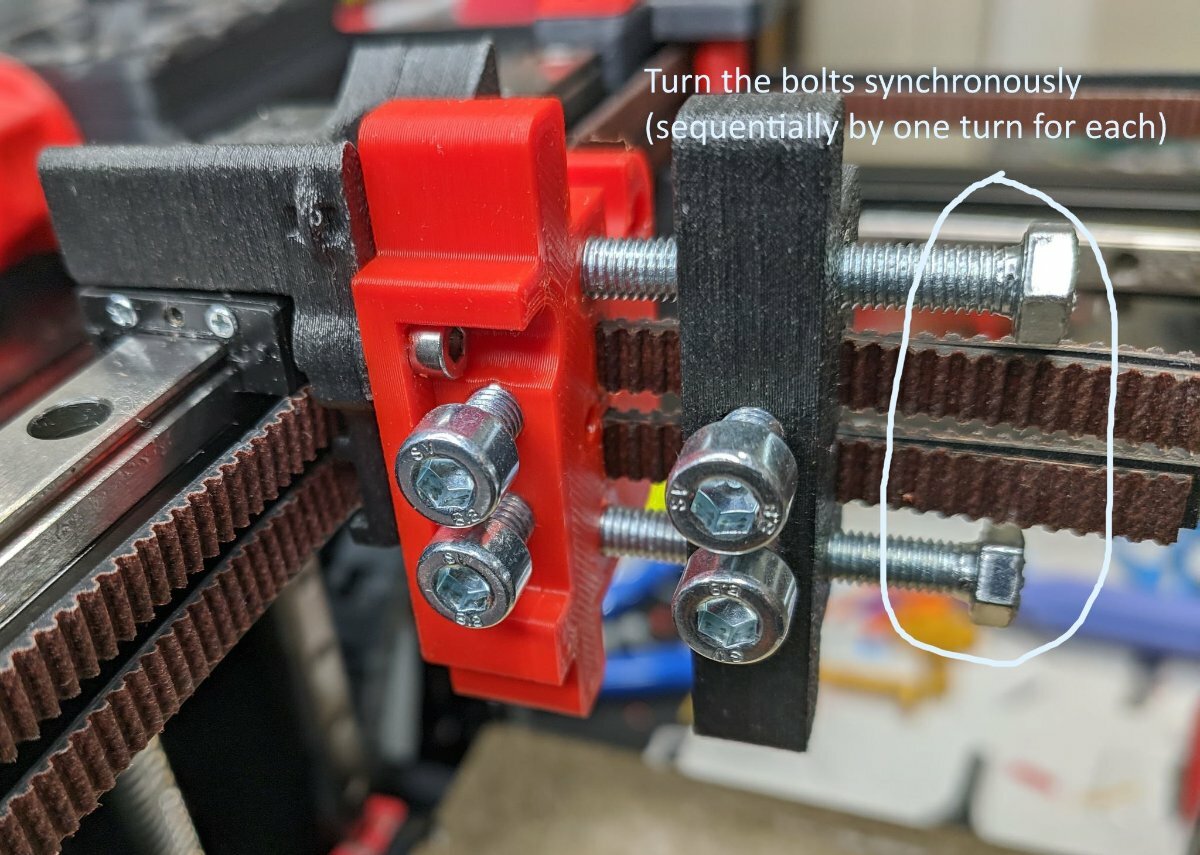

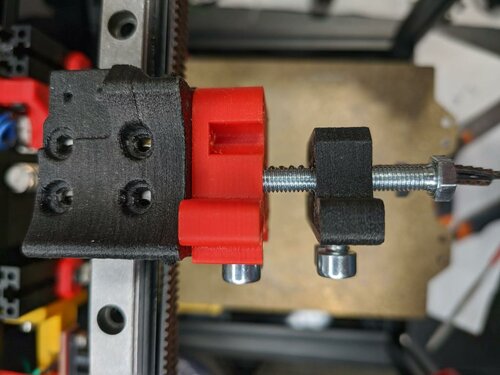

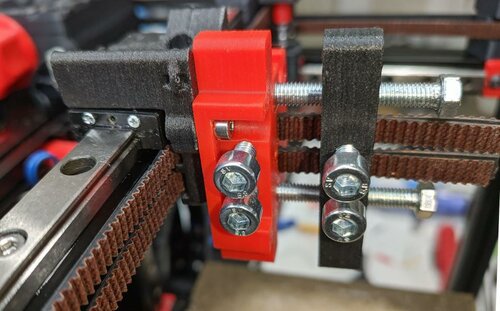

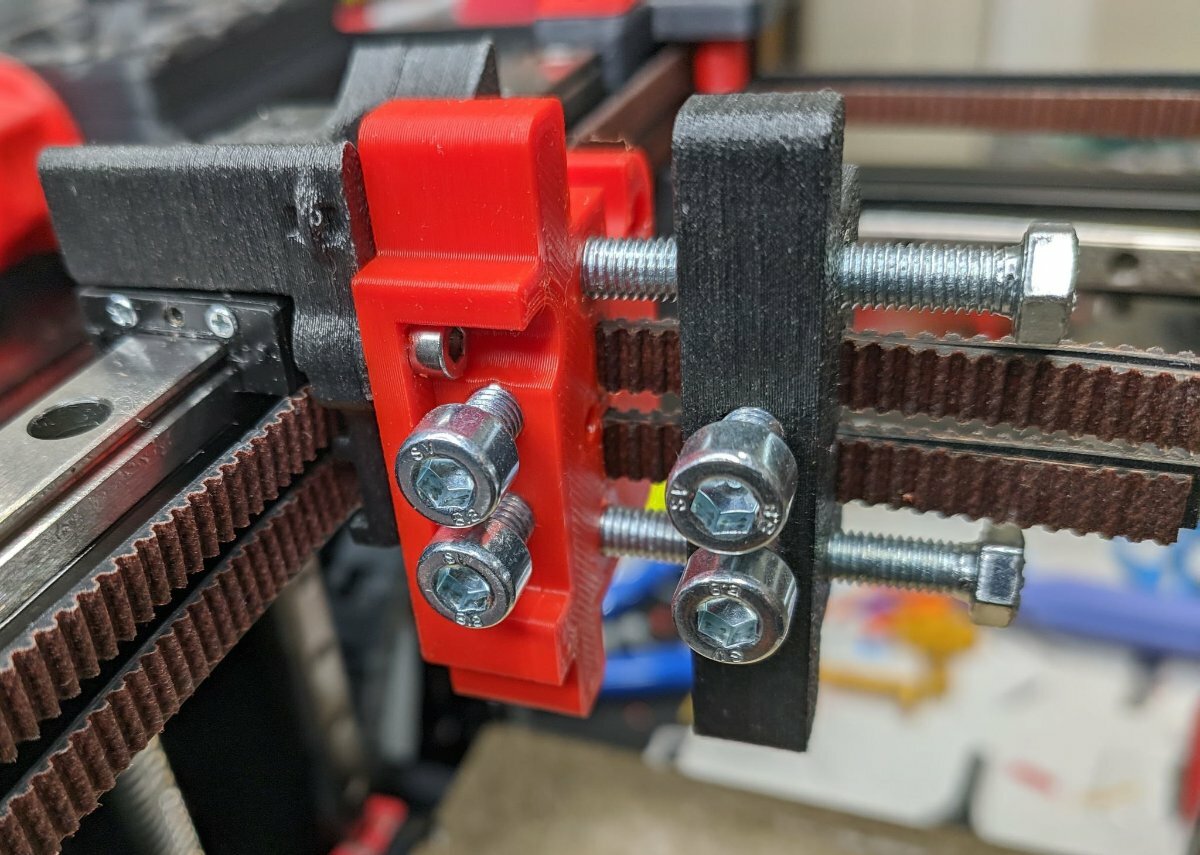

Step 4. Tension belt by turning the bolts synchronously (do it sequentially by one turn for each)

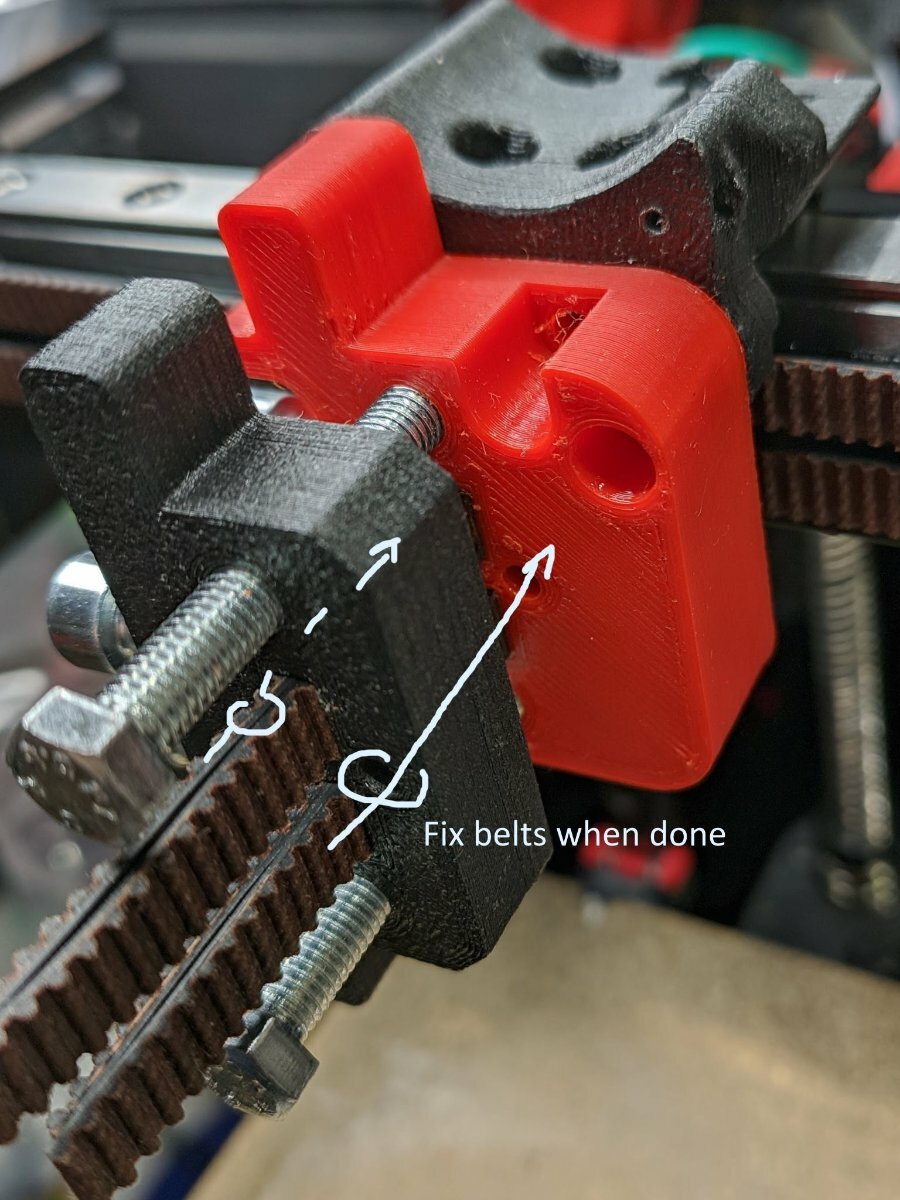

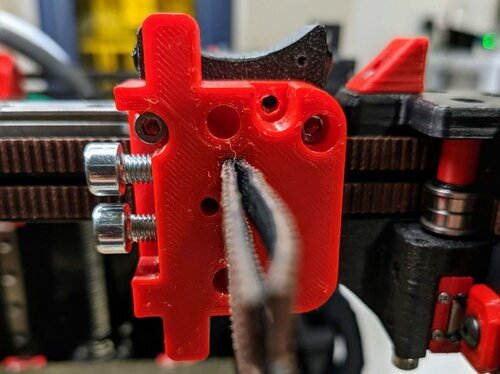

Step 5. When belt are in tesion fix them using service holes by allen hex key


Step 6. Loose all M5 and unmount top and bottom tool parts

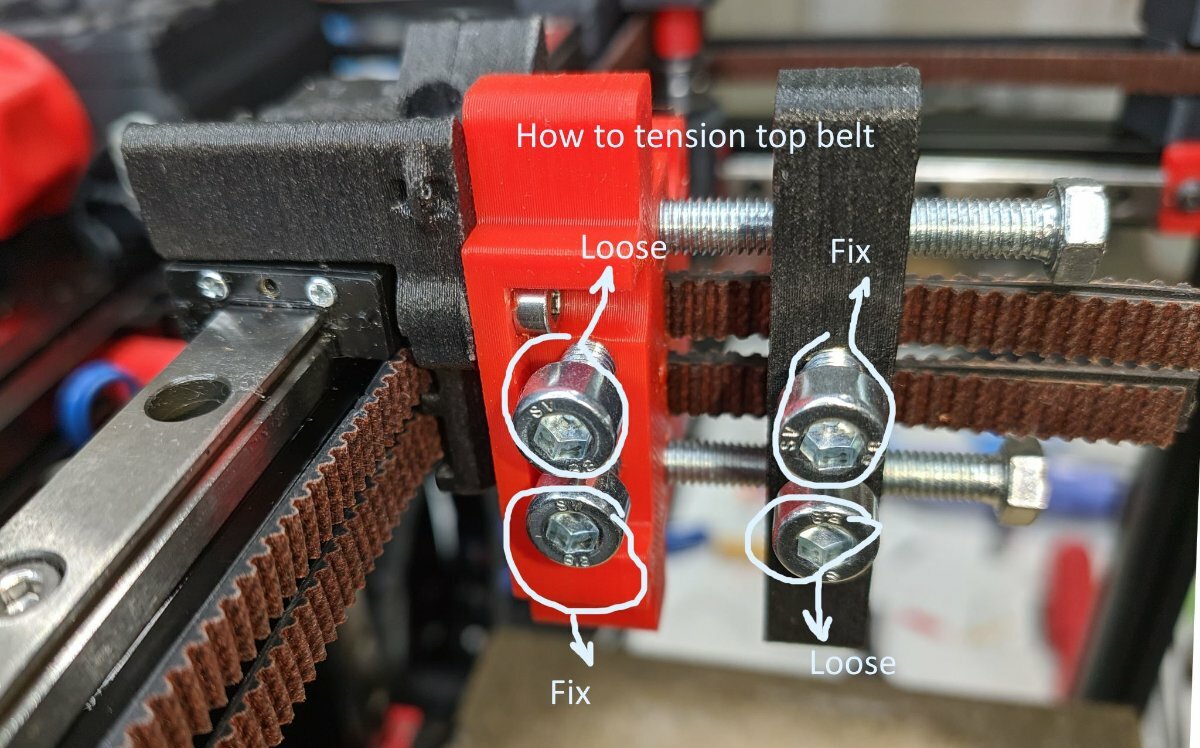

(Optional). When need to do individual belt tension use combination of bolts fix or loosen. See example for case when need to do extra tension for top belt
