V0 Extended Tophat Hinge v. 2022.01.24

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!
 Share

5 Screenshots

  • Like 4
  • Thanks 1

About This File

V0.1 Extended tophat hinge

Image of V0.1 extended tophat hinge

Contents

  • STL files with print number suffix
  • Manual for simplier assembly - TBD
  • BOM
  • Renders
  • cad file

Explanation

For people who cant print hinged tophat parts as it not fits v0 bed, you can print hinge_for_stock_tophat_x2.stl and connect it to default v0.1 tophat with 2x10mm self tapping screws, small 1.2mm holes needs to be made in tophat back parts to secure it with screws.

BOM

In addition to preloaded nuts and screws that are in stock v0.1 you also need:

  • 8 x standard v0.1 BOM magnets 6x3mm
  • optional: 2x10mm self taping screws in case of connecting default tophat with hinge_for_stock_tophat_x2.stl
  • 2 x M3x16 BHCS
  • 2 x M3 Nylon-Insert Locknut
  • Acrylic/PC 3mm thick or printed panels (dxf included)
    • 1 x front plate - 210x48 mm
    • 2 x side plate - 208x45 mm
    • 1 x back plate - 207x48 mm

Renders

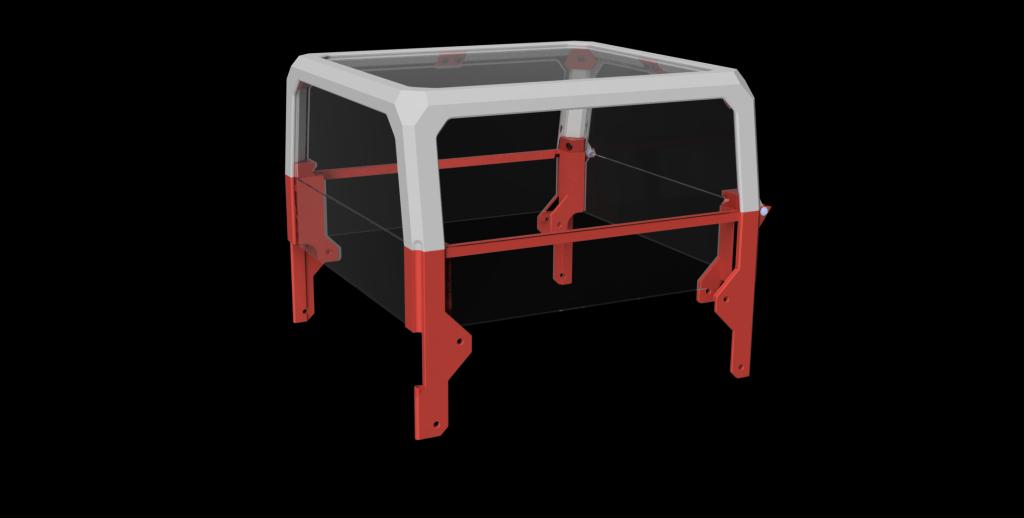

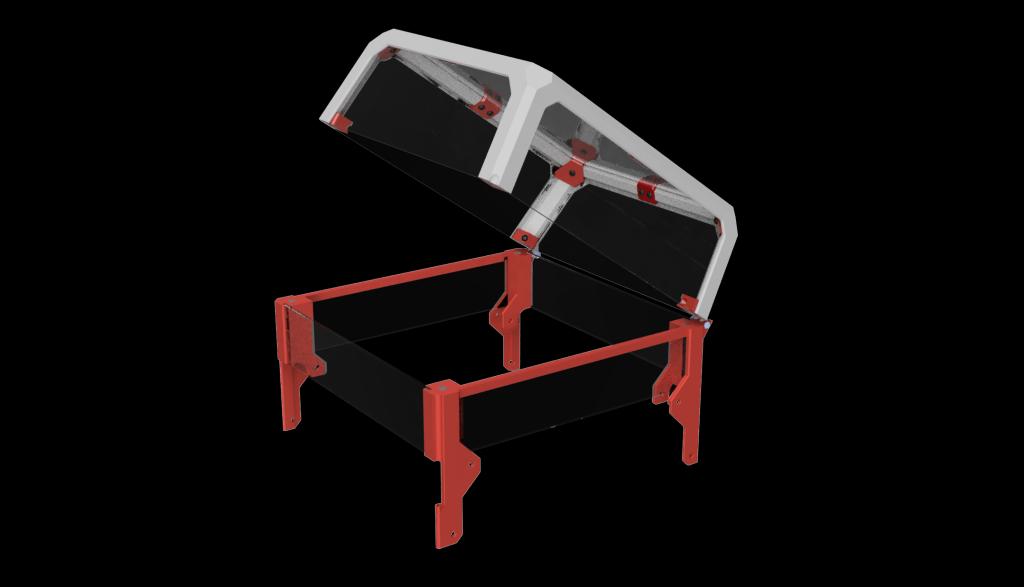

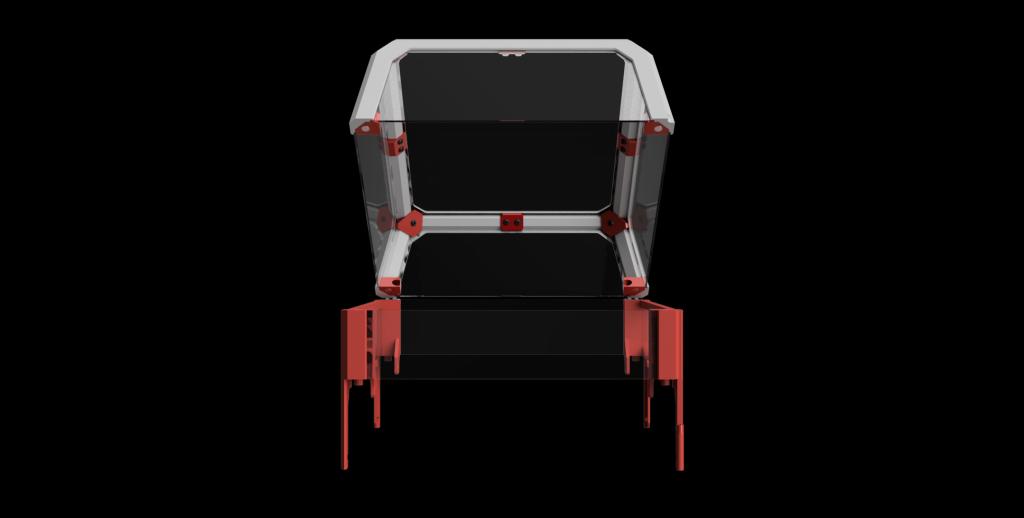

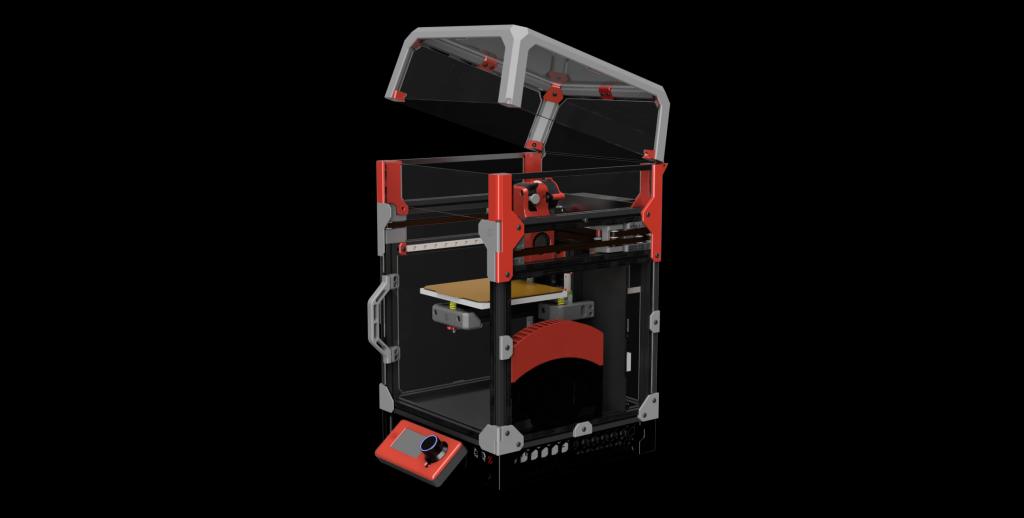

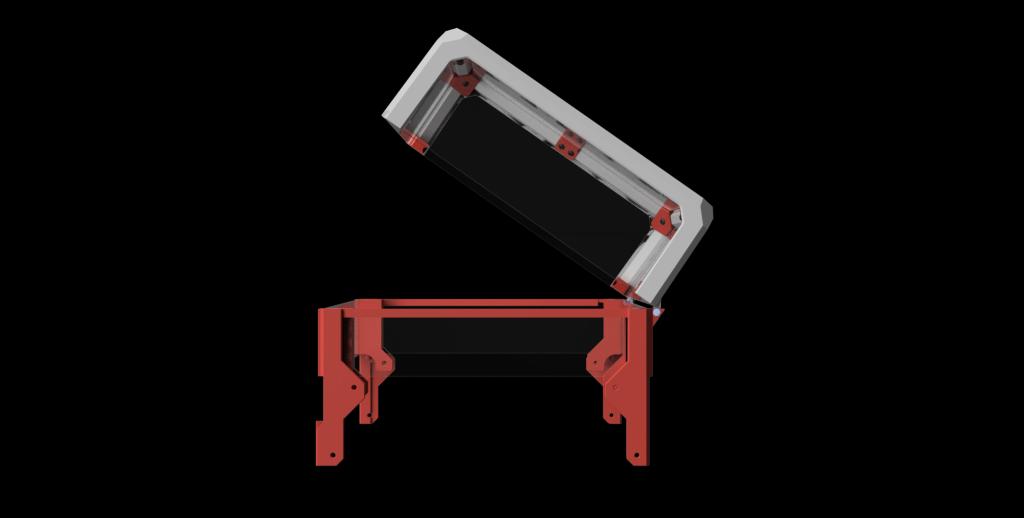

Image of V0.1 Image of V0.1 Image of V0.1 Image of V0.1 Image of V0.1 remixed
