V0.1 Trident skirt remix with 12864 LCD

Contents

• STL files with print number suffix

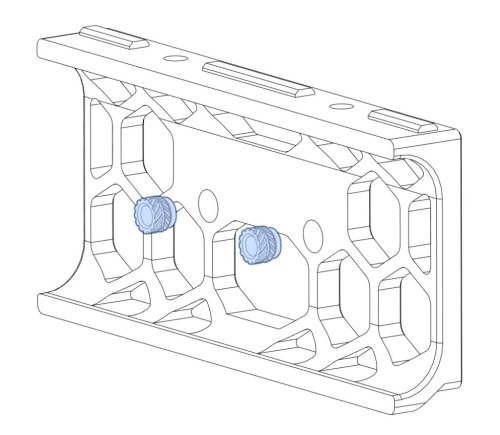

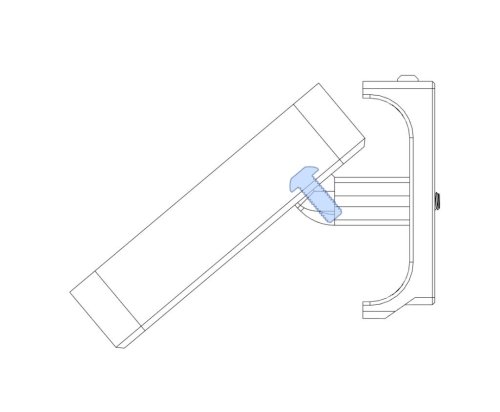

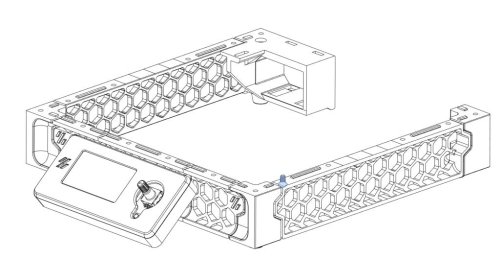

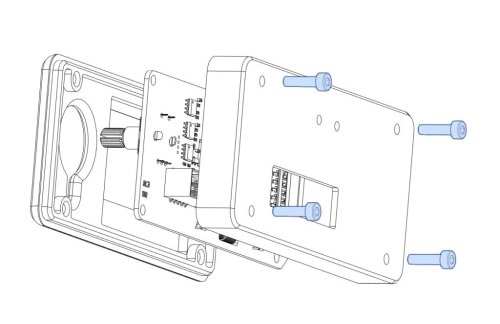

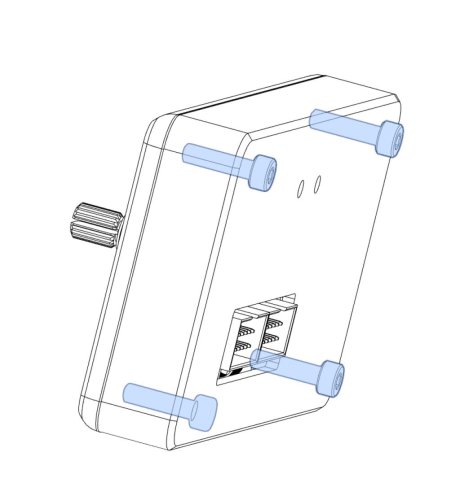

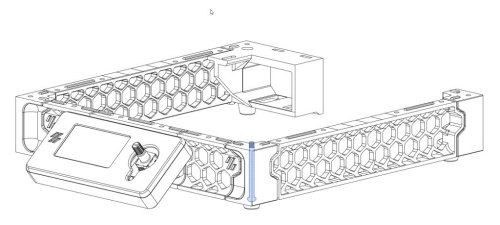

• Manual for simplier assembly
• BOM
• Renders
• Live photos
• cad file

BOM

In addition to preloaded nuts and screw that are in default v0.1 version you need also:

• 4 x standard v0.1 BOM heat set inserts
• 6 x M3x12 BHCS
• 2 x M3x6 BHCS
• BTT MINI 12864 V1.0

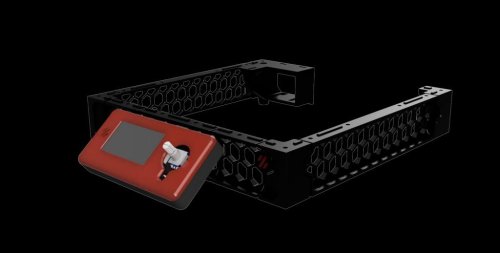

Renders

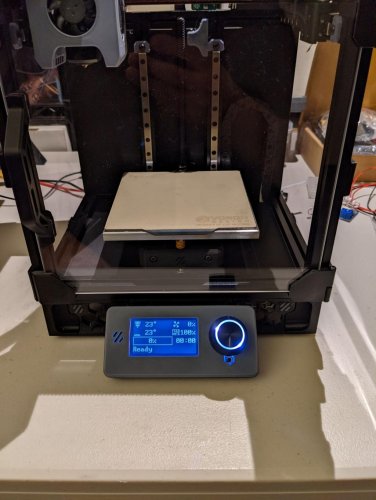

Live photos

Courtesy of Revnull Courtesy of Revnull

Collaboration

Big thanks for all who gave ideas, showed mistakes and discussed about this little mod.

Especially for:

• hartk for lcd_case_front_mini12864 step and stl files
• DaveR for front_skirt_one_piece.stl and v0.1_trident_skirt_foot_rear_right_bowden_tube_connector_x1.stl
