Ds18b20 Sensor Mount v. 2021.12.08

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!

8 Screenshots

  • Like 2

About This File

DS18B20 Mount

Simple DS18B20 temperature sensor mount based on the z endstop mount.


  • 1x DS18B20 / DS18B20-PAR
  • 1x 4.7kohm resistor
  • 2x M3x10 BHCS
  • 2x M3 nuts
  • 1x zip tie


  • Drill hole in rear panel for wires
  • Solder/connect sensor, wires, resistor and 4x2 dupont connector
  • Position sensor in hole
  • Bend sensor leads and secure with zip ties
  • Secure mount in place similarly to z endstop mount
  • Setup Raspberry PI for 1 wire (see https://www.circuitbasics.com/raspberry-pi-ds18b20-temperature-sensor-tutorial/ for a good tutorial)
  • Setup sensor in Klipper
    [temperature_sensor chamber]
    sensor_type: DS18B20
    sensor_mcu: rpi

Note: you can also position the mount on the inner side of the z axis rails which looks better, but also potentially block access to the z axis for later maintenance.

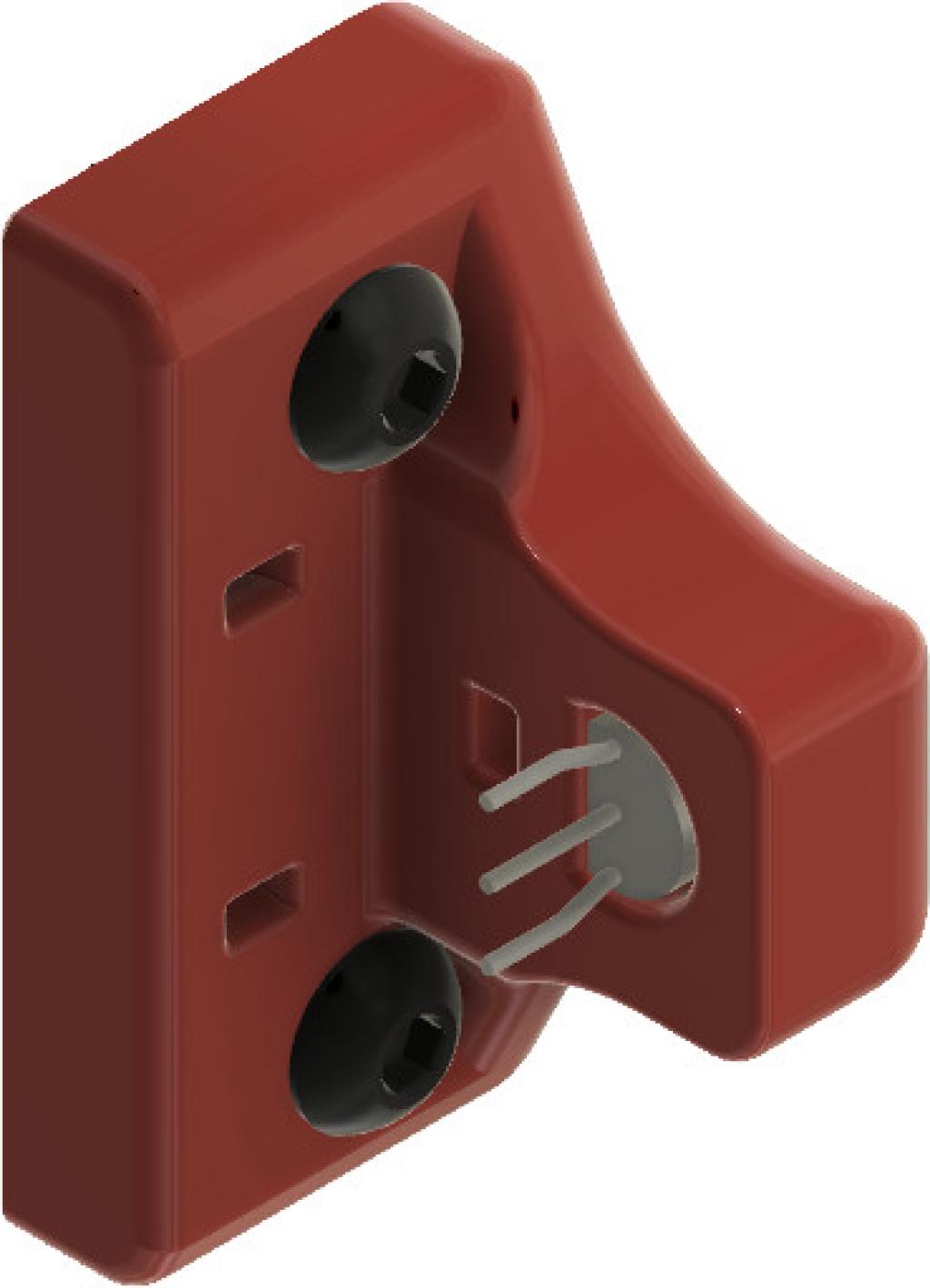

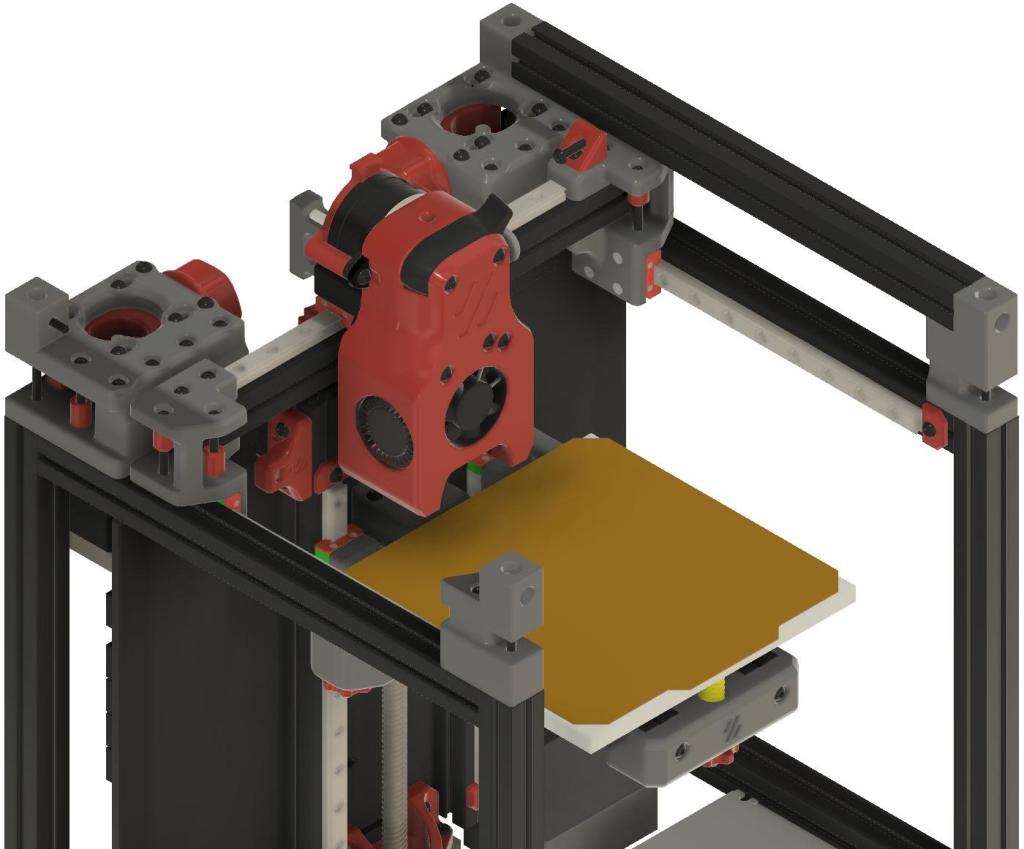

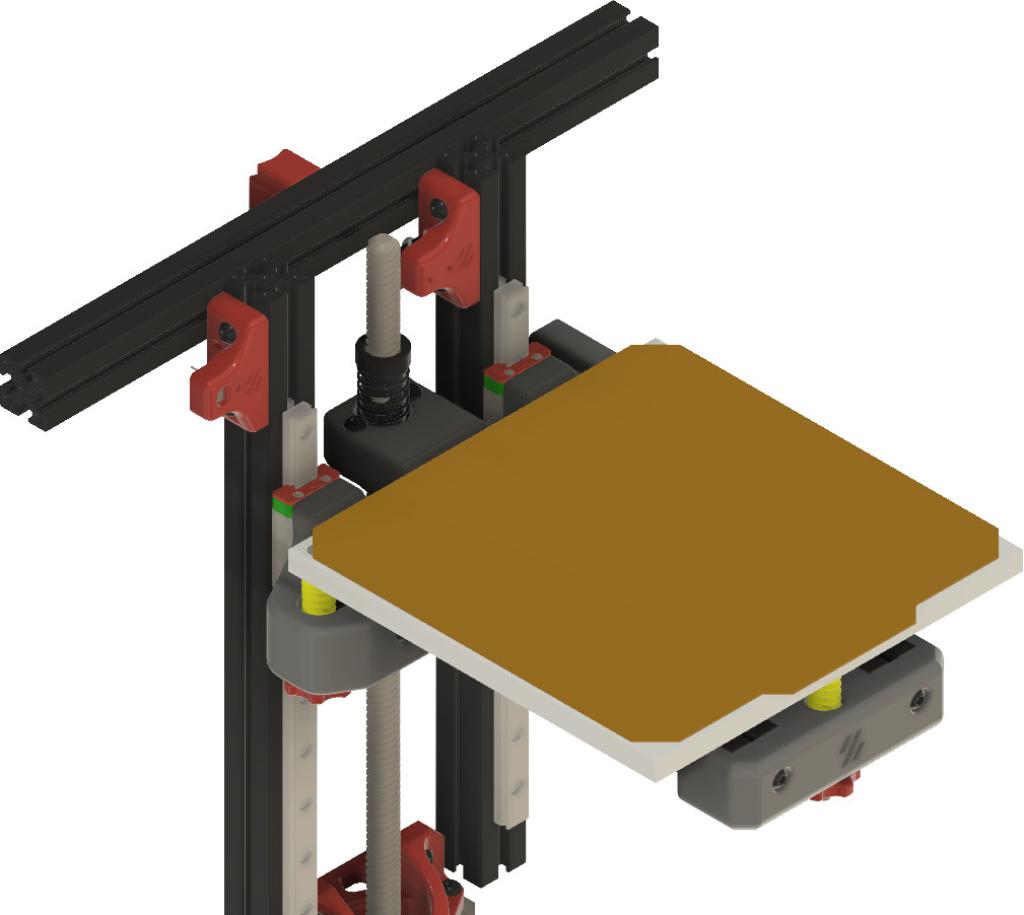

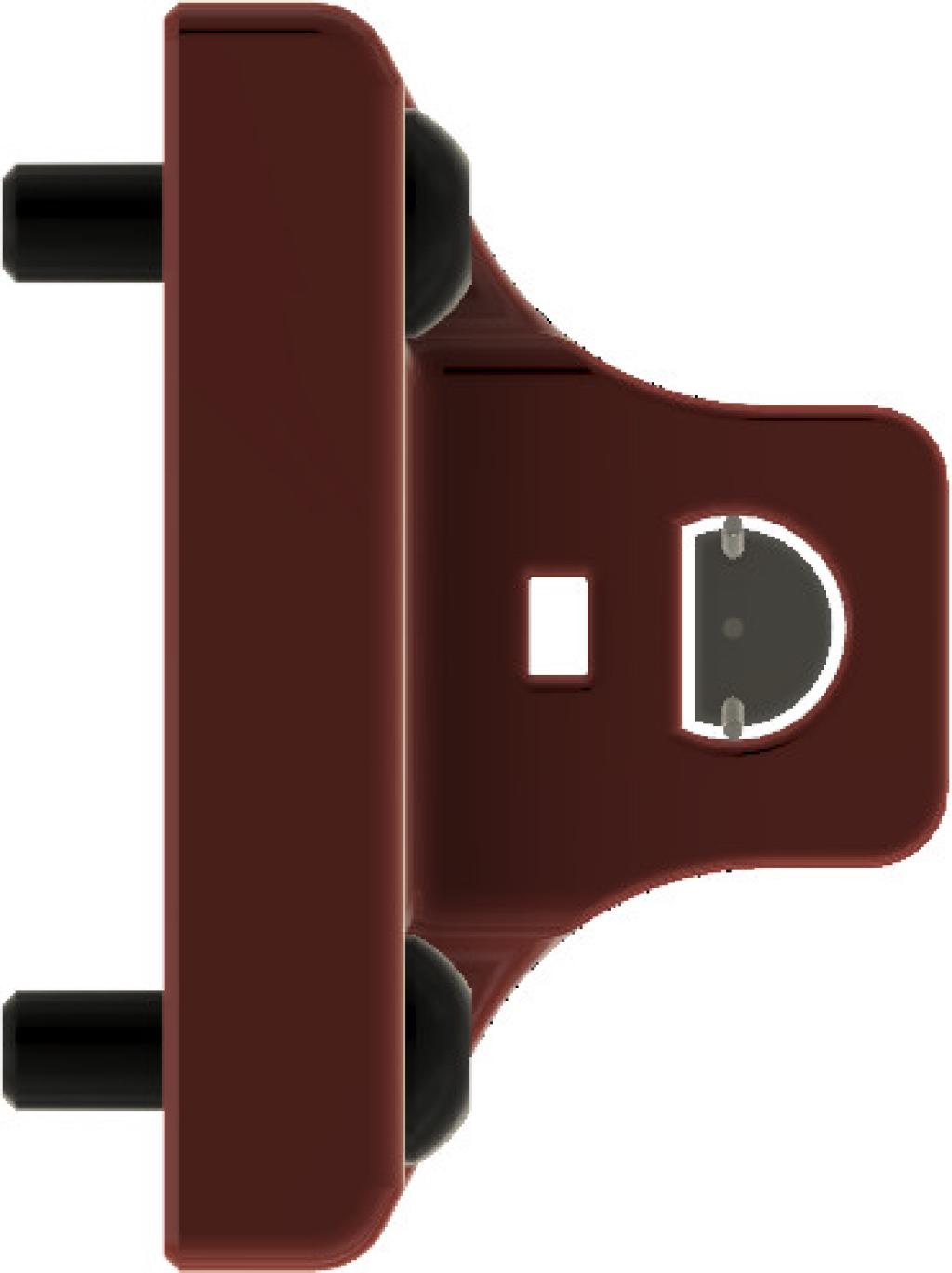

CAD mount sideways view CAD mount back view CAD mount on left extrusion CAD mount in context

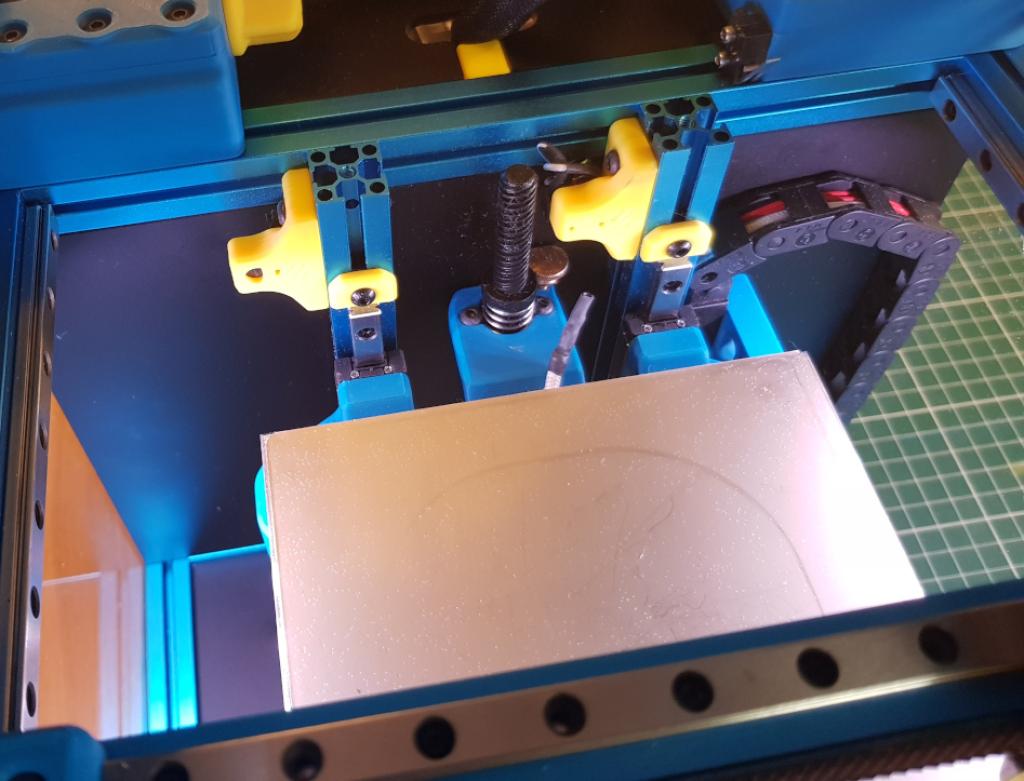

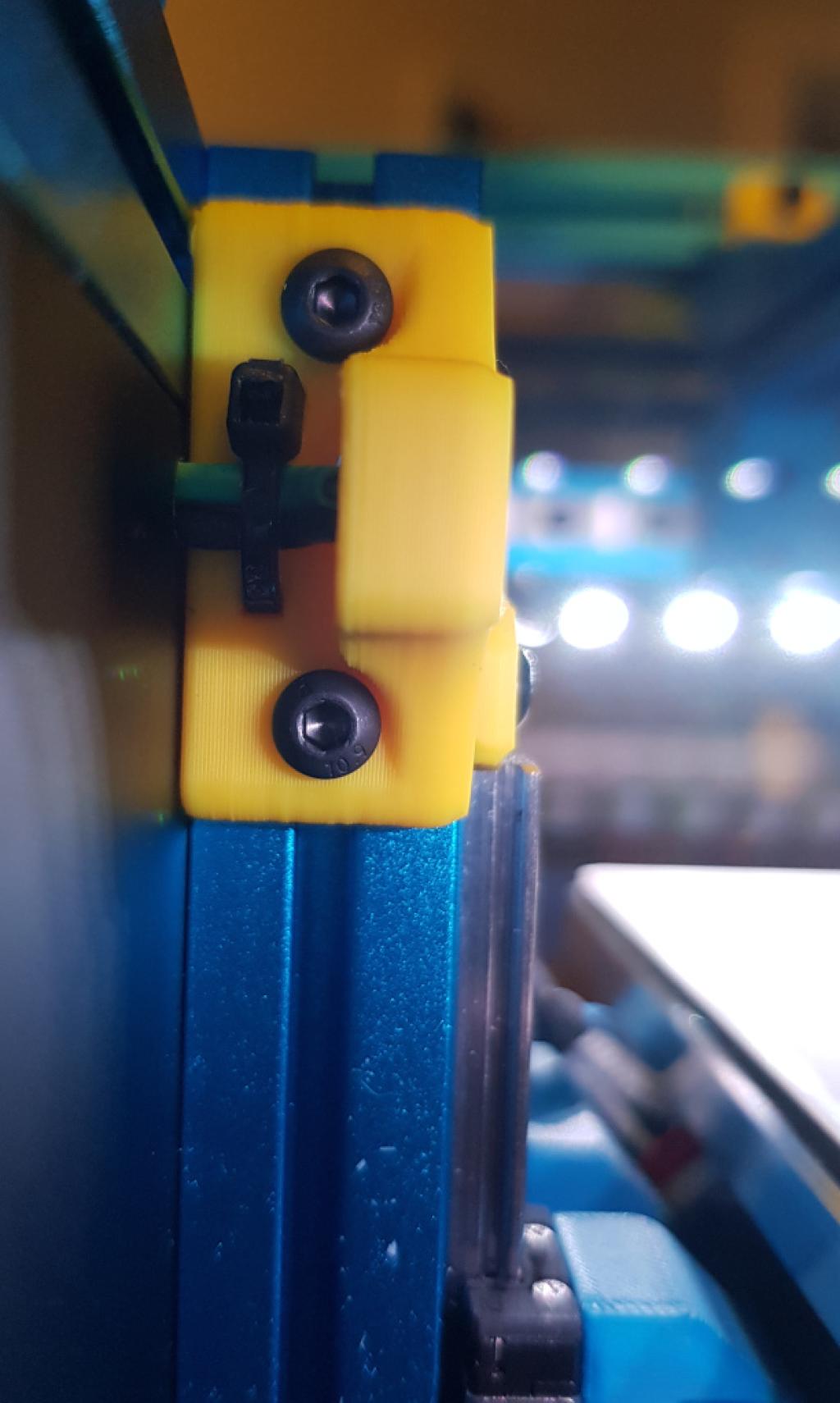

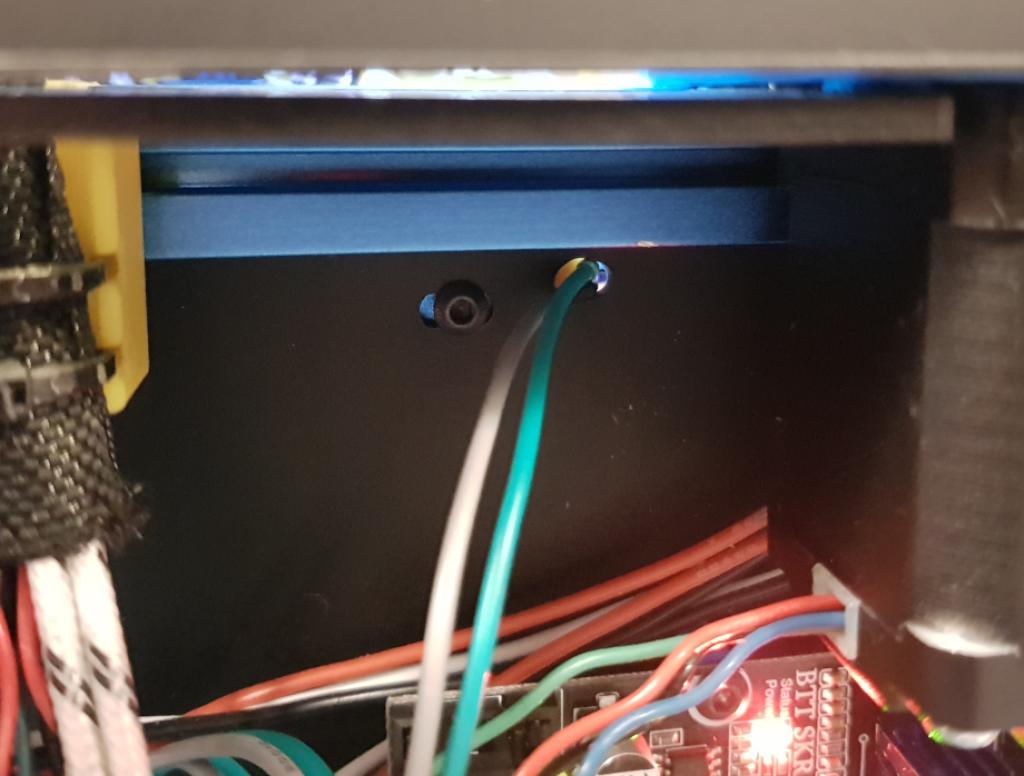

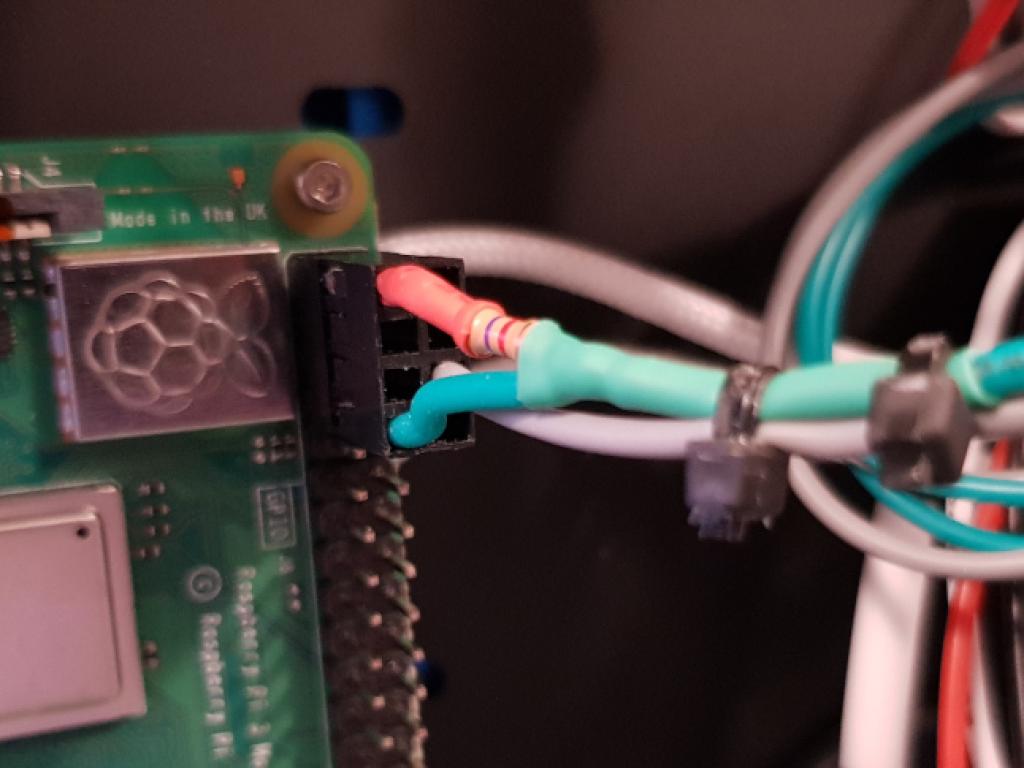

Example setup using a DS18B20-PAR: PIC installed mount front PIC installed mount back PIC wiring with DS18B20-PAR PIC wiring on PI with DS18B20-PAR
