V0 DC Inlet v. 2021.03.28

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!

6 Screenshots

About This File

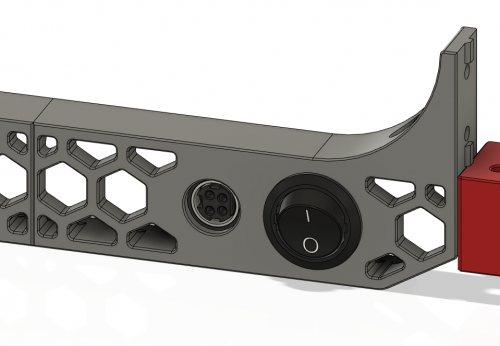

Adds a skirt-mounted inlet and switch for an external DC power supply, to allow using a DC bed. Options are provided for rear or side mounting.


  • Kycon KPJX-PM-4S connector (Digi-Key)
  • Mean Well GST160A24-R7B power supply (Digi-Key)
  • Power switch, 20mm round, rated for at least 7A at 24VDC (Digi-Key)
  • 2x quick disconnect terminal for power switch (Digi-Key)
  • 24V 60W bed heater (Keenovo)
  • 4x M2x10 self tapping screw
  • (For rear skirt only) 4x M3x6 BHCS + 4x M3 hex nut

With a 24V bed the SSR is not used, and the bed heater is directly connected to the bed heater output on the controller. I suggest using a SKR Mini E3 V2.0, which can control 2 heaters and 2 fans (unlike V1.2, which has only 3 controllable outputs).


For rear mounting, print both skirt_rear files and inlet_bracket.stl. Mirror the skirt pieces if you want the inlet on the right side. Each piece mounts to the rear vertical extrusions with two M3x6 screws. The rear deck panel must be removed. Temporarily remove the rear panel and rear feet to access the extrusion slots.

For side mounting, print skirt_side_with_inlet.stl and inlet_bracket.stl. It replaces an existing skirt piece; mirror it in your slicer if desired.

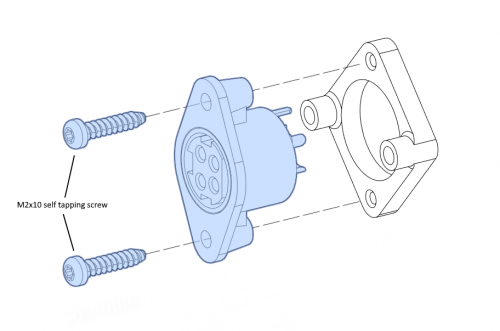

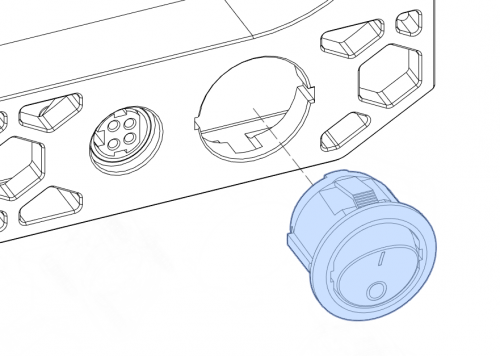

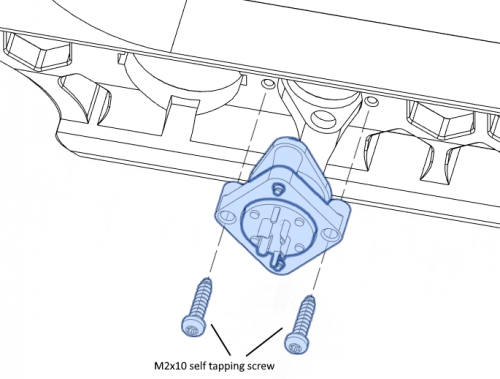

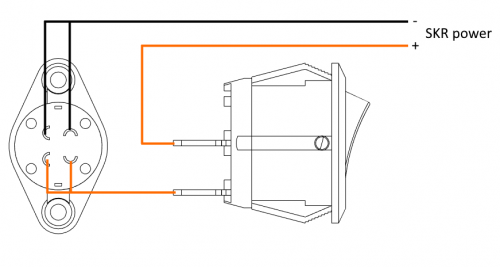

Inlet and switch mounting steps are shown below. It is suggested to solder wires to the inlet before assembly. Pay particular attention to the order of the inlet pins, and confirm with a multimeter.
