LGX Lite Toolhead Setup For Voron V0.1

AN ALTERNATIVE TO THE VORON ORIGINAL SETUP

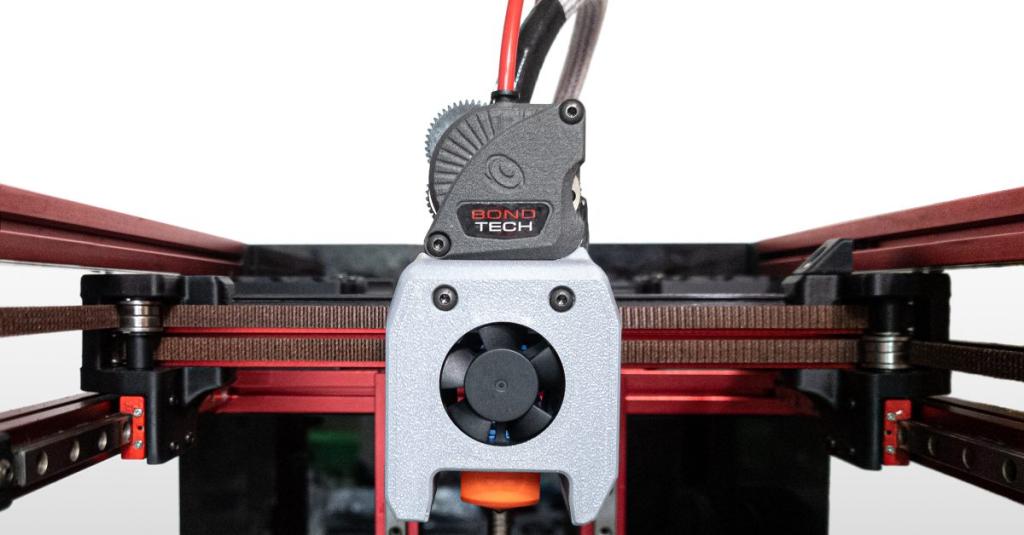

The Mini After-LGX-Lite

Designed by Olof Ogland, based on a draft design by Nemgrea.

This project also includes:

  • Mounts for several hotends;
  • AdaFruit and Generic ADXL345 accelerometer mounts – for Klipper’s input shaping tuning;
  • Z-axis Bed Adjustable Y offset set – to allow the print bed to move back and forth from -1 up to 3.5 mm.
  • Klicky – a z-probe mount that attaches with magnets

License and Credits

License: https://github.com/VoronDesign/Voron-0/blob/Voron0.1/LICENSE

Original source: https://github.com/VoronDesign/Voron-0

Credits: Nemgrea, DaveR, JosAr

Source for Klicky integration: https://github.com/jlas1/Klicky-Probe

Mini After-LGX-lite

Most screws required to perform the installation should be already on your kit. You may need some additional sizes and types. The following list identifies them:

  • 2x M3x6 BHCS for belts
  • 2x M3x30 BHCS for LGX Lite
  • 4x M2.5×6 low profile for Copperhead
  • 2x M3x10 BHCS LGX Lite to cowling

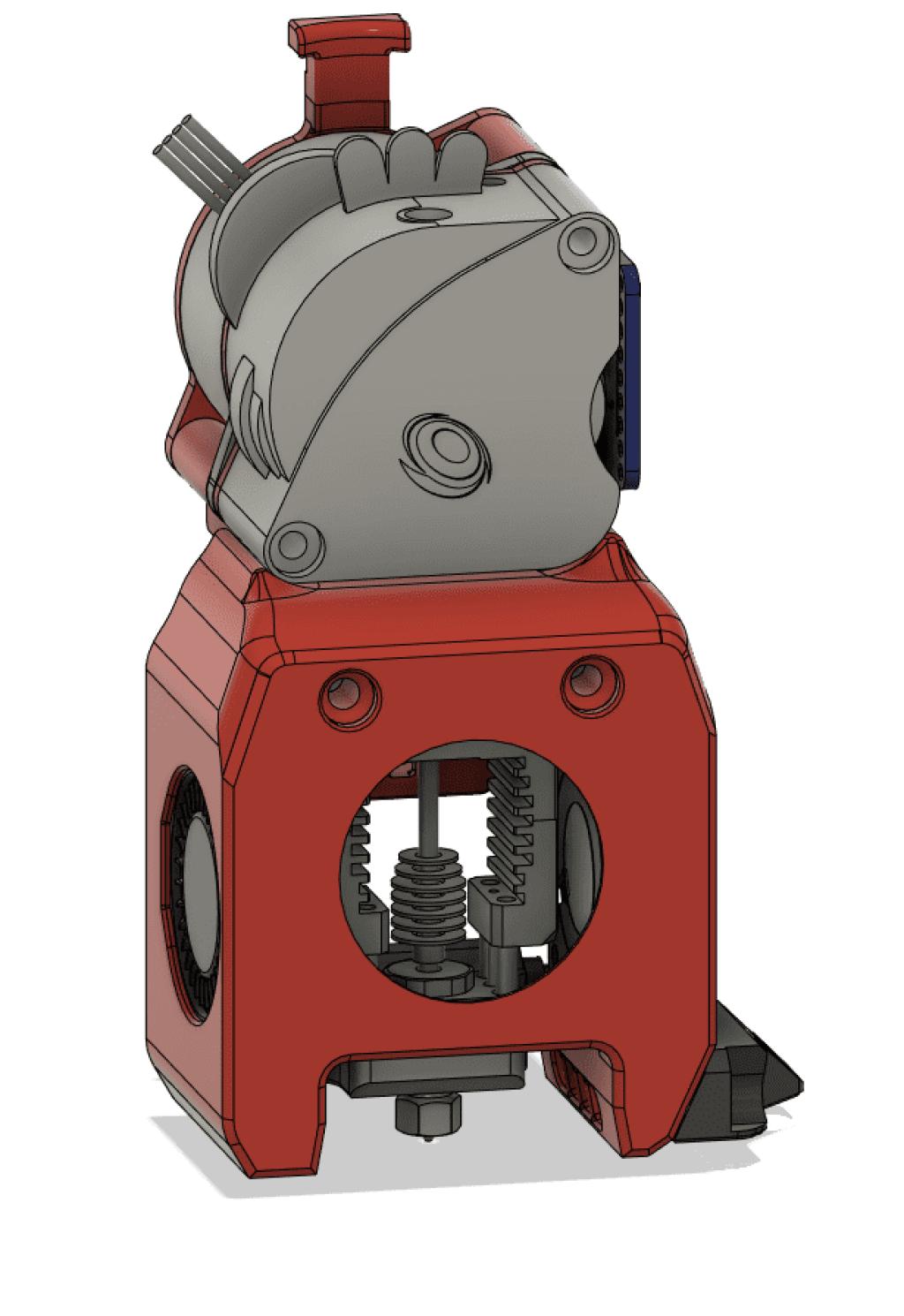

Cowling Universal

Hotend Mount MOSQUITO 3007 Fan

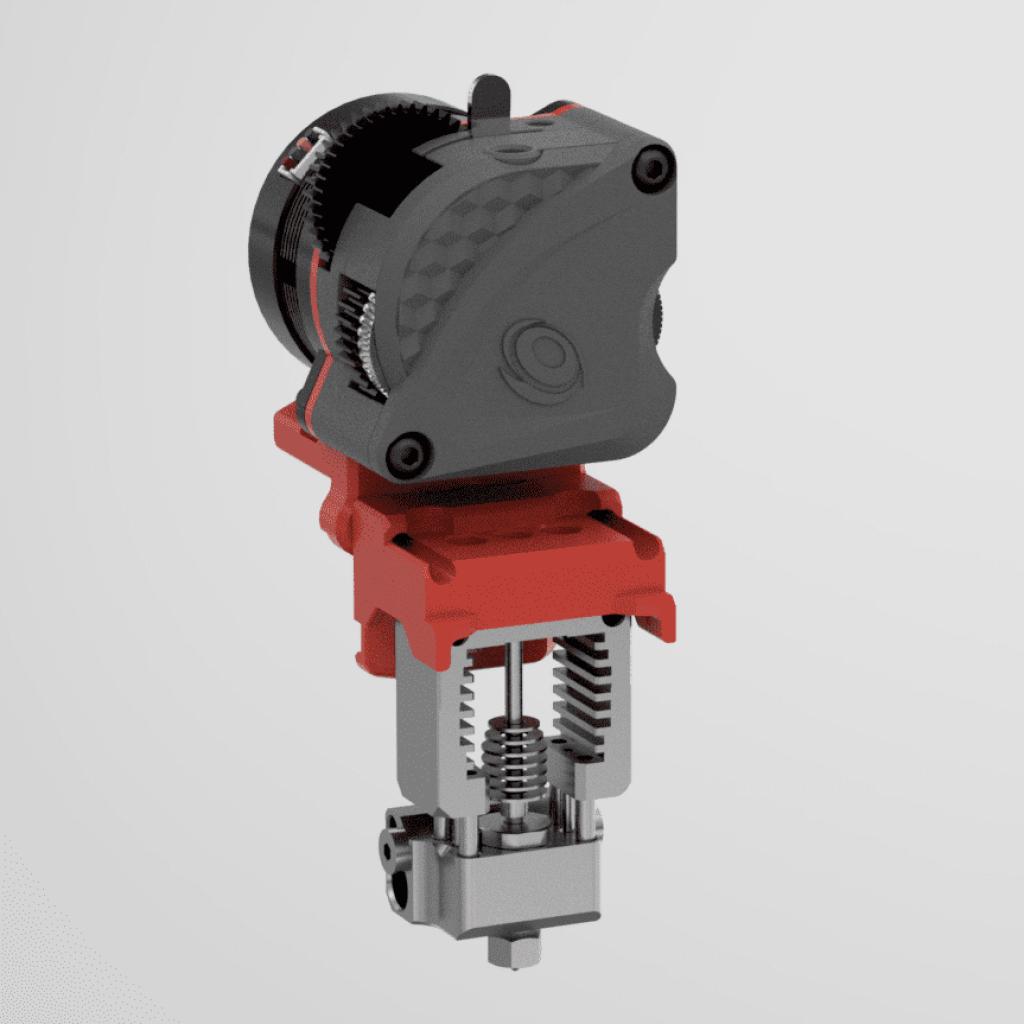

Hotend Mount MOSQUITO 3010 Fan

Hotend Mount COPPERHEAD Screw Mount 3007 Fan

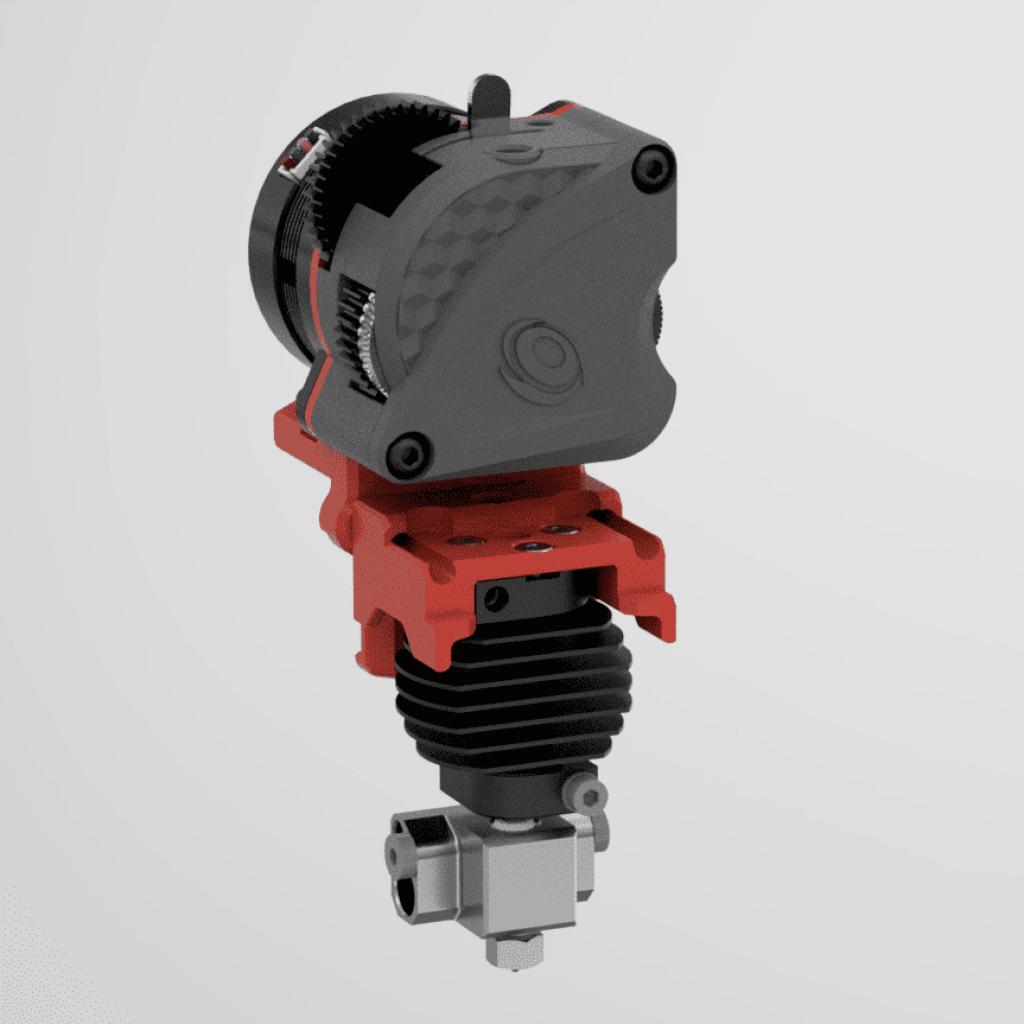

Hotend Mount COPPERHEAD Screw Mount 3010 Fan

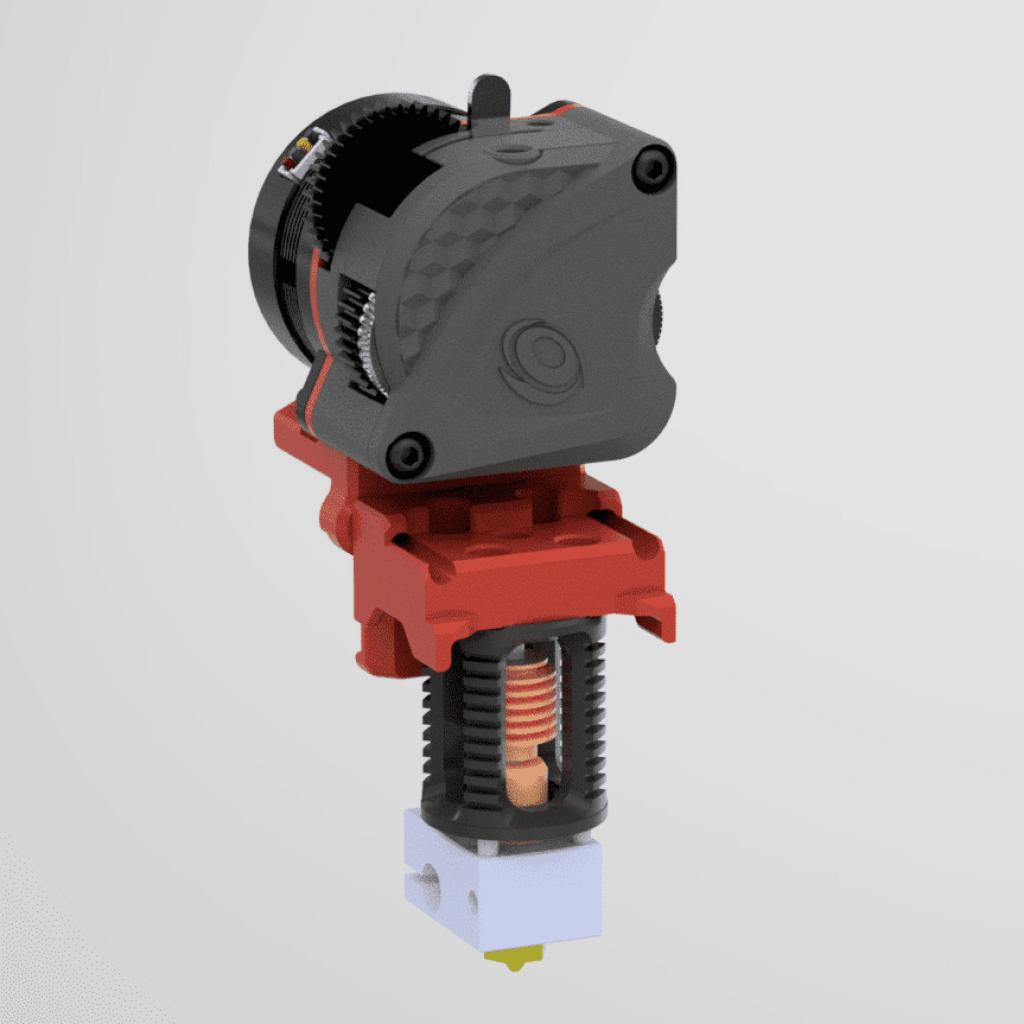

Hotend Mount DRAGON 3007 Fan

Hotend Mount DRAGONFLY 3007 Fan

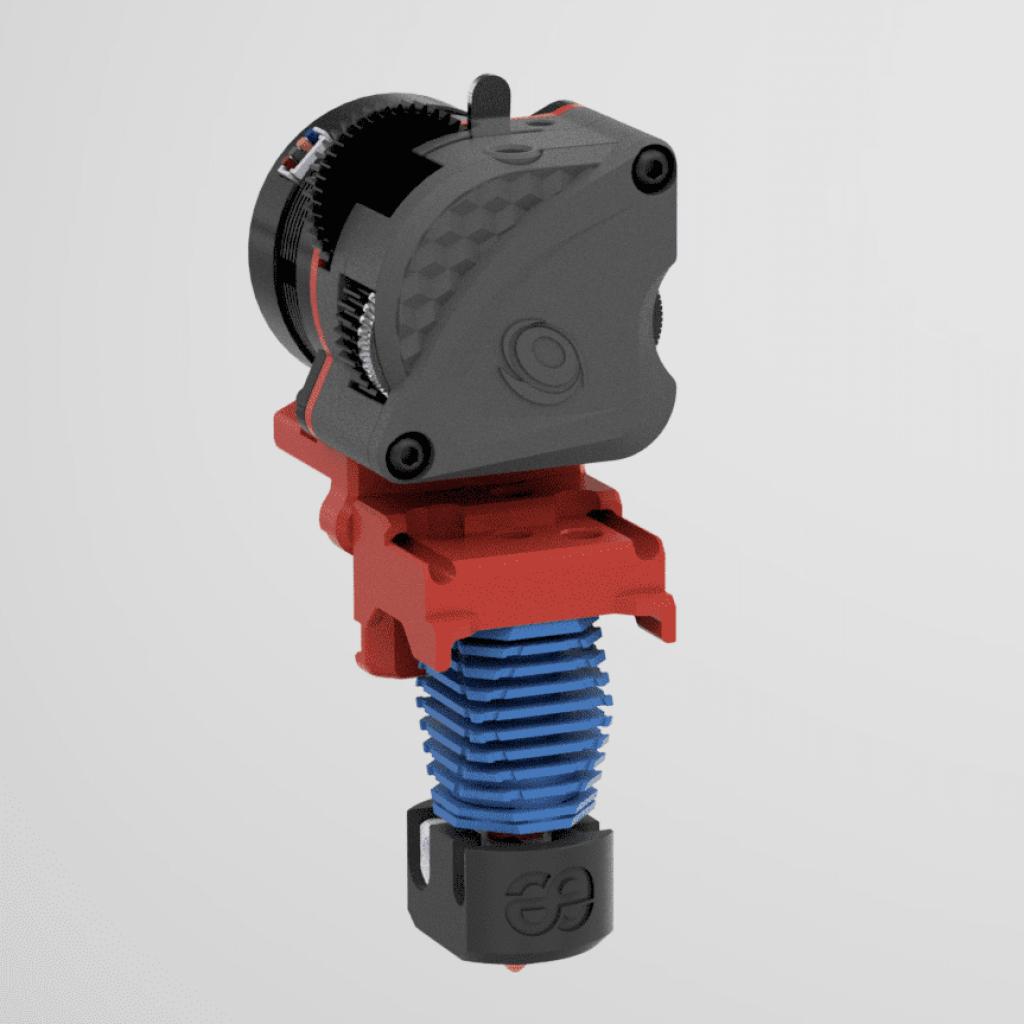

Hotend Mount DRAGONFLY 3010 Fan

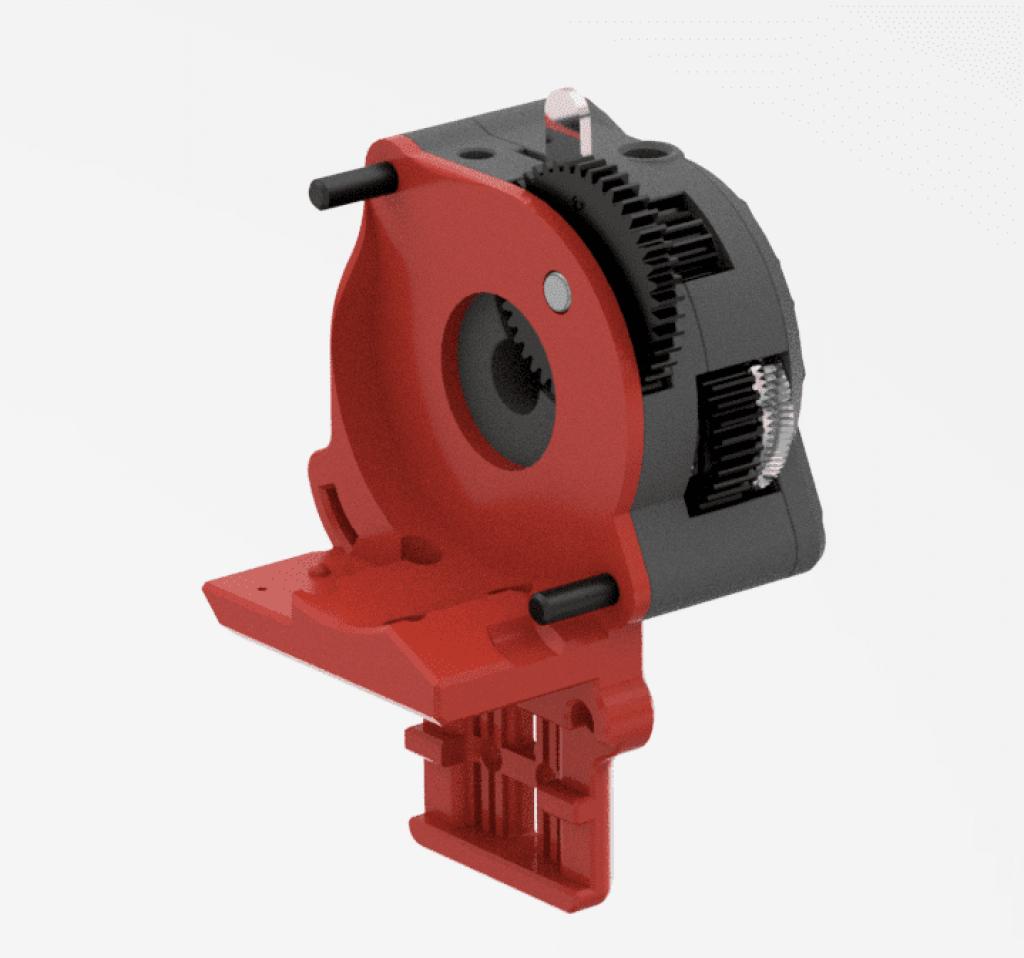

X-Carriage

Tools

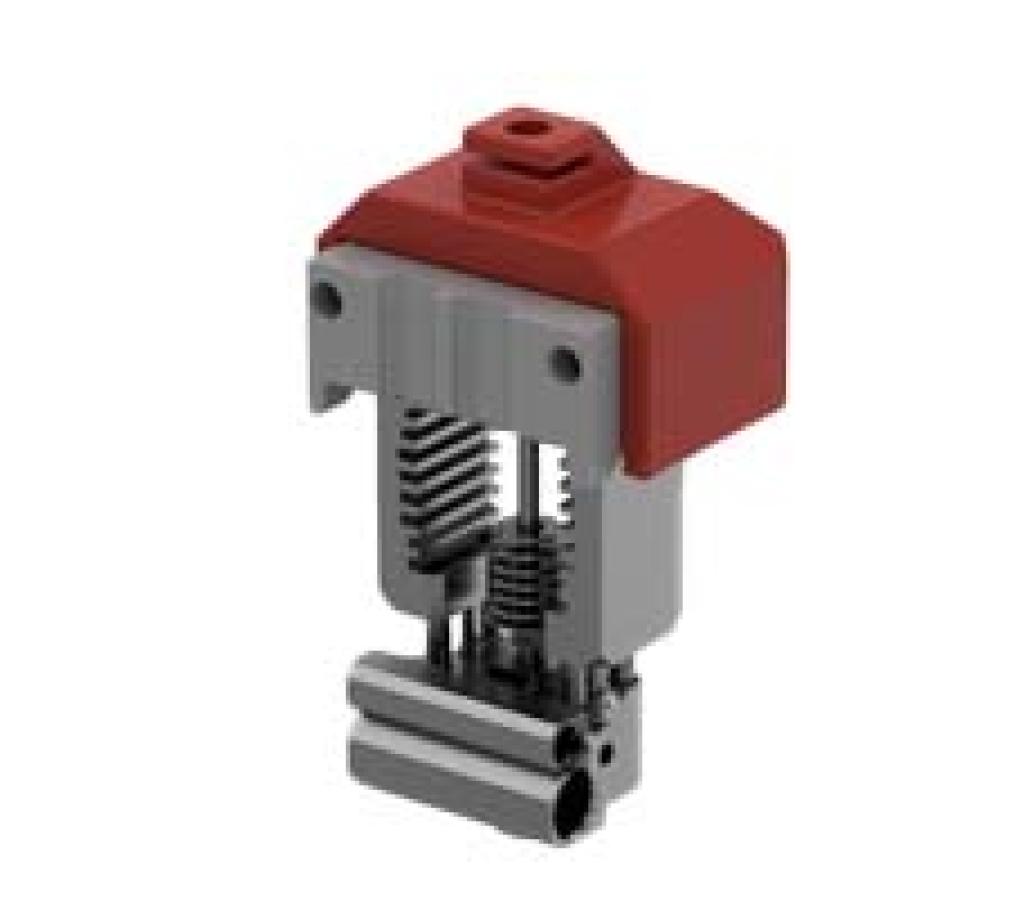

PTFE Cutting Jig
