V0 Trident Skirt Mix v. 2022.04.21

   (1 review)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!
 Share

15 Screenshots

  • Like 3
  • Voron FTW! 1

About This File

V0.1 Trident skirt remix with 12864 LCD

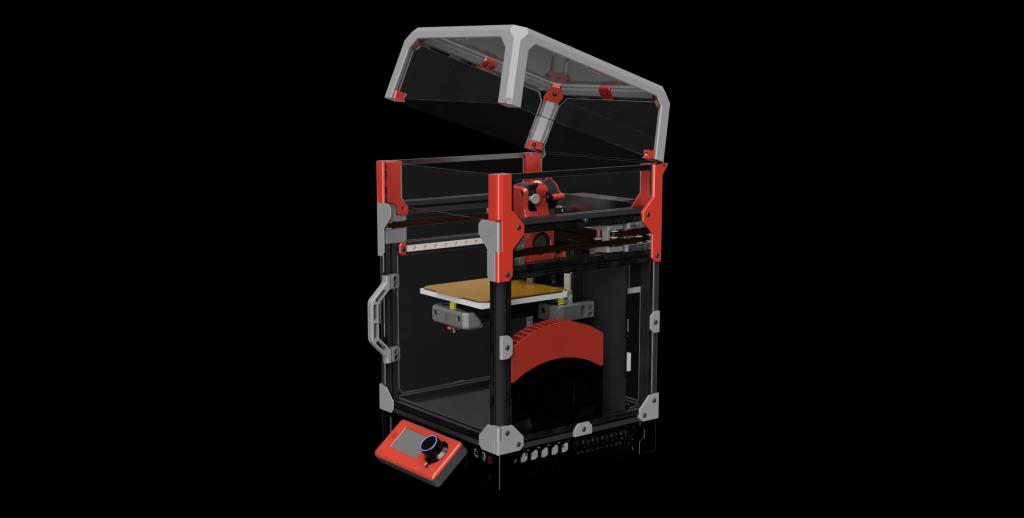

Image of V0.1 remixed render

Contents

  • STL files with print number suffix
  • Manual for simplier assembly
  • BOM
  • Renders
  • Live photos
  • cad file

BOM

In addition to preloaded nuts and screw that are in default v0.1 version you need also:

  • 4 x standard v0.1 BOM heat set inserts
  • 6 x M3x12 BHCS
  • 2 x M3x6 BHCS
  • BTT MINI 12864 V1.0

Renders

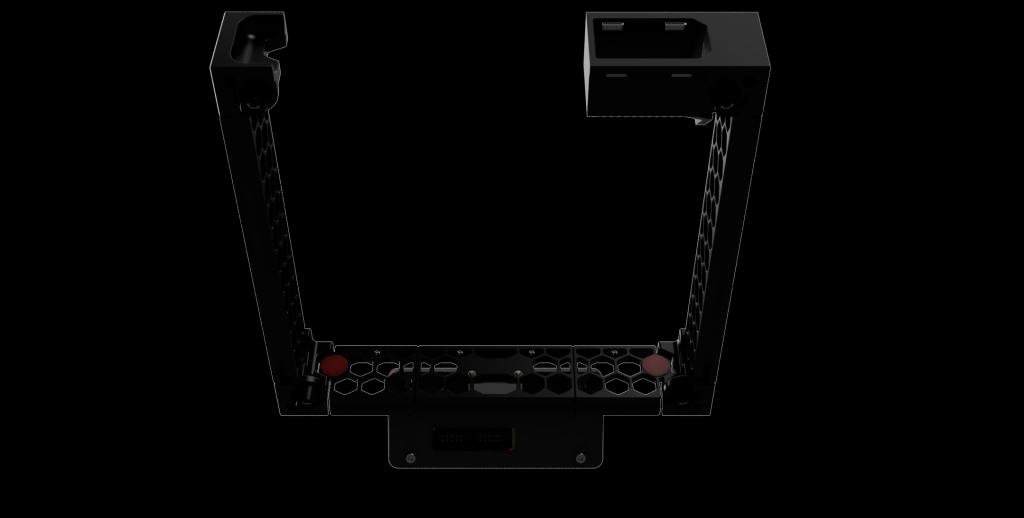

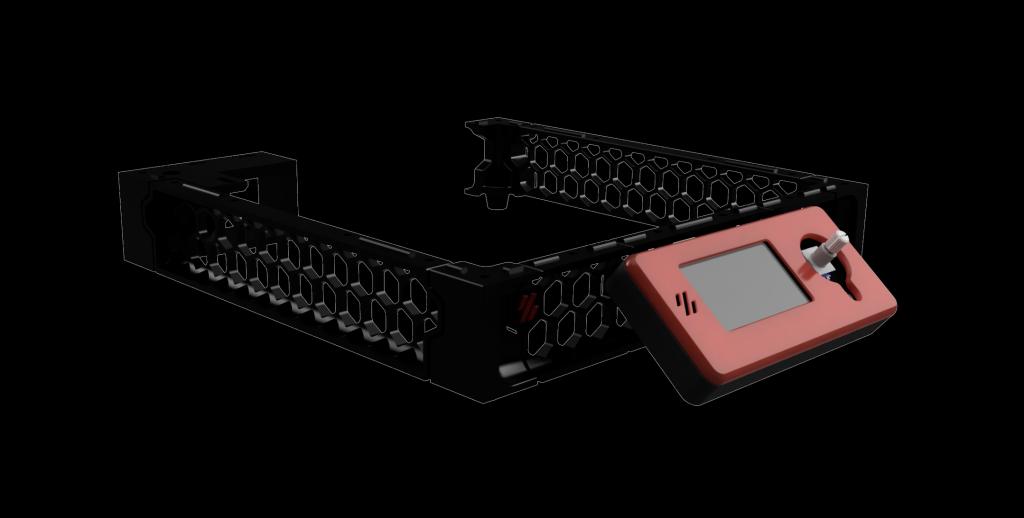

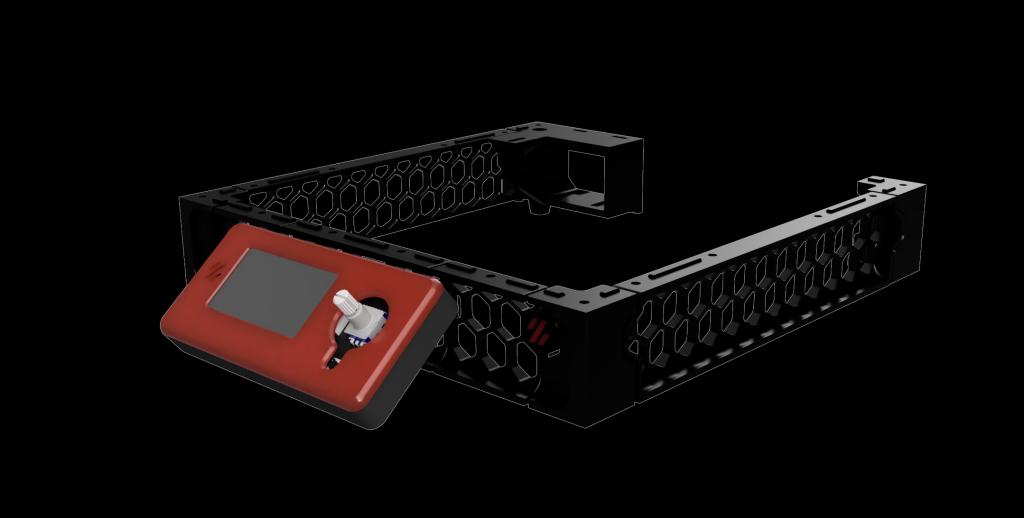

Image of V0.1 skirt remixed render Image of V0.1 skirt remixed bottom Image of V0.1 skirt remixed corner Image of V0.1 remixed

Live photos

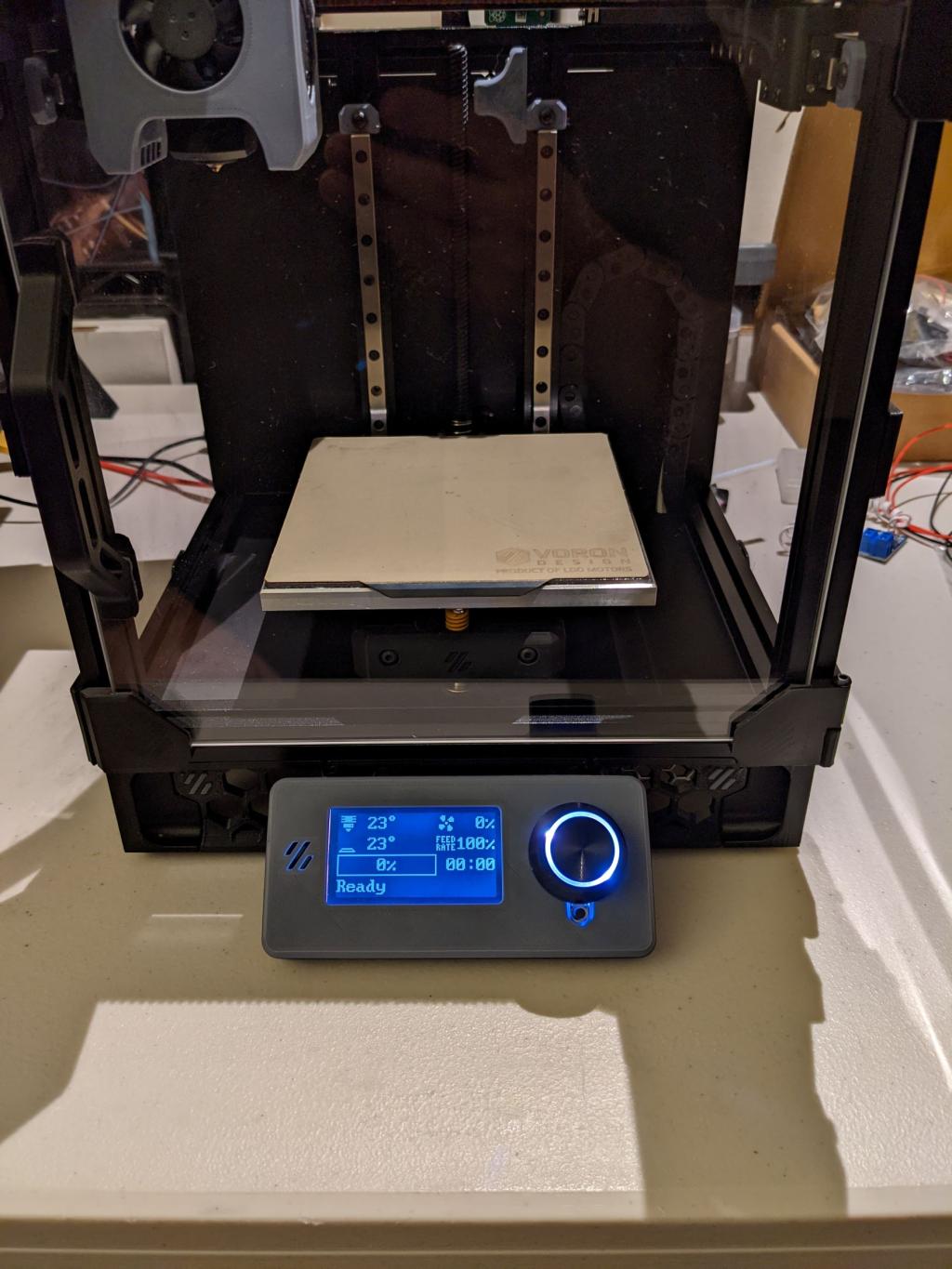

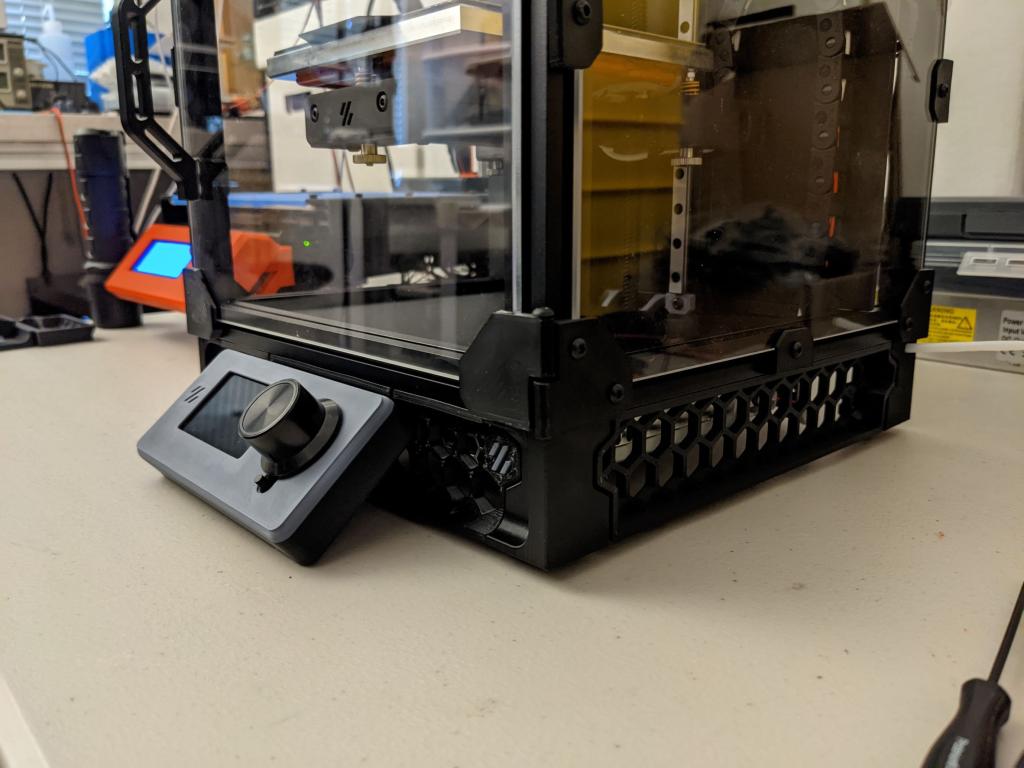

Image of V0.1 remixed Courtesy of Revnull Image of V0.1 remixed Courtesy of Revnull

Collaboration

Big thanks for all who gave ideas, showed mistakes and discussed about this little mod.

Especially for:

  • hartk for lcd_case_front_mini12864 step and stl files
  • DaveR for front_skirt_one_piece.stl and v0.1_trident_skirt_foot_rear_right_bowden_tube_connector_x1.stl
