Orbiter Clockwork Module

This Clockwork module allows the use of the Orbiter v1.5 Extruder in the Voron Afterburner.

Features

One of the main issues I observed when using the orbiter was a lack of a quick filament release in addition to a lack of a suitable clockwork adapter that would swap an orbiter directly into the Afterburner ecosystem. Many of the issues observed were addressed with this Clockwork Module. This version provides a chain anchor for the Voron 2.4 and the Switchwire, a Cable Cover, and a quick filament release lever.

Bill of Materials (BOM)

Quantity Name Type
1 Orbiter v1.5 Extruder Orbiter Thingiverse link Hardware
9 M3 Heat Set Inserts McMaster Link Hardware
94180A331 or suitable inserts (Thread Pitch 0.5, Installed Length 3.8mm, Diameter ~5mm)
1 M3x8mm SHCS Hardware
1 M3x16 SHCS Hardware
2 M3x20 SHCS Hardware
1 PTFE 45mm (Dragon) Hardware
1 Clockwork Adaptor - Front Printable
1 Clockwork Adaptor - Back Printable
1 Cable/Connector Cover Printable
1 Filament Quick Release Printable
1 Chain Anchor (Version for Voron 1.8/Trident/2.4 and Switchwire) Printable

Assembly Guide

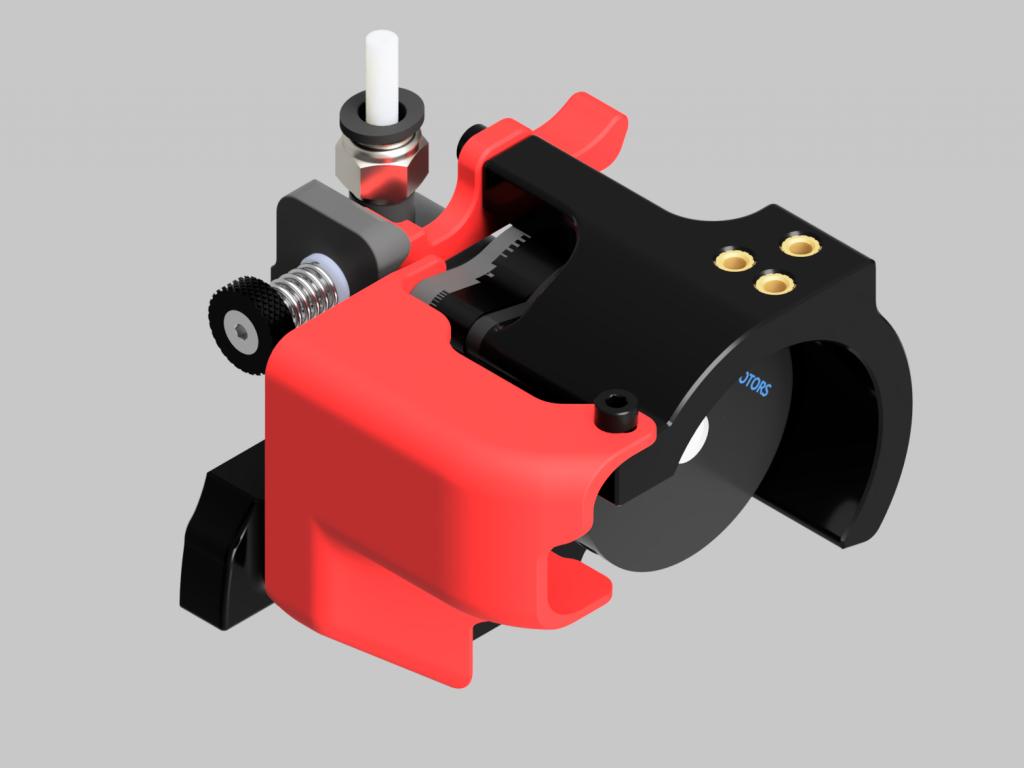

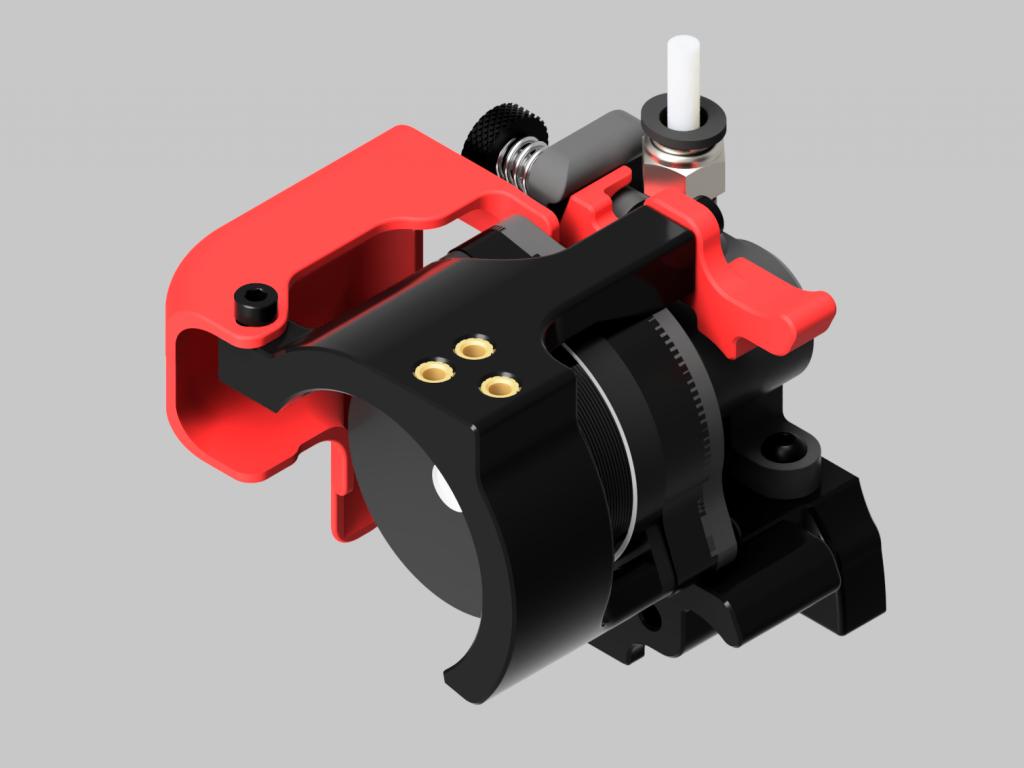

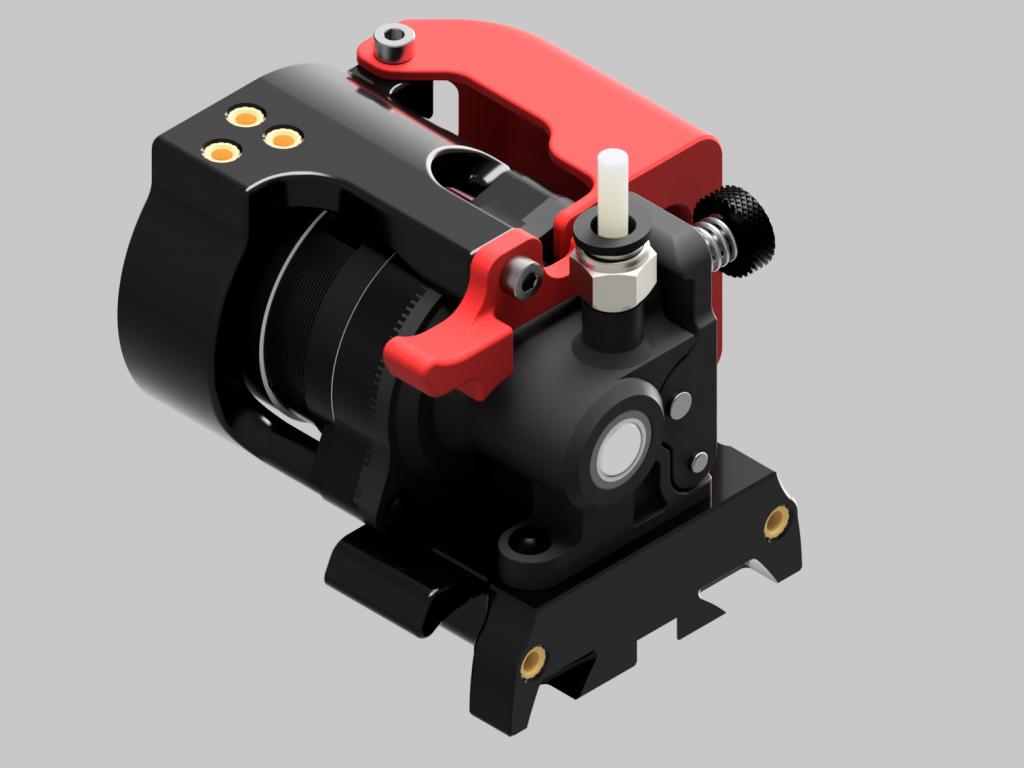

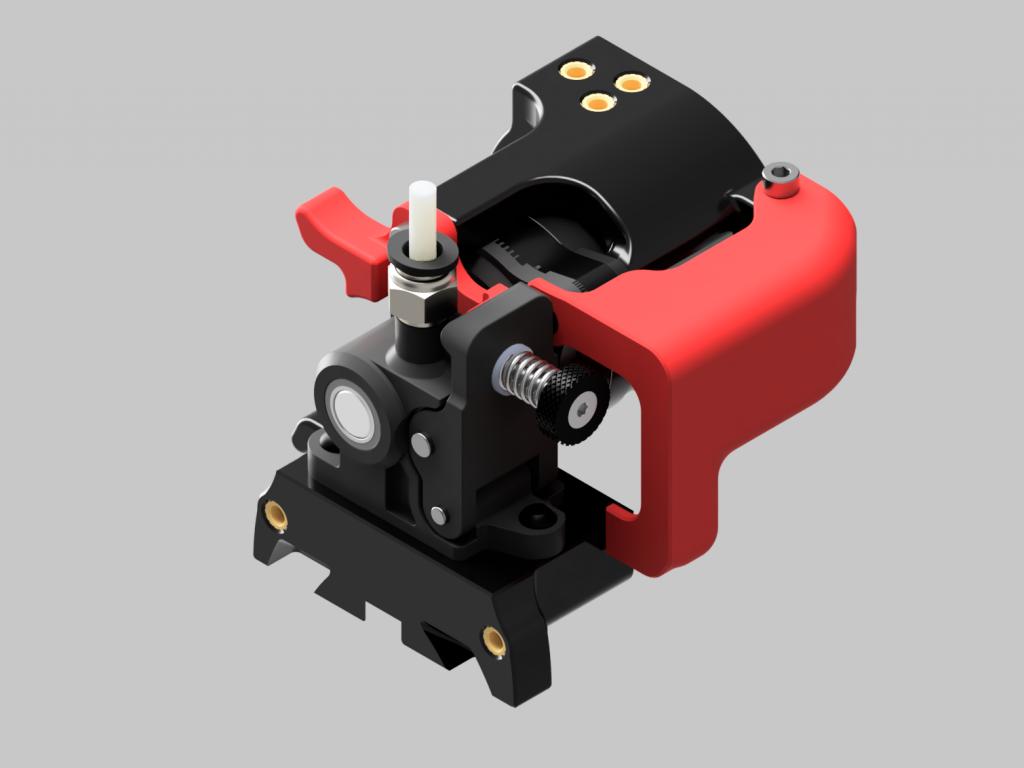

Orbiter Clockwork Module Images

Image Image Image Image

Release History

  • Version 1.0
    • Orbiter Clockwork Adaptor has been verified to fit and function on a Voron 2.4 and a Switchwire. Additional testing may be required to fix any minor or major issues that are identified in the future. If you observed any issues, please create an issue so it can be tracked.
