Huvud Chain Mount v. 2021.09.13

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!
 Share

3 Screenshots

  • Like 2

About This File

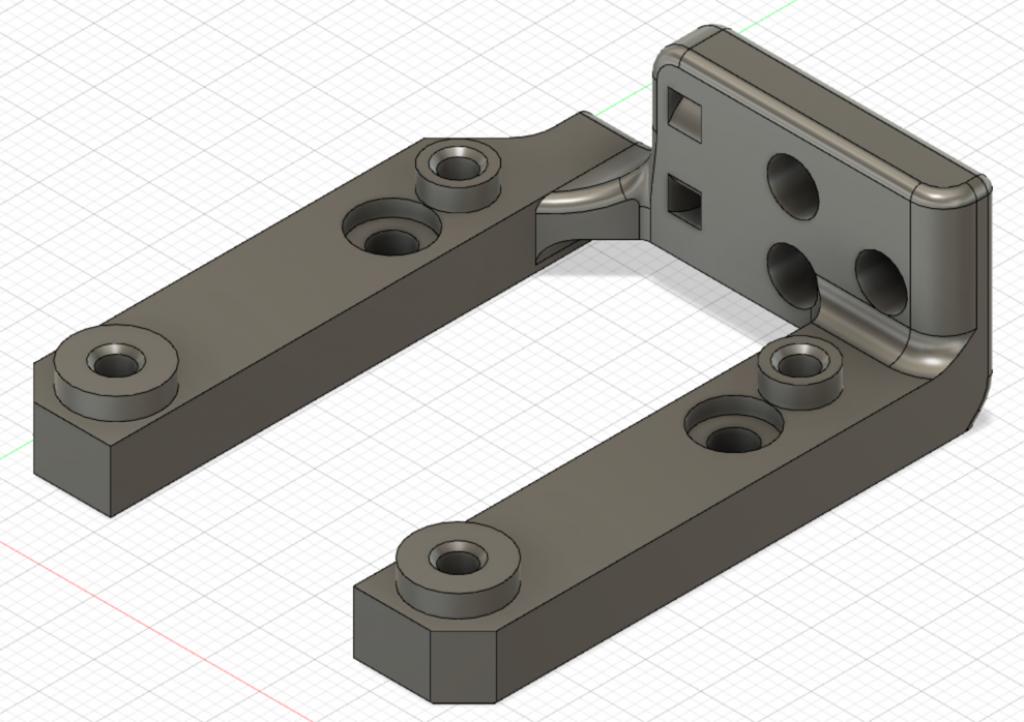

Huvud Cable Chain Mount

A mount for the Huvud toolhead board that mounts on the back for cleaner wiring but still allows for the use of a cable chain. Moves the assembly 6mm up to clear the chain at X0 as it rises onto the X joint. Has space for airflow between the motor and the Huvud to keep temperatures reasonable and includes a wire tie spot for wires coming out of the chain. Current only configured for 3-bolt generic chains. Works for both Clockwork and LGX.

Parts Required:

  • (3) M3 heat set inserts for the chain
  • (3) M3x6 FHCS to mount the chain
  • (2) M3x25 BHCS to mount to the motor
  • (4) M3x8 SHCS to mount the Huvud.

Installation:

  • Remove the printed support.
  • Install the 3 heat set inserts.
  • Remove the upper two screws of the motor.

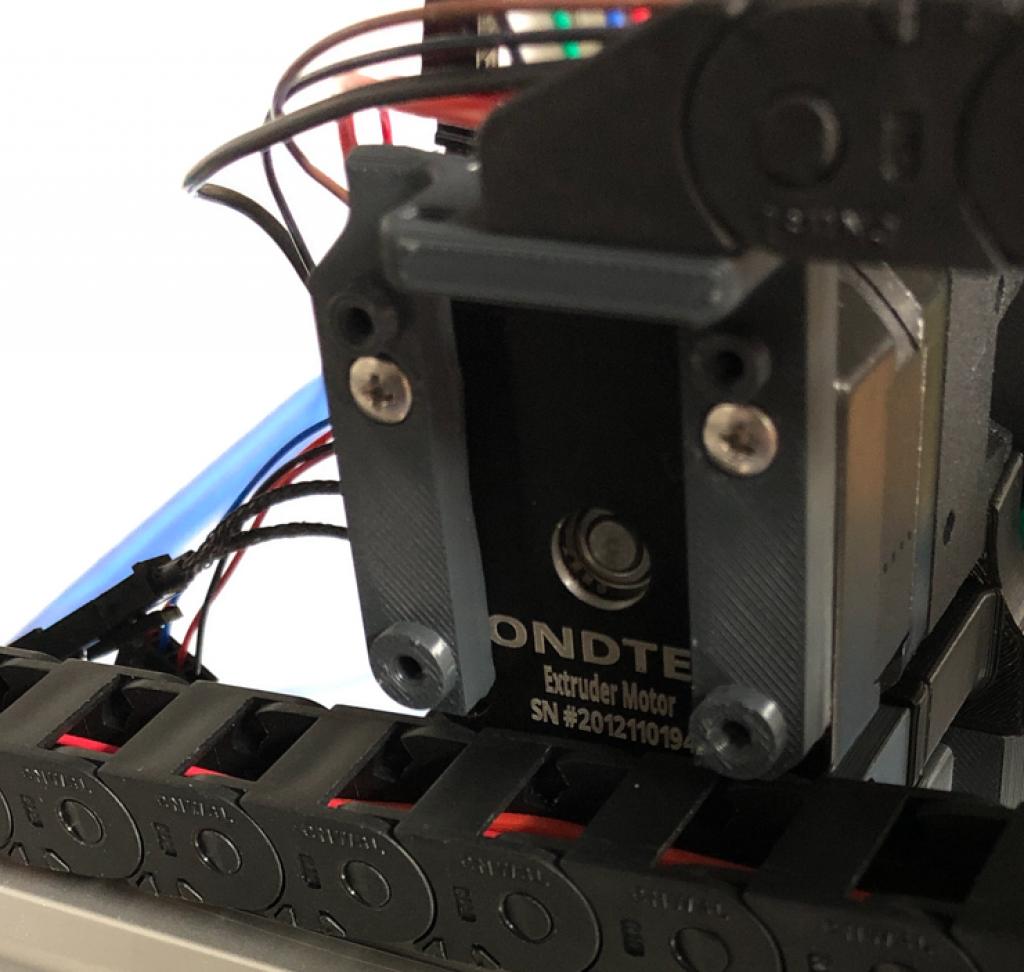

  • Install the mount with the two M3x25 BHCS.

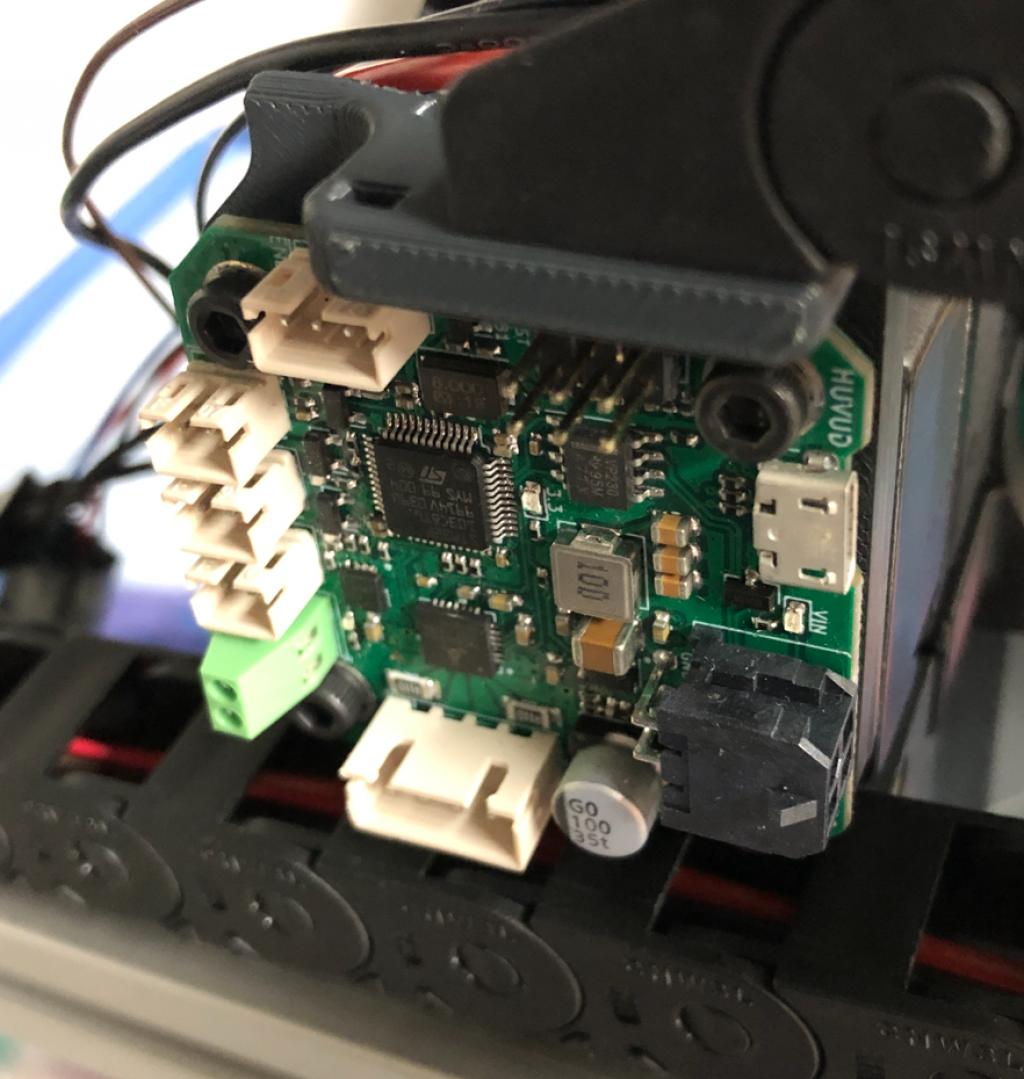

  • Attach the Huvud with the four M3x8 SHCS. The screws will thread into the plastic. Be sure to check clearance between electrical components and the M3 BHCS screws underneath
  • Attach the chain with the three M3x6 FHCS.

Designed for the Trident but will also work on a V2.4, just be conscious of clearance to the Z chain.
