Corner Cable Cover With Drop Down Holes v. 2022.08.29

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!

3 Screenshots

  • Like 9

About This File

Top Corner Cable Cover with Drop Down Holes (LED Wires)

Covers cables that are running around the top corners of 2.4R2 extrusions behind the Z idlers with drop down holes around the vertical extrusions and inline holes with cutouts to keep the wire management as clean as possible.

Holes are big enough to allow 2 pin microfit connectors pass through. Works perfectly with LDO LED PCB breakout board.

CAUTION Check your max Z travel as there will be some loss.


  • Print 1 cover per LED strip
  • Default voron settings
  • No supports needed


Size Qty
M3x8 2
M3 T-Nut 2
  • QTY per cover

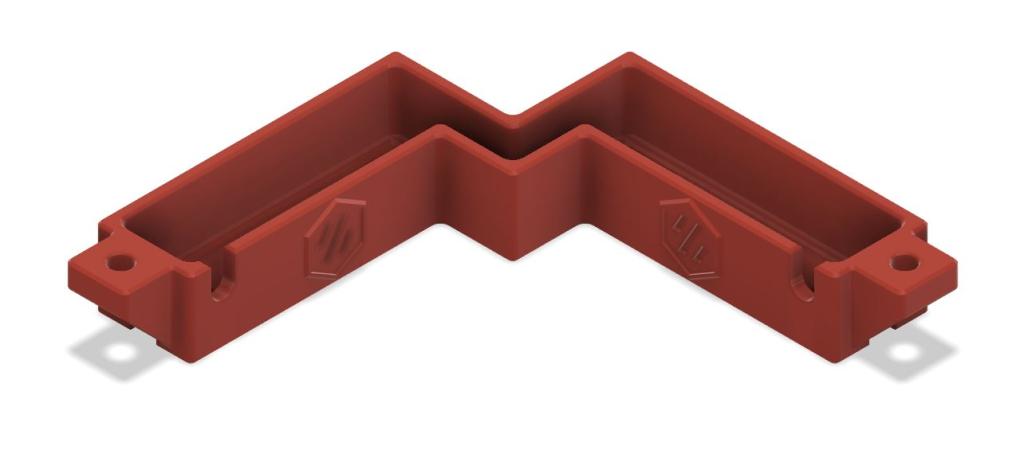

Top Corner Cable Cover

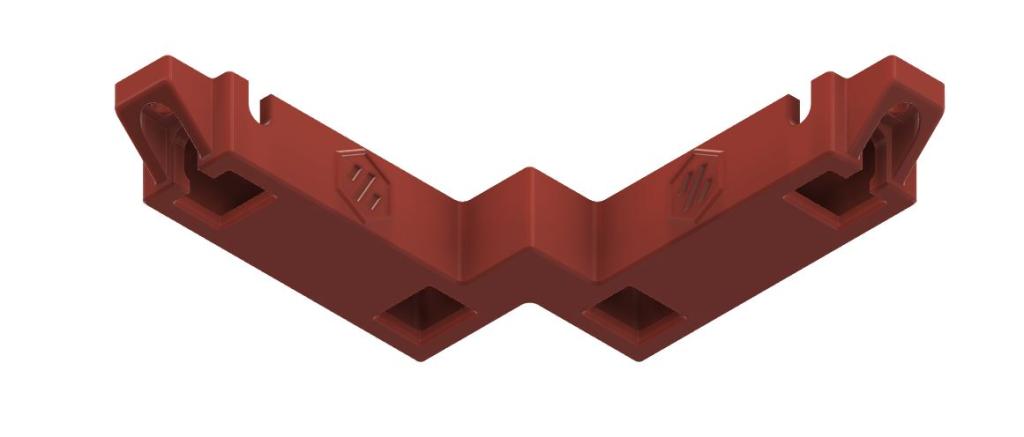

Top Corner Cable Cover

Top Corner Cable Cover
