LGX Lite Mount v. 2022.01.21

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!
 Share

1 Screenshot

  • Like 6
  • Thanks 1

About This File

A mod to mount the LGX Lite to the current X carriage.

Additional Hardware:

LGX lite mount

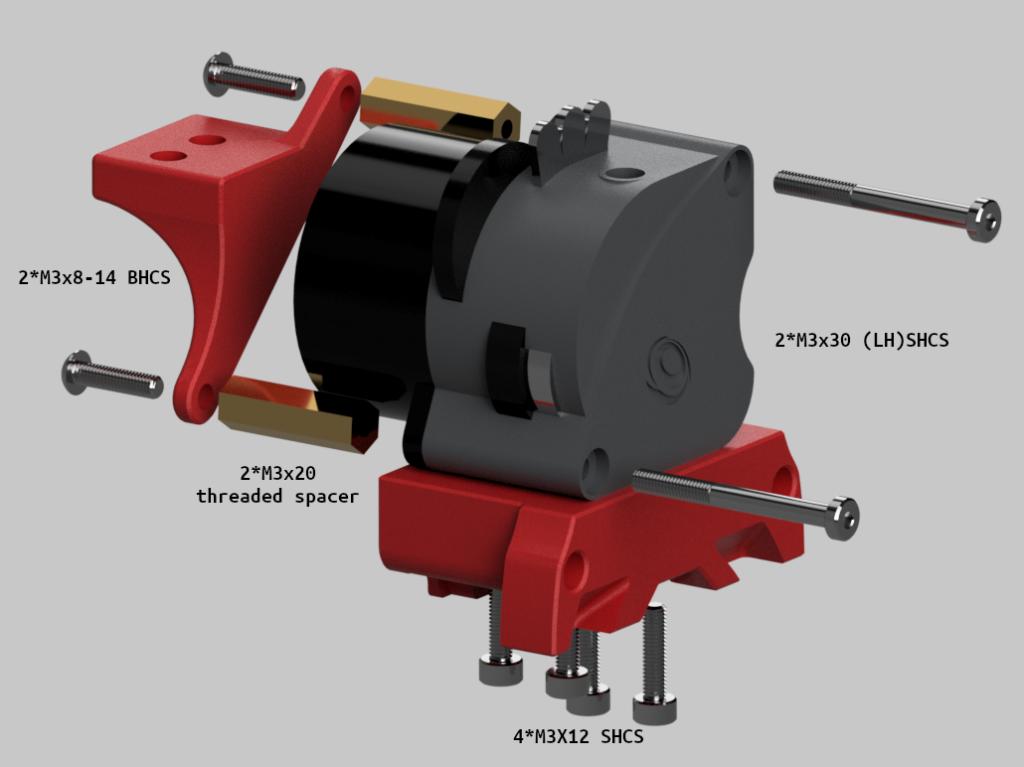

  • 4* M3x12 SHCS
    • don't forget to install the included nuts with the LGX lite into the extruder housing.
  • 4* heatset inserts

    Chainmount:

    • 2* M3x30 SHCS
    • low head to match the originals but regular work
    • 2* M3x20 threaded spacer
    • 2* M3x8-14mm BHCS
    • length isn't critical as long as it's between 8 and 14mm
    • 2-3* heatset inserts

Installation:

  1. Install heatsets into printed parts.
  2. Remove the motor and install the nuts included with the LGX.
  3. Attach the LGX to the mount.
  4. Reattach the motor using the longer screws.
  5. Thread the spacers on the exposed screws behind the motor.
  6. Screw the chainmount onto the spacers.
  7. Attach to the carriage.
