Angry CAM USB

Please find my USB Camera Mod based on Waveshare OV5648 5MP USB Camera Module (A), which allows mounting to rear gantry or other position on a frame profile.

Angry CAM USB

Printing

Printing succesful with standard VORON settings. Distance between mounts and camera housing set to 0.3 mm in *.stl file, which allows printing of mounts and housing in one print.

Use the following two *.stl files for realization in one print:

  • Camera_Housing Mounts.stl
  • Rear_Cover.stl

Camera Housing with Mounts - Front View

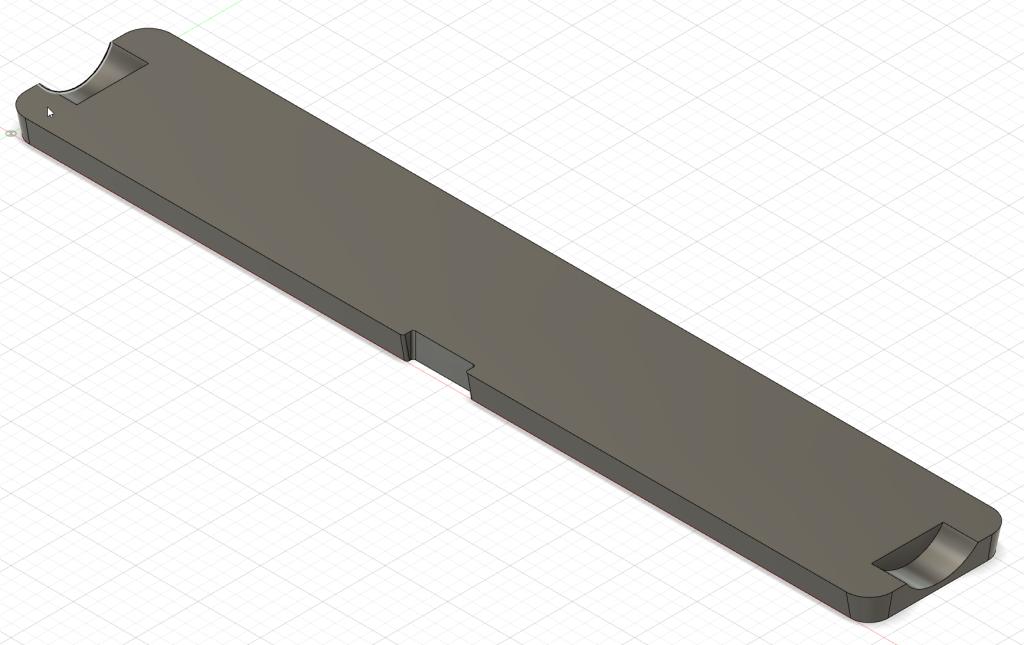

Rear Cover - Top View

Additional Material

Bill of Material:

  • 1x Waveshare OV5648 5 MP Camera Module (A), incl. USB-A to JST SH PCB connector cable
  • 2x M3x16 SHCS screws
  • 2x M3 T-Nut for 2020 frame profile
  • 1x Camera Housing Mounts and Rear Cover from the printing source of your trust.
