Voron 2.4 R2 - From Ontario Canada HEY!


PFarm

Recommended Posts

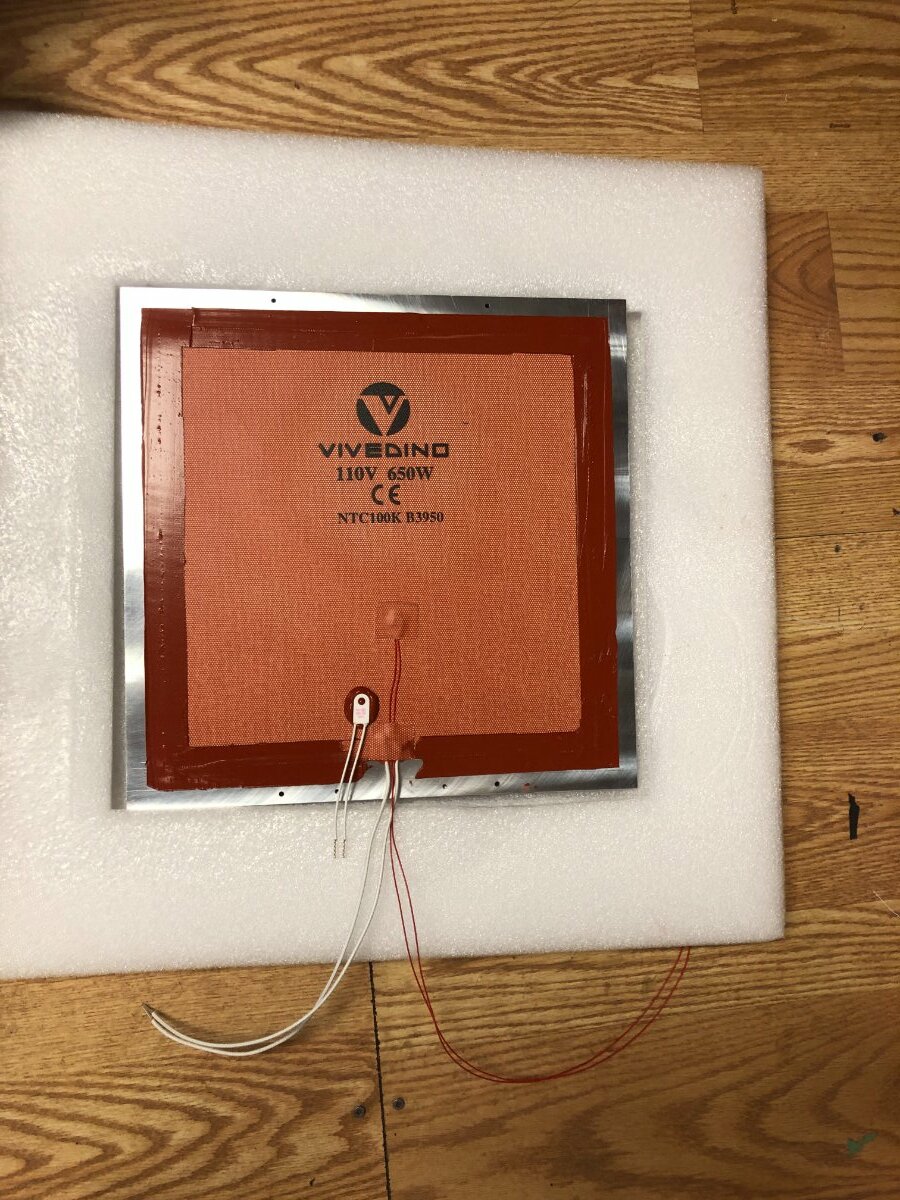

Some progress today got the bed magnet and heater installed. Gantry assembled and Z belts installed. Next ab belts still printing parts need the x carriage bracket to install the belts.





Edited by PFarm
Link to comment
Share on other sites

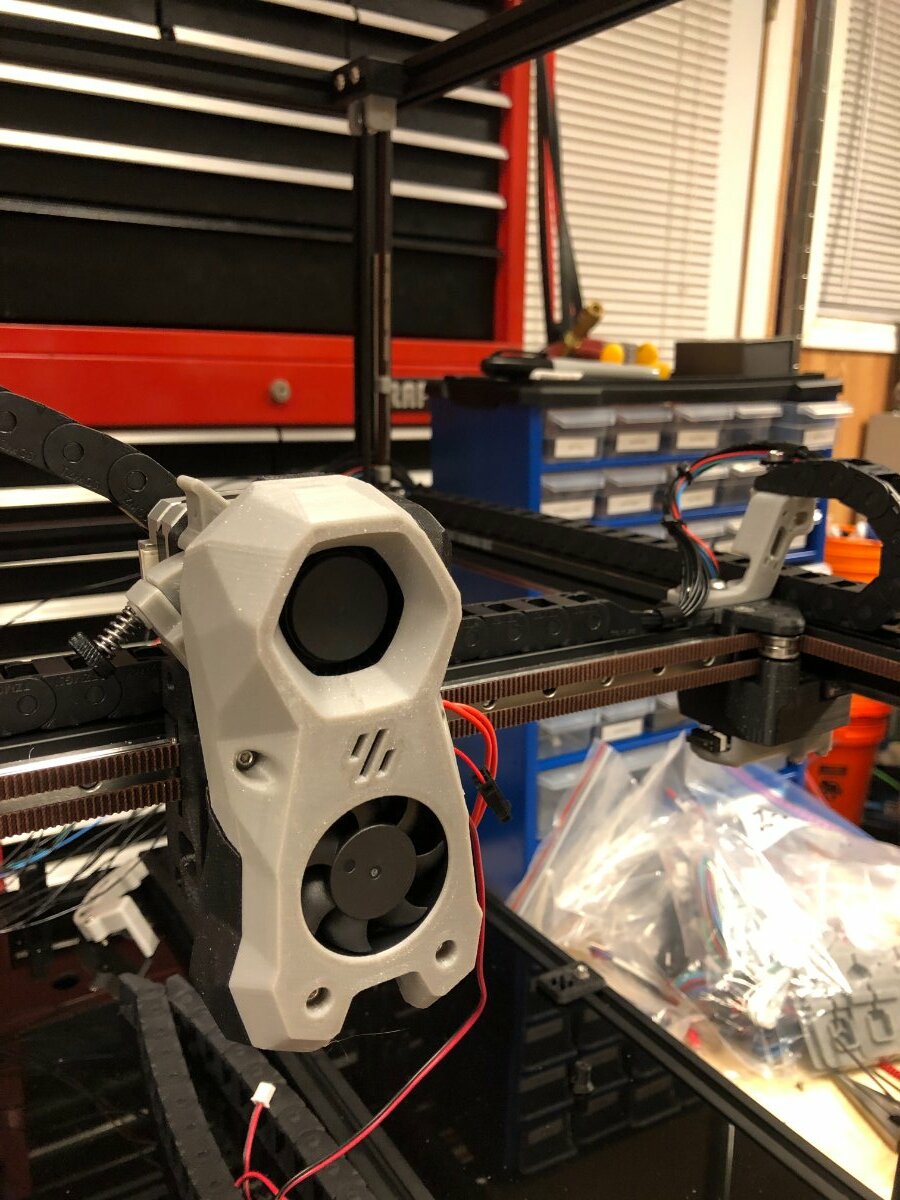

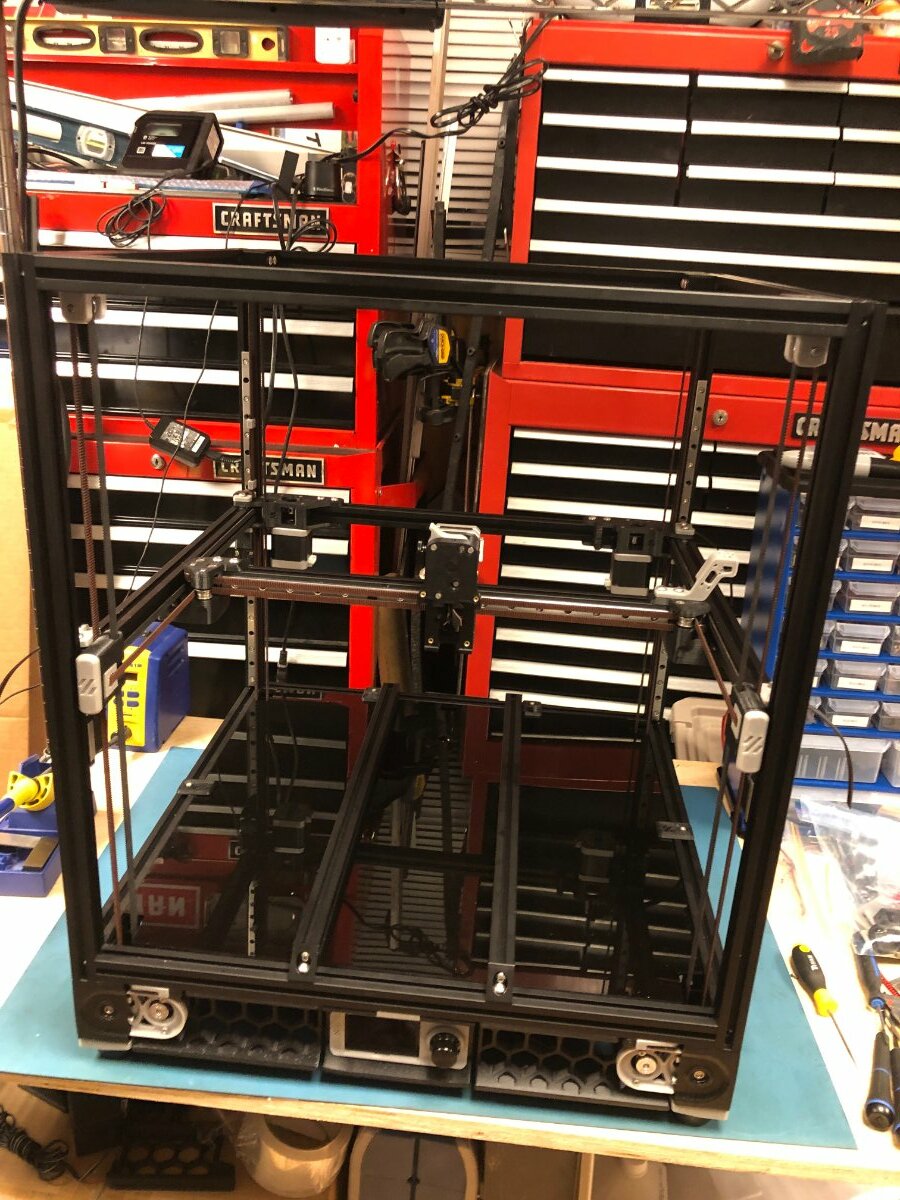

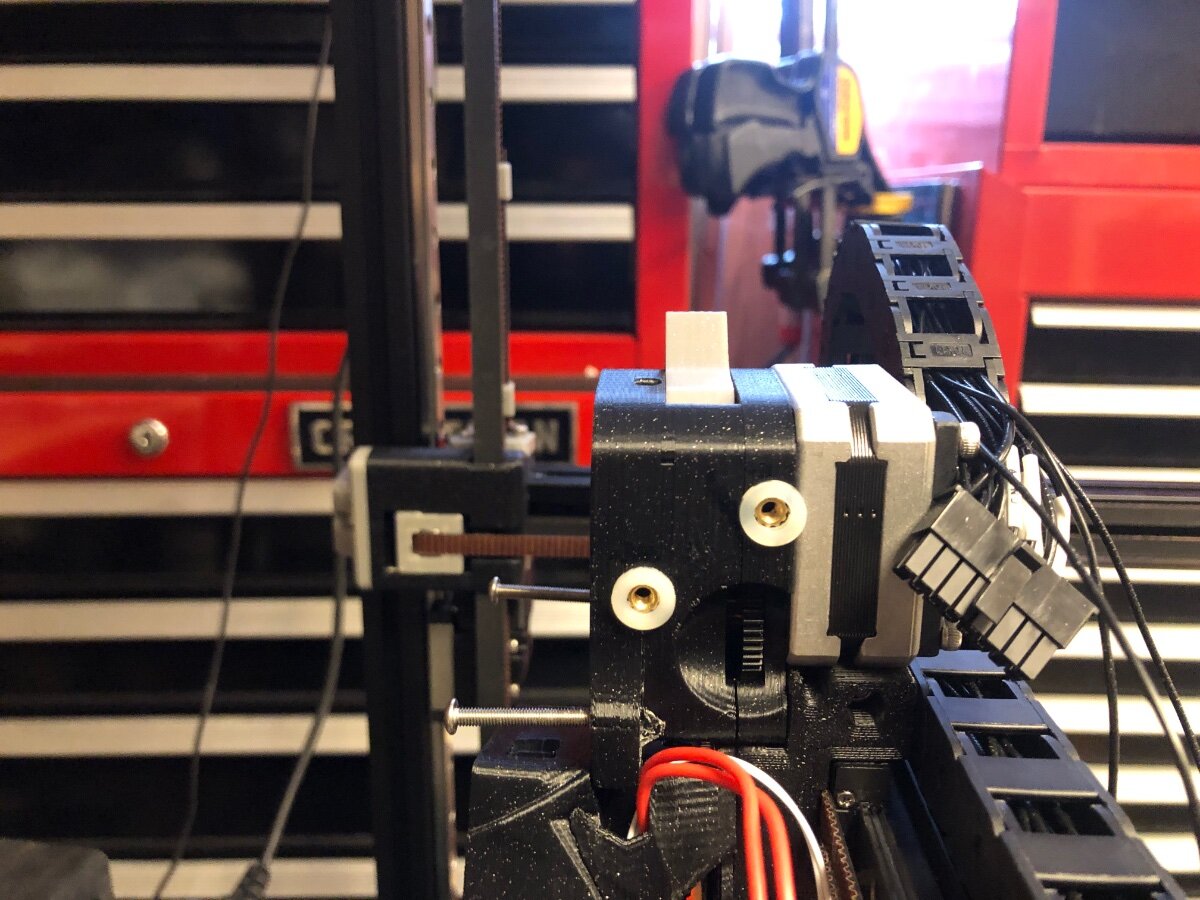

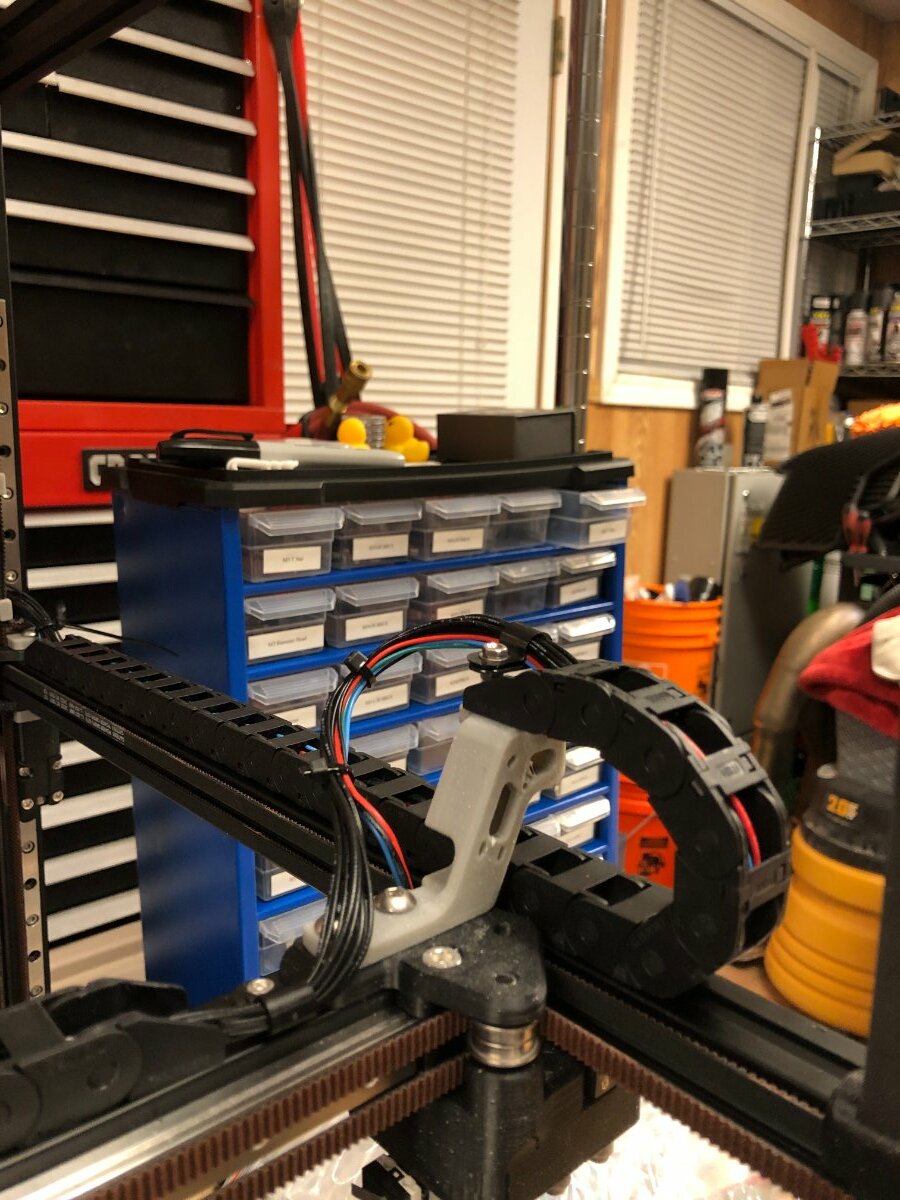

Few more parts hung, X carriage, belts installed/adjusted and de-racked. CW1 assembled onto hot end, switches, bed and start wiring tomorrow. Plans is to get setup and working then switch over to canbus.




Edited by PFarm
  • Like 1
Link to comment
Share on other sites

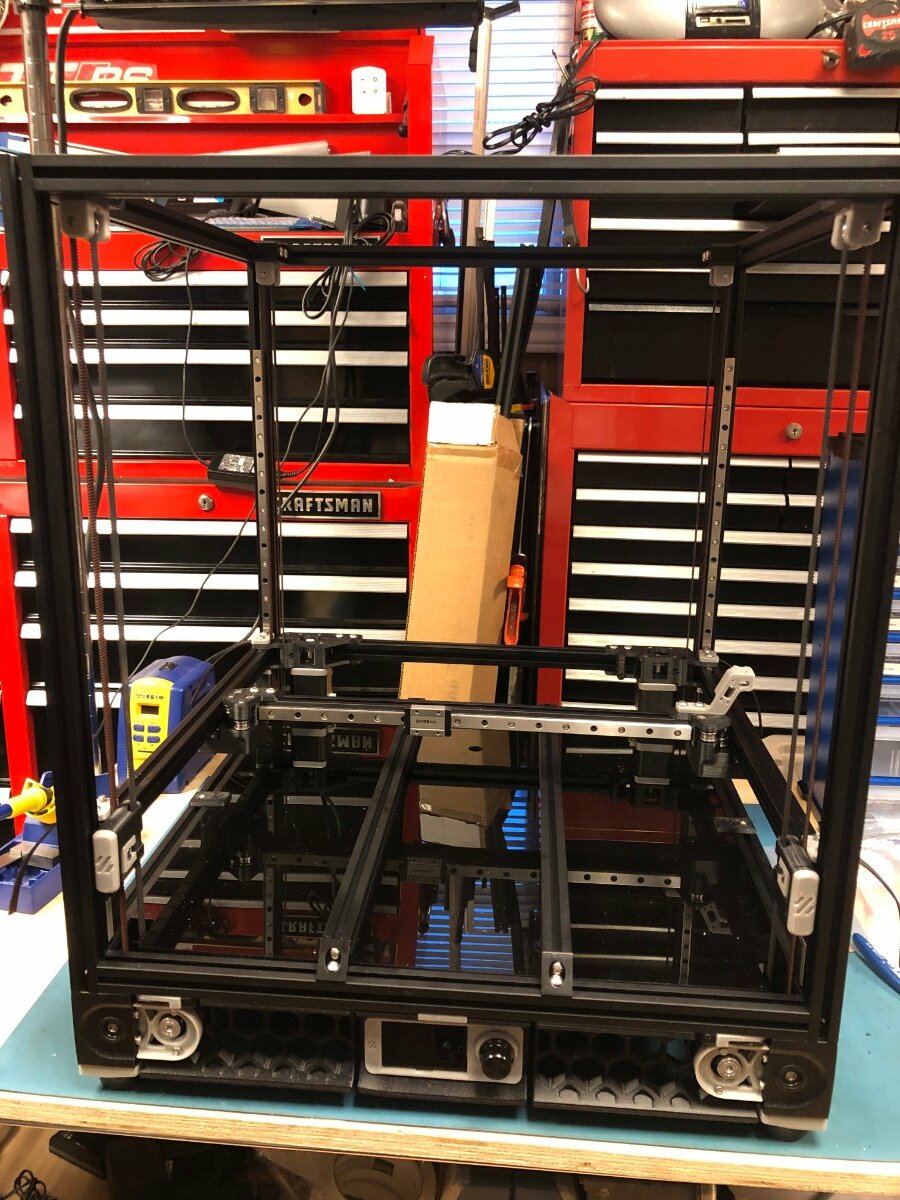

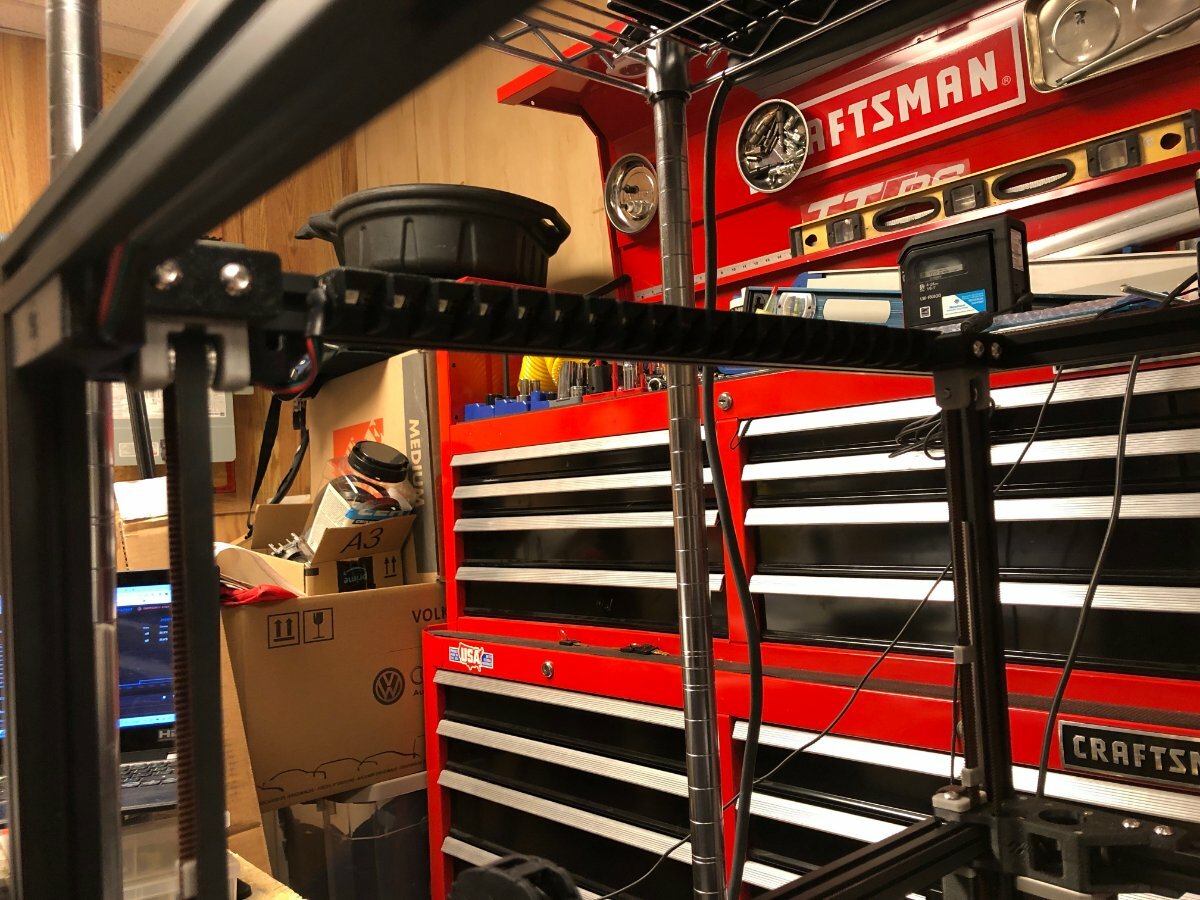

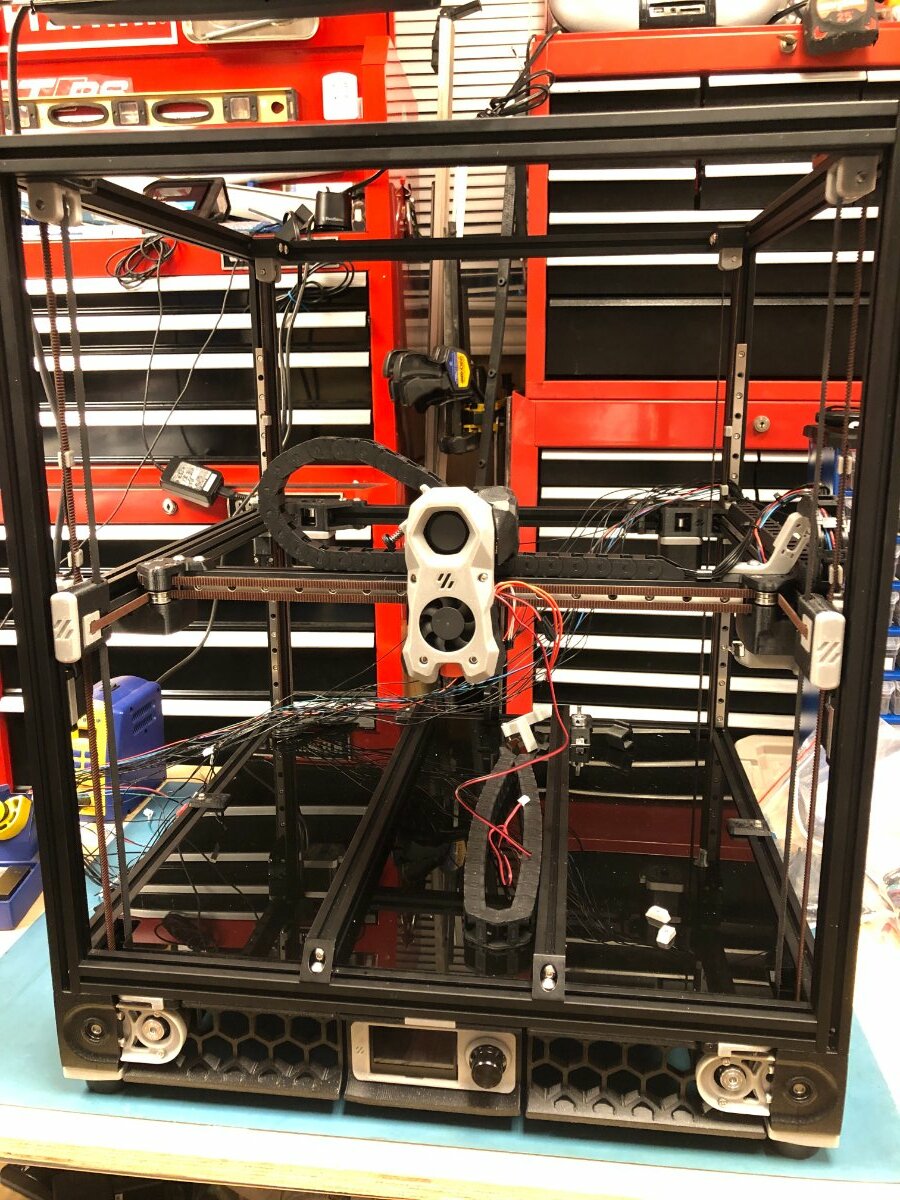

Well it starting to look like a printer instead of a cubical frame. I'm having an absolute blast putting this printer together. Ordered some wire duct last week from Amazon waiting for that to come in to do the electronics. Still printing parts, where are you guys installing the enclosure thermistor? Got the email today saying tap parts have been shipped. @smirk two years ago we had a big box hardware store closer in my home town always wanted a larger tool box, pick it up for half price so couldn't pass it up!




Edited by PFarm
  • Like 1
Link to comment
Share on other sites

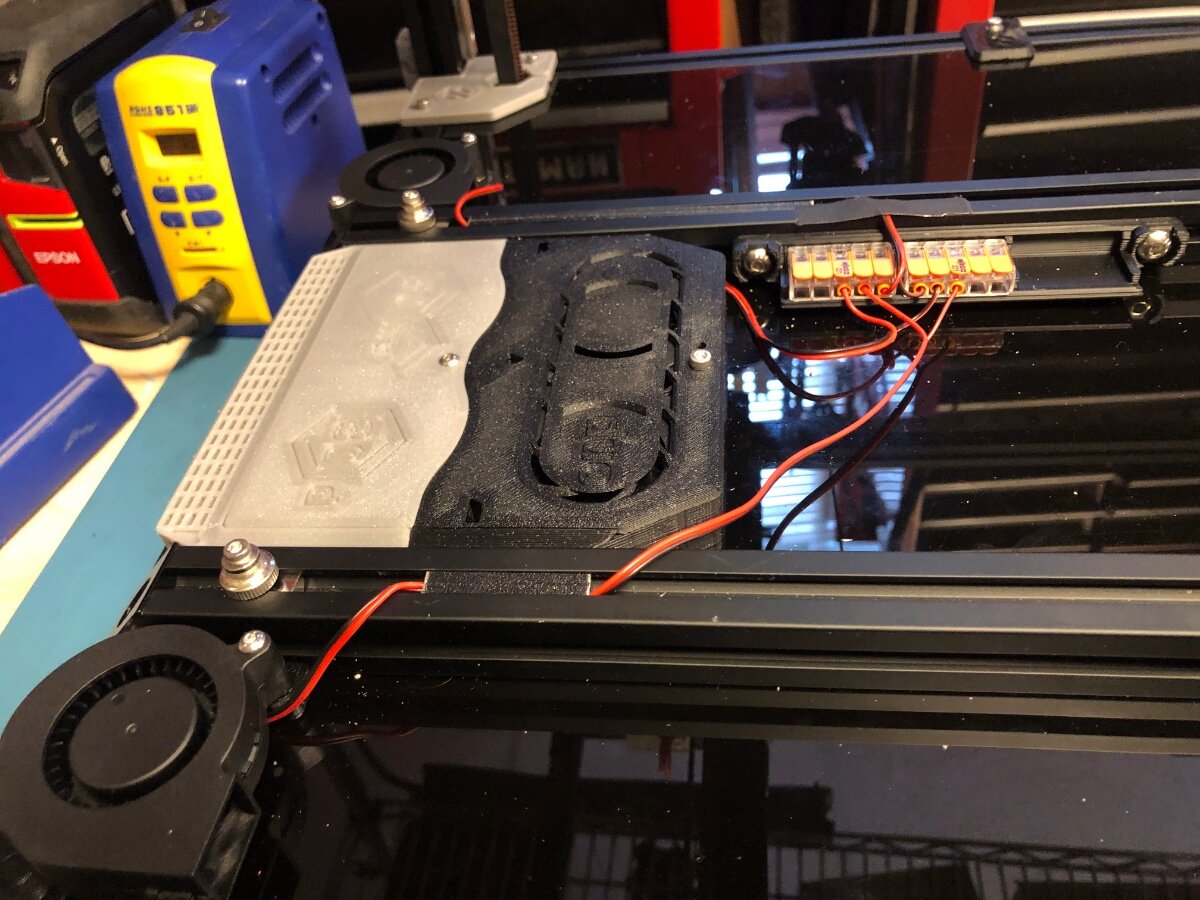

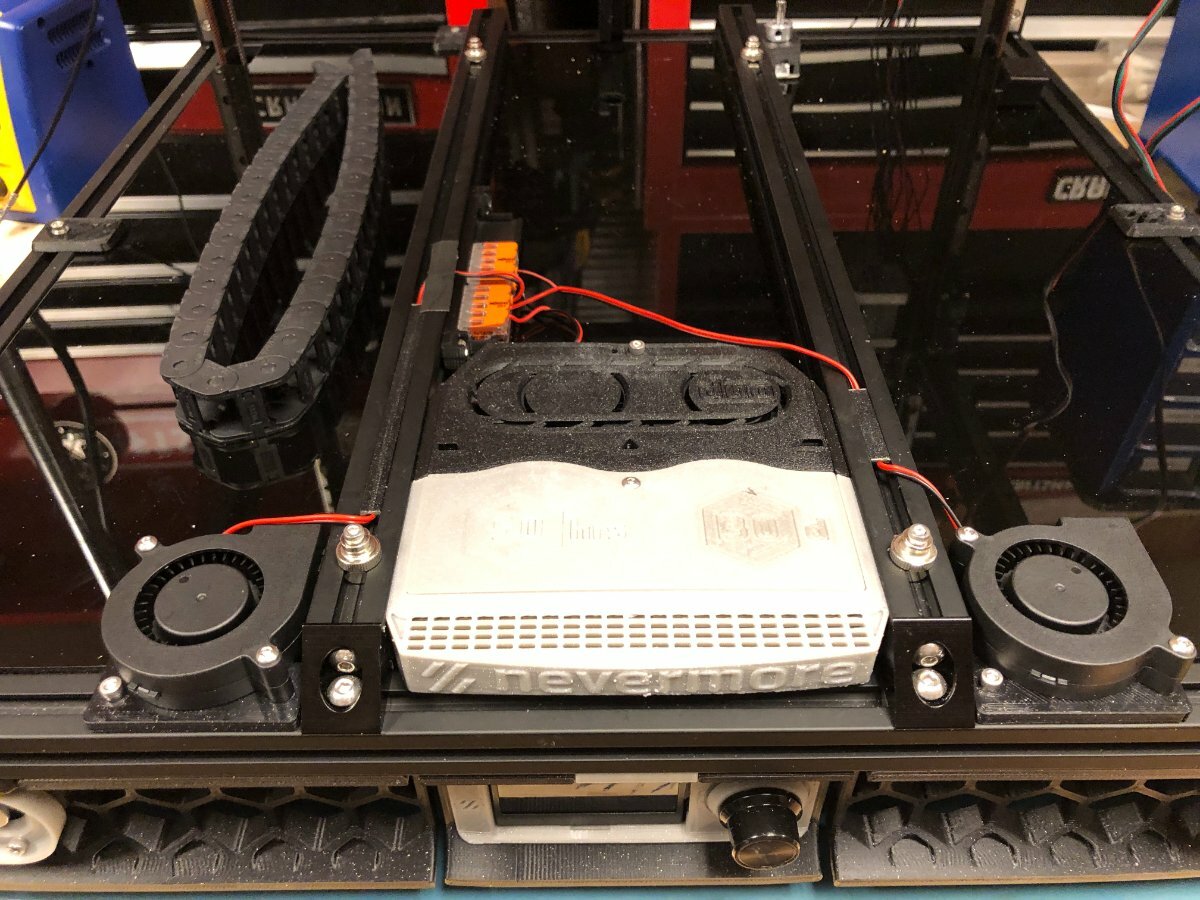

We are getting hammered by the weather, rain, sleet, snow and temperature dropping and power outages so light printing and work done to the build. Got the Ellis fan mod, nevermore  and LED lights installed. Hoping to finish the wiring tomorrow. Need to reprint another grey cover on the nevermore guess I didn't purge the filament properly.



Edited by PFarm
  • Like 3
Link to comment
Share on other sites

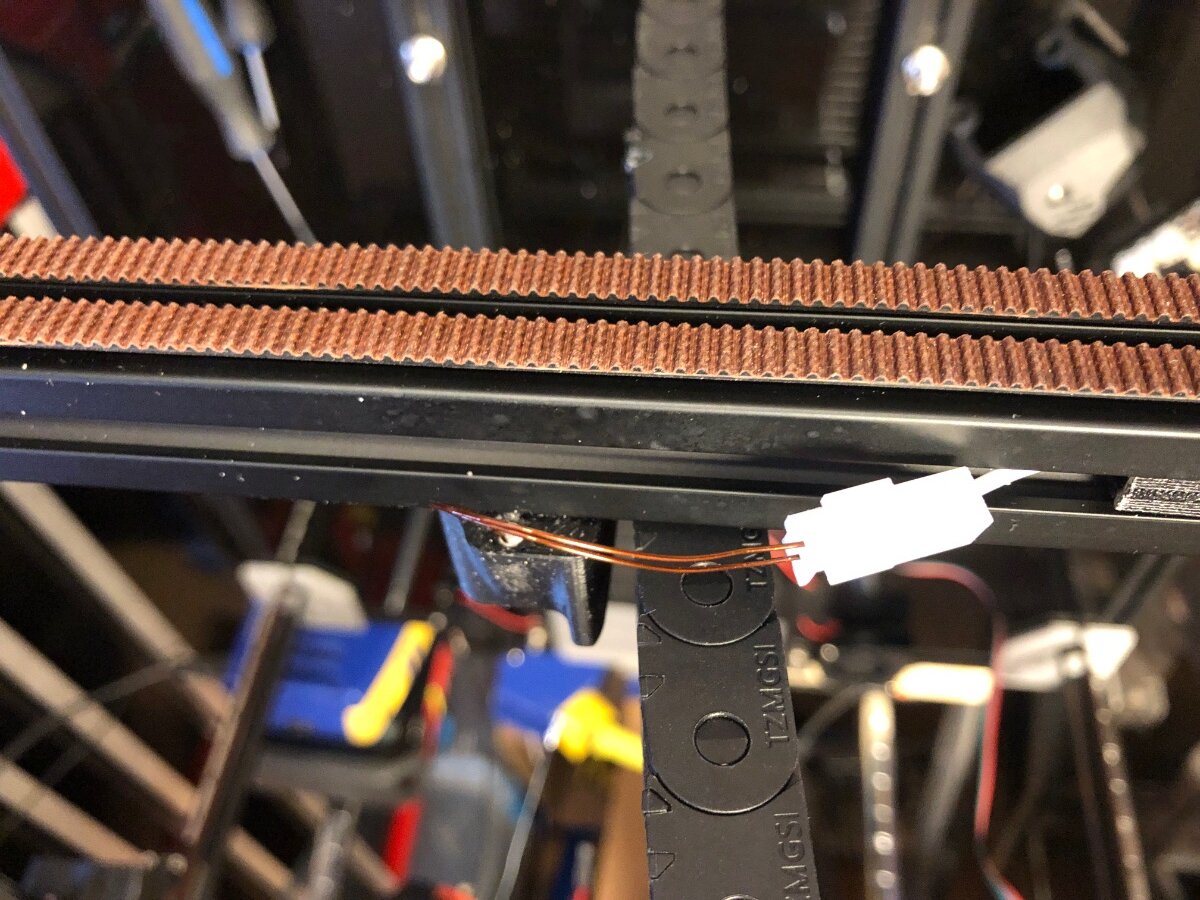

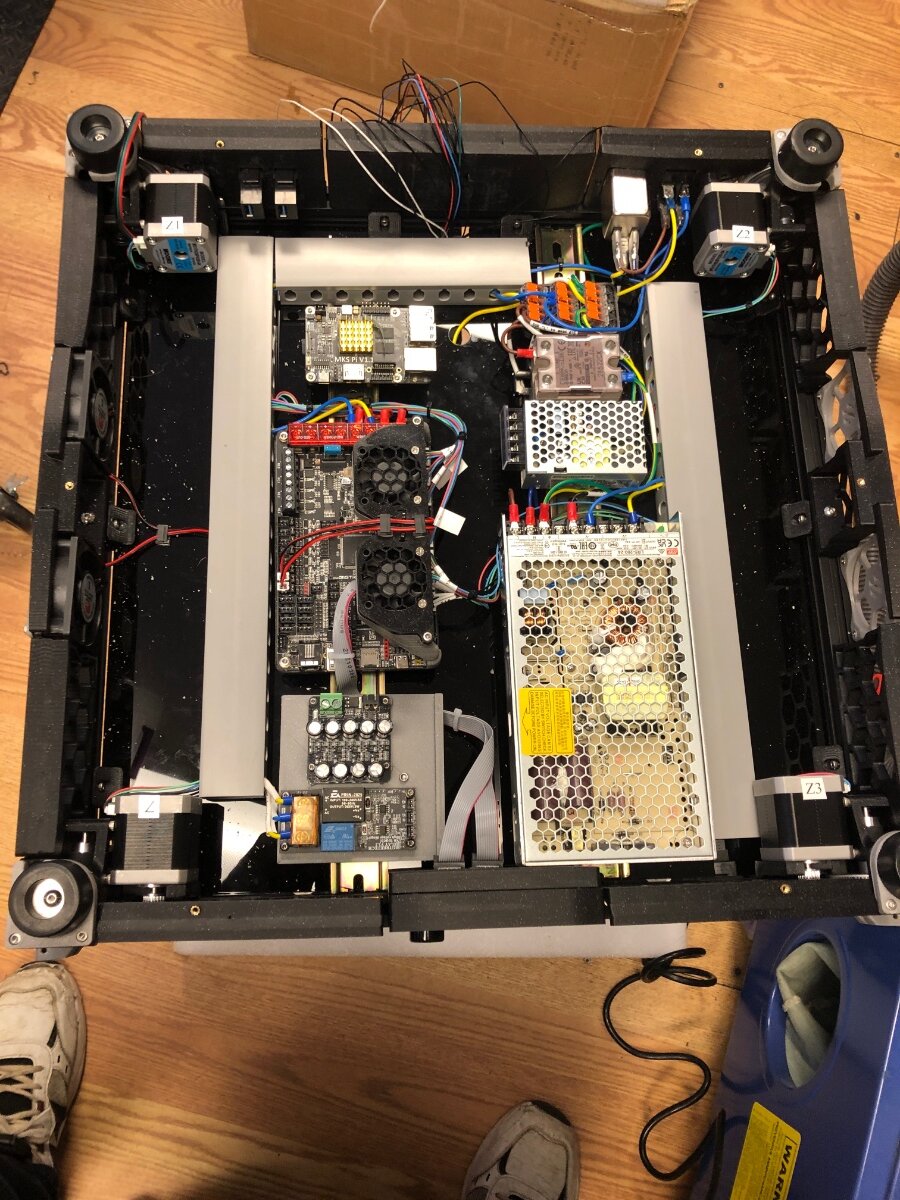

Got the tool head PCB wired with the exception of probe waiting on tap parts, added nylon washer to keep the back of the PCB board of the extruded motor. Installed chamber thermistor, wired the nevermore and bed fans into the wago’s. I had the BTT shutdown and UPS module for another printer mod so decided to install them on this printer, added 4010 fans to the stepper drivers coming from the Artillery X1 world better save for the cost of two fans! Using a Pi alternative Makerbase 64 bit MKS Pi was easy to configure and is powered by 12/24v also dedicated ADXL connections. Started to wire the electronics bay. The only draw back of this alternative is No on board wifi you need to add a wifi adapter. Off to work for the next two weeks should have it finished and printing on my next days off.






Edited by PFarm
  • Like 1
Link to comment
Share on other sites

  • 3 weeks later...

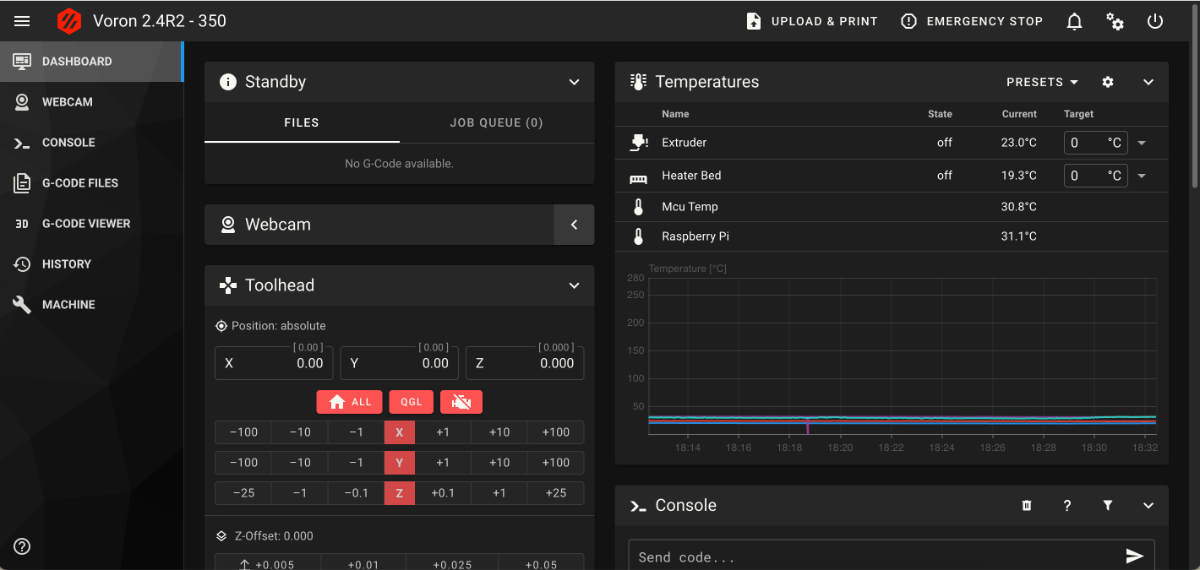

Well, it lives! Got it mostly wired (need to clean some wiring up) and need to terminate wiring for Stealthburner LEDs and enclosure LEDs. Added a Klipper expansion module for the extra Neopixel enclosure LEDs. Pi-3 only has one USB port to install a powered USB hub for Pi to the motherboard and webcam. Next is component verification, tuning, and first print. Magic smoke genie stayed in his lamp! :classic_cool:

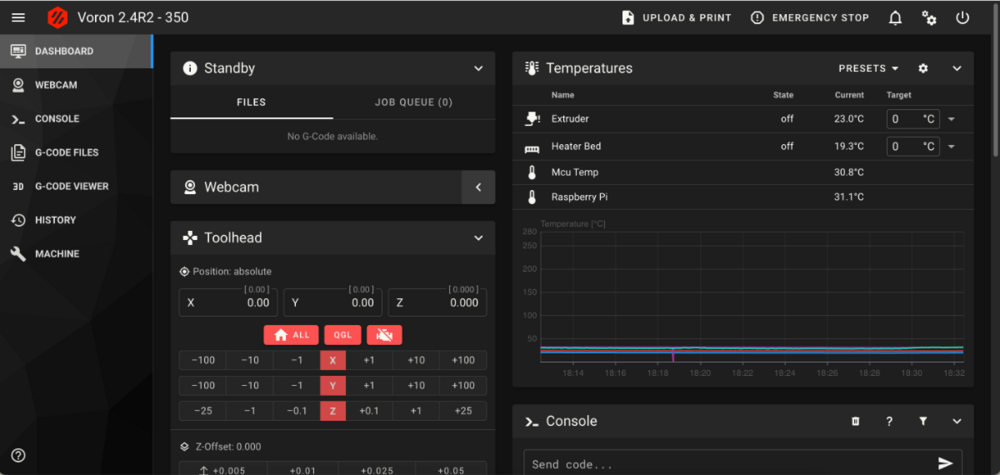

Screen Shot 2023-01-15 at 6.32.27 PM.png

  • Like 1
Link to comment
Share on other sites

How good is that! Now the fun starts in getting it tuned to perfection. Not that I got there yet. Love the Klipper expander units - easy to set up and use. Have you considered using the probe port (can be set to 5V) or BLTouch port on the octopus board for the extra LED's?.

  • Like 1
Link to comment
Share on other sites

1 minute ago, mvdveer said:

Love the Klipper expander units - easy to set up and use. Have you considered using the probe port (can be set to 5V) or BLTouch port on the octopus board for the extra LED's?.

Yes, the Octopus will be used for the Stealthburner LED and the expansion module for the enclosure LEDs. I already had the WS2812 addressable led strip and decided to use those for the enclosure lighting. You're right the expansion board was easy to flash and set up in the config file. The probe port will be used for tap, I've gone with the probe that came with the kit for now and will change out to tap later.

Link to comment
Share on other sites

9 minutes ago, PFarm said:

the expansion module for the enclosure LEDs.

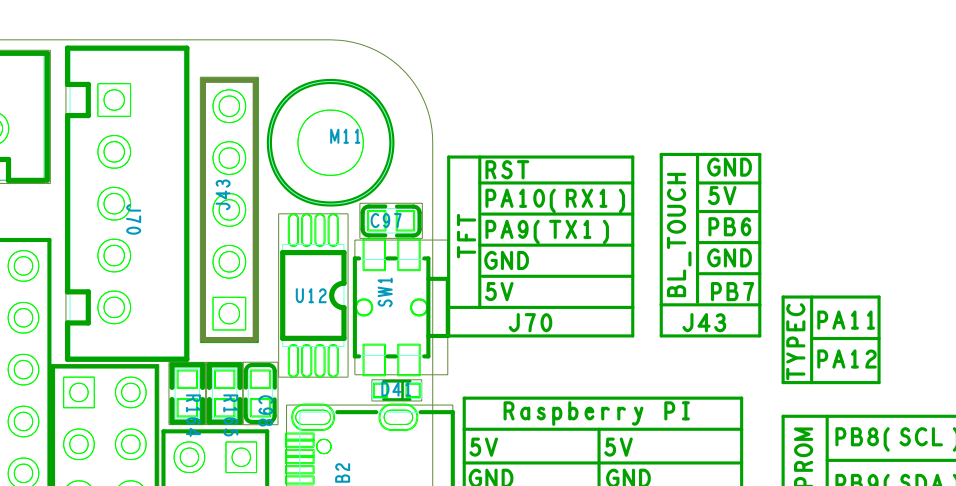

These could be connected to the Octopus board on the BLTouch port J43 if you want, in stead of adding an expander board.




  • Like 2
Link to comment
Share on other sites

Got all the wiring completed and started the initial startup. I'm at the probe accuracy test not comprehending what the value should be shooting for, would appreciate some guidance. Stock Omron probe.

Edited by PFarm
Link to comment
Share on other sites

Check https://docs.vorondesign.com/build/startup/ about 3/4 down under Probe Accuracy Check.

Quote

It will probe the bed 10 times in a row and output a standard deviation value at the end. Make sure that the sensed distance is not trending (gradually decreasing or increasing over the 10 probes) and that the standard deviation is less than 0.003mm.



  • Like 1
Link to comment
Share on other sites

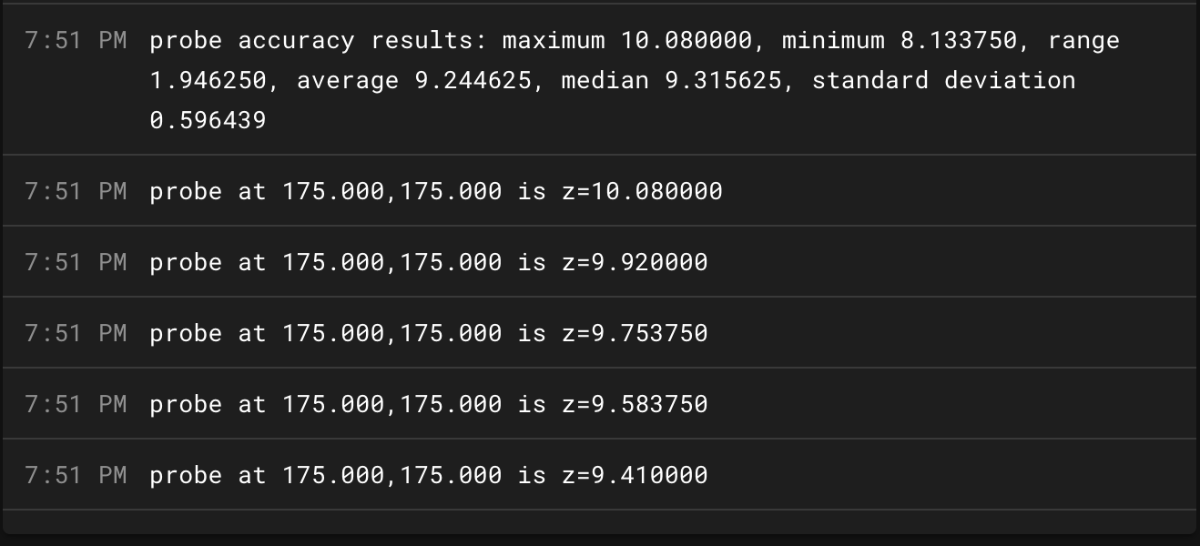

Got the Klicky Probe installed. What range is the probe accuracy supposed to be?  0.569 is the best I can get out of this switch. Needly to say QGL won't past the first point. I'm stumped as what comes next do I need another microswitch?1825196094_ScreenShot2023-01-18at7_59_47PM.thumb.png.b4e1c2ef1b0c303461c6d256c6fd3231.png

Link to comment
Share on other sites

4 hours ago, PFarm said:

Got the Klicky Probe installed. What range is the probe accuracy supposed to be?  0.569 is the best I can get out of this switch. Needly to say QGL won't past the first point. I'm stumped as what comes next do I need another microswitch?

A couple of questions/ideas:

Are the magnets making a flush and secure connection when it picks up the micro-switch pod?

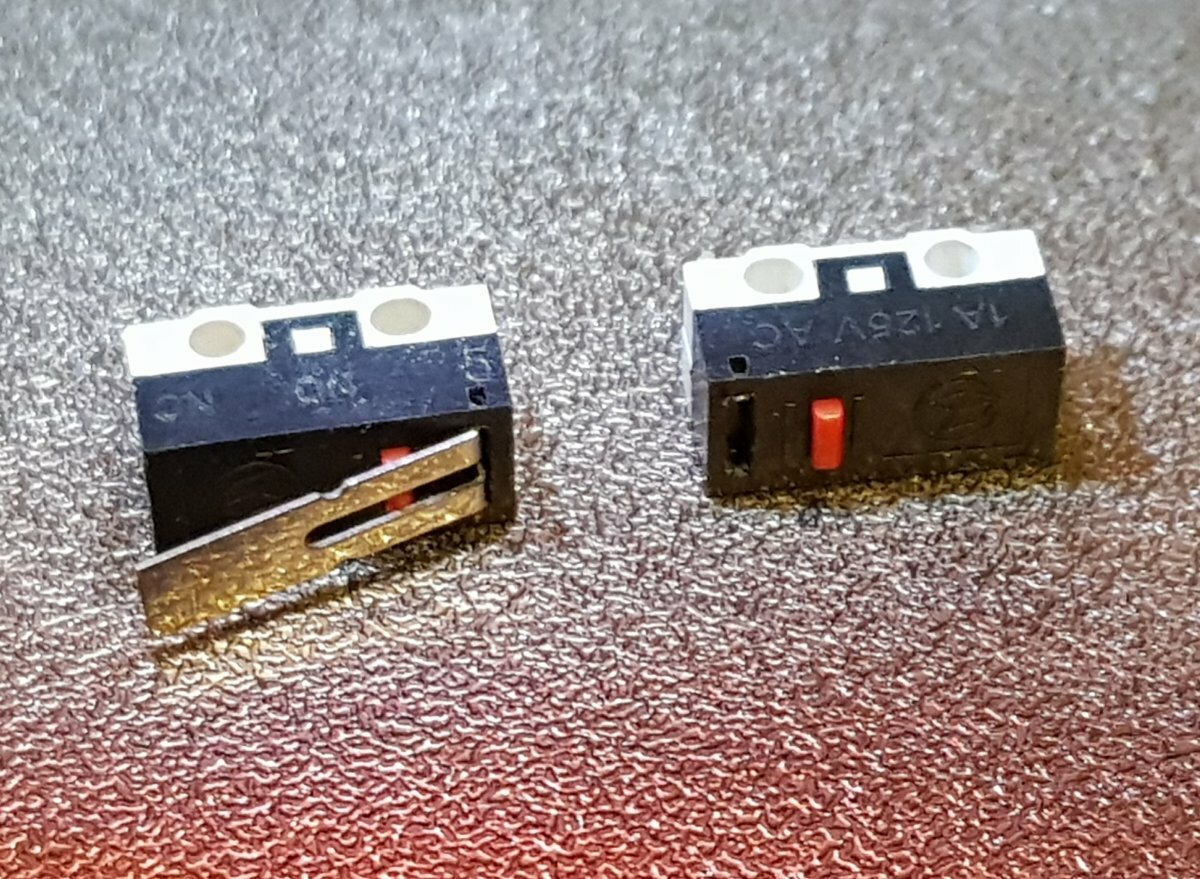

Did you remove the metal lever from the micro-switch?

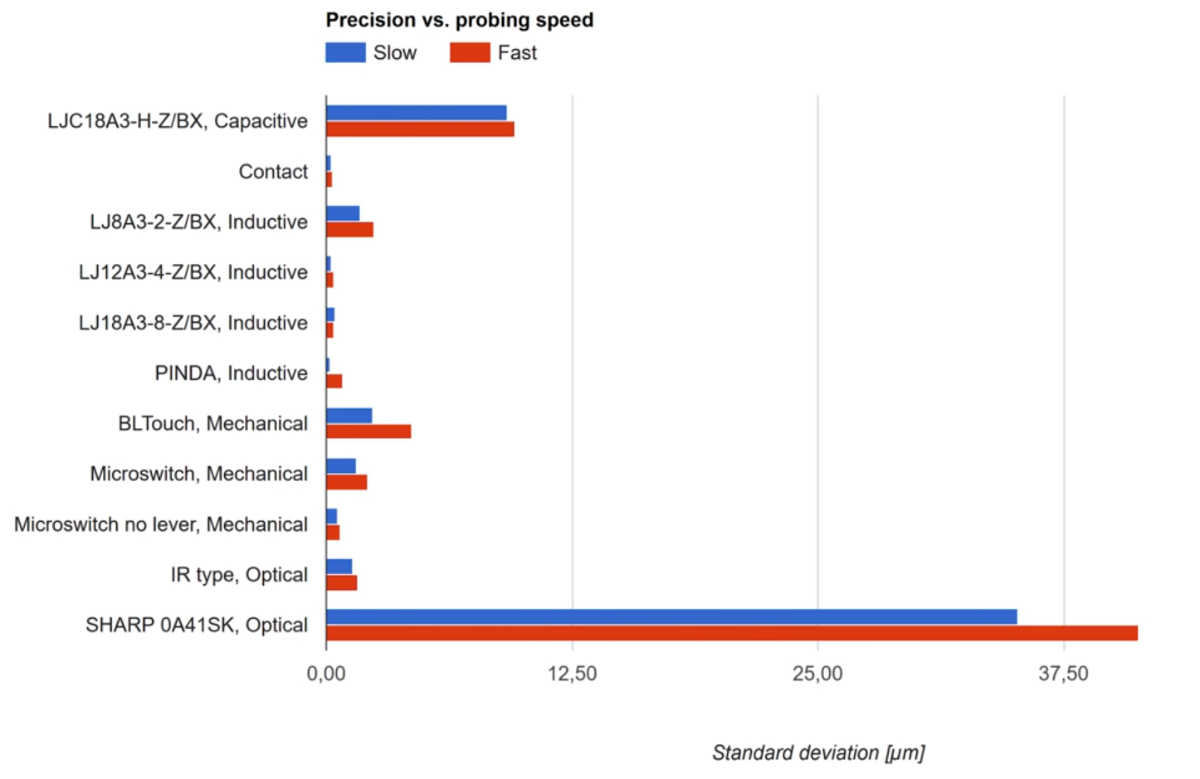

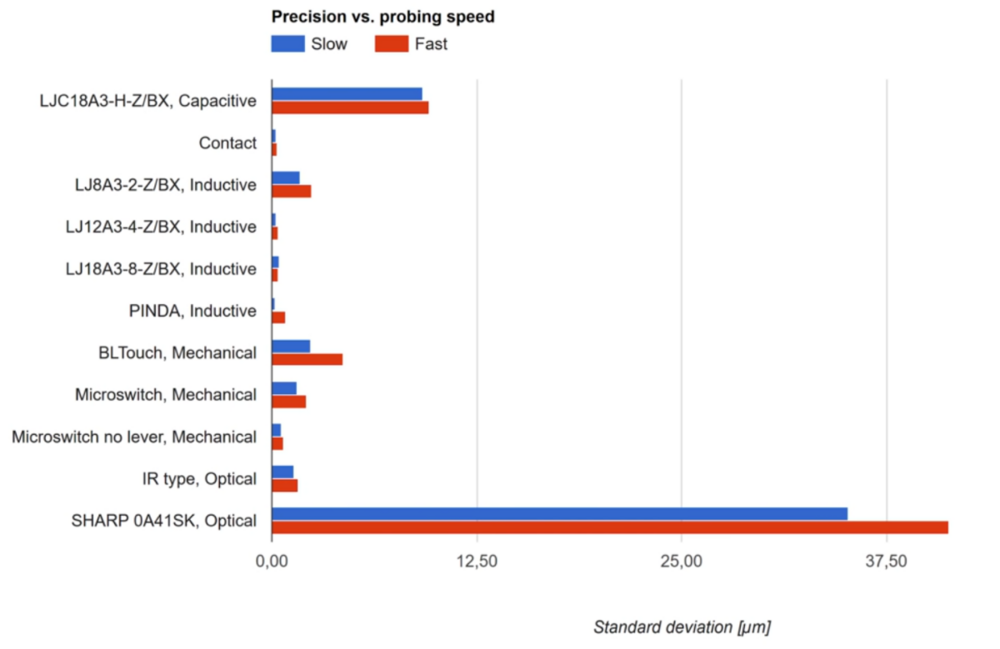

How fast are you probing? In my experience anything over 20mm/sec can lower the accuracy. Here is a chart with the repeatability of different switches and you can see that a micro-switch is one of the more accurate options.


Edited by atrushing
Link to comment
Share on other sites

I've removed the lever and verified the operation of the switch with a multimeter. As for the speed is whatever Klipper default PROBE_ACCURACY is set at. I'll look up how to set the probing speed. Appreciate the help.

Link to comment
Share on other sites

29 minutes ago, PFarm said:

As for the speed is whatever Klipper default PROBE_ACCURACY is set at.

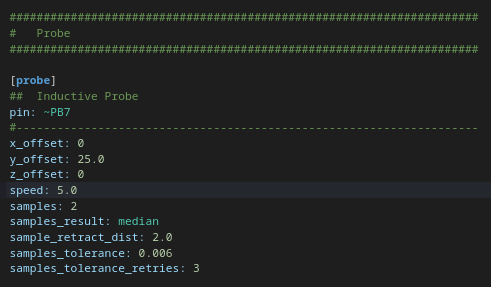

I did a quick test and the PROBE_ACCURACY pulls the speed from the [probe] section of your printer.cfg


When I changed mine from 25mm/sec to 5mm/sec my accuracy went from .00652 to .004023 with an off-brand capacitive probe.

Link to comment
Share on other sites

Here what happening if I home the printer and then centre the printer head and Z is a 30. The gantry will lower itself till the nozzle hit the bed, if I try to move to another location it will drag the nozzle across the bed. because it thinks the Z is still at 30. So come to the conclusion that something is wrong with the steppers. Order a set of LDO motor kit from Spartan 3D. Do I need to replace all of the steppers since they're  .9 degrees and Moon steppers are 1.8 degrees?



Edited by PFarm
Link to comment
Share on other sites

5 hours ago, PFarm said:

Do I need to replace all of the steppers since they're  .9 degrees and Moon steppers are 1.8 degrees?

Technically, I wouldn't say you needed to replace motors just because of the difference in stepping resolution (as long as you have your rotation distances set appropriately). Having said that, ideally you would want motors matched by "function" so all the Z motors the same (even the same model) and the A/B motors the same. Probably most important to keep all your Z motors the same make/model to eliminate any odd variances.

On a side note, personally, I've only ever had "grief" with 0.9 degree motors. I'm always tempted by that presumed increase in accuracy/resolution (which is clearly negated by all the other factors in the machine), but the 0.9 motors have much lower torque (I think in most/alll cases) when comparing to similar 1.8 degree motors. To be honest I've never found 0.9 motors to be worth it (perhaps my expectations were too high and I was looking for "WOW, that's amazing!" but generally all I ever got was "Meh! I think that's marginally better")

  • Like 1
Link to comment
Share on other sites
