RS PSU DIN Brackets v. 2021.12.16

(0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!

Share

2 Screenshots

1

About This File

MeanWell RS PSU Bracket

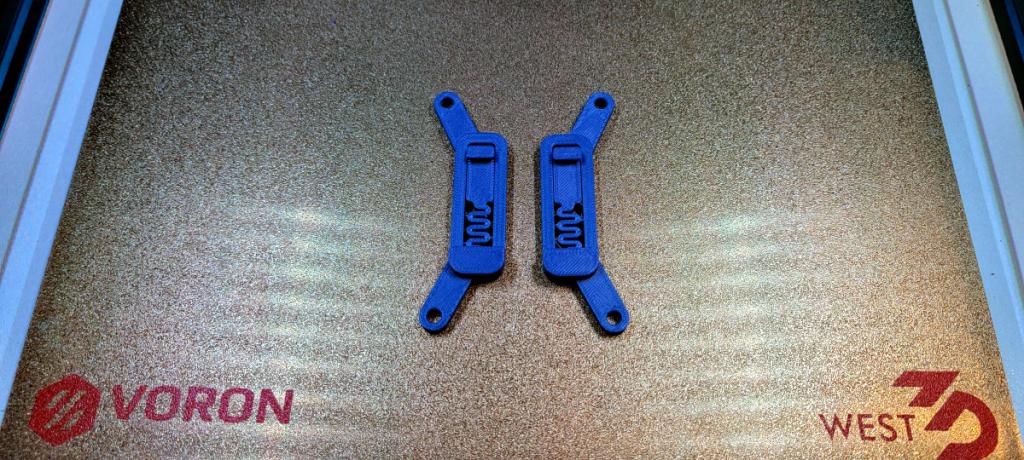

Brackets

Overview

DIN brackets for MeanWell RS series PSUs (bolt holes 80mm center-to-center), edited from MarcPot's UHP PSU Bracket.

CAD file included.

BOM

4x M3x8 FHCS

OR
4x M3x6 SHCS

Printing instructions

Normal Voron print settings.

Questions

Reach me in Voron's Discord @aTinyShellScript#3121 if you have any questions.

Images

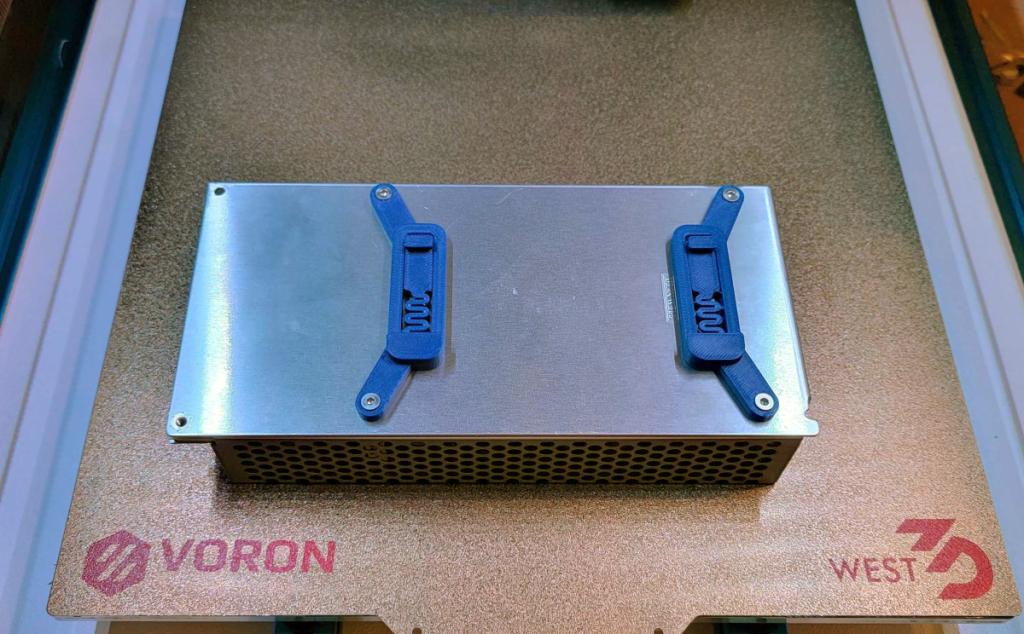

Mounted

Create an account or sign in to download this

File Information

Views 3,662
Downloads 52
Submitted December 26, 2021
File Size 595.67 kB
GitHub Repo

https://github.com/VoronDesign/VoronUsers/tree/master/printer_mods/aTinyShellScript/RS_PSU_DIN_Brackets
License (GPLv3, etc...)

https://github.com/VoronDesign/VoronUsers/blob/master/LICENSE.md
