MGN9C X axis

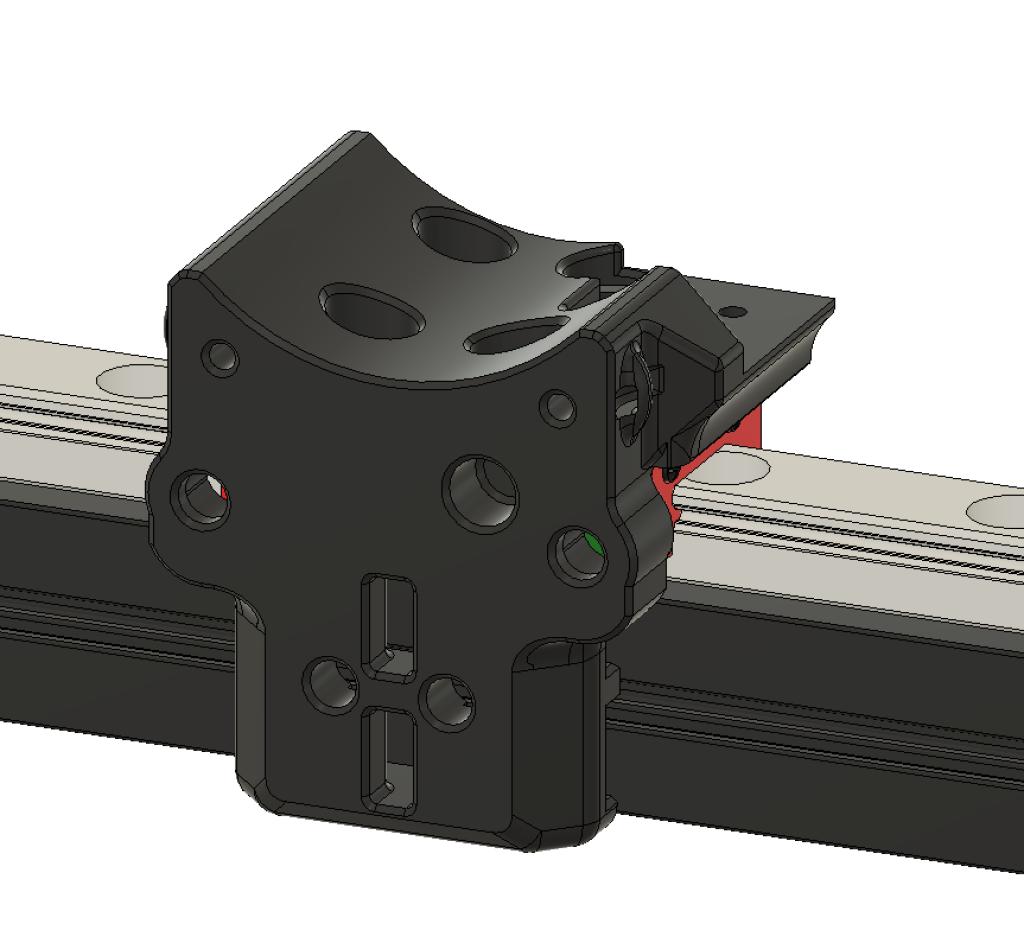

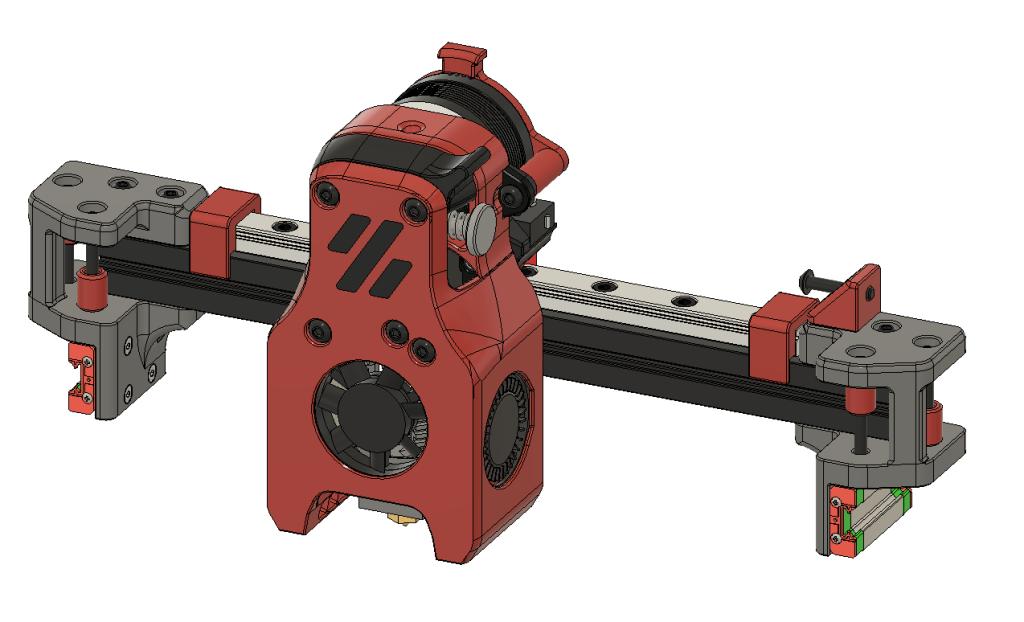

This replaces the MGN7H rail on the V0.1 X axis with a single MGN9C rail.
Required hardware
In addition to things you can reuse from the stock build, these items are required:
- 1x MGN9C-150mm linear rail
- 7x M3x8
- 7x M3 Nuts
Instructions
Assembly is exactly the same as the stock V0.1 X axis
Images
