Voron 2.4r2 350mm build - Formbot kit - and yes - MODS galore

[mvdveer]

Build Manual page 176 - 207 Electronics

Mods: Nil

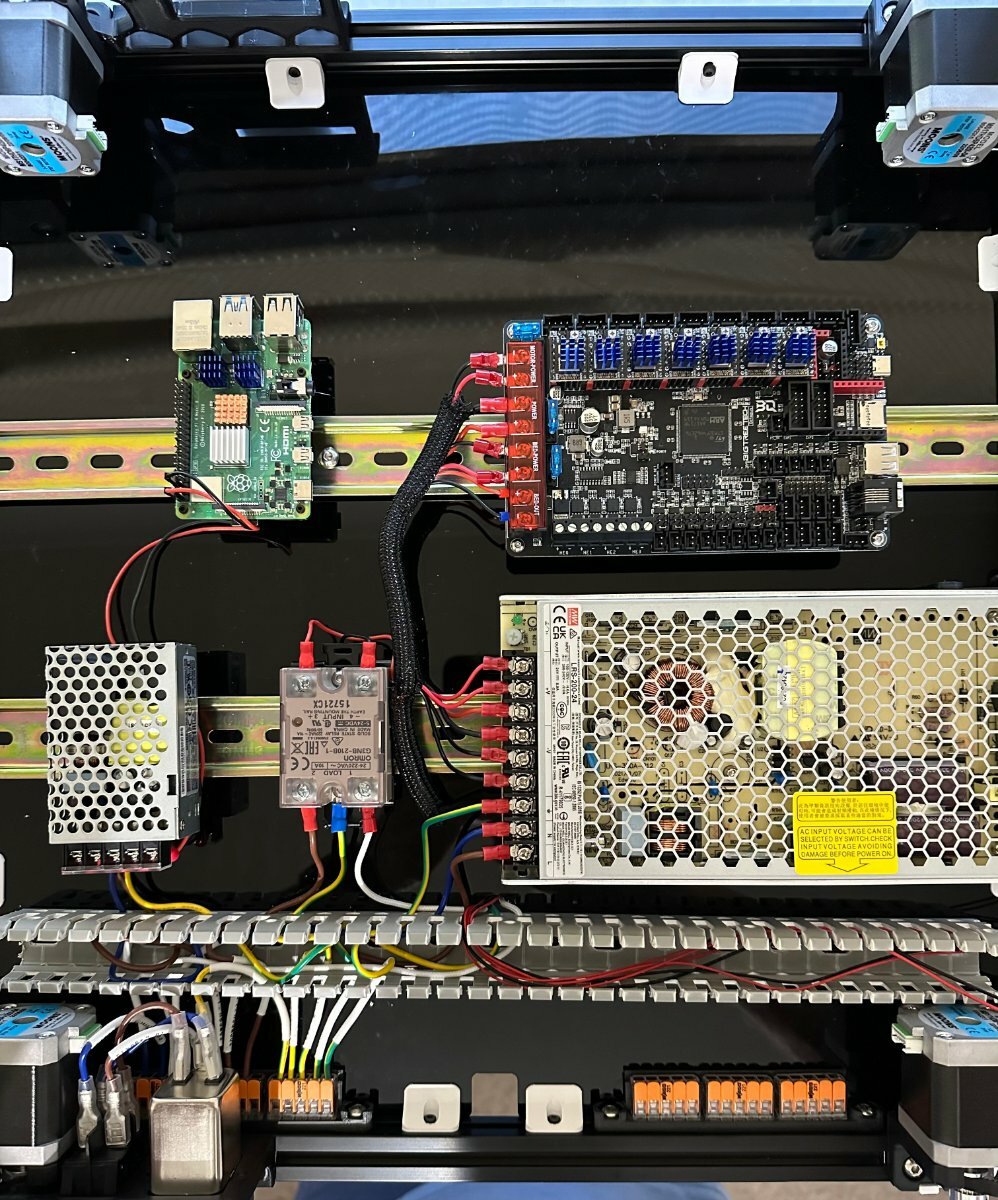

Electronics bay finished and wired up. Tested and NO magic smoke.



Next up Wiring

[mvdveer]

Build Manual pages 208 - 239 Wiring

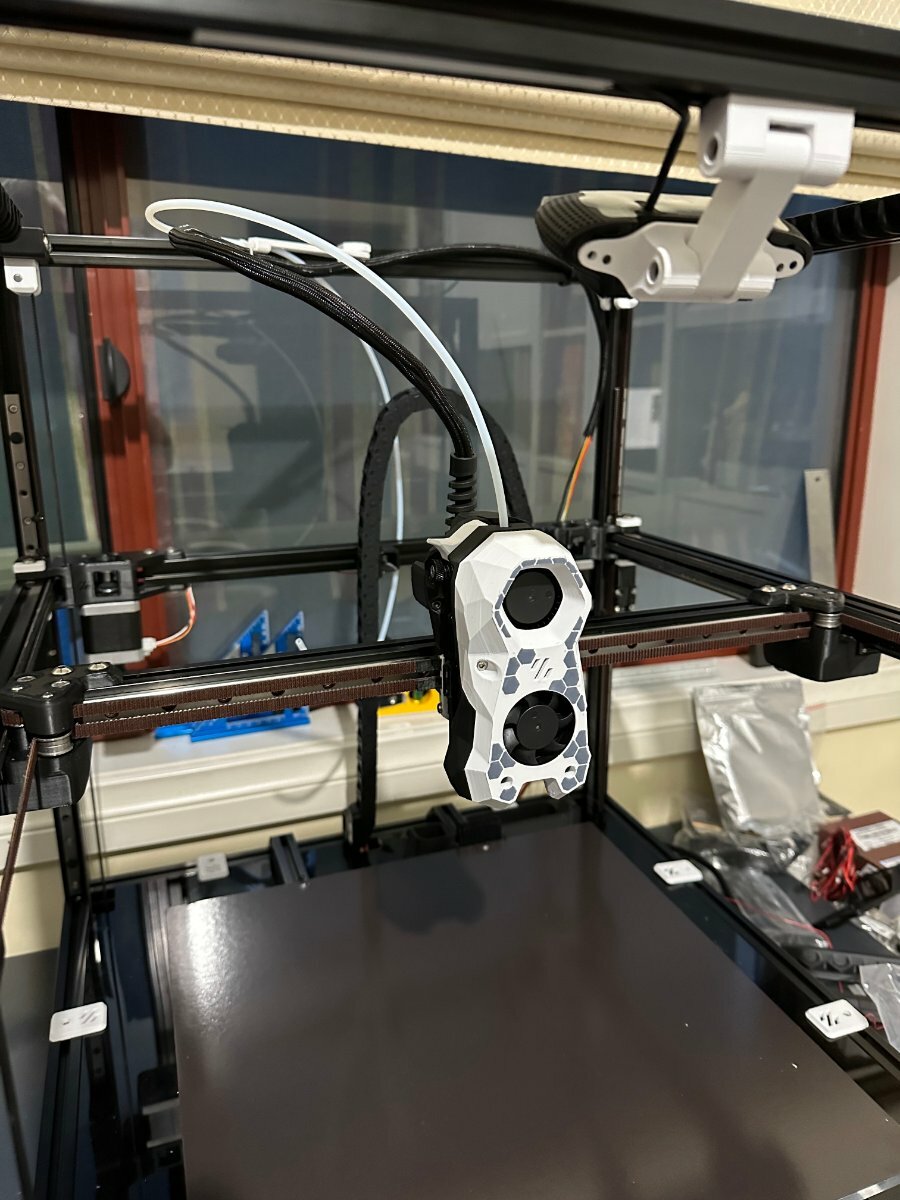

Mods" Logitech C922 camera, Chamber Lighting, Umbilical Mod

Wiring all done.

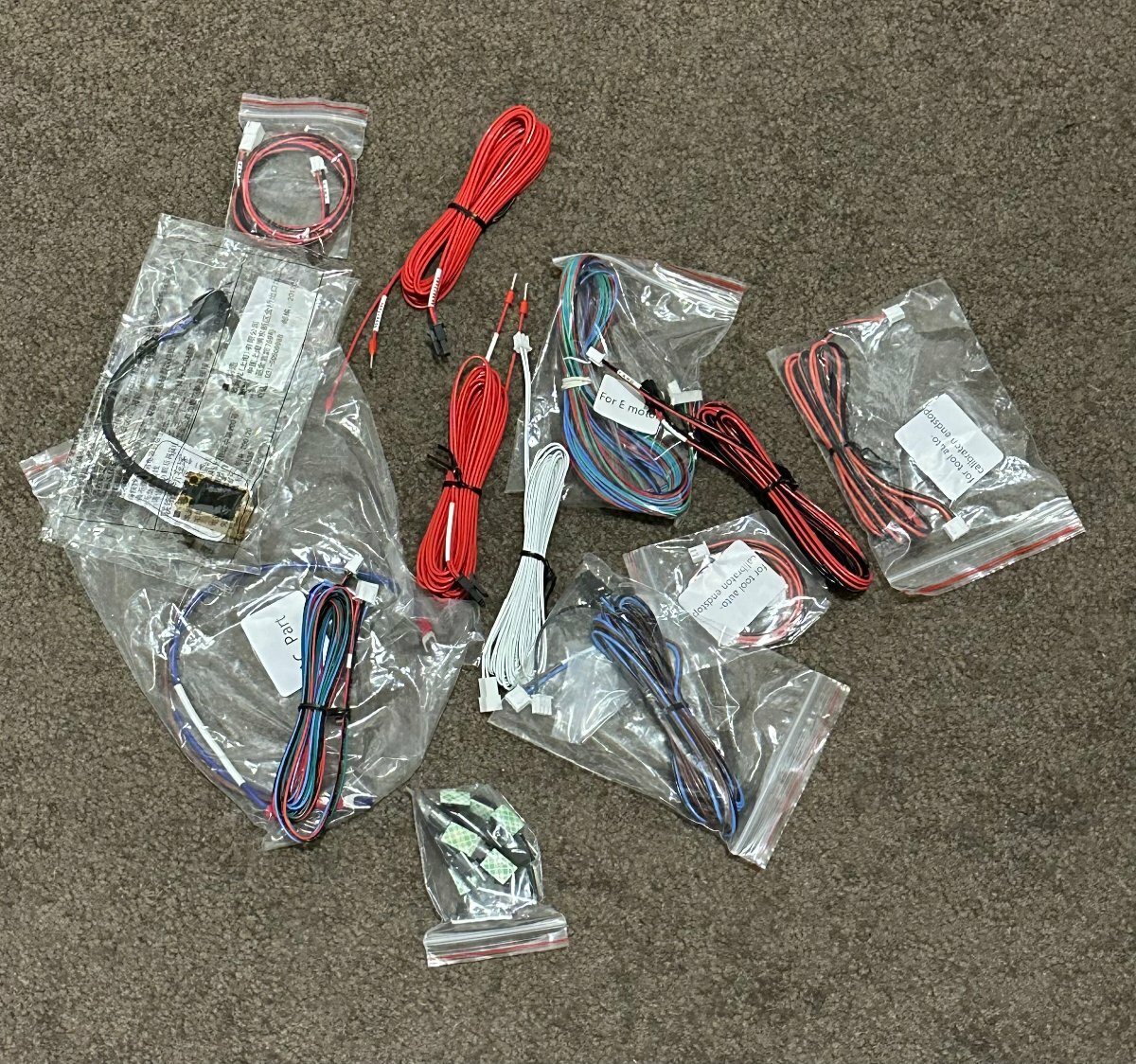

Amazing how much wire you do not use by installing a Canbus. The kit came with an excellent wiring kit, but these are all "left-overs"

Have ordered a few more Mellow Fly SB2040 to convert the red/yellow 2.4 to canbus.

Just used 24V white neopixels connected to HE0 as a caselight setup for the chamber lights.

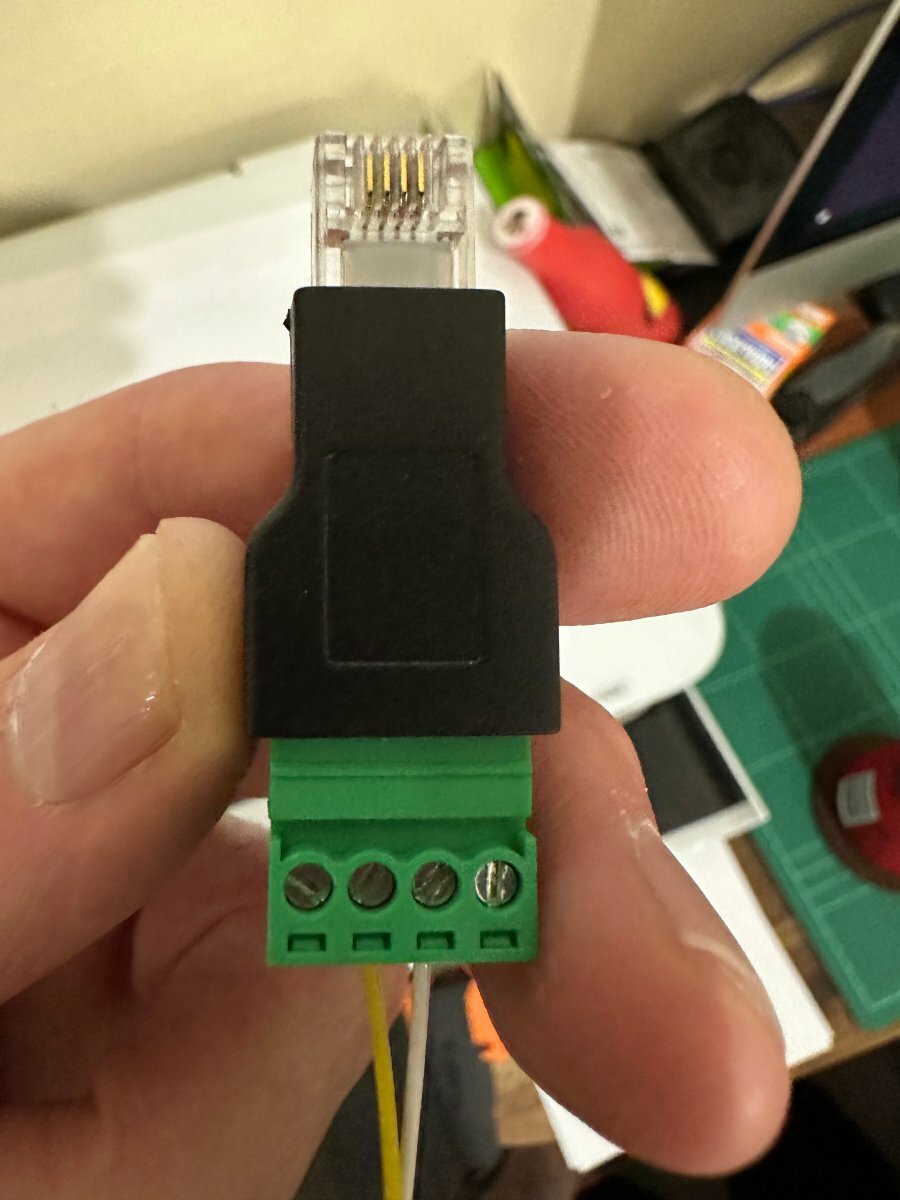

On the Trident build, I used an old telephone jack to connect the data lines to the octopus. This time around I decided to useon of those adapters mentioned in another thread on teamfdm. Whilst it works, I feel it is clumsy and insecure - extends quite a bit out of the board. But that is just me being fussy,

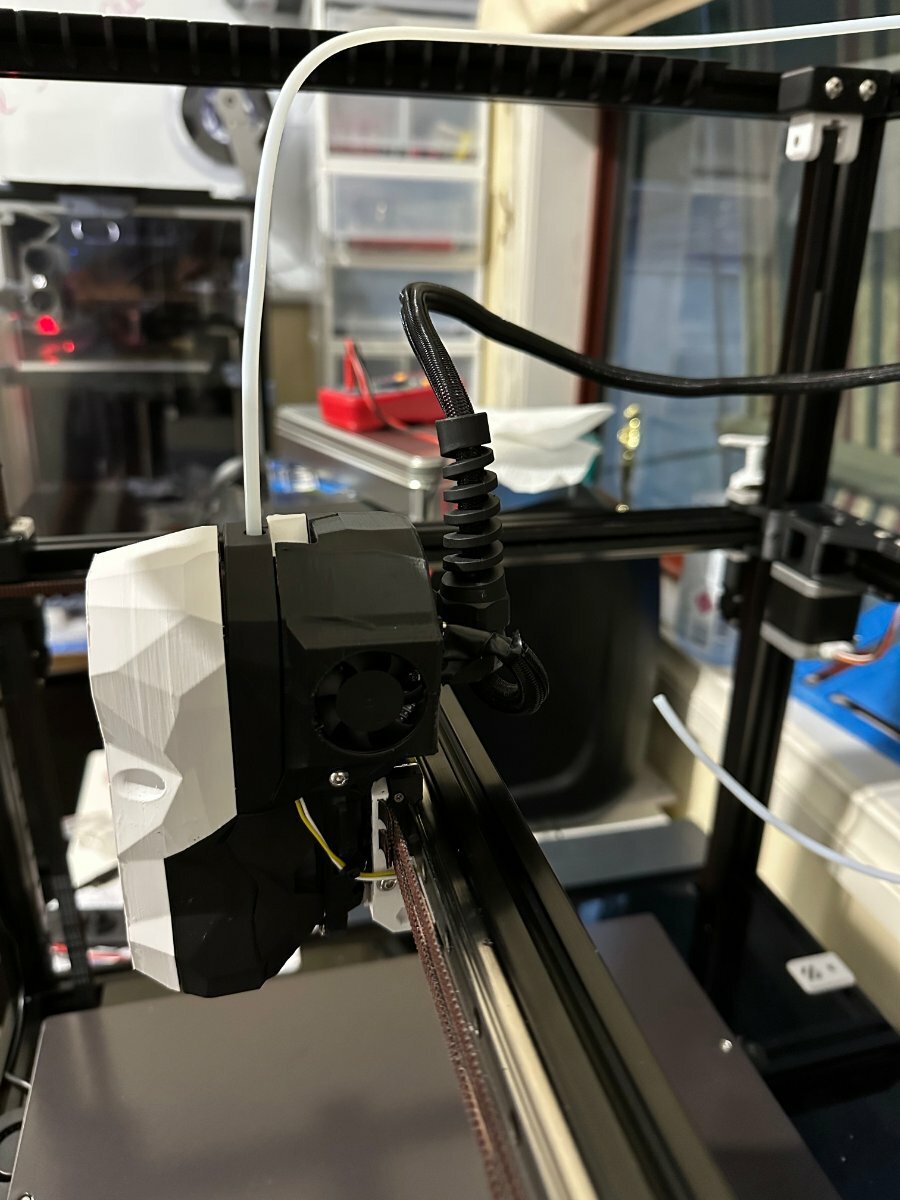

The Umbilical mod is not yet finished as this will be done when installing the panels. Decided not to use the A Motor to accept the umbilical but rather attached a PG9 adapter to the rear panel (Top-Right). More on that in the panel section.

Well, she is alive !

Lots more to be done before I even think of testing, And remember - the ERCF still to be build and installed. Maybe a separate build diary?

For tonight though - Cheers to all, most especially @smirk as his country does supply the most excellent single malt. This one is for you



Next up - Skirts

[Buurman]

On 3/4/2023 at 11:46 PM, mvdveer said:

Tested and NO magic smoke

I am proud of you hahaha! always a good thing! Should try the canbus too at a certain point, and I have all the stuff for it..

22 hours ago, mvdveer said:

The kit came with an excellent wiring kit, but these are all "left-overs

hahaha, you are cheating in the picture, but ok.. pretty cool



22 hours ago, mvdveer said:

Next up - Skirts

Nah, first... more of Glen  sounds very tasty on carribean rum cases, what probably means, honey rum?



Printer looks awesome buddy!!!! so far, looking forward to the finished beast!

[Buurman]

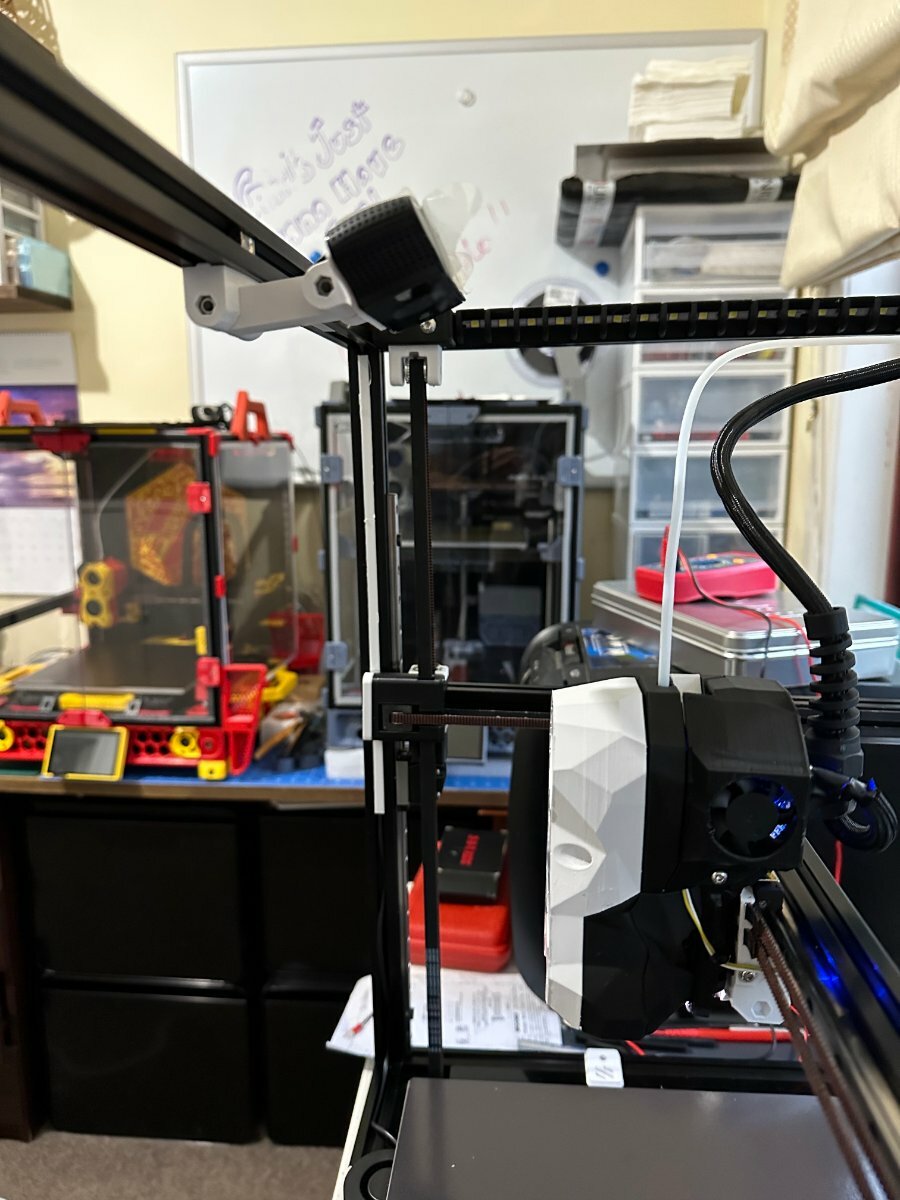

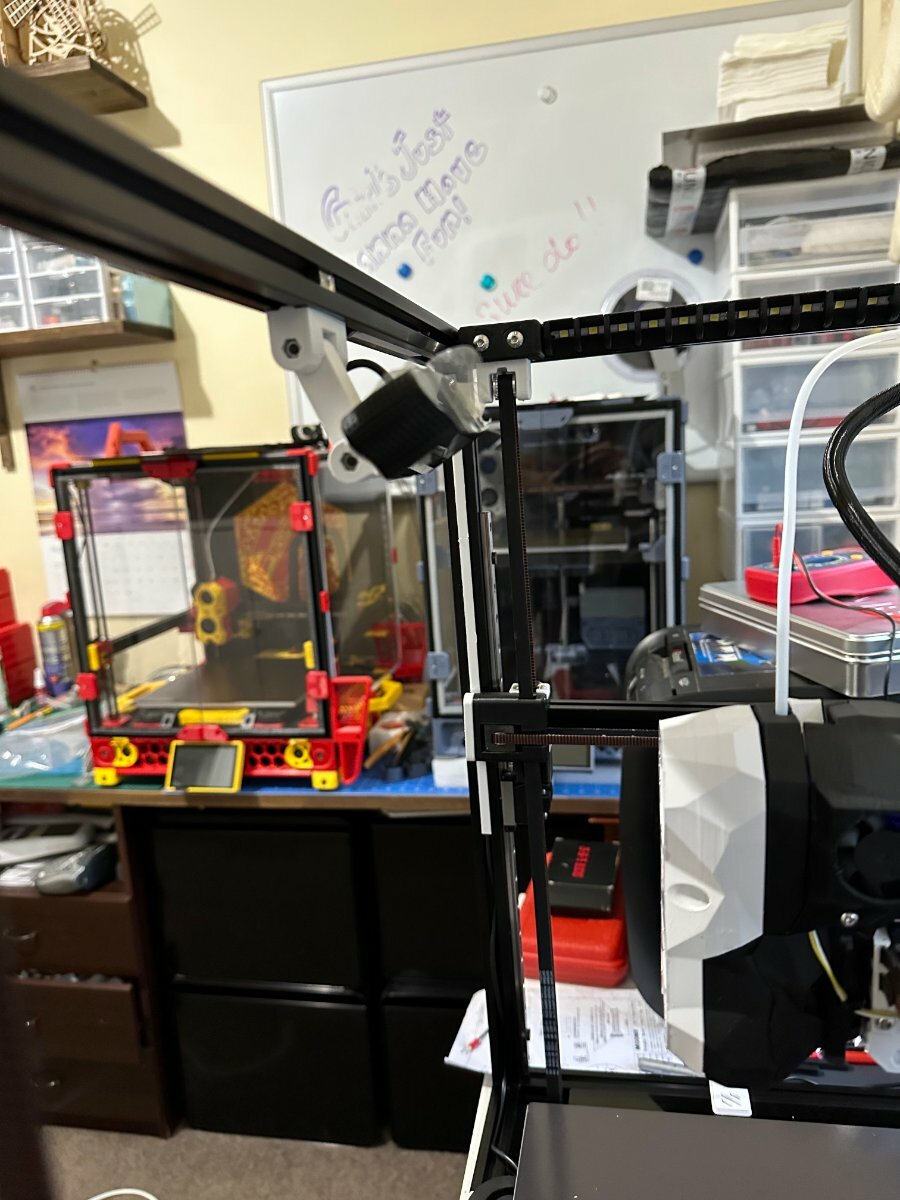

Question though, wont your SB run into the cam when printing taller things??

[mvdveer]

16 minutes ago, Buurman said:

Question though, wont your SB run into the cam when printing taller things??

It has a pivot on it and when moving the bed manually, it does not collide. Time will tell I guess



[mvdveer]

32 minutes ago, Buurman said:

Printer looks awesome buddy!!!! so far, looking forward to the finished beast!

Thanks my friend. Taking it nice and slow on this one!

[mvdveer]

25 minutes ago, Buurman said:

Should try the canbus too at a certain point

I think it is worth it and the technology and compatibility is getting better. Just ordered a Mellow Fly SHT v2 board to test. But must say am very happy with the SB2040 on the Trident. (Once I sorted all the teething problems)

[mvdveer]

1 hour ago, Buurman said:

23 hours ago, mvdveer said:



Nah, first... more of Glen

You twisted my arm --this one is for you.

Which Glen will it be? Seeing it is you - the Glenlivet Sherry butt



Nice and dark



[Buurman]

looks amazing!! not just the prints



[Buurman]

On 2/25/2023 at 10:46 PM, mvdveer said:

Little pellets, quite nice to use - very little dust. Bought from here

Could you take a picture of the pellets? I am wondering if its nicer than the Coconut coal I currently am using.

[mvdveer]

7 minutes ago, Buurman said:

Could you take a picture of the pellets? I am wondering if its nicer than the Coconut coal I currently am using.

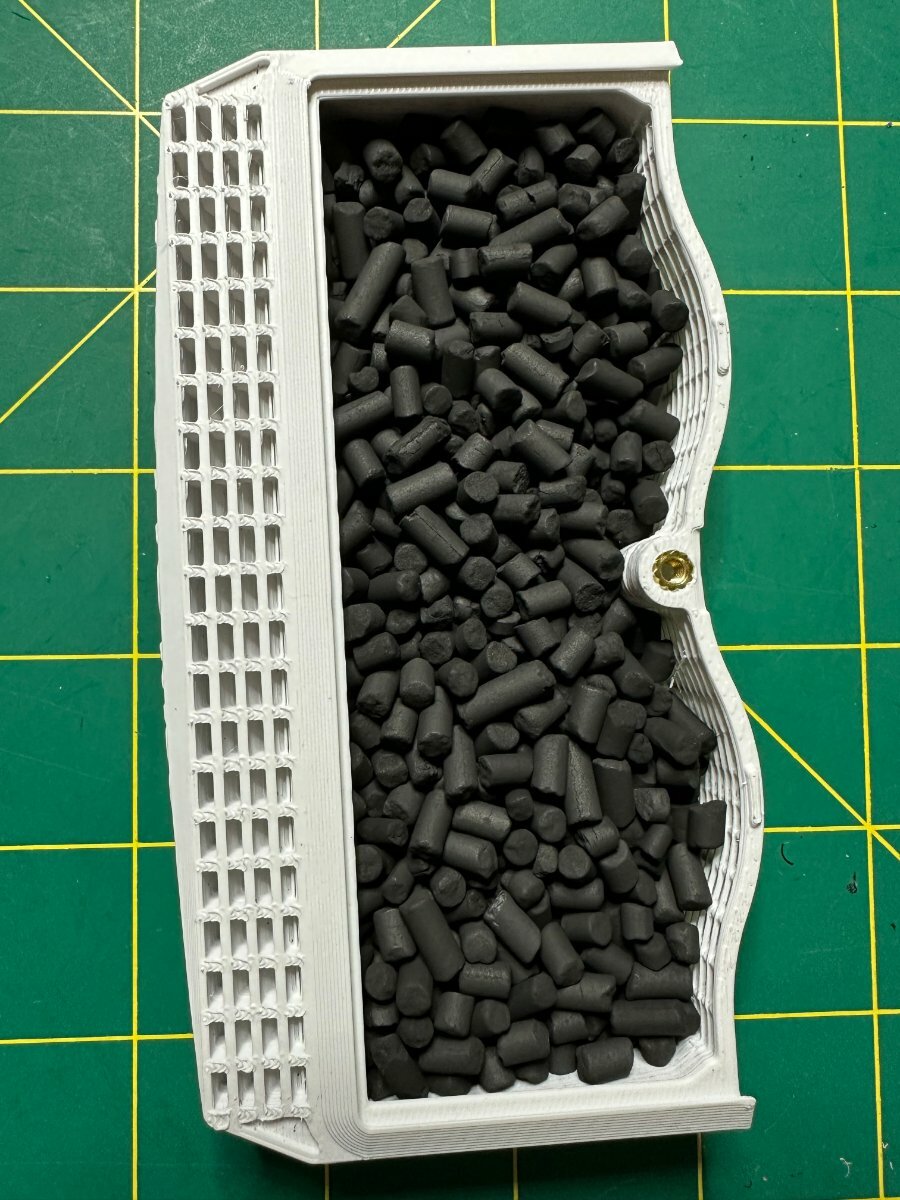

Sure - here you go

[Buurman]

Ah yes.... I must admit, those look pretty nice, still not convinced about the nevermore since I feel all arflow will go OVER the pallets instead of trough.. but pallets look nice, and I use the filter in the Exhaust filter too...



Thanx friend!!

[mvdveer]

Just now, Buurman said:

I use the filter in the Exhaust filter too..

Sinve I saw your post, I installed the VFach as well. Seems to be working well in conjunction with the nevermore. But then it may just be perception

[Buurman]

1 minute ago, mvdveer said:

Seems to be working well in conjunction with the nevermore

True, I had them together also before, and seems to work well, the nevermore does multiple passes of course on the same air, so it doesnt have to be 100% efficient, and the VFach will take out the rest.

I have been printing with only VFach too, and if installed well (so that the tape doesnt let go) it works pretty well, no obvious smell.. but some ABS brands just really smell bad.. and I mostly print PLA and ASA.

[mvdveer]

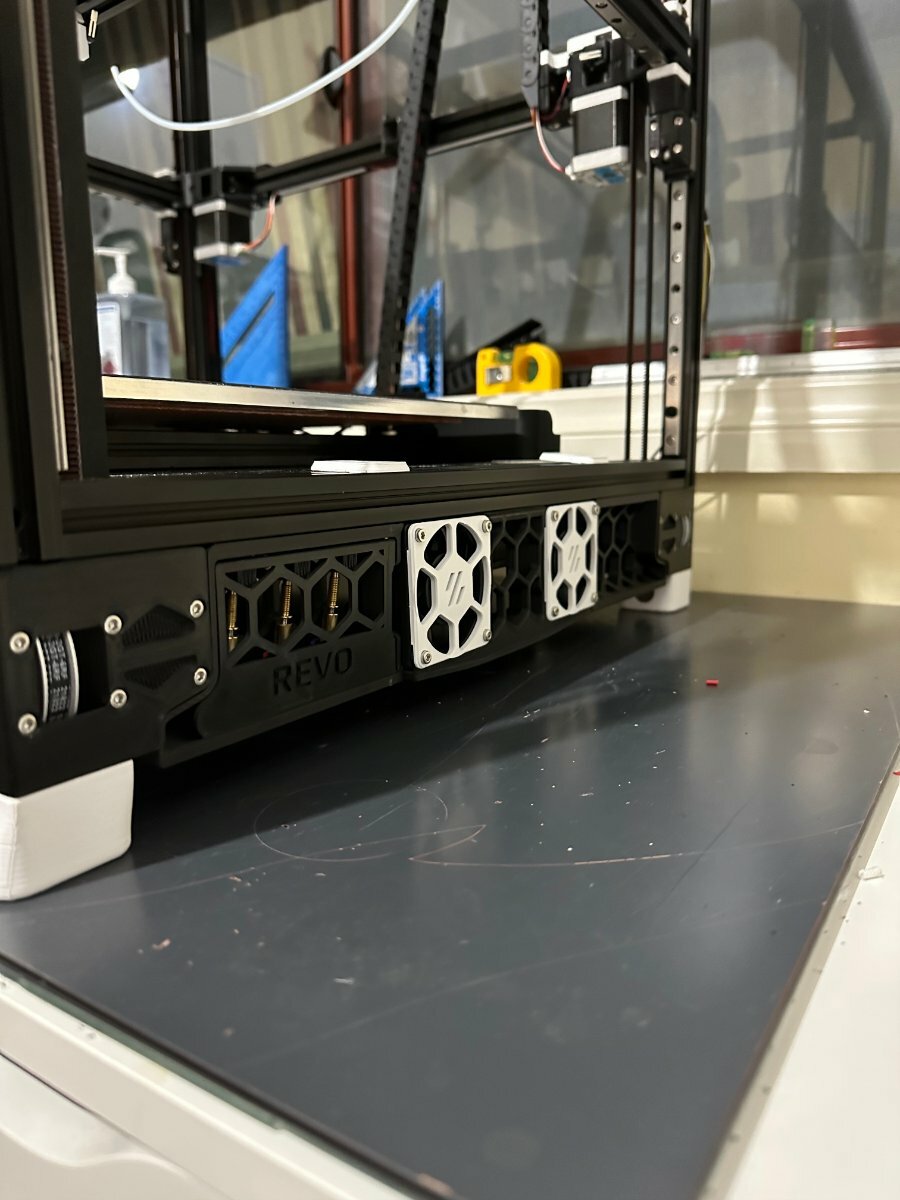

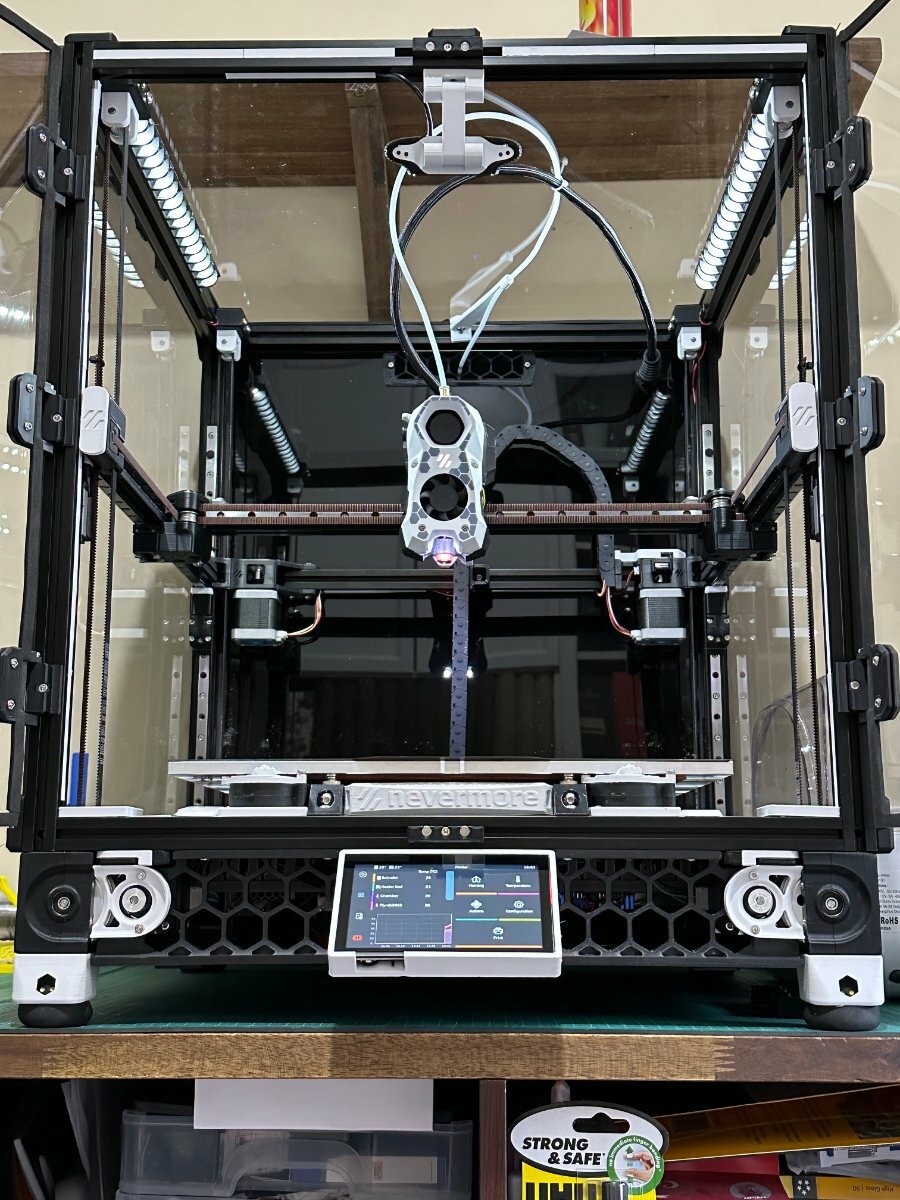

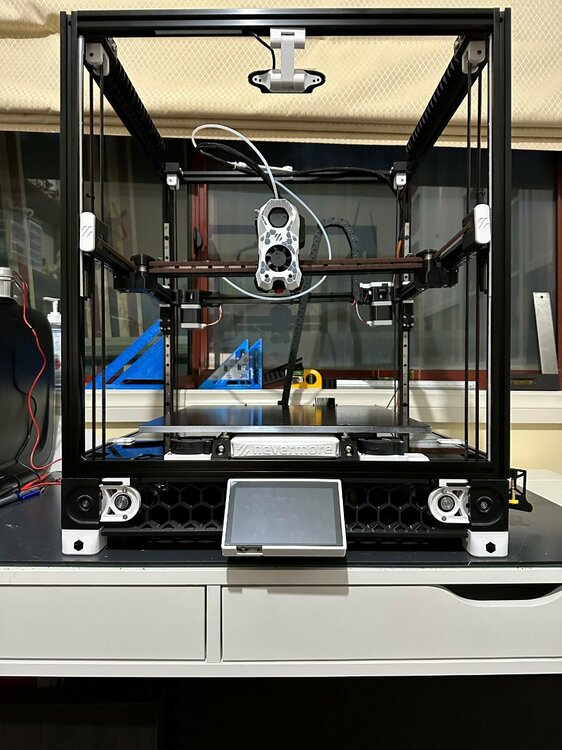

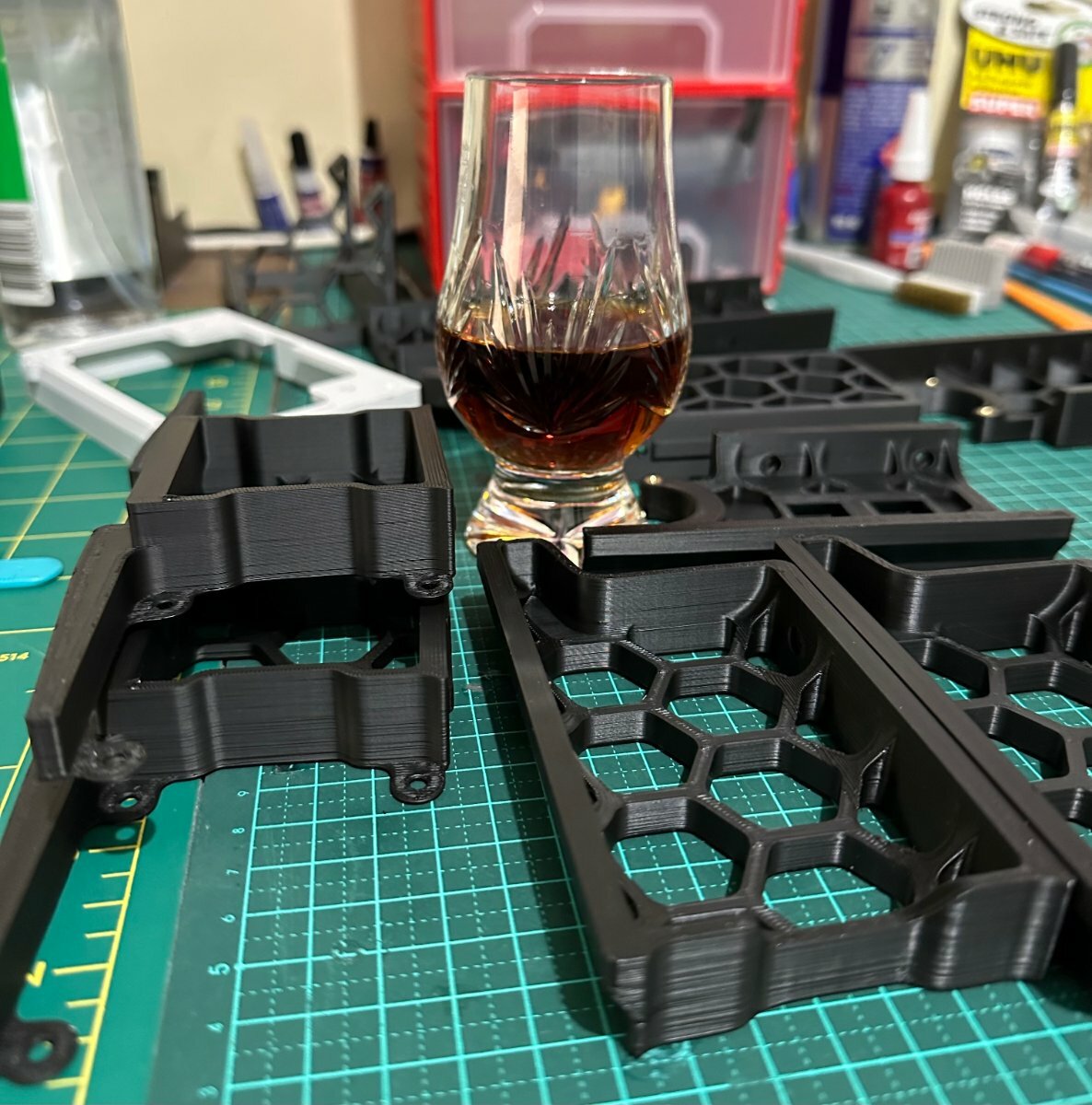

Build Manual  pages 240 - 262 Skirts

Mods: BTT Pitft50 v2, Voron Nozzle skirt

All went well, and no real issues as long as you follow the model. PiTFT to run klipperscreen. (I am now collecting a hell of a lot of mini 12864 screens). Did the Revo Nozzle skirt mod and am printing a mirrored version to go on the left side as well.



Next up: Panels

[Penatr8tor]

On 2/26/2023 at 1:30 PM, Buurman said:

What?? slowly? how do you do that with a Voron??

100mm/s is the new 40mm/s

[smirk]

On 3/5/2023 at 9:15 AM, mvdveer said:

For tonight though - Cheers to all, most especially @smirk as his country does supply the most excellent single malt. This one is for you

This is becoming a habit.....should we be concerned about how much you're supporting the Scottish economy

[Penatr8tor]

@mvdveer What LCD display are you using?

[Buurman]

3 hours ago, Penatr8tor said:

@mvdveer What LCD display are you using?

I am quite sure its the BTT (PiTFT) 4" touch display, same as I always use.

[Buurman]

On 3/7/2023 at 10:18 AM, mvdveer said:

I am now collecting a hell of a lot of mini 12864 screens

hahaaha, same here!!!! lots of these boxes with duckies...

[mvdveer]

5 hours ago, Penatr8tor said:

@mvdveer What LCD display are you using?

BTT PiTFT50 screens on all the big Vorons, BTT PiTFT43 on the V0's

I get them from a supplier here in Oz, but here is the link



[mvdveer]

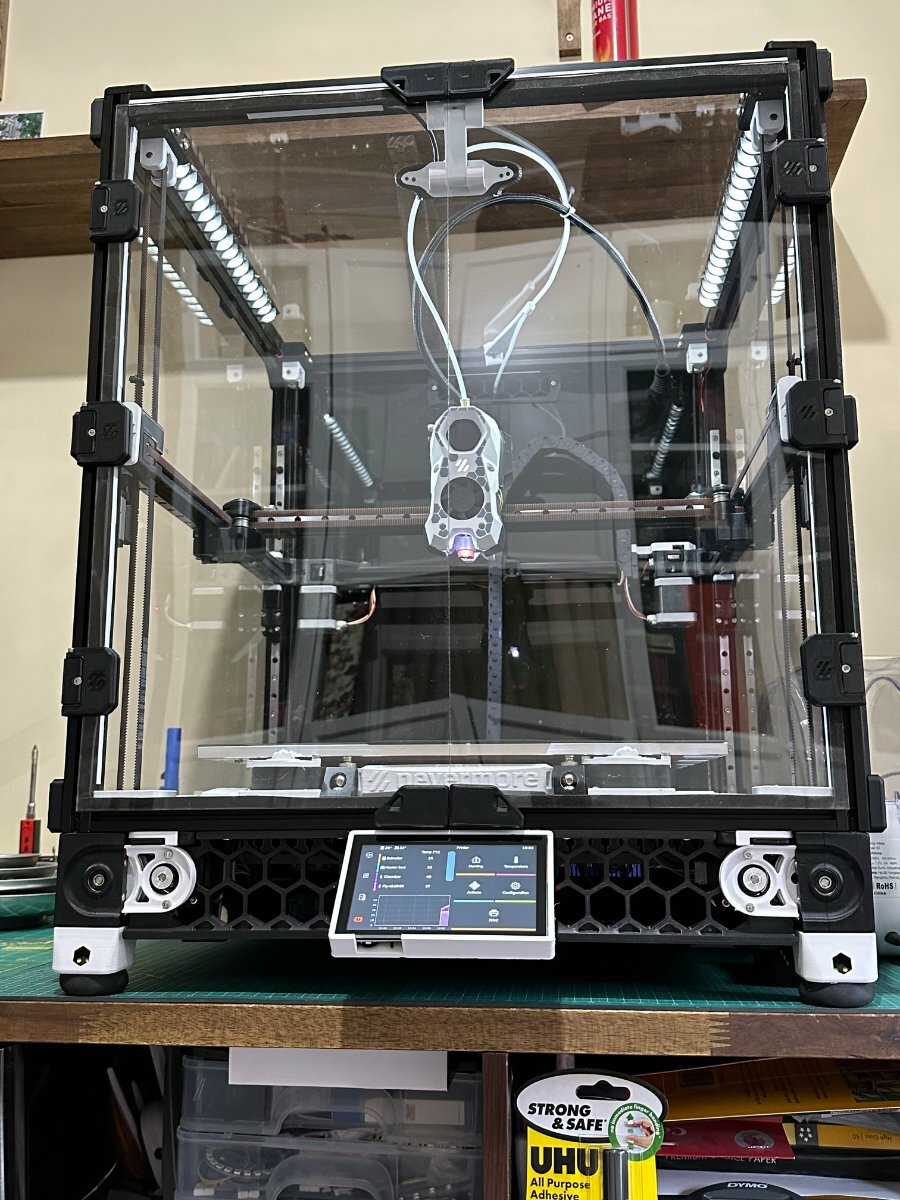

Build Manual pages 268 - end

Mods: Rock-n-Roll, Umbilical in rear panel, VFach Filter

Well this part of the build has come to an end. Thoroughly enjoyed this one and very happy with the end result.

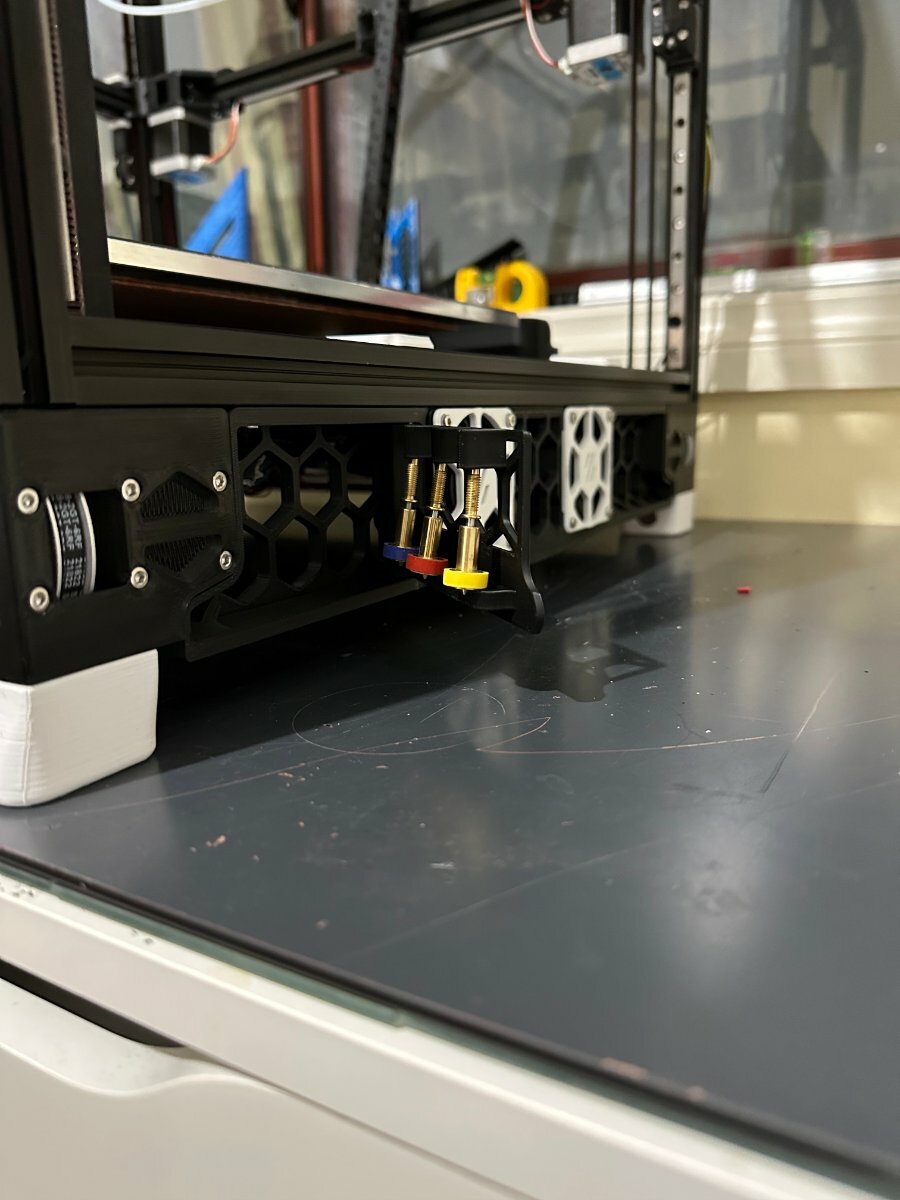

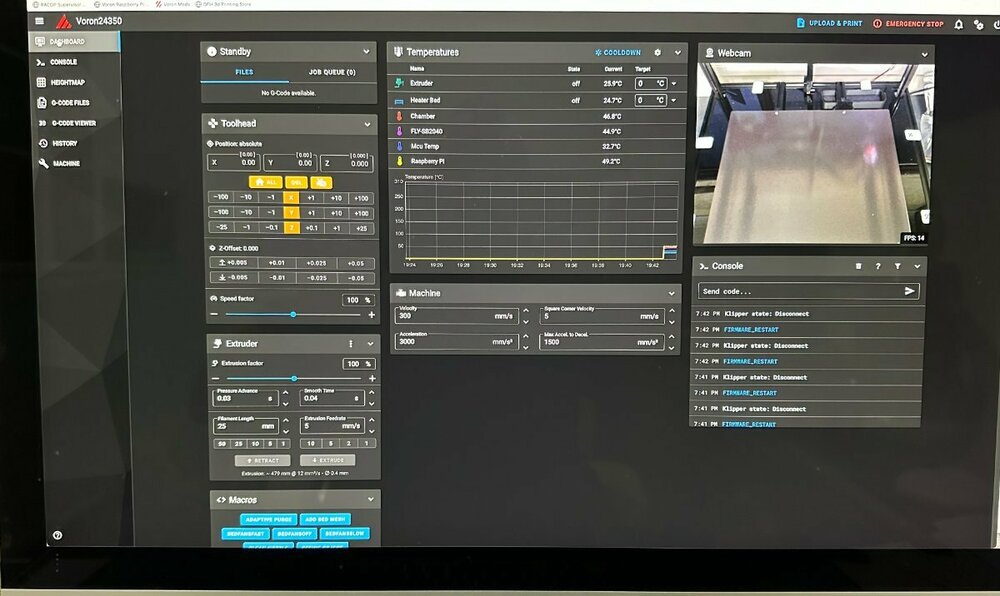

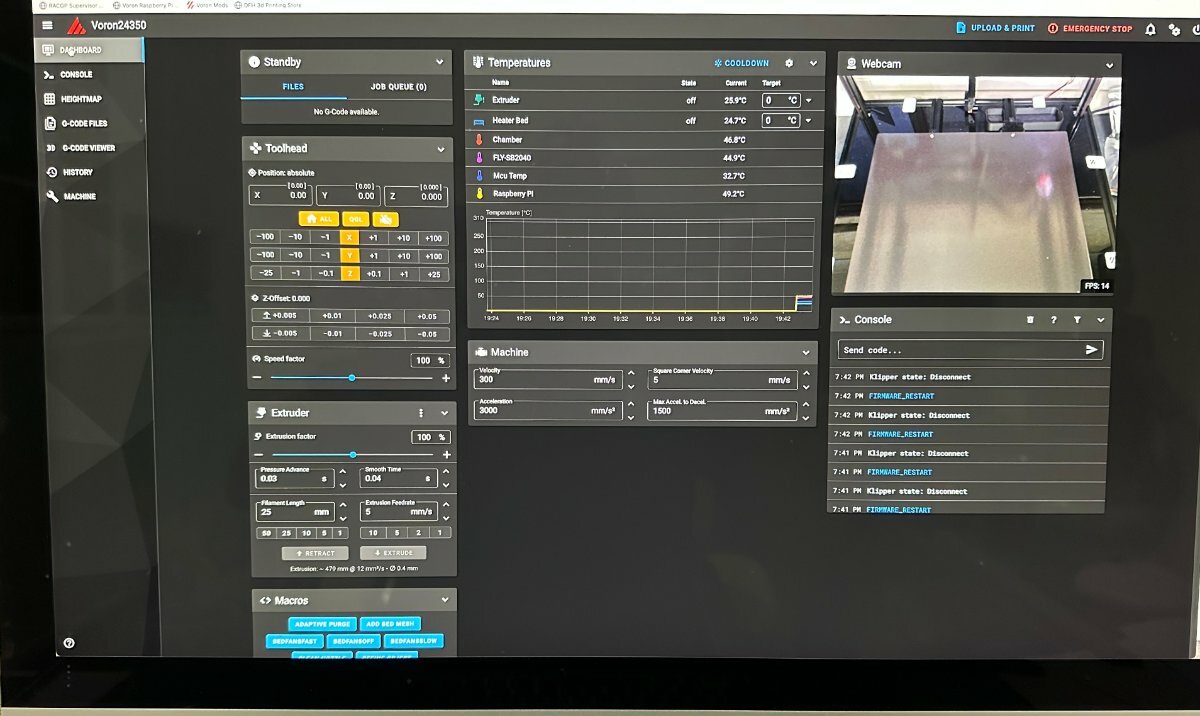

Printer homing well, QGL appropriately and Voron Tap Accuracy 0.00115 (without heatsoaking the chamber)

Needs to open the Ellis tuning guide.



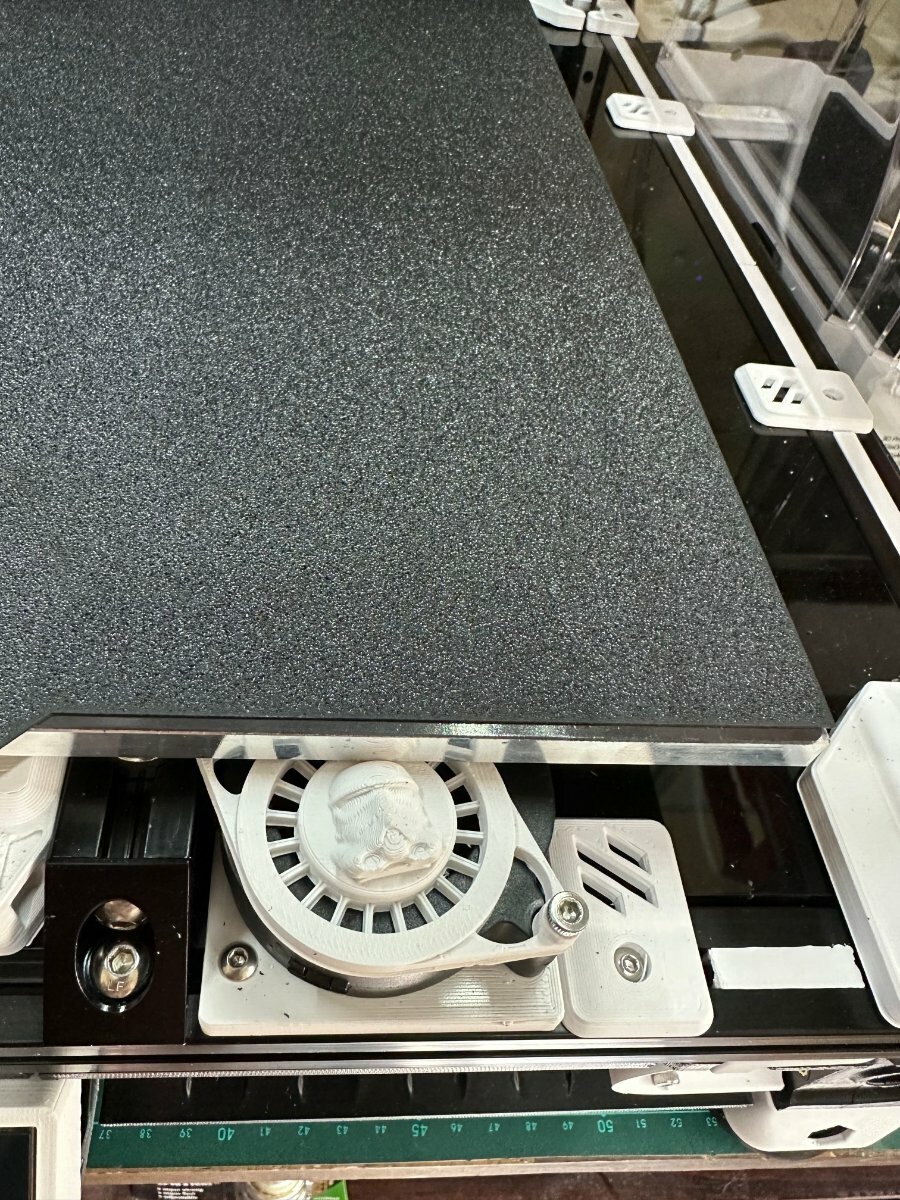

Even printed some fan covers to "fit the theme"



Will spend some tuning, make a serial video, submit

AND

Next the Enraged Rabbit Project....

Follow the link to the build diary if you want to join the journey.
