Switchwire Wall Plate

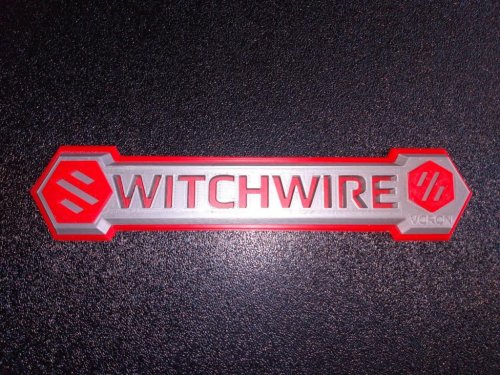

This mod is for pure aesthetics. A Voron Switchwire logo plate to install on the back wall of your printer's enclosure.
(Or optionally on the front grill if no enclosure - but only if you're not already using the LCD mount...)
Note: Overall size is about 225x50 (about 10mm thick)
BOM
- (4) M3x8mm BHCS
- (4) M3xD5.0xH4.0 heat-set inserts
- VHB tape
Directions

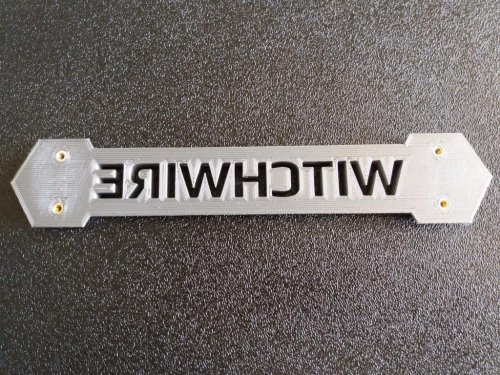

- Install inserts in the WITCHWIRE_base
-
Use backplate_and_drillguide to drill holes in your back panel
-

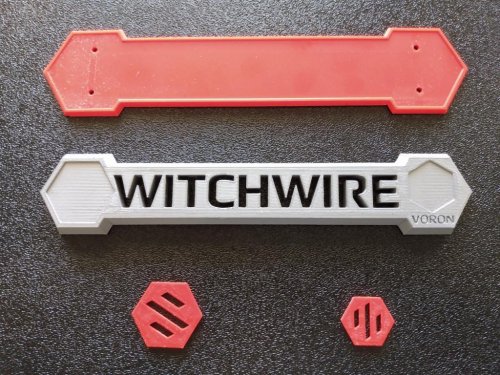

Use thin strips of vhb tape to affix the badges into respective recesses on the base (no need to affix base to backplate)
Note: badge tolerances are tight - you might need to sand a bit off the edges of the badges.

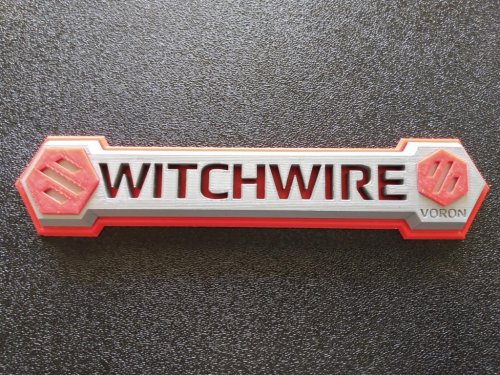

- Attach to back panel with (4) M3x8 screws
(Optional: To use on front grill, affix all parts together using vhb tape, and similarly affix the optional nolcd_grill_mount to the center top of the backplate.)
CAD

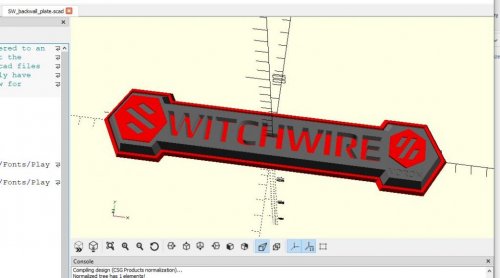

OpenSCAD sources are included (it's all I know). They are sparsely commented - make modifications as you wish.
Tip: If you resize the badges, use hundredths of a mm to adjust.
