LCD Case Mod v. 2020.09.29

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!

1 Screenshot

  • Like 2

About This File


LCD Case Mod

I have made some changes/improvements to the Mini12864 LCD case as follows:

  1. I found the hot melt inserts to be difficult to align straight, on both the rear and front case due to the geometry and space constraints. I have therefore removed them and resized the holes accordingly. For the case rear, I have added M3 threads to the 4 fixing holes, these should print fine with standard Voron printing settings.
  2. I have added a lip around the screen cutout to better hide the PCB board behind it. This is simply for aesthetic reasons.
  3. I have added an E-stop button cover, taking inspiration from both the previous Voron LCD cover as well as the Prusa i3 design. This allows for both easier prodding of the E-stop button as well as improving the aesthetic of the case (in my opinion).

Standard vs. modded design comparison

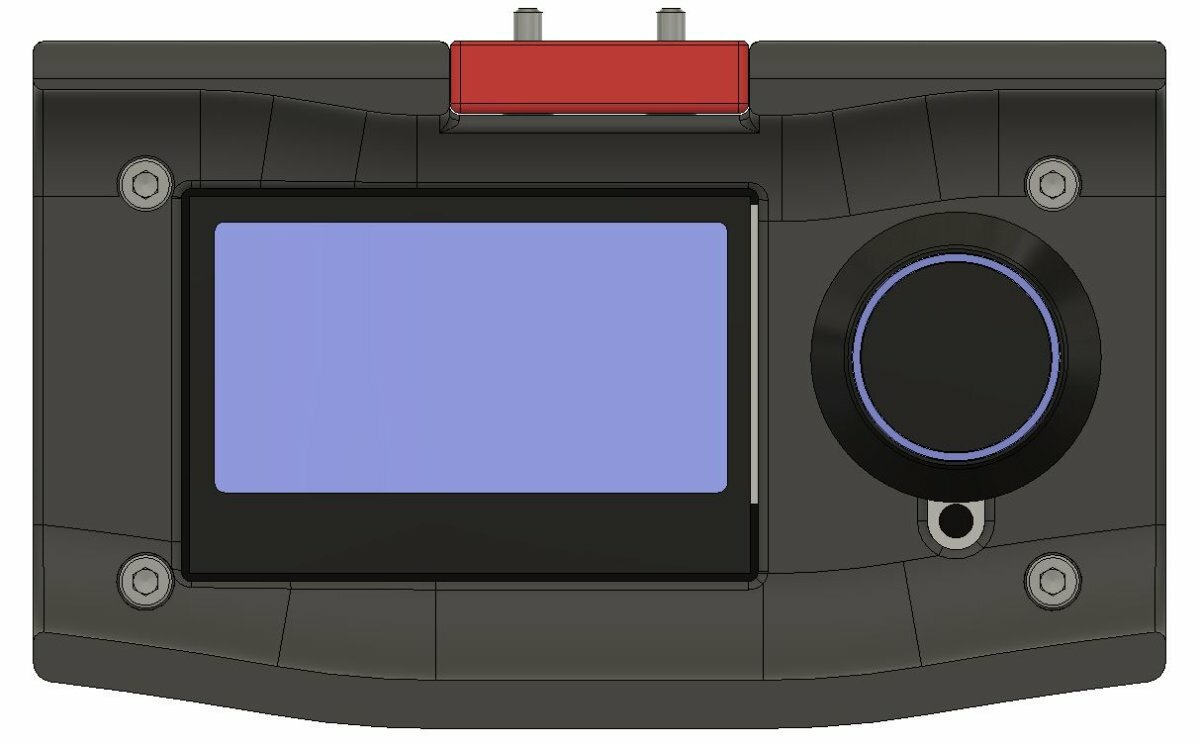

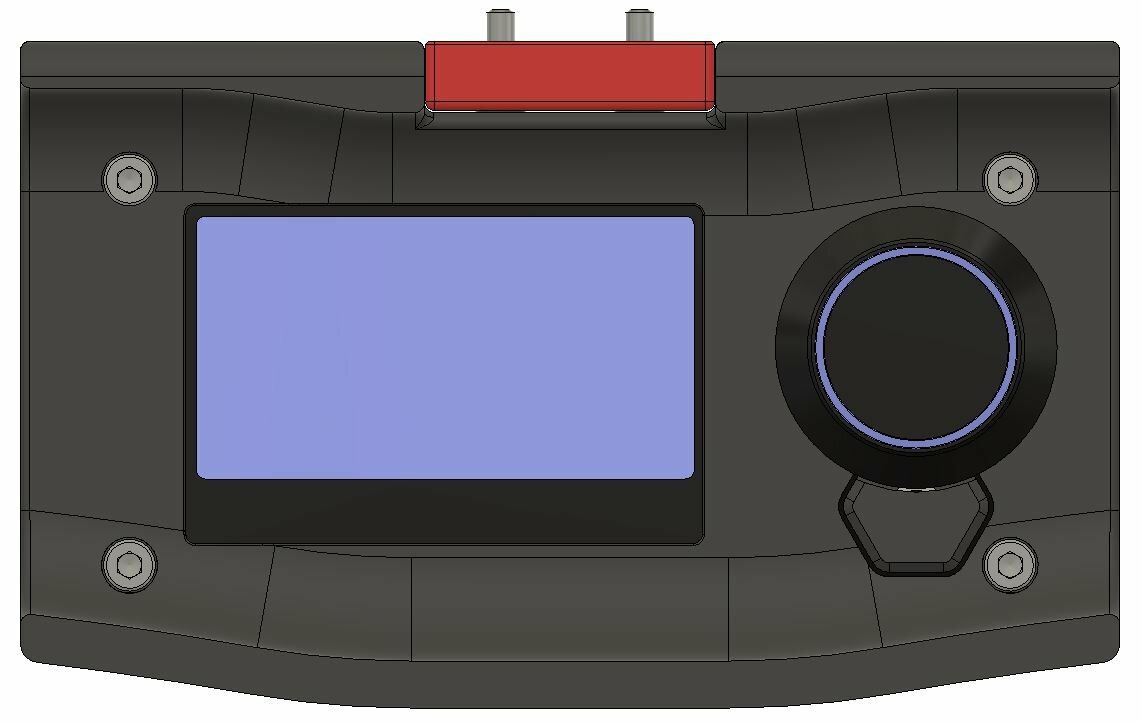

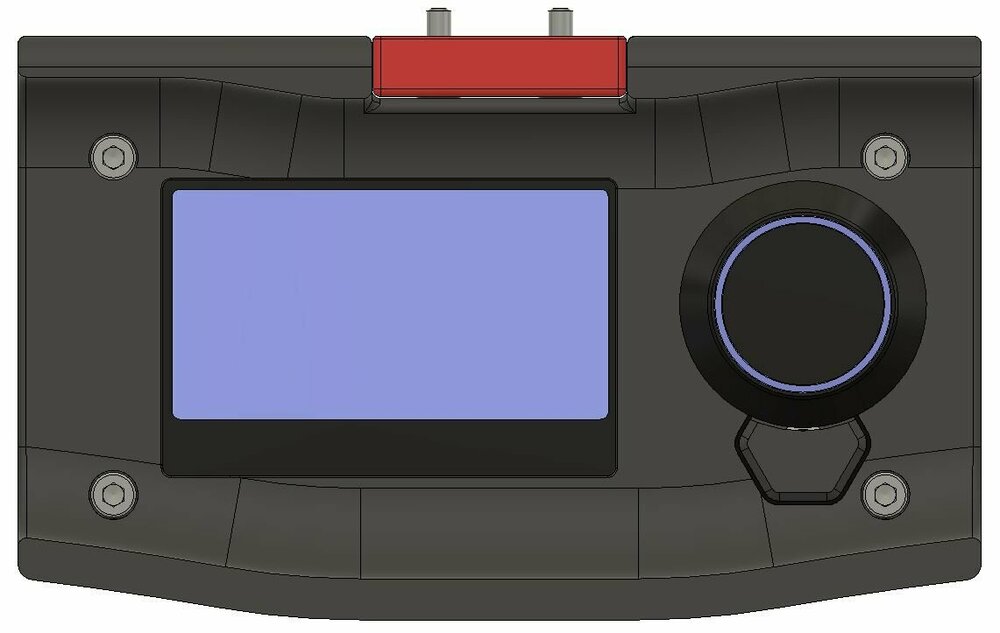

Please see below the changes between the standard/stock LCD case in the first image, and my modded design in the second.

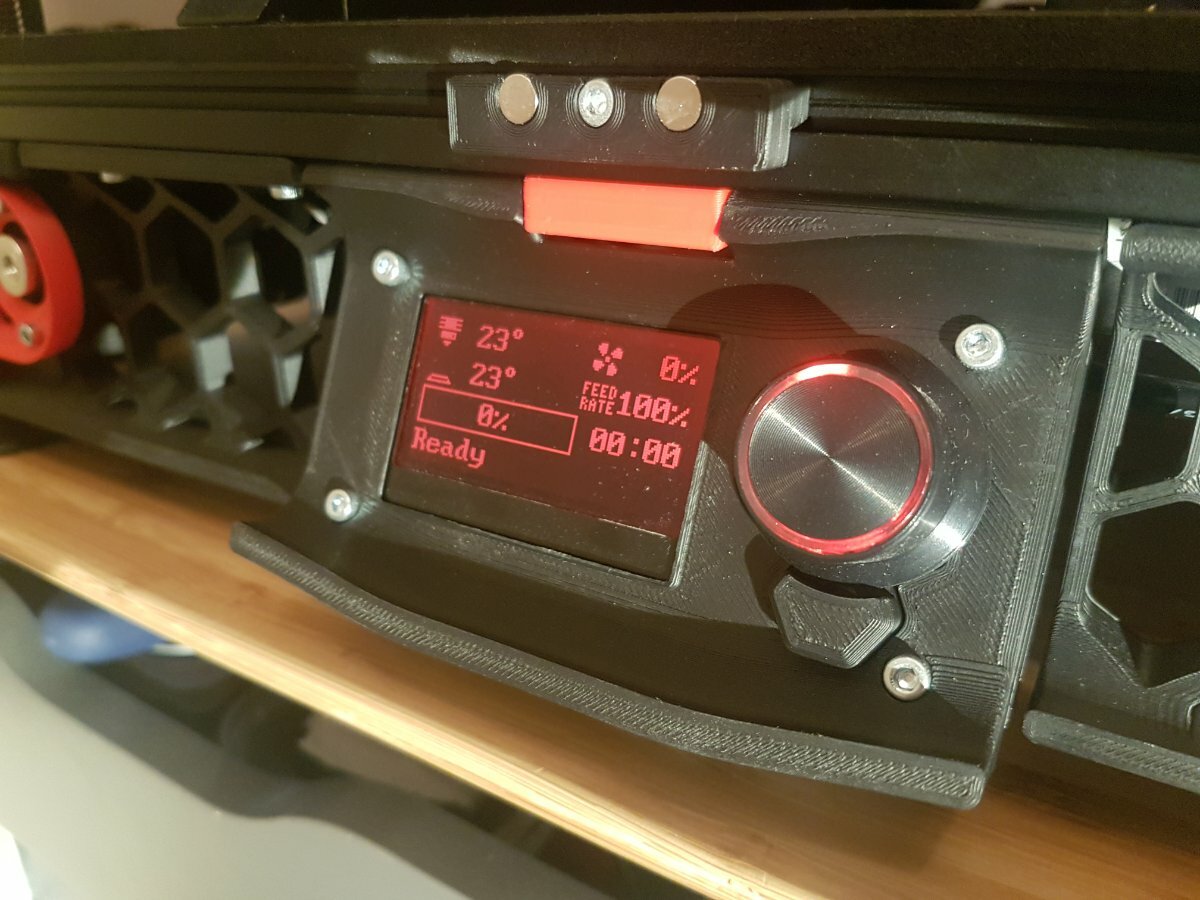

Installed Case Mod

Installed and working well 🙂
