V0 Skirt v. 2021.08.24

   (0 reviews)

This mod was imported into our database, If you are the author of this mod, please contact us so we can set your profile as the author!
 Share

7 Screenshots

About This File

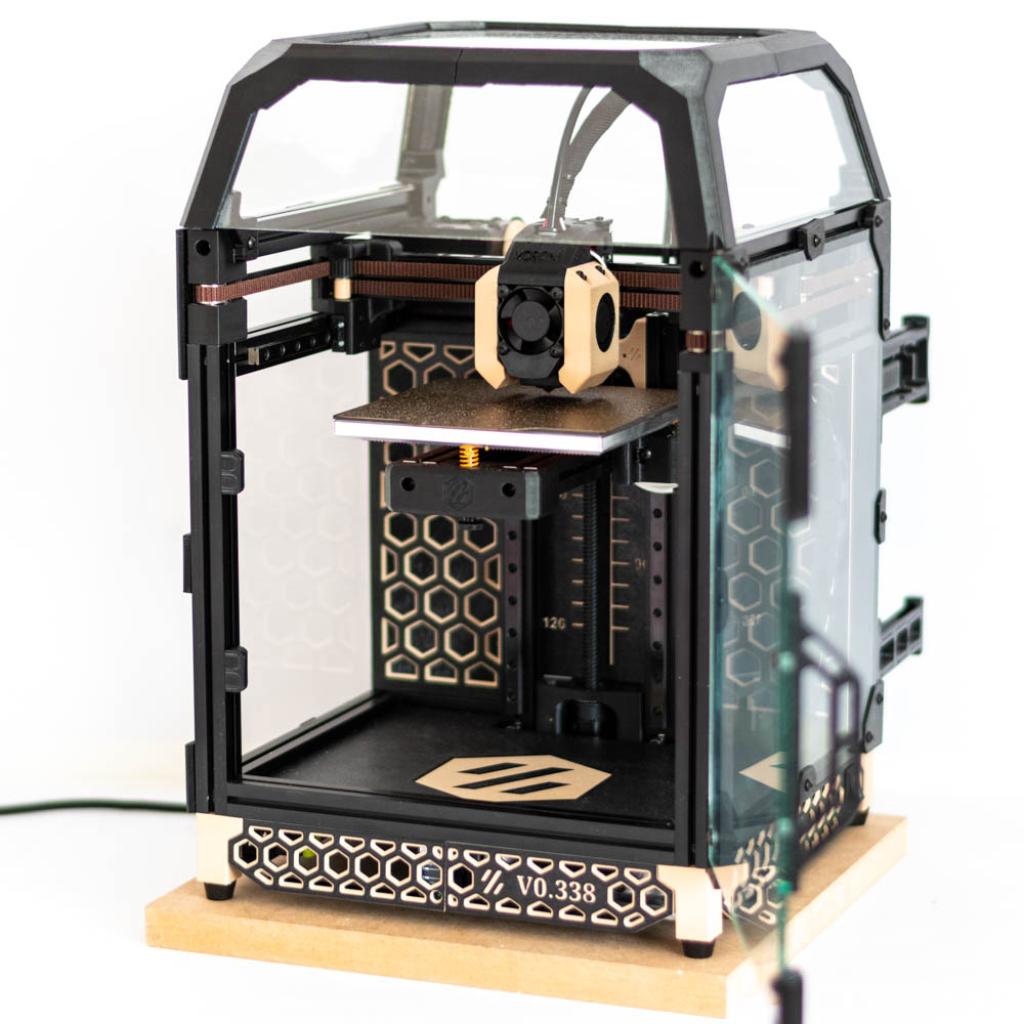

Voron0 dual color skirt set (SSR, PowerSwitch, Nameplate)

To match the skirt with the Midpanel with Hex Pattern by sterminatore's idea



print settings:

  • layer height: 0.2mm
  • color change at 0.6mm / 2.2mm

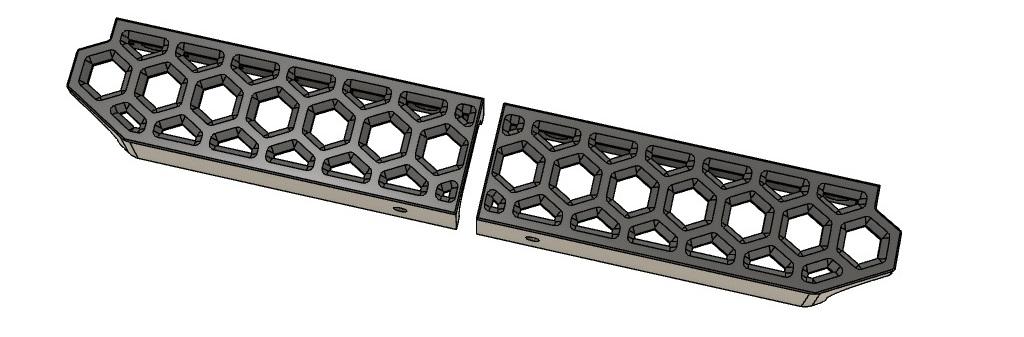

Skirt.stl, Skirt_mirror.stl

Left and right skirt part with 40 degree chamfers for color change printing. There is an extra hole for tightening the middle M3 screw.

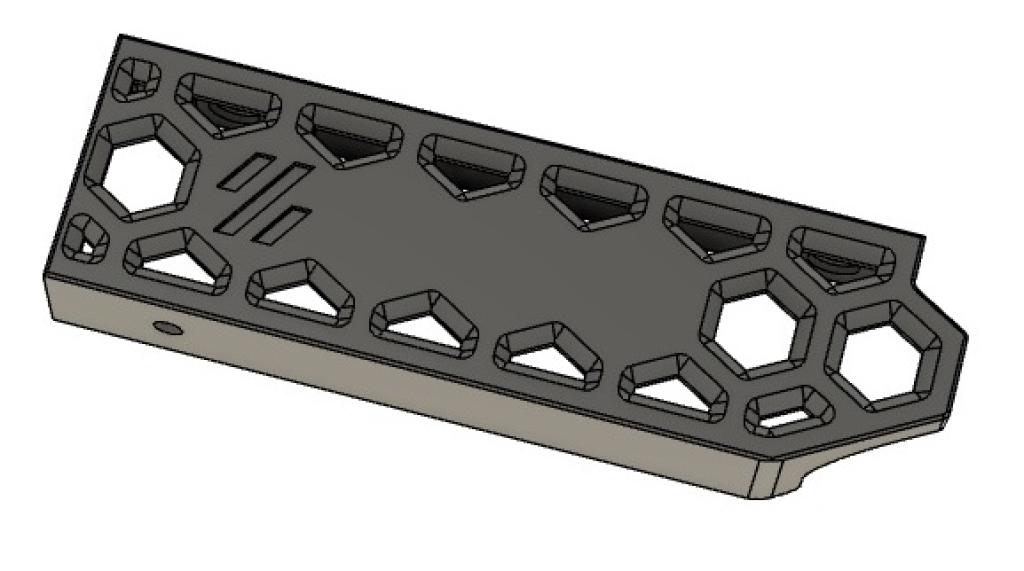

Skirt_EmptyNameplate.stl

Empty nameplate for serial number. For example, with Tinkercad you can easily put the number on it.


Here's a quick tutorial:

youtube tutorial

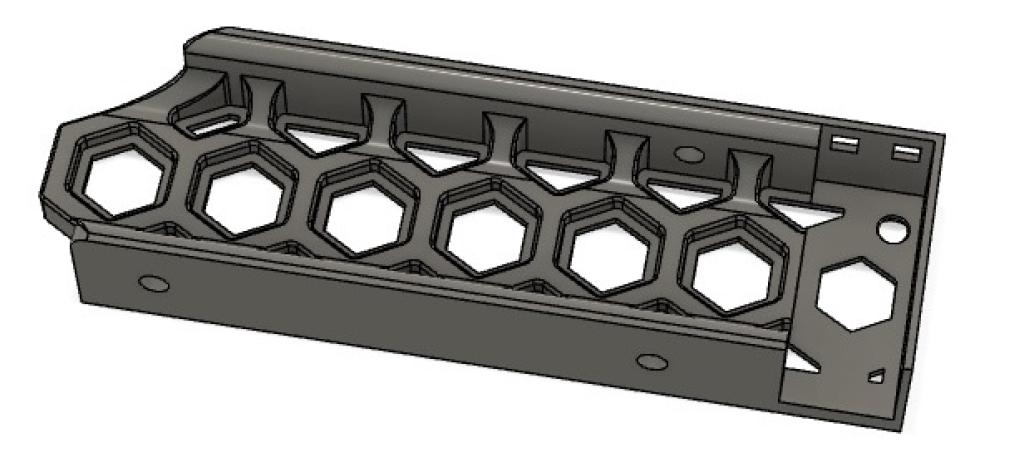

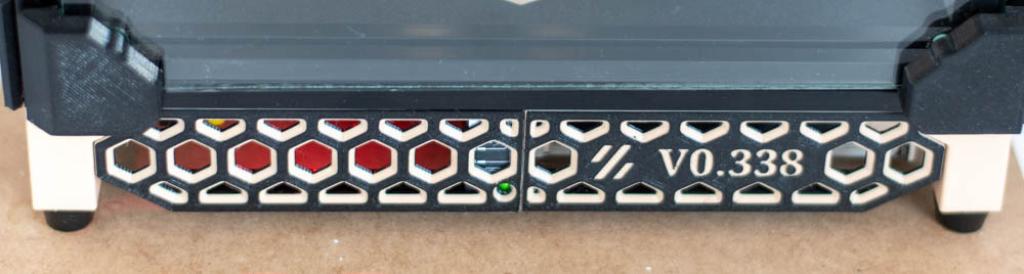

Skirt_SSR.stl

SSR holder with led window.

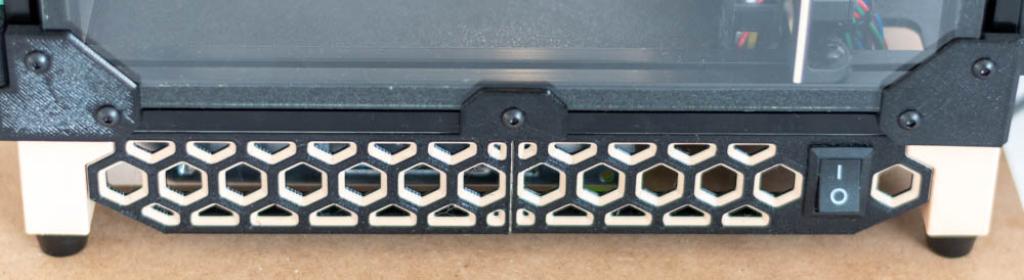

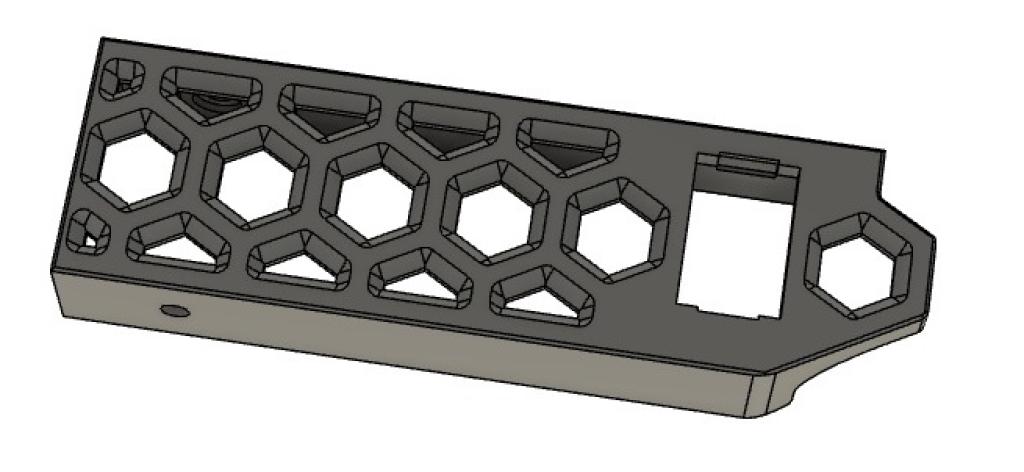

Skirt_PowerSwitch.stl

12mm x 19mm windows for power switch.
