Voron 2.x Skirt Mod for Schaffner FN284-10-06

Overview

Voron 2.x skirt mod for the Schaffner FN284-10-06 power entry module with fuse and EMI filter. The Schaffner FN284-10-06 power entry module requires 2 fuses (Ø5 x 20mm) and is rated up to 10 A. There are 3 Faston 6.3 x 0.8mm connectors for spade female connectors or soldering and a 2 pole rocker switch.

Skirt Mod for Schaffner FN284-10-06

Description

This is an mod for the Voron 2.x skirt

  • You can use two M3x6mm countersunk screws with nuts to mount it on the skirt
  • There are two holes for keystone sockets for LAN and USB on the sides

I liked the mod from DC67(../../DC67/plug_panel_schaffner), but could not find the Schaffner FN286-10-06 for a reasonable price. So I designed one for the Schaffner FN284-10-06.

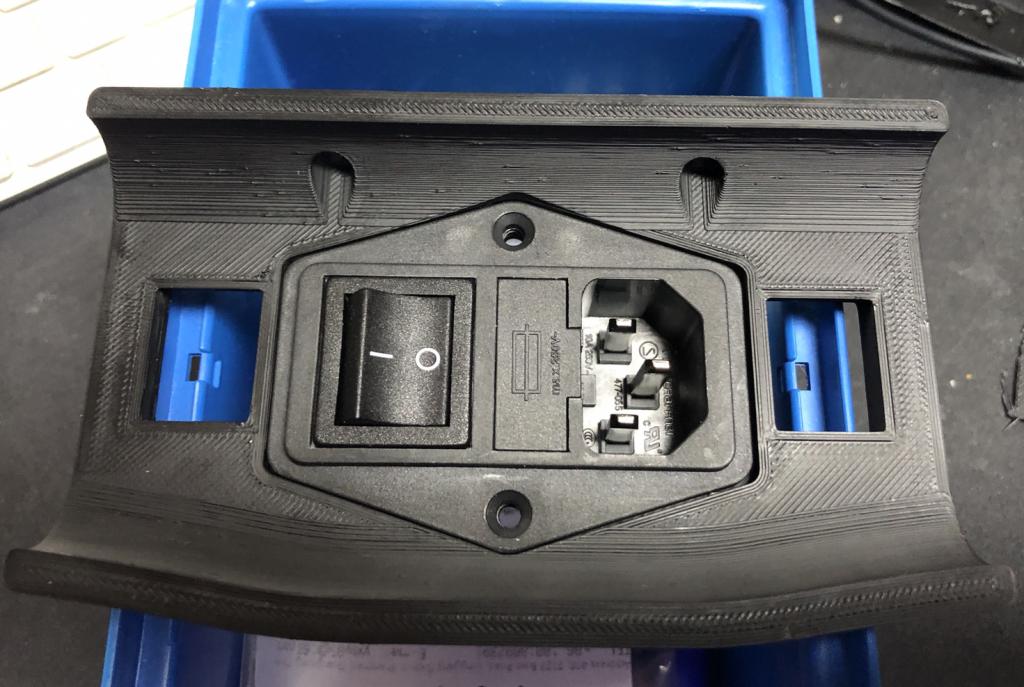

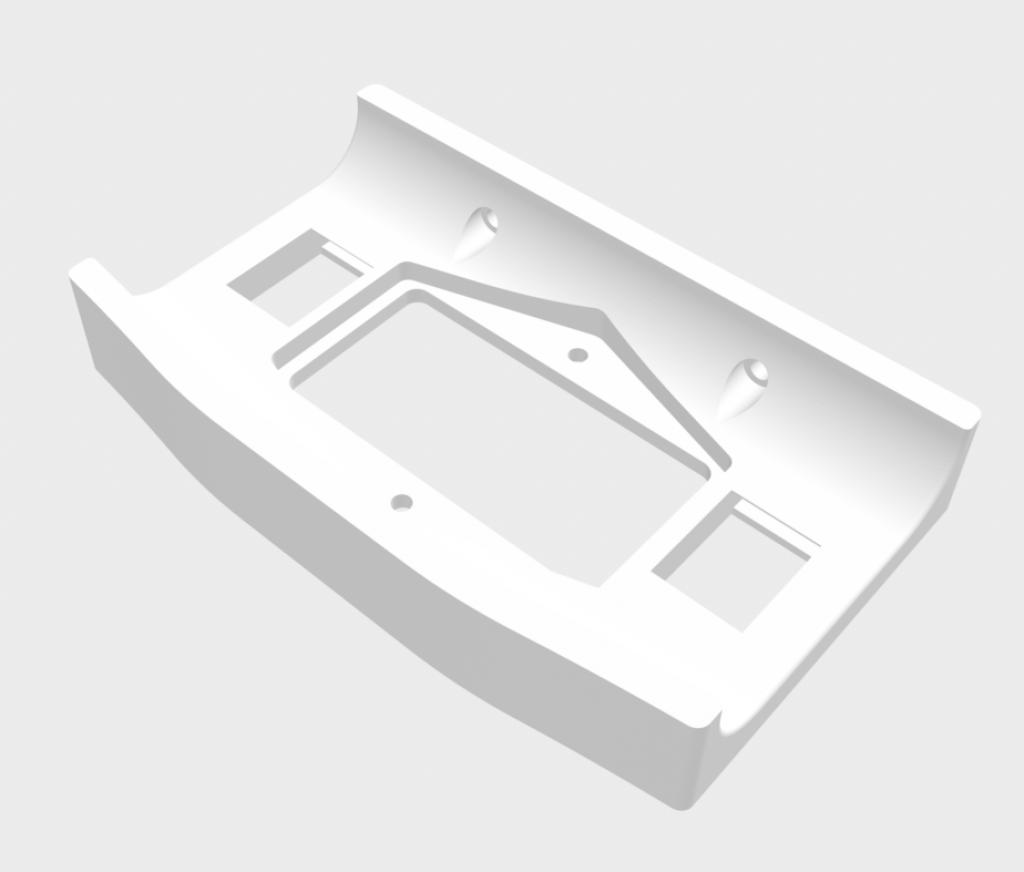

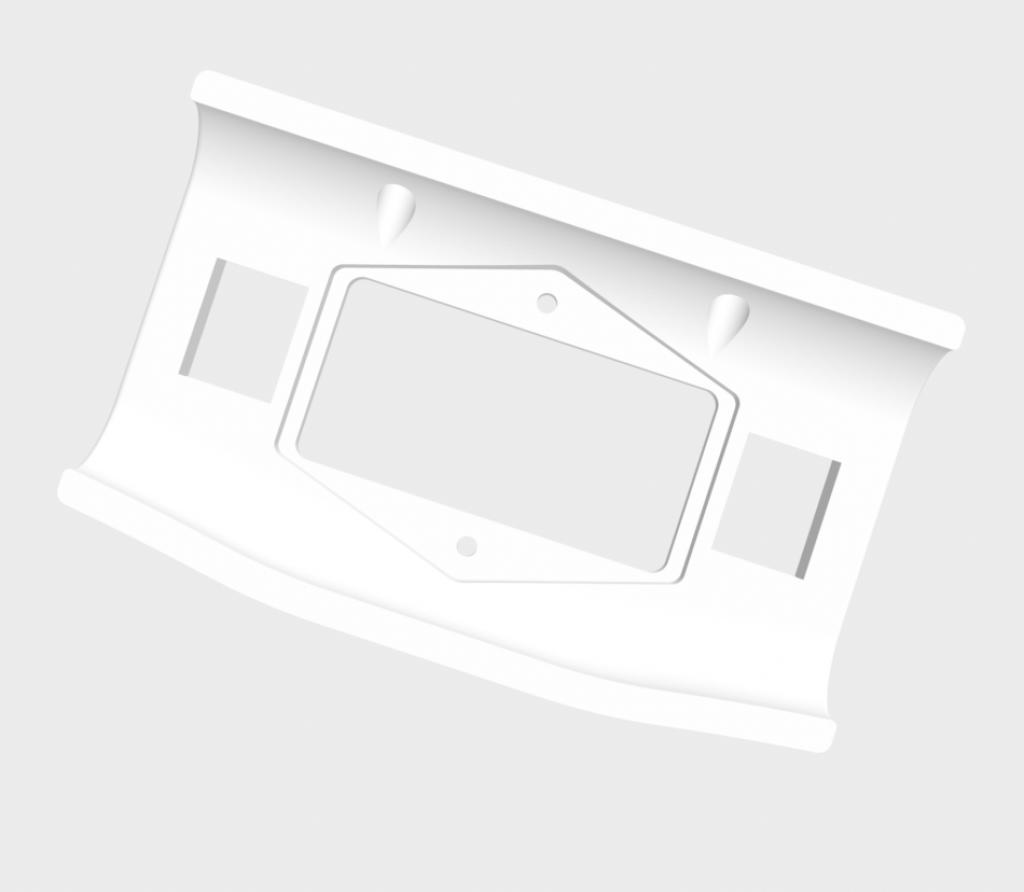

Skirt Mod for Schaffner FN284-10-06 Render #1 Skirt Mod for Schaffner FN284-10-06 Render #2
