zav3nd's Trident 350 - Formbot Kit

[claudermilk]

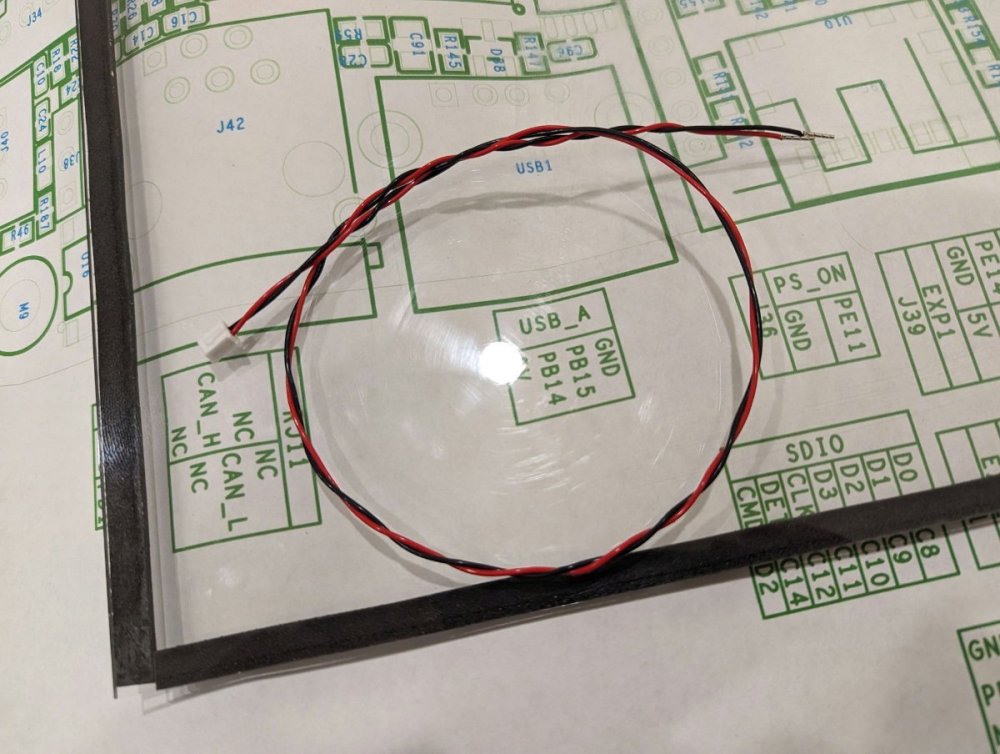

That's such a tiny PCB it might be ok to leave on. I have the bigger, original version with the manually-soldered wires, so I take mine off.

[zav3nd]

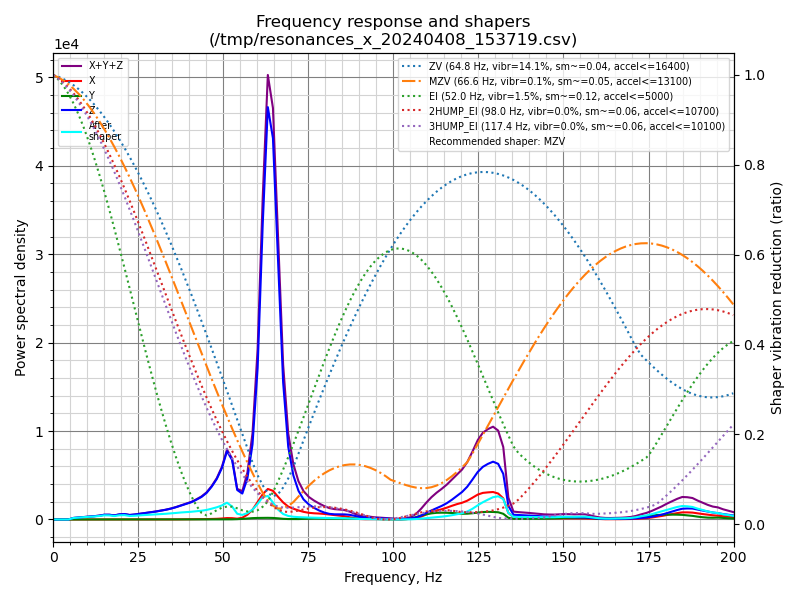

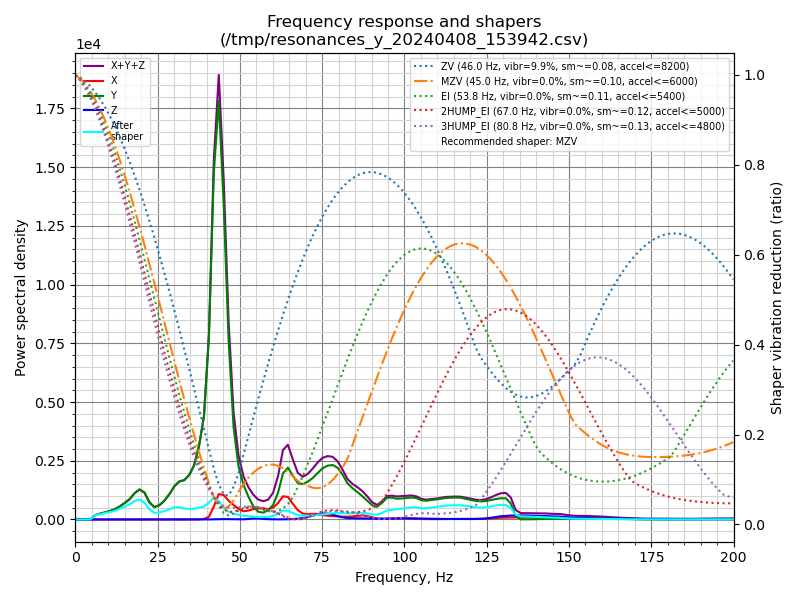

Reran Shaper today with the printhead in the middle:

Hopefully this code is correct. Going to run it and see what happens.

[input_shaper]
shaper_freq_x: 66.6
shaper_type_x: mzv
shaper_freq_y: 45.0
shaper_type_y: mzv

[printer]
max_accel: 5800  # should not exceed the estimated max_accel for X and Y axes



[zav3nd]

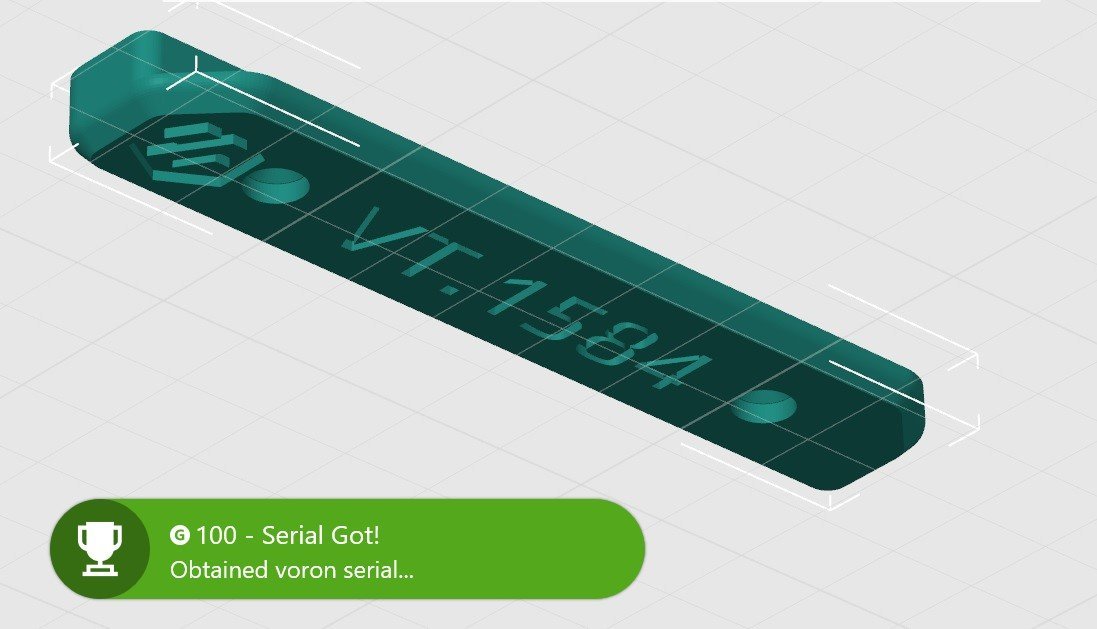

Went ahead and posted for serial. I'll be tweaking it forever so not an excuse to put it off. Next I think I need to get it a more permanent home.

[claudermilk]

Your input shaper config looks good, it should run no problem.

It's running, so as you say, no reason to delay serial request. Because there's always the next mod.

[zav3nd]

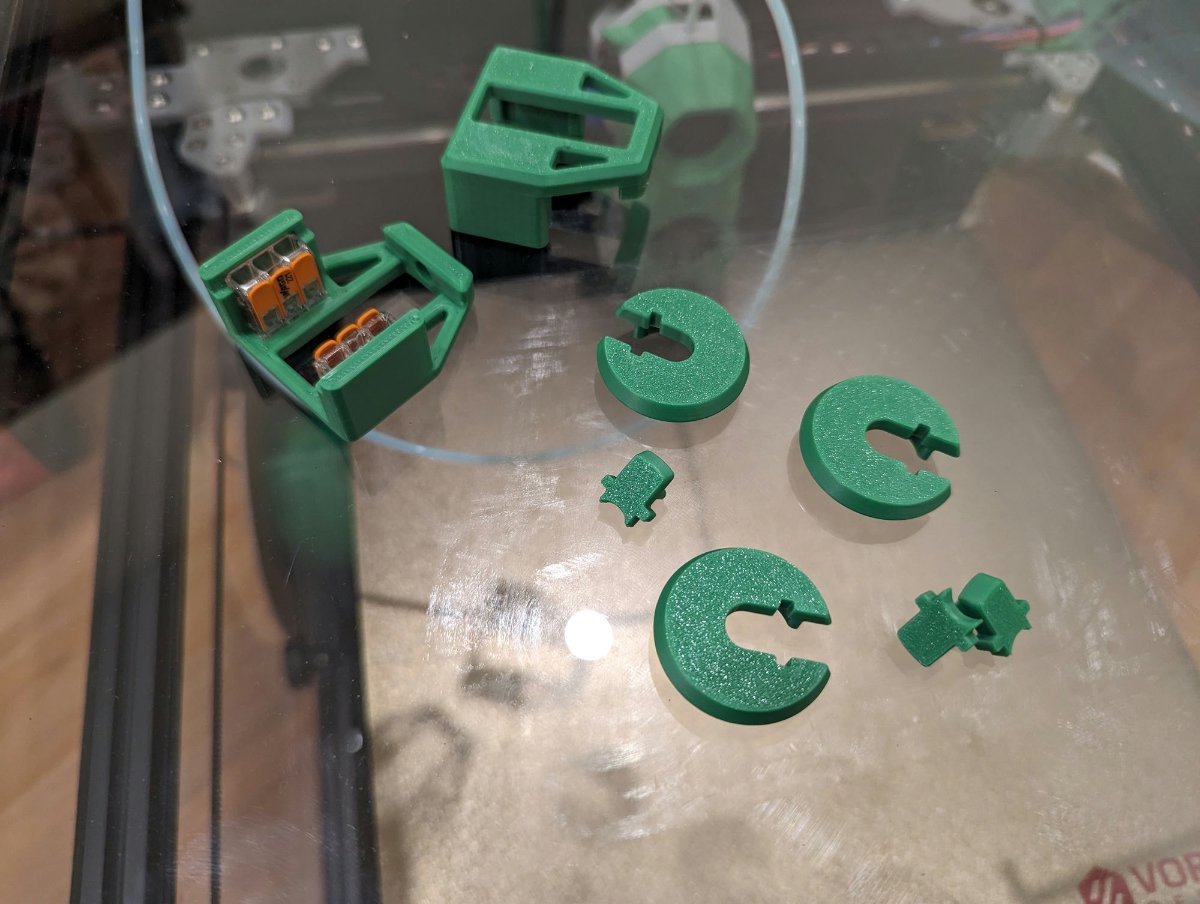

So its probably time to get both my electronics fans working. Doesn't seem to be anything made for it in the formbot kit. I'm thinking routing the fans to a wago (using this mount), then crimping a JST connector on to combine the two fans. I printed two for whenever I add fans to the other side. But might be a bit before installing.

I also printed the Z Motor Covers.

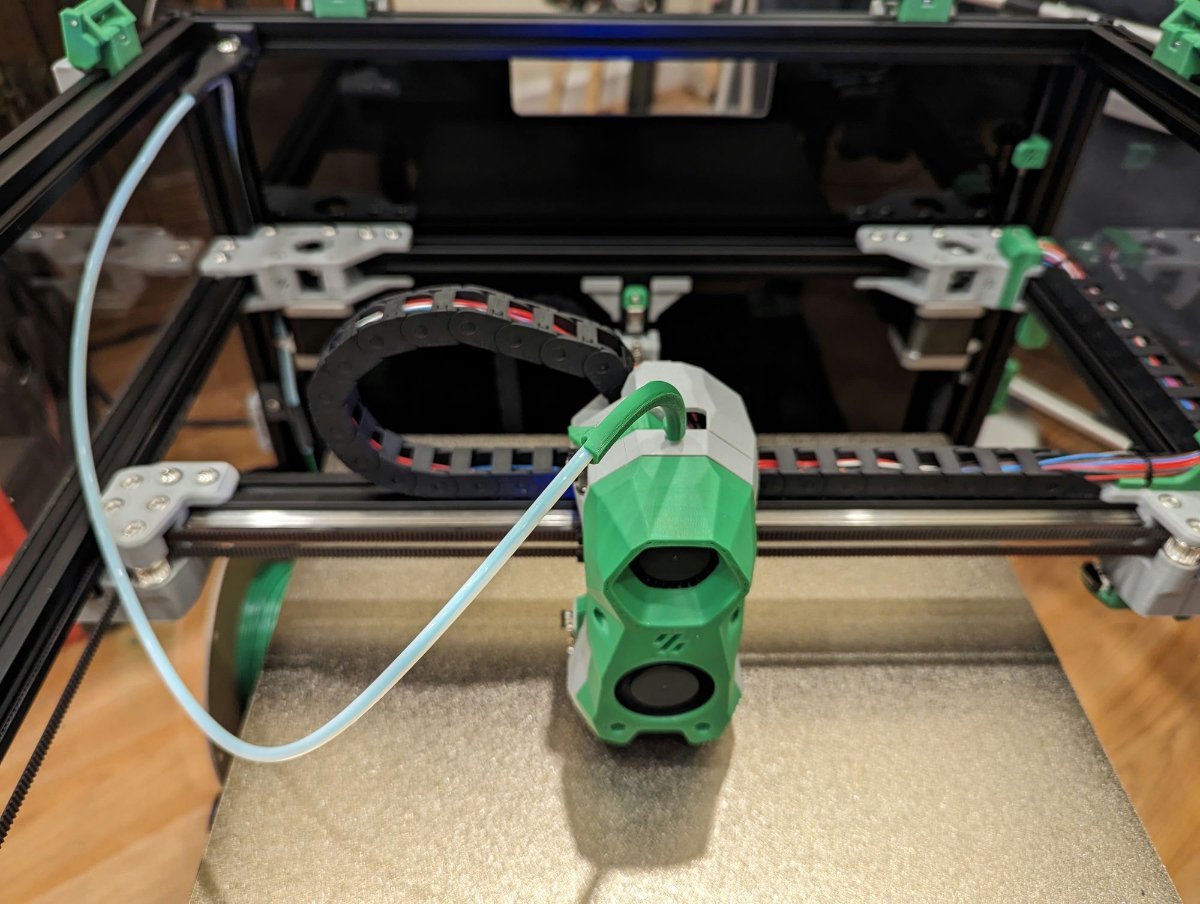

PTFE Guide - Should keep it off the top 'glass' but can't undo my scratches.



Looking at filters/air circulation (again):

I may also print the Voron Fume Pack, it at least keeps out of the way. But if I ever want to run chamber exhaust outside it gets in the way. I had looked at the Shaft, which seems like it would manage air circulation more. Was originally thinking Nevermore V6, but it doesn't really fit the trident imo. Same with 'The Filter'.

Edited April 10 by zav3nd

[claudermilk]

That's how I have my fans set up currently. I found a files for a nice DIN mount for the WAGOs that allowed me to cram it into the small space available on my 250.

[PFarm]

@zav3nd Your link to the Wago Mount is broken. I would like to use those on my Triident.

Edited April 10 by PFarm

[zav3nd]

31 minutes ago, PFarm said:

@zav3nd Your link to the Wago Mount is broken. I would like to use those on my Triident.

https://github.com/VoronDesign/VoronUsers/tree/main/printer_mods/Dr-Info/Lever_Connector_Mount_Side_Fan_Support

For some reason the voron mods website won't load this morning.

[zav3nd]

(I'd have printed it but I'm 2hrs into a 7hr print...)



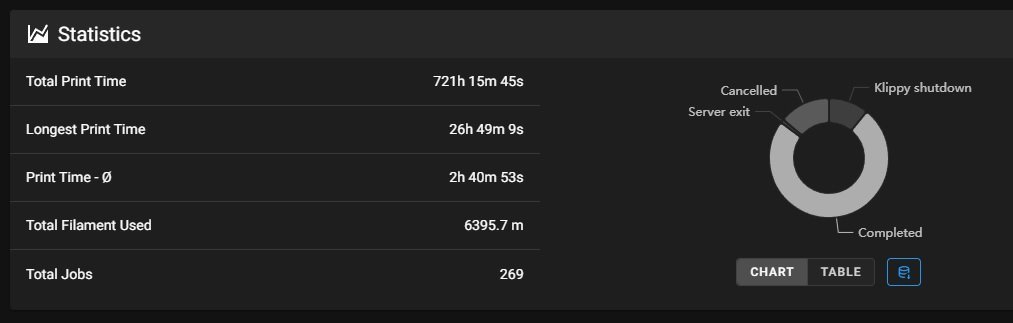

Its been 2 months since my first post. I think I stopped counting "days" at 15ish, in theory days that I worked on it for ~2-4hrs. Klipper was probably another 5 of those days. I printed it on my Ender 3 with Lack Enclosure with about 400hrs of print time (some amount of that being reprints). On the Voron printed spares of the internal functional parts (drive units, z bed, etc) in 17hrs... which took about 60hrs on the ender and multiple build plates.



I'd be lying if I said I wasn't ready to do another one. But that'll have to wait until this ones more 'complete' and give some time for my wallet to regenerate.

[claudermilk]

9 hours ago, zav3nd said:

I'd be lying if I said I wasn't ready to do another one. But that'll have to wait until this ones more 'complete' and give some time for my wallet to regenerate.

 Isn't that the truth? As soon as one is done you're starting to think about the next one.

I'm just distracting myself with how I can get a resin printer set up right now.

[zav3nd]

Fume Pack - Previously Mentioned, Printables Here.

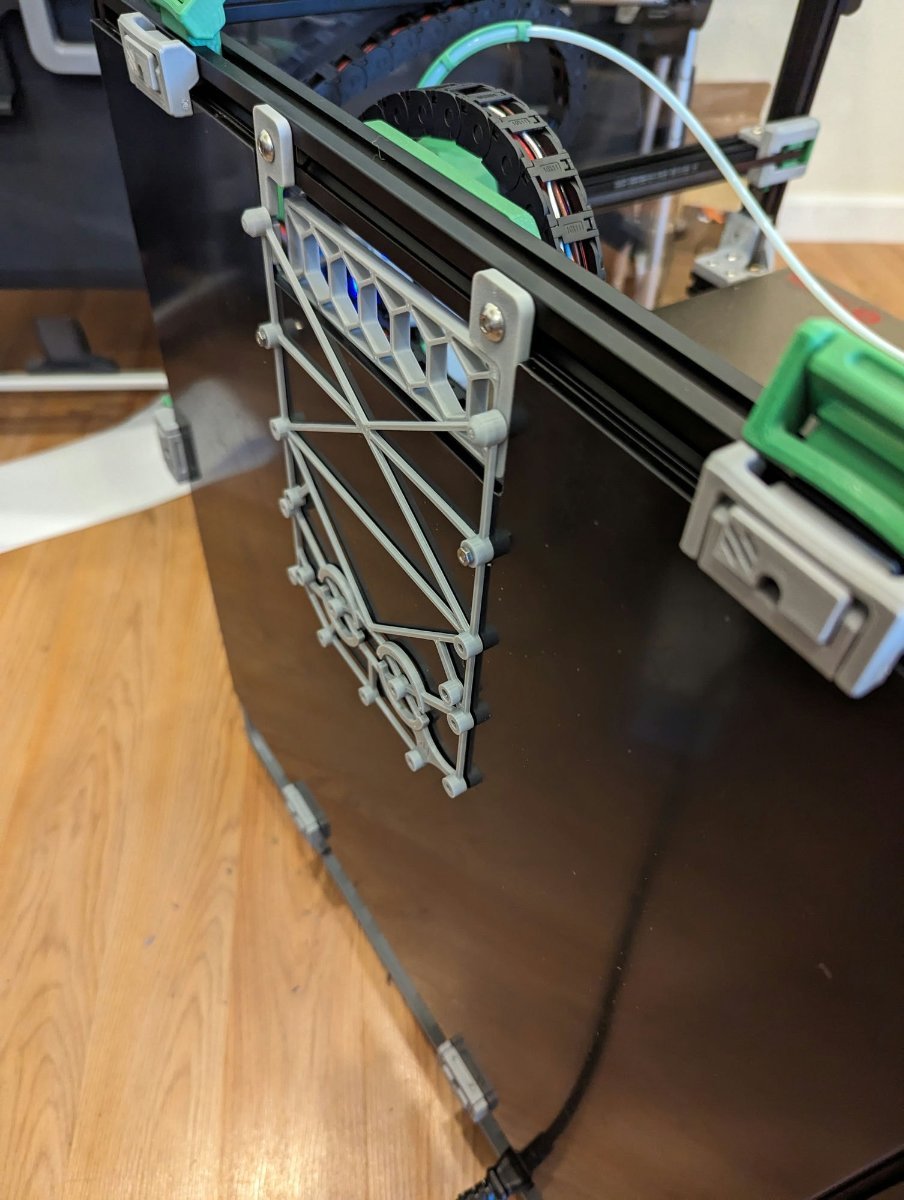

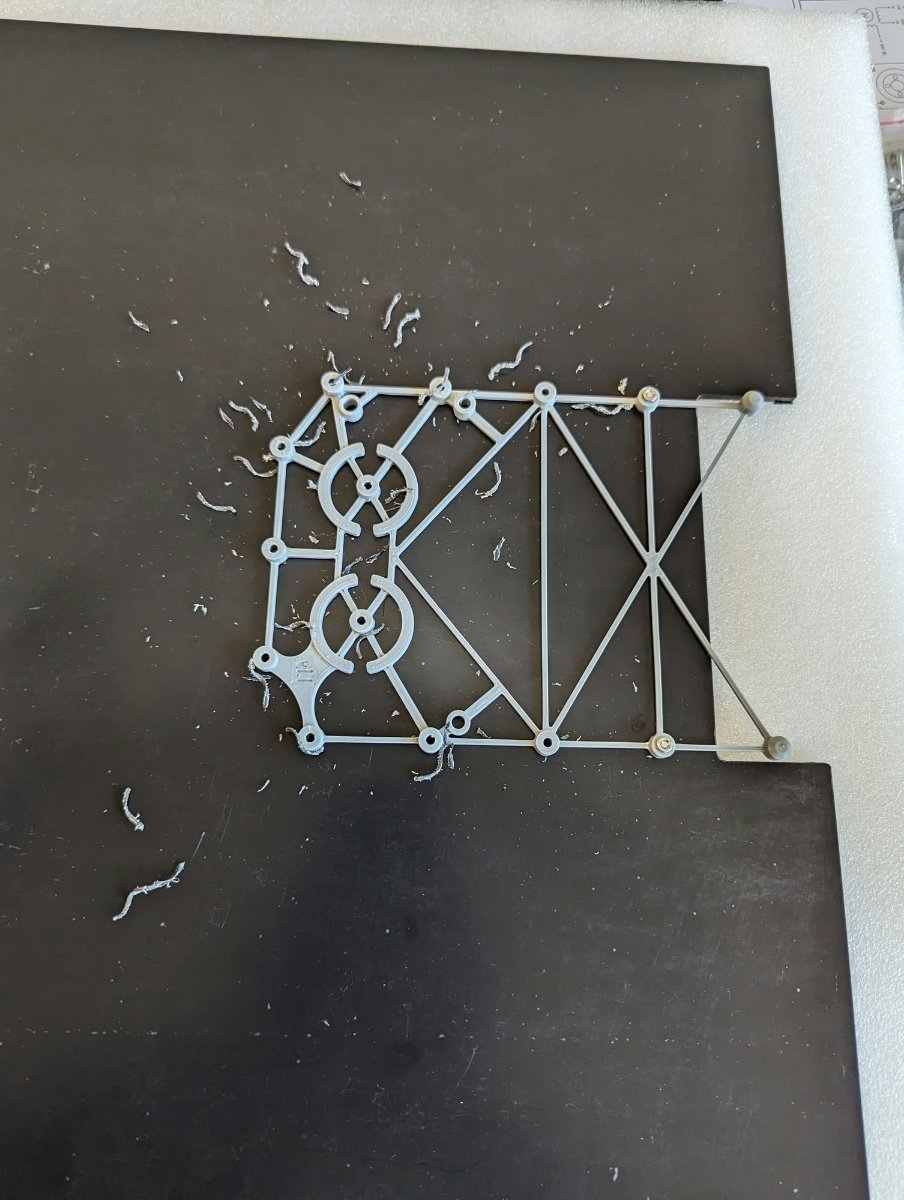

No real build guide so I winged (wung'd?) it. Drill template helps and its fairly self explanatory I suppose. Used 1/8th, 3/16th drill bits, and 1-1/2" hole saw. Best to drill from inside to outside because the pack will cover any blowouts (screws covered the chips I had). Attached drill guide to printer, drilled top two holes, put bolts and nuts then moved to drill the rest.

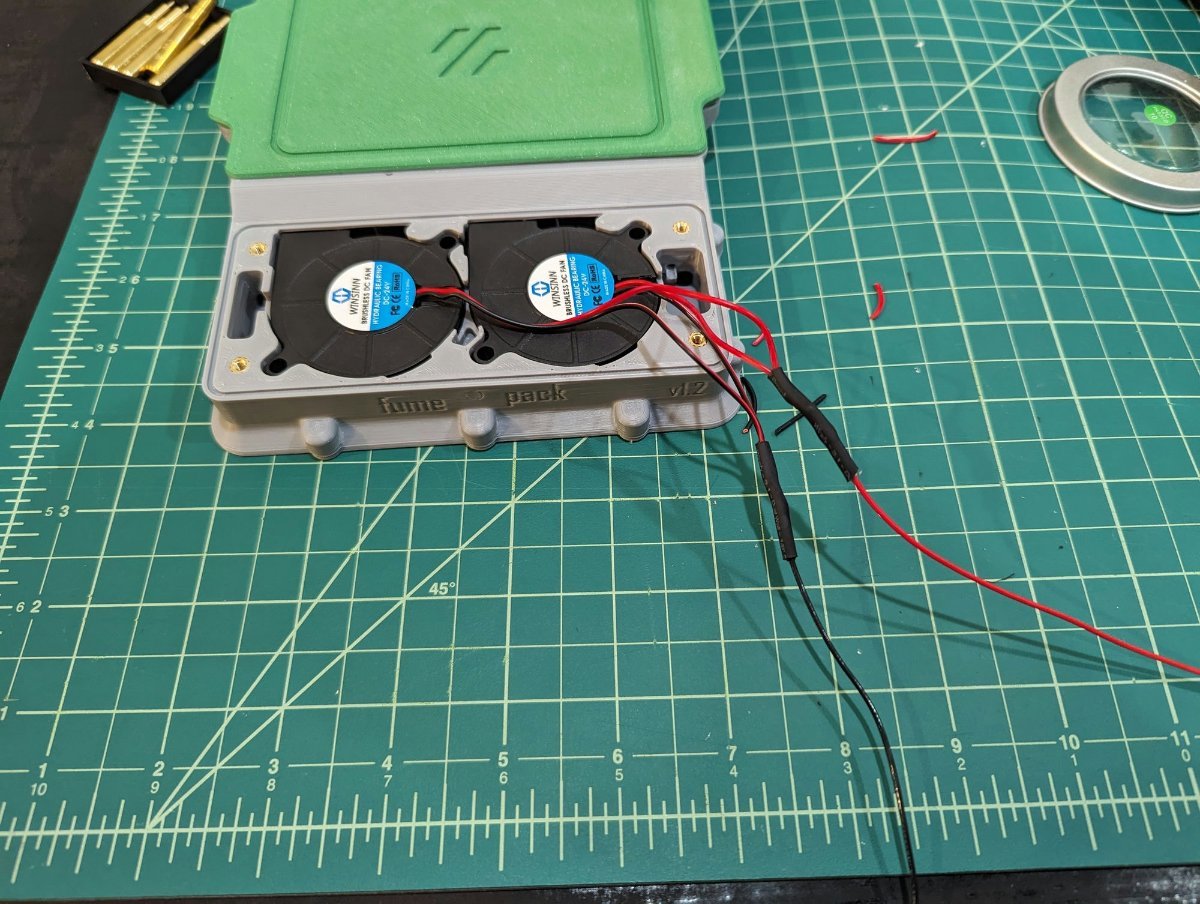

Wiring - Soldered the fan wires to a third bit of wire fed through that hole on the right side of the picture.

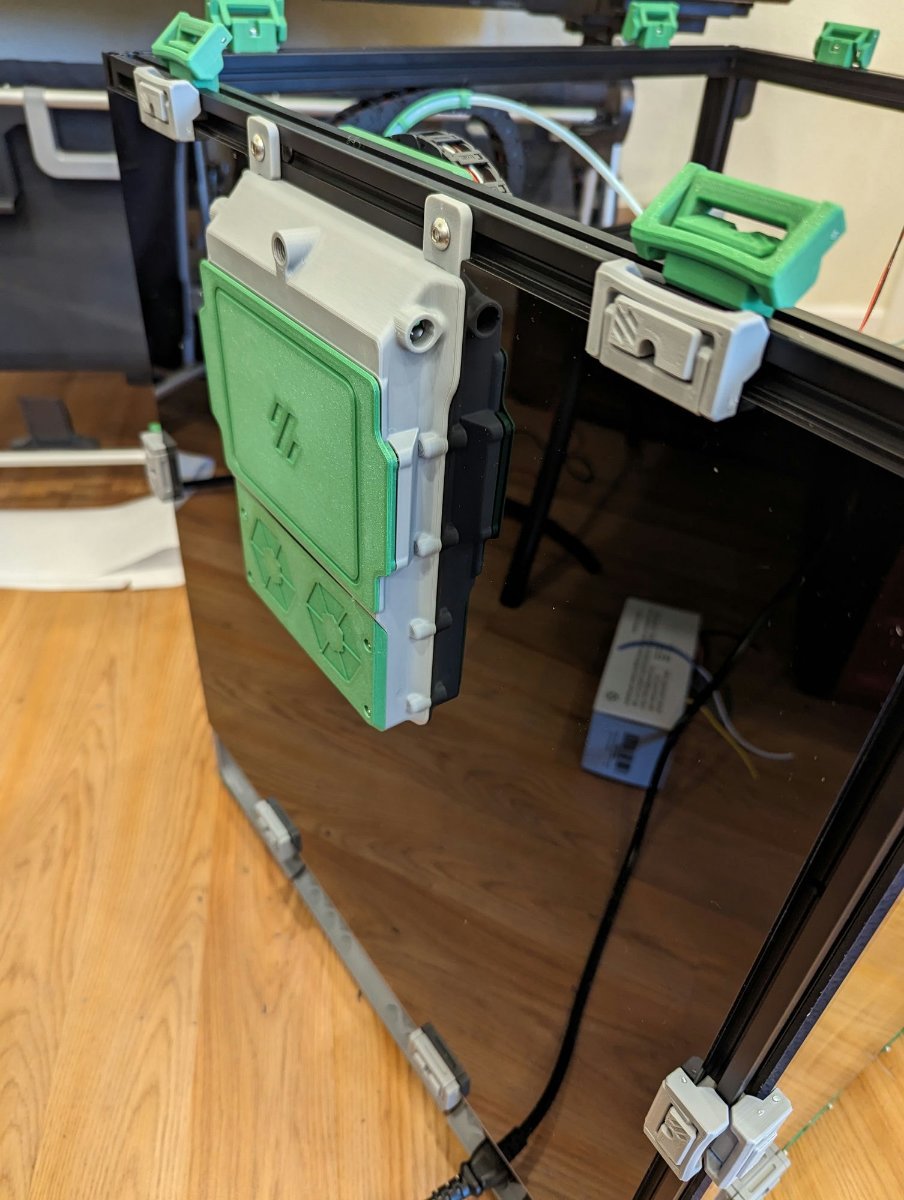

Back

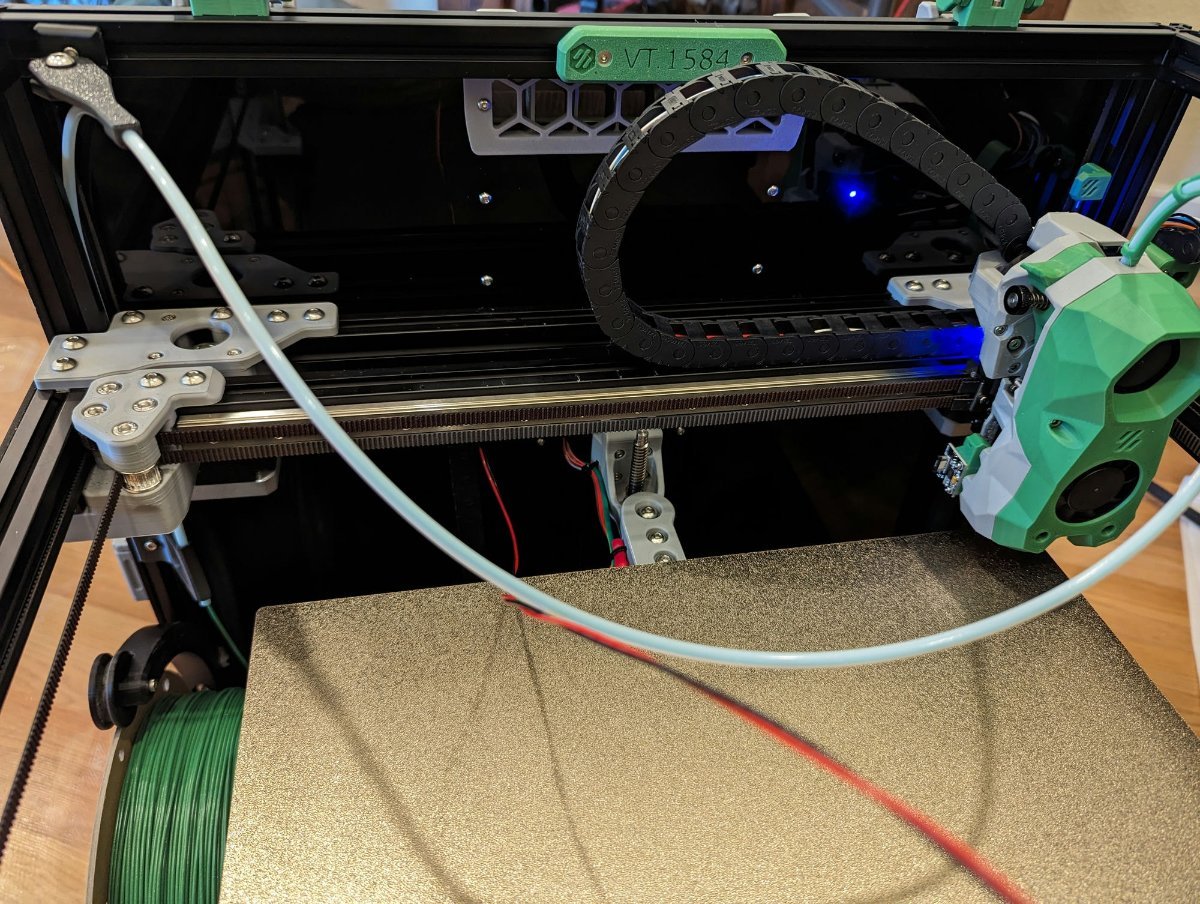

Front - And the fan wires I came through a hole that puts it right near the z chain. Just hiding behind it for now.

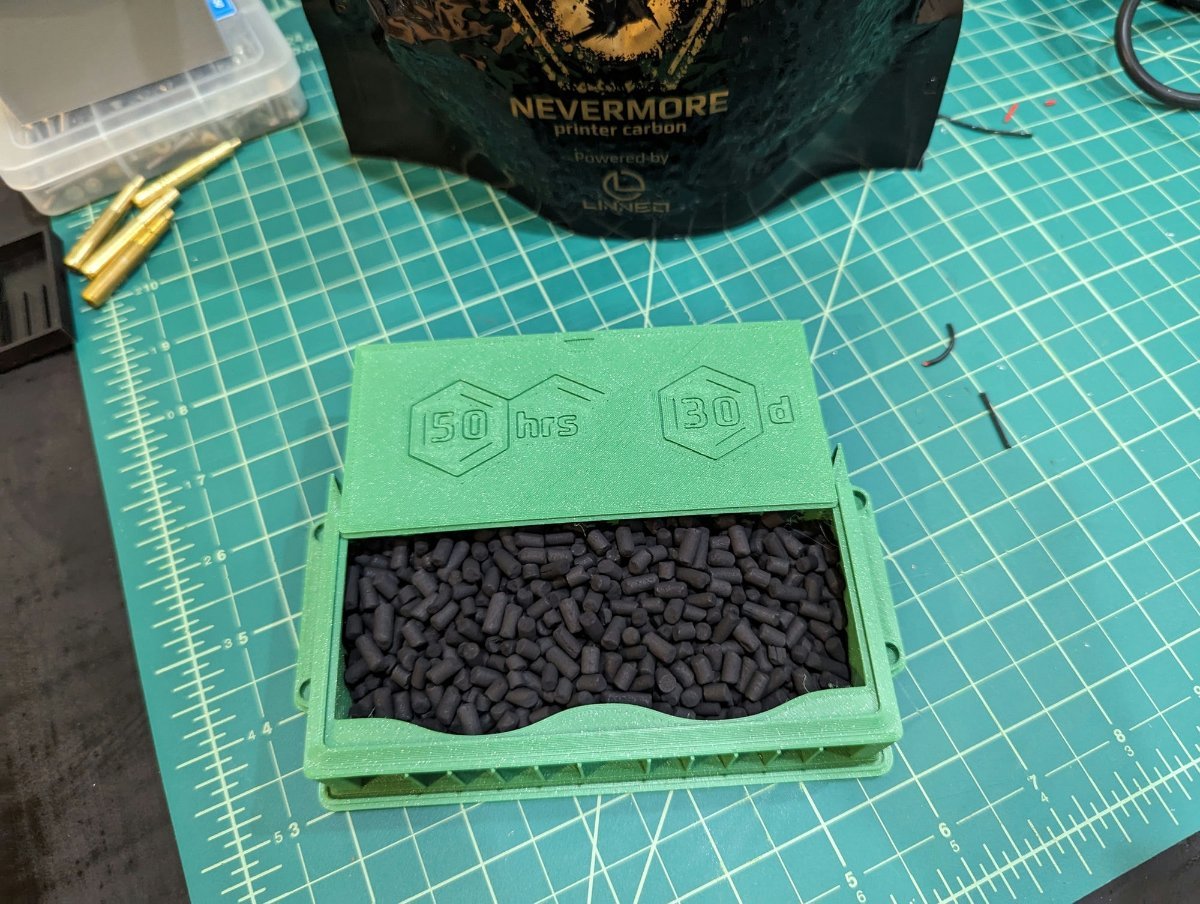

Filled it with carbon pellets too!

printer.cfg wise I just stole nevermores cfg and repurposed it. Might tweak it a bit. But using that and hitting print chamber came up to 35 from ~20 ambient by the time my mesh finished. Was capping out around 45 chamber with the big hole in the back.

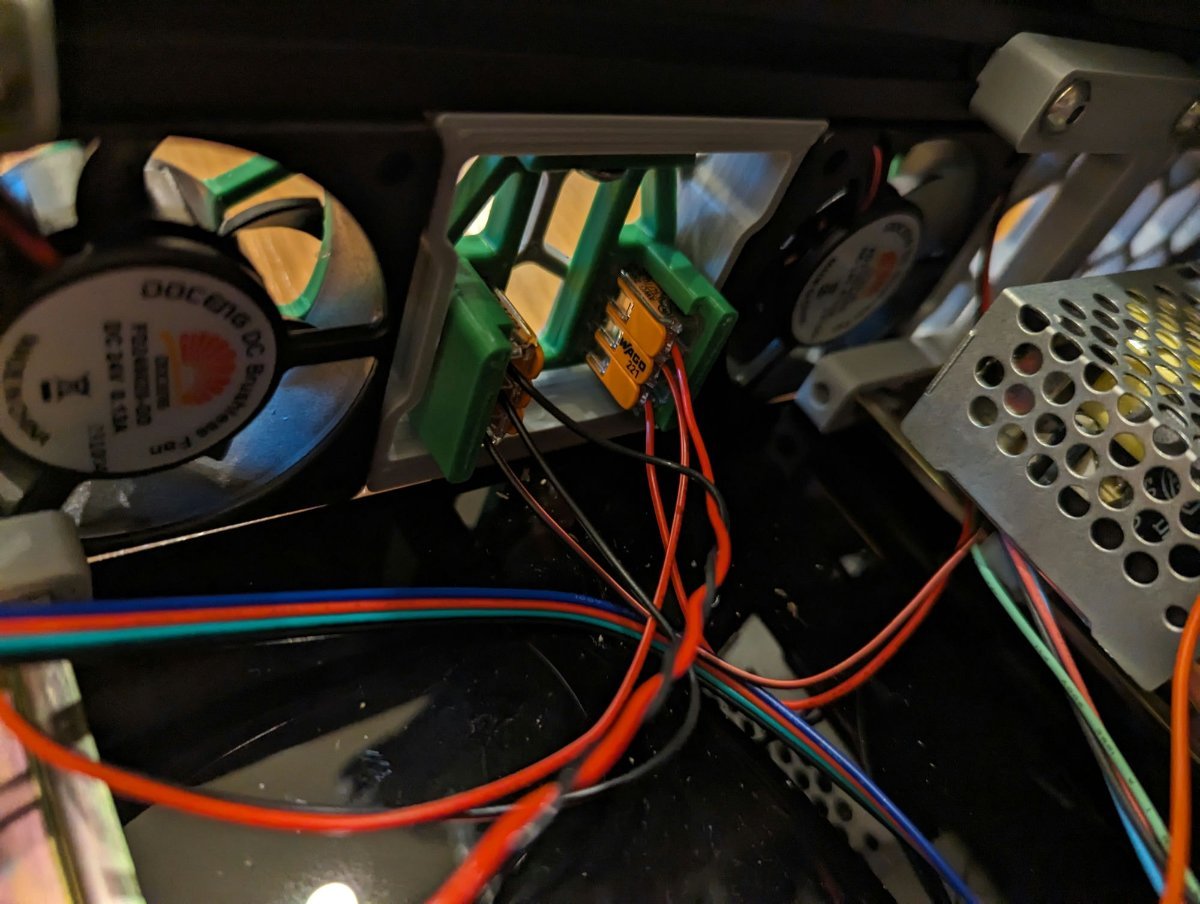

While I was under the hood, I went ahead and wired in both my fans too. (Fan Skirt Wago Connectors)

It wasn't the easiest thing get put on and wired without taking everything apart. But panel snap latches save me every time I get into it. Ferrule tool comes in handy for wagos, I can't see putting stranded in them otherwise.

Edited April 17 by zav3nd
Added Wiring picture.

[zav3nd]

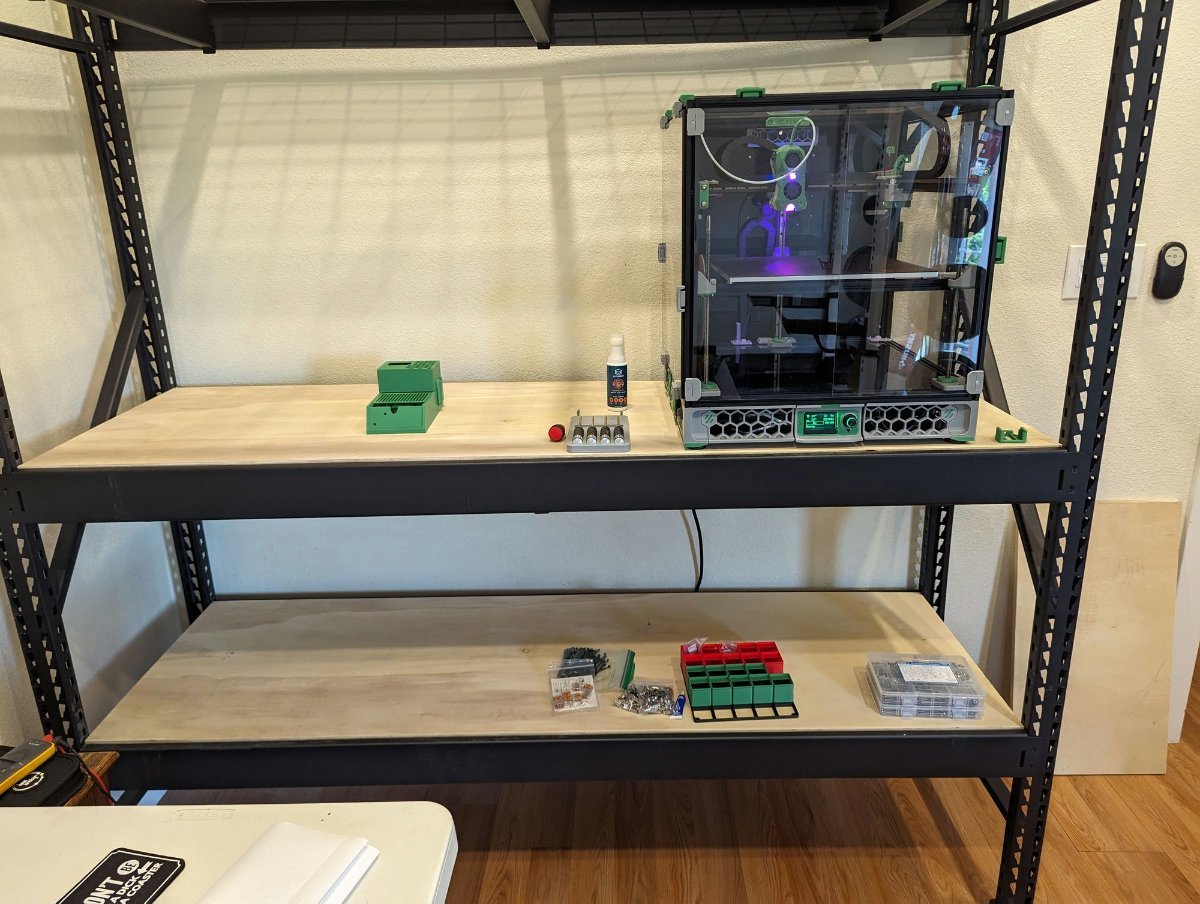

It no longer lives on the floor. Still quite a bit to move around, and will probably anchor the shelf to the wall, then rerun input shaper when I'm done moving everything around. Ender is going to lose its lack and go on the shelf too. Eventually I'll get some drawers made for filament underneath. And I'm thinking of doing a RepRack on the right side to feed filament instead of the internal spool holder.

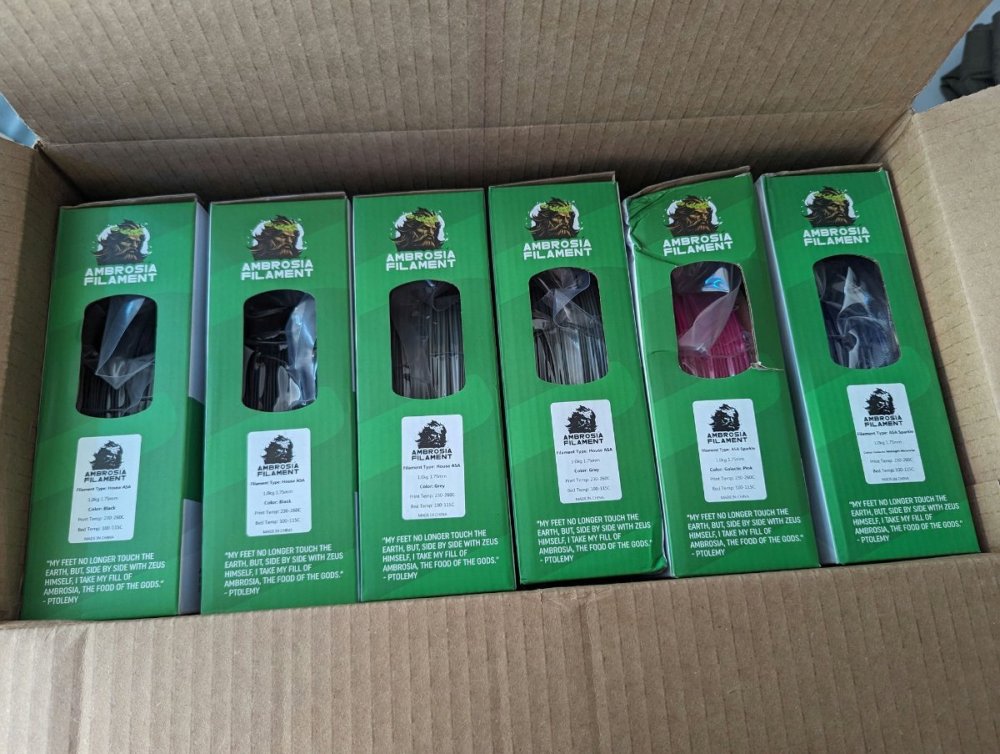

I was short on filament too, but my Ambrosia ASA order came in:

Should hold me over for a while. The sparkly pink and blue for if when I build another voron or rebuild the Ender, because the main thing I've learned here is everyone needs a pink and blue 3d printer.
