V0 TopHat Mini 12864

I wanted to have the ability to use the V2 display with my V0, so designed this mod to allow for it. Although they look similar, the Mini 12864 front and back case files have been slightly altered to accomodate this design.

#

Config for SKR Mini E3 V2

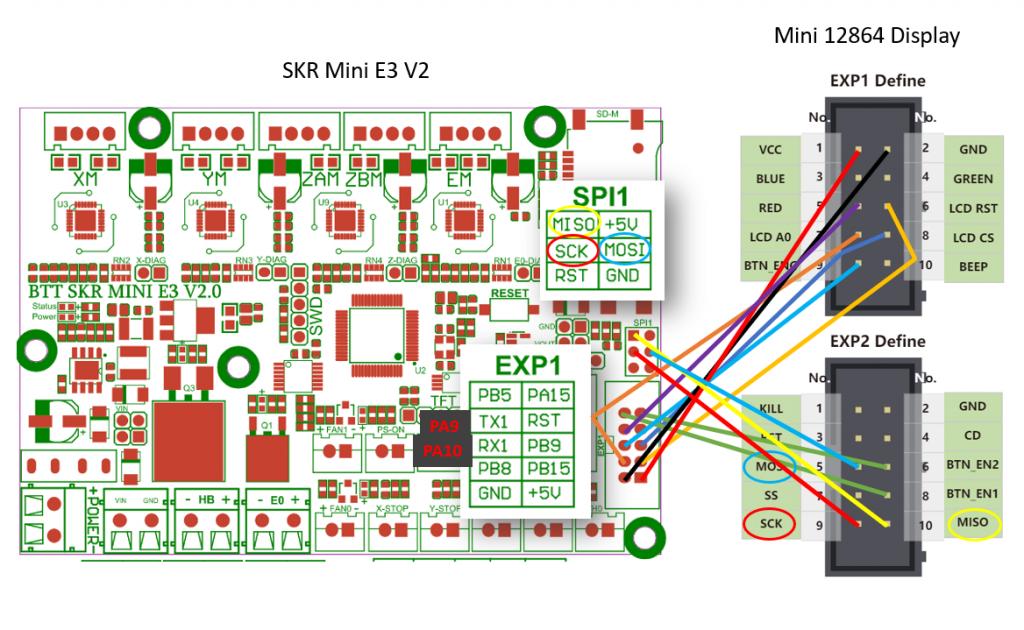

Below are the pins that I used in Klipper for the display and a really bad representation of the wiring I performed.

[display]

lcd_type: uc1701

cs_pin: PB9

a0_pin: PB8

rst_pin: PB15

encoder_pins: ^PB5,^PA15

click_pin: ^!PA10

contrast: 63

spi_software_sclk_pin: PA5

spi_software_mosi_pin: PA7

spi_software_miso_pin: PA6

[neopixel fysetc_mini12864]

pin: PA9

chain_count: 3

color_order_GRB: False

initial_RED: 0.3

initial_GREEN: 0.3

initial_BLUE: 0.5

Wiring

#

Mount It!

M3 threaded inserts are used in the lower wall of the back case file, this allows for M3 screws to be ran through the TopHat pieces into the case, resulting in a solid configuration.

The parts are in the correct orientation for printing.

TopHat Mini 12864 1
