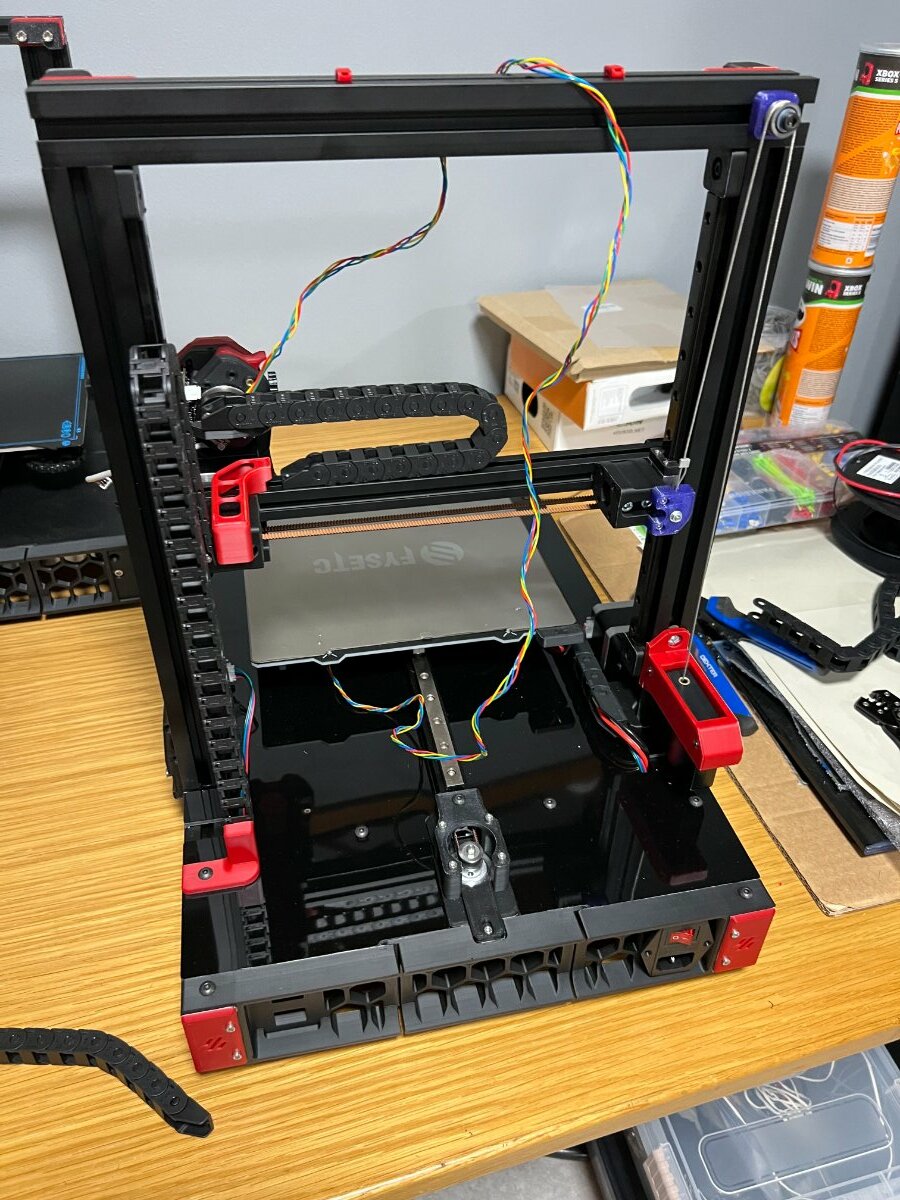

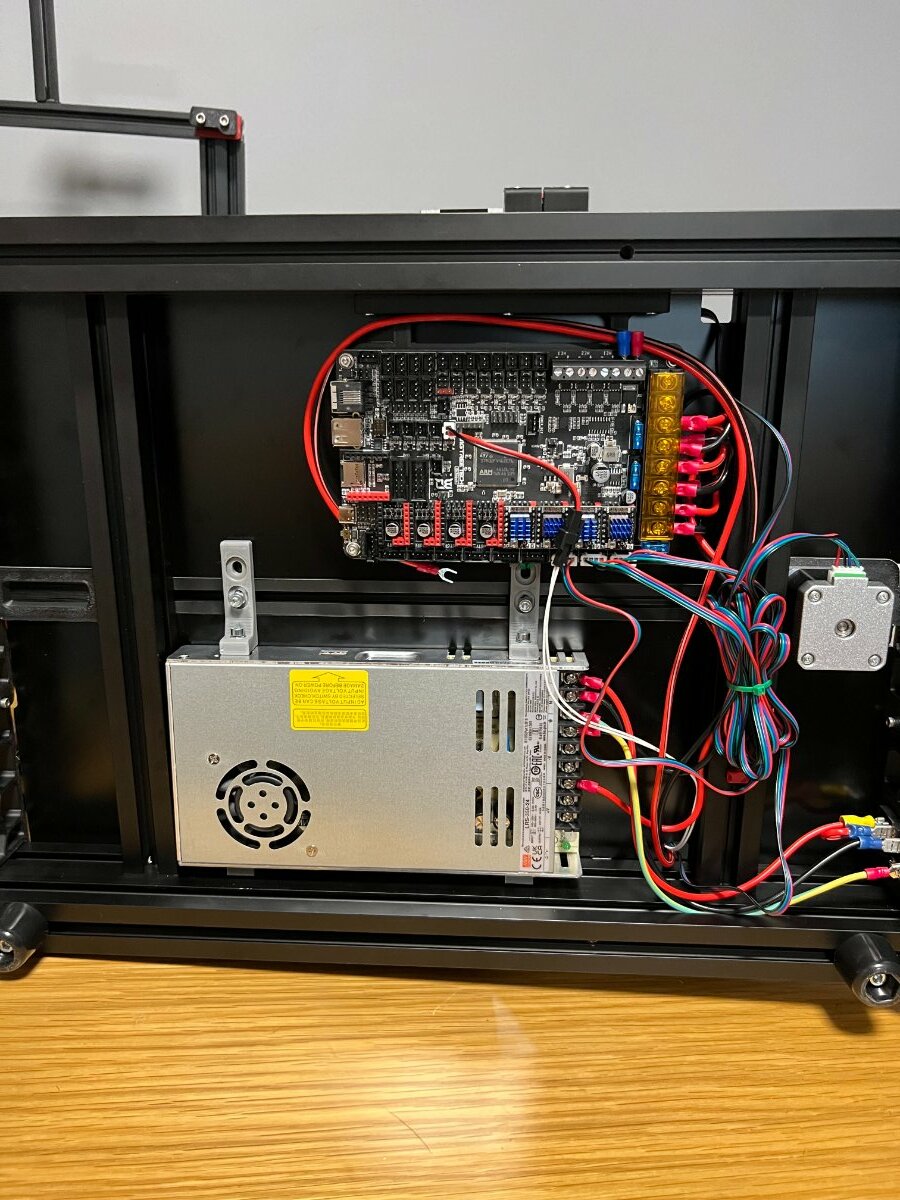

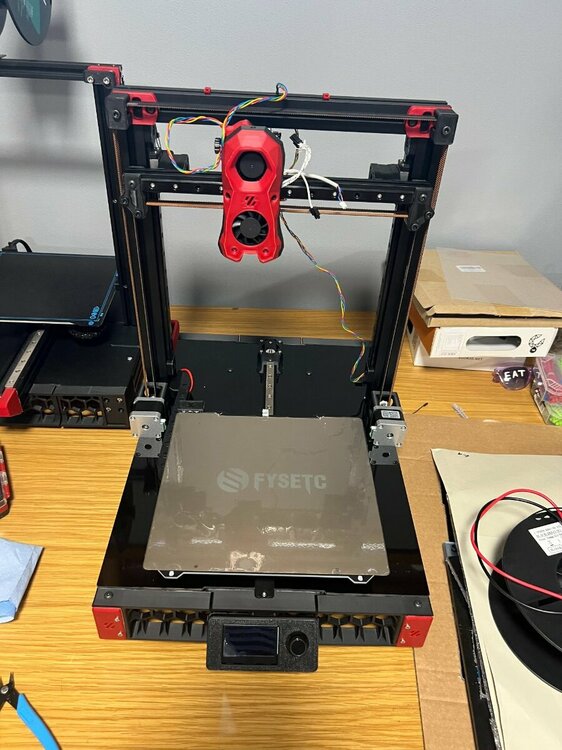

Hi guys, here is the current status of my build, im waiting for the cable chains to proceed with the eletronic wiring.
The plan is also to use a octopus v1.1 + ebb36 for the toolhead, while crimping i decided to remove most of the cables and can is the way to go.

Self sourced parts, and a fermio enclosure.







Edited August 18, 2022 by Nuno Figueiredo
pictures

[smirk]

Looking good, it'll be interesting to see your CANBUS journey as you say it seems to be the way to go.

[Nuno Figueiredo]

Just now, smirk said:

Looking good, it'll be interesting to see your CANBUS journey as you say it seems to be the way to go.

me too :), currently my octopus have the 446 chip witch im not entirely sure its supported, to be safer i order a can hat.

another clue i have is the probe, i dont see any reference to the bat85 in the ebb36, a question for the comunity

[mvdveer]

Looks good

[Nuno Figueiredo]

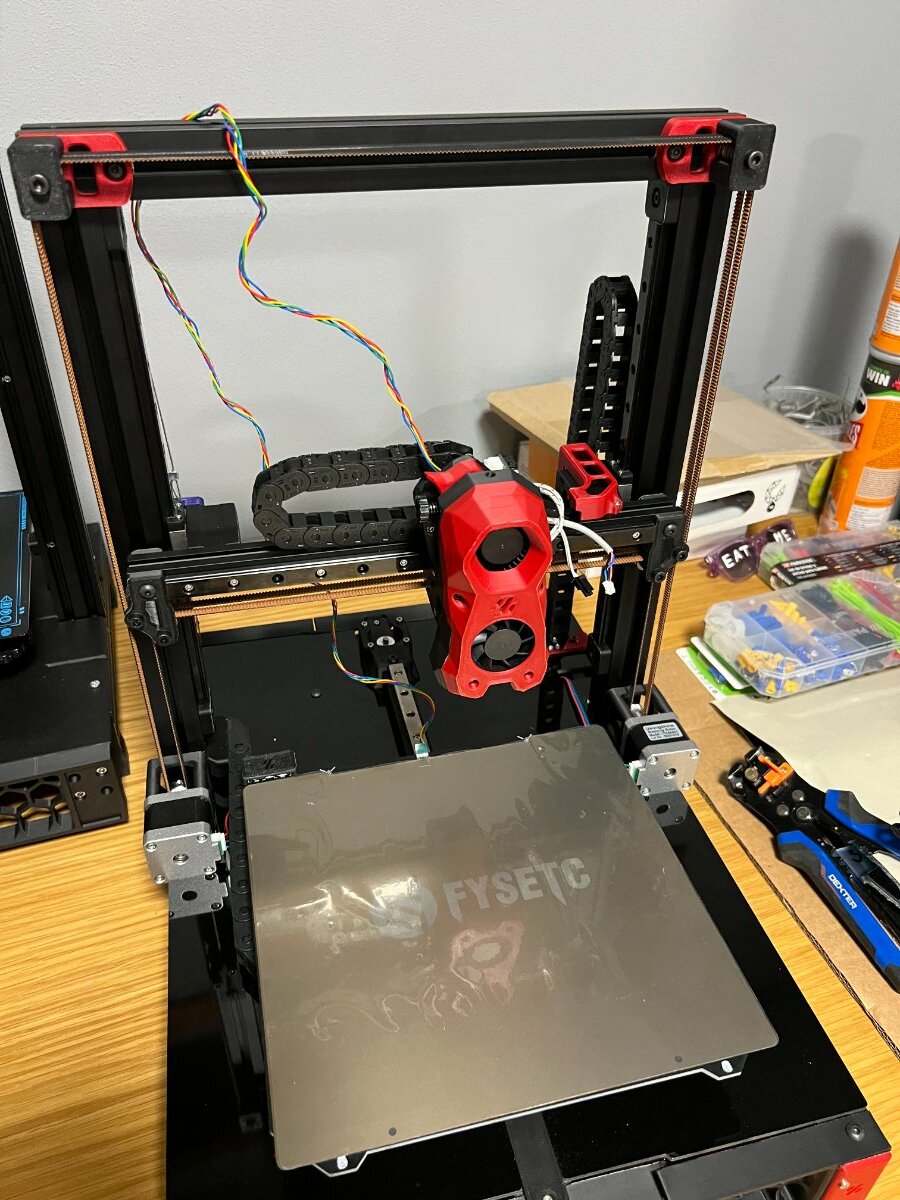

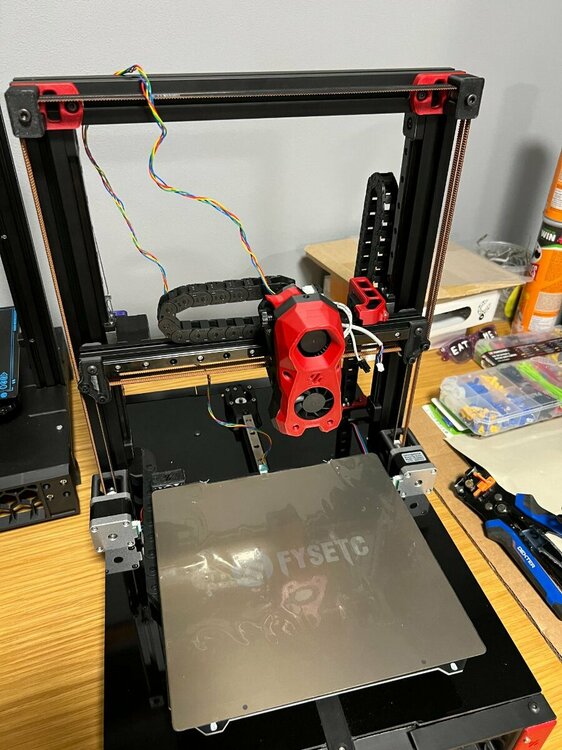

some updates, installed the drag chains, as mine still didnt arrived, i friend facilitate them so i can move along.

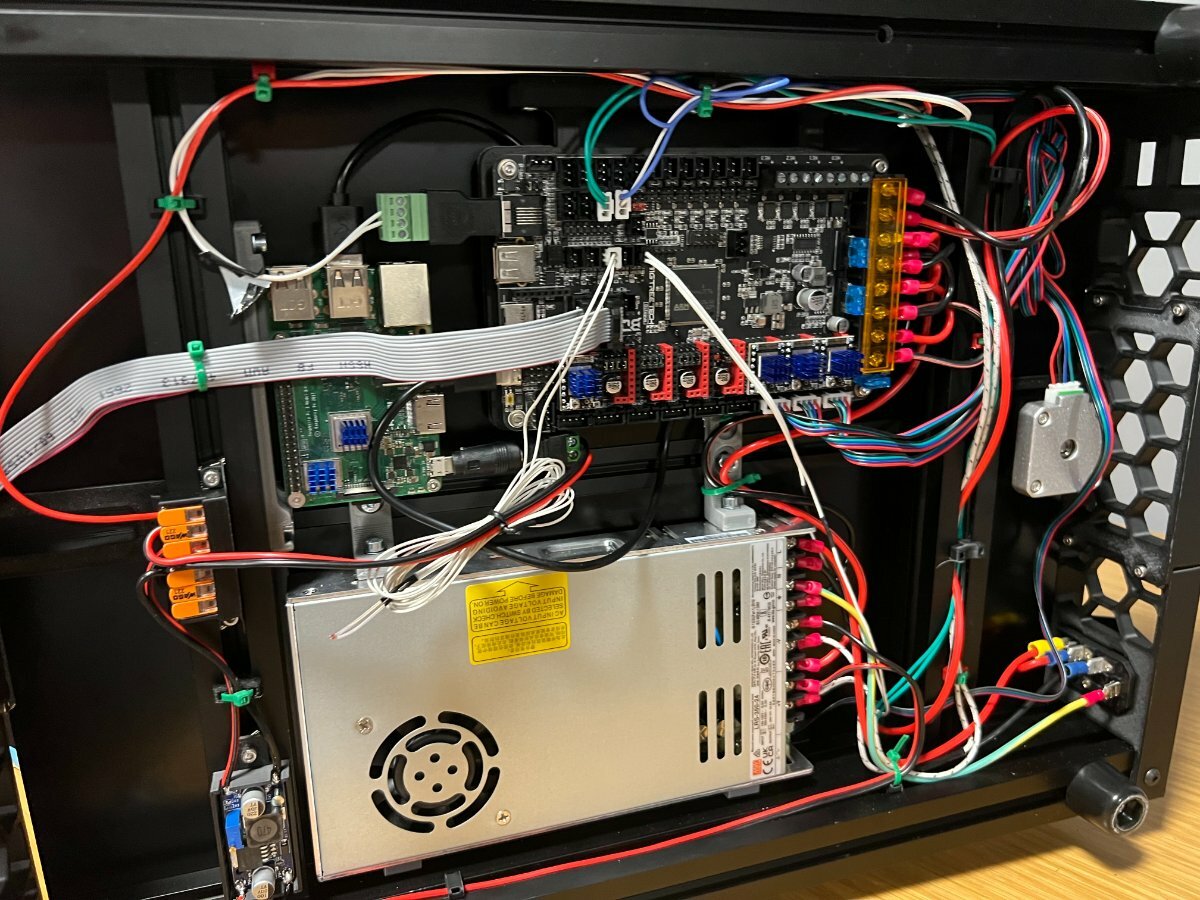

Some wiring done, tomorrow the EBB36 will arrive to move even forward.





[Nuno Figueiredo]

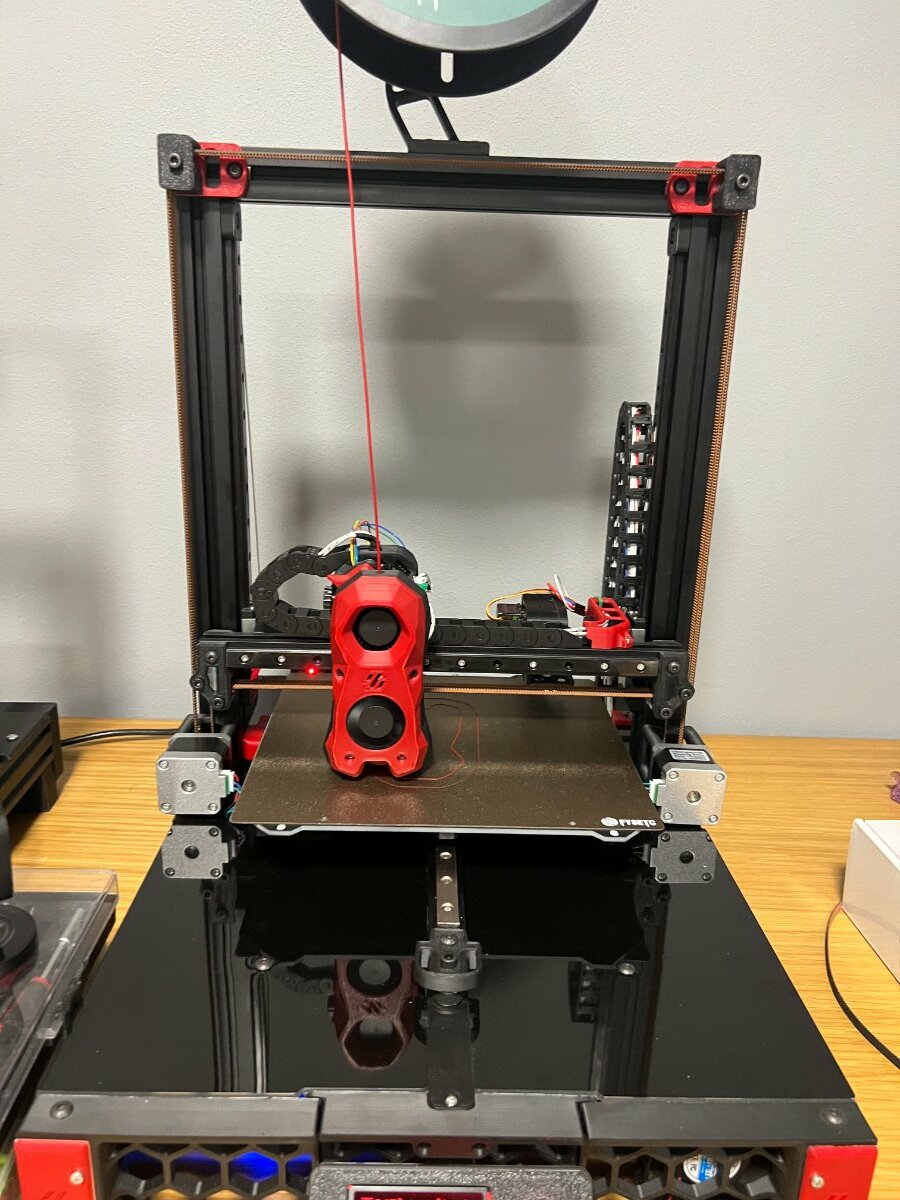

and it prints,

still to enclosure it, but im running test prints to make sure i dont need to remove everything.

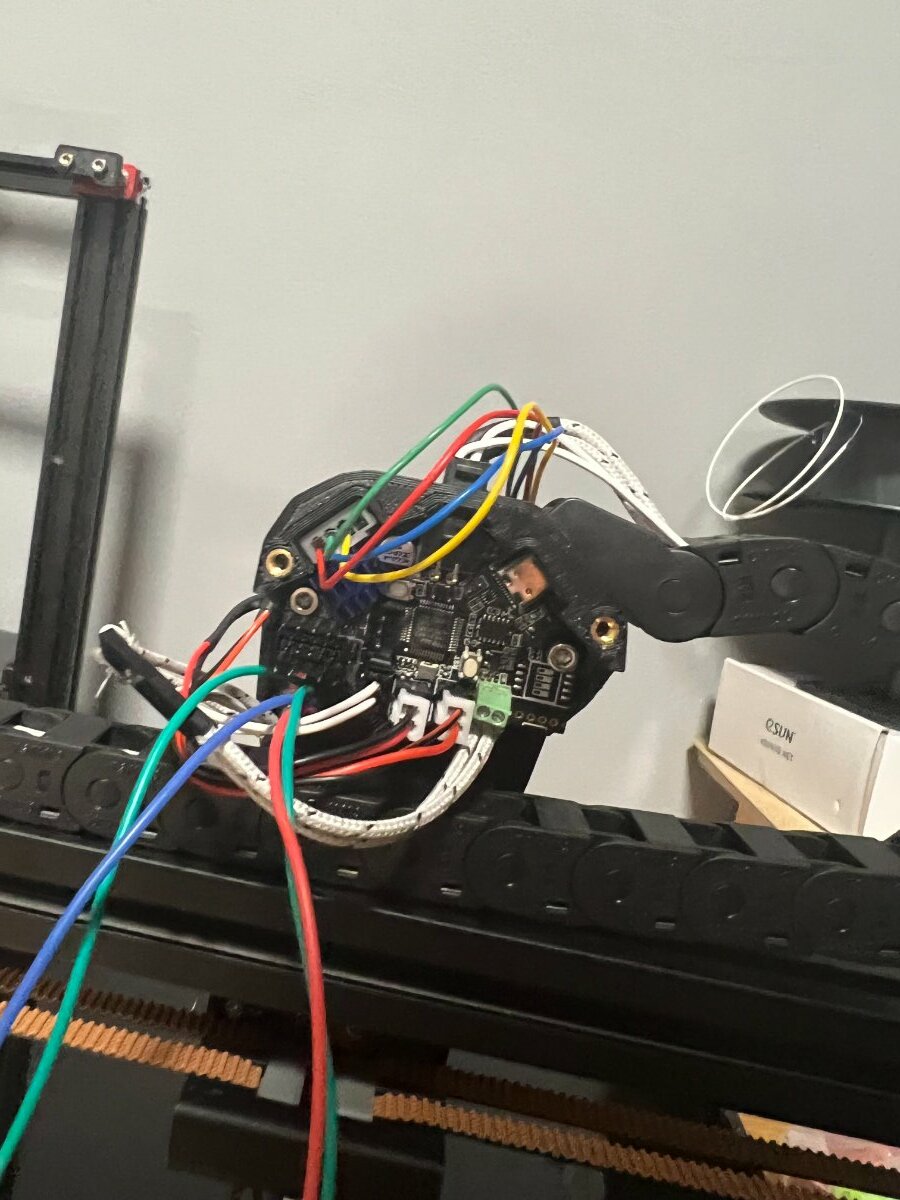

running Can EBB36 on the toolhead directly with Octopus and klicky probe.

First prints are ok, i was expecting alot worse  and im printing only ABS.





[Nuno Figueiredo]





Edited September 5, 2022 by Nuno Figueiredo

[Nuno Figueiredo]

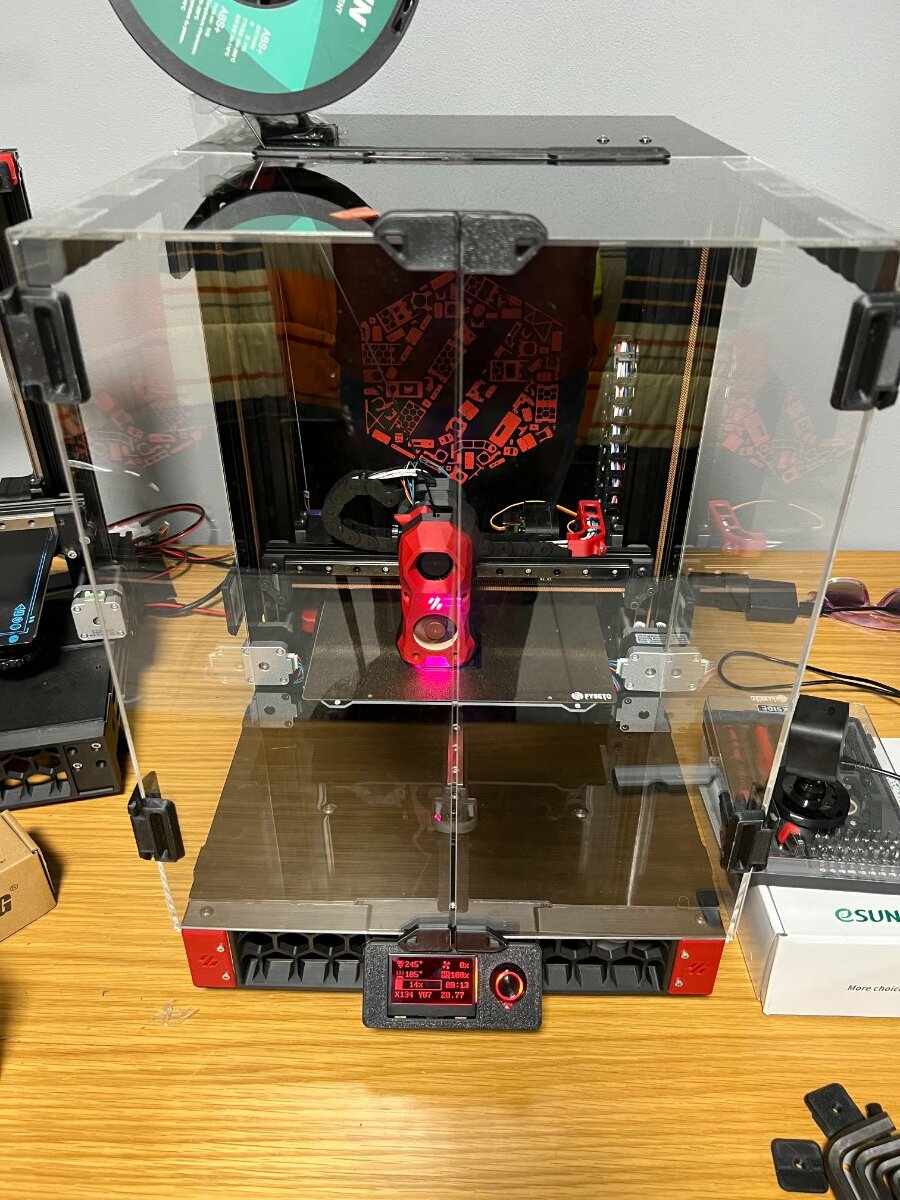

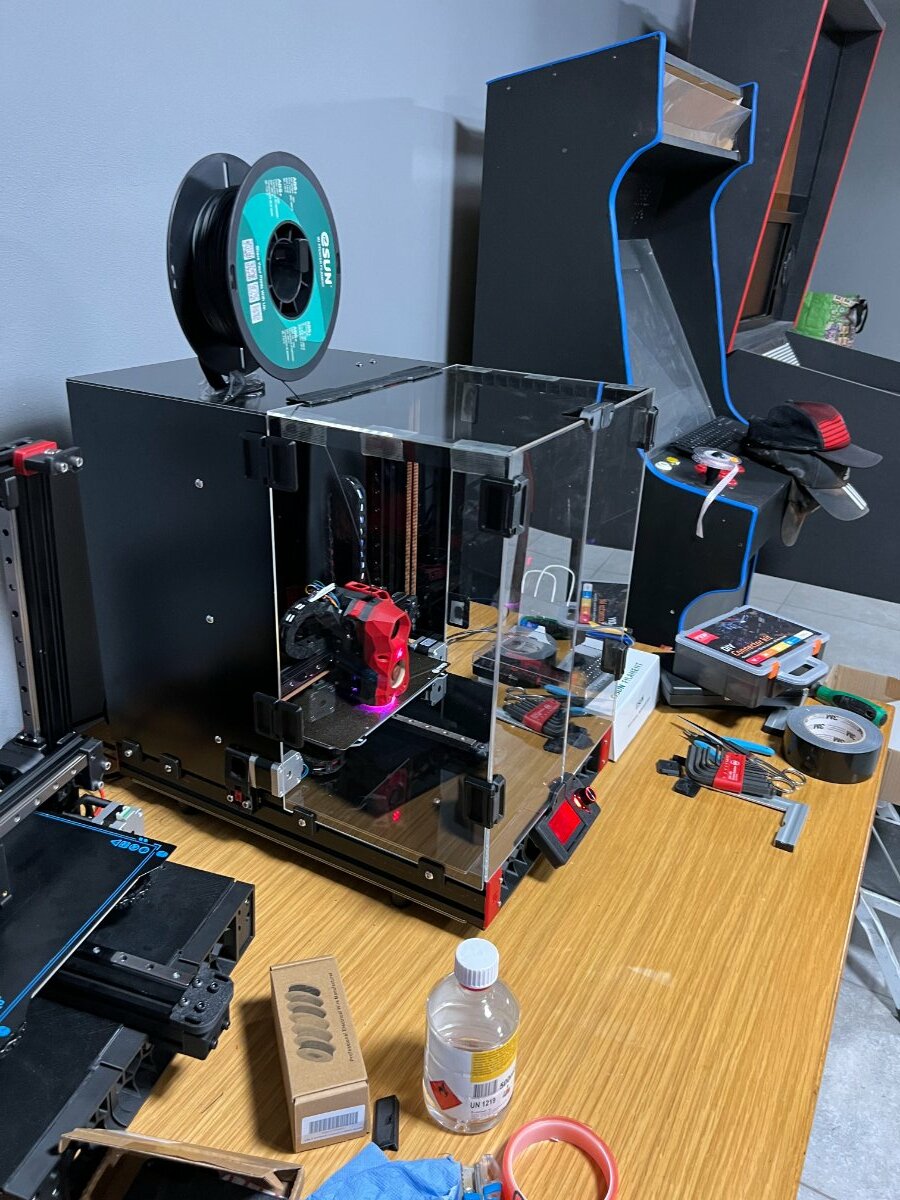

another step, enclosure on, not completly aligned, will need to fix that later on.





Edited September 12, 2022 by Nuno Figueiredo

[Nuno Figueiredo]

the good thing about an octopus is the input/outputs we can have from it
