Voron 2.4 R2 The forbidden project

[Big H]

So I decided to self source Voron 2.4 R2 back in August

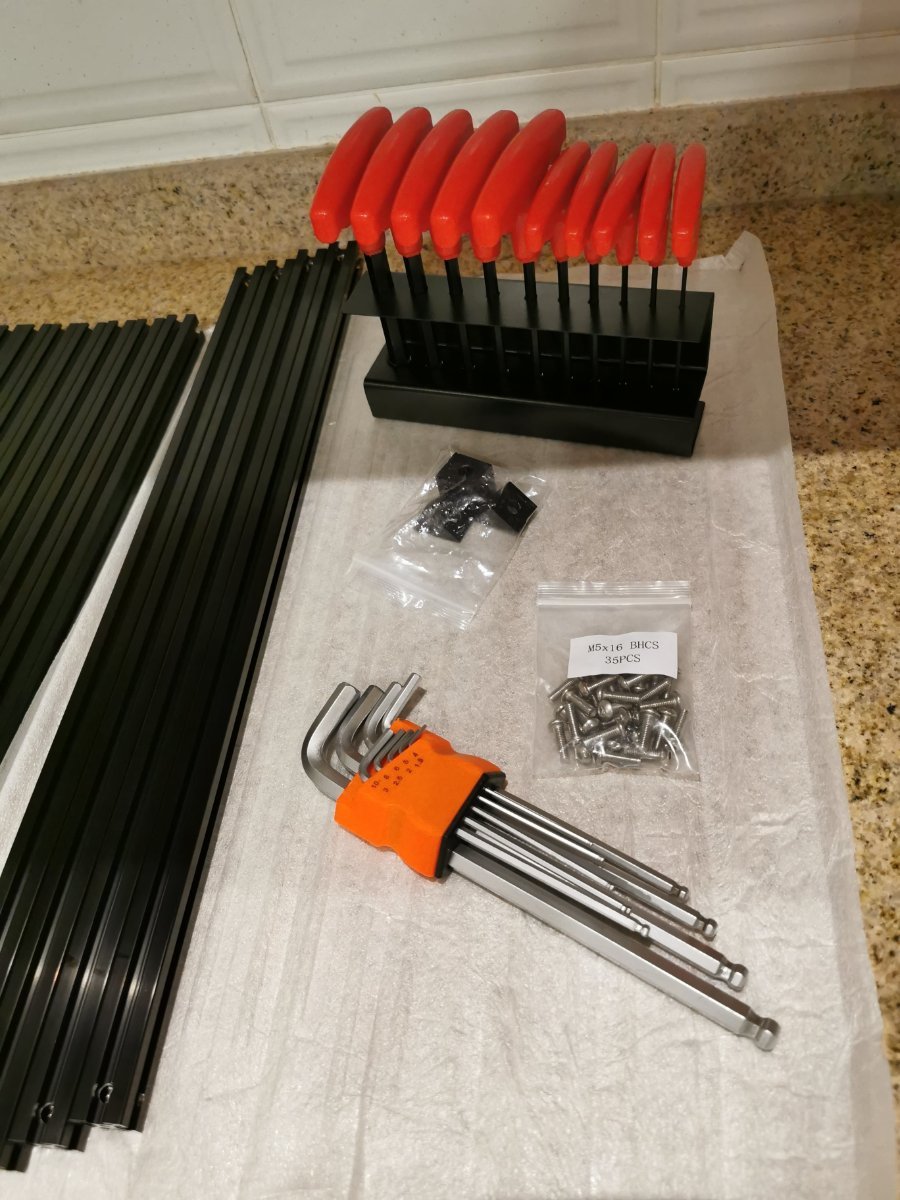

I bought most of the parts so far

I am going with 350x350x350 generic cable chains with SB and Rapido 2 HF with BTT Octopus and raspbery Pi 4

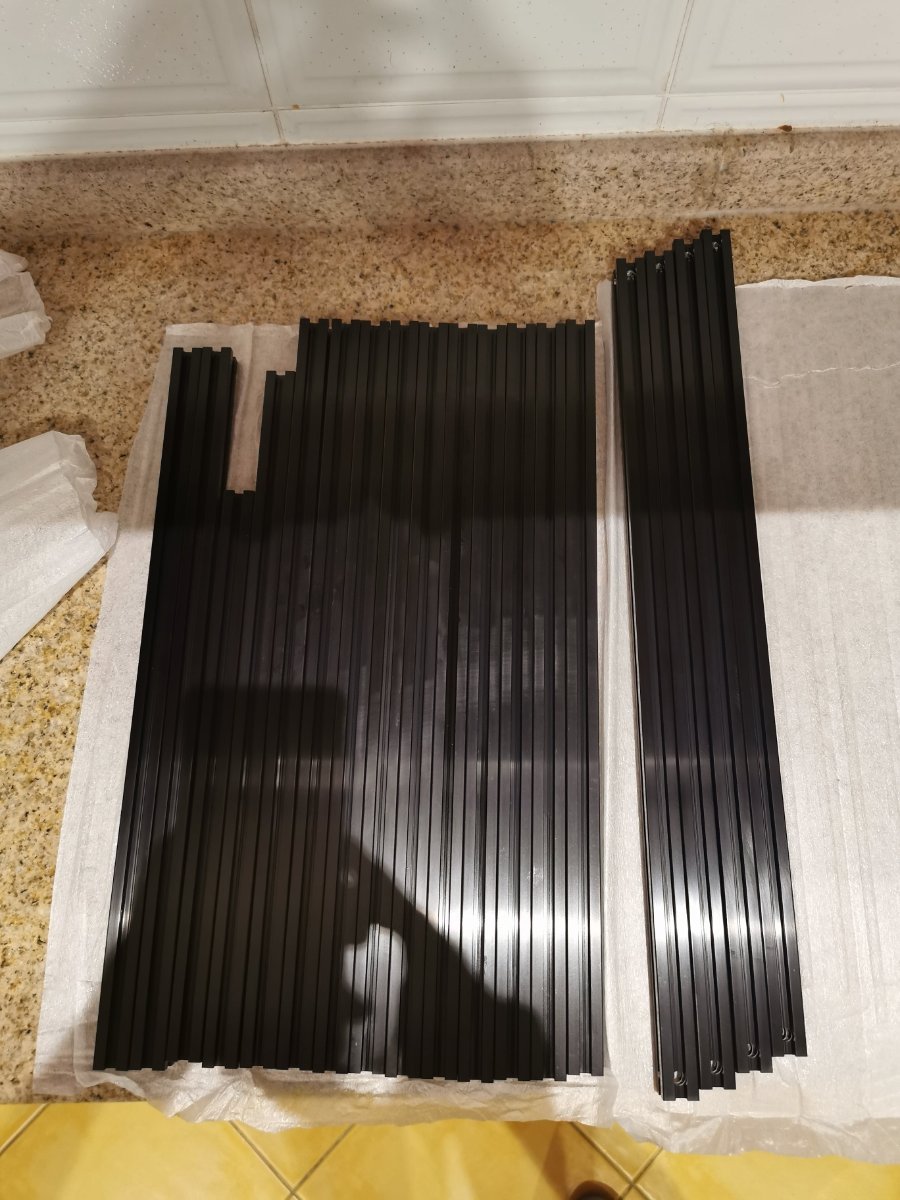

Extrusions from Aliexpress

Motion kit from Aliexpress

Pi 4 B2 2GB from Pi Hut

BTT

LDO motor kit from Aliexpress

[Big H]

Finally after months of my stuff just sitting there on my desk

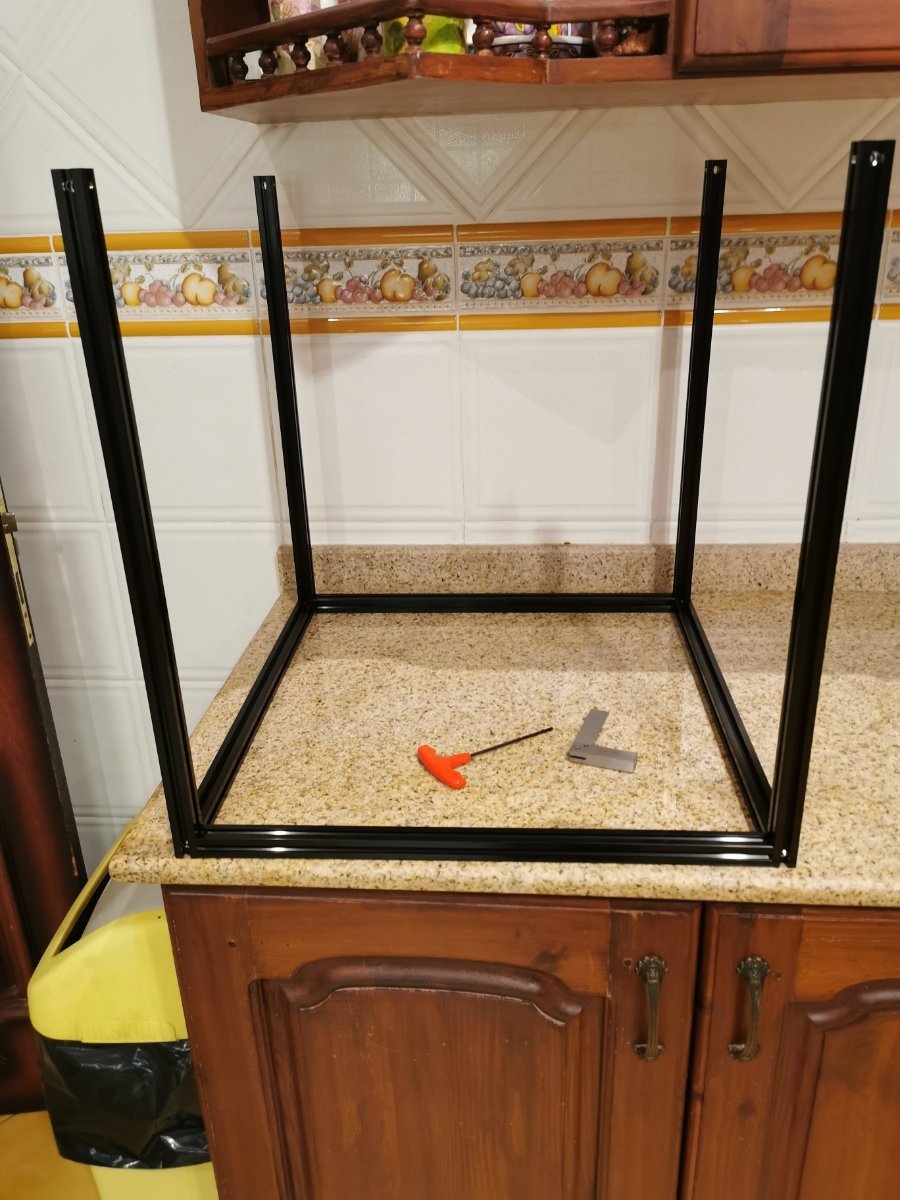

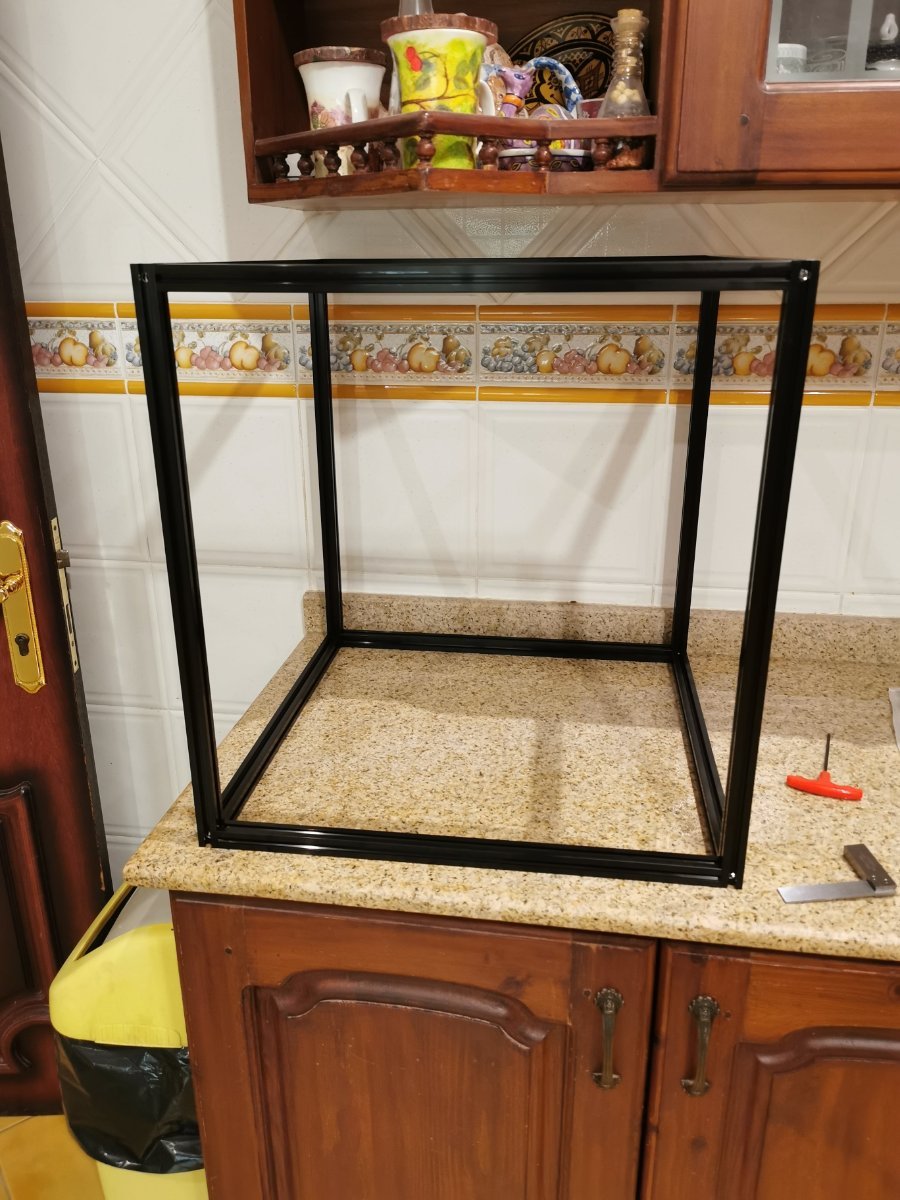

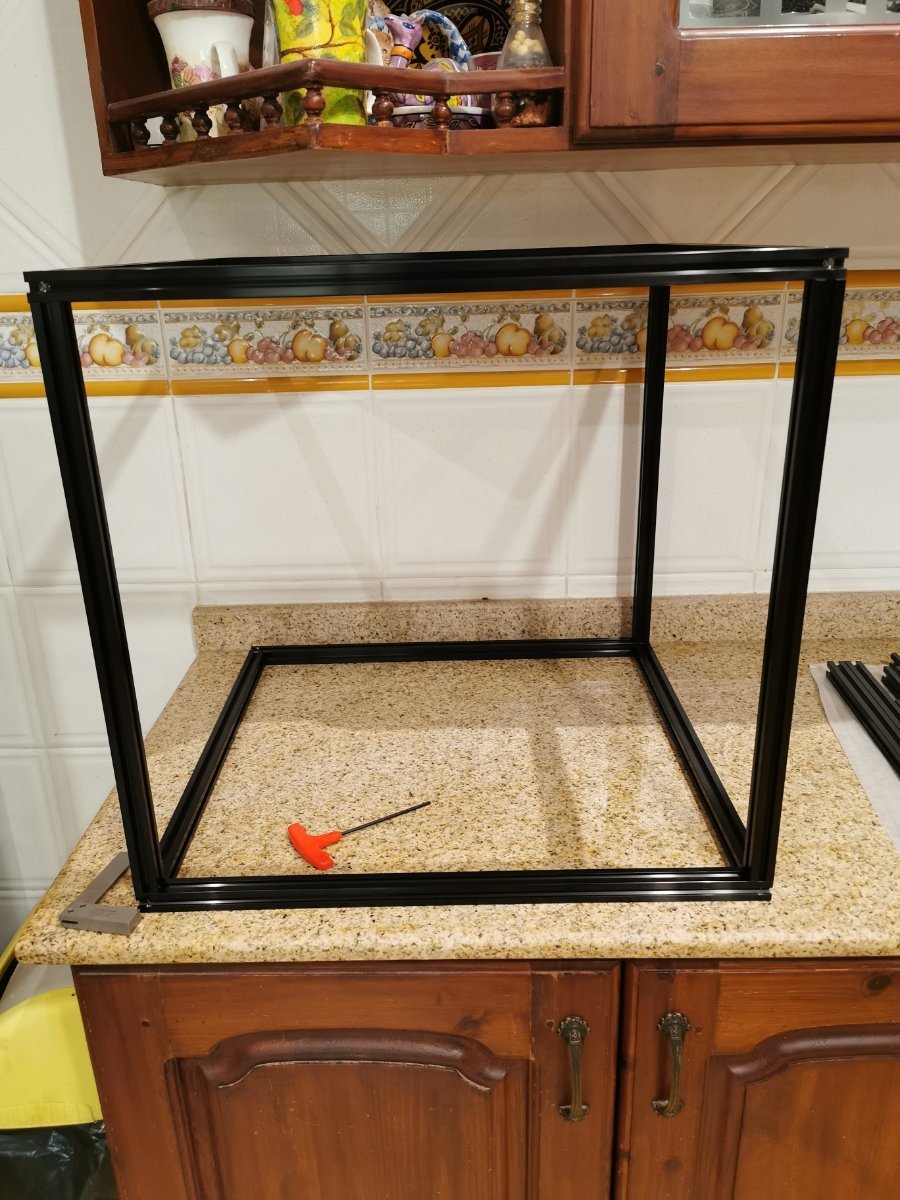

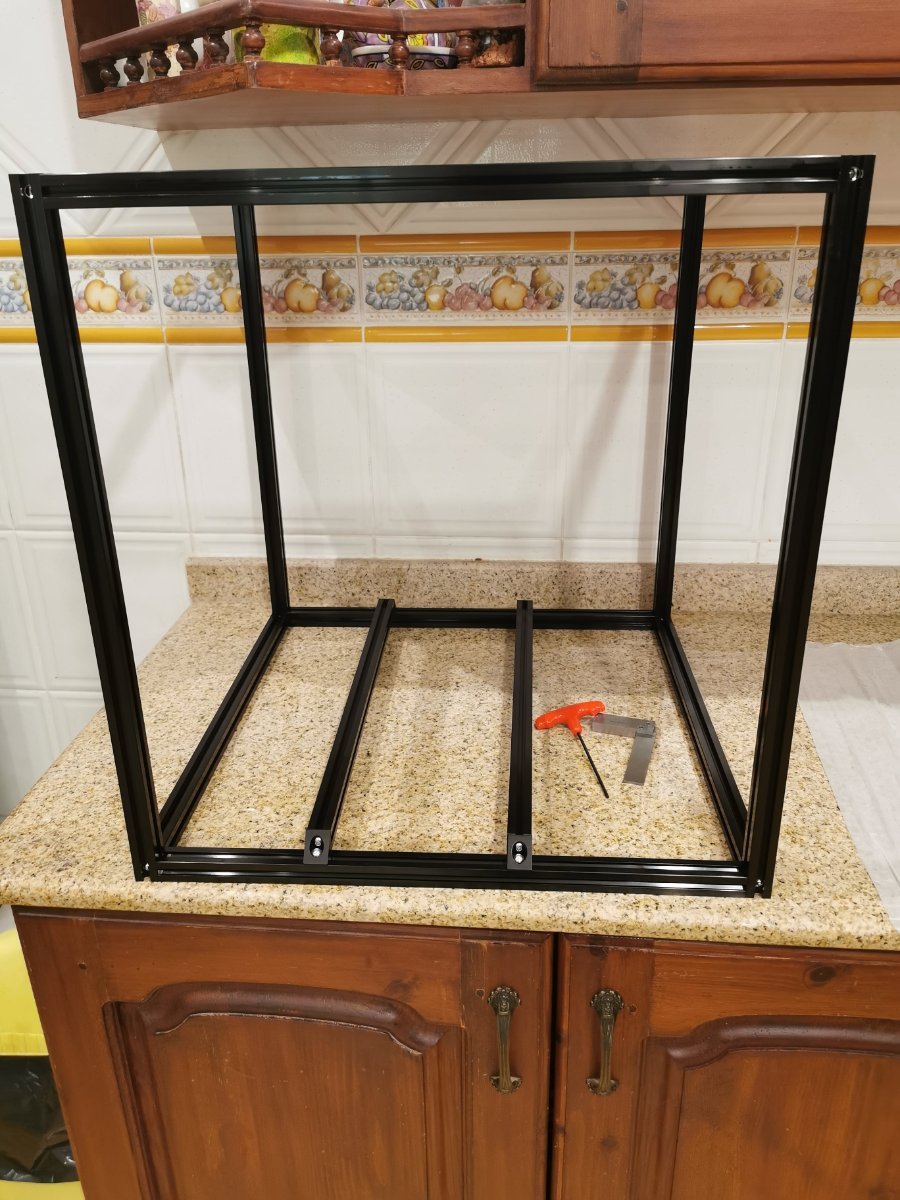

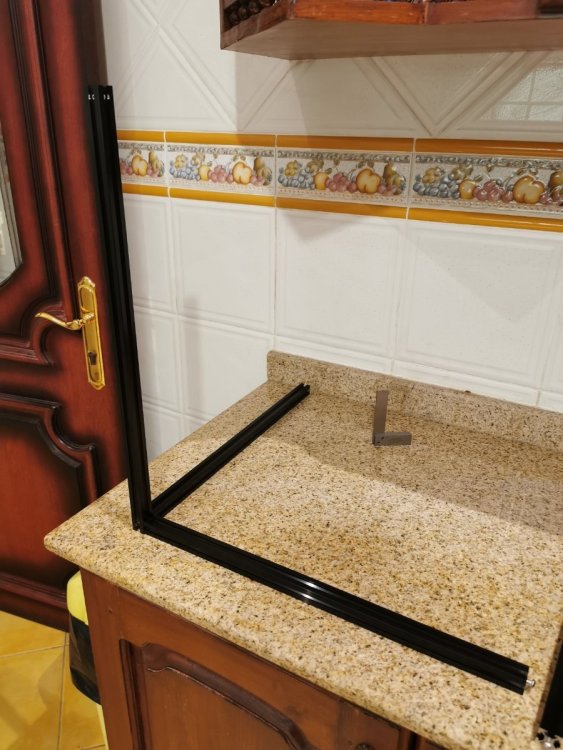

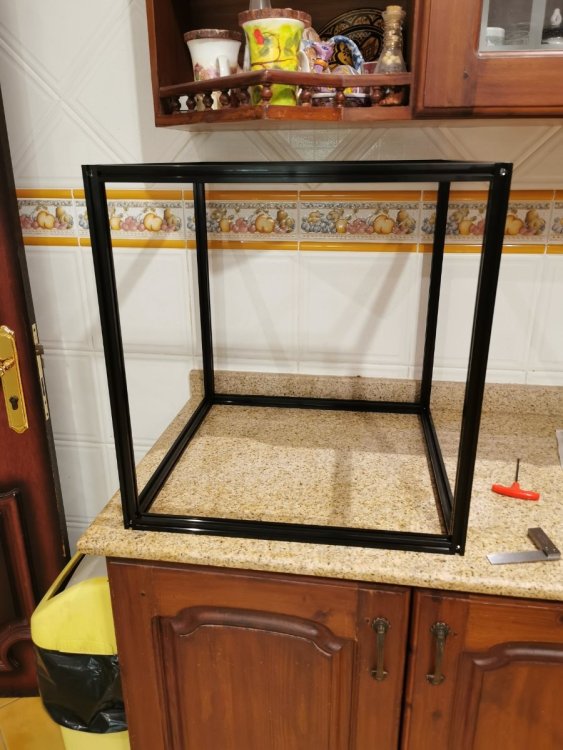

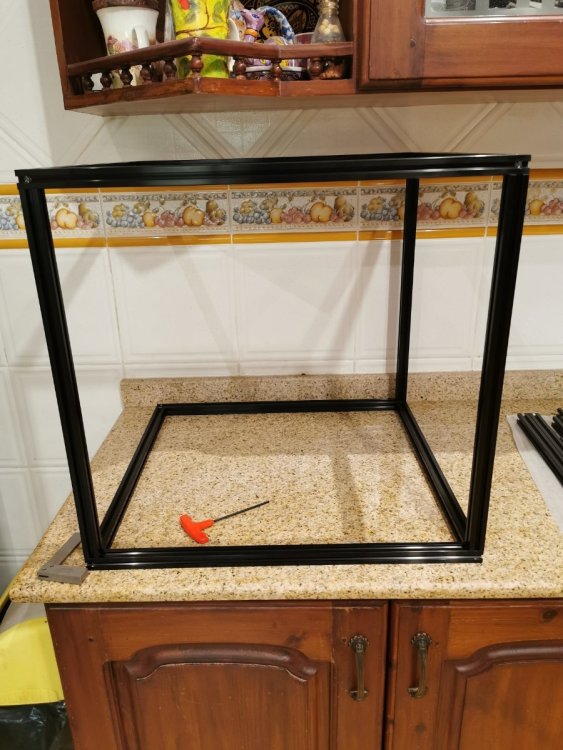

I finally built the frame

I just need to check if it is squared properly or not

[mvdveer]

Exiting times ahead. As I have said before - a square frame is the foundation to a good printer.

[Big H]

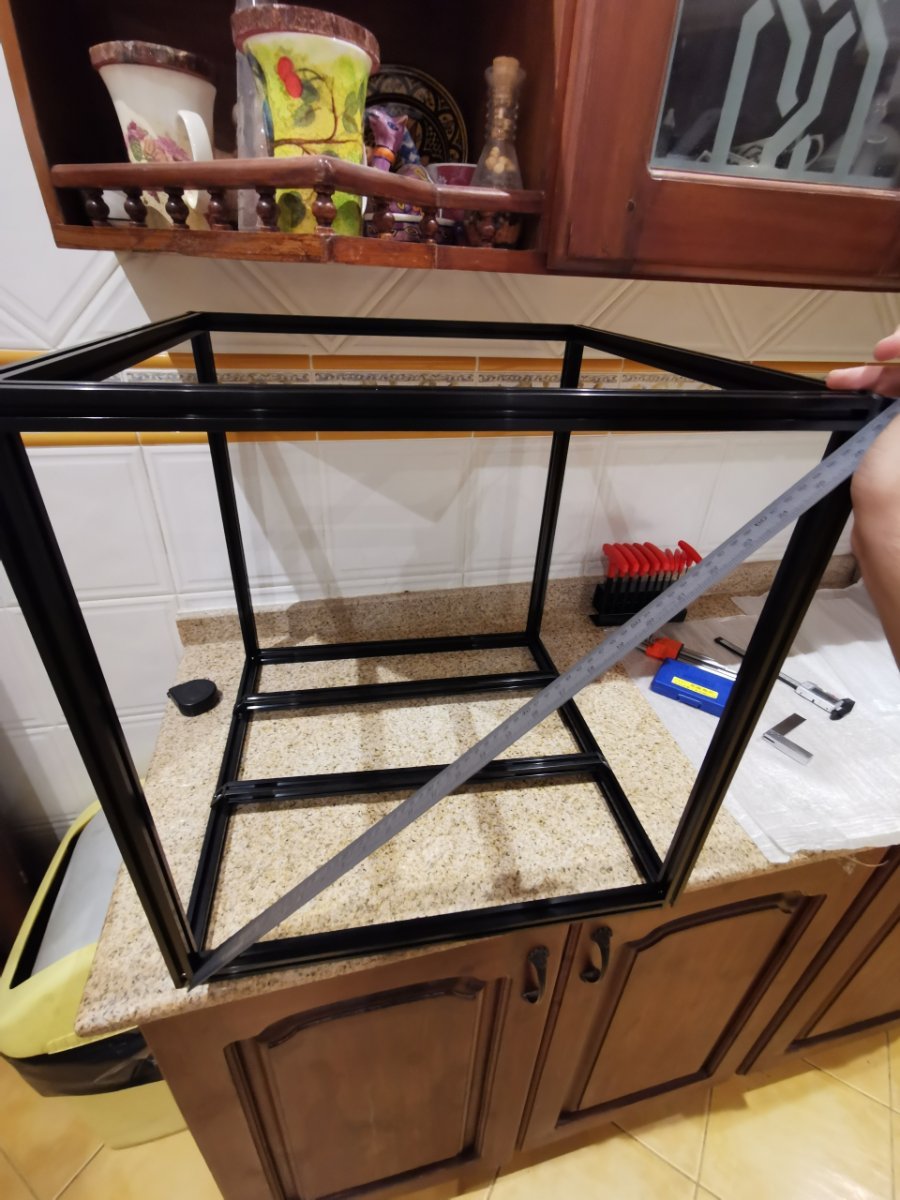

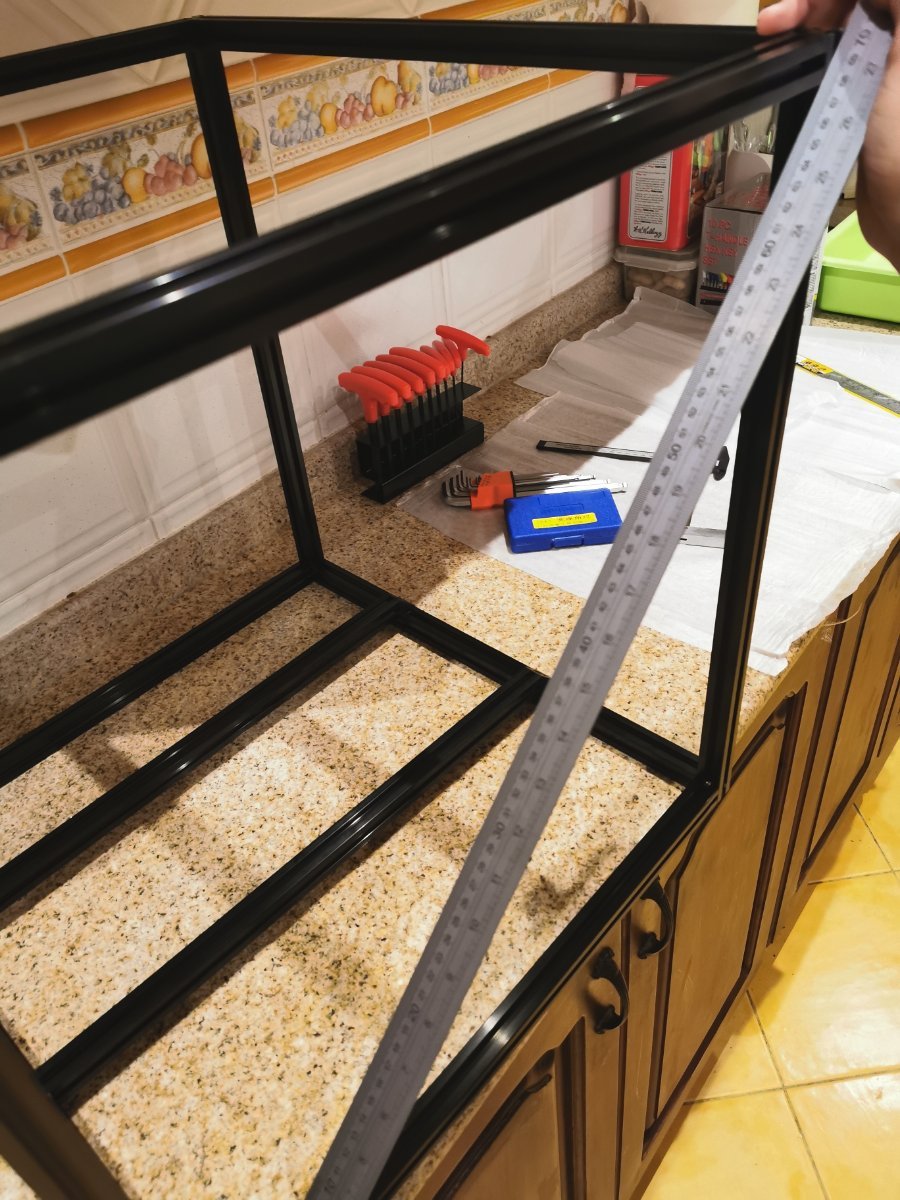

I checked the frame with a tape measure

Actually two tapes

But my OCPD kept haunting me

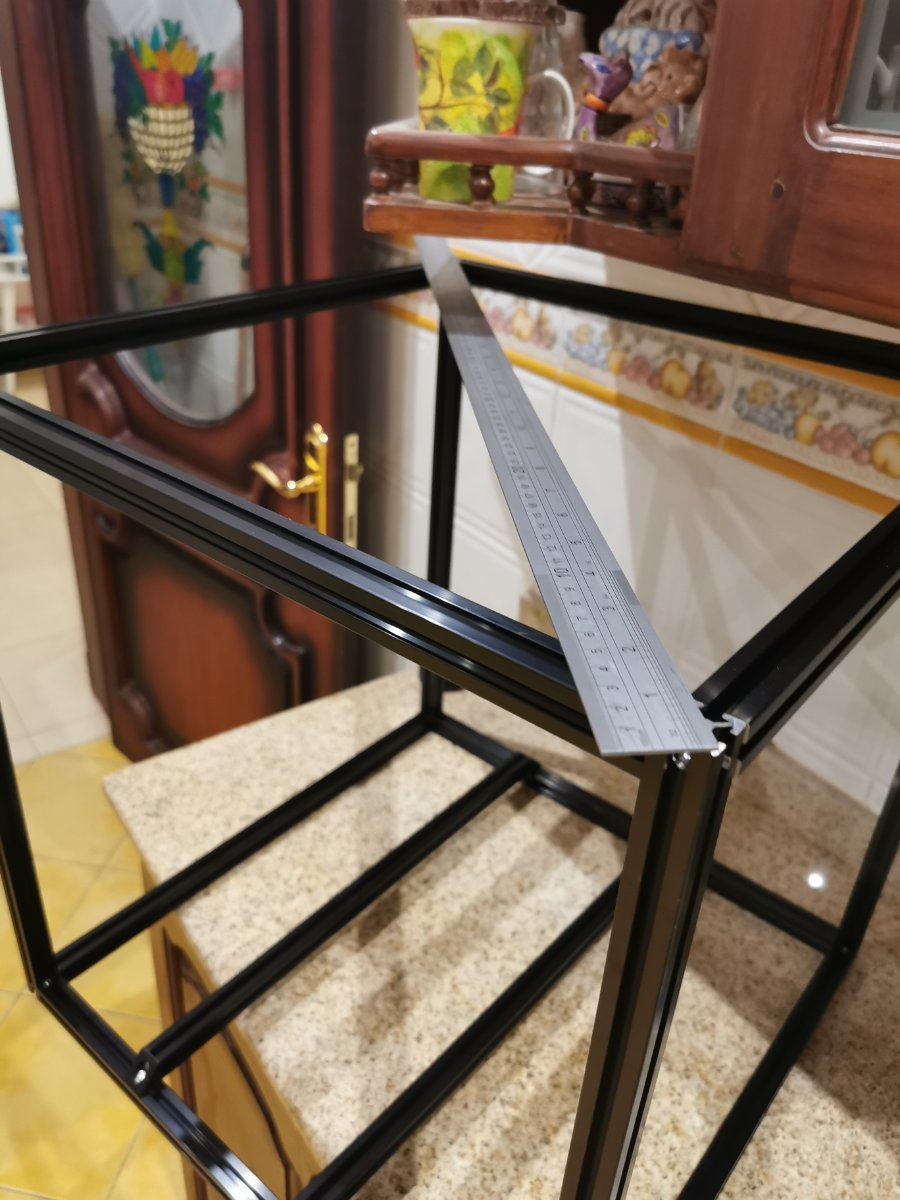

So today, I finally went to our local hardware store and got a 100 cm ruler.

I measured all corners surprisingly all the same.

Now next step is the hardest for me

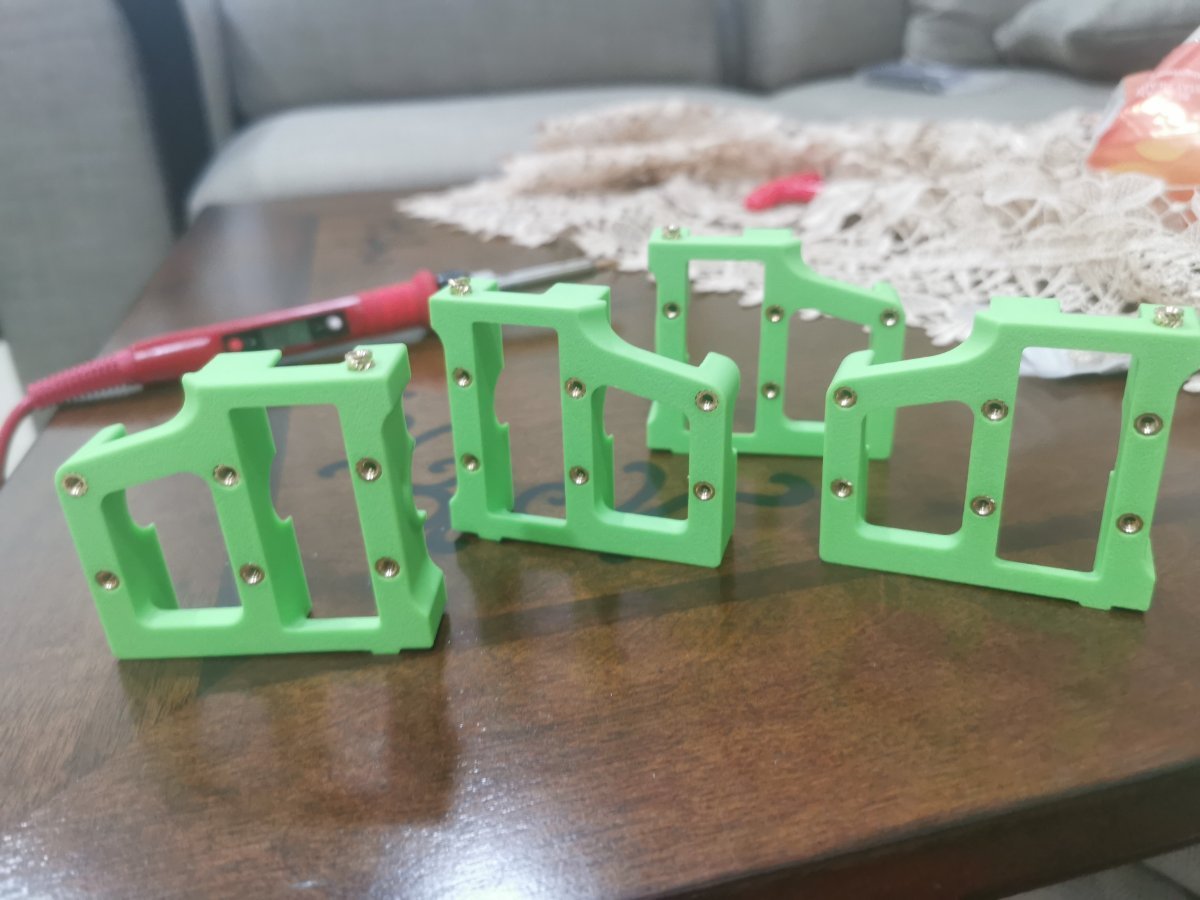

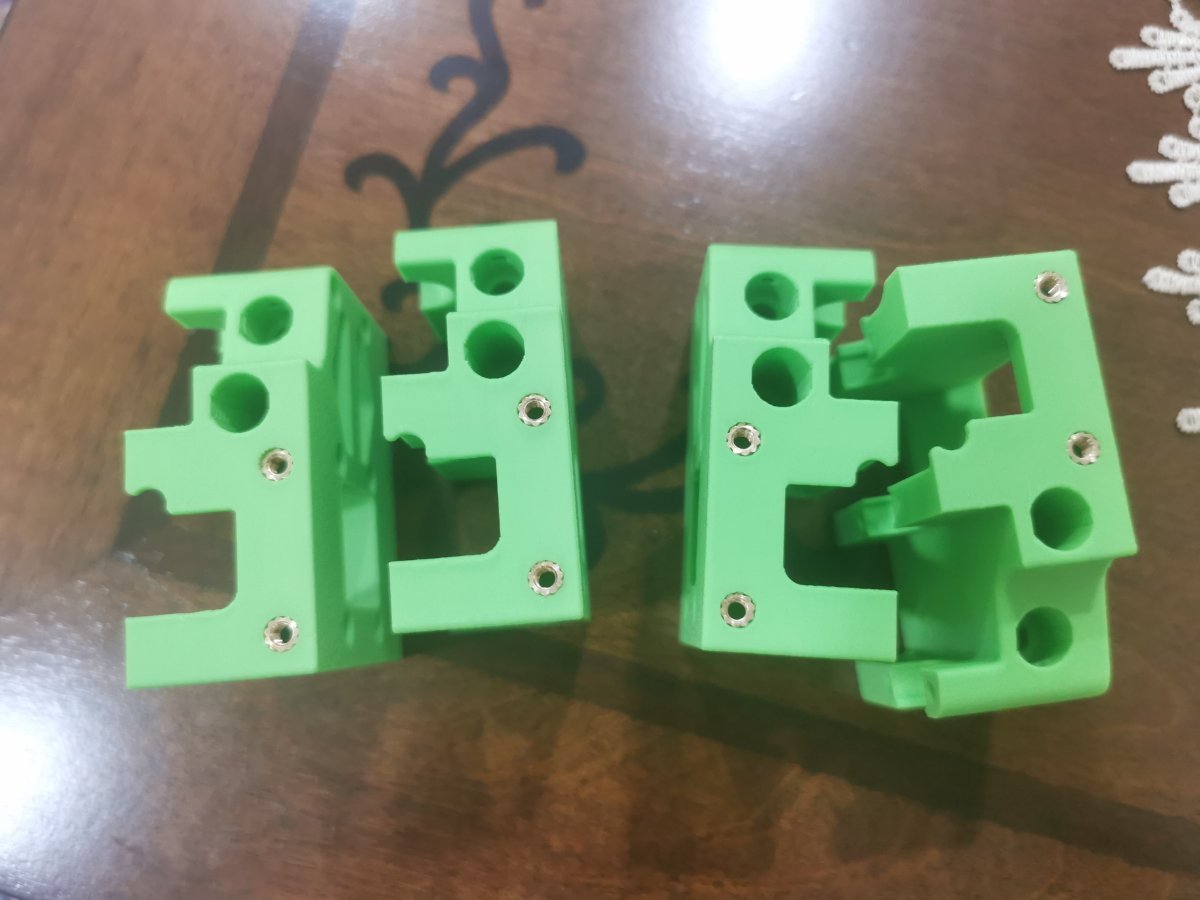

The heat insert stuff for the z drive and idler

I might do it tomorrow

[Big H]

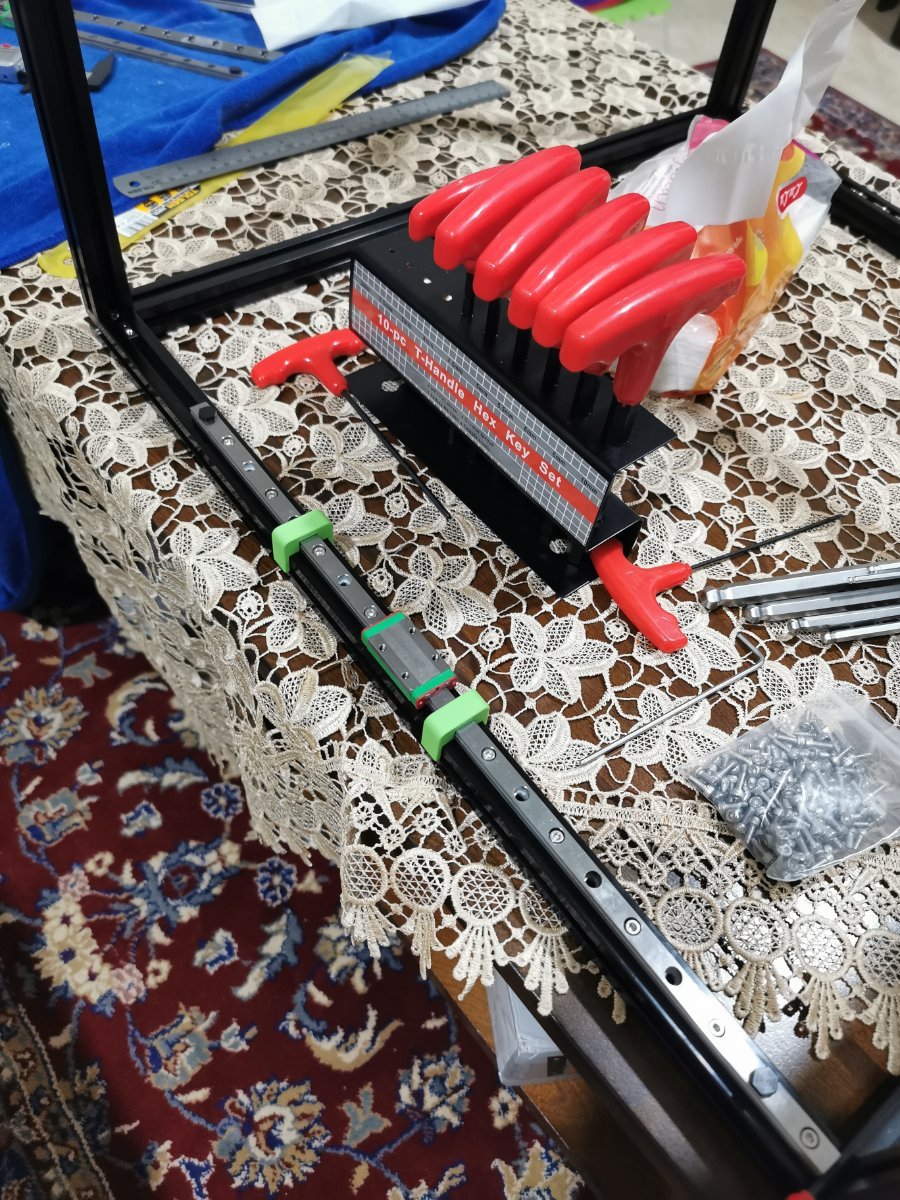

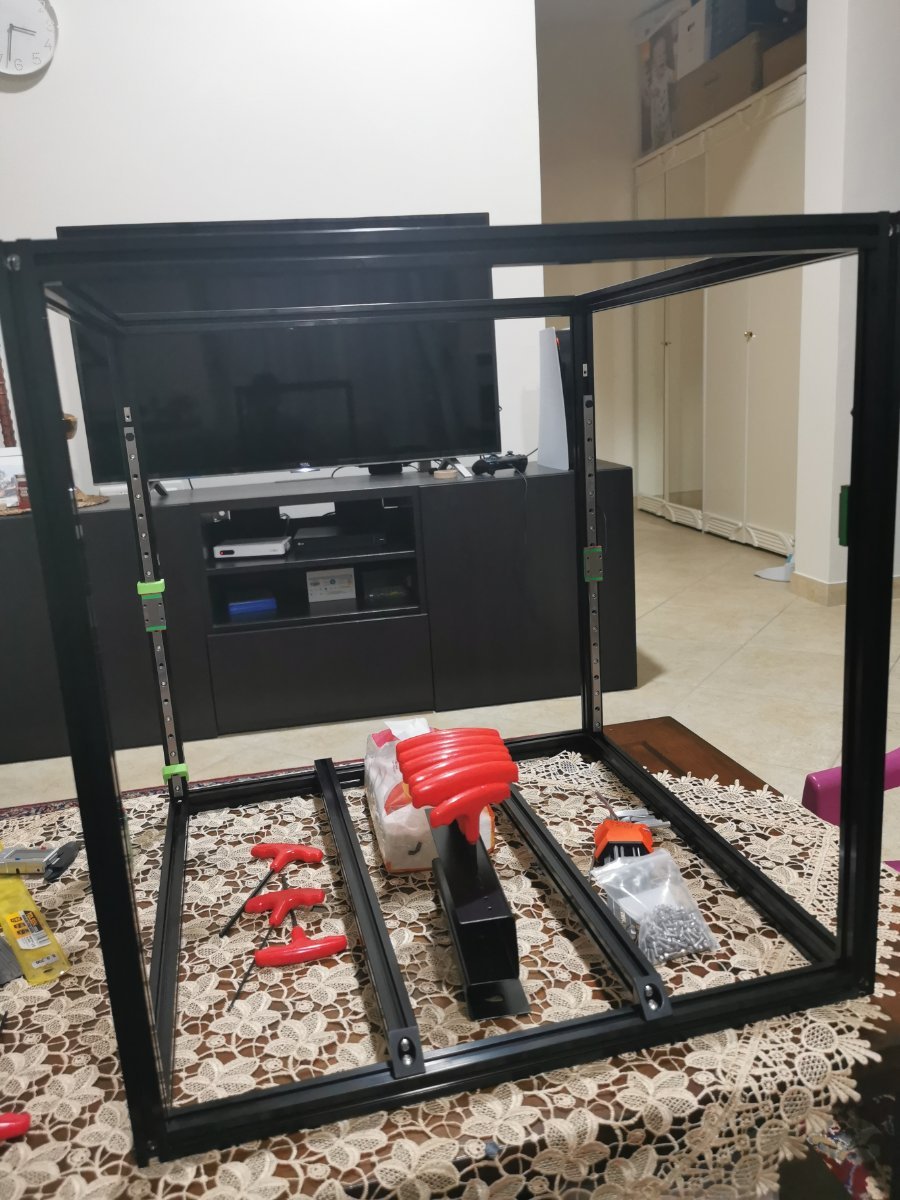

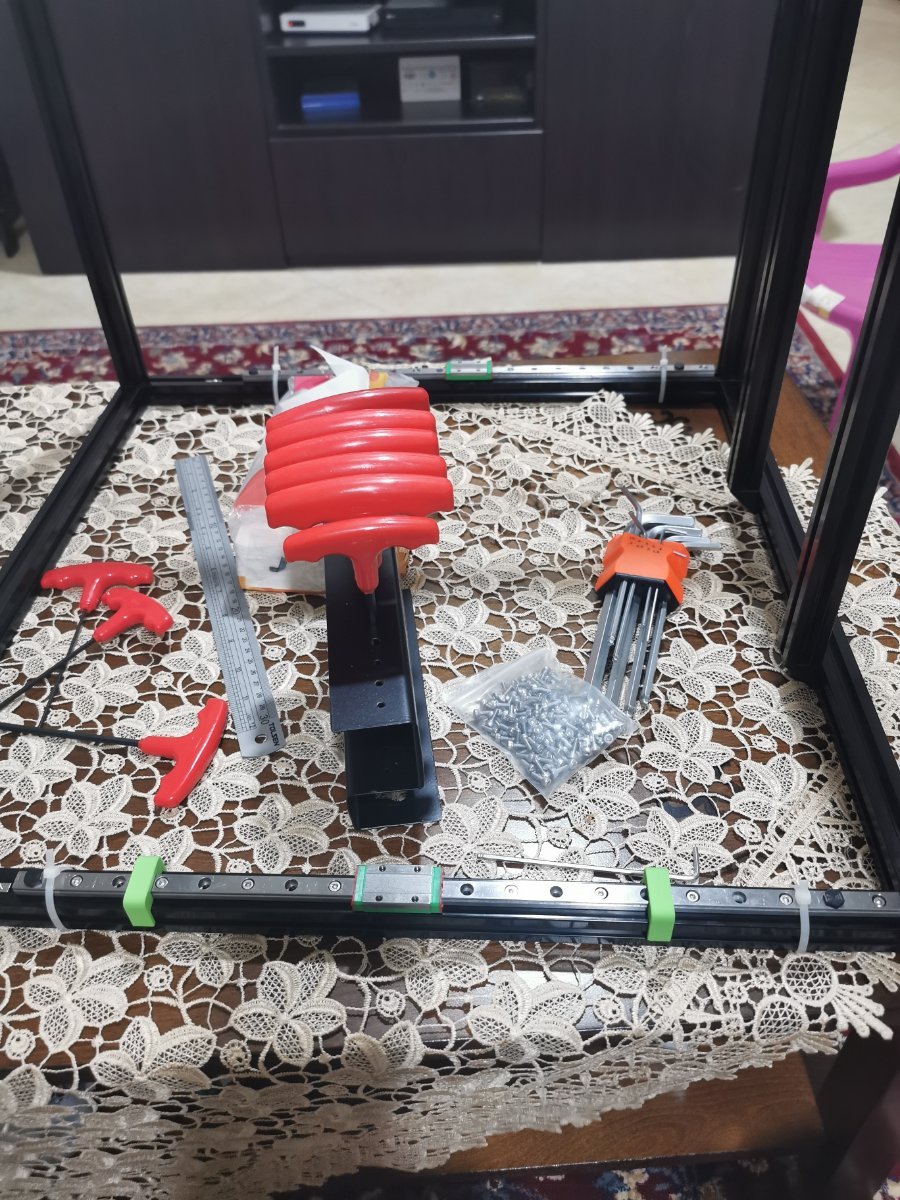

I finally had time to install the linear rails few days back

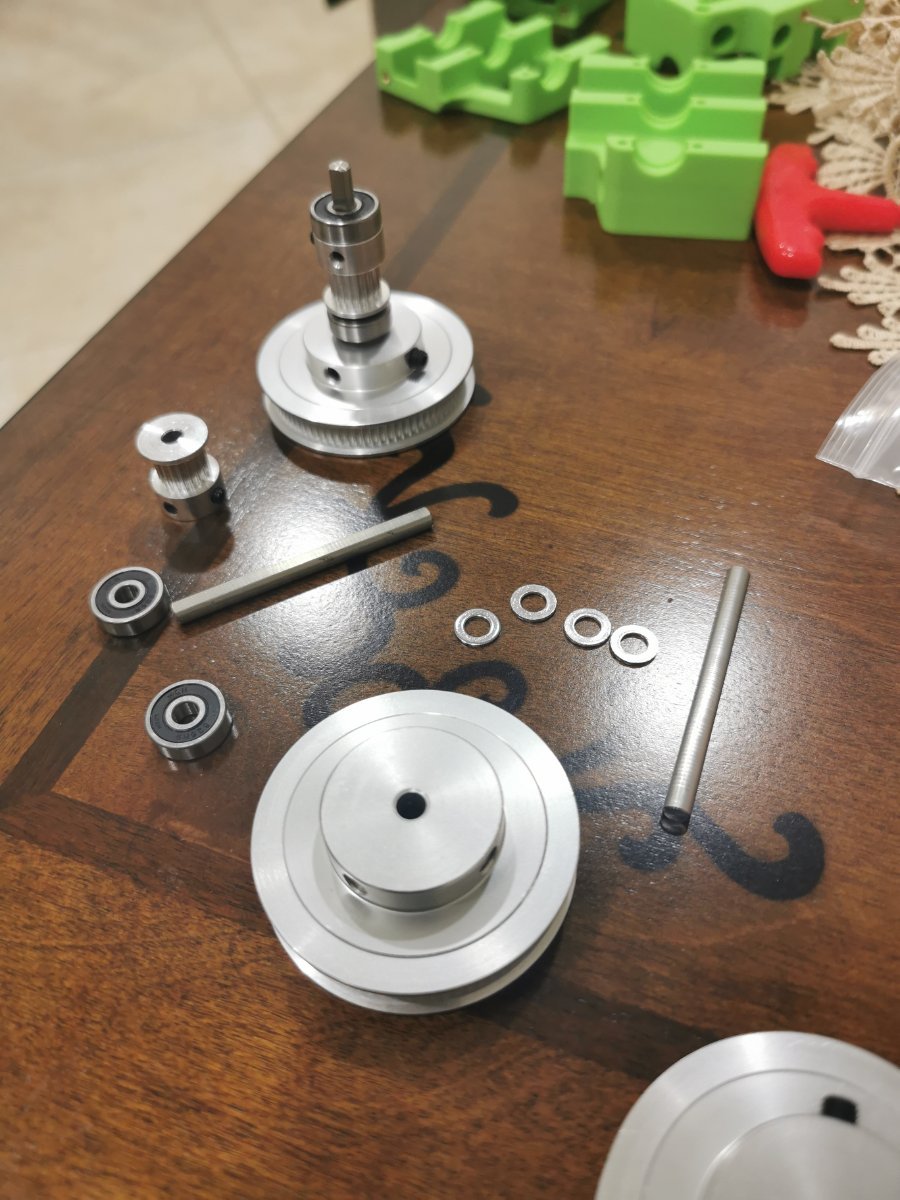

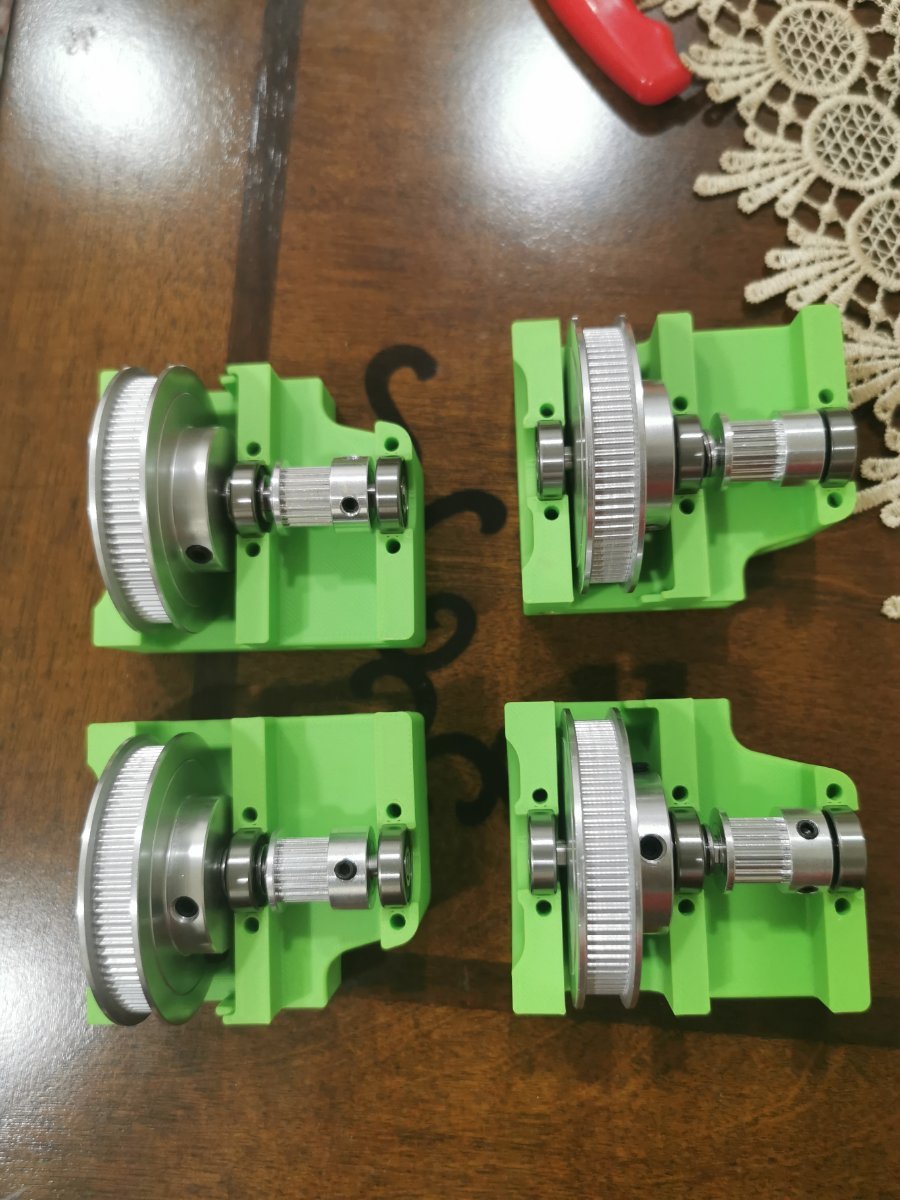

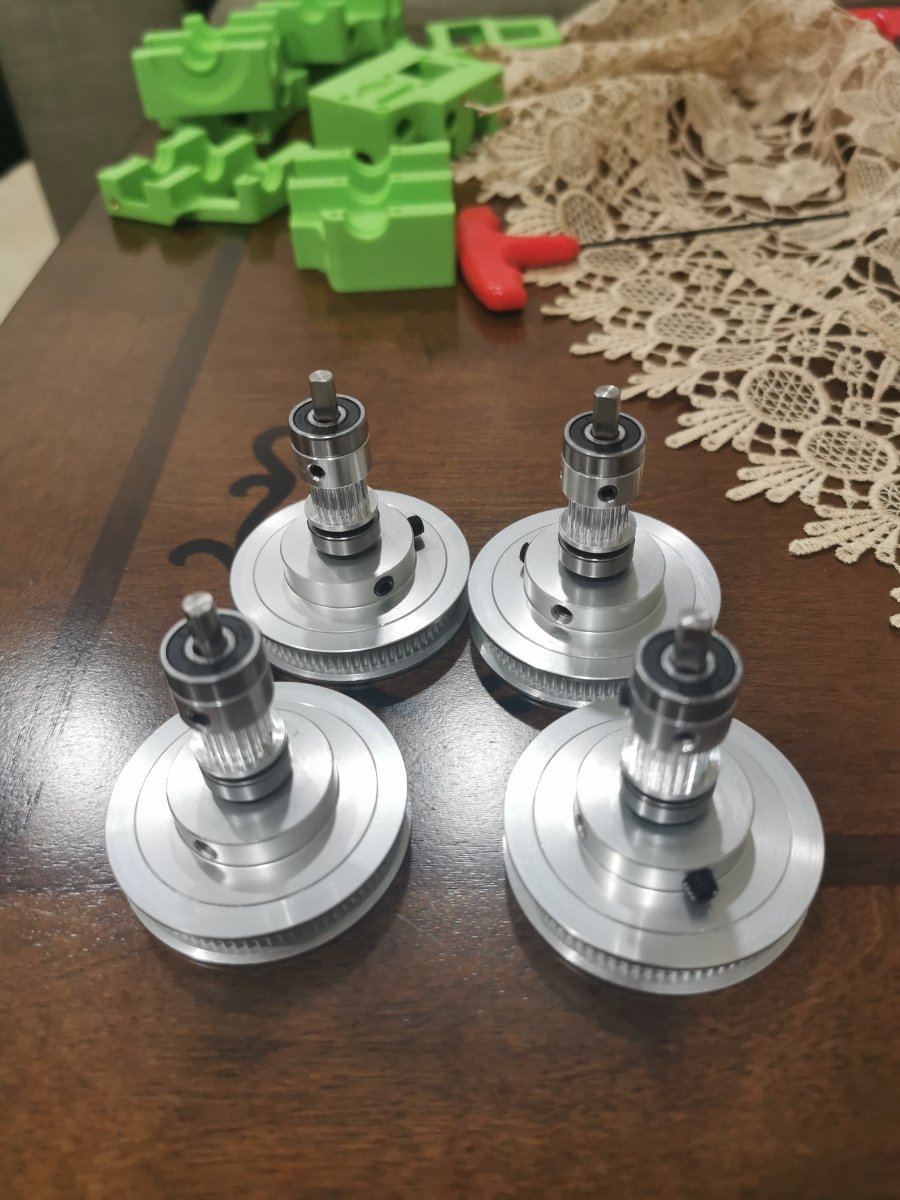

And today i done the z drivers
