Hex mesh skirts for voron 2.4, with matching fan grills and Z motor covers. v. 1.0.0

   (1 review)

6 Screenshots

  • Like 14
  • Voron FTW! 5

About This File

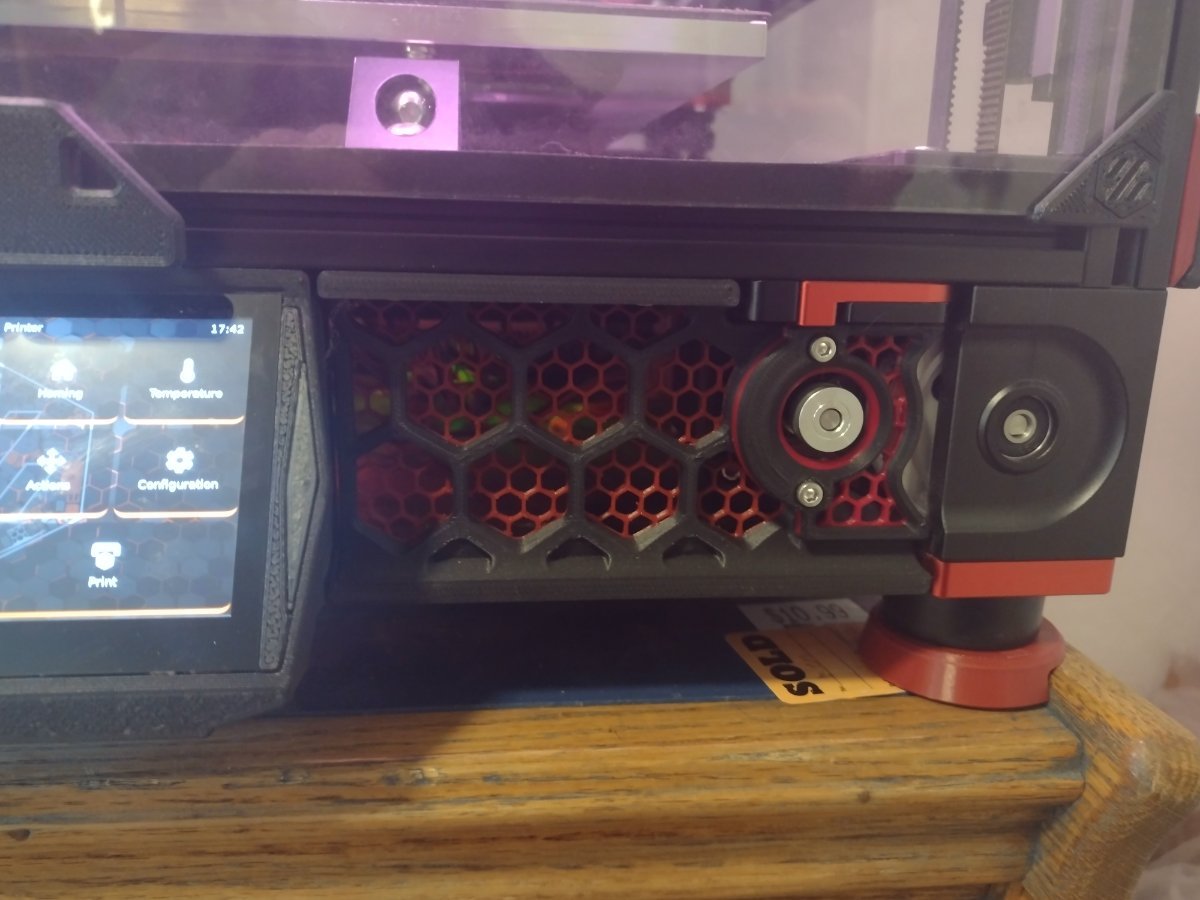

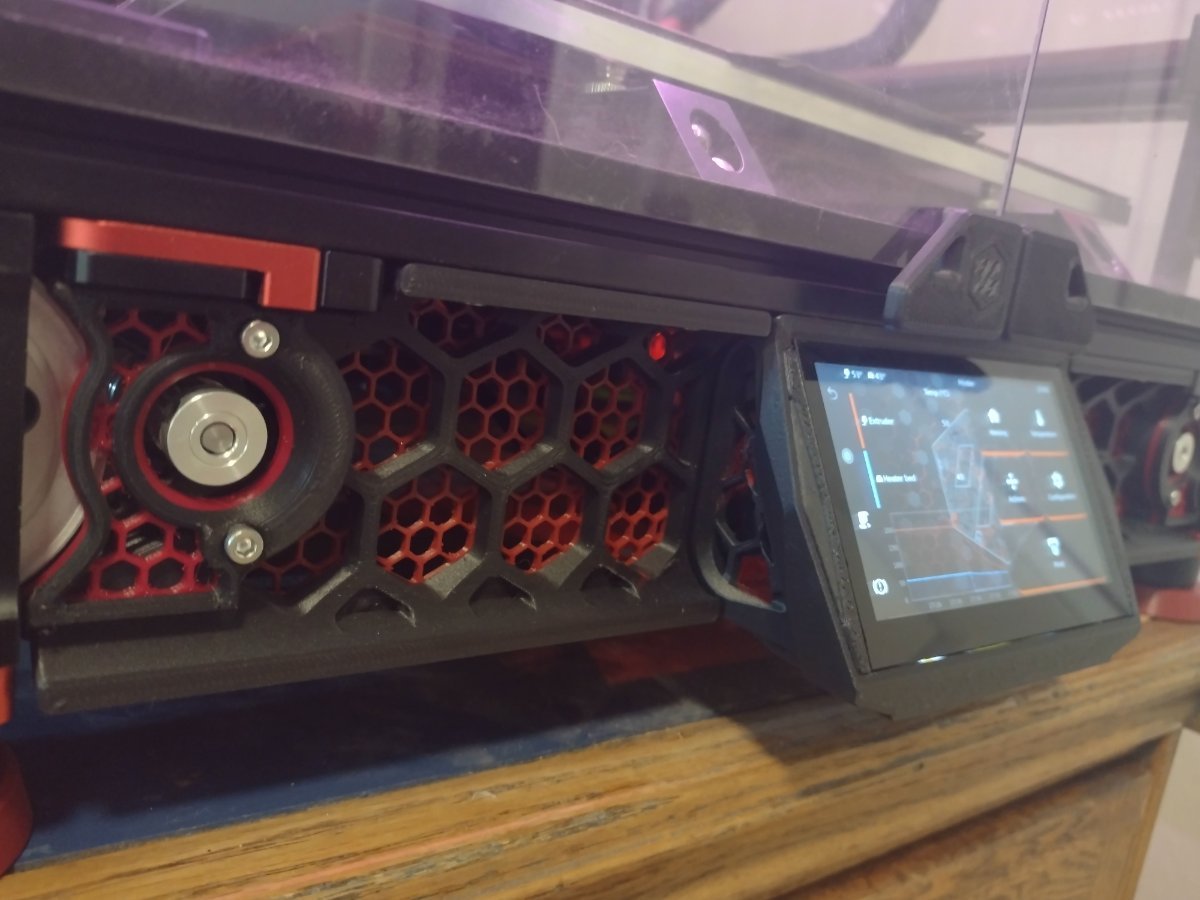

Hex mesh skirts for Voron 2.4, with matching fan grills and Z motor covers.  The skirts are obviously remixed versions of the default Voron designs. The fan grill and motor covers are my own creations.

The center, side, fan supports have been modified so that they fit onto the printer backwards.  You will need to install one additional heat set insert into the front of the fan (4 total in the front), and add 3 to the back.  Three m3x8 screws hold the fan into the support from the backside, and four m3x8 screws hold the fan grill onto the front.

Included is a model file for a 6020 fan blank.  This blank will allow you to mount the grills on the side opposite that which has the fans, while maintaining the same appearance as the side with the fans.

For multi-color prints, just swap out your filament at the layer above the hex mesh.



I have included .stp files, to make it easier for anyone who would like to remix.
