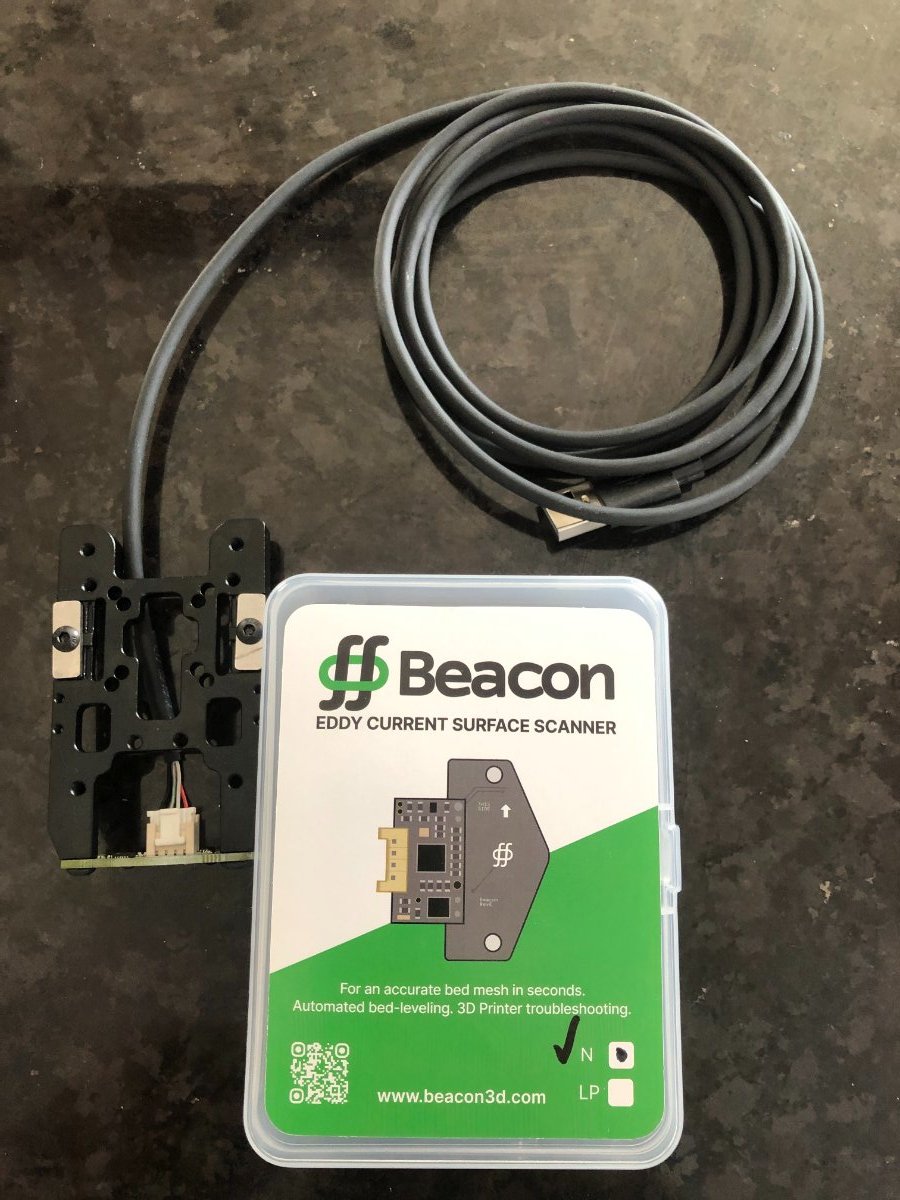

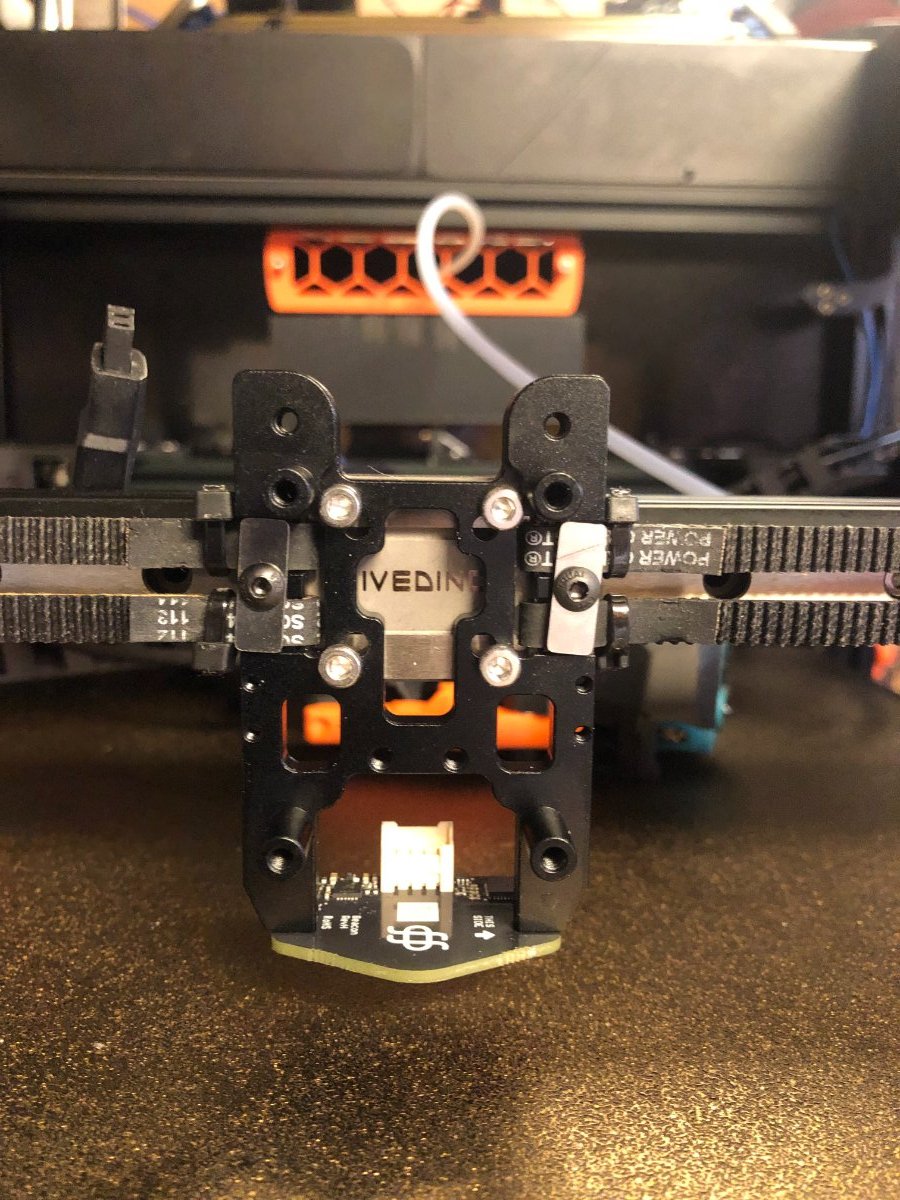

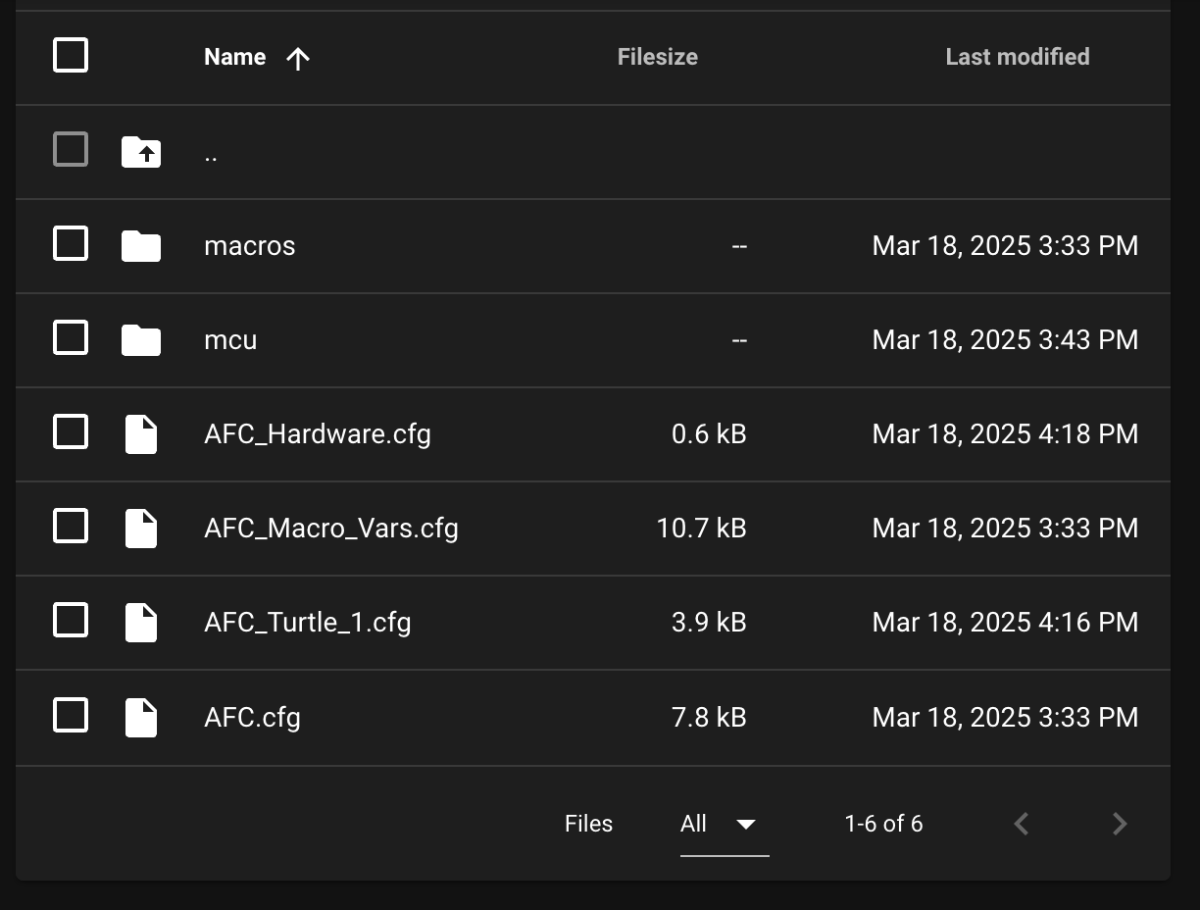

All parts are ordered for the Turtle Box build, parts are printed. AFC controller is ordered but B/O till mid-month. I need to find the leftover rubber bands I had for the Filamentalist build. ordered a new Mellow Fly 2040 SB V3 the one in the Trident dip switch #1 is defective and Klipper no longer communicates with the tools head. I also ordered a Beacon probe and CNC bracket. I got extra extrusion to build the enclosure and some leftover acrylic panels from the Casa Enclosure build. Just waiting a game now till it all arrives

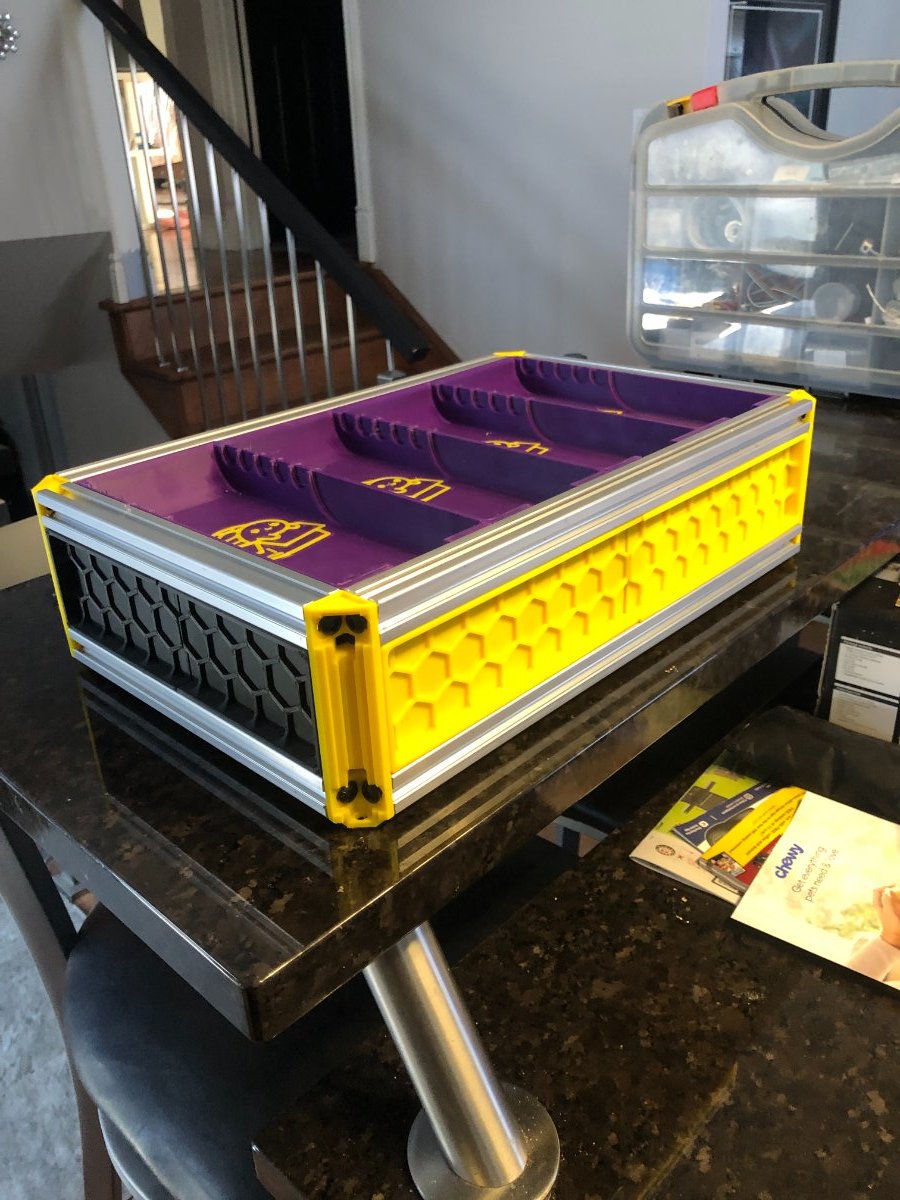

Yellow and Purple colour scheme from stock filament I had.

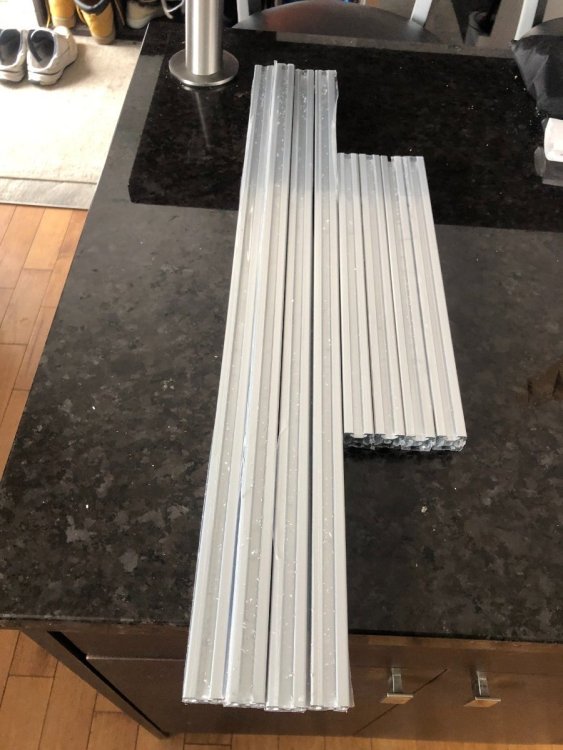

2020 Extrusion arrived today:

Edited March 5 by PFarm

[mvdveer]

Looking forward to this build.

[lawson.brian]

Watching as well. Have ordered most of the parts now except for the AFC which seems to be un-obtainium at the moment (in the UK at least).











[mvdveer]

4 hours ago, lawson.brian said:

Watching as well. Have ordered most of the parts now except for the AFC which seems to be un-obtainium at the moment (in the UK at least).

Maybe LDO has "first choice" for their kits. See the "clones" have already arrived on Aliexpress (AFC-Lite Controller board)

[mvdveer]

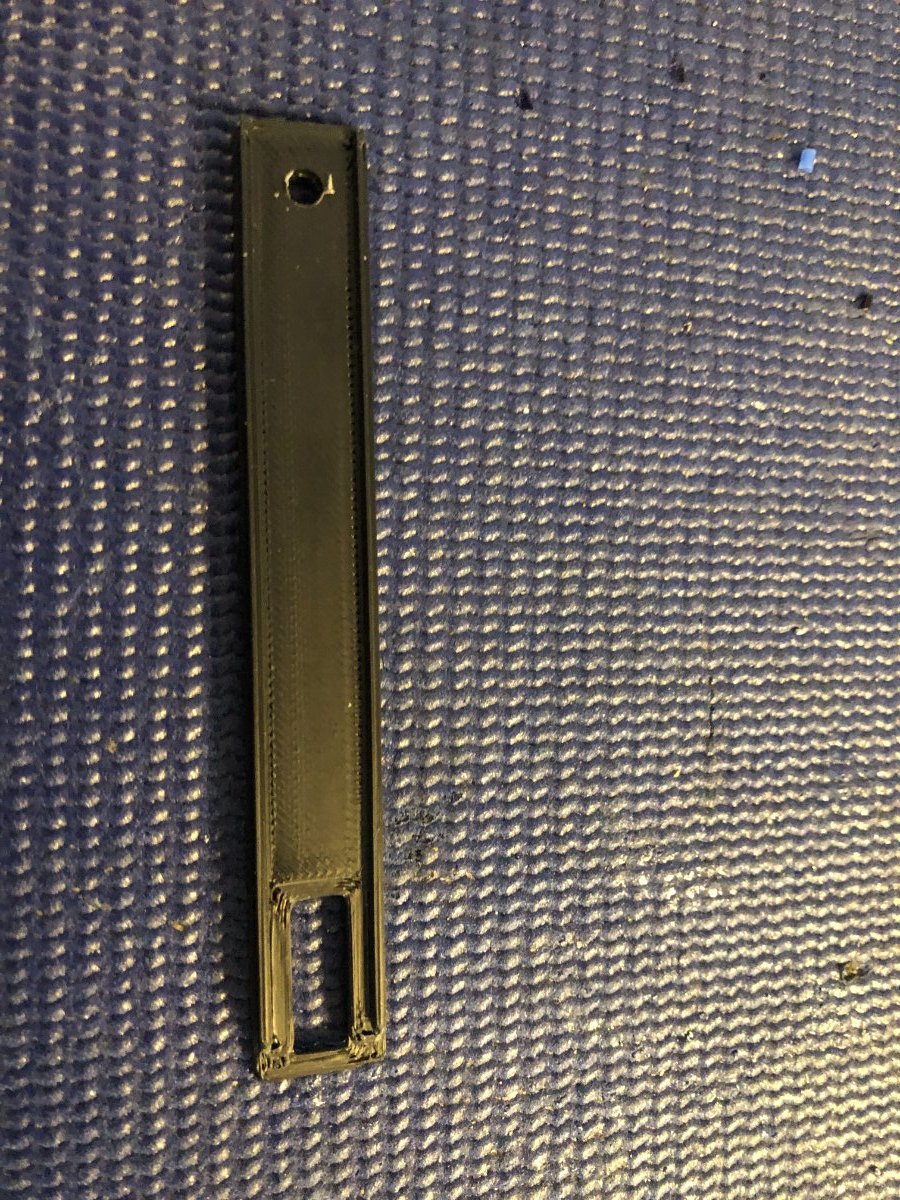

This is something you may want - just printed these in PLA for my two turtles. (Lower Printed Cover)

[PFarm]

On 3/3/2025 at 1:37 AM, mvdveer said:

Maybe LDO has "first choice" for their kits. See the "clones" have already arrived on Aliexpress (AFC-Lite Controller board)

Got an email today that the AFC has been shipped. All Aliexpress parts are on their way.

[PFarm]

On 3/3/2025 at 3:14 PM, mvdveer said:

This is something you may want - just printed these in PLA for my two turtles. (Lower Printed Cover)

Thanks for the link. I got them printed!

[PFarm]

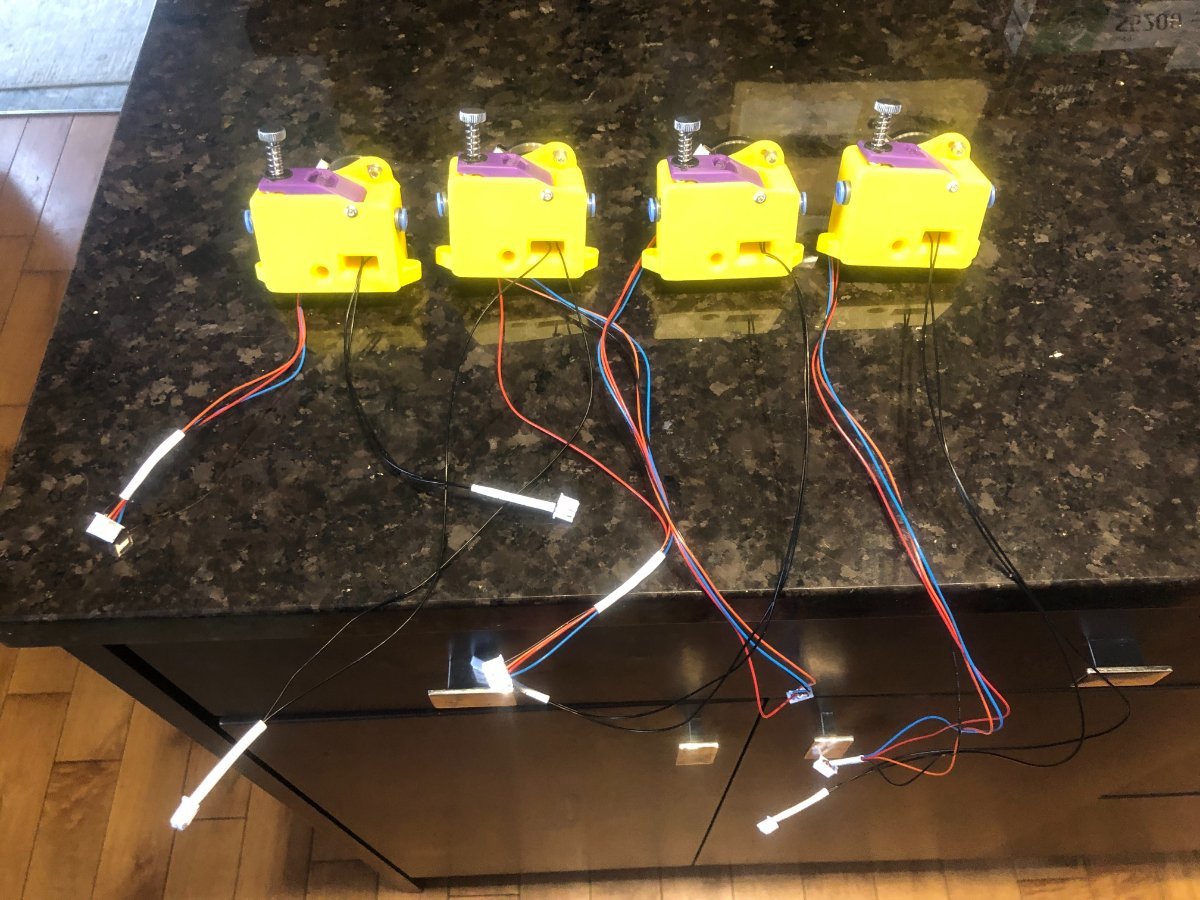

Some parts have arrived and I started assembling what I can. The extruders are complete! I will cut the extrusions next to assemble the frame. I'm still waiting on microswitches, LED cables, 2 x 10 screws and DC motors. The AFC board came in today as well. @mvdveer I appreciate your build diary I have used it as a reference a few times.



Edited Wednesday at 09:59 PM by PFarm

[mvdveer]

16 hours ago, PFarm said:

Some parts have arrived and I started assembling what I can. The extruders are complete! I will cut the extrusions next to assemble the frame. I'm still waiting on microswitches, LED cables, 2 x 10 screws and DC motors. The AFC board came in today as well. @mvdveer I appreciate your build diary I have used it as a reference a few times.

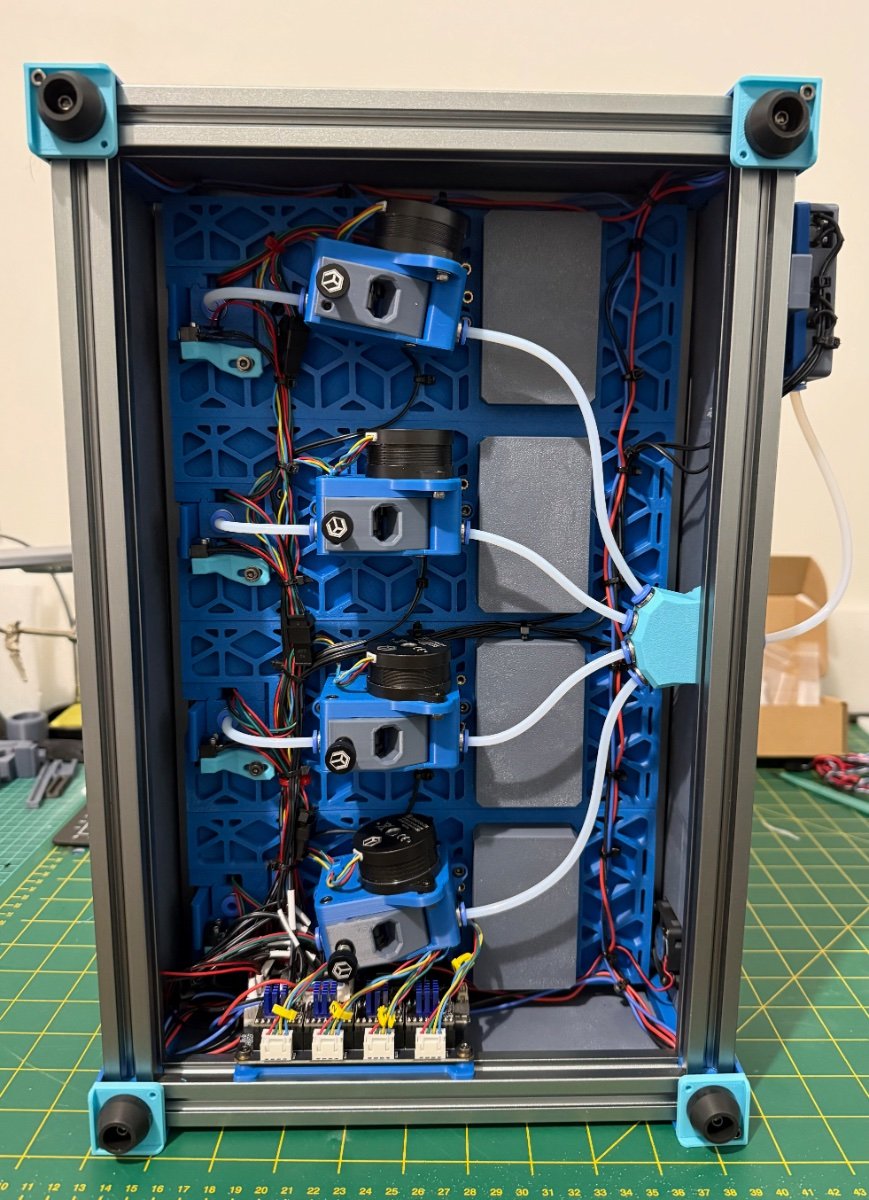

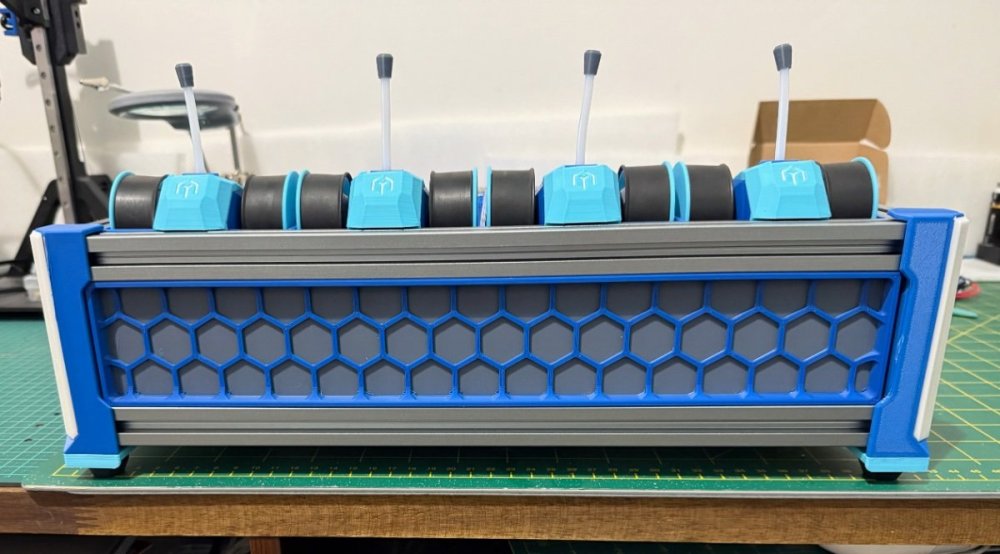

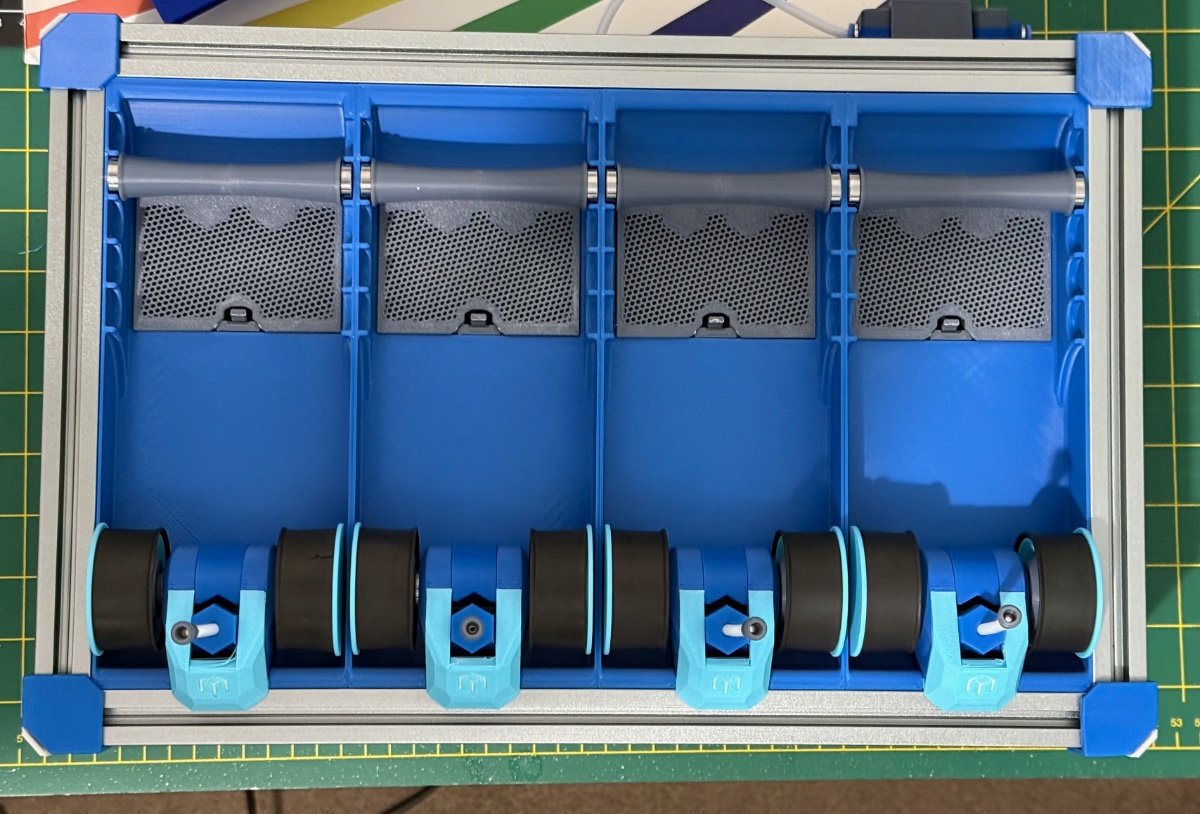

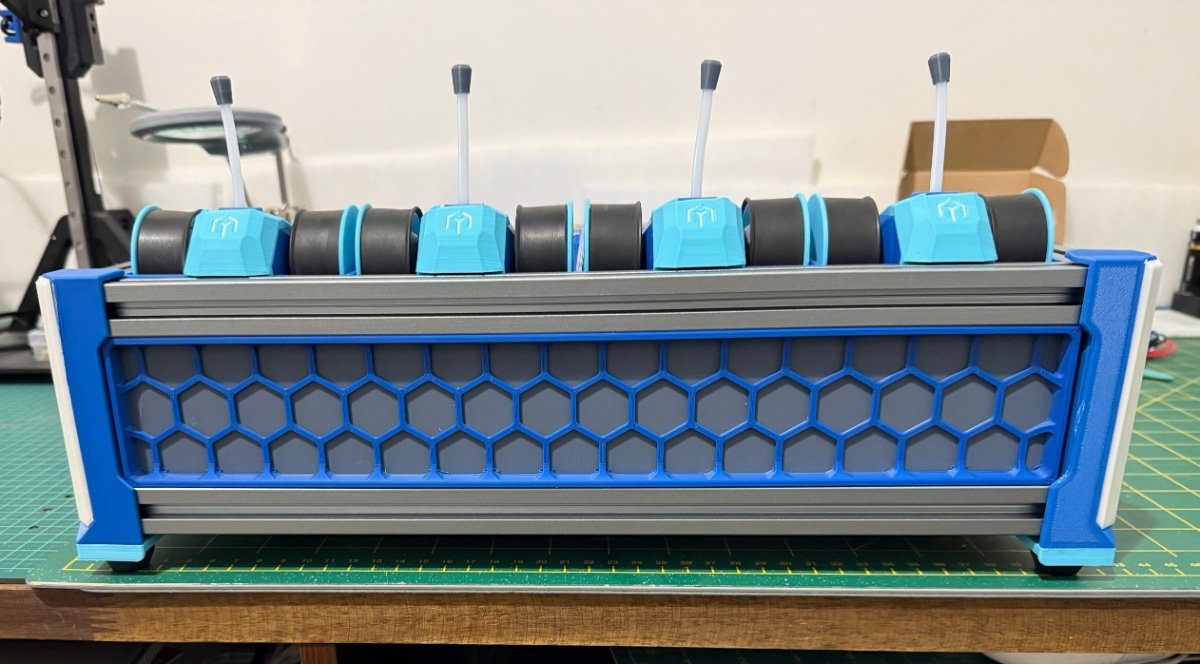

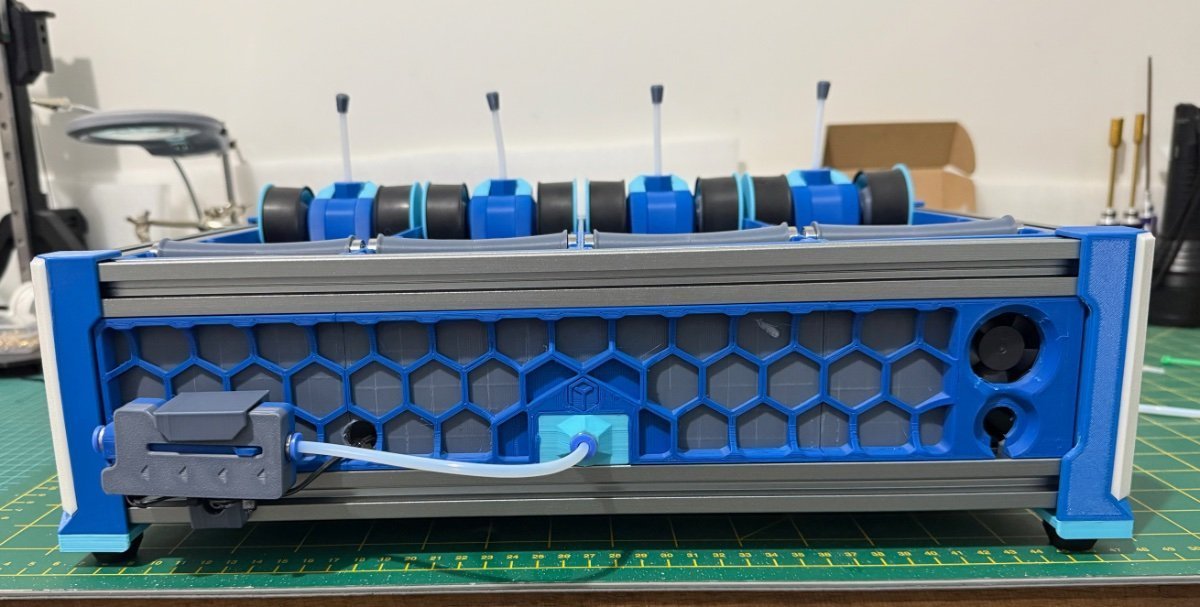

Looking good. Have finished the LDO kit build. Now just waiting for the stl's to be released for the enclosure. (Have self sourced all the parts and ready to go). Will do a build diary of that.



I have done this one with the dissecant trays in anticipation of the enclosure.

Shout out if you need clarification of anything. When you get to the respoolers, be sure to mount the little DC motors in their slots in the printed parts. I made this mistake with this build in initially mounting them to far forward.

[PFarm]

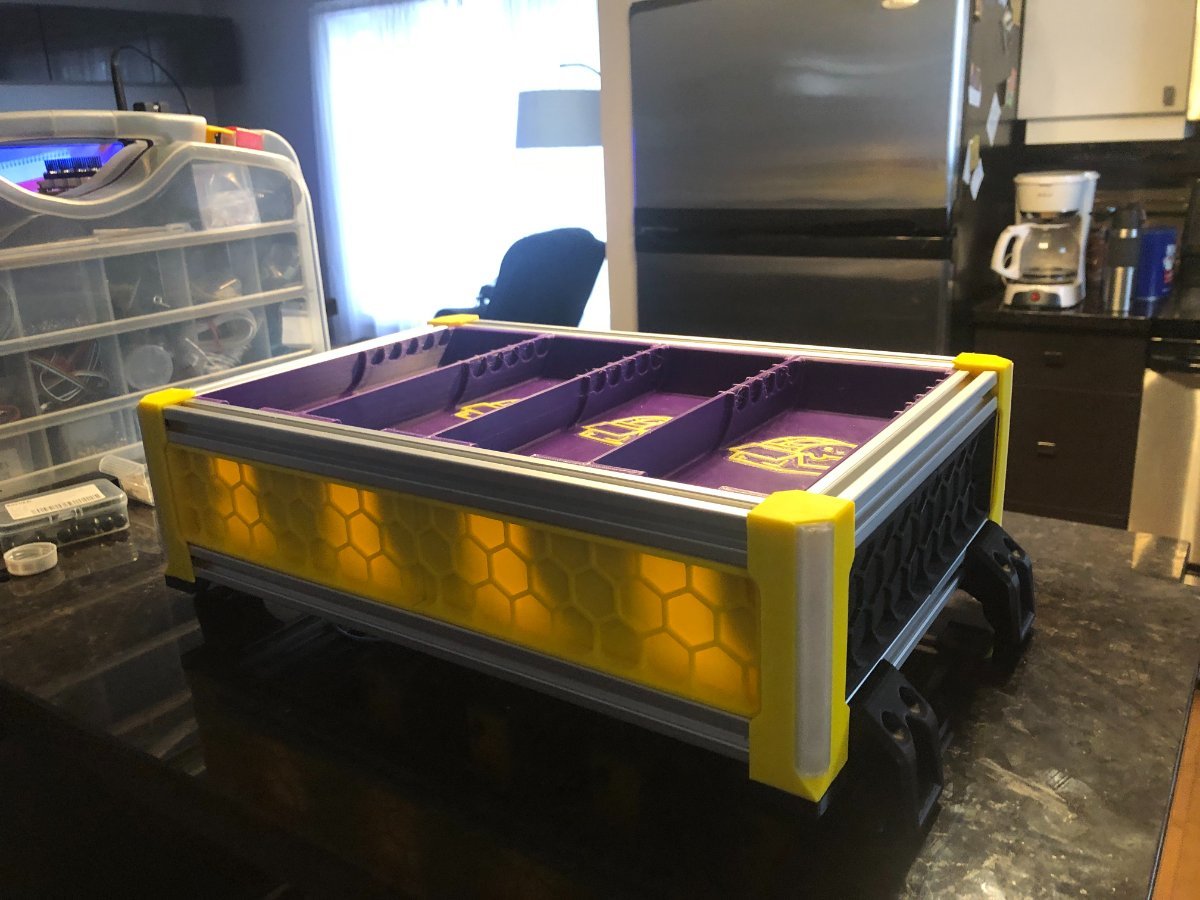

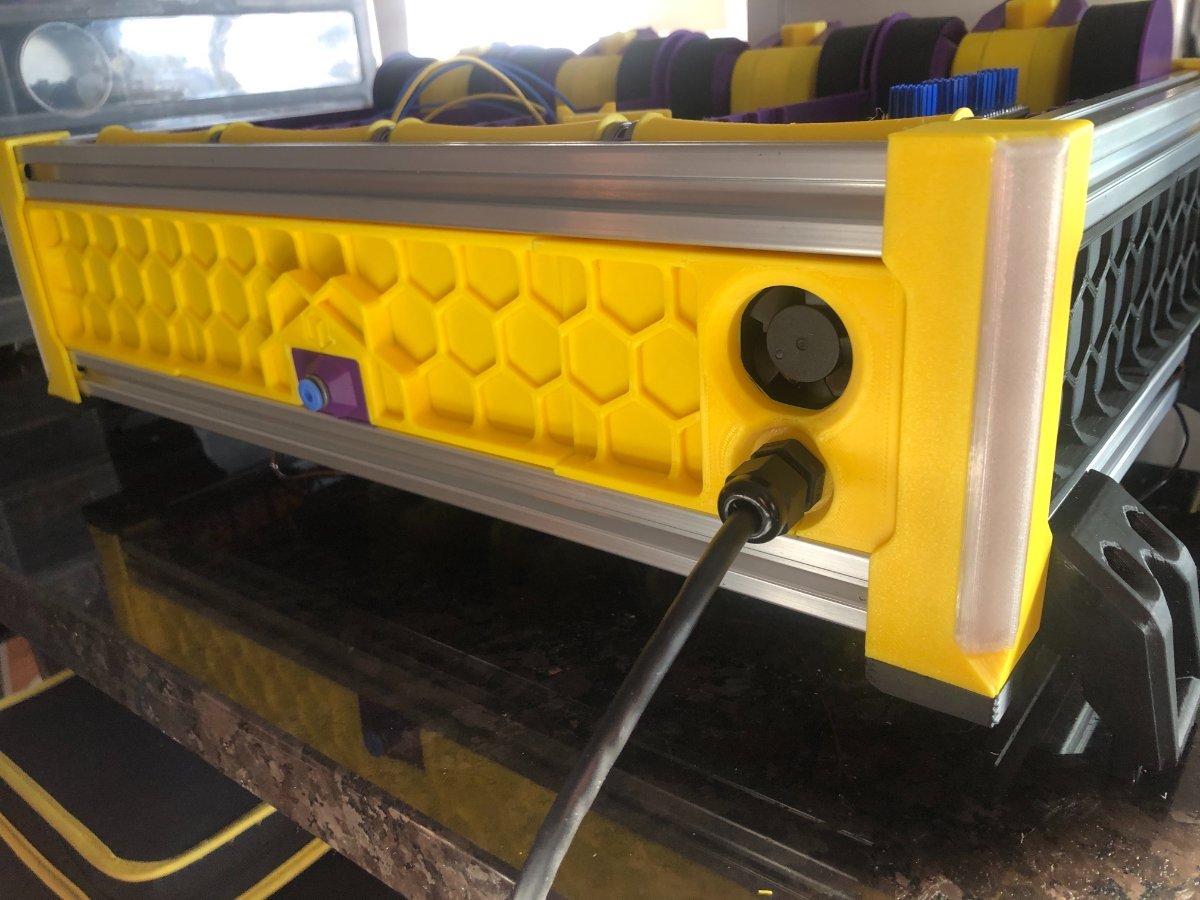

Ran out of purple and yellow filament so the side skirt got printed in black, after all, it a multi-colour tool right? DC motor will be arriving shortly.

@mvdveer I looked at some of the builds in Discord and looks like they're using LED strips for the corner LED.



Edited Friday at 09:55 PM by PFarm

[mvdveer]

1 hour ago, PFarm said:

@mvdveer I looked at some of the builds in Discord and looks like they're using LED strips for the corner LED.

Yes they are, though on the LDO build, I used the "cutable" strips. So I still have a chain of 20. Was not going to buy the pub versions. Will see how it turns out.

Wiring these corner LEDs are a pain in the proverbial.

Build looking good so far

[PFarm]

1 minute ago, mvdveer said:

Yes they are, though on the LDO build, I used the "cutable" strips. So I still have a chain of 20. Was not going to buy the pub versions. Will see how it turns out.

Wiring these corner LEDs are a pain in the proverbial.

Build looking good so far

Thanks, I have the same LEDs on hand. Any idea what the max milliamps allowed for LEDs?

[mvdveer]

1 minute ago, PFarm said:

Thanks, I have the same LEDs on hand. Any idea what the max milliamps allowed for LEDs?

No idea but this will give a chain of 20, so not many in there. I have seen builds with a chain of up to 50 LED's so I don't think it should cause a problem with the AFC-Lite board.

[PFarm]

 I just noticed an error in the BOM it calls for 4 x DF2-L but two are needed for the Turtleneck I had one extra on hand but I am still one short.

Edited Saturday at 07:35 PM by PFarm

[PFarm]

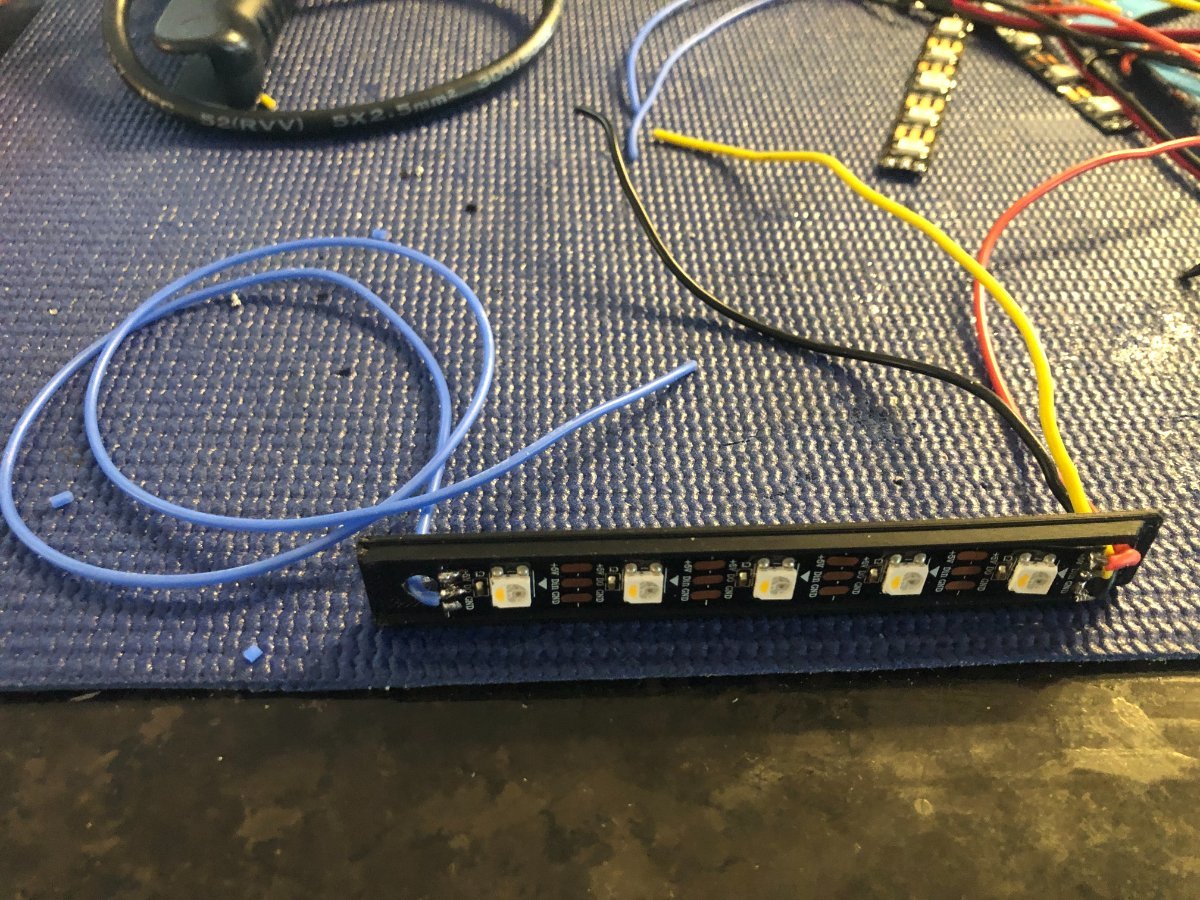

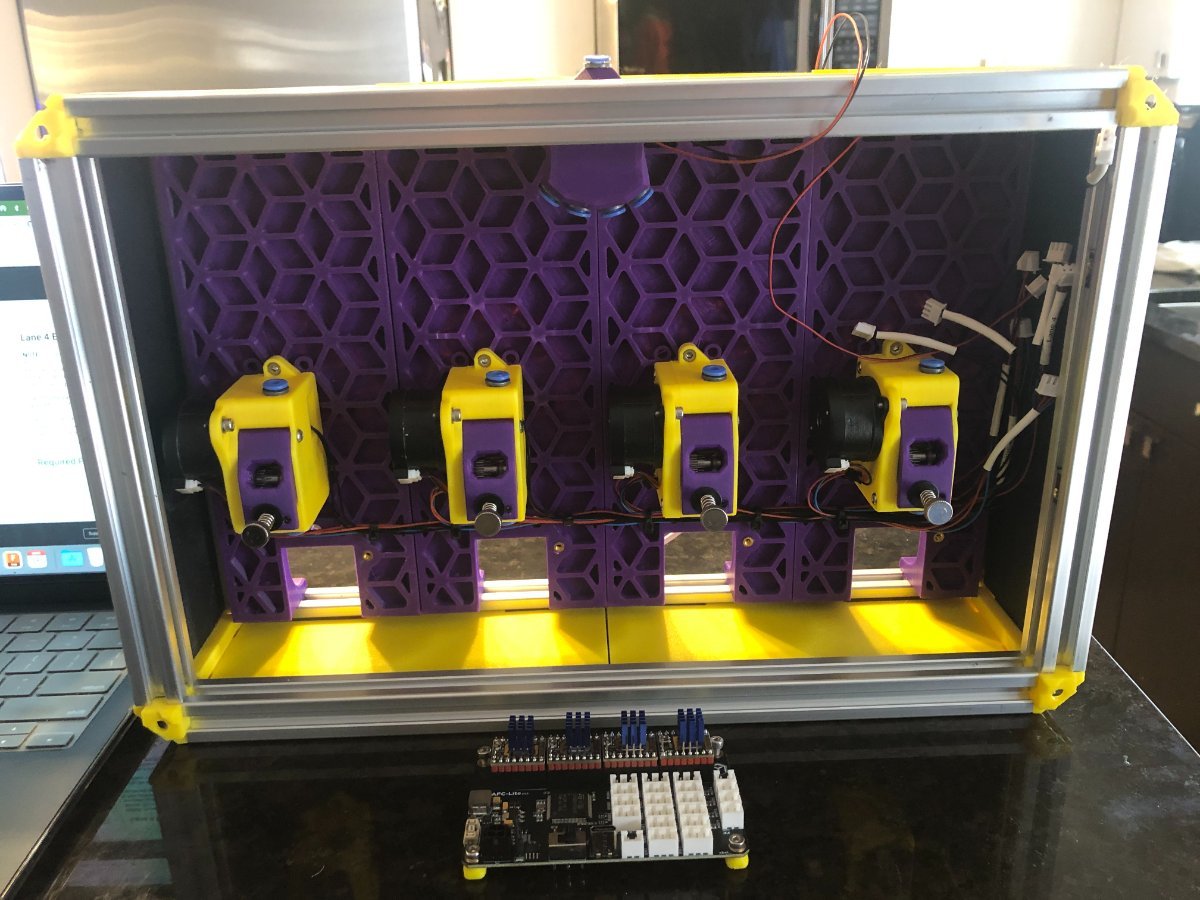

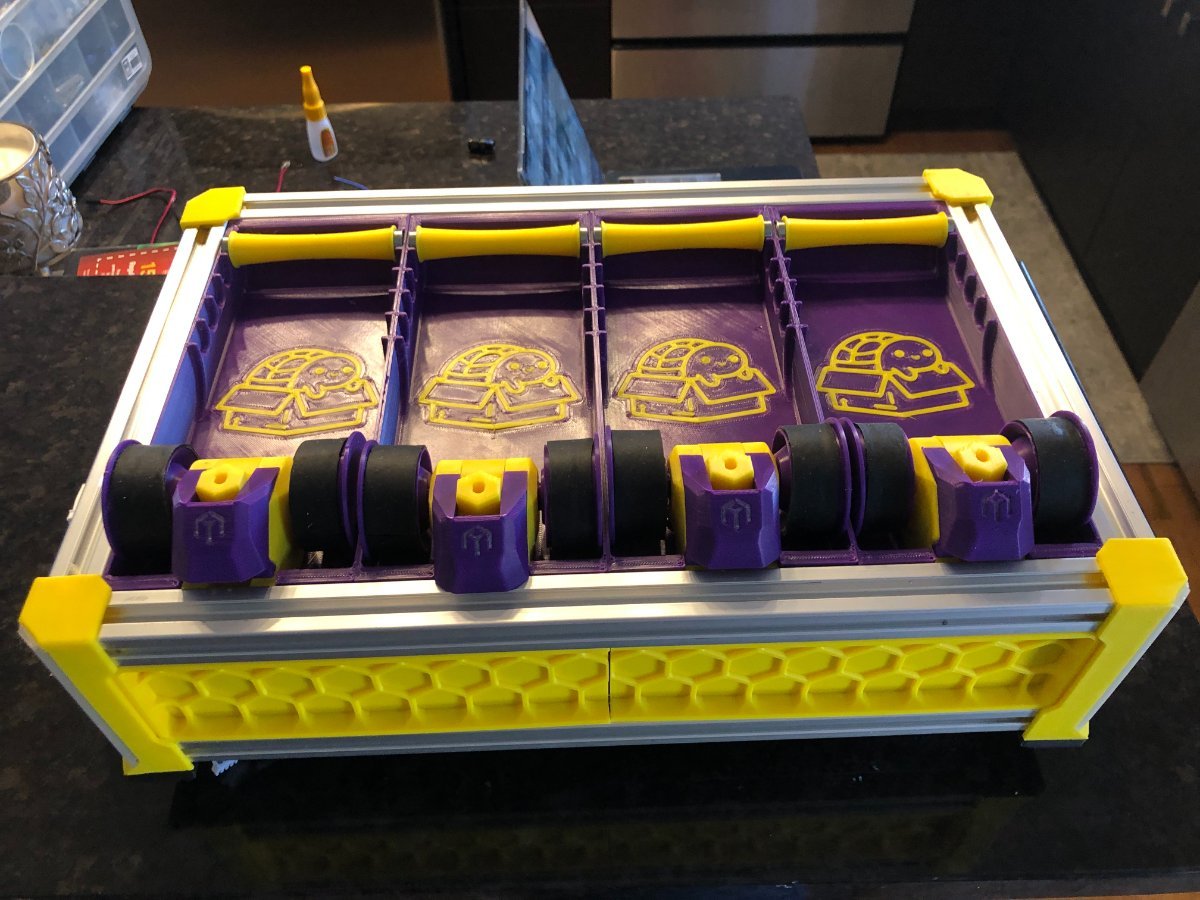

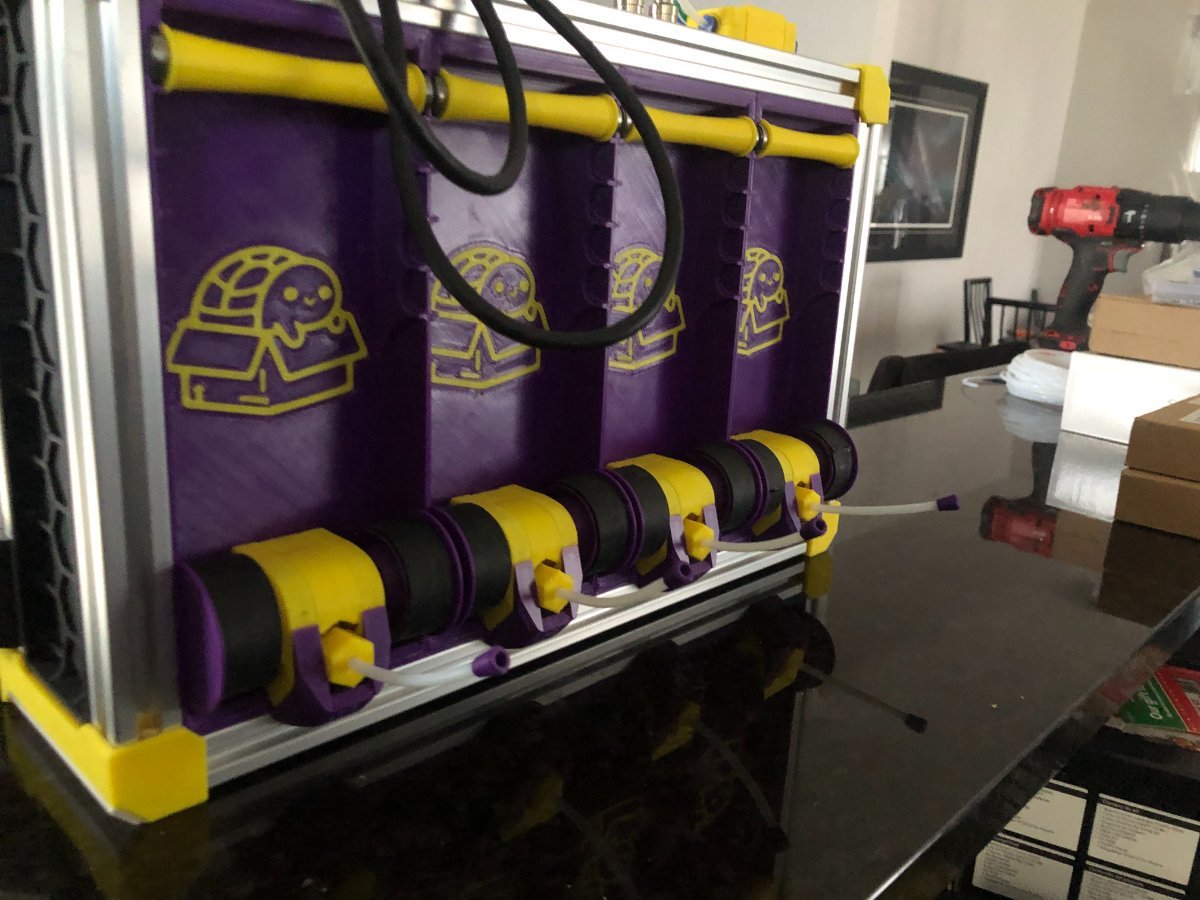

A bit of progress extruder mounted and got the spooler LEDs soldered and mounted. Still waiting on DC motors to assemble spoolers.



Edited Saturday at 08:43 PM by PFarm

[PFarm]

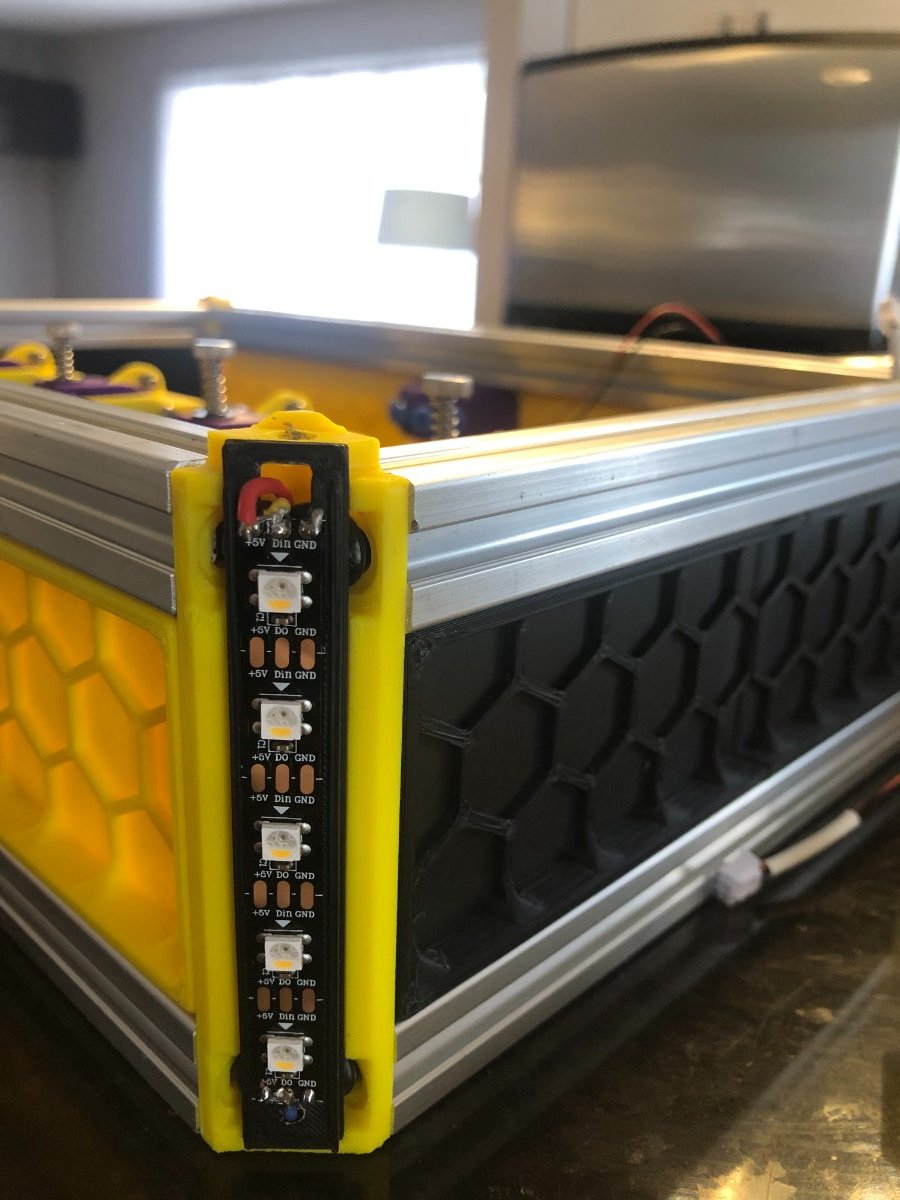

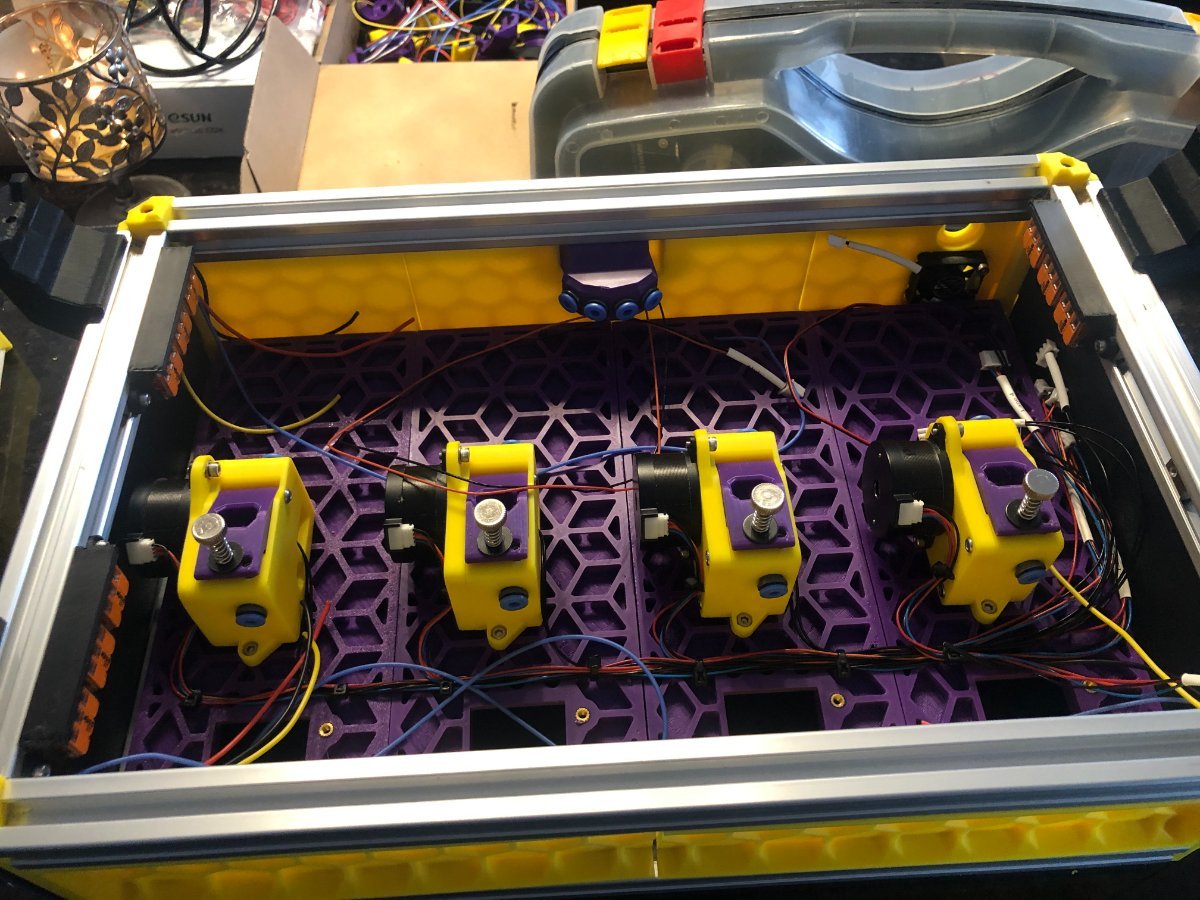

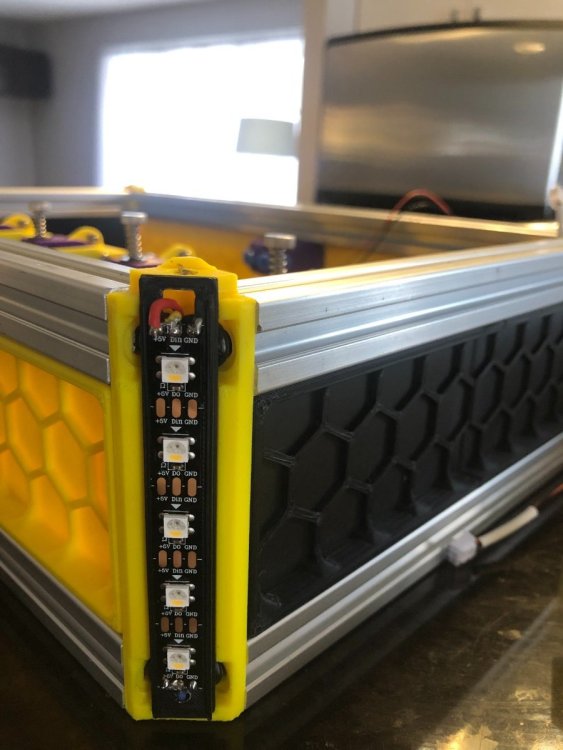

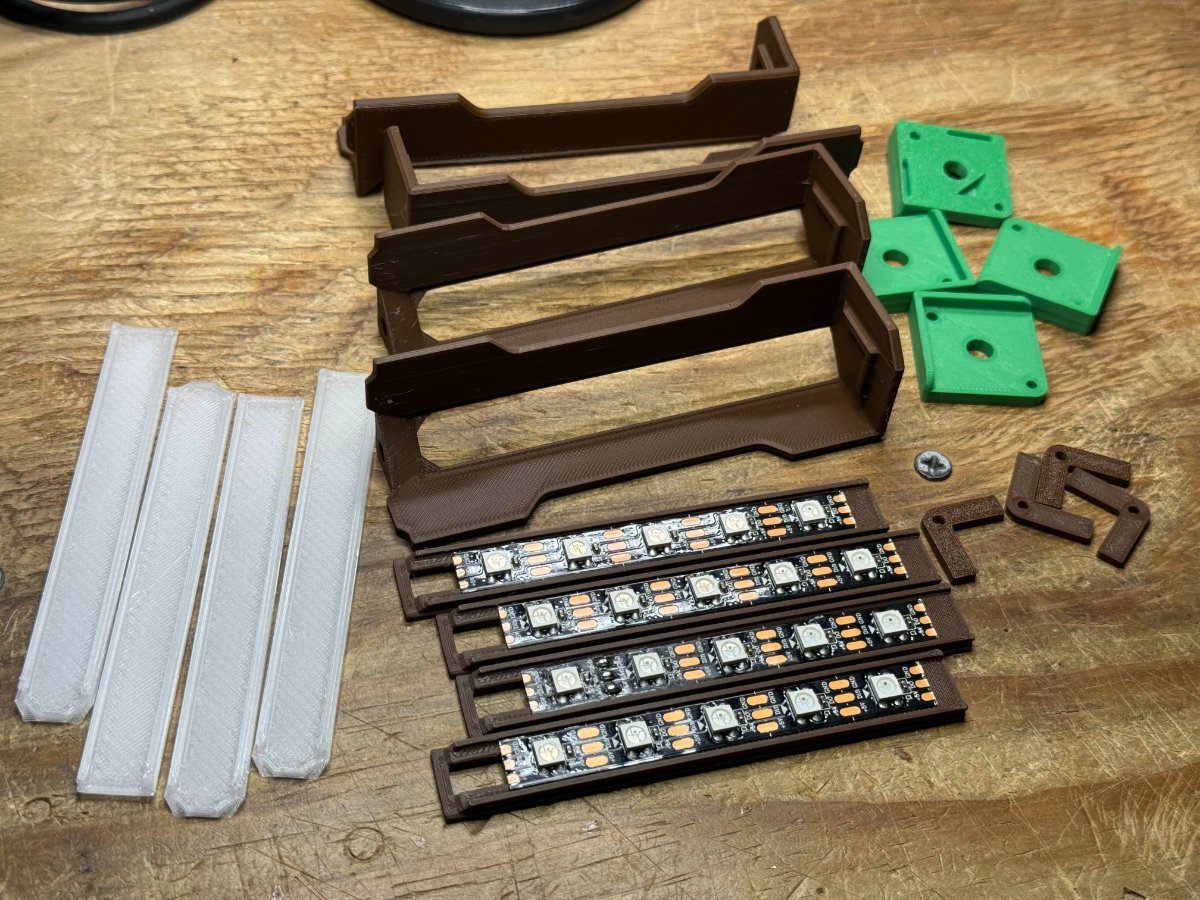

I started installing the corner LEDs today. First, since only the data input and output need to be in series, I drill a hole at the top of the LED's mounting plate to run a wire from the data out back into the underside of the Box Turtle.

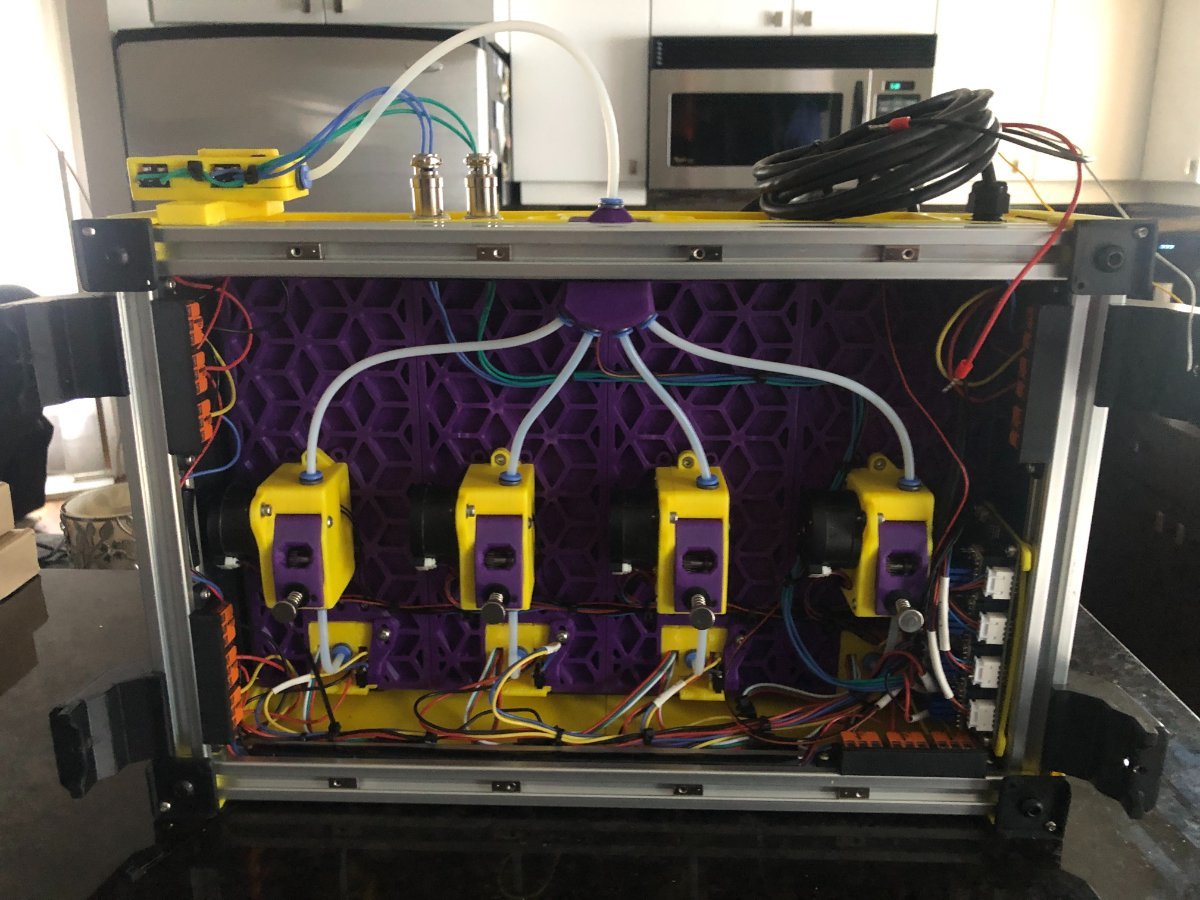

I'm using Wagos for ease of wiring them.

DC motor are schedule to be delivered this coming Tuesday and the missing DF2L.

Edited 4 hours ago by PFarm
