Beacon Probe - cloned already?


mvdveer

Recommended Posts

@Paul Trautner If you have the IDM version, have you performed the step to calibrate the IDM? I have one of the USB versions, wish I had seen the CAN versions. But, the sensor trips at 2mm from the bed. When you run 'IDM_CALIBRATE' it goes through the normal Z off-set calibration process and once you have your Z offset configured it makes the mesh more accurate.

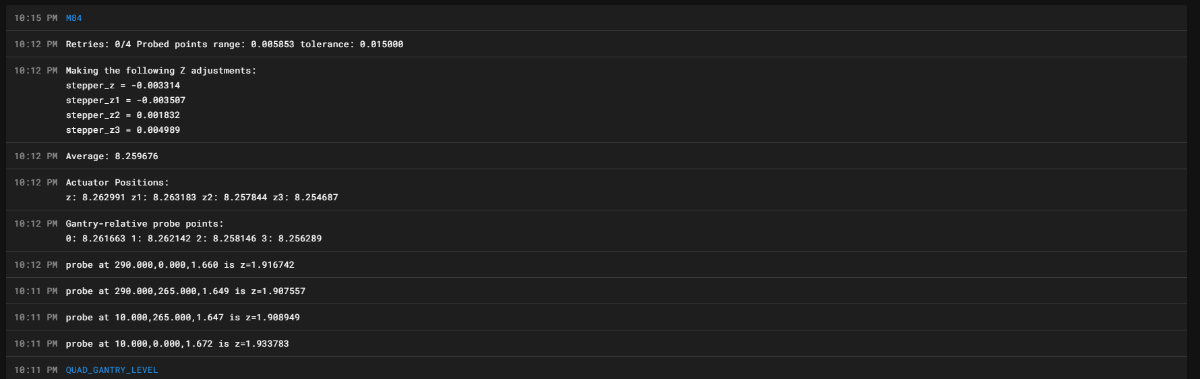

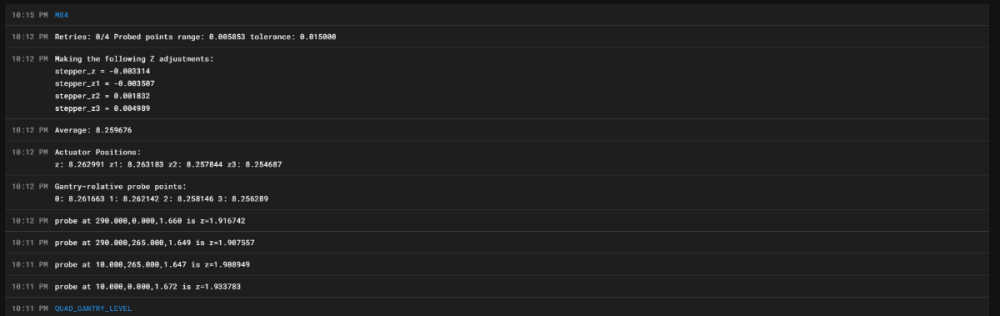

The trigger distance of 2mm is why your Z measurement is 1.9xxxxx. The difference between that number and z=2 should be pretty close to the Z_OFFSET after you run IDM_CALIBRATE. If you already ran IDM_CALIBRATE, then check the saved Z_OFFSET and see if that number plus the probed "z=" value doesn't get you close to an even "z=2".

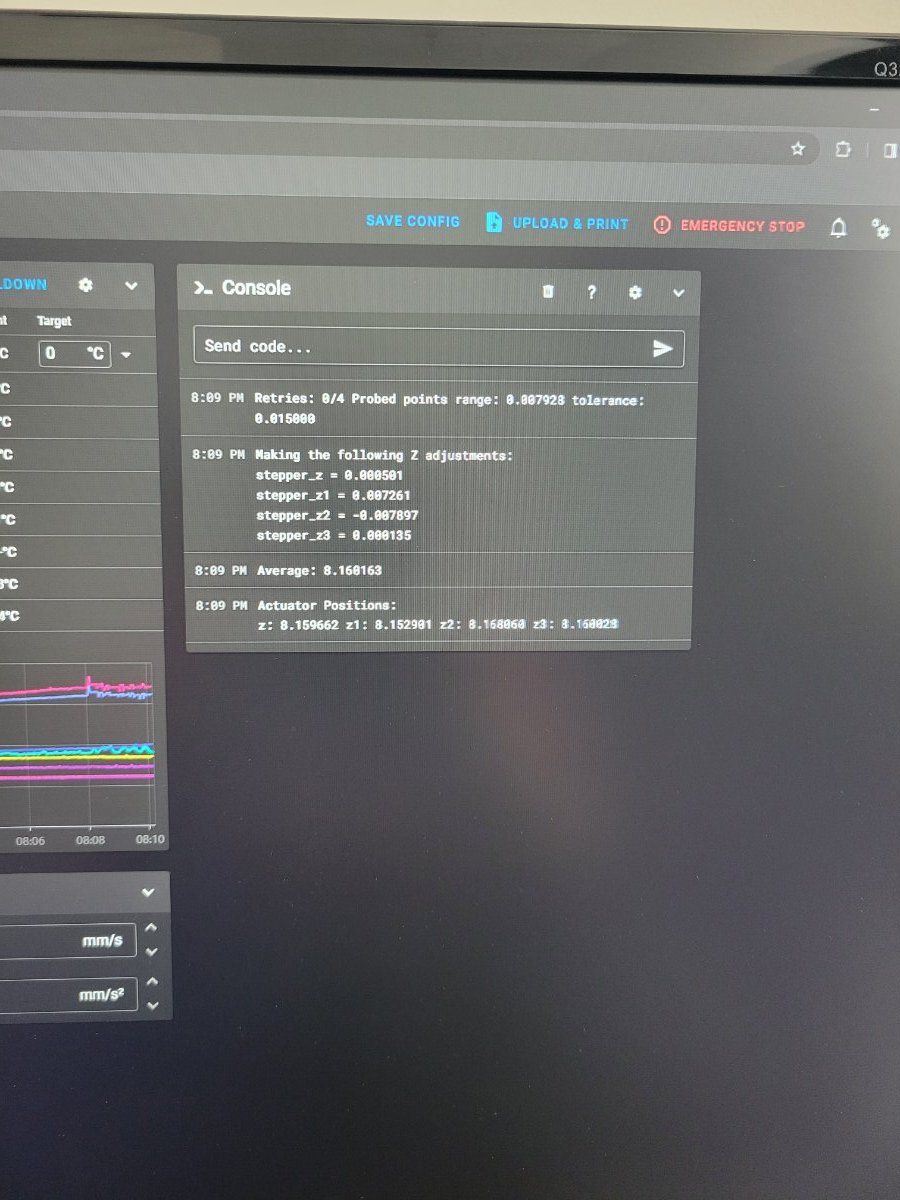

I have not put my 2nd IDM on my Voron 2.4 yet, but I have it on the VZTrident I am working on and that was what I found to be true. As for the 0.0058, that is the standard deviation between the 4 probed points after the final set of adjustments (the line right below that) is applied.

The output looks good to me, and I would be happy with that low variance.

  • Like 1
Link to comment
Share on other sites

6 minutes ago, cjkennedy72 said:

@Paul Trautner If you have the IDM version, have you performed the step to calibrate the IDM? I have one of the USB versions, wish I had seen the CAN versions. But, the sensor trips at 2mm from the bed. When you run 'IDM_CALIBRATE' it goes through the normal Z off-set calibration process and once you have your Z offset configured it makes the mesh more accurate.

The trigger distance of 2mm is why your Z measurement is 1.9xxxxx. The difference between that number and z=2 should be pretty close to the Z_OFFSET after you run IDM_CALIBRATE. If you already ran IDM_CALIBRATE, then check the saved Z_OFFSET and see if that number plus the probed "z=" value doesn't get you close to an even "z=2".

I have not put my 2nd IDM on my Voron 2.4 yet, but I have it on the VZTrident I am working on and that was what I found to be true. As for the 0.0058, that is the standard deviation between the 4 probed points after the final set of adjustments (the line right below that) is applied.

The output looks good to me, and I would be happy with that low variance.

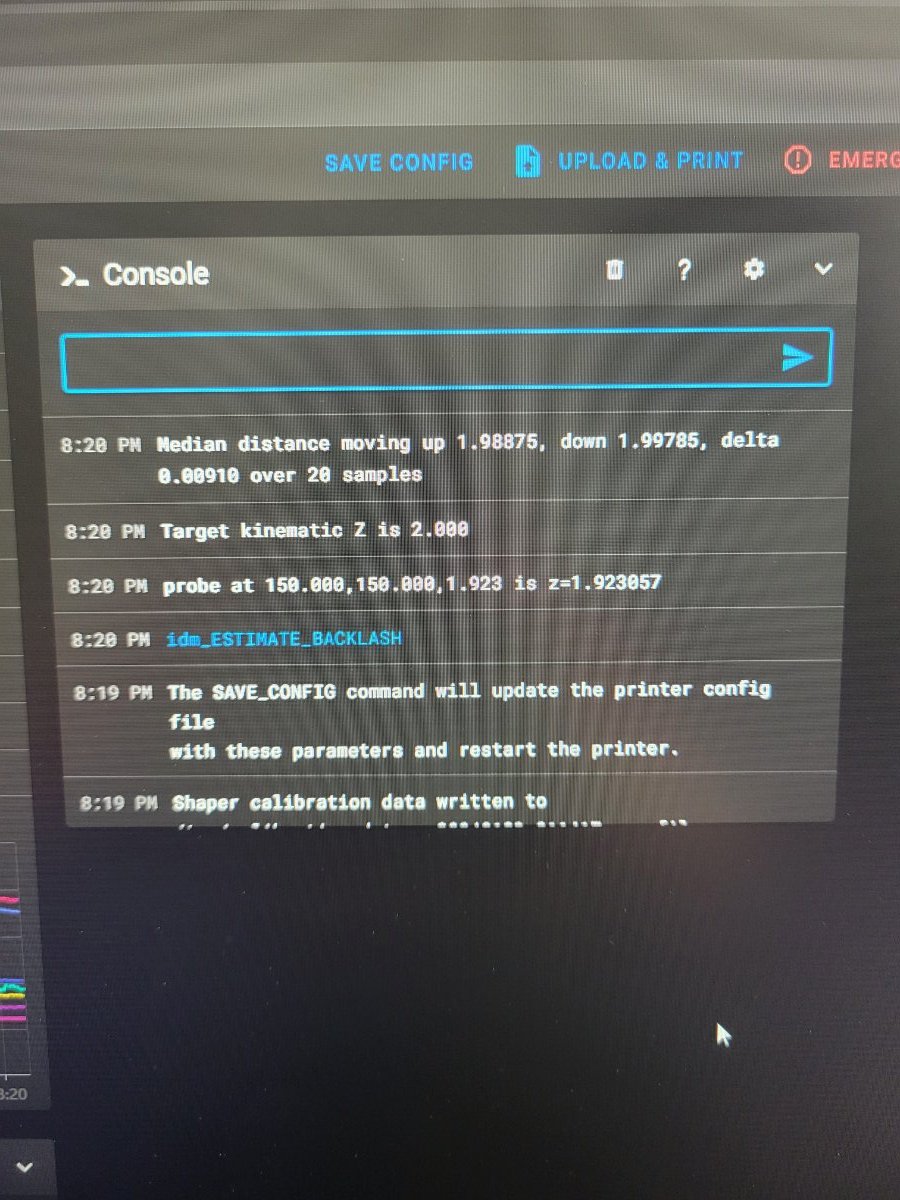

When you run backlash estimate what type of values are you seeing? I think the harmonic drives are causing issue and the idm probe shows around 0.06-0.07mm of backlash which I confirmed with a dial gage. Not sure why there is so much backlash when I can't feel any backlash in the system. I tore the system apart to try the original belt reduction which is printing now.



  • Like 1
  • Voron FTW! 1
Link to comment
Share on other sites

The VZbot is down right now... I am changing the Z-Axis motion system from the TronXY to VZBot-330 conversion, which maintains the linear rods on Z. I am replacing it with a mod I found that uses a version of the Trident Z motion system. So, once I either get the probe mounted on my V2.4 or finish rebuilding the Z motion system on the soon-to-be VZTrident, I will let you know what my backlash value is.

With that said, I was doing some research a while back and found that some amount of backlash is inherent in these types of systems. The point is to get everything dialed in to minimize the backlash, or compensate for it in some way. Input shaping is a big part of overcoming this on the horizontal plane.

I think 5-7 100ths of a millimeter backlash is pretty nominal, based on my reading.

  • Like 1
Link to comment
Share on other sites

1 hour ago, Paul Trautner said:

This truly looks amazing. Not the process of IDM scanning, but also the printer in just pure black.

15 hours ago, Paul Trautner said:

Anyone know what happening?

Unfortunately I have no idea what is going on either. Maybe @mvdveer can add something sensible once he is back from new years festivities, since he has several beacons running on his printers.

1 hour ago, Paul Trautner said:

the harmonic drives are causing issue

I do not see why they would. As far as I understand, they are just z-drives to Klipper. So it should not interfere with your probing or bed leveling method.

Edited by Dirk
Link to comment
Share on other sites

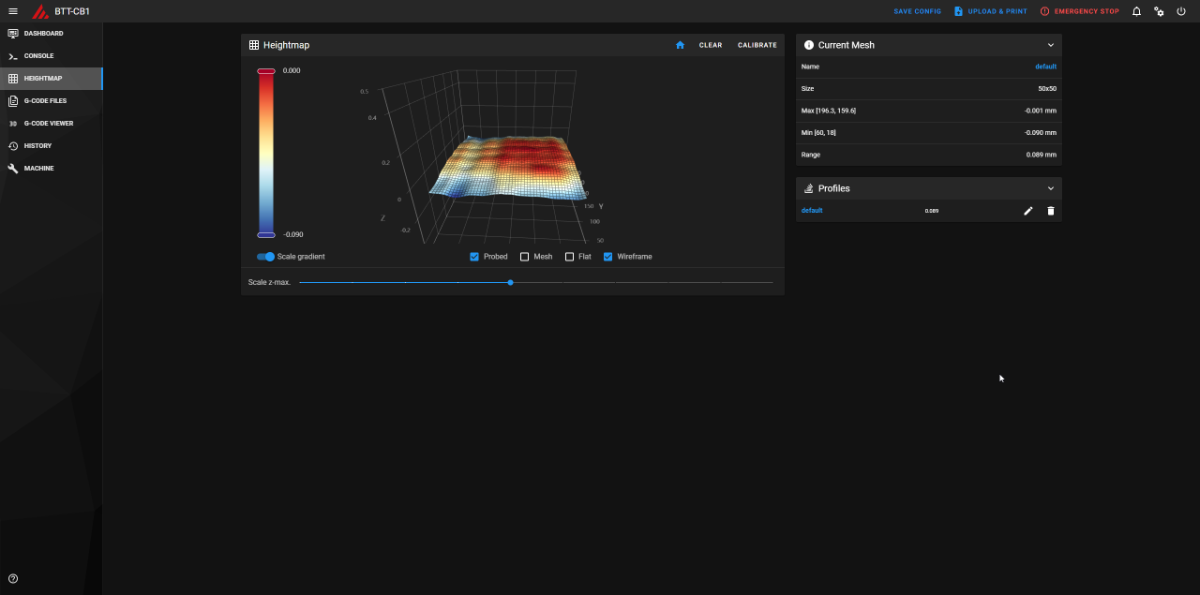

Hmm.. 🤔 that looks like a big stripe in your bed...

Anything to do with interference from something metallic on or above the bed at that location? From the left to the right side of your bed?

I know these sensors are sensitive to metal above the sensor... But this....

Link to comment
Share on other sites

7 hours ago, Dirk said:

Hmm.. 🤔 that looks like a big stripe in your bed...

Anything to do with interference from something metallic on or above the bed at that location? From the left to the right side of your bed?

I know these sensors are sensitive to metal above the sensor... But this....

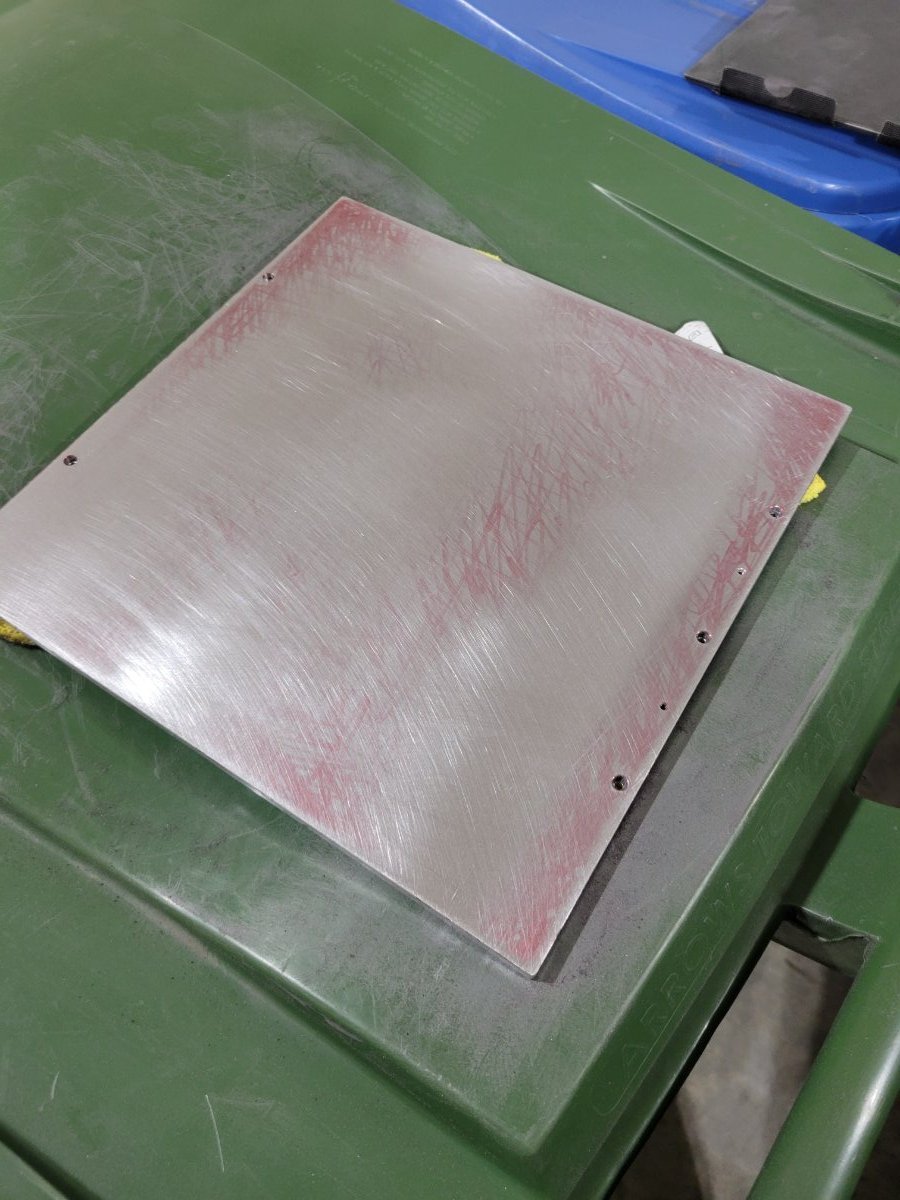

It's real measurements, crappy fystec bed. Working on trying to lapping it out


  • Like 3
Link to comment
Share on other sites

  • 2 weeks later...

So.. The latest Klipper update breaks these probes. To fix mine, I was able to parse the klippy.log file, figure out the offending Python code, and was lucky that Beacon3D had already updated their code. I copied in the new lines and the probe started working again.

Due to this little episode, I have ordered an authentic Beacon-H from them. I will replace the other one eventually. But I wanted to reward the creator and maintainer since who knows how long before that gets into the IDM git repos.

  • Like 4
Link to comment
Share on other sites

On 12/23/2023 at 9:51 AM, Paul Trautner said:

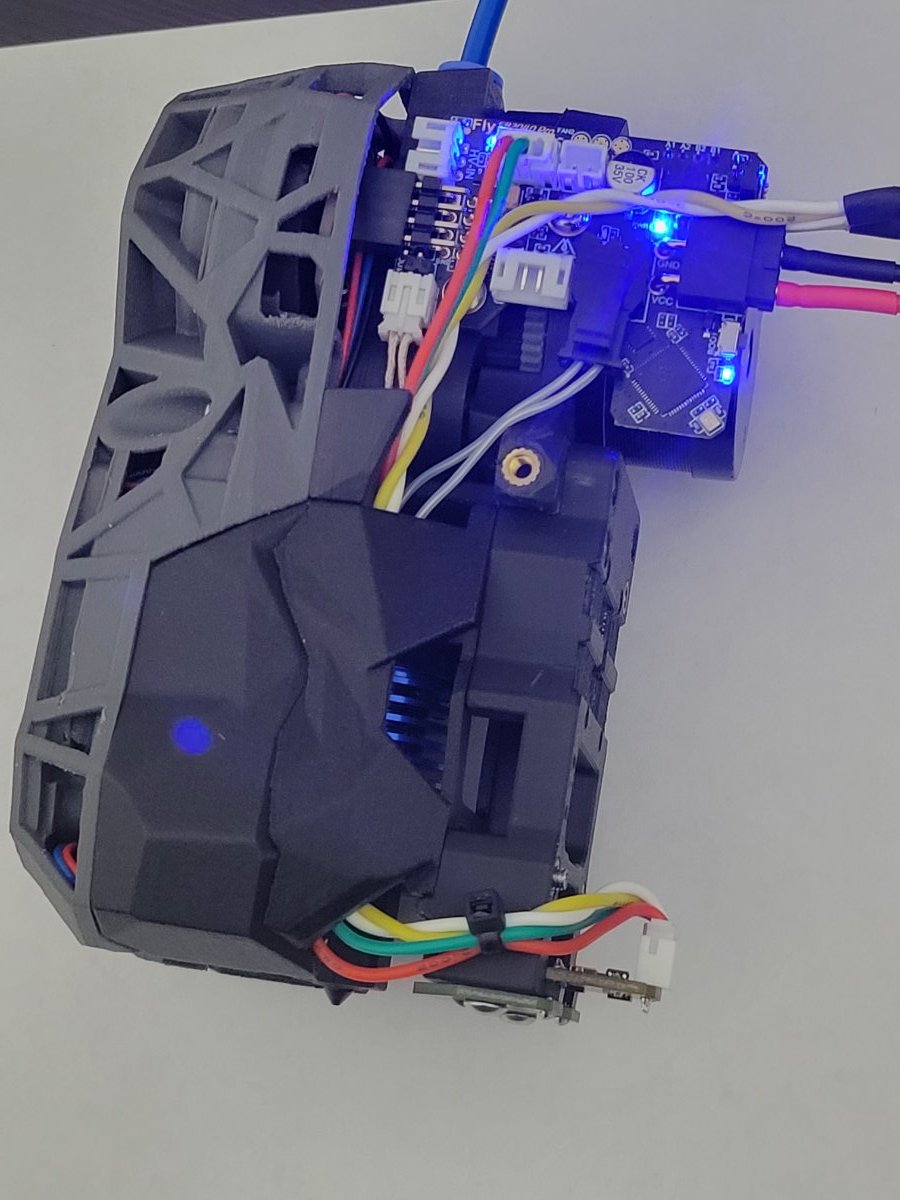

Picture shows I decided to wire it to the stealthburner with a SB2040 mellow board. Anyone using the SB2040 pro board with the 2240 driver? I am getting a uart error when trying to move the extruder and thier docs only show the 2209 driver


I have the Mellow Fly 2040 as well which does not have a Can output.  Looks like you did a splice on the Can cable?  Can you show this more please?  Also isn't the 120ohm terminator supposed to be the on the last device in the chain?  Did you terminate at the IDM PCB or on the Mellow Fly 2040?

Edited by WINEDS
Link to comment
Share on other sites

On 12/22/2023 at 10:51 PM, Paul Trautner said:

Picture shows I decided to wire it to the stealthburner with a SB2040 mellow board. Anyone using the SB2040 pro board with the 2240 driver? I am getting a uart error when trying to move the extruder and thier docs only show the 2209 driver


Where do I find STL for this stealth burner front? 🙂

Link to comment
Share on other sites

On 1/17/2024 at 10:30 PM, cjkennedy72 said:

The latest Klipper update breaks these probes

No idea what was the update, but I just checked the IDM gitee website. They have "pushed a new commit - 2 days ago" with an update you can view. So I guess these IDM people are also keeping their products up to date 🙂

From the Cartography3D discord I know, they have had no problems.

I wish I had them installed and working so I could share, but not there yet.

  • Like 1
Link to comment
Share on other sites

@Dirk, I am not a software engineer, but I am a cloud consultant and platform engineer with enough Python knowledge to navigate and survive. Basically, the update changed how the MCU TRSYNC values are being passed to sub-modules like idm.py or beacon.py. In the log, it shows the offending line in the respective code. I had to replace the

for

statement in this section.

This is the section that changed... The 'for' statement had to be expanded. I didn't keep the original code, but if I remember correctly, it stopped at 'for' and didn't include the 'try' section.



    def home_start(self, print_time, sample_time, sample_count, rest_time,
                   triggered=True):
        if self.idm.model is None:
            raise self.idm.printer.command_error("No IDM model loaded")

        self.is_homing = True
        self.idm._apply_threshold()
        self.idm._sample_async()
        clock = self._mcu.print_time_to_clock(print_time)
        rest_ticks = self._mcu.print_time_to_clock(print_time+rest_time) - clock
        self._rest_ticks = rest_ticks
        reactor = self._mcu.get_printer().get_reactor()
        self._trigger_completion = reactor.completion()
        expire_timeout = TRSYNC_TIMEOUT
        if len(self._trsyncs) == 1:
            expire_timeout = TRSYNC_SINGLE_MCU_TIMEOUT
        for i, trsync in enumerate(self._trsyncs):
            try:
                trsync.start(print_time, self._trigger_completion, expire_timeout)
            except TypeError:
                offset = float(i) / len(self._trsyncs)
                trsync.start(
                    print_time, offset, self._trigger_completion, expire_timeout
                )
        etrsync = self._trsyncs[0]
        ffi_main, ffi_lib = chelper.get_ffi()
        ffi_lib.trdispatch_start(self._trdispatch, etrsync.REASON_HOST_REQUEST)
        self.idm.idm_home_cmd.send([
            etrsync.get_oid(),
            etrsync.REASON_ENDSTOP_HIT,
            0,
        ])
        return self._trigger_completion
  • Thanks 1
Link to comment
Share on other sites

Python... Isn't that so.e sort of snake we here in Europe only see in the zoo? 😉

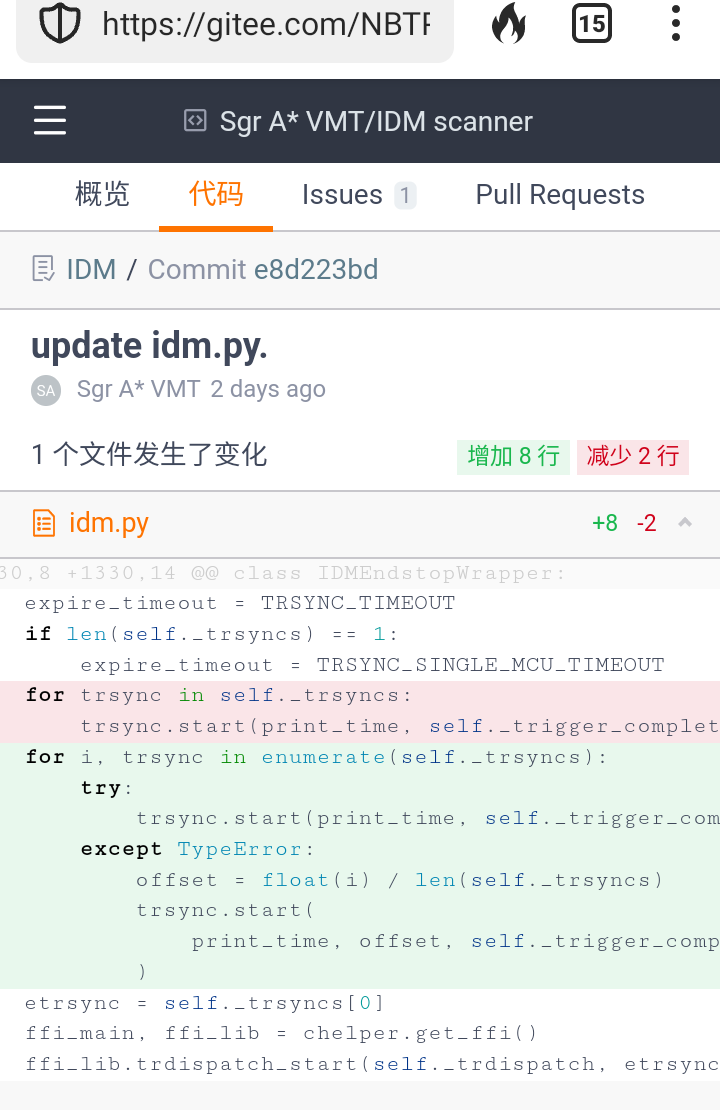

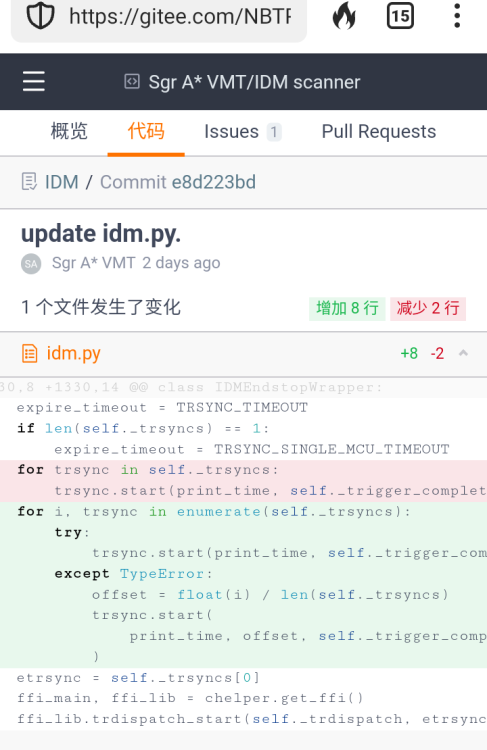

The second link shows the commit difference (red removed, green added). ( So glad code in Chinese stays code) see attachment.

But they seem to have applied the same fix. Screenshot_20240119-0605322.thumb.png.bec68daaa8dc65b00362b5f5deb3319d.png

  • Like 1
  • Haha 1
Link to comment
Share on other sites

I am not surprised and will even wager that they saw the fix from Beacon and copied it into their code... The commit diff was how I found it in Beacon3d's git repo. Good to see it was handled quickly by them as well... Still looking forward to the Beacon Rev-H that will be here Monday 😛



Edited by cjkennedy72
  • Like 2
Link to comment
Share on other sites

On 1/17/2024 at 5:32 PM, WINEDS said:

I have the Mellow Fly 2040 as well which does not have a Can output.  Looks like you did a splice on the Can cable?  Can you show this more please?  Also isn't the 120ohm terminator supposed to be the on the last device in the chain?  Did you terminate at the IDM PCB or on the Mellow Fly 2040?

I spliced into the wire just before the connection for the SB2040 that should make the SB2040 the last device which has the termination resistor. Let me know if you need pictures

  • Like 3
Link to comment
Share on other sites

7 hours ago, Paul Trautner said:

I spliced into the wire just before the connection for the SB2040 that should make the SB2040 the last device which has the termination resistor. Let me know if you need pictures

Thanks very much!  Yes photos would be handy please.  I also am tossing up repurposing the PT100 connector as a CAN output as its unused on my SB2040 and has nothing connected to any of the connector pins (i did not order the MAX chip version).  But this would require terminating at the IDM probe end...

Link to comment
Share on other sites

22 hours ago, WINEDS said:

Thanks very much!  Yes photos would be handy please.  I also am tossing up repurposing the PT100 connector as a CAN output as its unused on my SB2040 and has nothing connected to any of the connector pins (i did not order the MAX chip version).  But this would require terminating at the IDM probe end...

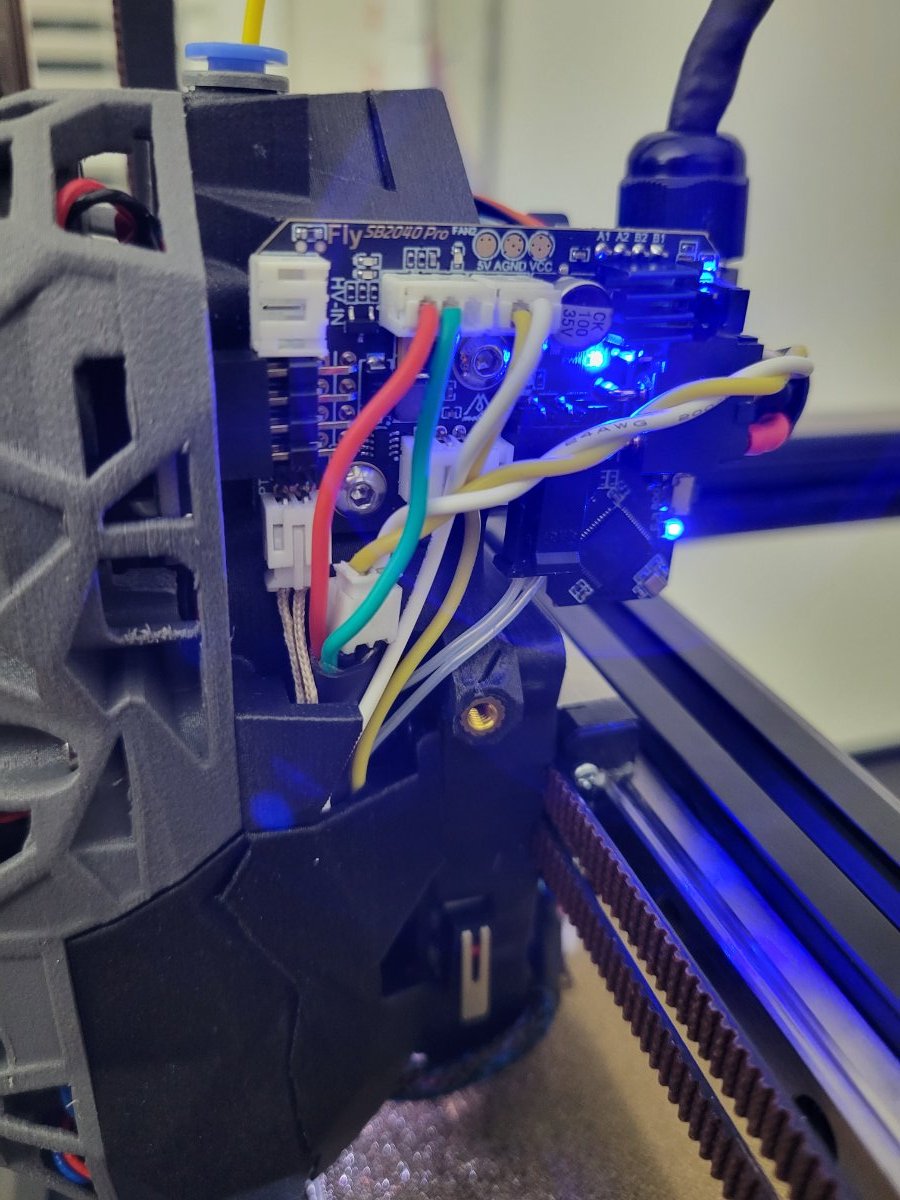

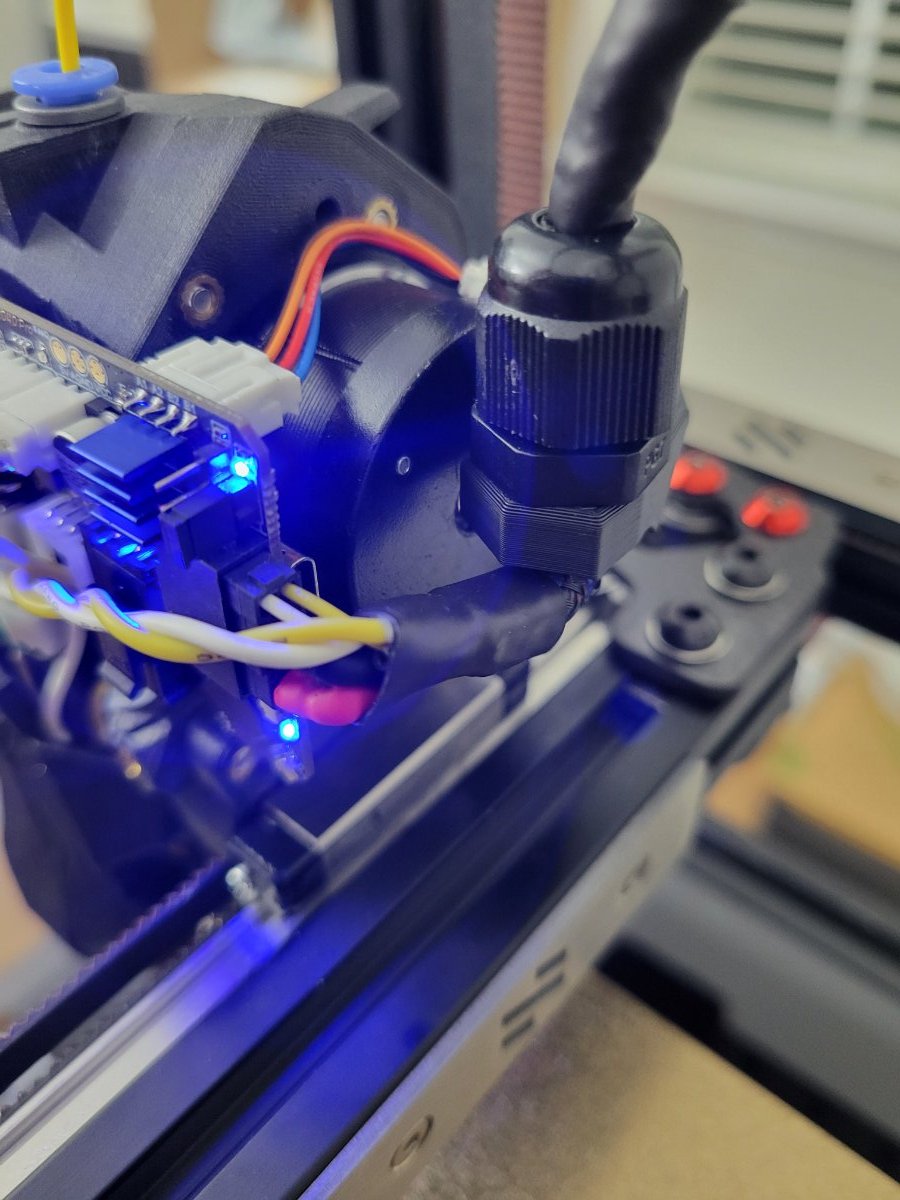

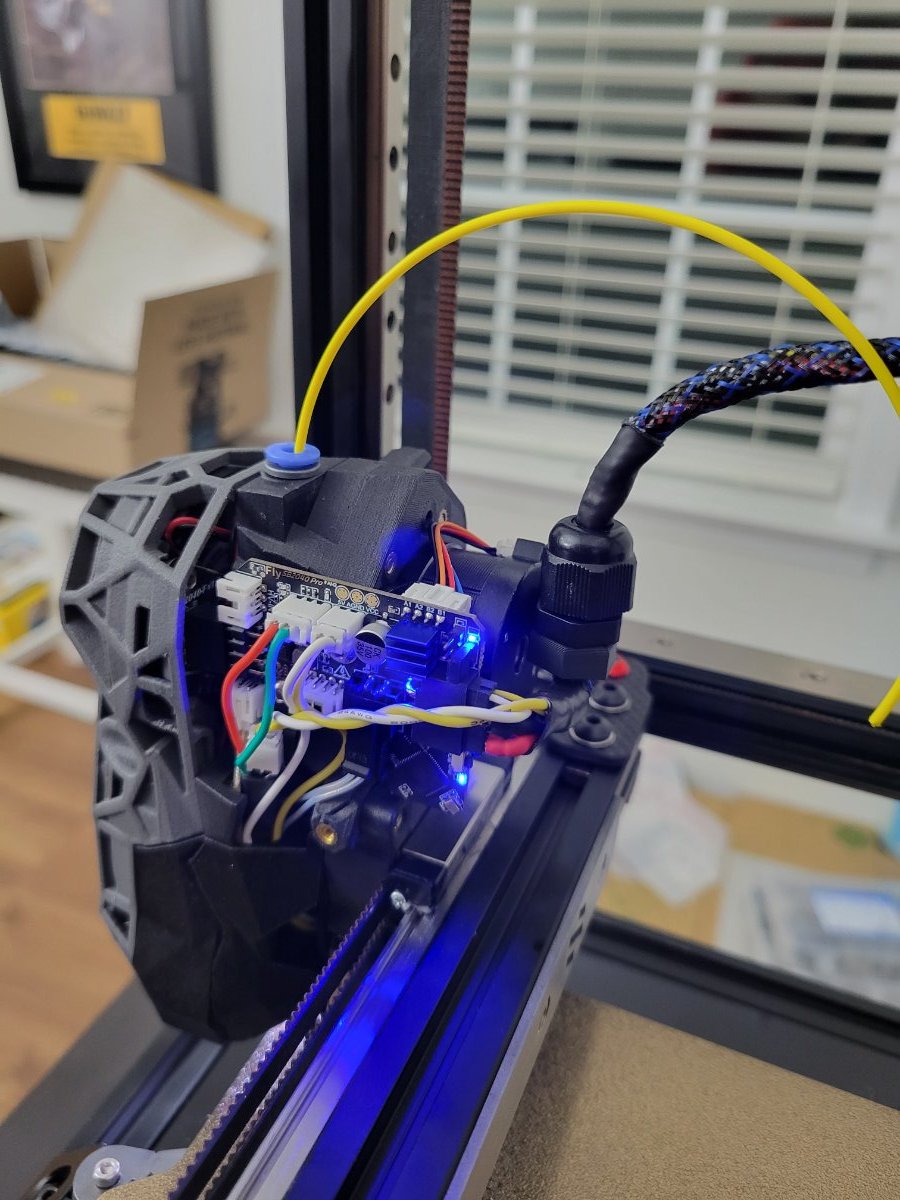

Here is how I did it, I added a connector on the idm scanner wires to make it easier to service the hotend because the wires run down the main body with the hotend wires




Link to comment
Share on other sites

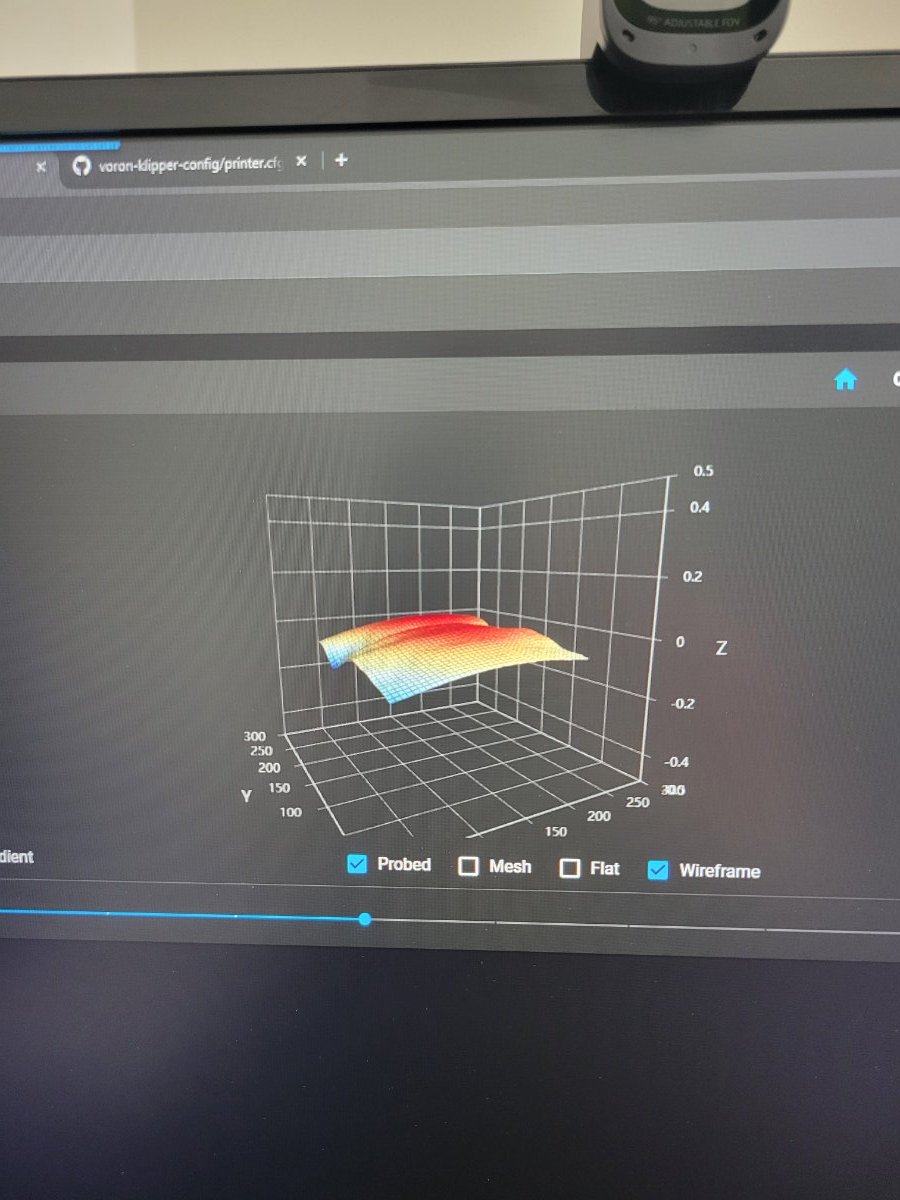

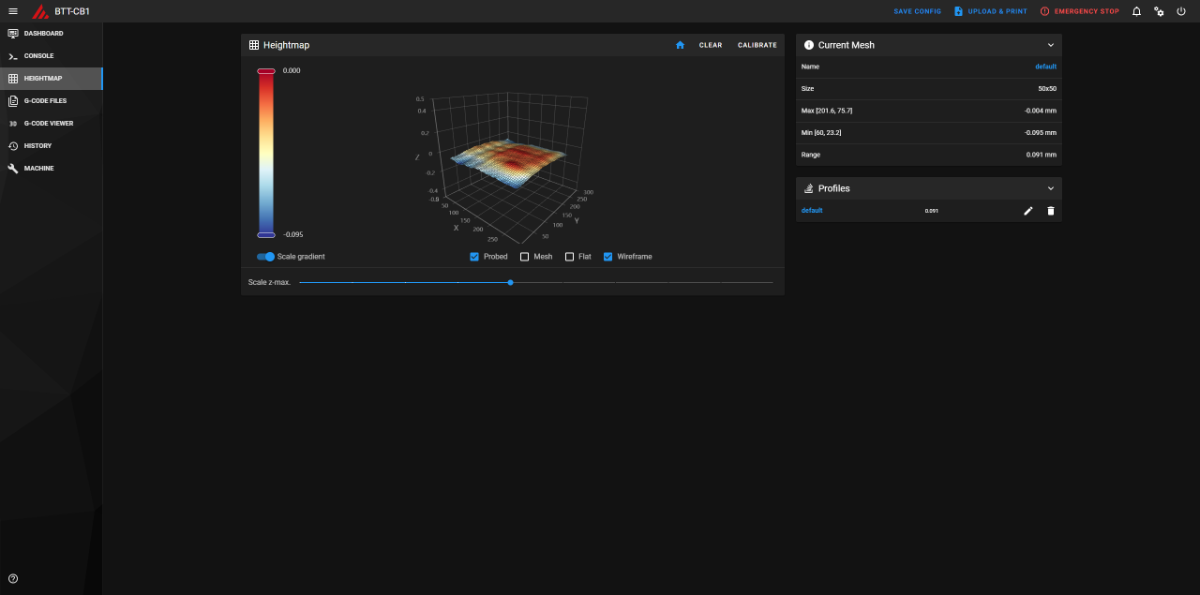

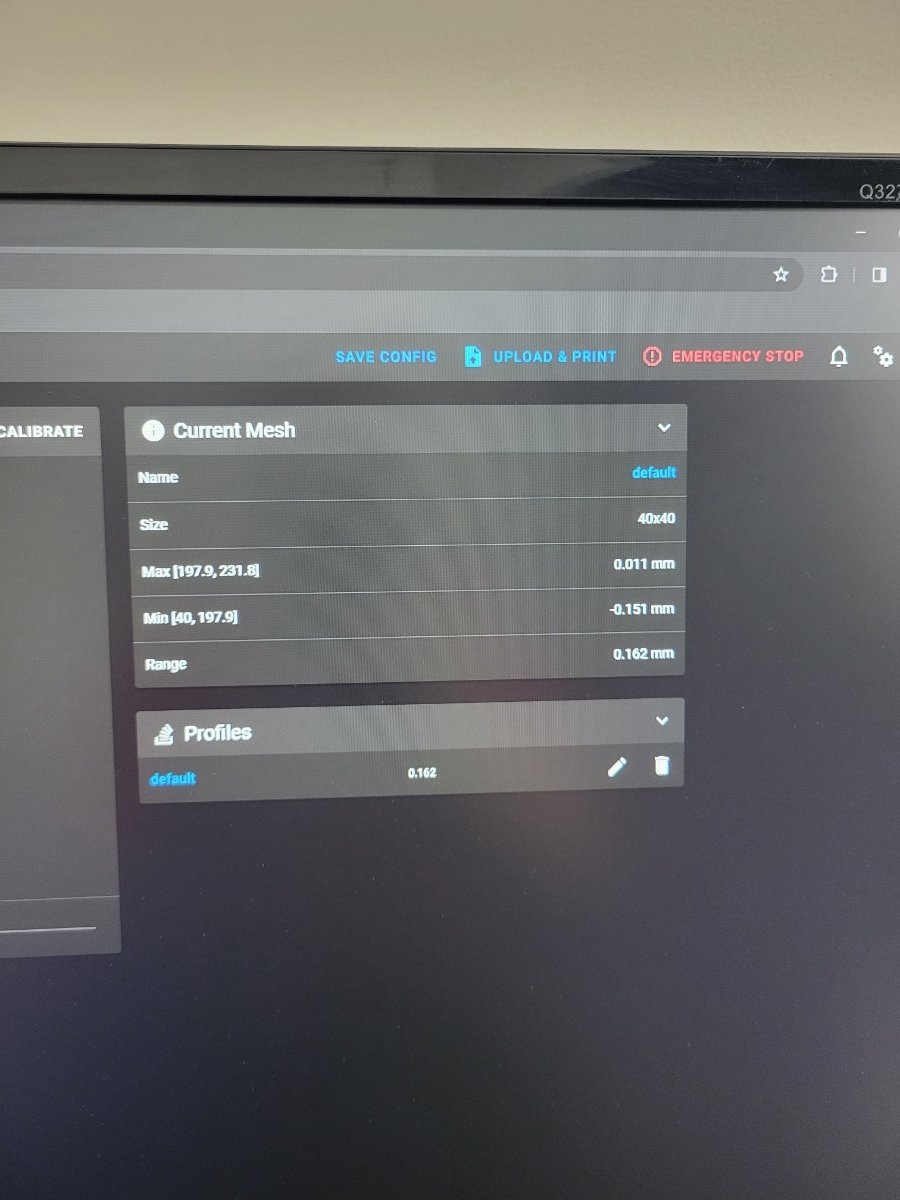

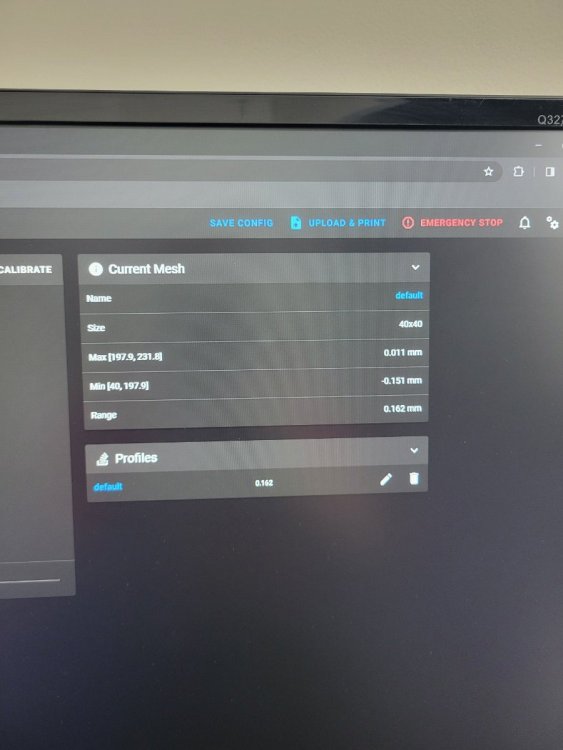

Got everything back together and pretty happy with the flatness of the build plate now. I did one scan at 60C and another at 100C and the shape does not change which I can't say for my other printer. Overall I am pretty happy with the scanner and love that its operating by canbus and has a built in accelerometer that is placed closer to the nozzle. I think the beacon might be a better product but I was not willing to run extra wires to the tool head. I will start parting parts on the printer soon so I will report how the first layer comes out.

60C




100C




repeat 100C


  • Like 1
Link to comment
Share on other sites

6 hours ago, Paul Trautner said:

Here is how I did it, I added a connector on the idm scanner wires to make it easier to service the hotend because the wires run down the main body with the hotend wires




Thank you very much Paul!  I think I'm going to attempt to repurpose the PT100 connector as a canbus out though.  If that doesn't work I'll follow your work.  Great work also on lapping the bed out.



Edited by WINEDS
Link to comment
