After I have successfully completed my Voron 2.4, I would like to build another printer.
I wavered VzBot and Trident.

My sieger is the latter. Since my last construction diary was not really written promptly, I want to keep this step up-to-date and illustrated.

I will also include my costs.

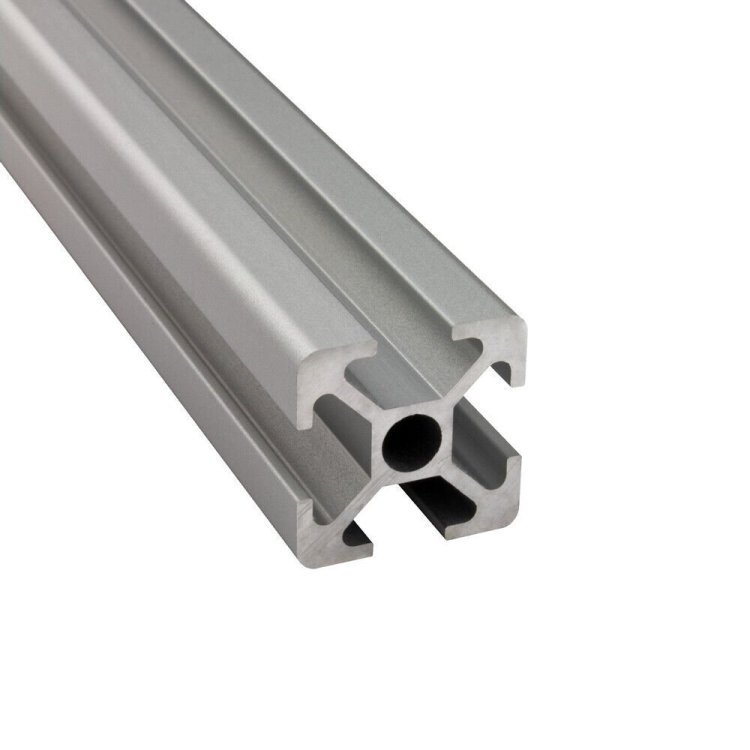

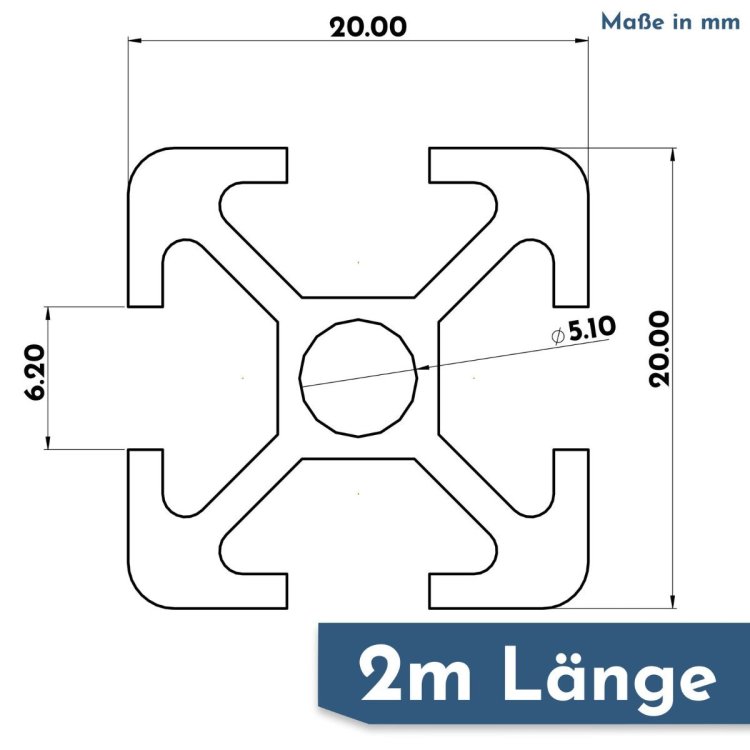

Then we start the construction starting at this point with ordering the aluminum profile 20x20 Nut 6 type-i for 79Euro

How to sight I have to switch to M6, but this was no problem with my 2.4.



Edited April 22, 2023 by Gimmi
Fehler

[Gimmi]

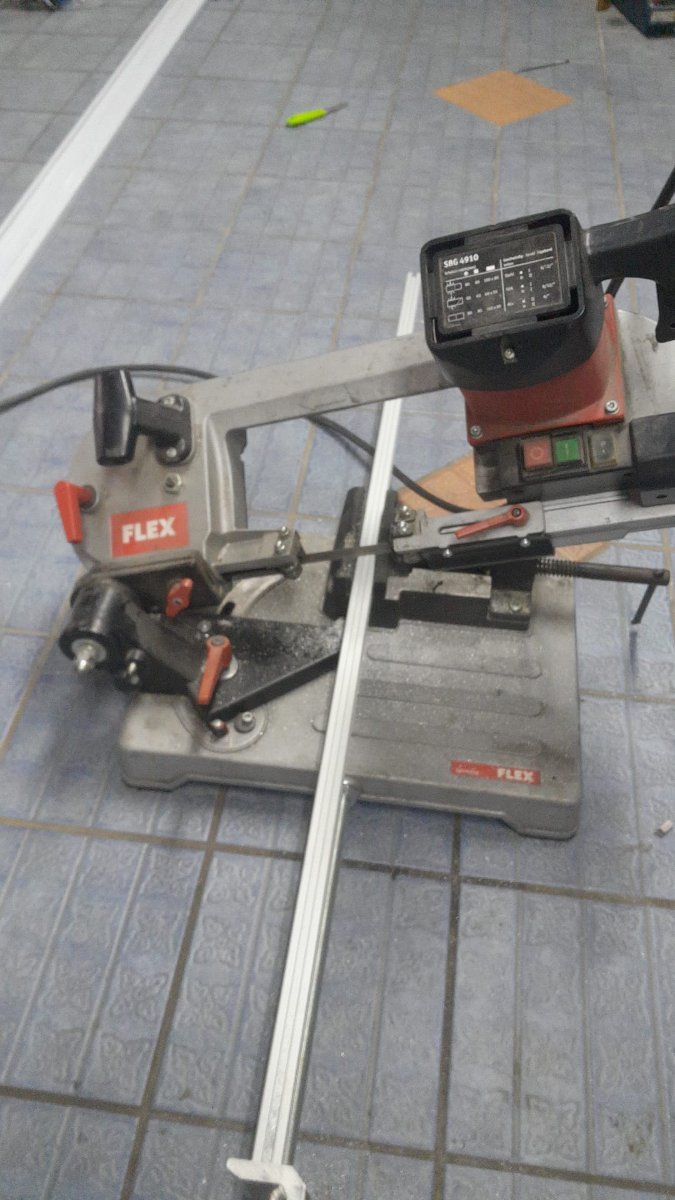

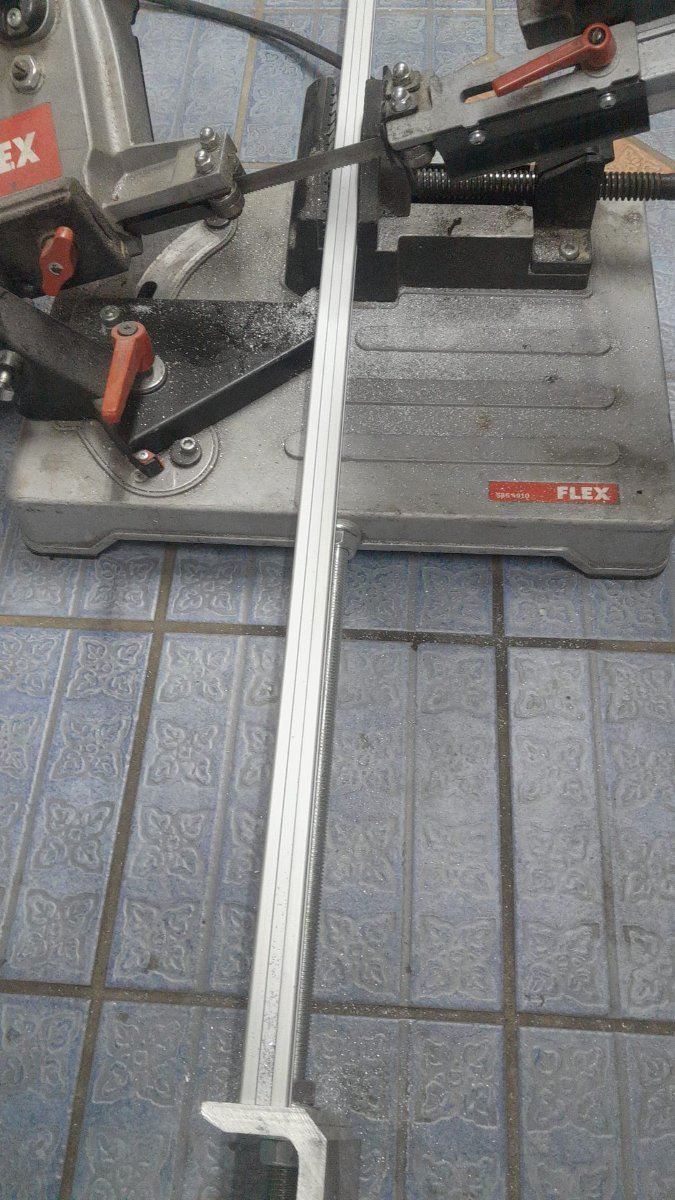

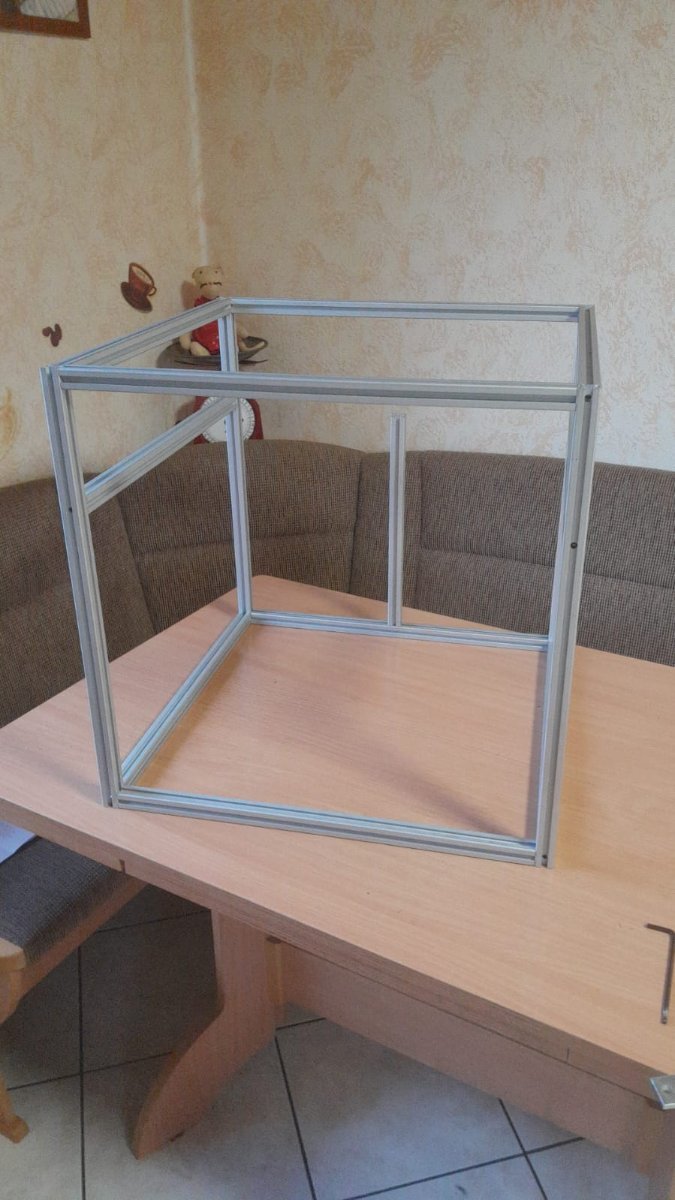

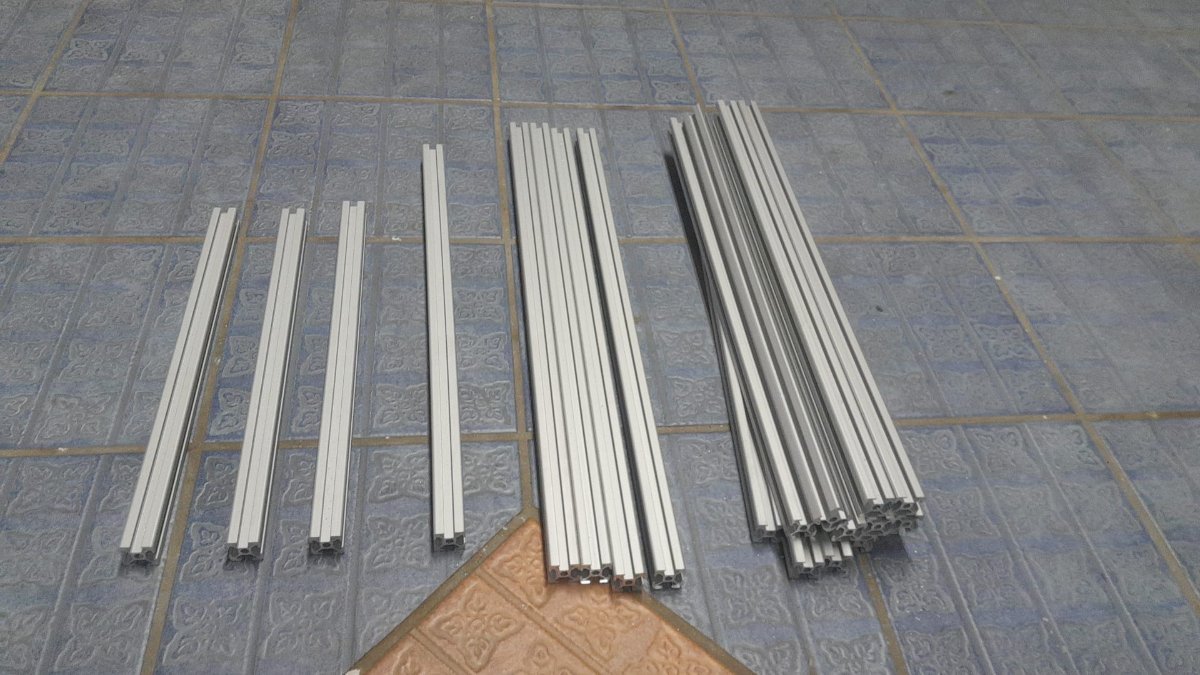

Hello today much the starting signal. I cut, drilled and tapped the profiles. After a turning worm in the right hand, 4 hours later we started building together.

[Gimmi]

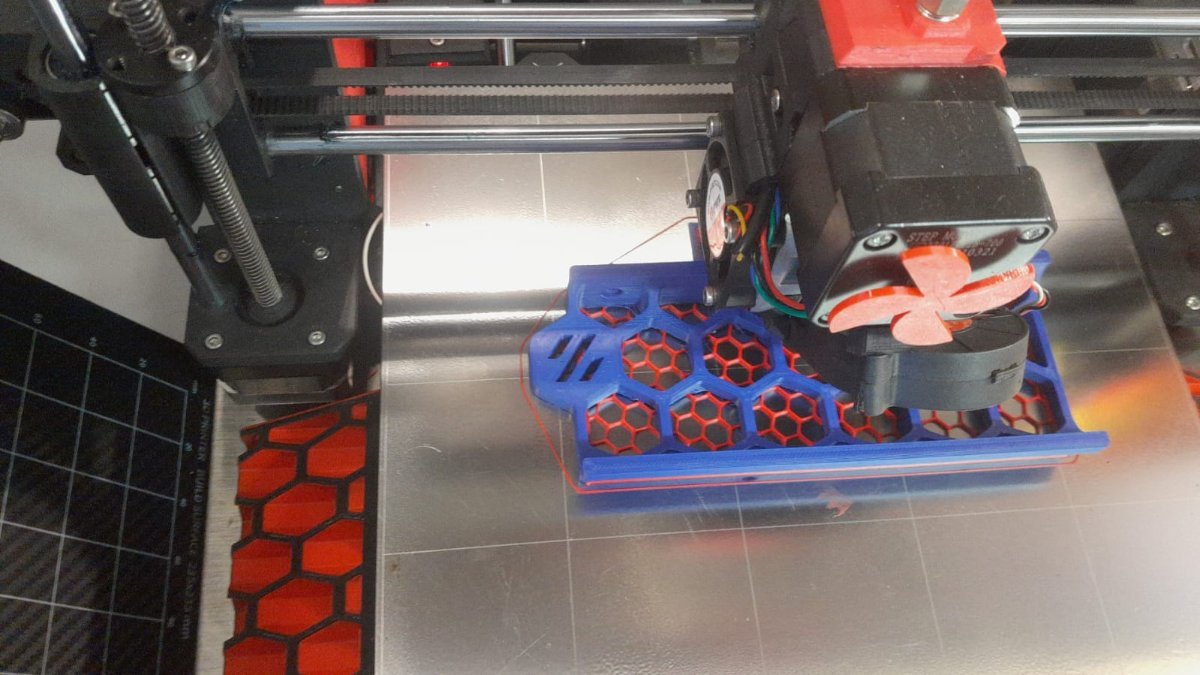

During my construction work, my printers weren't lazy either. My Voron 2.4 is busy printing at the gantry. I gave my Prusa with the MMU2 a special job. I gave the skirts a fly screen in the accent color

[Gimmi]



• Somehow I have an error in the assignment of the profile lengths maybe someone can give me a clue.
•
•
•
• 4x 2020-500-LCP-RCP-AV360          Extrusion   B
• 9x 2020-470-TPW                               Extrusion   A
• 1x 2020-470-AH235-TPW                  Extrusion   C         Frame  Back
• 1x 2020-470-AH235                           Extrusion    F         printing plate??
• 1x 2020-332-LTP                                Extrusion     G       printing plate ??
• 1x 2020-430                                        Extrusion     E          X axis
• 1x 2020-340                                        Extrusion     D
• 1x 2020-330-LTP                                Extrusion     H



Edited May 1, 2023 by Gimmi
Fehler

[mvdveer]

1 hour ago, Gimmi said:

Somehow I have an error in the assignment of the profile lengths maybe someone can give me a clue

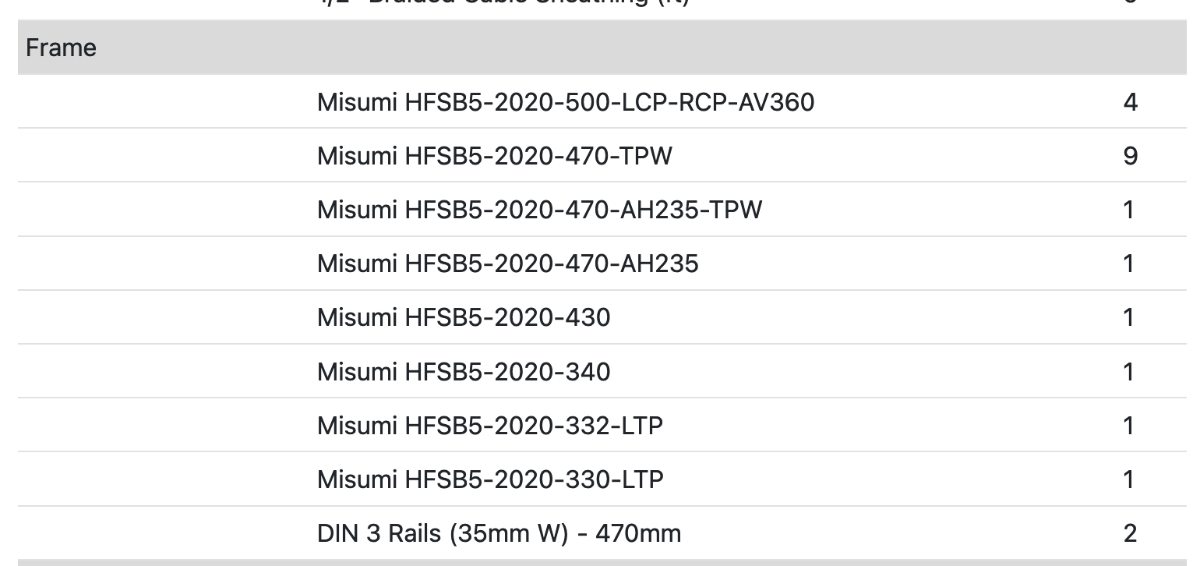

This is according to the Voron Design configuration for a 350mm build trident, if it will help:

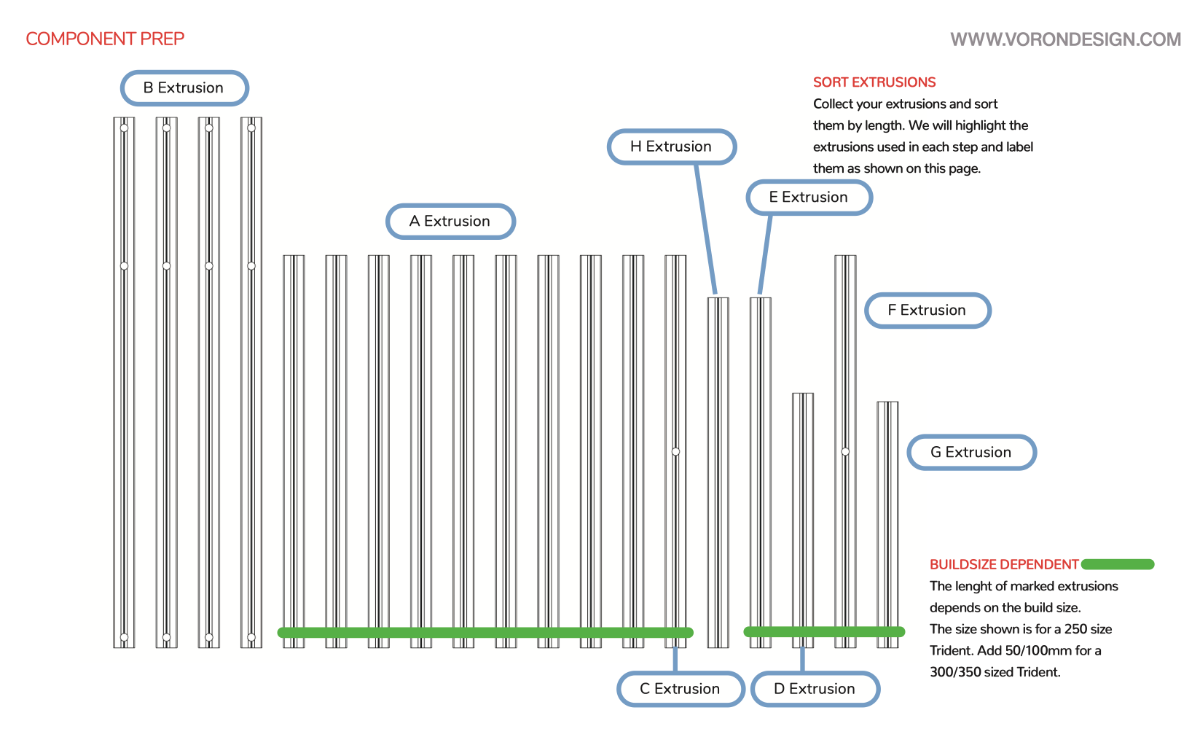

And according to the manual:

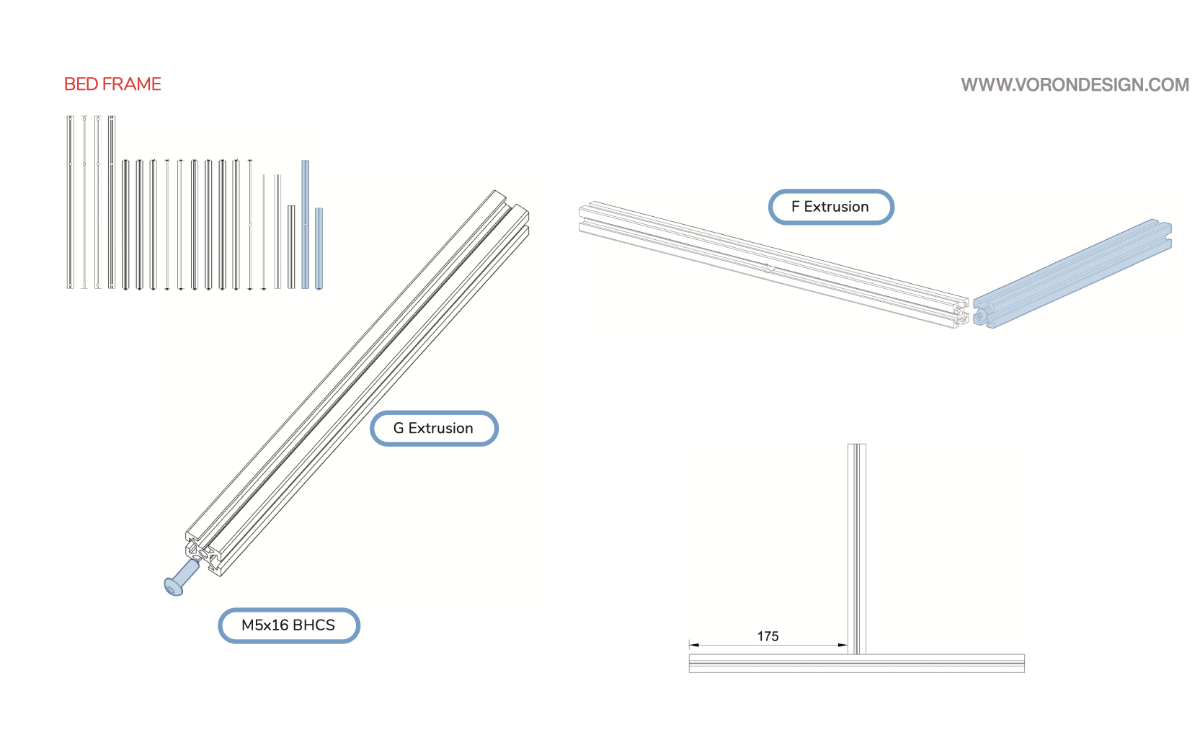

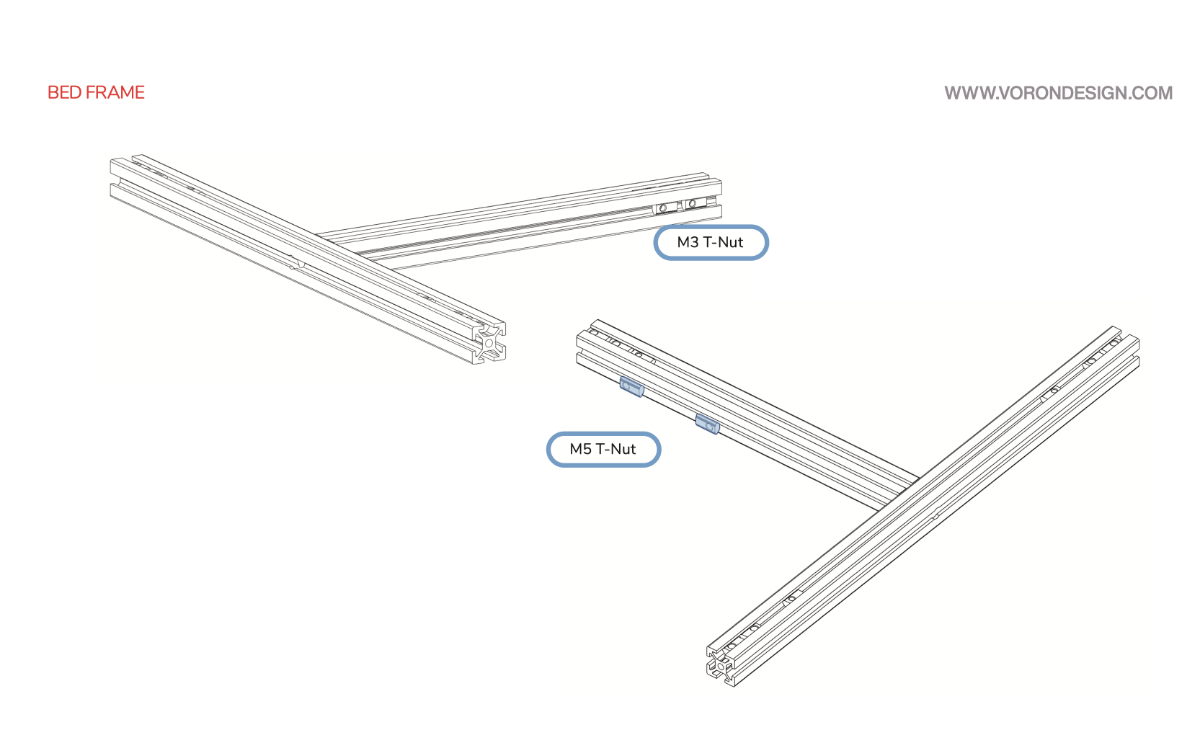

And the bed frame is the F and G extrusions:
