the question about x and y axes


ado1111
 Share

Question

7 answers to this question

Recommended Posts

  • 0
5 hours ago, ado1111 said:

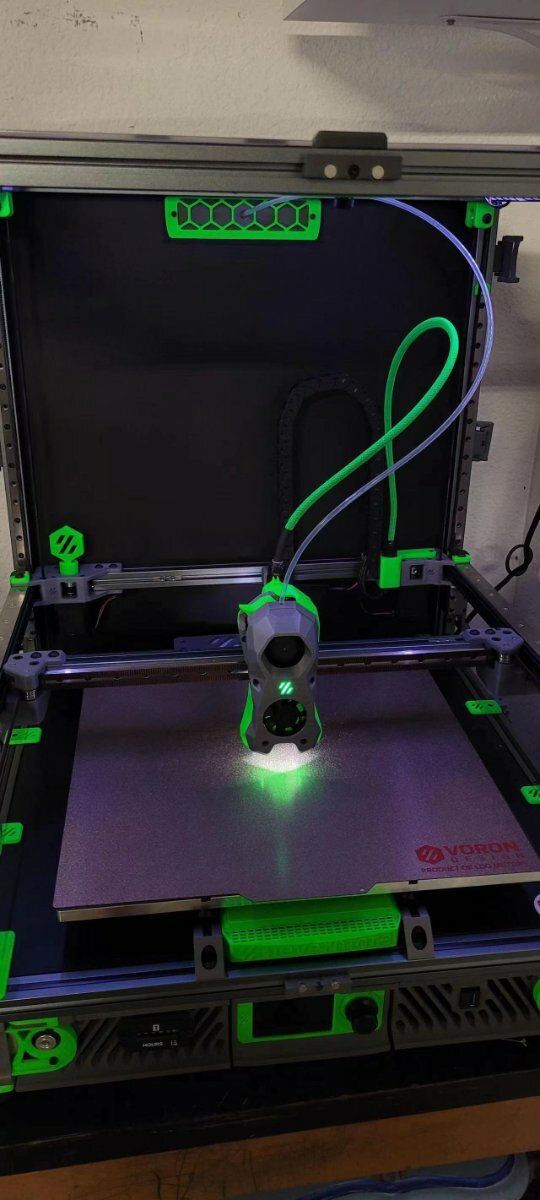

The picture is not my machine, I have a question, are the x and y axes changed on the print head?

Hi @ado1111, I don't understand your question; can you be more specific?

The x and y axis on this machine are like this and could be changed in the firmware but there would be no reason to do that.

461004794.jpg.46b51b864d7a45ccbd4a53175e7b3dc3.thumb.jpg.8fad0427c20e2c652e70b9e436b2d575.jpg



Link to comment
Share on other sites

  • 0
7 hours ago, ado1111 said:

are the x and y axes changed on the print head?

When you run the following command:

STEPPER_BUZZ STEPPER=stepper_x

does the printhead move from left to right or back to front?

It should oscillate from left to right in small increments(1mm in a positive direction) as that is the X-axis. If it moves from front to back, then you have your X and Y motor plugged in incorrectly and these should be swapped.

See:

https://github.com/Klipper3d/klipper/blob/master/docs/Config_checks.md

Link to comment
Share on other sites

  • 0
19 hours ago, Simon2.4 said:

Hi @ado1111, I don't understand your question; can you be more specific?

The x and y axis on this machine are like this and could be changed in the firmware but there would be no reason to do that.

461004794.jpg.46b51b864d7a45ccbd4a53175e7b3dc3.thumb.jpg.8fad0427c20e2c652e70b9e436b2d575.jpg



In the assembly manual, you can see that there are x/y endstops under RIGHT XY JOINT. But where is the RIGHT XY JOINT in the picture below? Did it change position? Forgive my bad english, thx! ! !


Edited by ado1111
Link to comment
Share on other sites

  • 0
4 hours ago, claudermilk said:

Check the Motor Configuration Guide images about halfway down this page: https://docs.vorondesign.com/build/startup/



18 hours ago, mvdveer said:

When you run the following command:

STEPPER_BUZZ STEPPER=stepper_x

does the printhead move from left to right or back to front?

It should oscillate from left to right in small increments(1mm in a positive direction) as that is the X-axis. If it moves from front to back, then you have your X and Y motor plugged in incorrectly and these should be swapped.

See:

https://github.com/Klipper3d/klipper/blob/master/docs/Config_checks.md

Sorry, I didn't make it clear enough. I want to create a project like this (url:

) This player changed the Y Endstop in the original plan to A Drive Joint, but I can't find where the X Endstop is placed. Is it on the print head? Forgive my bad English, thanks

  • Like 1
Link to comment
Share on other sites

  • 0
4 hours ago, claudermilk said:

Check the Motor Configuration Guide images about halfway down this page: https://docs.vorondesign.com/build/startup/



Sorry, I didn't make it clear enough. I want to create a project like this (url:https://www.reddit.com/r/voroncorexy/comments/weosjr/voron_24r2_serial_request_discord_username/) This player changed the Y Endstop in the original plan to A Drive Joint, but I can't find where the X Endstop is placed. Is it on the print head? Forgive my bad English, thanks



Link to comment
Share on other sites
