Software Configuration Issues


Veshraine
 Share

Question

I get weird ouputs when going through the controller path setup for MCU and MCUZ:

pi@fluiddpi:~ $ ls /dev/serial/by-id/
usb-Klipper_lpc1768_FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF-if00
pi@fluiddpi:~ $ ls -l /dev/serial/by-id/
total 0
lrwxrwxrwx 1 root root 13 May  6 08:58 usb-Klipper_lpc1768_FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF-if00 -> ../../ttyACM1
pi@fluiddpi:~ $ ../../ttyACM1

I have retried loading the firmware onto both boards. I ensured durring the make config that usb connection was enabled. Help would be very much appreciated. This is the first time ive done any configuring outside of marlin. I'm using a raspberry pi 4B Update 05/06 10:49 I have now tried both the 4B and 3 raspberry pi, no success same issue.

Build is the Voron 2.4 with SKR 1.4 non turbo

Edited by Veshraine
Link to comment
Share on other sites

7 answers to this question

Recommended Posts

  • 0

a question to your question... what ports are you using on the Pi? I would assume that you are using the 2.0 or 3.0 dual block (I could never get the usb-c port to work - it would see the controller port but never talk over it).

I am using fluiddPi and a BTT OCtopus with a direct serial connection and it works perfectly now. USB was just a pain.

Another thought, if you swap the SKR boards, do you get the same usb-Klipper connection string? Maybe they are identical between the two boards and Pi doesn't know what to do with it.

Link to comment
Share on other sites

  • 0

I am using the usb 2.0 ports, or at least trying to. The raspberry pi is registering that they are connected. Im using the usb type b to type a connection.

Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 004: ID 1d50:614e OpenMoko, Inc. lpc1768
Bus 001 Device 003: ID 1d50:614e OpenMoko, Inc. lpc1768
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

When i swap the connections i get the exact same string.

Here is some more in depth information on the device busses if it helps anyone. Looking at it in depth both iserials are fffff's across the board. That doesn't seem normal to me from what ive seen for other setups from youtube.

Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Couldn't open device, some information will be missing
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               3.00
  bDeviceClass            9 Hub
  bDeviceSubClass         0
  bDeviceProtocol         3
  bMaxPacketSize0         9
  idVendor           0x1d6b Linux Foundation
  idProduct          0x0003 3.0 root hub
  bcdDevice            5.15
  iManufacturer           3 Linux 5.15.32-v7l+ xhci-hcd
  iProduct                2 xHCI Host Controller
  iSerial                 1 0000:01:00.0
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength       0x001f
    bNumInterfaces          1
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0xe0
      Self Powered
      Remote Wakeup
    MaxPower                0mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           1
      bInterfaceClass         9 Hub
      bInterfaceSubClass      0
      bInterfaceProtocol      0 Full speed (or root) hub
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0004  1x 4 bytes
        bInterval              12
        bMaxBurst               0

Bus 001 Device 004: ID 1d50:614e OpenMoko, Inc. lpc1768
Couldn't open device, some information will be missing
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               2.00
  bDeviceClass            2 Communications
  bDeviceSubClass         0
  bDeviceProtocol         0
  bMaxPacketSize0        16
  idVendor           0x1d50 OpenMoko, Inc.
  idProduct          0x614e
  bcdDevice            1.00
  iManufacturer           1 Klipper
  iProduct                2 lpc1768
  iSerial                 3 FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength       0x003e
    bNumInterfaces          2
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0xc0
      Self Powered
    MaxPower              100mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           1
      bInterfaceClass         2 Communications
      bInterfaceSubClass      2 Abstract (modem)
      bInterfaceProtocol      1 AT-commands (v.25ter)
      iInterface              0
      CDC Header:
        bcdCDC               1.10
      CDC ACM:
        bmCapabilities       0x06
          sends break
          line coding and serial state
      CDC Union:
        bMasterInterface        0
        bSlaveInterface         1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0008  1x 8 bytes
        bInterval             255
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       0
      bNumEndpoints           2
      bInterfaceClass        10 CDC Data
      bInterfaceSubClass      0
      bInterfaceProtocol      0
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x02  EP 2 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x85  EP 5 IN
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               0

Bus 001 Device 003: ID 1d50:614e OpenMoko, Inc. lpc1768
Couldn't open device, some information will be missing
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               2.00
  bDeviceClass            2 Communications
  bDeviceSubClass         0
  bDeviceProtocol         0
  bMaxPacketSize0        16
  idVendor           0x1d50 OpenMoko, Inc.
  idProduct          0x614e
  bcdDevice            1.00
  iManufacturer           1 Klipper
  iProduct                2 lpc1768
  iSerial                 3 FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength       0x003e
    bNumInterfaces          2
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0xc0
      Self Powered
    MaxPower              100mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           1
      bInterfaceClass         2 Communications
      bInterfaceSubClass      2 Abstract (modem)
      bInterfaceProtocol      1 AT-commands (v.25ter)
      iInterface              0
      CDC Header:
        bcdCDC               1.10
      CDC ACM:
        bmCapabilities       0x06
          sends break
          line coding and serial state
      CDC Union:
        bMasterInterface        0
        bSlaveInterface         1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0008  1x 8 bytes
        bInterval             255
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       0
      bNumEndpoints           2
      bInterfaceClass        10 CDC Data
      bInterfaceSubClass      0
      bInterfaceProtocol      0
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x02  EP 2 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x85  EP 5 IN
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               0

Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Couldn't open device, some information will be missing
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               2.10
  bDeviceClass            9 Hub
  bDeviceSubClass         0
  bDeviceProtocol         1 Single TT
  bMaxPacketSize0        64
  idVendor           0x2109 VIA Labs, Inc.
  idProduct          0x3431 Hub
  bcdDevice            4.21
  iManufacturer           0
  iProduct                1 USB2.0 Hub
  iSerial                 0
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength       0x0019
    bNumInterfaces          1
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0xe0
      Self Powered
      Remote Wakeup
    MaxPower              100mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           1
      bInterfaceClass         9 Hub
      bInterfaceSubClass      0
      bInterfaceProtocol      0 Full speed (or root) hub
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0001  1x 1 bytes
        bInterval              12

Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Couldn't open device, some information will be missing
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               2.00
  bDeviceClass            9 Hub
  bDeviceSubClass         0
  bDeviceProtocol         1 Single TT
  bMaxPacketSize0        64
  idVendor           0x1d6b Linux Foundation
  idProduct          0x0002 2.0 root hub
  bcdDevice            5.15
  iManufacturer           3 Linux 5.15.32-v7l+ xhci-hcd
  iProduct                2 xHCI Host Controller
  iSerial                 1 0000:01:00.0
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength       0x0019
    bNumInterfaces          1
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0xe0
      Self Powered
      Remote Wakeup
    MaxPower                0mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           1
      bInterfaceClass         9 Hub
      bInterfaceSubClass      0
      bInterfaceProtocol      0 Full speed (or root) hub
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0004  1x 4 bytes
        bInterval              12






Link to comment
Share on other sites

  • 0

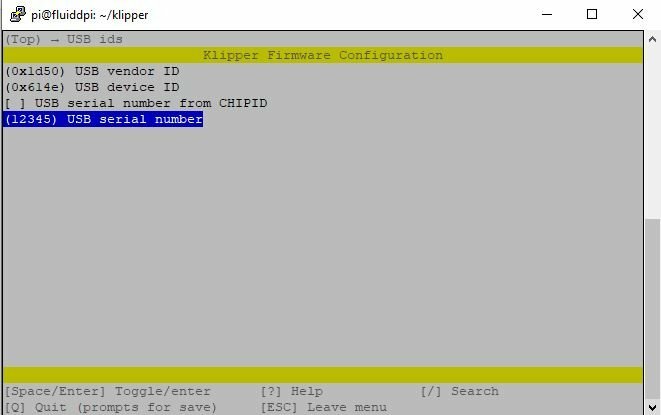

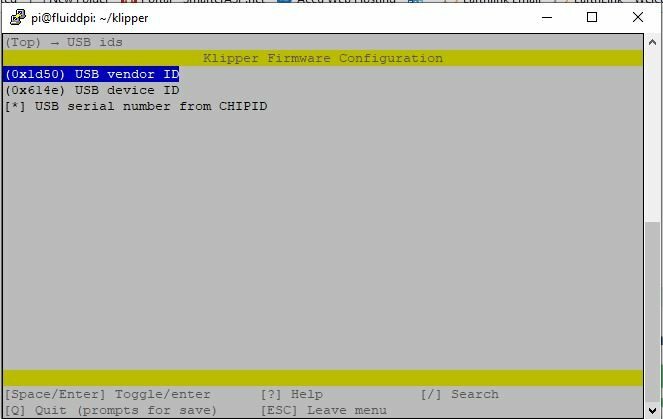

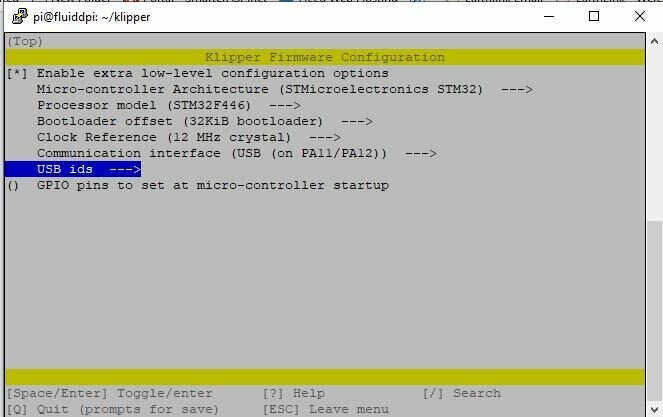

one of the things that you do when you make the controller klipper firmware is run make menucfg where you have the option to change the USB identifiers.  The USB port "name" resides on the controller firmware. If you changed the id of one of the controllers to a different serial number for example. I think that would isolate the USBs on the Pi with two different names. The SKR looks like it has no serial number i.e. all Fs. You could set one to be 100 and the other to be 101 is you wanted. It does mean you would end up making two different firmware.bins but that is not so bad in my view.

Link to comment
Share on other sites

  • 0

my mind always fills in menucfg rather than the menuconfig.

Start "make menuconfig"

when you set the port to USB, the ID menu comes up and you can fill-in your own serial number.

By the way, you will need to identify whatever micro-controller, processor model, etc is. The screen shots show the BTT Octopus.




Edited by SteveThatcher
Link to comment
Share on other sites

  • 0

Ow my GOD!!!!!!! Thank you so much!!! I have been using this guide provided by the voron develolpment teamhttps://docs.vorondesign.com/build/software/skr13_klipper.html

In that guide it does'nt tell you to enable extra low-level configuration options. I can not thank you enough. I made the xye board 100 and the z motor board 101, put the settings into printer.cfg hit save and restart and the beast is online. You have been the most helpful person for my build. Thank you.

Link to comment
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Answer this question...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

 Share

×
×
  • Create New...
