Sneak preview...

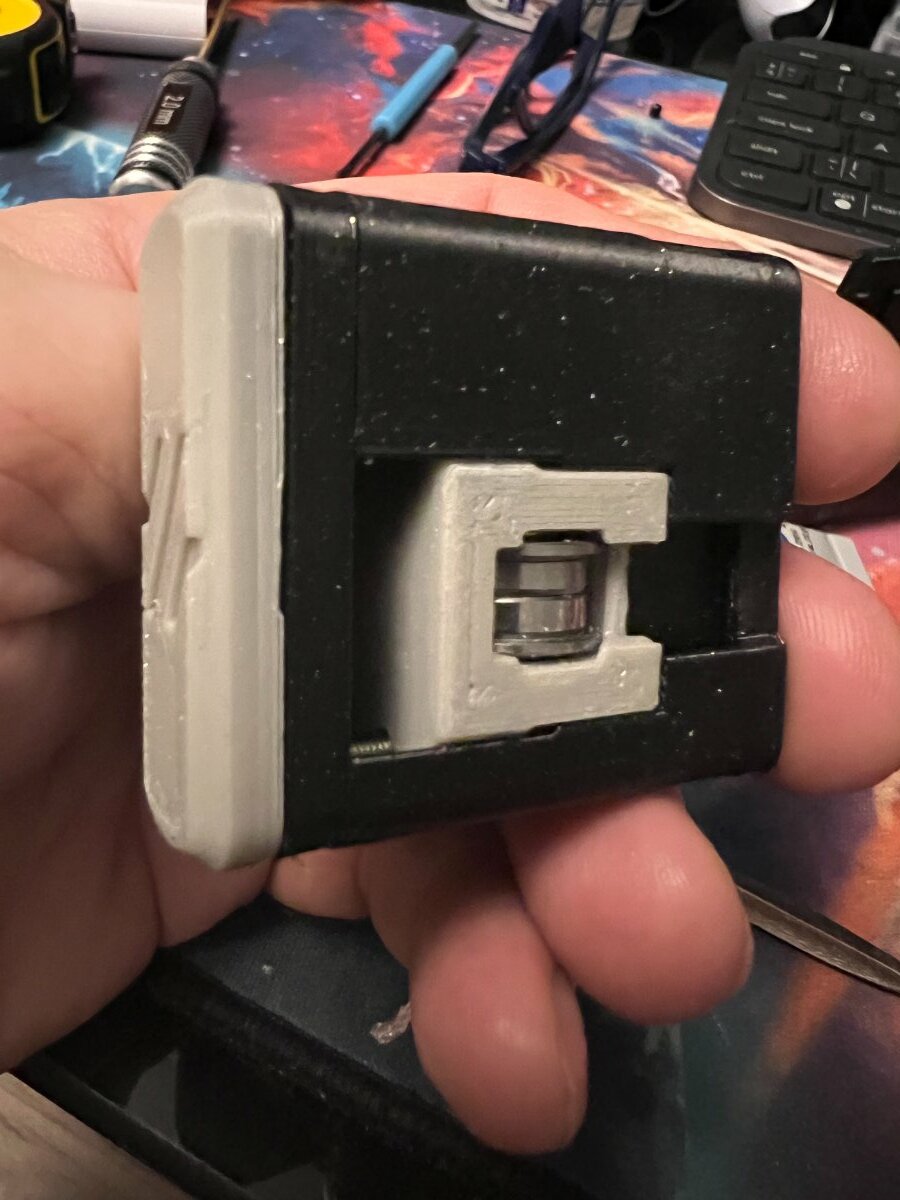

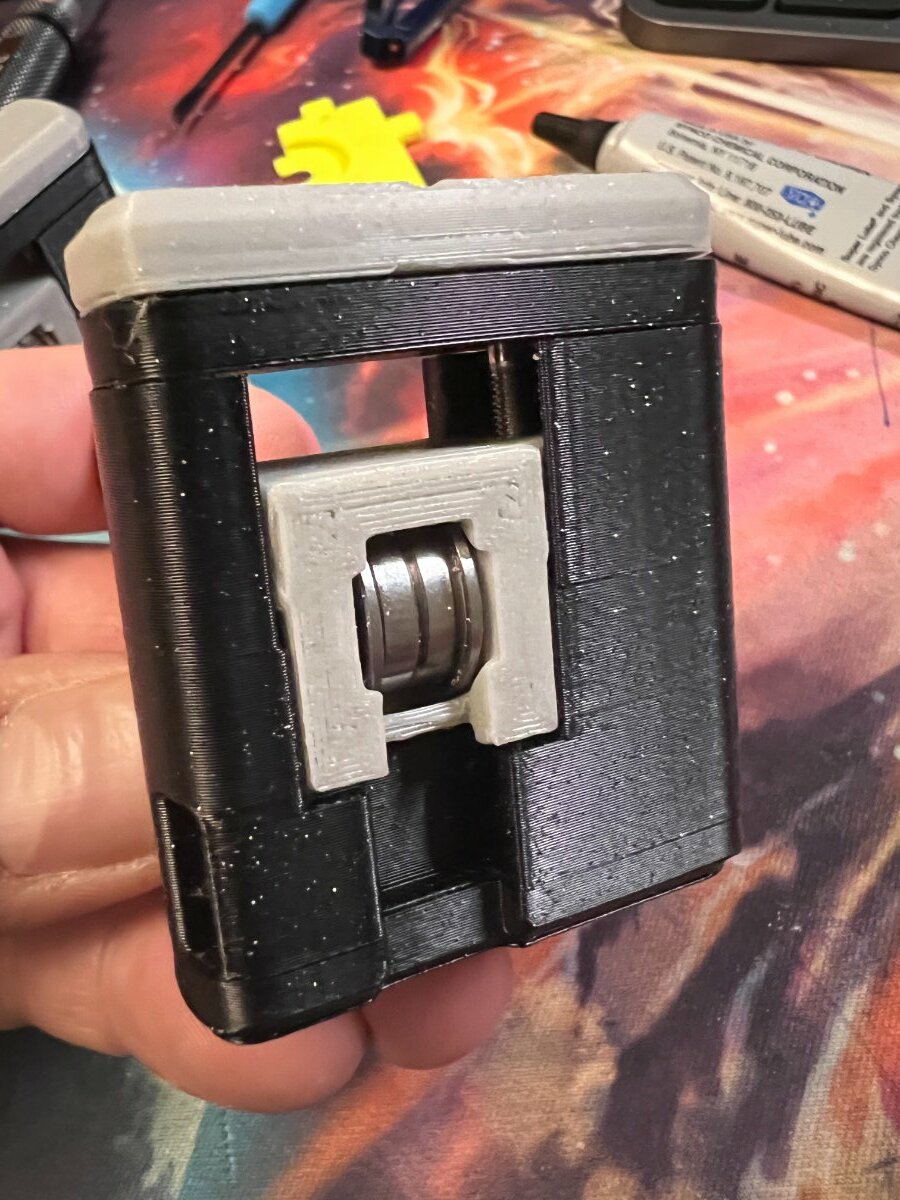

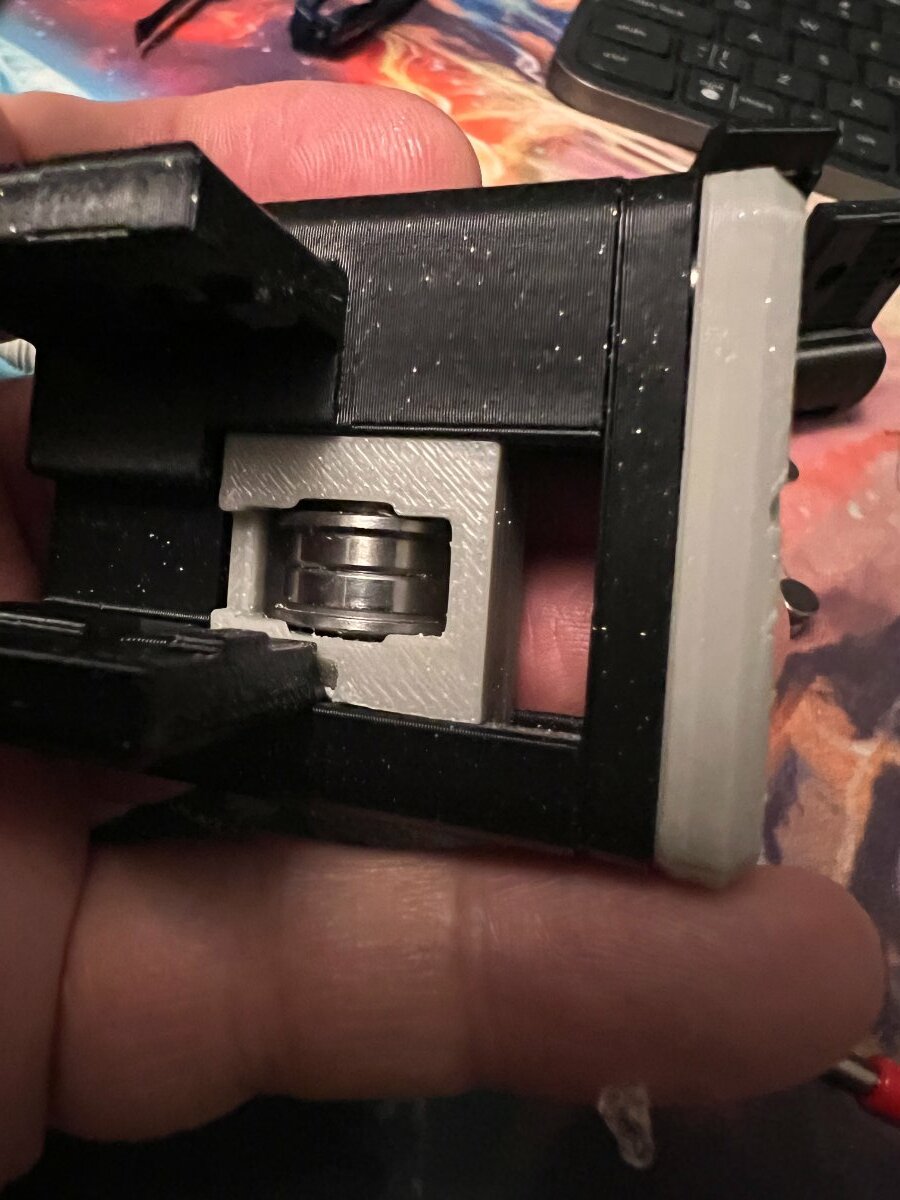

Glitter "The Dark Knight" if he loved glitters that is..

Using Oblivion Black and sparkle grey from Sparta.

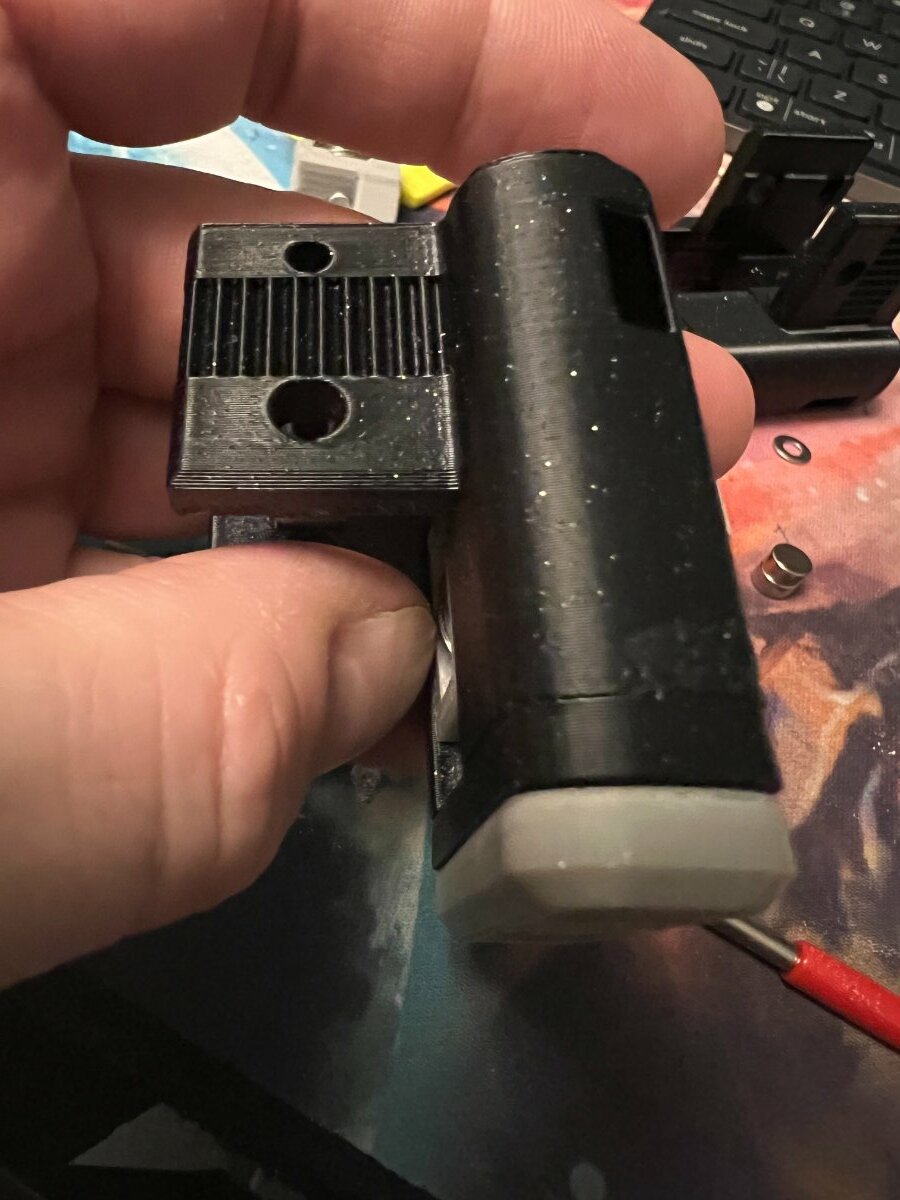

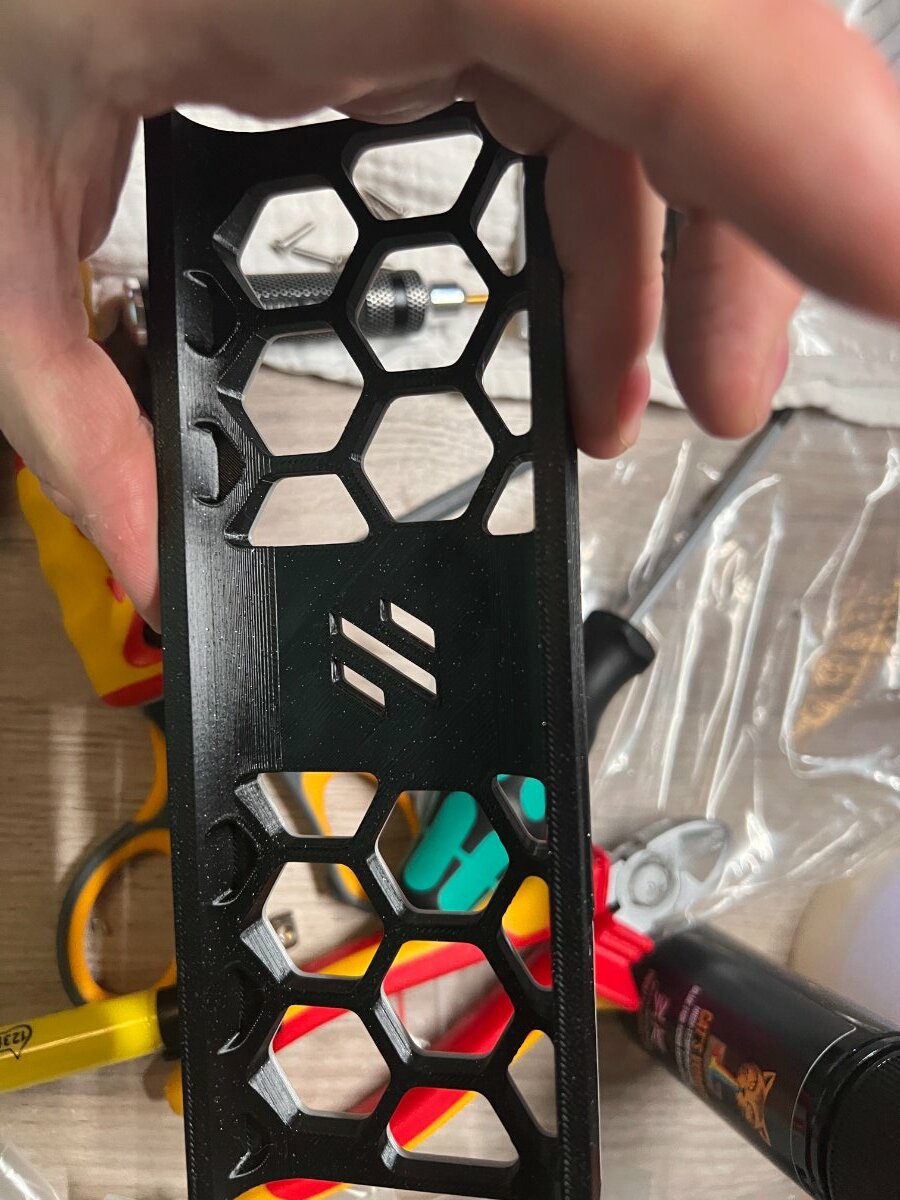

Front Skirts with an infill behind it (two color print) since my little daughter walks around with screwdrivers sometimes.. feels dangerous, and this way she cant fry herself..

Going a bit more lightweight on this build, with the MINI SB, the best extruder out there, the Sherpa, and REVO hotend.

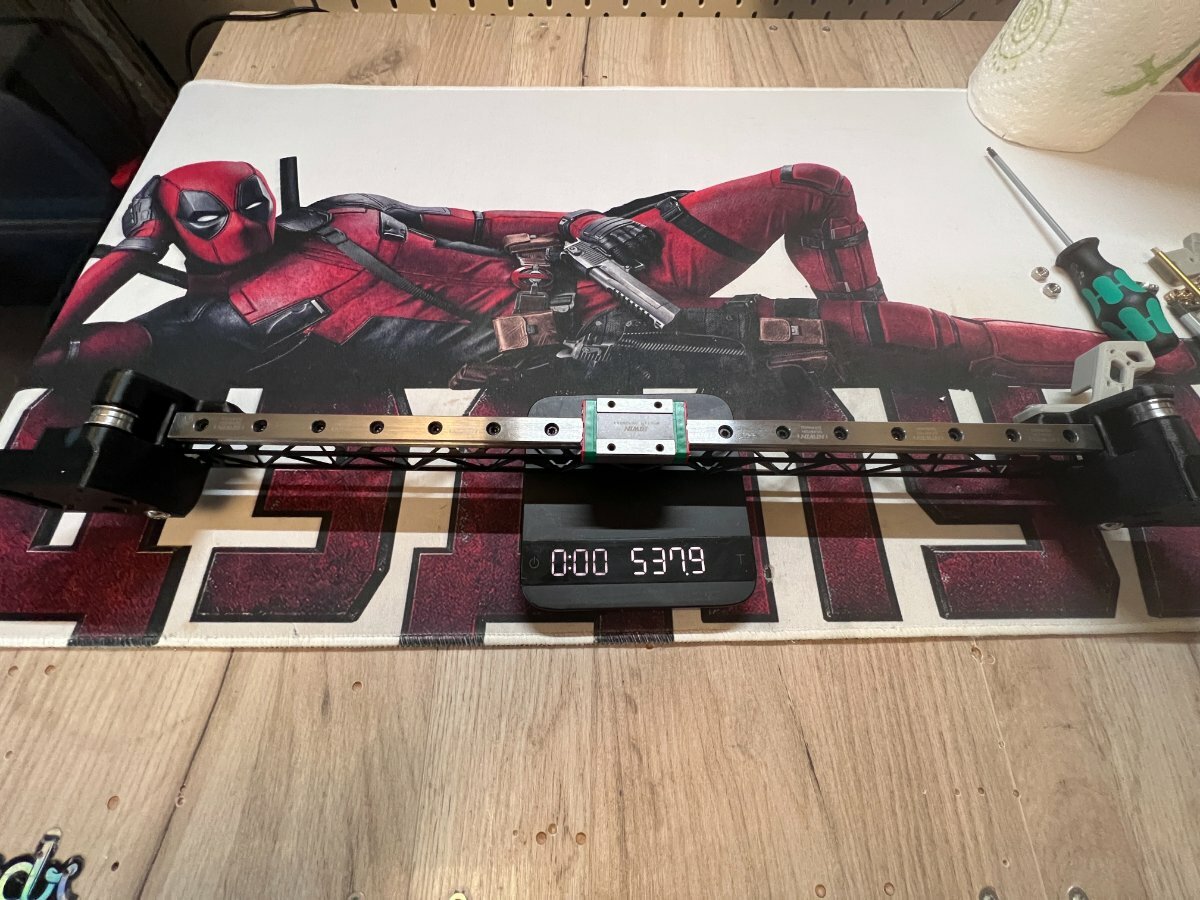

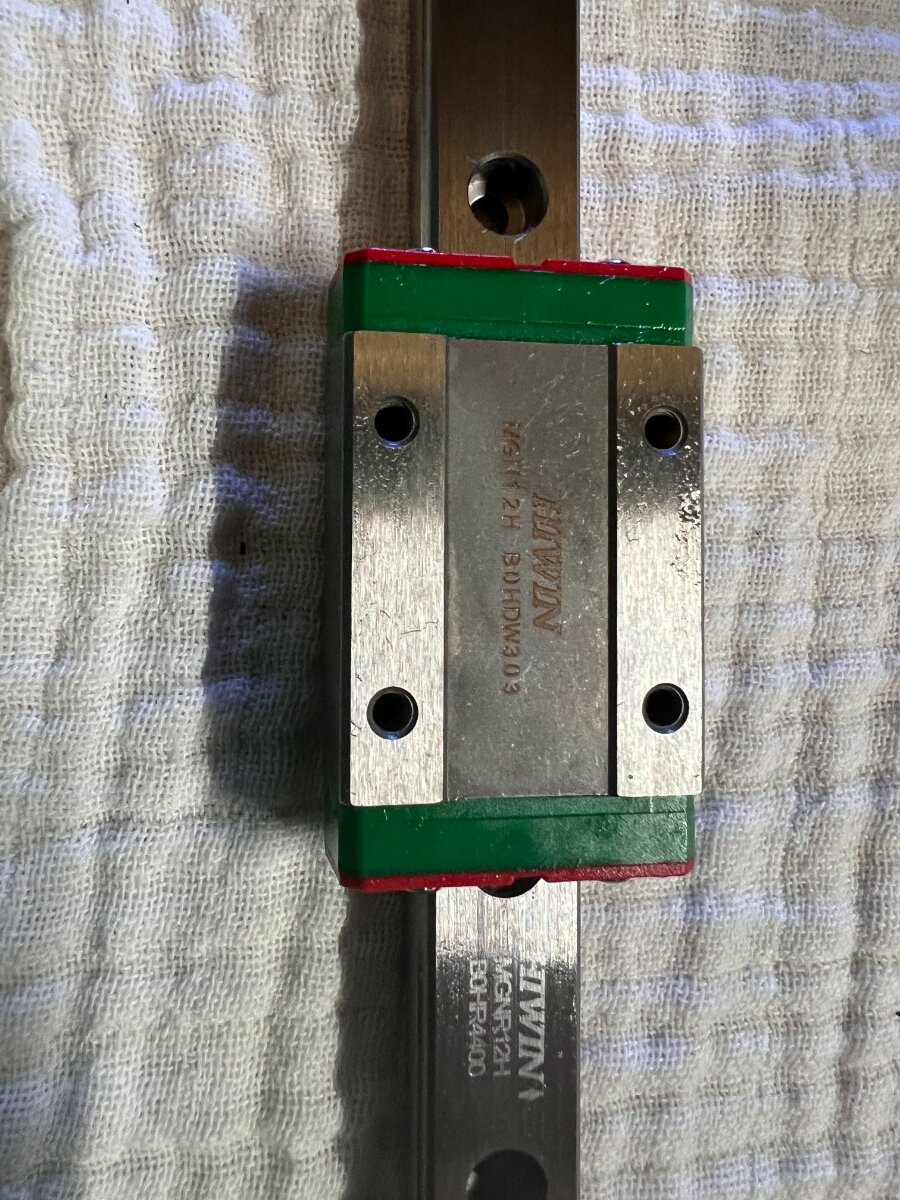

On a X rail from HIWIN, and that will be mounted on a X-rail (aluminium lightweight)



More to come...





  • Like 5
Link to comment
Share on other sites

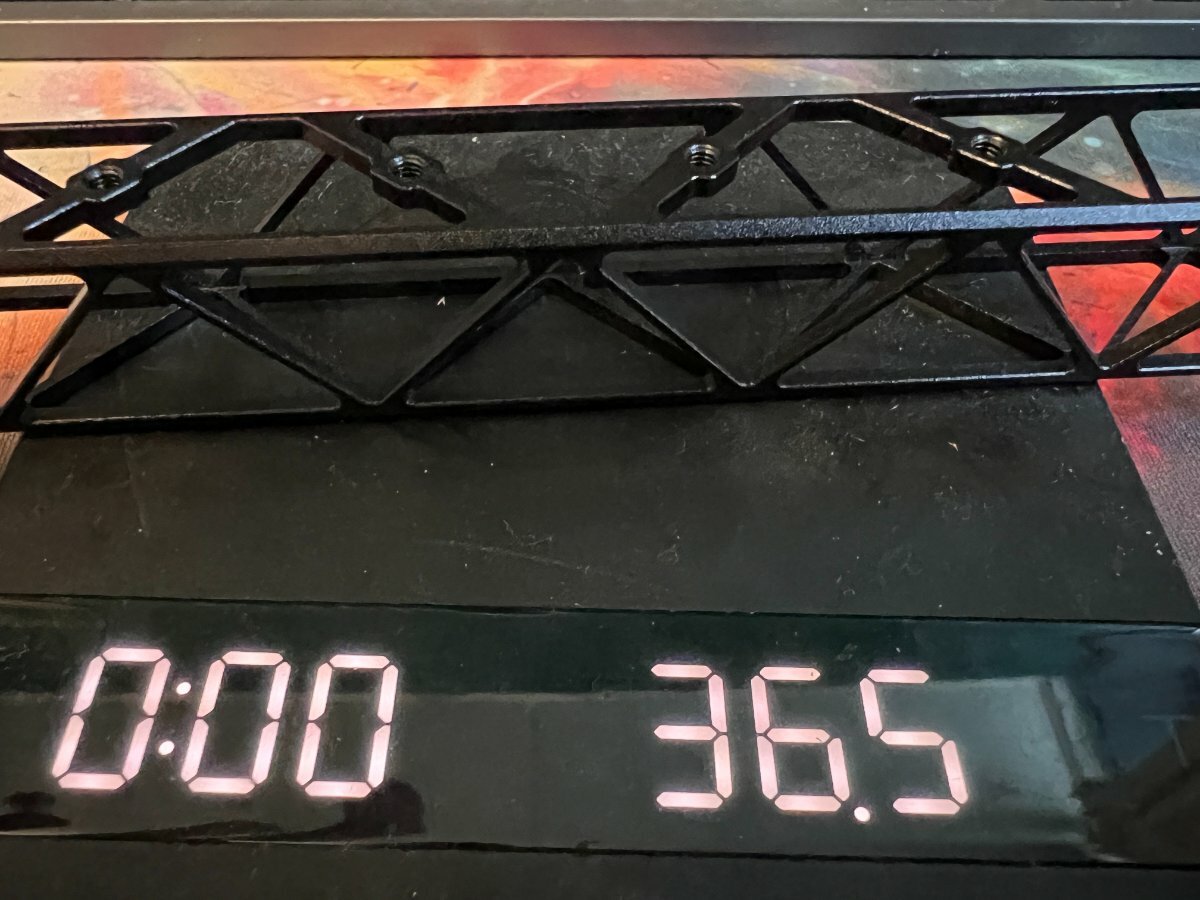

Just received the X gantry extrusion, aluminium lightweight.. its scary light, 36.5 grams. It feels like it will float in the air...

I will weight the original with the lock bolts in there, since thats a comparable config then.

I hope its strong and stiff.. lets see...


  • Like 1
Link to comment
Share on other sites

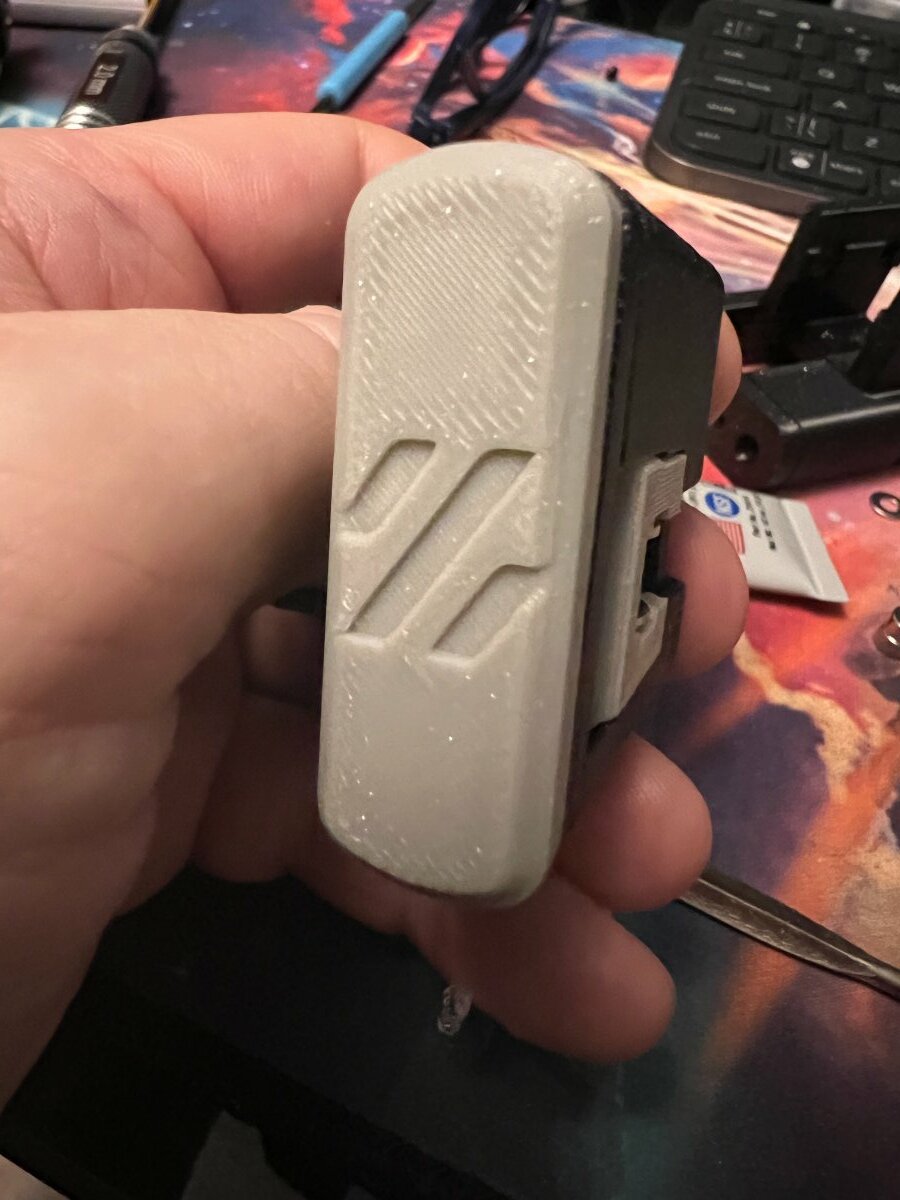

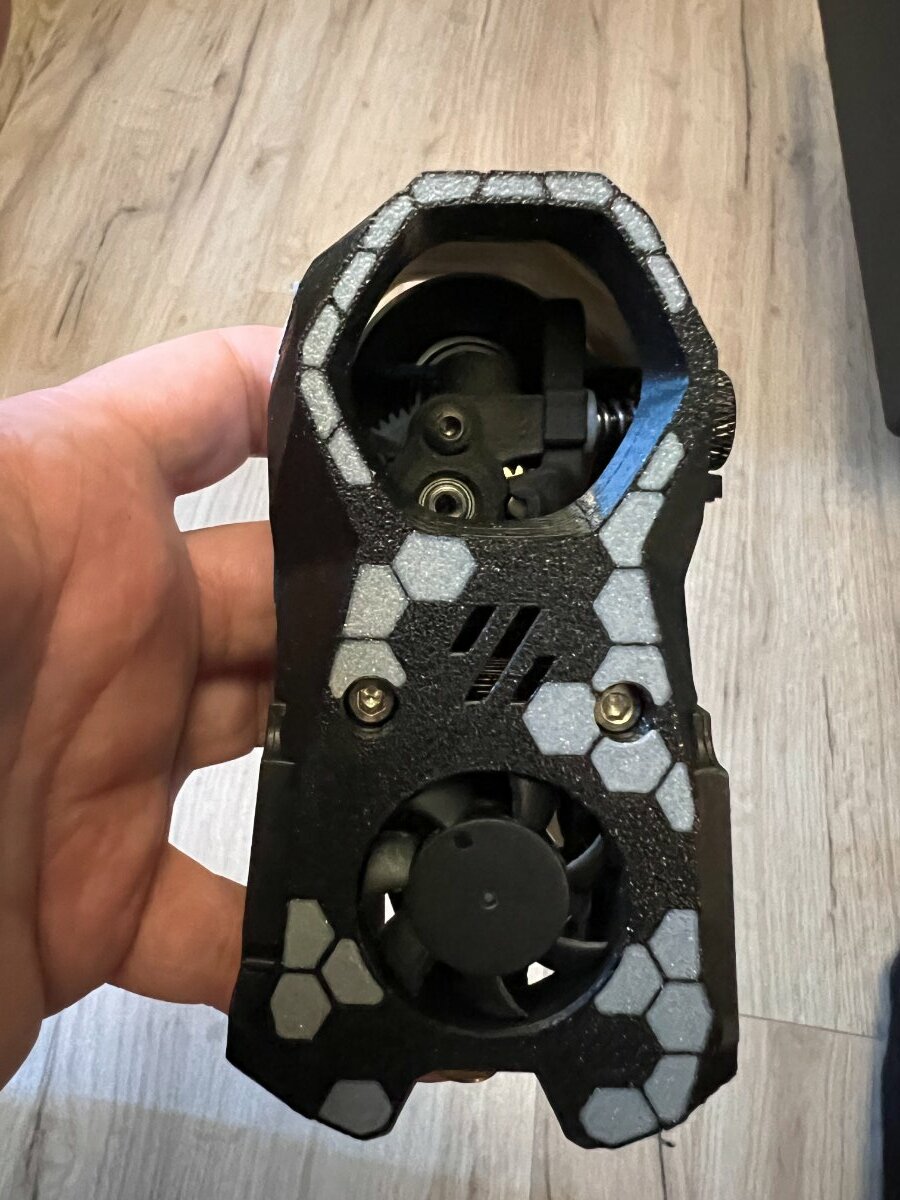

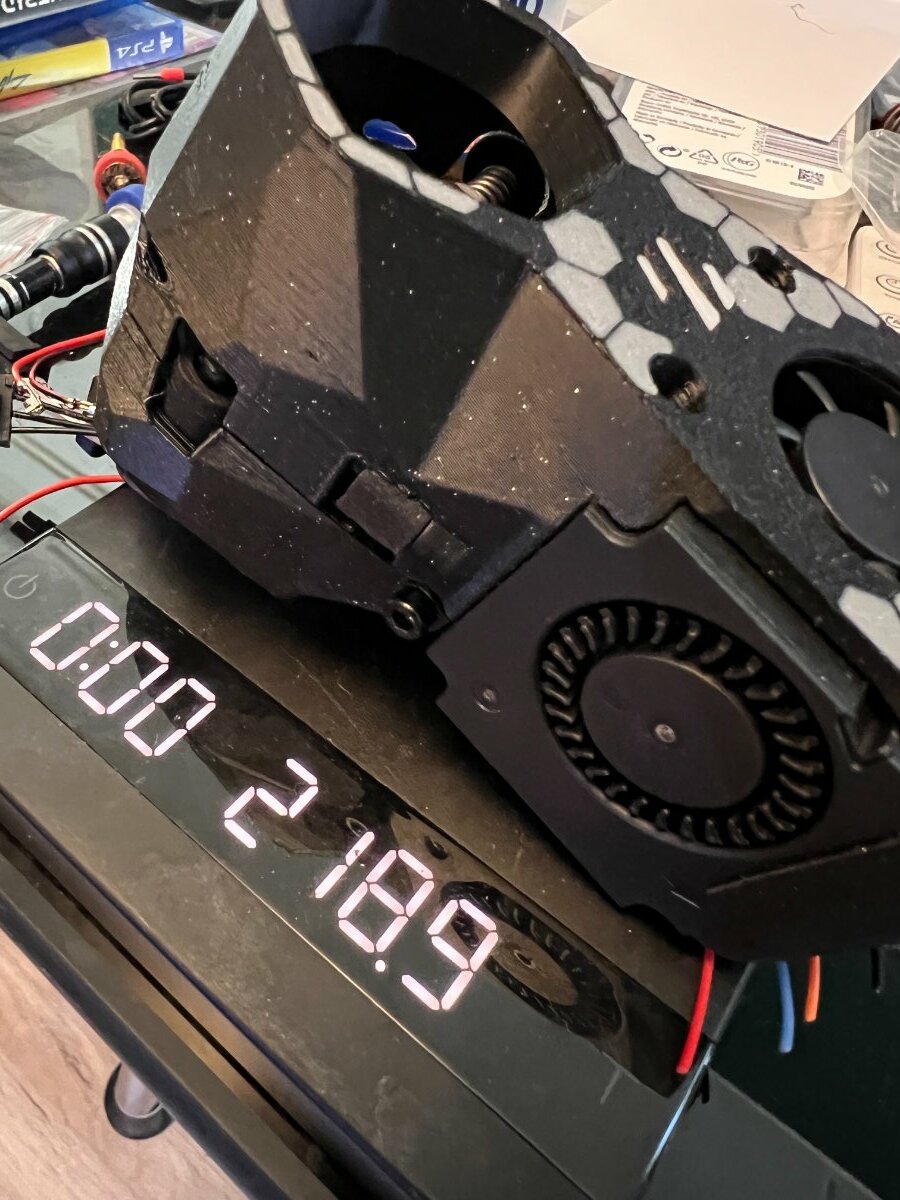

Full Stealth Mini "The Rush" with Sherpa and Revo hotend, all fans and wiring in there....

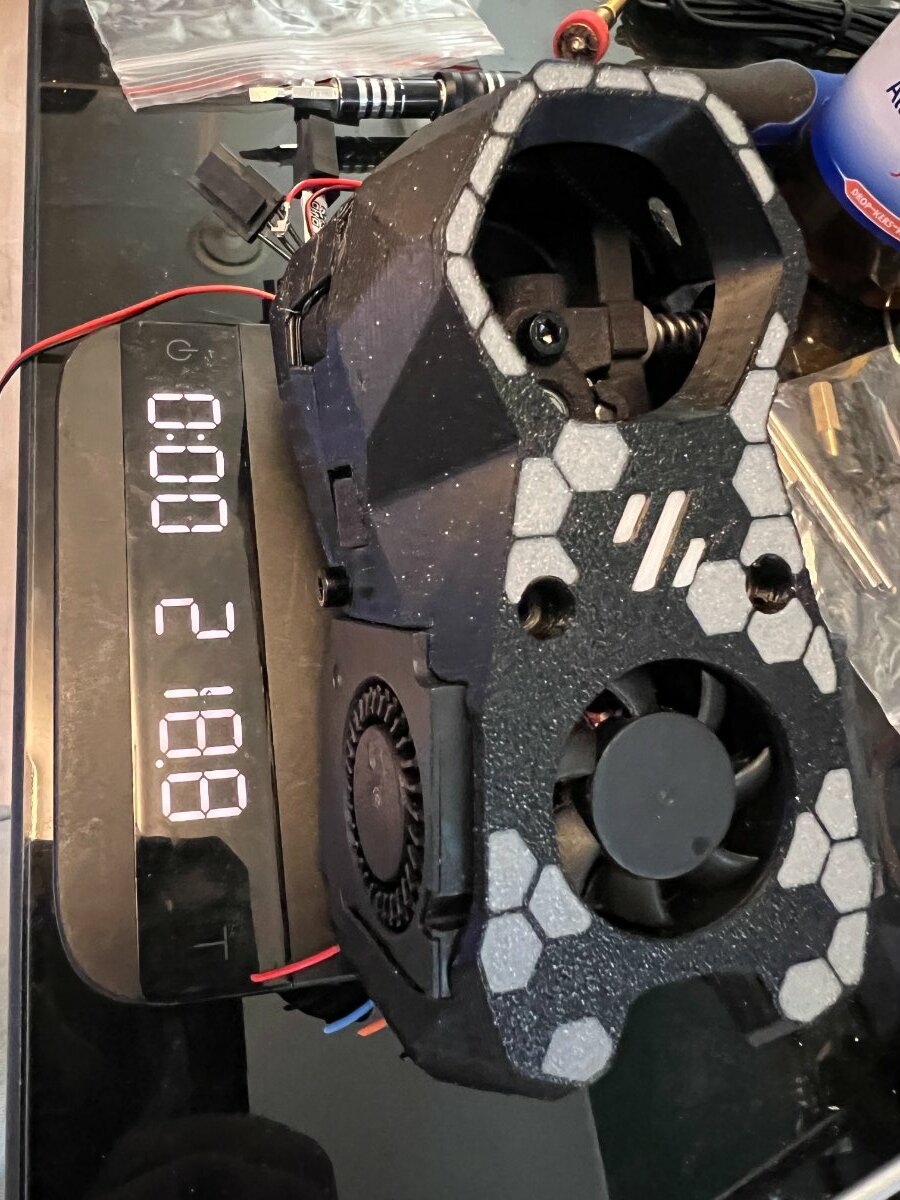

218.8 grams, ok lets call it 219 grams.

Its not on the X-carriage, so its just the complete Mini. I will weight it with X-carriage and Klicky in there...



  • Like 1
Link to comment
Share on other sites

26 minutes ago, Buurman said:

Full Stealth Mini "The Rush" with Sherpa and Revo hotend, all fans and wiring in there....

218.8 grams, ok lets call it 219 grams.

This is impressive! Those aluminum screws make more of a difference than I figured but you still need the two long ones to mount it to the carriage.

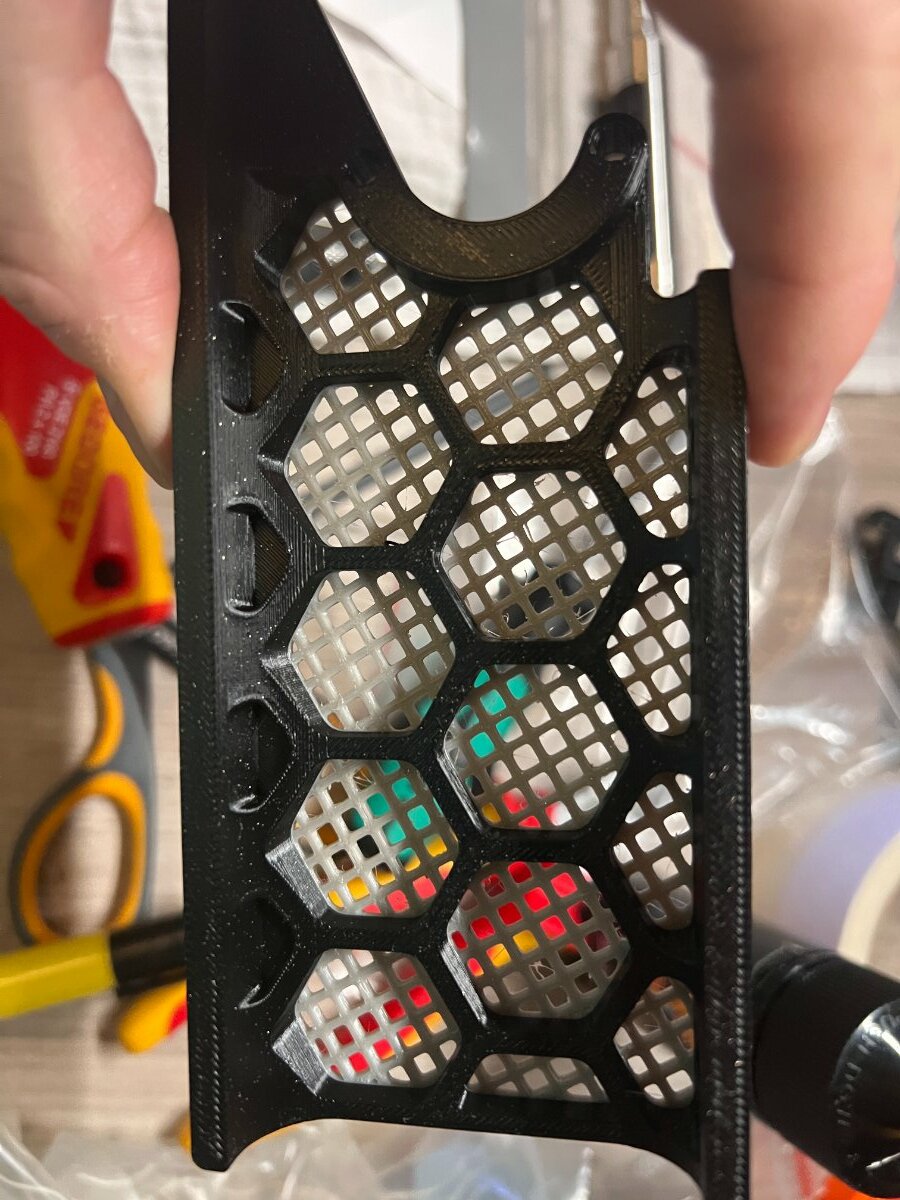

You could shave about 6.5 grams off by doing the crop-top and then you wouldn't need the cable door saving another 7 grams! That would be a fun challenge getting the hex pattern to work with the crop-top 🤔

Link to comment
Share on other sites

1 hour ago, atrushing said:

but you still need the two long ones to mount it to the carriage

True, and I cant find aluminium ones, or titanium ones of that length.... m3 50mm (I think I managed to use 40mm btw..).. too bad.

I dont know what the crop top is..  but I will check it out...

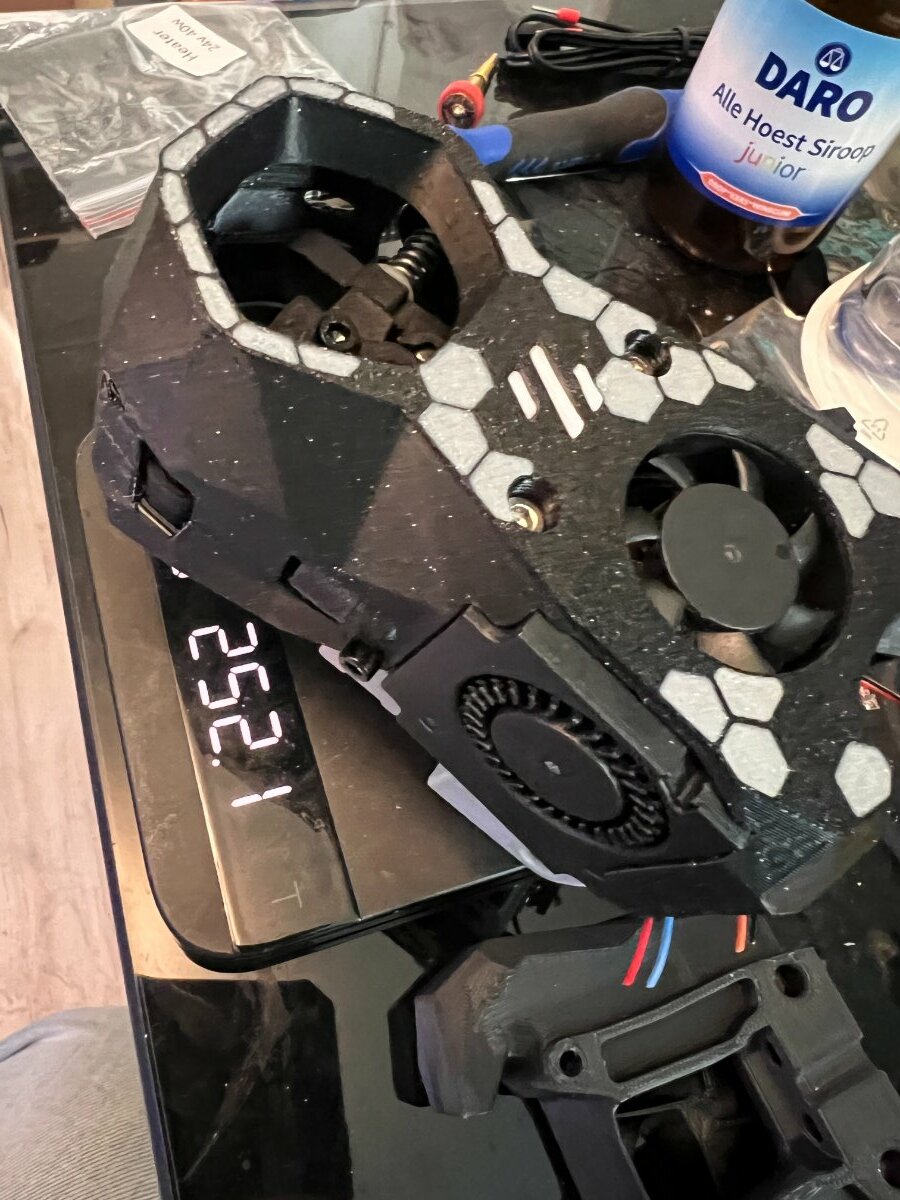

Ok ... FULL set with all screws, including montage to X-carriage and the Klicky on there...

252 grams.

Now I need to know.. what does a normal SB weigh? or a TAP version even...


  • Like 1
Link to comment
Share on other sites

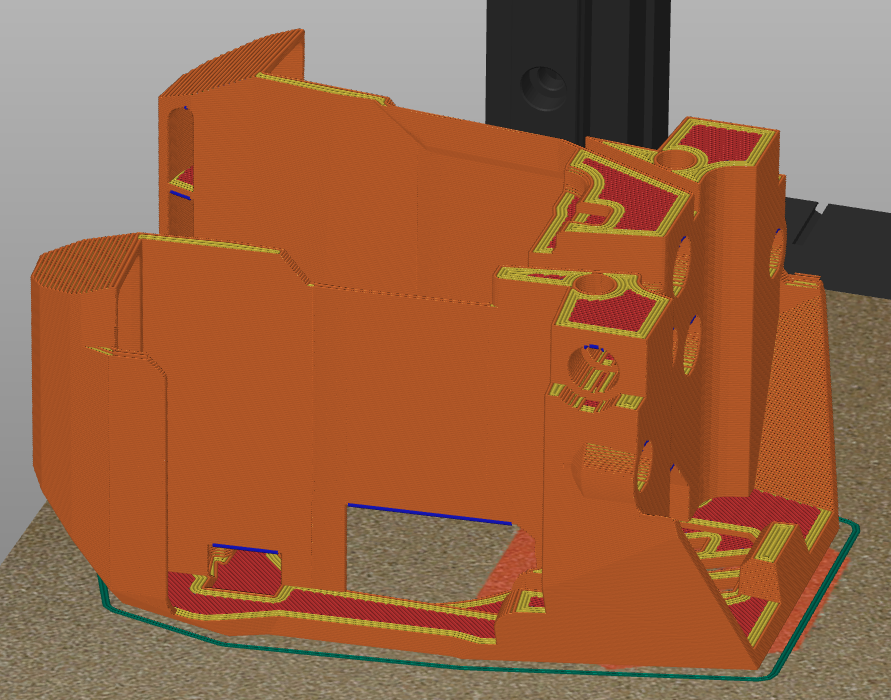

2 hours ago, atrushing said:

I added another negative-body .stl file in the downloads and an extra section in the tutorial to do this:



It also makes it easier to install the hotend and extruder.

Will check it out, although I’m very happy with current results 😂

  • Like 2
Link to comment
Share on other sites

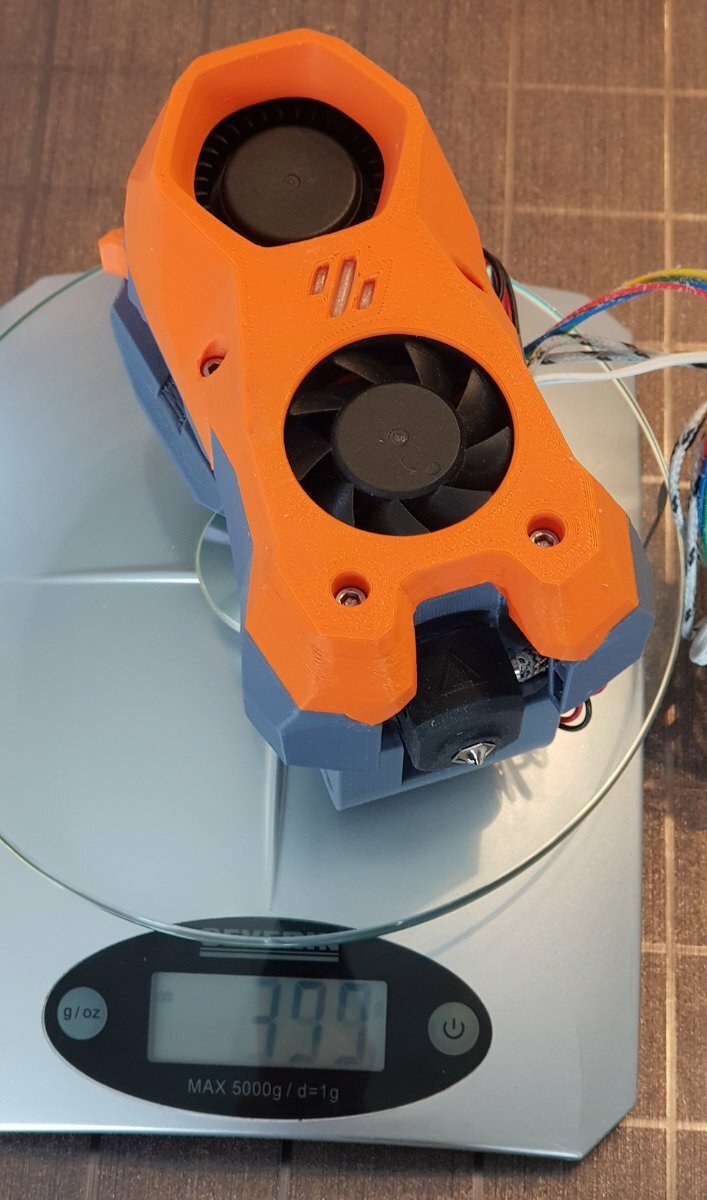

3 hours ago, atrushing said:

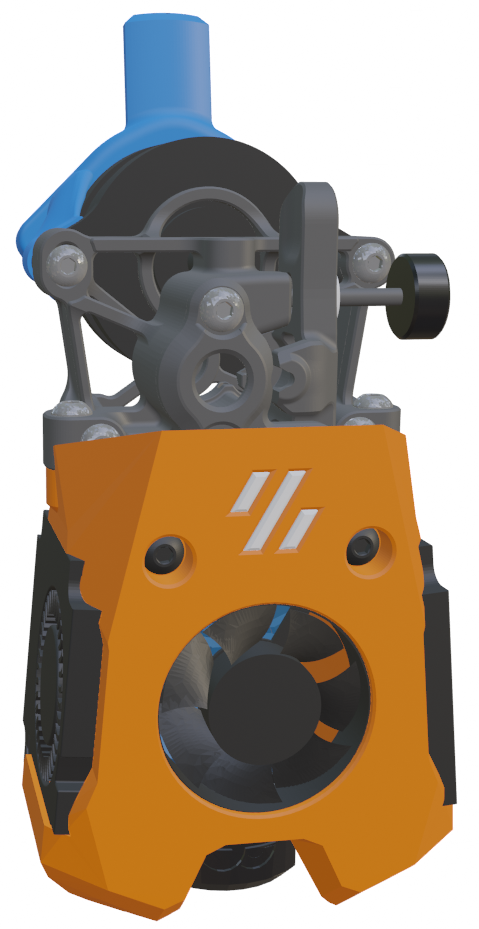

This is with the Galileo extruder, a Dragonfly hotend and without the capacitive probe. 399g


ok, that seems pretty heavy indeed, didnt expect that much of a difference, so I am assuming that a SB with TAP is close to 500grams, if not over... damn..

So I am almost at half the weight I guess with this setup, thats impressive from the Mini/revo/Sherpa combi...

  • Like 2
Link to comment
Share on other sites

2 minutes ago, Buurman said:

So I am almost at half the weight I guess with this setup, thats impressive from the Mini/revo/Sherpa combi...

Very impressive. Darn, first voron speed, now in the lightweight dvision - more speed - go go go go go go go go..

Link to comment
Share on other sites

10 hours ago, Buurman said:

decided to spoil myself a little since I dont have a decent workbench...

Ohhhhhh - a bit jealous I am. So much storage and all for 3d Printing

Link to comment
Share on other sites

37 minutes ago, Buurman said:

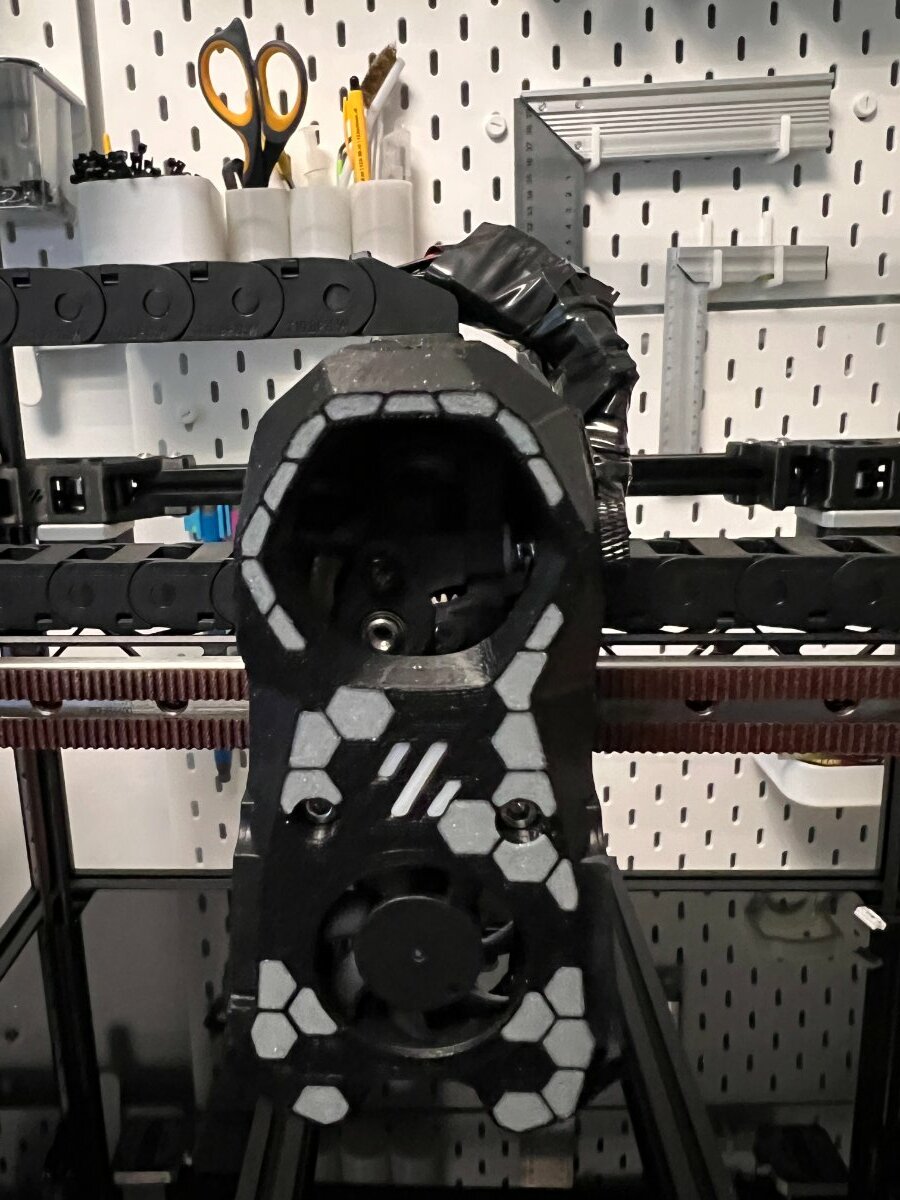

Looks extra nice in sparkly spark..

Looking good - really liking the sparkle. If only the postage from Canada was not so bloody expensive!

Link to comment
Share on other sites

22 hours ago, mvdveer said:

Looking good - really liking the sparkle. If only the postage from Canada was not so bloody expensive!

same here, I took part of a group buy, this way it was ok.. It was under 30 euro a spindle, not bad for this quality of ASA, since, yes its sparkle, but just good filament.
And yes, took 12 spindles.. soooooo.. also weird colors... lets see...

Link to comment
Share on other sites

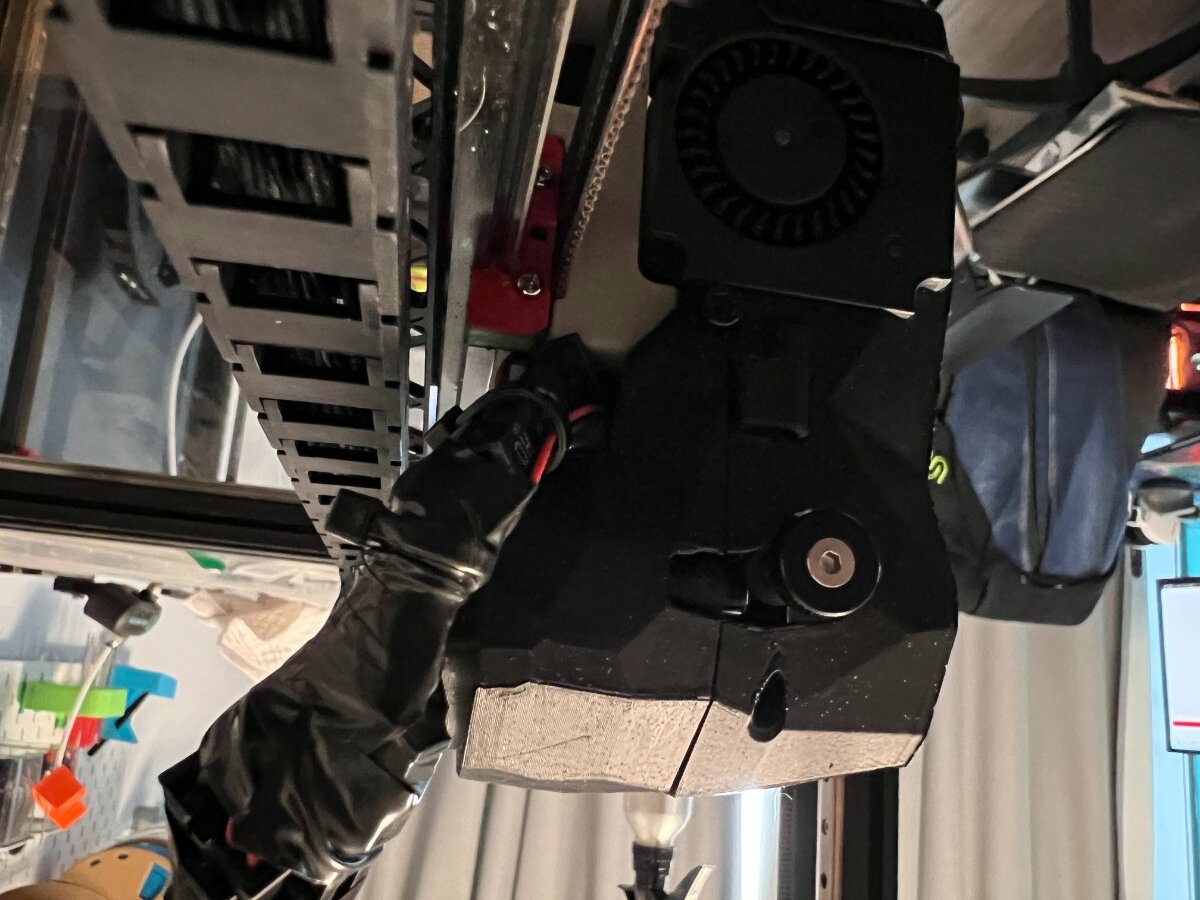

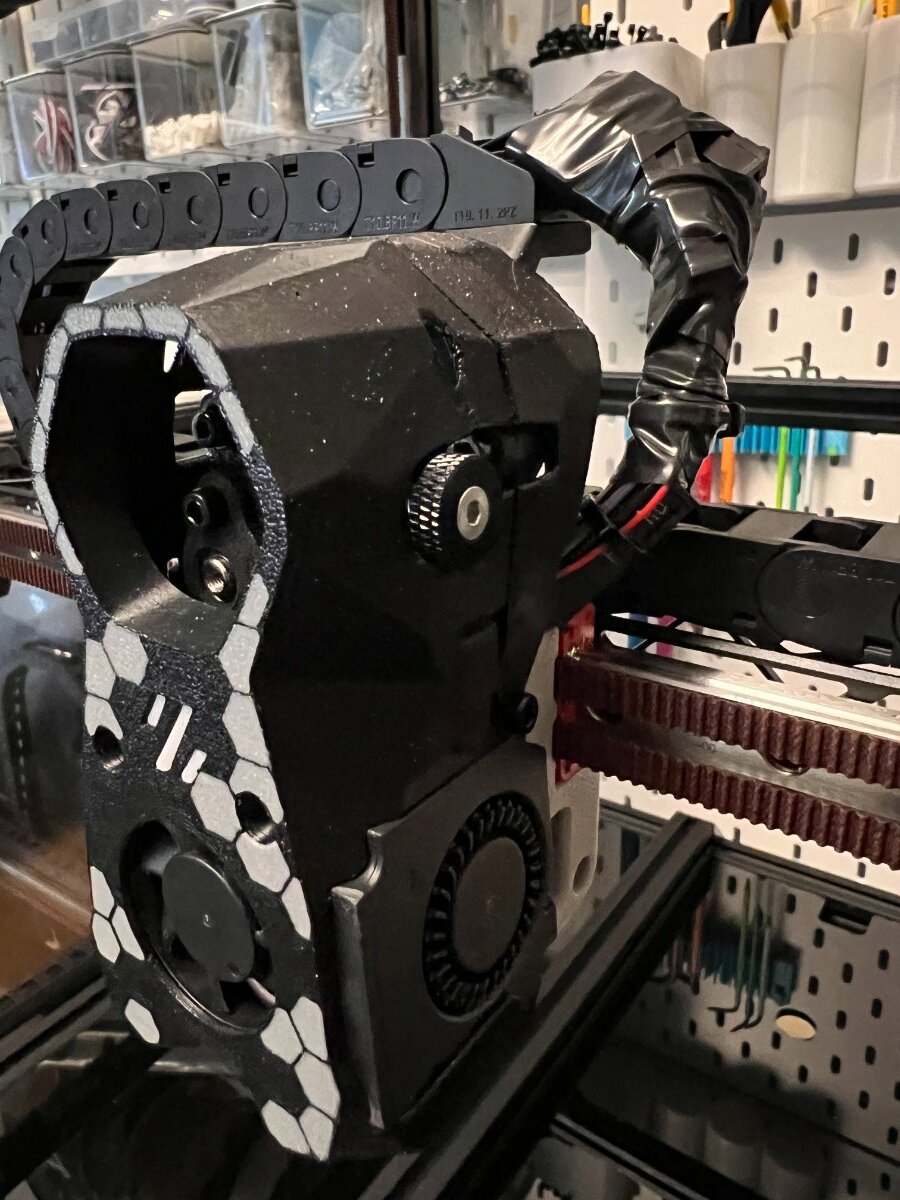

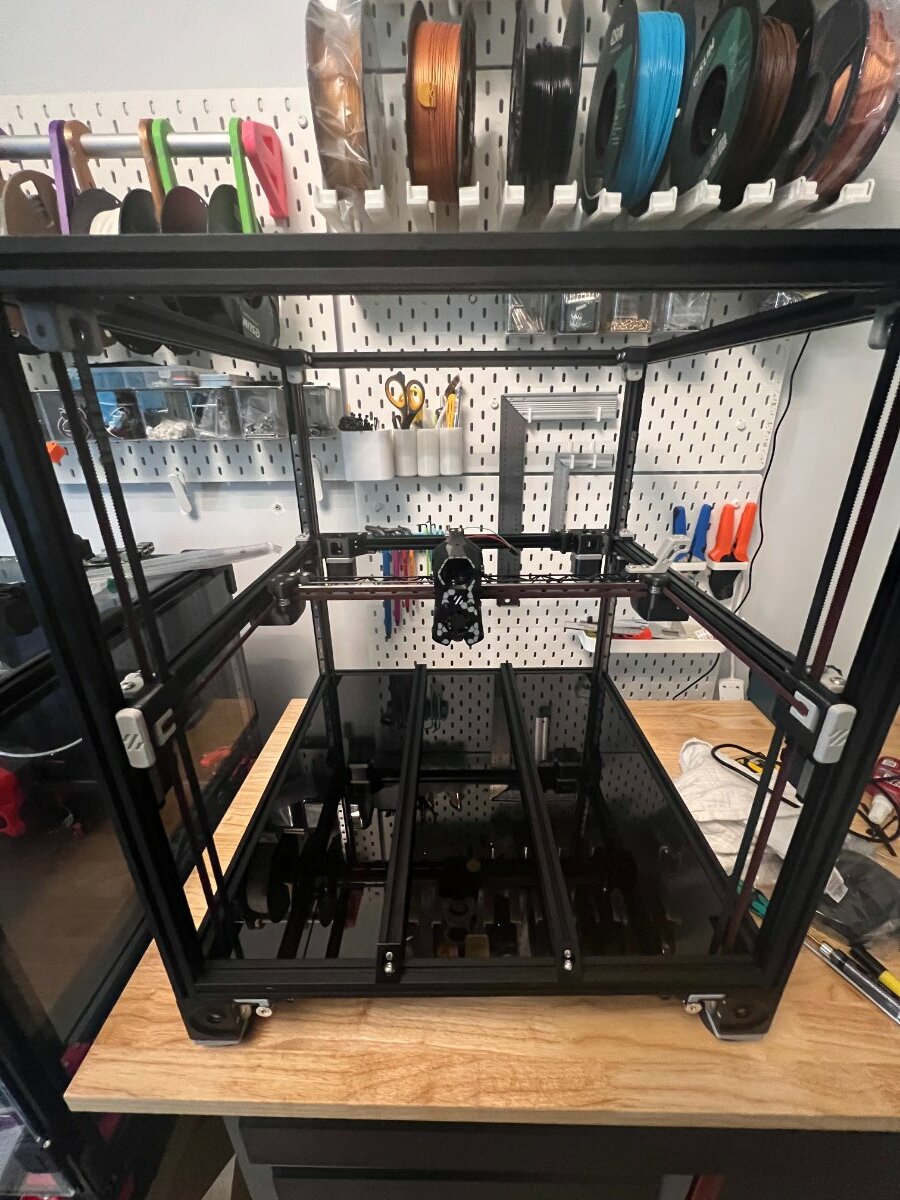

Its starting to look like a printer, but the keen eye will see that I put in my gantry the wrong way around, working without the manual has it downsides 😛

But I just turned around the bottom plate, since nothing was attached yet, took 1 minute to do.. pfew..

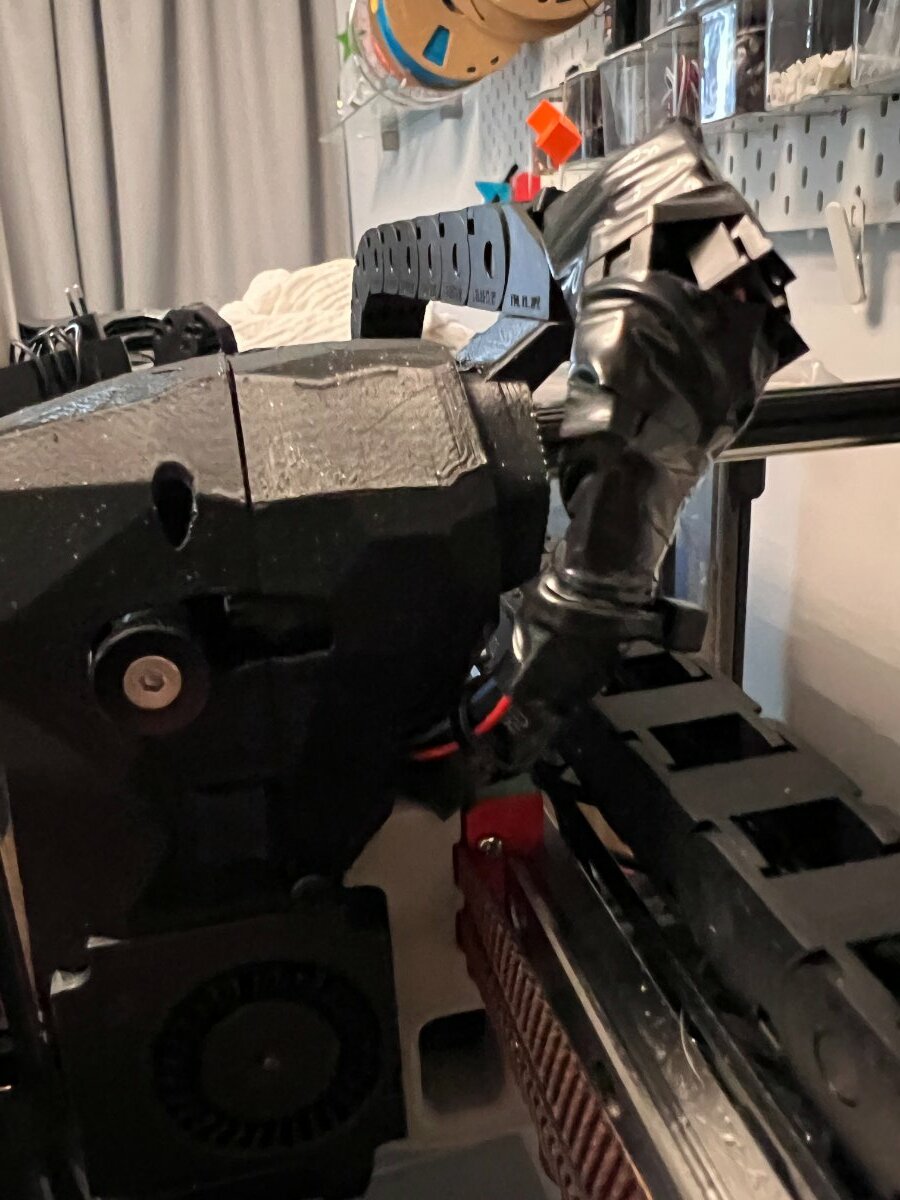

Now the cabling of the Mini Stealth.. damn, now I miss the normal stealthburner, so much space for the connectors and cables, on this.. nothing..

Next time, I will go canbus on this thing, for sure, full cables is just not an option, also no cableduct, but would go direct cable, umbil.. umb.. whatever.. that..

lesson learned, now I try to finish it like this and come up with a better way to hide the UGLY connectors behind the Mini.

Maybe I will still go canbus later.. not afraid to share my failures too 😛






  • Like 1
Link to comment
Share on other sites

6 minutes ago, mvdveer said:

Do it - will be worth it

ooooohhhh.. you make me doubt now to do it now...

I will need to change the endstops too then, do I need to redo the B motor mount?

Link to comment
Share on other sites

3 minutes ago, Buurman said:

do I need to redo the B motor mount?

No, there is a mod to relocate the z-enstop without reprinting the AB Motor Mounts

1. https://www.printables.com/model/363657-voron-v24-trident-rear-umbilical  or

2. https://www.printables.com/model/312008-voron-24-a-drive-pg7-umbilical-mount



Have seen others as well

Link to comment
Share on other sites

3 minutes ago, mvdveer said:

But if you printed the pin mods - then you already have a spot for the Y-switch

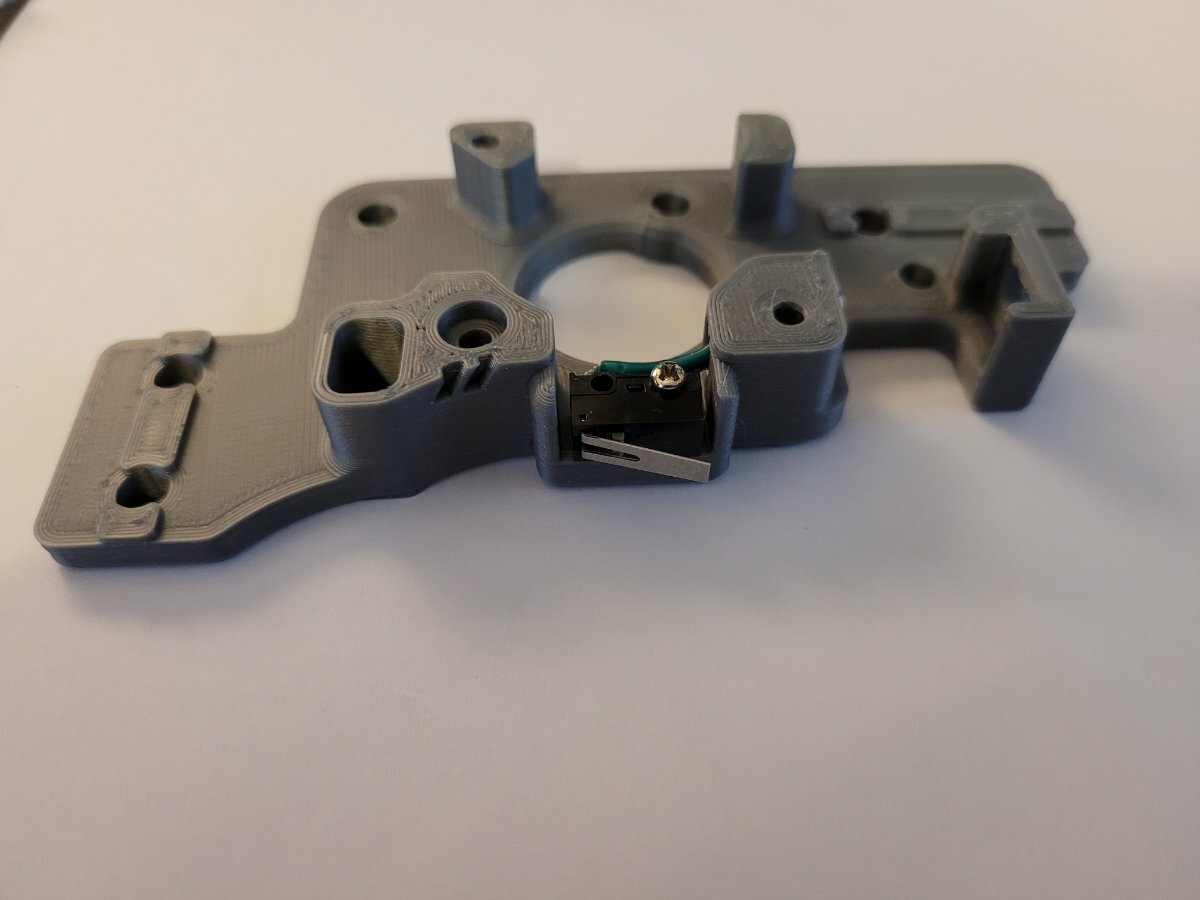

https://github.com/VoronDesign/VoronUsers/blob/master/printer_mods/hartk1213/Voron2.4_Trident_Pins_Mod/Images/ADrive/


I think I am printing an older model or zo, dont have this, but I will use one of above solutions, thanks buddy! really appreciated!

Link to comment
Share on other sites

9 minutes ago, mvdveer said:

Oh, this one looks great!!

3 minutes ago, Buurman said:

I think I am printing an older model or zo, dont have this, but I will use one of above solutions, thanks buddy! really appreciated!

Ah, yeah you have a pinned version WITH endstop, ah, I never printed this one, never needed it....



Ok, lets see if I have a Mello canbus PCB somewhere, since I think I have

Link to comment
Share on other sites

@atrushing what fits on the back of a mini?

@mvdveer as experienced canbus user now, what do I need? (encoder??, PT100??)
EDIT: ah, this is for ADXL and thermistor... can be useful, so ok.. I guess.. WITH.

https://nl.aliexpress.com/item/1005004687165673.html?spm=a2g0o.store_pc_allProduct.8148356.5.23ce1932isU5VC&pdp_npi=2%40dis!EUR!€ 22%2C48!€ 18%2C66!!!!!%40211b88f116783576240683040e1f31!12000030100002399!sh

Link to comment
Share on other sites
