Move exceeds maximum extrusion (4.357mm^2 vs 0.640mm^2)


Pradit
 Share

Question

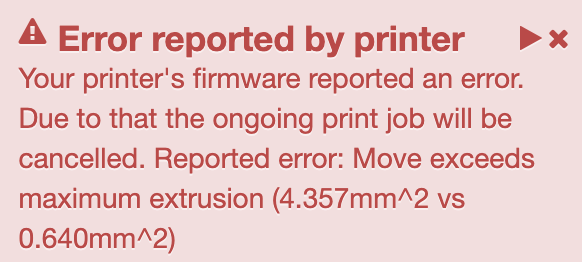

Hi what is this error mean? "Move exceeds maximum extrusion (4.357mm^2 vs 0.640mm^2)"


It stop mid print. It's been printing an hour and stop with this.

[2023-01-21 21:45:40,066] INFO: Klipper: Standby
[2023-01-21 23:50:07,689] ERROR:  Move exceeds maximum extrusion (4.357mm^2 vs 0.640mm^2)

[2023-01-21 23:50:07,695] INFO:  Move exceeds maximum extrusion (4.357mm^2 vs 0.640mm^2)
 See the 'max_extrude_cross_section' config option for details

[2023-01-21 23:50:08,149] INFO:  Unknown command:"M108"

Help please.

Thanks.

Link to comment
Share on other sites

3 answers to this question

Recommended Posts

  • 0

It means you are trying to extrude or move more than the extruder config settings will allow. I ran into similar long ago. Look in your printer.cfg under the extruder section. That is where the max_extrude_cross_section entry is. So you're trying to push 4.357mm^2 through and the config file is limiting to 0.64mm^2. I have mine set to 5 as suggested by the KAMPS purge macro and have had no ill side effects.

  • Like 1
Link to comment
Share on other sites

  • 0
20 hours ago, claudermilk said:

It means you are trying to extrude or move more than the extruder config settings will allow. I ran into similar long ago. Look in your printer.cfg under the extruder section. That is where the max_extrude_cross_section entry is. So you're trying to push 4.357mm^2 through and the config file is limiting to 0.64mm^2. I have mine set to 5 as suggested by the KAMPS purge macro and have had no ill side effects.

max_extrude_cross_section = 5

or

max_extrude_cross_section = 50

?
