Any tips for what relay to use to really be able to shut the entire printer off from a klipper macro?

Looking at the biqu(btt) relay power board..  looks decent, but any others to consider? Perhaps the Omron relay?

(for an octopus board and a btt pico btw)



Edited November 29, 2022 by Zeno

[Manu45]

Take a look at the [power] section of Moonraker it should be possible to trigger a TP-Smartplug with it.



okay i tested it tapo smartplug p100 dont work.

Edited November 29, 2022 by Manu45

[Wick]

I'm using a Nous Tasmota 3-socket outlet for shutdown the Pi and then cut Power after a defined timeout using this guide:

https://www.reddit.com/r/klippers/comments/m65sp5/shutdown_rpi_befor_turning_of_tasmota/

Nice side effect is that I can handle both the Voron and the Prusa independent with one Tasmota device and Powerup via Alexa

[Zeno]

Interesting alternative, thanks Wick! I'll have a look a that

[claudermilk]

In my research into that, I've seen the Tasmota used as well as a standalone smart plug. I've also seen the Shelly 1PM used for an in-printer solution.

So far I haven't done anything for this, but I have an extra smart plug inbound right now (got frustrated trying to get the IKEA Tradfri to register with my hub--which it promptly did after its replacement was ordered ) so I might play with using it on the printer. Simpler than redoing the AC wiring and I'll find out if smart on/off is really useful to me.

[Zeno]

On 11/30/2022 at 4:01 PM, claudermilk said:

In my research into that, I've seen the Tasmota used as well as a standalone smart plug. I've also seen the Shelly 1PM used for an in-printer solution.

So far I haven't done anything for this, but I have an extra smart plug inbound right now (got frustrated trying to get the IKEA Tradfri to register with my hub--which it promptly did after its replacement was ordered ) so I might play with using it on the printer. Simpler than redoing the AC wiring and I'll find out if smart on/off is really useful to me.

Curious to here about your findings.

If I do longer prints when I'm not home I like to keep up to date via a telegram bot. But when it is done i'd like to actually shutdown the printer entirely instead of it just idling for hours on end.

Is this so unique? what do others do?

Ordered a BTT relay module btw, they are on sale, see what I think of it

https://biqu.equipment/products/bigtreetech-reply-v1-2-automatic-shutdown-module-after-printing?_pos=1&_sid=70b64c839&_ss=r

Edited December 1, 2022 by Zeno

[claudermilk]

I think most of us just let the printer sit idle. It's really only the Pi drawing any power. It seemed to me the most common smart switch solutions were the standalone plugs like Kasa, etc., or a Shelly relay in the electronics bay.

[idonasch]

To shutdown the Pi I'm using the pimoroni  on-off-shim (https://shop.pimoroni.com/products/onoff-shim?variant=41102600138). With a push-button in the printers skirt I can turn on and off the printer and since the pimoroni cuts power on shutdown it can also be shut down by software from klipper.

For the relay I'm using an omrom G2RL-24 DC5  to control the 24V supply and that is switched directly from the Pi's 5V power (from the on-off-shim). The 5V Meanwell supply is always on.

Make sure you switch both mains wire, not just one or the PS might float on dangerous mains potential! Certainly an issue if using a plug that can be used in either orientation like Germany's Schuko.

[RandomG]

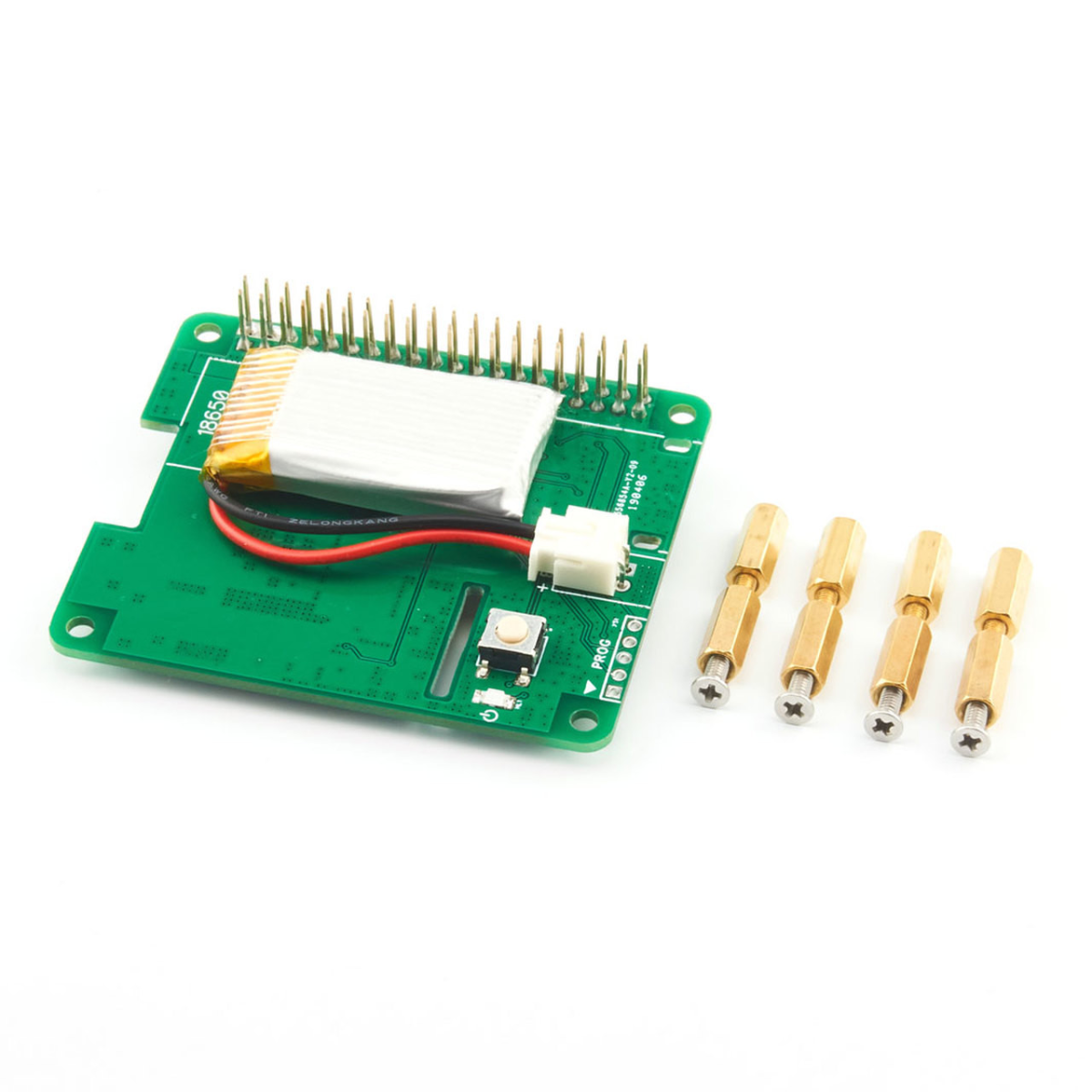

Working on the same type of thing...  I have the following HAT for the Pi that I plan to use to shutdown the Pi on power loss.  The controller (Octopus) powers the Pi via gpio pins.

https://www.pishop.us/product/raspberry-pi-ups-hat/

[Rixi]

On 12/18/2022 at 6:36 PM, idonasch said:

For the relay I'm using an omrom G2RL-24 DC5  to control the 24V supply and that is switched directly from the Pi's 5V power (from the on-off-shim). The 5V Meanwell supply is always on.

I have the same setup with one of these cheapo relais: https://s.click.aliexpress.com/e/_DdsAFfD
Does the job prefectly!
To connect it, I did some soldering with a hole grid board. But they are also available as ready-to-use units:
https://s.click.aliexpress.com/e/_DD0foIF
https://s.click.aliexpress.com/e/_DCIfOgB



On 12/18/2022 at 6:36 PM, idonasch said:

Make sure you switch both mains wire, not just one or the PS might float on dangerous mains potential! Certainly an issue if using a plug that can be used in either orientation like Germany's Schuko.

Good point!
I'll better double-check my wiring.

[Miamijerry]



https://www.thingiverse.com/thing:6515355/files

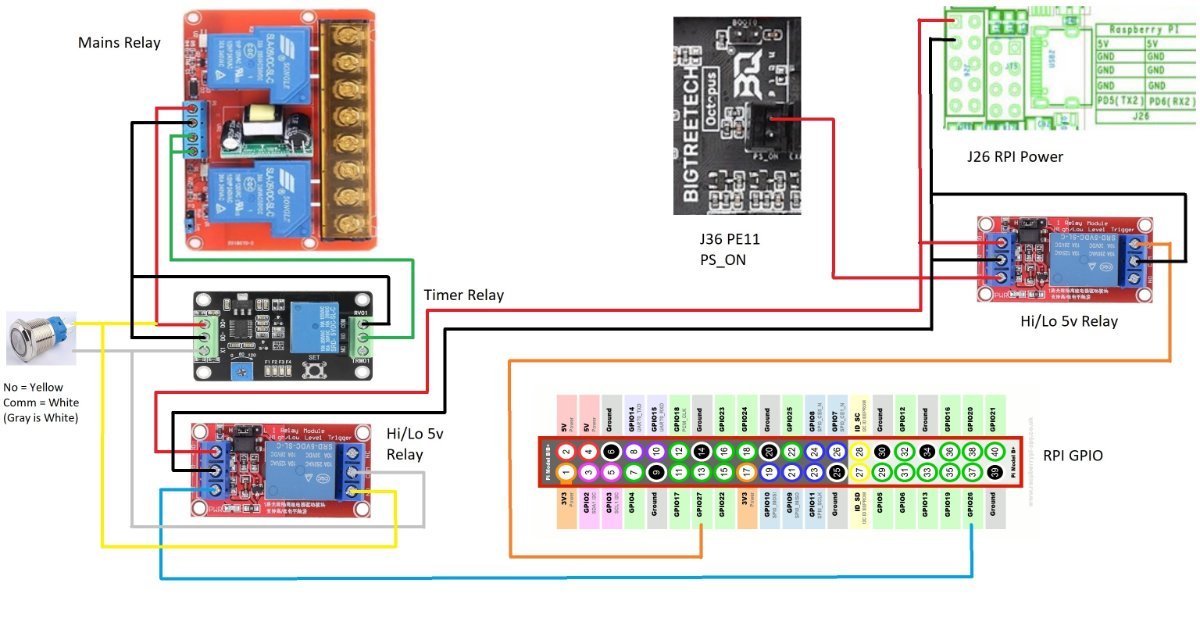

SAFE SHUTDOWN CIRCUIT



Add “Shutdown” Macro to Klipper printer.cfg



[output_pin PS_ON]

pin: PE11

value: 1



[gcode_macro POWER_OFF]

gcode:SET_PIN PIN=PS_ON VALUE=0



Add GPIO functions to RPI; sudo nano /boot/firmware/config.txt (or sudo nano /boot/config.txt)

dtoverlay=gpio-poweroff,gpiopin=26,active_low=1

dtoverlay=gpio-shutdown,gpio_pin=17,active_low=1,gpio_pull=up=gpio-shutdown



Set timer relay to “F4” 25 seconds.



OPERATION / LOGIC



Front panel momentary push button switch, provides 5vdc from Mains Relay to the Timer Relay which starts the supply of power for 25 seconds.



RPI boots, and closes the Hi/Lo Relay which is connected to the Mains Relay, which latches the power “ON” while the RPI is booted. The 25 second timer allows for rebooting of the RPI by ssh.



Second Hi/Lo Relay provides a safe shutdown of the RPI. PE11 provides 3.3v to the second relay and opens the GPIO 17 connection to ground. The “Power_OFF” macro allows the relay to close, RPI starts safe shutdown, 25 seconds later printer powers off.



RELAY JUMPERS

Mains Relay - Jumper Lo
Hi - Lo relays - Jumpers Hi



RPI needs common 5v ground with Octopus board, best if RPI is powered from J26



SOURCE OF PARTS



Delay Timer

https://www.amazon.com/gp/product/B07XT7XWTC/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1



Hi/Lo 5v relay

https://www.amazon.com/gp/product/B07WQH63FB/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1



Mains Control Relay

https://www.amazon.com/gp/product/B077W1NVLM/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1



Momentary 19mm Push Button

https://www.amazon.com/gp/product/B0C36T7KPC/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1



RPI Klipper Safe Shutdown Circuit.pdf

[Ducky4546]

Thank you for posting that! I have a BTT relay in my build and have been stuck on the timer proublem.

Did you have to setup the Pi as a Second MCU to use that GPIO or can it be done with a simple script?
