May sound like a stupid question but I am confused with the notation on the Omron TL-05MC2-Z inductive sensor regarding wiring. Two questions:

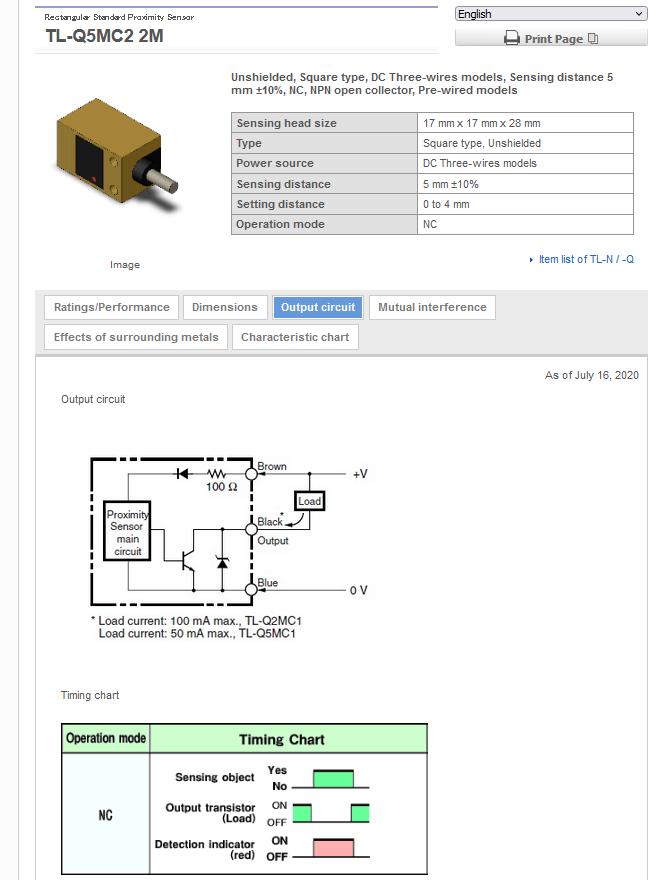

Brown = 10 to 30V DC, Blue = 0V, Black OUTPUT
Normally brown would be power, Black ground and Blue signal. In the Voron Manuals, Brown designated as positive and Blue as negative.
1. Am I correct in this assumption That the black on the probe is signal?
2. Wiring to the Hark PCB which has a Bat85 diode build in - is it just straight plug and play?
Thank you for your advice
