Extra Neopixel LED string next to Stealthburner LEDs from Octopus 1.1 board

Buurman · May 25, 2022

Just sharing in case it helps someone, can verify that it works.

I wanted to have strings of neopixel leds in the chamber, but already having 3 wires going from the board to the Stealthburner (by default) makes is hard to make a serial string of LEDS.
These are connected on the default controller (neopixel) PB0.

So I started looking for an alternative, on the board is a dedicated BLTouch 5 pin connector (right top) and I used this to power 60 leds (yes its a lot)

The pin I used is the PB06 and the 5V and GRD next to it on the same connector.
Just add the new string to your config (copy and make up a new name) and you are ready to go.

Printer.cfg

#####################
#### LED LIGHTS #####
#####################
[neopixel neo]
pin: PB0
chain_count: 4
#   The number of Neopixel chips that are "daisy chained" to the
#   provided pin. The default is 1 (which indicates only a single
#   Neopixel is connected to the pin).
color_order: GRBW
#   Set the pixel order required by the LED hardware. Options are GRB,
#   RGB, GRBW, or RGBW. The default is GRB.
initial_RED: 0.0
initial_GREEN: 0.0
initial_BLUE: 0.0
initial_WHITE: 0.0
#   Sets the initial LED color of the Neopixel. Each value should be
#   between 0.0 and 1.0. The WHITE option is only available on RGBW
#   LEDs. The default for each color is 0.

[neopixel chamber]
pin: PB6
chain_count:60
#   The number of Neopixel chips that are "daisy chained" to the
#   provided pin. The default is 1 (which indicates only a single
#   Neopixel is connected to the pin).
color_order: GRB
#   Set the pixel order required by the LED hardware. Options are GRB,
#   RGB, GRBW, or RGBW. The default is GRB.
initial_RED: 0.0
initial_GREEN: 0.0
initial_BLUE: 0.0
#   Sets the initial LED color of the Neopixel. Each value should be
#   between 0.0 and 1.0. The WHITE option is only available on RGBW
#   LEDs. The default for each color is 0.

Macro for turning them on/off: (and colors, and other freaky things, but I kept it simple for now)

[gcode_macro SB_LED_ON]
gcode:
  SET_LED LED=neo RED=1 GREEN=1 BLUE=1

[gcode_macro CHAMBER_LED_ON]
gcode:
  SET_LED LED=chamber RED=1 GREEN=1 BLUE=1

[gcode_macro SB_LED_OFF]
gcode:
  SET_LED LED=neo RED=0 GREEN=0 BLUE=0

[gcode_macro CHAMBER_LED_OFF]
gcode:
  SET_LED LED=chamber RED=0 GREEN=0 BLUE=0

Feel free to respond with freaky LED effects

claudermilk · May 25, 2022

Good tip. Anyway, ok you asked for it: https://github.com/claudermilk/TridentBackup/blob/aef1559d1ef62d692b05ef0560f34585de7e1da4/leds.cfg

I use the julianschill led_effects library (here: https://github.com/julianschill/klipper-led_effect).

Buurman · May 25, 2022

4 hours ago, claudermilk said:

Good tip. Anyway, ok you asked for it: https://github.com/claudermilk/TridentBackup/blob/aef1559d1ef62d692b05ef0560f34585de7e1da4/leds.cfg

I use the julianschill led_effects library (here: https://github.com/julianschill/klipper-led_effect).

First link isnt working for me, but yes, I know this one, pretty cool, but a bit too much disco for my printer.. but I like my startup sequence....

And going full blue as a color.. looks pretty cool if you ask me..

claudermilk · May 26, 2022

Huh, let's try this one: https://github.com/claudermilk/TridentBackup/blob/master/leds.cfg

(ok, seems to be working)

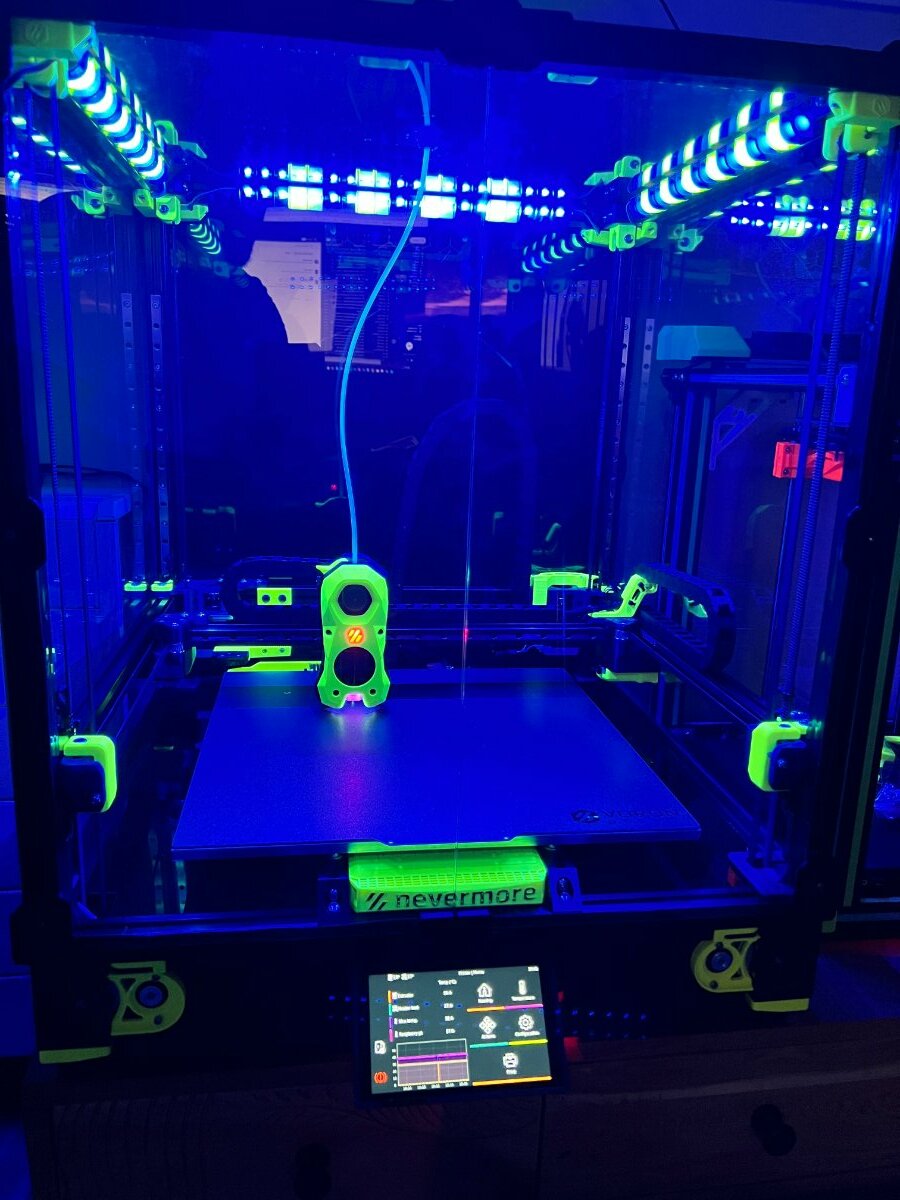

Dang, those green parts are BRIGHT under the LEDs.

Buurman · May 27, 2022

I dont know why.... both on my phone and desktop... 404 error from Github...

Yup, NEON Yellow part are pretty nice under pure blue lights, yet.. with printing black parts, not that great

claudermilk · May 27, 2022

Well, I clearly don't understand how to share files from my Github.

So, let's just dump the file here. I'll hide it behind a spoiler since it's kind of long.

Spoiler

### Hardware definitions ###
[neopixel caselight]
pin: PB6
chain_count: 36
color_order: GRB
initial_RED: 0.0
initial_GREEN: 0.0
initial_BLUE: 0.5

[neopixel sb_leds]
pin: PB0
chain_count: 3
color_order: GRBW
initial_RED: 0.0
initial_GREEN: 0.0
initial_BLUE: 1.0
initial_WHITE: 0.0

### Effects Definitions ###
# Toolhead
[led_effect logo_busy]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
	static 0 0 add (0.4,0.0,0.0,0.0)

[led_effect logo_calibrating_z]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
	static 0 0 add (0.8,0.0,0.35,0.0)

[led_effect logo_cleaning]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
	static 0 0 add (0.0,0.02,0.5,0.0)

#critical error, see below

[led_effect logo_heating]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
	static 0 0 top (0.3,0.18,0.0,0.0)

[led_effect logo_homing]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
	static 0 0 add (0.0,0.6,0.2,0.0)

#input-shaper

[led_effect logo_leveling]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
	static 0 0 add (0.5,0.1,0.4,0.0)

#loading?

[led_effect logo_meshing]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
	static 0 0 add (0.2,1.0,0.0,0.0)

[led_effect logo_party_time]
leds:
    neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
    strobe 1 1.5 add (1.0,0.0,0.0,0.0),(1.0,1.0,0.0,0.0),(0.0,1.0,0.0,0.0),(0.0,1.0,1.0,0.0),(0.0,0.0,1.0,0.0),(1.0,0.0,1.0,0.0)

[led_effect logo_printing]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
	static 0 0 add (0.0,0.0,1.0,0.0)

[led_effect logo_standby]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
    breathing 12 1 add (0,0,1.0,0.0)
    static 0 0 add (0,0,0.05,0.0)

#unloading?

[led_effect logo_filament_runout]
leds:
	neopixel:sb_leds (1)
autostart: false
frame_rate: 24
layers:
    breathing 6 1 top (1.0,,0.0,0.0,0.0)

[led_effect nozzle_heating]
leds:
	neopixel:sb_leds (2,3)
autostart: false
frame_rate: 24
layers:
	static 0 0 top (0.8,0.35,0.0,0.0)

[led_effect nozzle_off]
leds:
	neopixel:sb_leds (2,3)
autostart: false
frame_rate: 24
layers:
	static 0 0 add (0.0,0.0,0.0,0.0)

[led_effect nozzle_on]
leds:
	neopixel:sb_leds (2,3)
autostart: false
frame_rate: 24
layers:
	static 0 0 add (0.8,0.8,0.8,1.0)

[led_effect nozzle_party_time]
leds:
    neopixel:sb_leds (2,3)
autostart: false
frame_rate: 24
layers:
    strobe 1 1.5 add (1.0,0.0,0.0,0.0),(1.0,1.0,0.0,0.0),(0.0,1.0,0.0,0.0),(0.0,1.0,1.0,0.0),(0.0,0.0,1.0,0.0),(1.0,0.0,1.0,0.0)

[led_effect nozzle_standby]
leds:
	neopixel:sb_leds (2,3)
autostart: false
frame_rate: 24
layers:
    breathing 12 1 add (0,0,1.0,0.0)
    static 0 0 add (0,0,0.05,0.0)

# Caselights
#busy ??

[led_effect case_calibrating_z_left]
leds:
    neopixel:caselight
autostart: false
frame_rate: 24
layers:
    comet 0.3 0.5 add (0.8,0.0,0.35),(0.4,0.0,0.7)

[led_effect case_calibrating_z_right]
leds:
    neopixel:caselight
autostart: false
frame_rate: 24
layers:
    comet -0.3 0.5 add (0.8,0.0,0.35),(0.4,0.0,0.7)

[led_effect case_cleaning]
leds:
    neopixel:caselight
autostart: false
frame_rate: 24
layers:
    twinkle 4 0.05 add (0.0,0.02,0.5)
    twinkle 2 0.1 add (0.0,0.06,0.2)

[led_effect case_heating_left]
leds:
    neopixel:caselight (1-18)
autostart: false
frame_rate: 24
heater: heater_bed
layers:
    heaterfire  10 0 top (0,0,0.1),(0.6,0.36,0)

[led_effect case_heating_right]
leds:
    neopixel:caselight (36,35,34,33,32,31,30,29,28,27,26,25,24,23,22,21,20,19)
autostart: false
frame_rate: 24
heater: heater_bed
layers:
    heaterfire  10 0 top (0,0,0.1),(0.6,0.36,0)

[led_effect case_homing]
leds:
    neopixel:caselight
autostart: false
frame_rate: 24
layers:
    breathing 12 1 add (0.0,0.6,0.2),(0.0, 0.1, 0.03)
    chase 0.5 0.75 add (0.0,0.6,0.2),(0.0, 0.1, 0.2),(0.0,0.05,0.2)

[led_effect case_input_shaper]
leds:
    neopixel:caselight
autostart: false
frame_rate: 1
layers:
    static 0 0 top (0.25,0.0,0.5)

[led_effect case_leveling]
leds:
    neopixel:caselight
autostart: false
frame_rate: 24
layers:
    comet -0.75 1 top (0.5,0.1,0.4),(0.3,0.1,0.6),(0.1,0.1,0.8)

[led_effect case_loading_left]
leds:
    neopixel:caselight (1-18)
autostart: false
frame_rate: 24
layers:
    chase 0.5 0.5 add (0.0,0.7,0.0),(0.0,0.35,0.05),(0.0,0.12,0.1)

[led_effect case_loading_right]
leds:
    neopixel:caselight (19-36)
autostart: false
frame_rate: 24
layers:
    chase -0.5 0.5 add (0.0,0.7,0.0),(0.0,0.35,0.05),(0.0,0.12,0.1)

[led_effect case_meshing]
leds:
    neopixel:caselight
autostart: false
frame_rate: 24
layers:
    chase 0.5 0.5 add (0.2,1.0,0.0),(0.1,0.5,0),(0.05,0.25,0)
    chase -0.25 0.5 add (0.2,1.0,0.0),(0.1,0.5,0),(0.05,0.25,0)

[led_effect case_off]
leds:
    neopixel:caselight
autostart: false
frame_rate: 1
layers:
  static 0 0 top (0,0,0)

[led_effect case_party_time]
leds:
    neopixel:caselight
autostart: false
frame_rate: 24
layers:
    strobe 1 1.5 add (1.0, 0.0, 0.0),(1.0,1.0,0.0),(0.0, 1.0, 0.0),(0.0,1.0,1.0),(0.0, 0.0, 1.0),(1.0,0.0,1.0)
    twinkle 5 0.05 add (1.0, 0.0, 0.0),(1.0,1.0,0.0),(0.0, 1.0, 0.0),(0.0,1.0,1.0),(0.0, 0.0, 1.0),(1.0,0.0,1.0)

[led_effect case_printing]
leds:
    neopixel:caselight
autostart: false
frame_rate: 24
layers:
    static 0 1 top (0.5,0.5,0.4)

[led_effect case_standby]
leds:
    neopixel:caselight
autostart:          true
frame_rate:         24
layers:
    breathing 12 1 add (0,0,1.0)
    static 0 0 add (0,0,0.05)

[led_effect case_unloading_left]
leds:
    neopixel:caselight (1-18)
autostart: false
frame_rate: 24
layers:
    chase -0.5 0.5 add (0.7,0.0,0.0),(0.35,0.0,0.0),(0.13,0.05,0.0)

[led_effect case_unloading_right]
leds:
    neopixel:caselight (19-36)
autostart: false
frame_rate: 24
layers:
    chase 0.5 0.5 add (0.7,0.0,0.0),(0.35,0.0,0.0),(0.13,0.05,0.0)

# Special Definitions
[led_effect critical_error]
leds:
    neopixel:sb_leds
    neopixel:caselight
autostart: false
frame_rate: 24
run_on_error: true
layers:
    strobe 1 1.5 add (1.0, 1.0,1.0)
    breathing 2 0 difference (0.95,0.0,0.0)
    static 1 0 top (1.0,0.0,0.0)

### LED Activation Macros ###
[gcode_macro led_busy]
gcode:
    STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_busy
    SET_LED_EFFECT EFFECT=nozzle_on
    #SET_LED_EFFECT EFFECT=case_standby


[gcode_macro led_calibrating_z]
gcode:
    STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_calibrating_z
    SET_LED_EFFECT EFFECT=nozzle_on
    SET_LED_EFFECT EFFECT=case_calibrating_z_left
    SET_LED_EFFECT EFFECT=case_calibrating_z_right


[gcode_macro led_cleaning]
gcode:
    STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_cleaning
    SET_LED_EFFECT EFFECT=nozzle_on
    SET_LED_EFFECT EFFECT=case_cleaning


# Critical error
[gcode_macro led_blinkenlights]
gcode:
    STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=critical_error ; This activates all LEDs


[gcode_macro led_heating]
gcode:
	STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_heating
    SET_LED_EFFECT EFFECT=nozzle_heating
    SET_LED_EFFECT EFFECT=case_heating_left
    SET_LED_EFFECT EFFECT=case_heating_right

[gcode_macro led_toolhead_heating]
gcode:
    SET_LED_EFFECT EFFECT=logo_cleaning STOP=1
    SET_LED_EFFECT EFFECT=logo_busy STOP=1
    SET_LED_EFFECT EFFECT=logo_standby STOP=1
    SET_LED_EFFECT EFFECT=nozzle_on STOP=1
    SET_LED_EFFECT EFFECT=nozzle_standby STOP=1
    SET_LED_EFFECT EFFECT=logo_heating
    SET_LED_EFFECT EFFECT=nozzle_heating


[gcode_macro led_homing]
gcode:
	STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_homing
    SET_LED_EFFECT EFFECT=nozzle_on
    SET_LED_EFFECT EFFECT=case_homing


[gcode_macro led_input_shaper]
gcode:
	STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_busy
    SET_LED_EFFECT EFFECT=nozzle_on
    SET_LED_EFFECT EFFECT=case_input_shaper


[gcode_macro led_leveling]
gcode:
	STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_leveling
    SET_LED_EFFECT EFFECT=nozzle_on
    SET_LED_EFFECT EFFECT=case_leveling

[gcode_macro led_loading]
gcode:
   STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_busy
    SET_LED_EFFECT EFFECT=nozzle_on
    SET_LED_EFFECT EFFECT=case_loading_left
    SET_LED_EFFECT EFFECT=case_loading_right

[gcode_macro led_meshing]
gcode:
	STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_meshing
    SET_LED_EFFECT EFFECT=nozzle_on
    SET_LED_EFFECT EFFECT=case_meshing

[gcode_macro led_case_off]
gcode:
    SET_LED_EFFECT EFFECT=case_off

[gcode_macro led_off]
gcode:
	 STOP_LED_EFFECTS


[gcode_macro led_party_time]
gcode:
 	STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_party_time
    SET_LED_EFFECT EFFECT=nozzle_party_time
    SET_LED_EFFECT EFFECT=case_party_time


[gcode_macro led_printing]
gcode:
 	STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_printing
    SET_LED_EFFECT EFFECT=nozzle_on
    SET_LED_EFFECT EFFECT=case_printing

[gcode_macro led_standby]
gcode:
    STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_standby
    SET_LED_EFFECT EFFECT=nozzle_standby
    SET_LED_EFFECT EFFECT=case_standby

[gcode_macro led_unloading]
gcode:
    STOP_LED_EFFECTS ;cancel all others
    SET_LED_EFFECT EFFECT=logo_busy
    SET_LED_EFFECT EFFECT=nozzle_on
    SET_LED_EFFECT EFFECT=case_unloading_left
    SET_LED_EFFECT EFFECT=case_unloading_right

[gcode_macro led_filament_runout]
gcode:
    SET_LED_EFFECT EFFECT=logo_filament_runout

Buurman · May 27, 2022

Oooooh, you are making me curious.... after I finish printing my second voron parts I will give it a try!

SteveThatcher · May 27, 2022

On 5/26/2022 at 6:26 AM, claudermilk said:

Huh, let's try this one: https://github.com/claudermilk/TridentBackup/blob/master/leds.cfg

(ok, seems to be working)

Dang, those green parts are BRIGHT under the LEDs.

Check your github profile. I suspect that the TridentBackup is private to your account. From an outside viewer, you only have two public folders and they are SmartThings related.

Edited May 27, 2022 by SteveThatcher

claudermilk · May 31, 2022

Aha. That took some digging, it should be visible now. I didn't anticipate sharing it with anyone when I set it up.

JesNoFear · September 20, 2022

Has anyone programmed or found a fade command? not one that loops (breath).

claudermilk · September 20, 2022

Looking at the docs here: https://github.com/julianschill/klipper-led_effect/blob/master/docs/LED_Effect.md

I see this section that looks like it's what you are looking for:

Quote

Fading in and out

Effects can be faded in and out by specifying the FADETIME parameter: SET_LED_EFFECT EFFECT=panel_idle FADETIME=1.0 fades the effect in during one second. Running SET_LED_EFFECT EFFECT=panel_idle STOP=1 FADETIME=1.0 fades it out in one second. We can also fade out all effects by running STOP_LED_EFFECTS FADETIME=1.0. It is also possible to crossfade effects by running a fade in command and a fade out command successively.

JesNoFear · September 23, 2022

Thank you, that is exactly what I was looking for.

ludwig100 · January 19, 2023

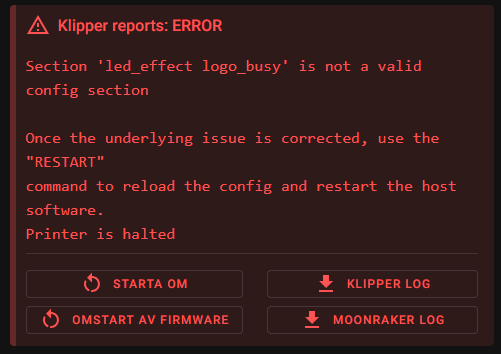

Hi. Im trying to use the caselight_led.cfg but get this error. I added [include caselight_led.cfg] in the printer.cfg.
I cannot figure out what is wrong.

claudermilk · January 20, 2023

Double check your syntax in the definition the error is pointing to. Something is entered incorrect there. If you need help, post that snippet here.

Oh, and welcome to the forum. If you like, head over to the Introductions forum to say hi to the forum.

Hawkeye · July 6, 2023

Is there any other pin I can use for RGBW (Stealthburner) as PB0 is used for my case and i managed to let the smoke out of PB6?

Sign In

Extra Neopixel LED string next to Stealthburner LEDs from Octopus 1.1 board

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Fading in and out

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Join the conversation
