I'm trying to get chamber lights working but only getting first leds onI have a 3 strips (54 ledsof 5V pcb sticks connected together . I connected all 5Vtogetherall grounds together ,and all signal together5v and ground are connected to separate 5A psu (dedicated to RPI4),ground is common with all psu and octopus. Where to connect signal ,can i use bltouch port?






Edited by SamppaD
Link to comment
Share on other sites

8 hours ago, SamppaD said:

Where to connect signal ,can i use bltouch port?

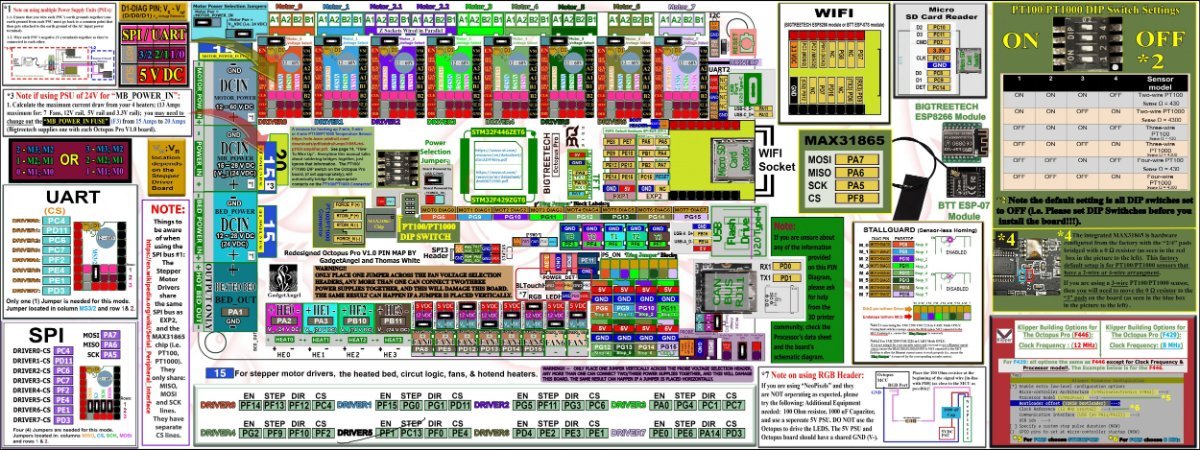

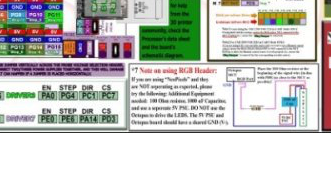

Your can connect it to the BLTouch port yes, or any free pin (Not any of the thermistor pins though). I also just read on the diagram above that if you use a seperate5V, then Octopus and the Neopixels MUST share a common ground.


On the neopixels you need to ensure that the connections is 5V,GND,SIG   OUT    of first pixel connected to   IN   of second pixel, etc, (I am sure you have done that but just check, as I had one wired incorrectly and it through the whole chain out)



  • Like 1
Link to comment
Share on other sites

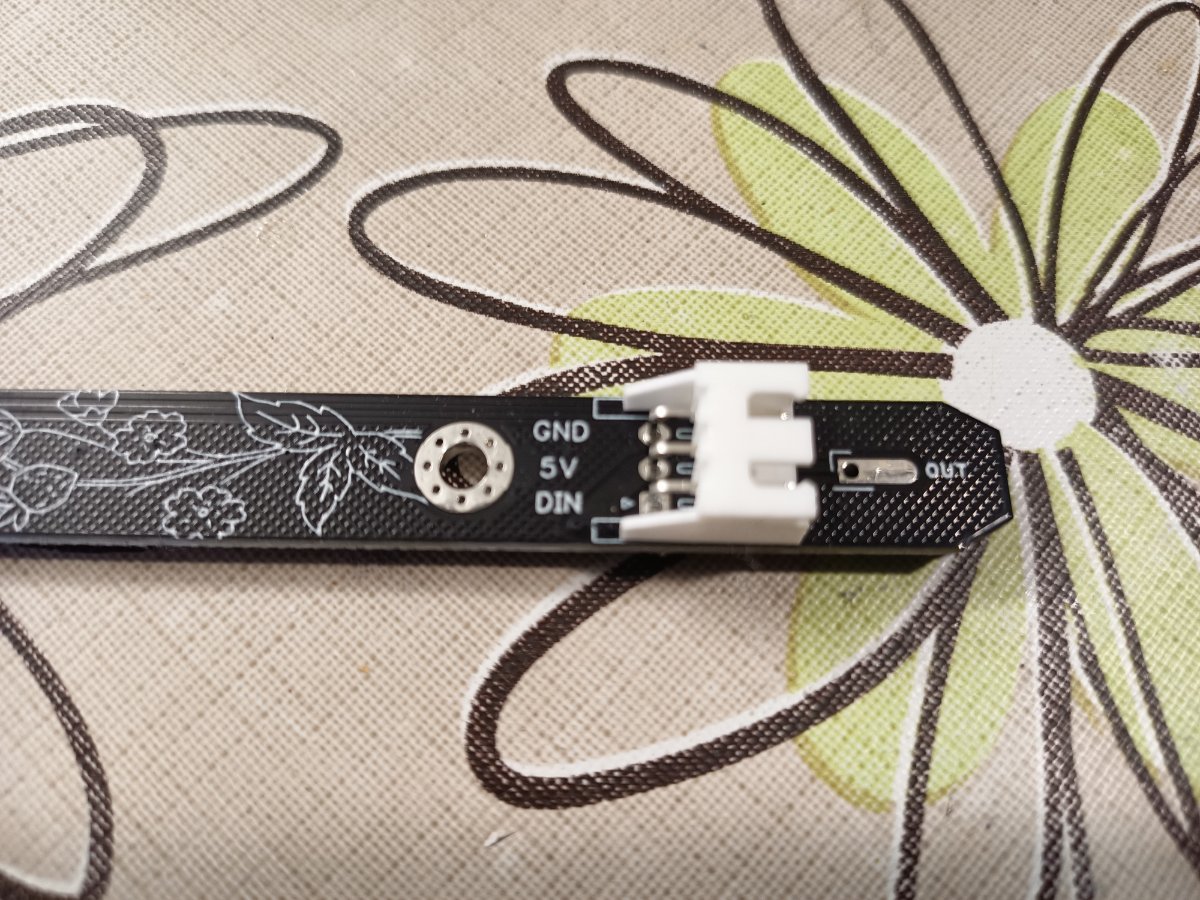

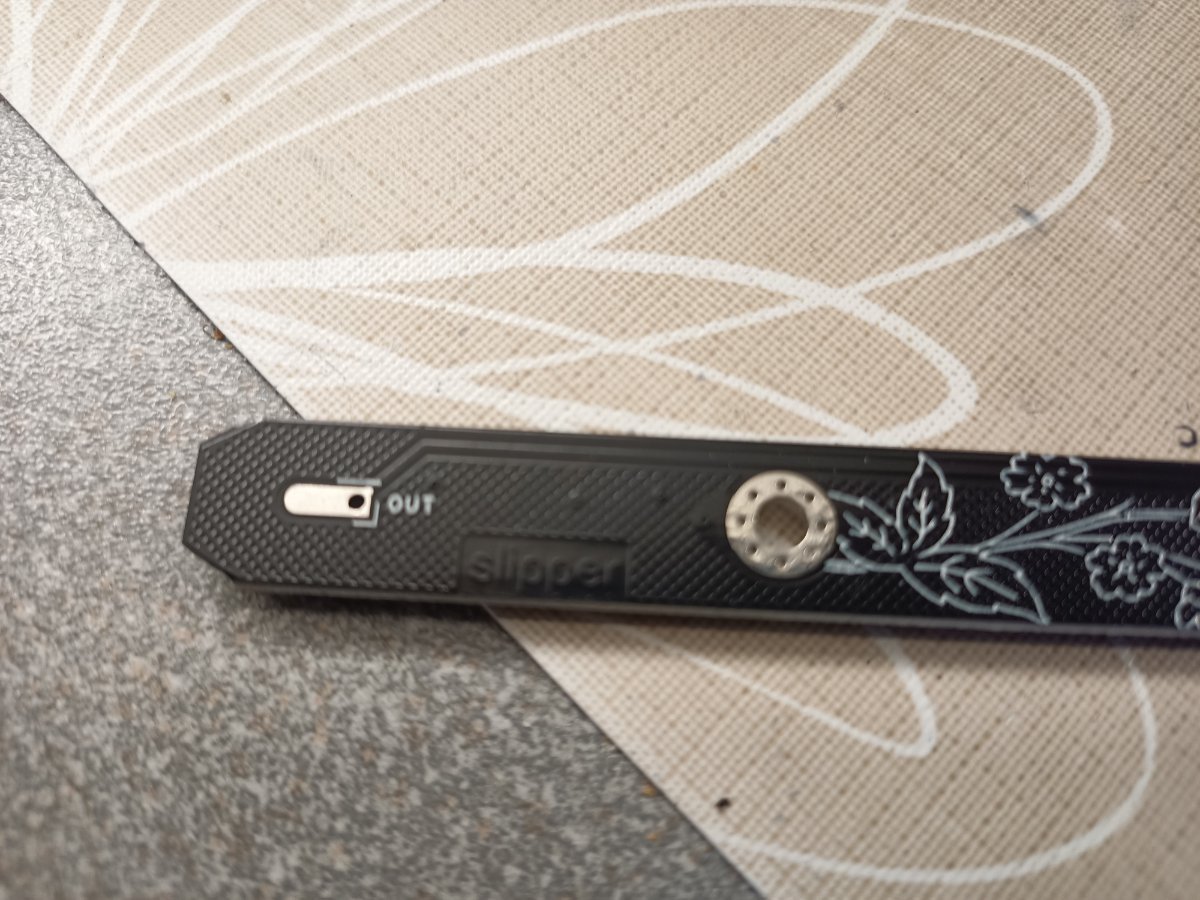

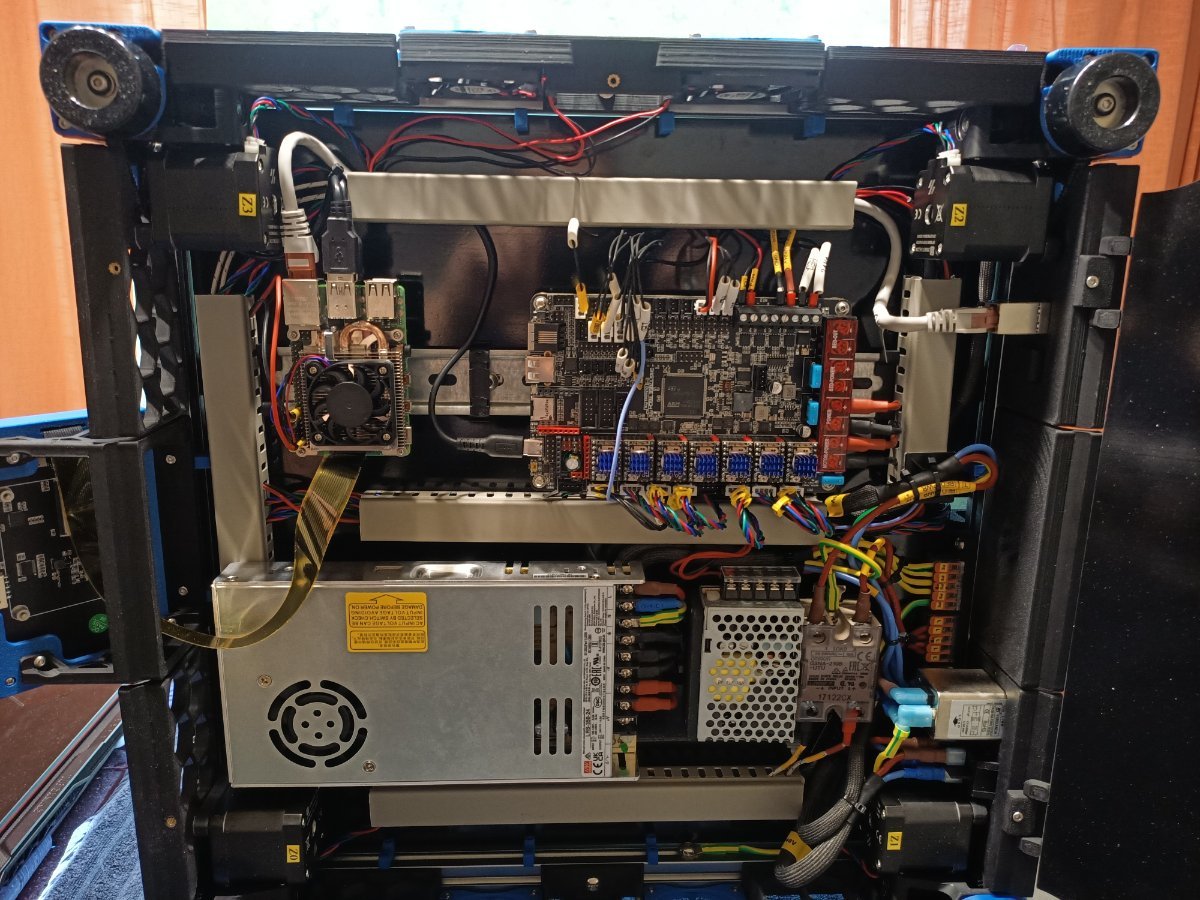

My pcb led strips have only 3 pin connector 5V DIN Ground. All psu,octopus and leds have shared /common ground. I intended to use leds as , a chamber light nothing RGB fancy so i connected all 3 led strips 5V together, all DIN is connected together and all ground is connected together. +5V and ground is connected to shared RPI4 5V psu and DIN is connected to PB6. My leds have out marked on pcb,no connector only soldering point on both side of the pcb. There is no IN connection at all. I contacted manufacturer but still waiting for reply. All i can say its a PCB RGB led strip with WS2812B Leds. I couldnt find any good wire diagram for this led kit.



Link to comment
Share on other sites

19 hours ago, SamppaD said:

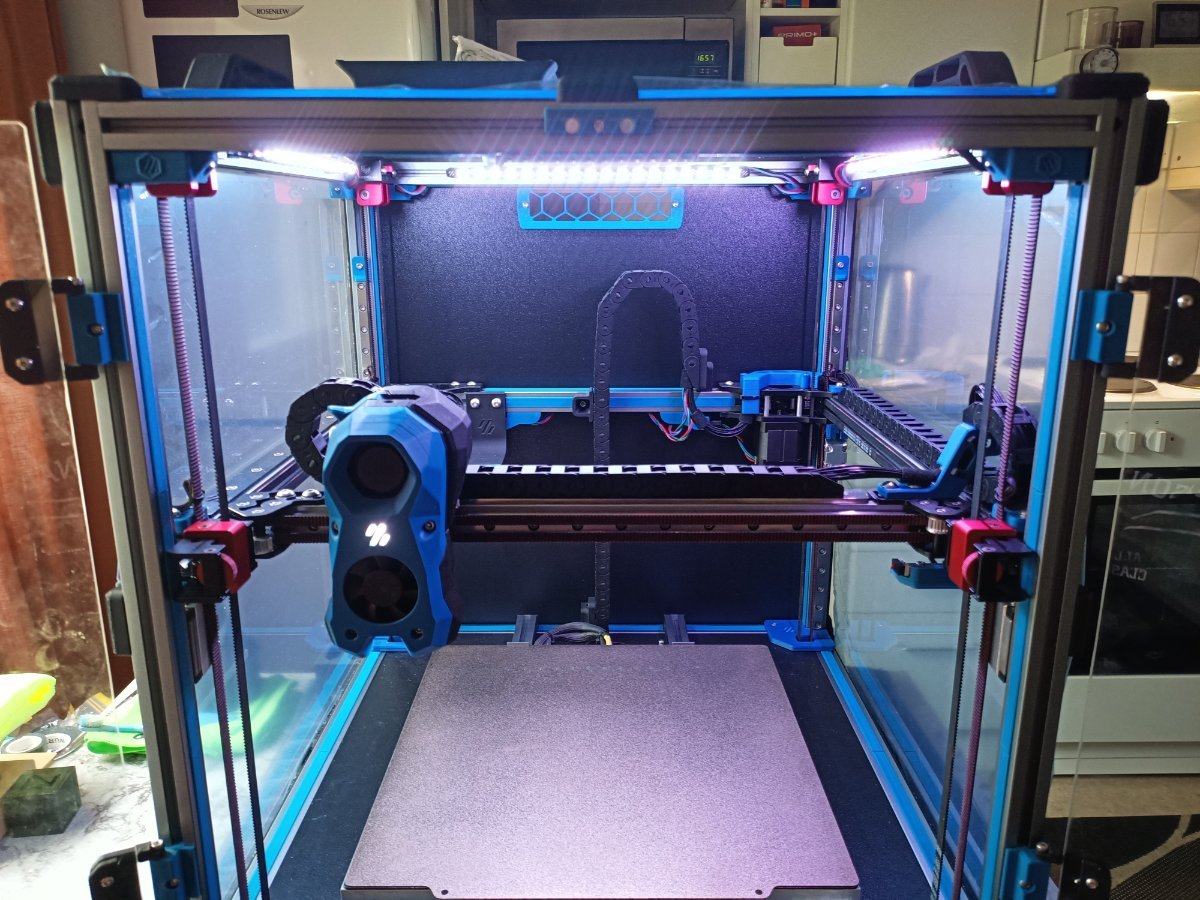

Got it to work ,adjusted to 0.6 to get brightness to be ok. Current draw at 0.6 for all colors (white effect) 1.2A 54 leds. At 0,8 its 1.82A. Il stick with 0.6 as my RPI psu is only 5A total. I got a 14A 5V psu but no space to hide it 🙂

Have you got a mount for those light strips?

I'd like to fit them to my v2.4, but can't find a mount that I like.

Link to comment
Share on other sites

17 hours ago, SamppaD said:

Hi. Leds are mounted to the extrusions,you cant really see mounts they are small in size and compact. Here is the link for mount.

https://github.com/VoronDesign/Voron-Hardware/blob/master/Daylight/README.md

I hide the cables using this great mod



Thank you very much, I like that bracket solution. Neat and unobtrusive.
