Voron 2.4 350mm with BBT Octopus V1.1, Hall Effect, and Z Probe printer.cfg issue

[SMURPH]

Just finished building my Voron 2.4 350mm with BBT Octopus V1.1, Hall Effect, and Z Probe. I went through the firmware install and preformed the X,Y,Z,Z1,Z2,and Z3 test but having issues with the printer.cfg doc. Does anyone have a working printer.cfg for a Voron 2.4 350mm with BBT Octopus V1.1, Hall Effect, and Z Probe?

Scott



[mickelin]

What issues?

[ralarock]

Sure, this is for a V 2.4, BTT Octopus, hall effect x, y limit sensors. I connected bed probe using the method shown in the docs that requires a BAT85 diode.

A couple of non-standard things:

I used two ports for the controller fans rather than wiring them in parallel.

There is configuration for a BTT smart filament sensor in the encoder and macro sections of the file. I cannot vouch for this yet as I have not thoroughly tested it.

Use at your own risk.

printer.cfg

[SMURPH]

I used the BAT85 as listed in the instructions. I also used 2 ports for the fans. Today, I ordered the BTT smart filament sensor. LOL. Thanks I hope this works.



[SMURPH]

15 hours ago, ralarock said:

Sure, this is for a V 2.4, BTT Octopus, hall effect x, y limit sensors. I connected bed probe using the method shown in the docs that requires a BAT85 diode.

A couple of non-standard things:

I used two ports for the controller fans rather than wiring them in parallel.

There is configuration for a BTT smart filament sensor in the encoder and macro sections of the file. I cannot vouch for this yet as I have not thoroughly tested it.

Use at your own risk.

printer.cfg 19.93 kB · 8 downloads

Thanks for the file but for some reason I am still getting errors. I am going to take all the connections off and try again. I will let you know what happens.

[SMURPH]

17 hours ago, mickelin said:

What issues?

First there is an LCD pin issue and  gantry parsing issue,

[SMURPH]

17 hours ago, mickelin said:

What issues?



• Author

Posted just now

  17 hours ago, mickelin said:

What issues?

First there is an LCD pin issue and  gantry parsing issue,



[SMURPH]



12:31:33



Option 'pin' is not valid in section 'board_pins'

12:31:33



Option 'pin' is not valid in section 'board_pins'

Once the underlying issue is corrected, use the "RESTART"
command to reload the config and restart the host software.
Printer is halted

12:32:18



Restarting Klipper.

12:32:18



Klipper state: Disconnect

12:32:18



Klipper state: Ready

12:32:18



Klipper: Disconnected from host

12:32:39



Klipper: Connecting ...

12:32:39



Klipper: Connected to host

12:32:39



Connected to host via /tmp/printer @250000bps

12:32:39



Firmware version: 4c8d24a

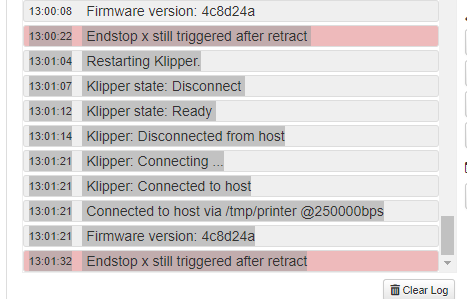

12:32:59



Endstop x still triggered after retract



[SMURPH]

[Roboron]

add "!" before the x endstop pin config
