Milo V1.5 Build 2.2kw spindle water cooled

[oggie]



Edited June 30 by oggie

[oggie]

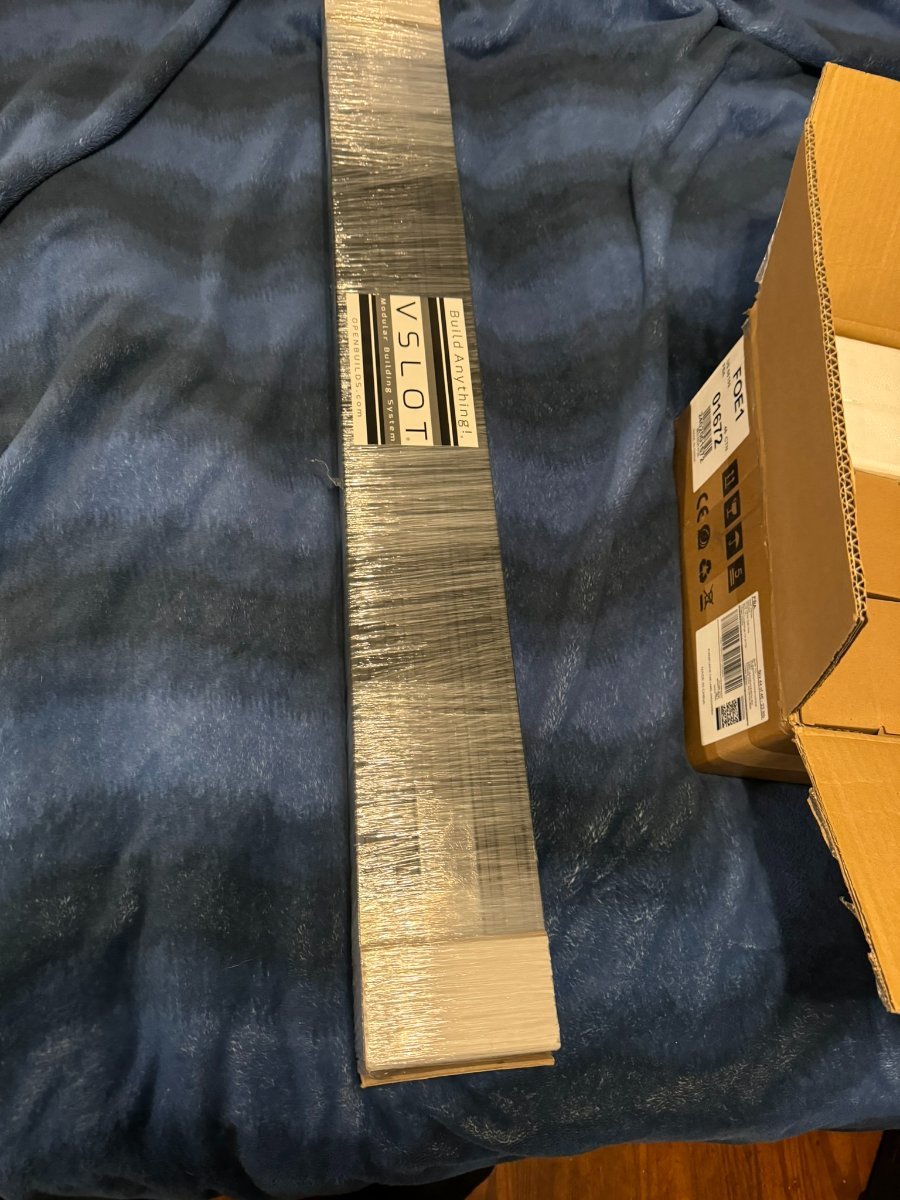

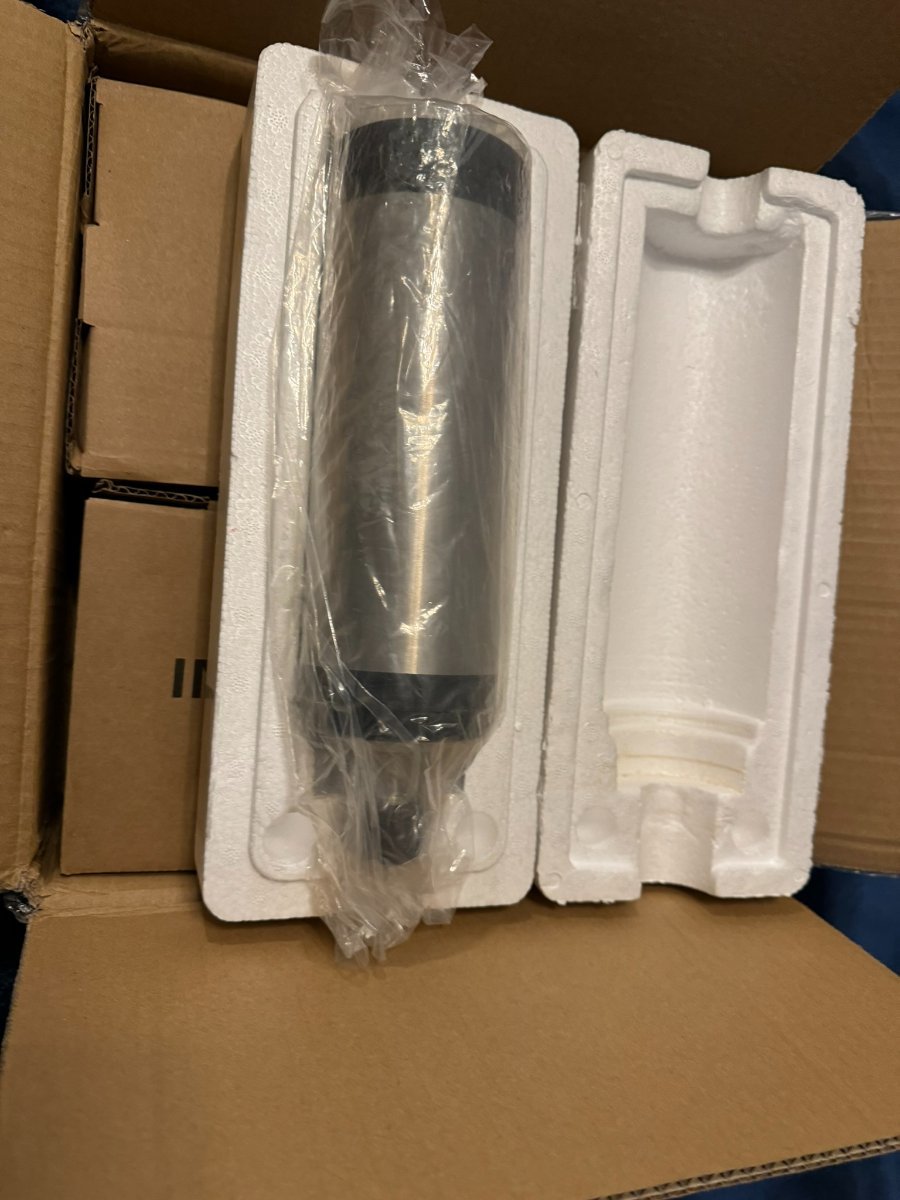

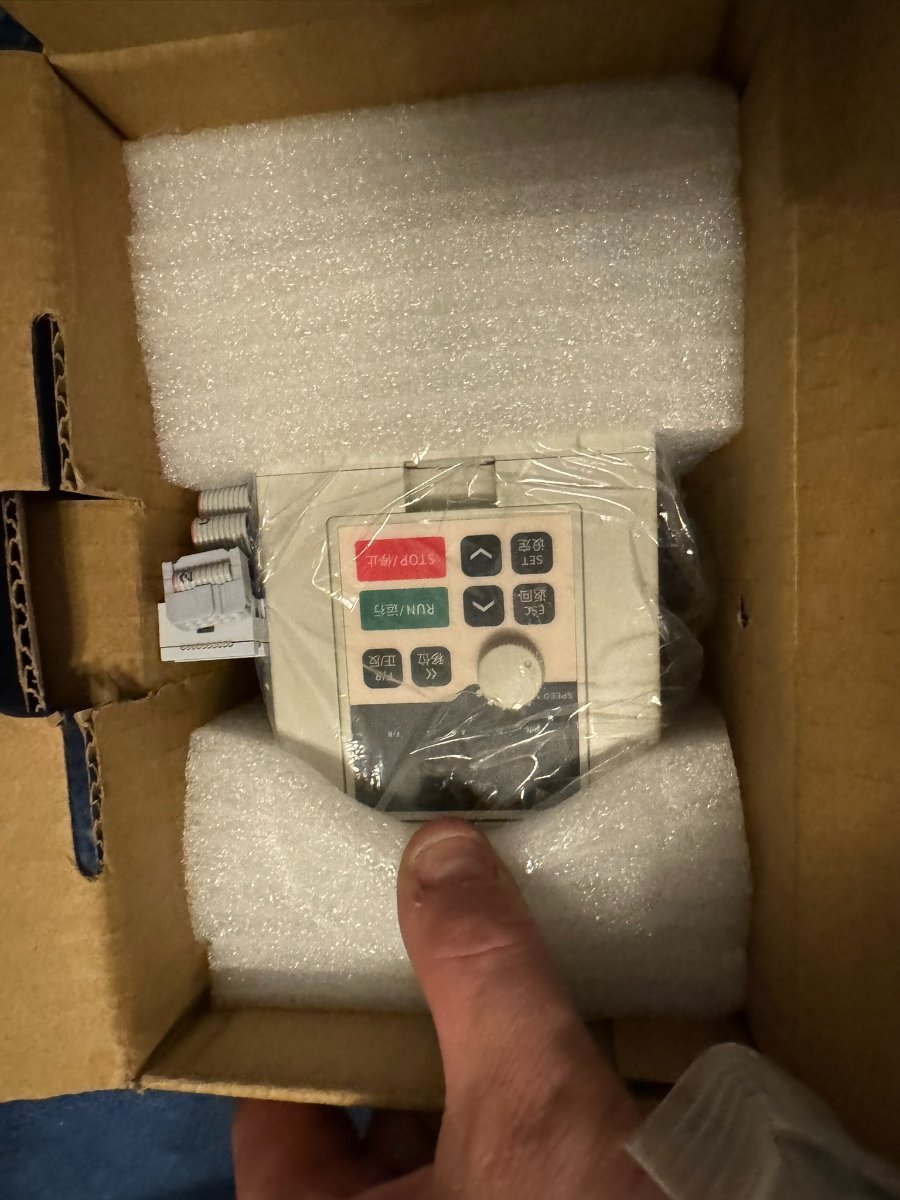

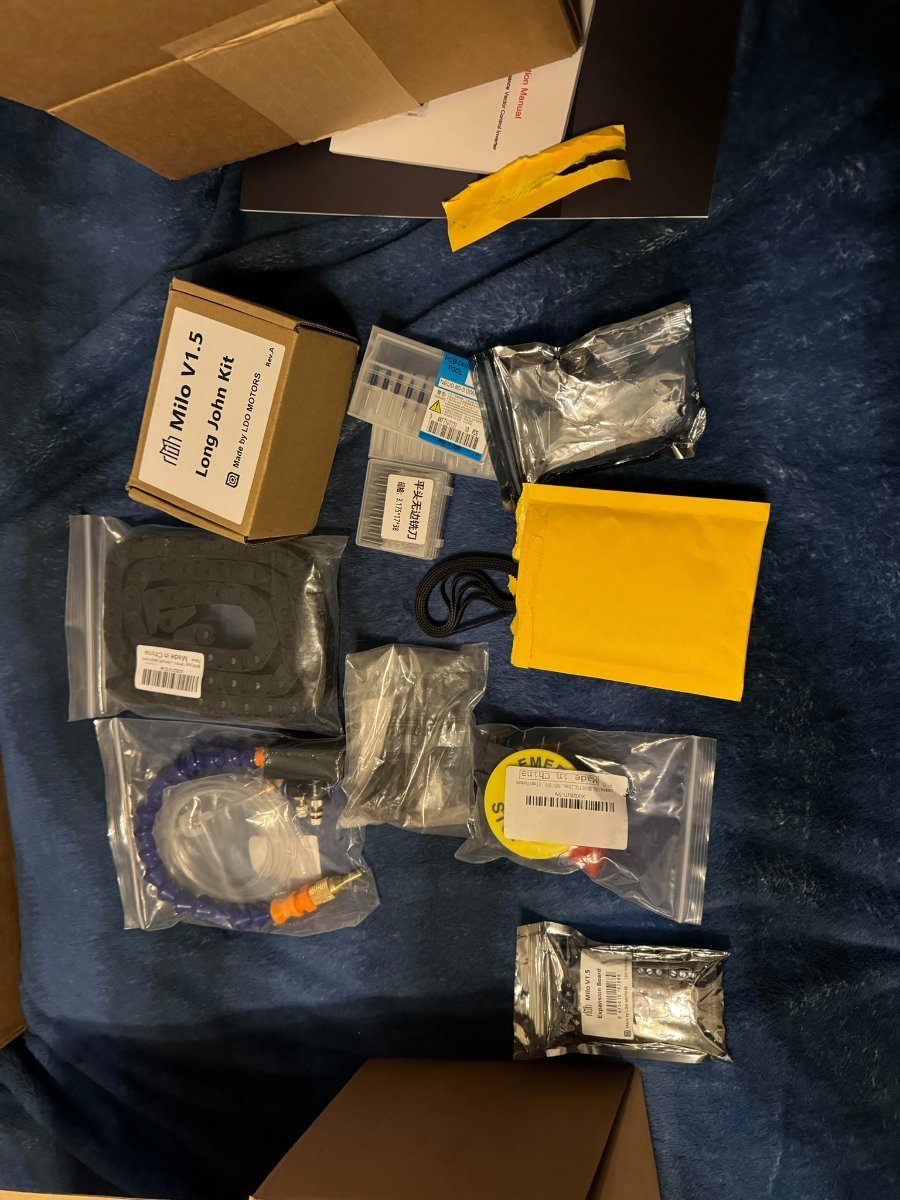

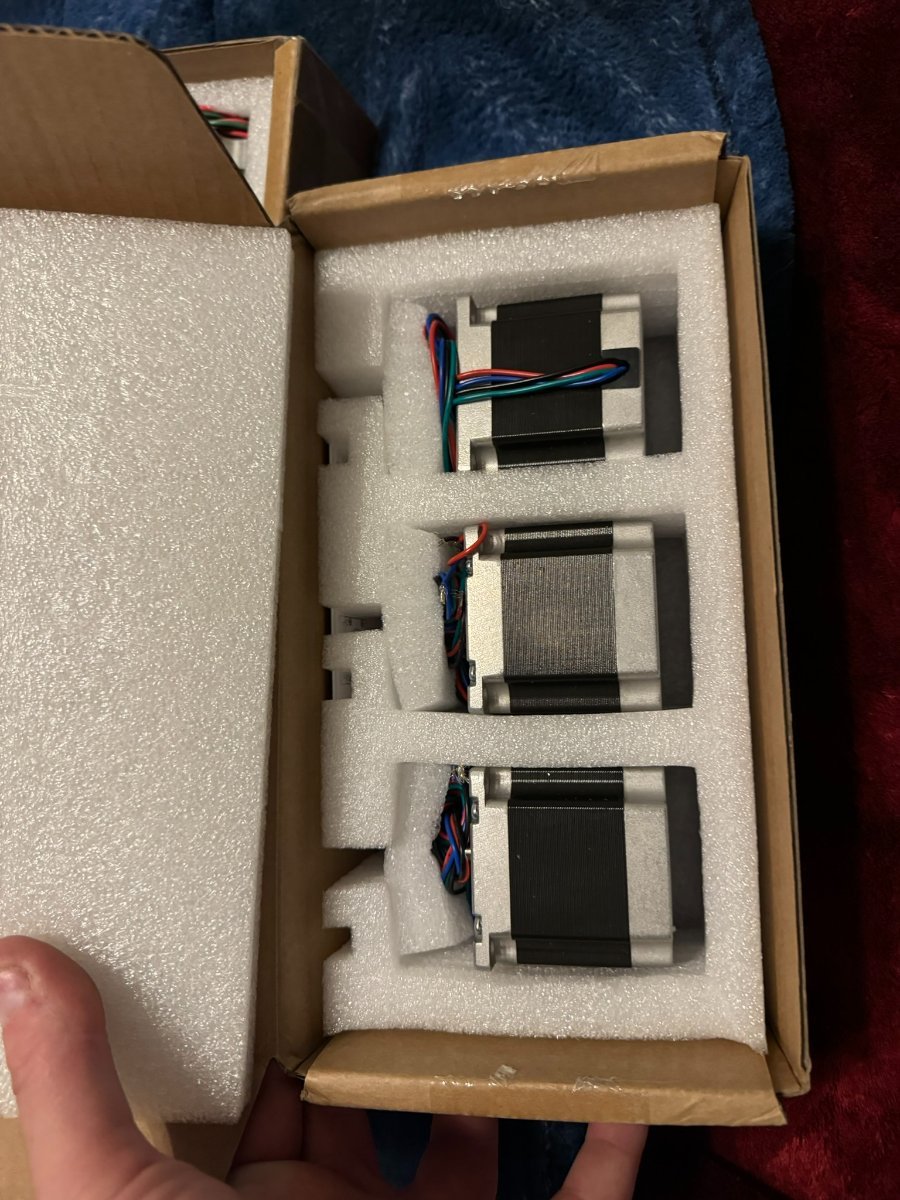

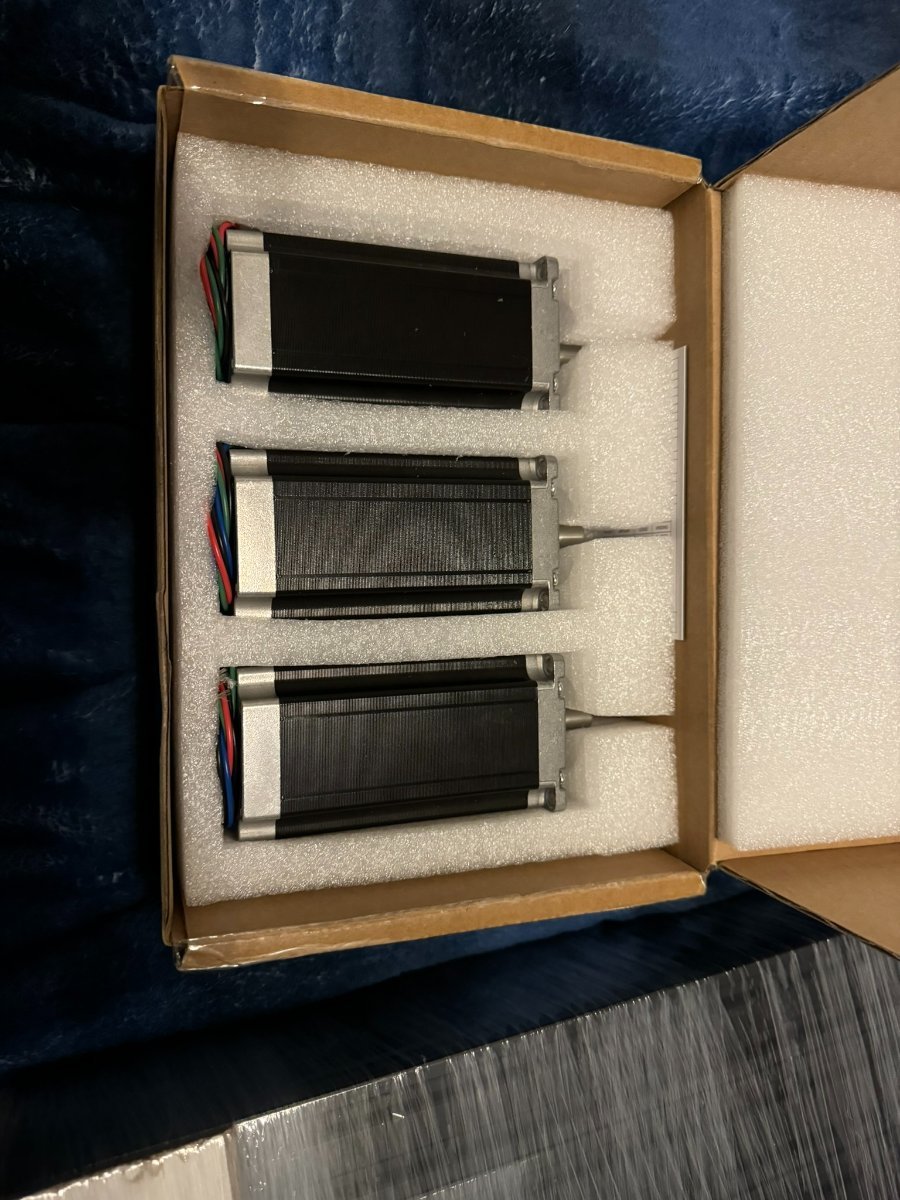

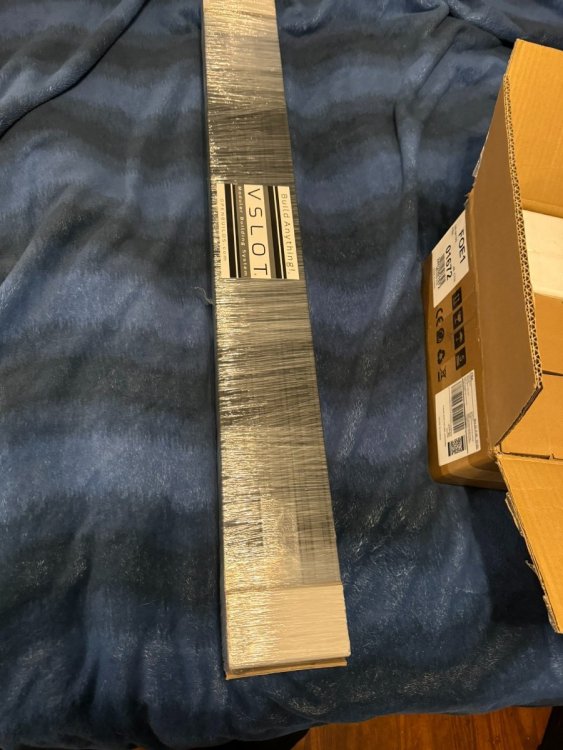

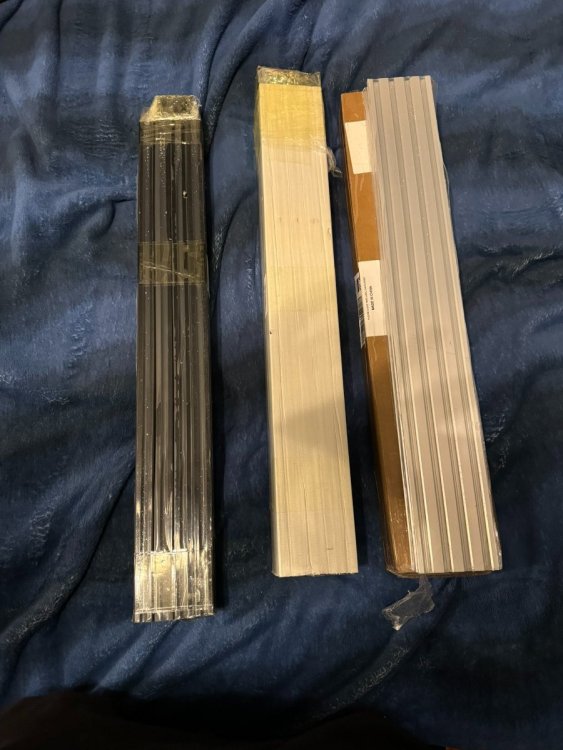

Just started this build still waiting on parts here is a few pics of the start of this build. I have 2 sets steppers cause im on the fence about which to use.

[oggie]

[oggie]

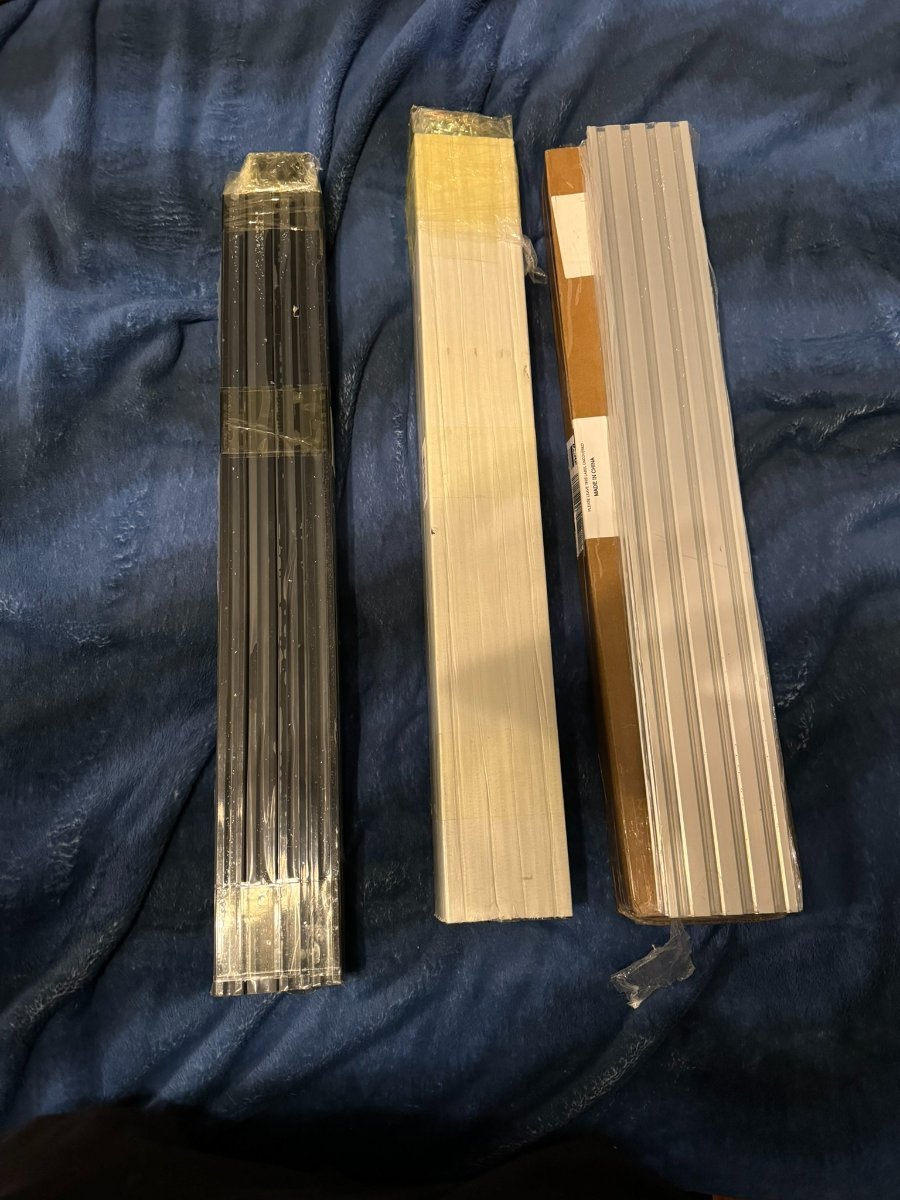

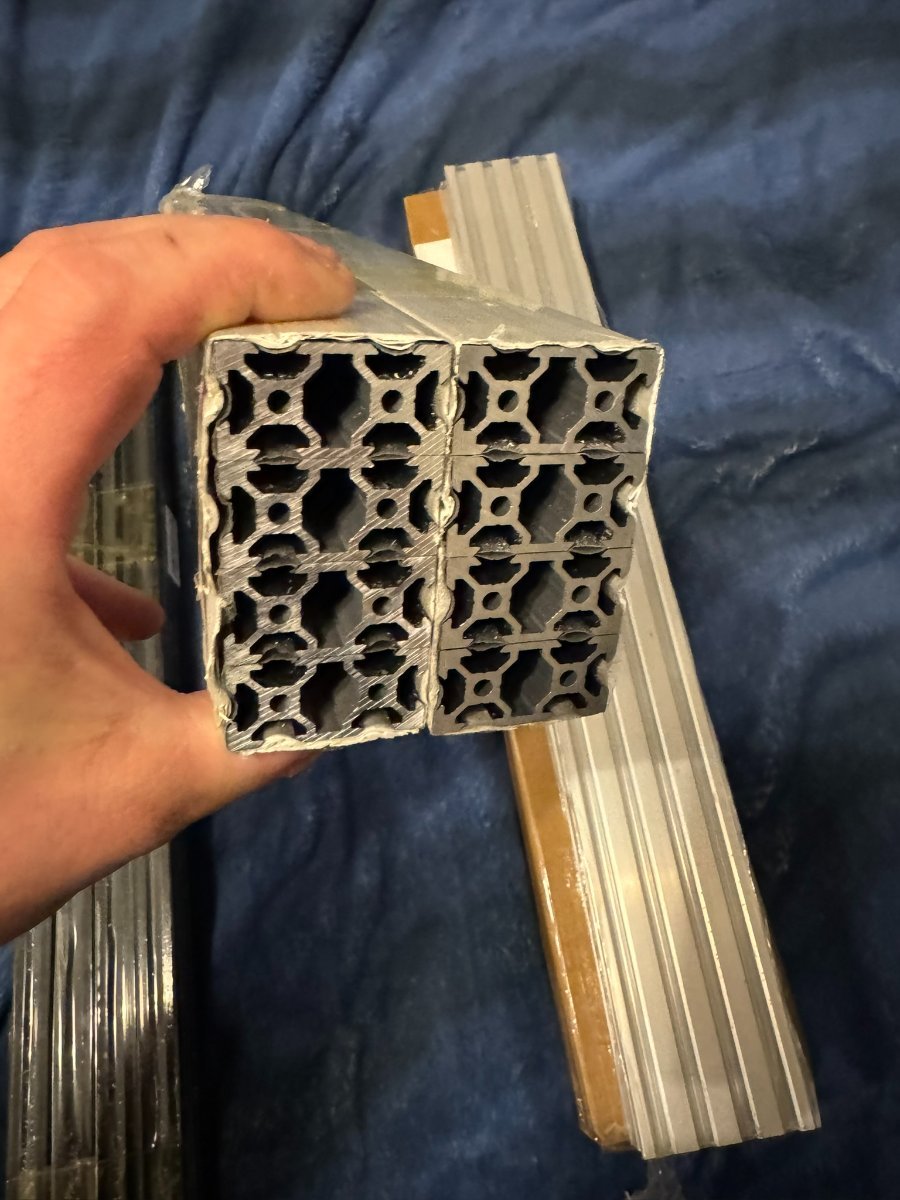

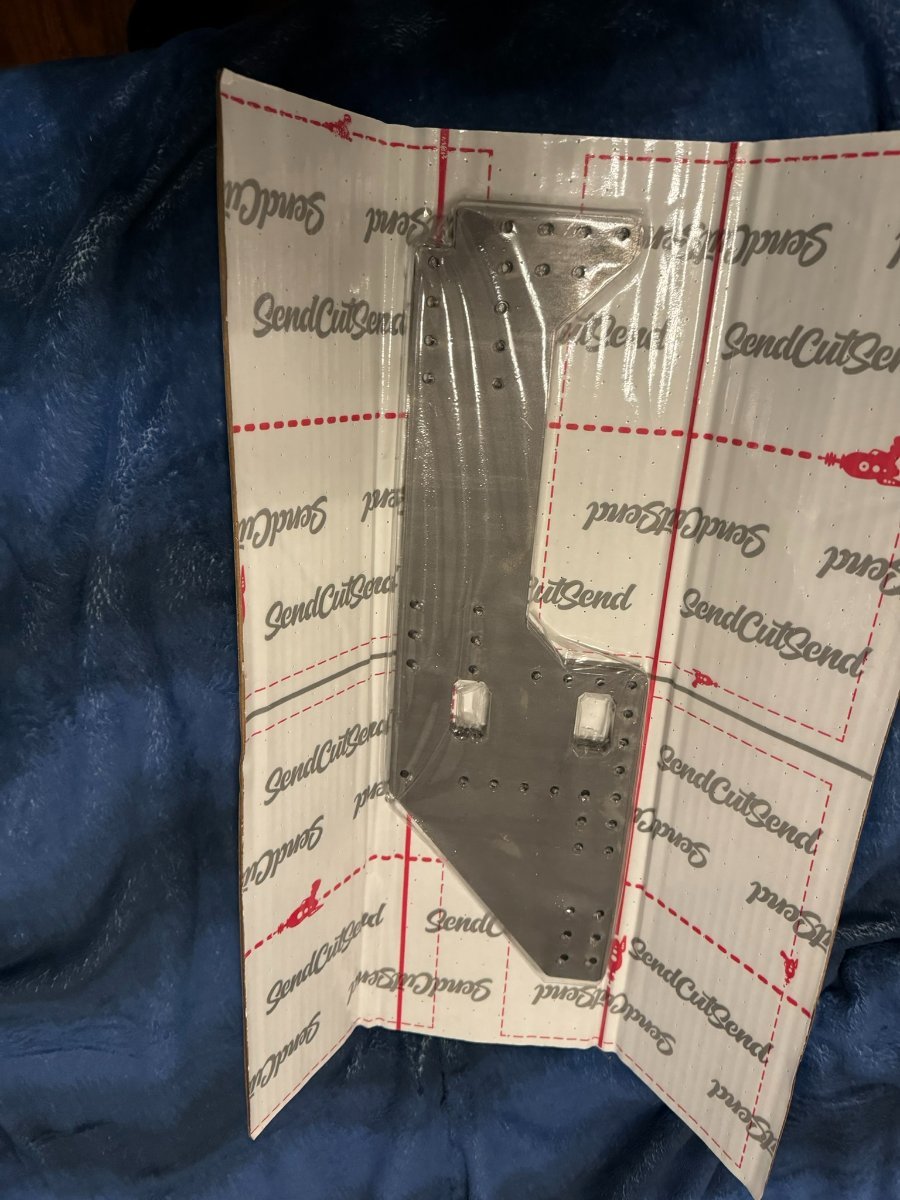

Still waiting on fixture plate as well as xyz plates and motion kit.

Edited June 30 by oggie

[mvdveer]

Nice One! Happy building!

[PFarm]

3 hours ago, oggie said:



What is this component?

[PFarm]

Did your spindle come with a cable to connect to the VFD or do you need to fabricate a cable? The first thing is to verify that your spindle is grounded to the spindle body. Use a multimeter to check the continuity of the ground pin to the body. Some Chinese spindles aren't grounded to the body. I'm looking forward to following your build.

[oggie]

1 hour ago, PFarm said:

What is this component?

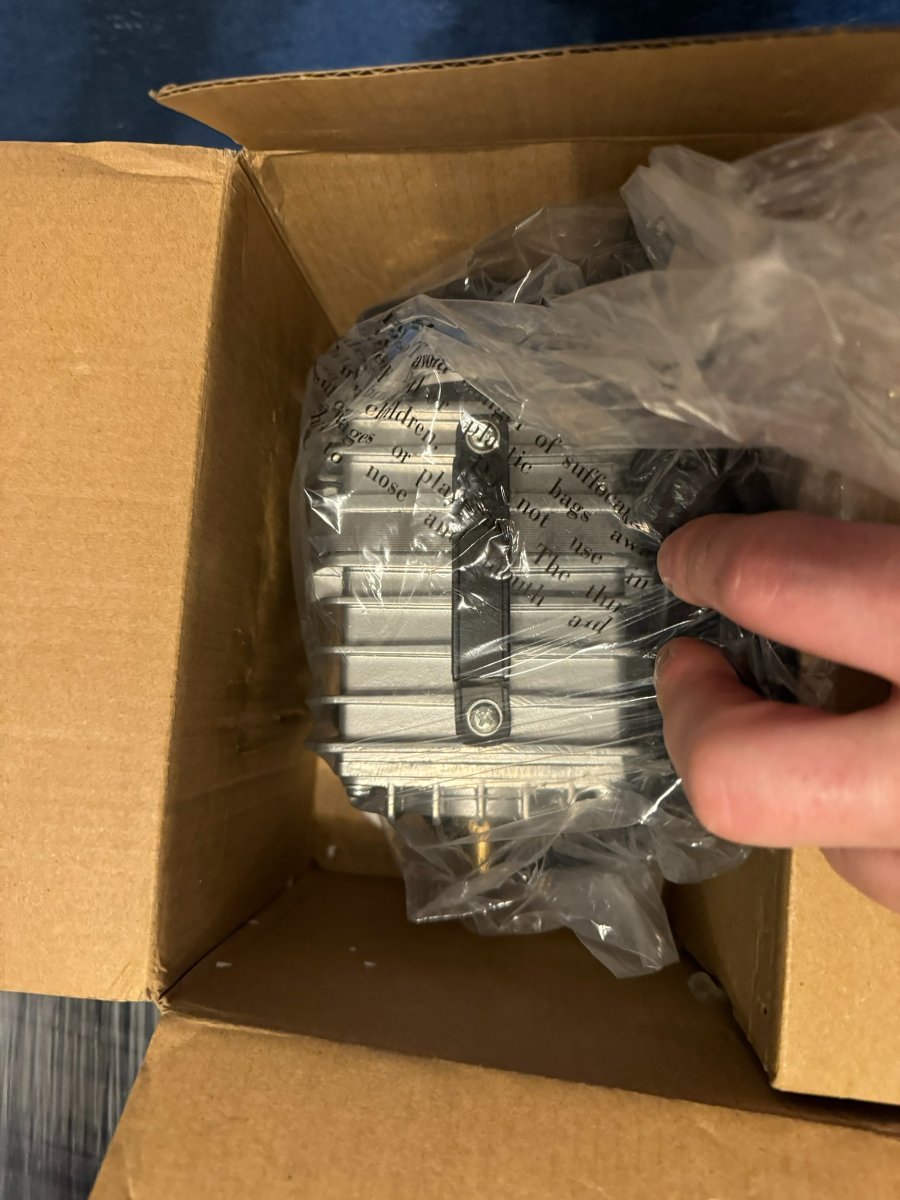

air pump im hoping to use it rather than liquid for the chips

[oggie]

1 hour ago, PFarm said:

Did your spindle come with a cable to connect to the VFD or do you need to fabricate a cable? The first thing is to verify that your spindle is grounded to the spindle body. Use a multimeter to check the continuity of the ground pin to the body. Some Chinese spindles aren't grounded to the body. I'm looking forward to following your build.

ill take a look and yes it came with a ribbon cable if thats the one your referring to

[PFarm]

2 minutes ago, oggie said:

ill take a look and yes it came with a ribbon cable if thats the one your referring to

This cable from the spindle to the VFD. (Cable in the Blue loom)

[PFarm]

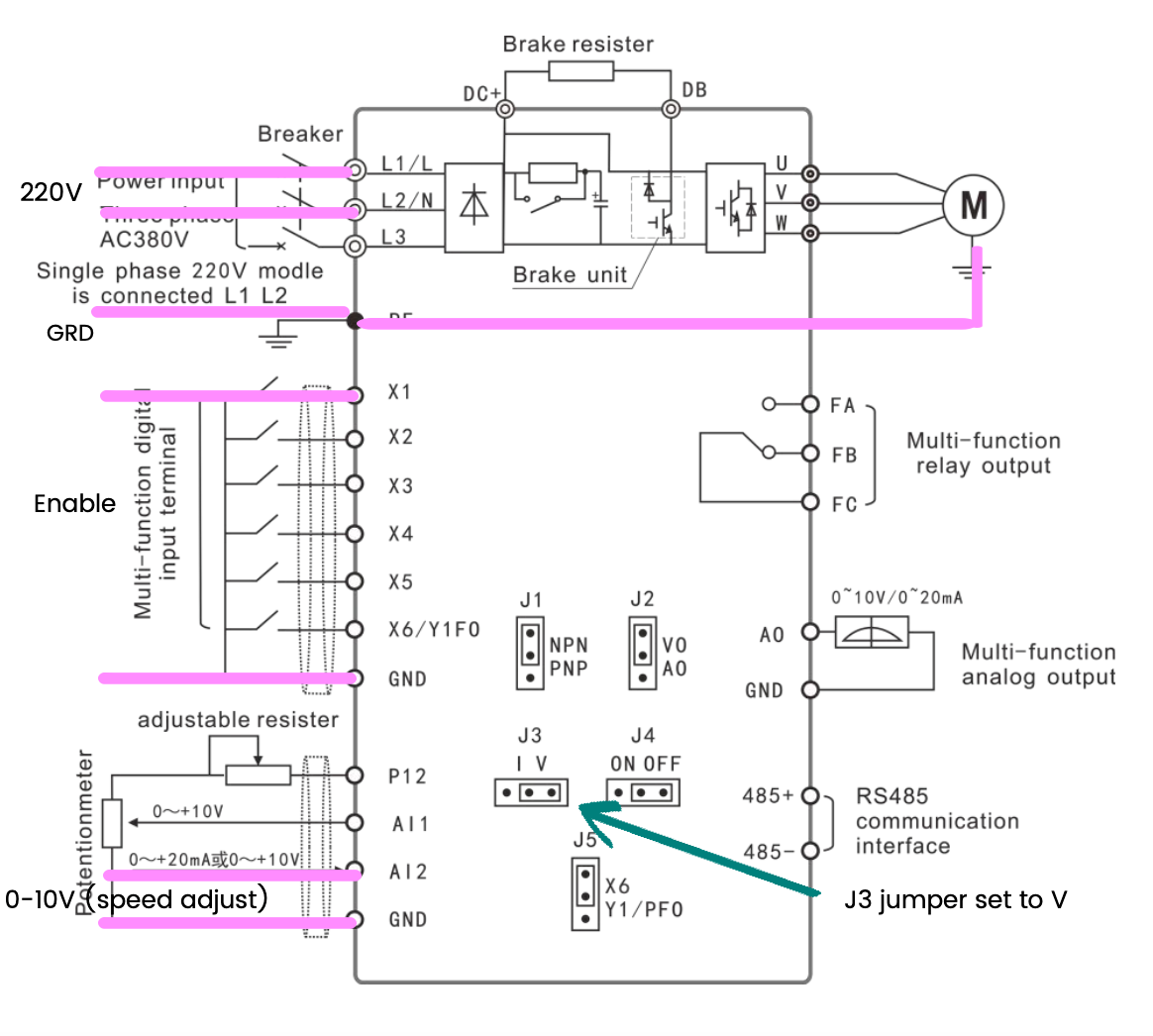

Here is the info on connecting your VFD to the LDO expansion module.

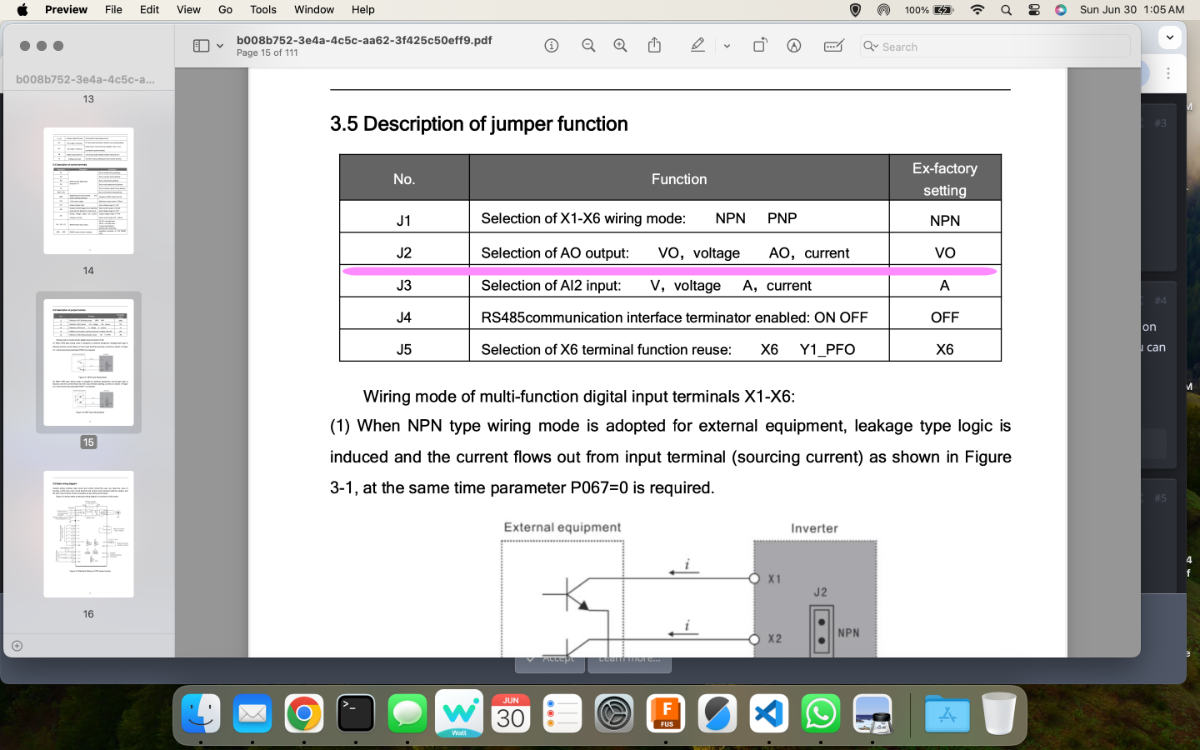

J3 is set to amps by default it needs to be set to volts.





[oggie]

On 6/30/2024 at 1:34 AM, PFarm said:

This cable from the spindle to the VFD. (Cable in the Blue loom)

Yes, I have that
