Voron 2.4 with ERCF 9 colors

[SMURPH]

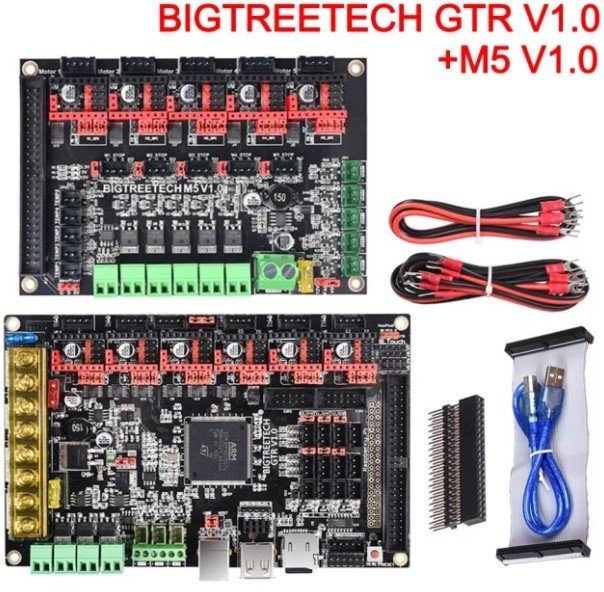

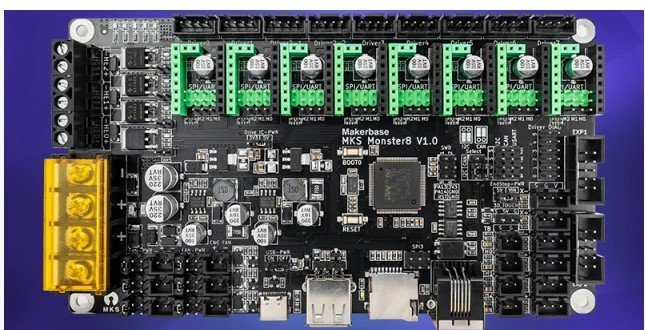

What motherboard setup is necessary to have the Enraged Rabbit Carrot Feeder (ERCF-9) work? I currently am building the Voron 2.4 and have a couple of mother boards available; BIGTREETECH GTR V1.0 Control Board 32Bit+M5 V1.0 Expansion Board 3D Printer Parts with TMC2209 & the Makerbase MKS Monster8 32Bit Control Board 3D Printer parts with TMC2209 for Voron.

[GarthSnyder]

You'll need two stepper motor drivers for the ERCF, along with a few sensor ports. You should be able to scrounge up the sensor connections from whatever mainboard you're using, but given that the Voron 2 requires 7 drivers of its own, you'll likely need an accessory board of some type with additional driver sticks.

The Easy BRD is a common choice. Its main advantage is size. You can probably buy an SKR for the same price, but the electronics bay on a 300mm Voron 2 is already pretty crowded. If you have spare boards on hand already, you could probably squeeze one in.

Edit: It doesn't matter how many filament bays you plan to install.

Edited March 14, 2022 by GarthSnyder

[mmb]

For ERCF get an ERCF EASY BRD (https://github.com/Tircown/ERCF-easy-brd); available at several Voron part sellers (fully populated and soldered). They are not expensive and also make the ERCF assembly (wiring) easier. For the Voron 2.4 itself I have both the Octopus and the Fysetc spider and both work great.

[SMURPH]

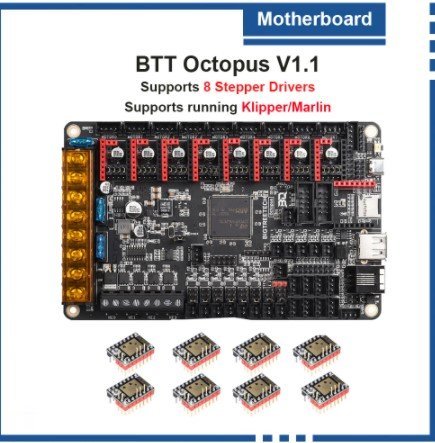

Thanks for the info. I do have the easy BRD. It came with my ERCF. Also I have the Voron 2.4 350mm. I am just about to start with the electronics bay and wanted to find out which mother board would be better. I also have the BIGTREETECH BTT Octopus V1.1 Control Board TMC2209 that came with my Voron 2.4 Build kit. Will the Octopus do the job?

[mmb]

Yes, IMHO the octopus is excellent. Just a tip: the tolerances for the ERCF plastic part are very tight. Make sure you tune your printer well before printing full plates of parts (as I have :-(). Follow Ellis's guide and then follow it again (seriously). Best of luck, don't rush and enjoy the build!

[SMURPH]

Can you send me the link



[mmb]

https://github.com/AndrewEllis93/Print-Tuning-Guide

[SMURPH]

Thank you very much

[OneStepAhead]

On 3/14/2022 at 4:32 PM, mmb said:

Yes, IMHO the octopus is excellent. Just a tip: the tolerances for the ERCF plastic part are very tight. Make sure you tune your printer well before printing full plates of parts (as I have :-(). Follow Ellis's guide and then follow it again (seriously). Best of luck, don't rush and enjoy the build!

What's Ellis's guide and where?

[claudermilk]

20 minutes ago, OneStepAhead said:

What's Ellis's guide and where?

This :



On 3/14/2022 at 4:39 PM, mmb said:

https://github.com/AndrewEllis93/Print-Tuning-Guide

He walks you through tuning your printer for better output.
