Voron 2.4 350 Hall Sensor

[Andrea60]

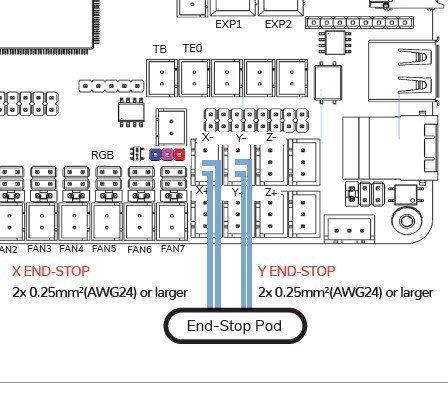

Hello everyone, I ask for help with wiring limit switch Hall sensor on Octopus pro 1.0 board, I have been watching the network but I still can't be sure, I am attaching 2 photos, I hope you can help me.

Thank's

[ProfBonaparte]

Forget the First Picture, this is for hardswitches, the Hall-Sensor need power and ground.

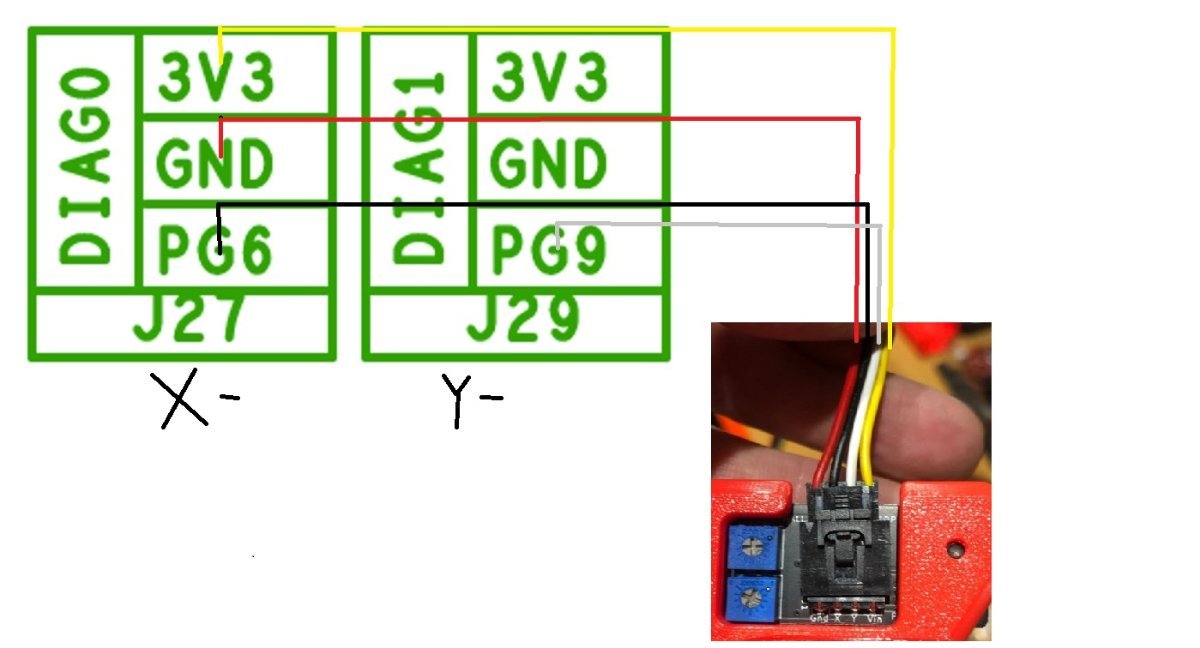

So the The Yellow one is Power and the Red is Ground, connect the Yellow, Red and Black ones to the X- Sensor Plug

and just the White Wire to the Y- Plug.


[Andrea60]

On 3/1/2022 at 12:24 PM, ahough said:

IThanks very kind

[JoeMikeT]

Doesn't the hall board require 5vdc? Wiring it the way above only provides 3.3vdc

[Andrea60]

Hi joeMike, I can assure you that it works regularly so wired

[patchanman]

On 3/8/2022 at 8:09 AM, Andrea60 said:

Hello everyone, I ask for help with wiring limit switch Hall sensor on Octopus pro 1.0 board, I have been watching the network but I still can't be sure, I am attaching 2 photos, I hope you can help me.

Thank's

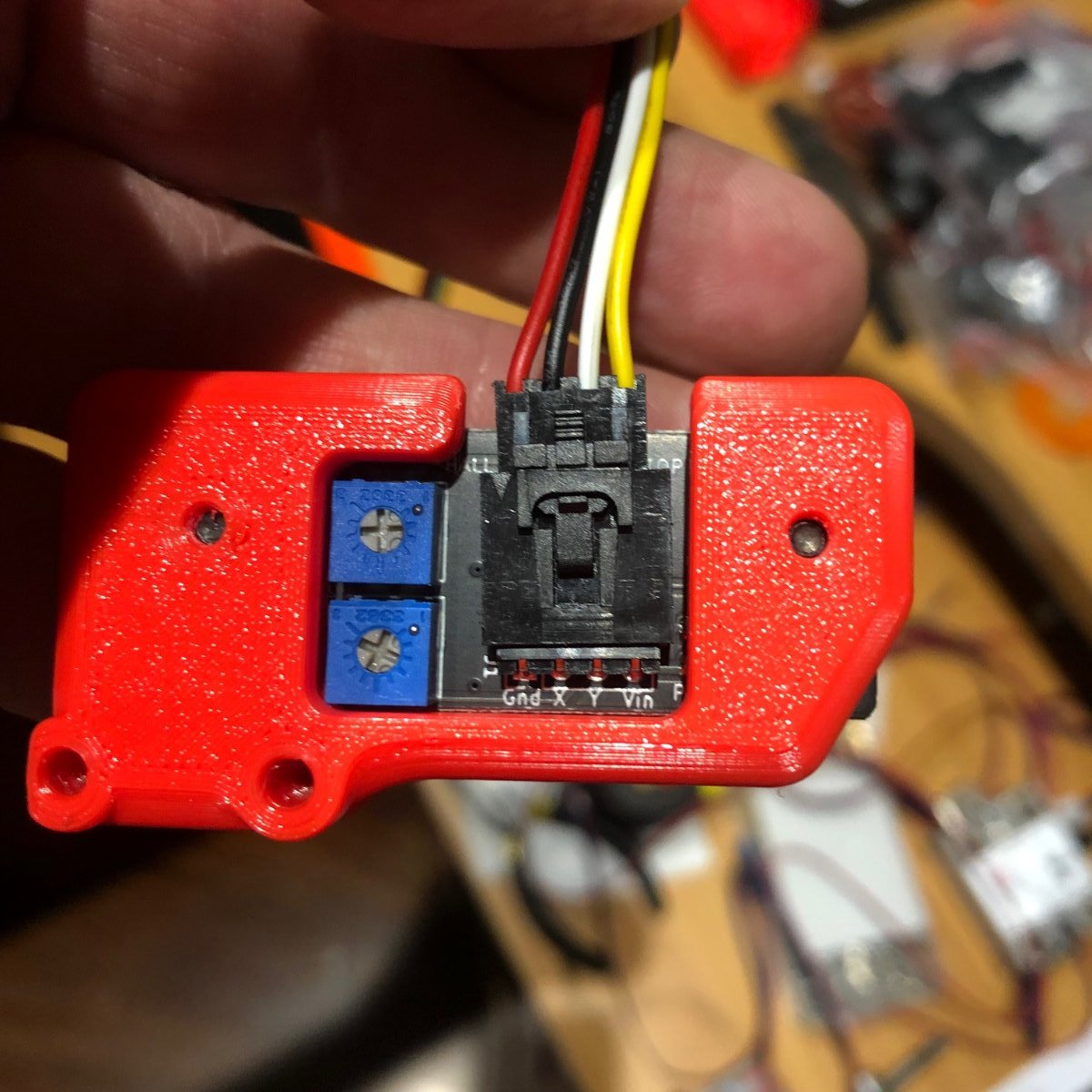

What connector is used in the second picture, my molex ones don't fit.
