BTT Hdmi5 display

[Brystro]

I am wanting to mount my Bigtreetech HDMI5 display to the top of my 2.4 300 ( since I have the Clicky Clack Dooor) but can’t find any good STLs (and I don’t know CAD….yet).


Can anyone point me to one?  Looking for 45 degree or larger that will mount to the 2020 on top. Thanks in advance!

[Raniz]

Do the door protrude beneath the lower extrusion?

I found this mount after I already printed another, but I'm considering switching because the one I have is quite flimsy.

Looks like it sits entirely beneath the extrusion so shouldn't collide with the door extrusions.



https://www.printables.com/model/586475-hdmi5-case-for-voron-24-300

[slk2k]

This model moves the screen further out to be away from the door. But it goes underneath.

https://www.printables.com/model/661094-voron-24-trident-with-clicky-clacky-door-touchscre

[Brystro]

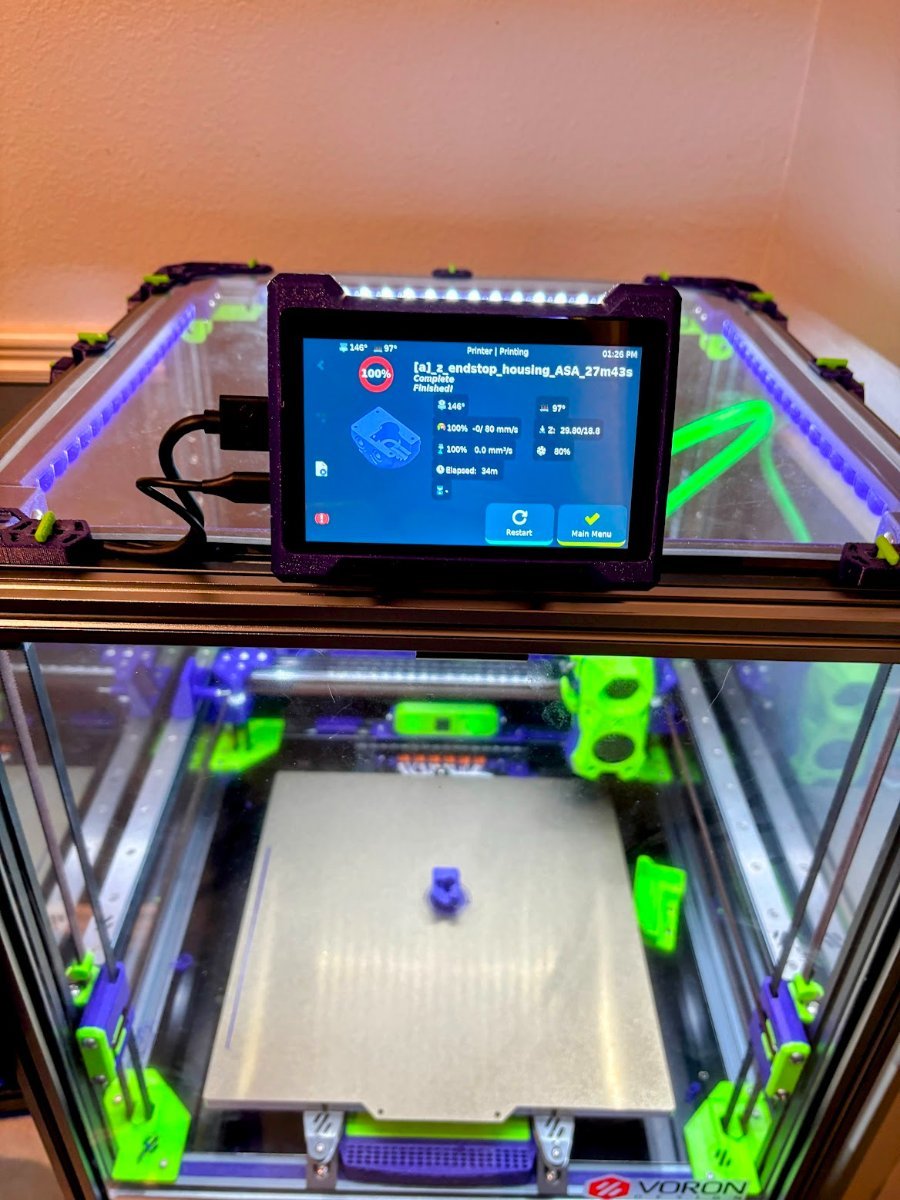

I am using this as the frame

https://www.printables.com/model/306731-biqu-hdmi5-case/files

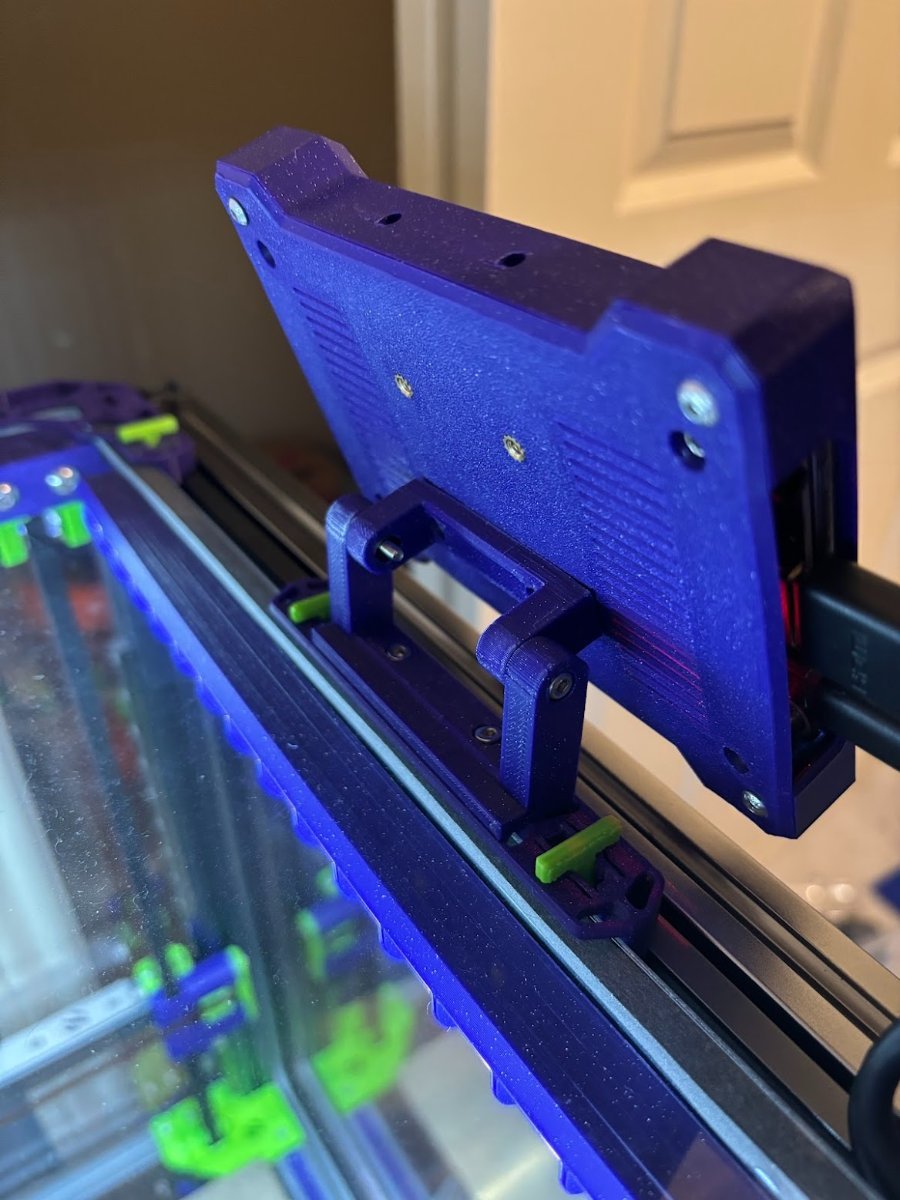

and attached it to the Annex Engineering panel clip (the lock_body_filament_switch_6mm_x1_Rev1.stl file)





Edited April 21 by Brystro
