TAP CNC V2 wiring (if you cut them to use on board/canbus)

[Buurman]

So the Chaoticlab CNC TAP V2 is pretty great if you ask me.

ITs optical now, lighter (MGN7) but still, stronger, more stable than a V1 version. well done.

But if you cut the wires to connect it to a canbus board, in my case a FLY36 v2, beware of the NOT logical colors of the wiring.

RED is 5-24V (also nice and so far predictable)

BLUE is - MINUS

BLACK is SIGNAL!

Makes no sense, but there you go, wiring the blue/black wrong wont damage the sensor, but it will stay RED constantly and wont trigger.

No documentation available, so I hope this is useful to someone.

[YaaJ]

This is the standard for sensors :

- brown or red = V+, (rarely red !)
- blue = V-
- black = signal

https://forum.digikey.com/t/3-wire-connection-of-pnp-and-npn-sensors/25141

Edited February 14 by YaaJ

[DennisM]

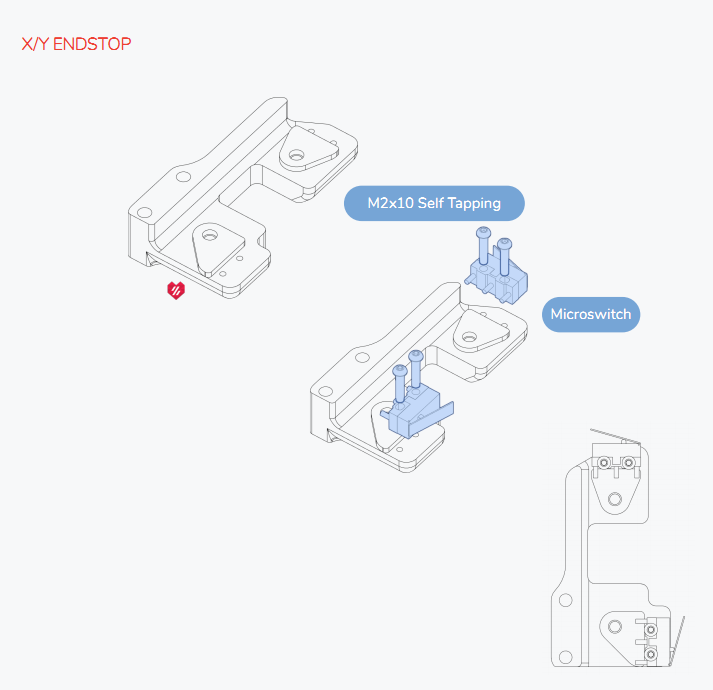

Quick question about the V2 bracket. I'm interested and will get one when they're available again, but I am a little confused about the X limit switch.

On my printer, both the X and Y limit switches are mounted to something on the right side end of the X carriage, not on the toolhead itself.

Anyone come across this?



This thing:

Edited February 17 by DennisM

[DennisM]

Also, regarding the wire colors, I see this in their manual:

"With the Black/Blue/Red variant please be
extra cautious not to confuse the signal and ground wires.
Ground is usually a black wire but in this variant it is a blue
wire with the signal being black. This variant is being phased
out in order to avoid confusion."

[DennisM]

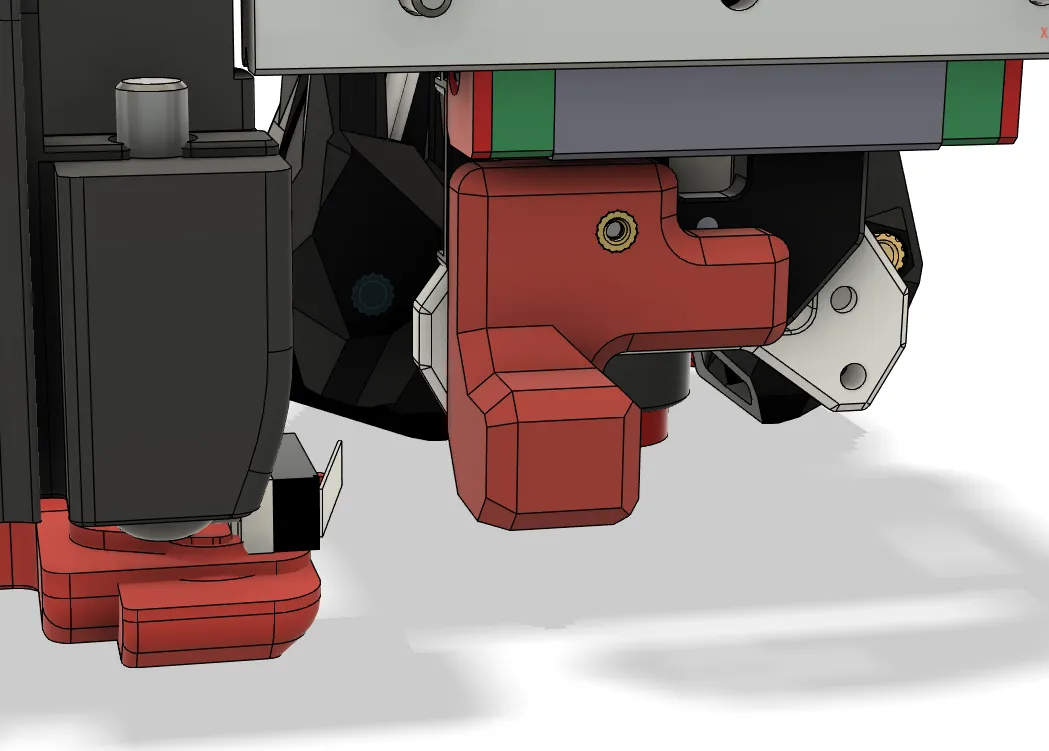

Last update here -- it looks like I just need to print this and use it on the endstop to utilize my current X/Y pcb endstop setup:

https://www.printables.com/model/606909-voron-chaoticlab-cnc-tap-endstop-x



[mvdveer]

6 hours ago, DennisM said:

Last update here -- it looks like I just need to print this and use it on the endstop to utilize my current X/Y pcb endstop setup:

https://www.printables.com/model/606909-voron-chaoticlab-cnc-tap-endstop-x

Those are the ones to use.

[Penatr8tor]

On 2/14/2024 at 7:45 AM, Buurman said:

ITs optical now, lighter (MGN7) but still, stronger, more stable than a V1 version. well done.

It was optical before. It used an optical microswitch that was really hard to source so, more than likely the reason why they swapped it out for the more ubiquitous sensor used on the OG Voron TAP.

[MrBean]

those colours are widely used for sensors. But I agree with you, black for V-, red for V+ and yellow for signal would be nice. I can see no reason why that should be changed.

[Picalo]

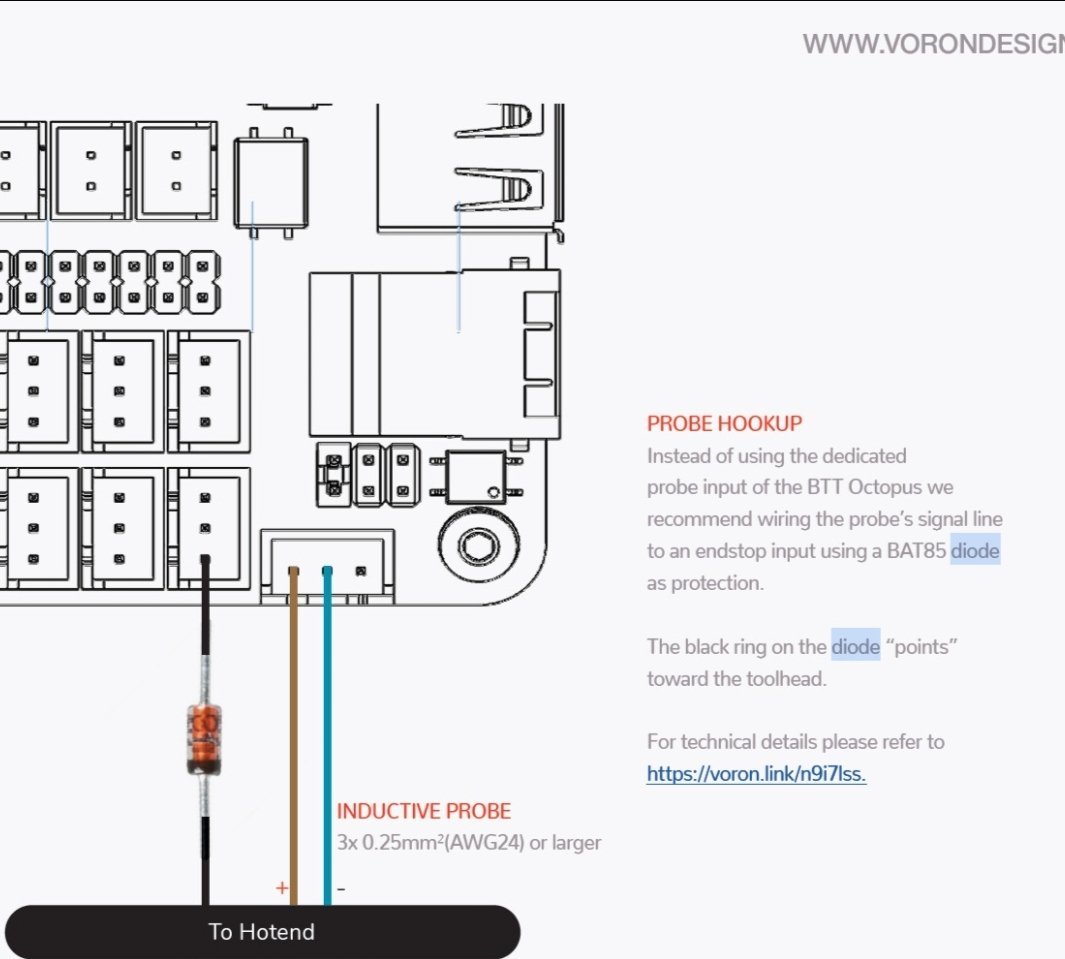

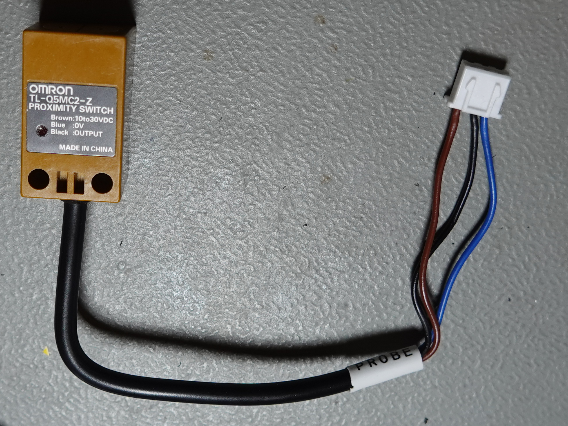

Can I use the old line that the omron was connected to and plug in the CNC tap sensor? The line has a bat85 diode on the Black wire.



Voron 2.4 | Octopus pro V1 | Tap V2

[claudermilk]

Yes, stick with that. I went from inductive to Klicky to Tap, all using that connection on the Octopus.

[Picalo]

43 minutes ago, claudermilk said:

Yes, stick with that. I went from inductive to Klicky to Tap, all using that connection on the Octopus.

Thank you just in time.
