Picobilical Pi Hat

[Brystro]

I am trying to figure out the ADXL settings for the Pi HAT that came with my Picobilical kit.  I figured out the UART but need the Klipper settings for the ADXL.  Can someone help or point me to a link?  Thanks in advance.

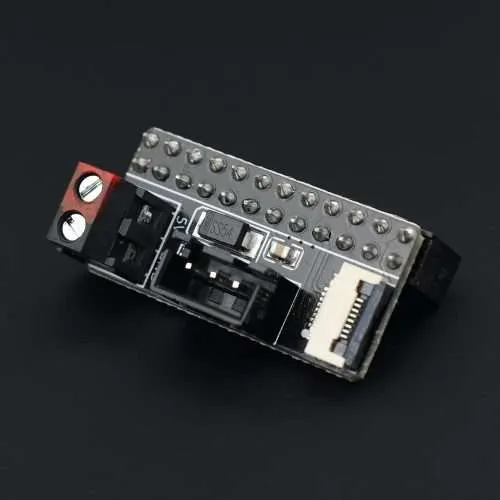

This is the 'HAT'

[YaaJ]

Of course, the shaper settings will be replaced with yours !

#___________________________________________________________________
; Resonance / Input Shaper

; ACCELEROMETER_QUERY
; MEASURE_AXES_NOISE
; TEST_RESONANCES AXIS=X
; TEST_RESONANCES AXIS=Y
; SHAPER_CALIBRATE then SAVE_CONFIG saves suggested values, except max. accelerations
; ~/klipper/scripts/calibrate_shaper.py /tmp/resonances_x_*.csv -o /tmp/shaper_calibrate_x.png
; ~/klipper/scripts/calibrate_shaper.py /tmp/resonances_y_*.csv -o /tmp/shaper_calibrate_y.png

[mcu rpi]
serial: /tmp/klipper_host_mcu

[adxl345]
cs_pin: rpi:None

[resonance_tester]
accel_chip: adxl345
probe_points: 60, 60, 20

[input_shaper] ; 2023-09-18

shaper_type_x: mzv  ; (vibrations = 0.2%, smoothing ~= 0.025)
shaper_freq_x: 95.6 ; suggested max_accel <= 26900 mm/sec^2
shaper_type_y: mzv  ; (vibrations = 0.0%, smoothing ~= 0.049)
shaper_freq_y: 65.2 ; suggested max_accel <= 12500 mm/sec^2

; -> accel limit 10000 mm/s²



[Brystro]

Thank you!  That worked.  My logical brain couldn't comprehend cs_pin: rpi:None.  Thanks again!

[YaaJ]

1 hour ago, Brystro said:

cs_pin: rpi:None.

Means there's no chip select management. Considering one device only on the SPI bus.
SPI requires as many CS than devices, while thre's one unique data/clock bus. SPI is a bit dumb.

Just have a look to the two pictures. Self explanatory.

https://evision-webshop.eu/blog/i2c-vs-spi-protocol-differences-and-similarities
